Press the00E2 button tocall up the list of
menus. #
Use the0064 or0063 button toselect the
Media menu. #
Press the0076 button toconfirm.
Changing the media sou rceYo
u can change the media source and the play‐
back type (audio, video or TV) in theMedia menu. #
Toopen/close the media source lis t:
brief lypress the0076 button.
Depending on theve hicle equipment, the list
will show thefo llowing media sources, for
ex ample:
R Disc (CD/ DVD)
R Memory card (SD or SDHC)
R Media Regis ter
R USB storage devices
R Blue tooth ®
audio equipment
% Obse
rveth e additional information on media
support in "Media" .
Operating the audio pla yer or data storage
media 1
Media sou rce, e.g. the name of the USB flash
drive
2 Current track
3 Artist's name
4 Name of album
5 Folder name Depending on
theve hicle's equipment, you can
play back audio files from dif fere nt audio pl ayers
or data storage media. #
Toselect the audio pla yer or data storage
medium: briefly press the0076 button.
The display will show the list of media sour‐
ces. #
Use the0064 or0063 button toselect the
audio pla yer or data storage medium. #
Press the0076 button toconfirm. #
Toopen the track lis t:brief lypress the0064
or 0063 button. #
Toselect the next or pr evious track on
th e track lis t:briefly press the0064 or0063
button. #
Toselect a track on the track list with
ra pid sc roll: press and hold the0064 or
0063 button until the desired tra ckhas been
re ached.
If yo u press and hold the0064 or0063 but‐
to n, thera pid scroll speed will increase af ter
a short time. Not all audio pla yers or data
st orage media support this function.
If th e cor responding track information has been
sa ve dto the audio pla yer or data storage
medium, the display can show thefo llowing:
R Track number
R Track name
R Artist
R Album
The track information will not be displa yed in AUX
audio mode (auxiliary audio mode: extern al audio
source connec ted).
Operating DVD-Video #
Toselect theDV D drive or disc: briefly
press the0076 button.
The display will show the list of media sour‐
ces. #
Use the0064 or0063 button toselect the
DV D drive or disc. #
Press the0076 button toconfirm. #
Toopen the scene lis t:briefly press
th e0064 or0063 button. #
Toselect the next or pr evious scene on
th e scene lis t:briefly press the0064 or
0063 button. #
Toselect a scene on the scene list with
ra pid sc roll: press and hold the0064 or Instrument clus
ter and on-board computer 187

0063
button until the desired scene has been
re ached. #
Press the0076 button toconfirm. Te
lephone menu &
WARNING Risk of distraction from oper‐
ating integrated communication equip‐
ment while theve hicle is in motion
If yo u operate communication equipment
integ rated in theve hicle when driving, you
could be distracted from the tra ffic situation.
This could also cause youto lose control of
th eve hicle. #
Only operate this equipment when the
traf fic situation permits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and traf fic conditions and ope rate the
equipment with theve hicle stationar y. When using
the phone, you must obse rvethe
legal requirements forth e count ryin which you
are cur rently driving. #
Switch on the mobile phone (see the separate
operating instructions from the manufac‐
turer). #
Switch on the multimedia sy stem. #
Insert the mobile phone into the mobile
phone cradle.
or #
Establish a Blue tooth®
connection with the
multimedia sy stem . #
Press the00E2 button tocall up the list of
menus. #
Use the0064 or0063 button toselect the
Telephone menu. #
Press the0076 button toconfirm.
The display will show one of thefo llowing
messages:
R Telephone ready or name ofthe mobile
phone network pr ovider: the mobile
phone has found a network and is ready
to receive.
R Telephone No service: no network is avail‐
able or the mobile phone is sear ching for
a networ k.
Yo u can obtain fur ther information about suitable
mobile phones and connecting mobile phones via Blue
tooth ®
from a Mercedes-Benz service centre
or on the internet under https://www.mercedes-
benz.com/connect. #
Toaccept a call: pressthe0061 button.
If someone calls you when you are in theTele-
phone menu, a cor responding message will
appear on the displa y. #
Toreject or end a call: pressthe0076 but‐
to n.
Dialling a number from the telephone book #
Use the0064, 0063or0076 button toswitch
to thete lephone book. #
Use the0064 or0063 button toscroll
th ro ugh names.
If yo u press and hold the button for longer
th an one second, the names in thete lephone
book will be displa yedqu ickly one af terthe
ot her.
or #
Press and hold the0064 or0063 button for
longer than five seconds.
Ra pid scrolling – the name that starts with
th e next letter or the pr evious letter in the
alphabet is displa yed.
Ra pid scrolling will stop when youre lease the
button or reach the end of the list. #
If only one telephone number has been
sa ve dfo r a name: pressthe0061 or0076
button tostart dialling.
or #
If se veralte lephone numbers ha vebeen
sa ve dfo r a name: pressthe0061 or0076
button todisplay thete lephone numbe rs. #
Use the0064 or0063 button toselect the
te lephone numbe r. #
Press the0061 or0076 button tostart dial‐
ling. #
Toexitth ete lephone book: pressthe0076
or 0038 button.
Using redial #
Press the0061 button toswitch tothere dial
memor y. #
Use the0064 or0063 button toselect the
name or telephone numbe r. #
Press the0061 or0076 button tostart dial‐
ling. #
Toexitth ere dial memor y:press the0076
or 0038 button. 18 8
Instrument clus ter and on-board computer

Settings menu
#
Press the00E2 button tocall up the list of
menus. #
Use the0064 or0063 button toselect the
Settings menu. #
Press the0076 button toconfirm.
Yo u ha vethefo llowing options on theSettings
menu:
R Changing the settings forth e driver assis‐
tan ce sy stems on the Assis tance submenu
R Changing the settings forth eex terior lighting
on the Lights submenu
R Changing the display options on the Instru‐
ment clus ter submenu
R Setting the permanent limiter on theVe hicle
submenu
R Resetting the settings tofactory settings #
Select the desired submenu and confirm your
selection.
Assistance submenu #
Select a driving or driver assis tance sy stem
and configure a setting.
R Switching ESP ®
on/o ff (/ page 155).
R Switching Traf fic Sign Assi ston/off
(/ page 173).
R Switching Active Brake Assi ston/off
(/ page 157).
R Swit ching Blind Spot Assist on/off
(/ page 174).
R Adjusting ATTENTION ASSIST
(/ page 172).
R Adjusting Lane Keeping Assist
(/ page 175).
Lights submenu
The following settings are possible on the Lights
submenu:
R Switching the Intelligent Light Sy stem on/o ff
( / page 108)
R Switching between low beam forright- and
left-side traf fic (in vehicles with Intelligent
Light Sy stem only) #
Use the0064 or0063 button toselect the
Lights submenu. #
Press the0076 button toconfirm. #
Toswitch between low beam forri ght-
and left-side traf fic: use the0064 or0063
button toselect Dipped beams Setting for.
The display will show the selected setting. #
Change the selected setting with the0076
button.
When youch ange the setting, the switcho ver
will not take place until the next time the
ve hicle is stationar y.
When you swit chove rth e low beam forright- or
left-side traf fic, mo torw ay mode and the
enhanced fog light function may not be available.
This deactivation will take place only if the setting
fo r driving on theright or left is the opposite to
yo ur vehicle's national version.
Yo u can ha vethe low beam set forright- or left-
side traf fic at a qualified specialist workshop as
we ll.
Instrument clus ter submenu #
Use the0064 or0063 button toselect the
Instrument cluster submenu. #
Press the0076 button toconfirm. #
Toselect the unit of measurement for dis‐
tance: usethe0064 or0063 button toselect
th eDisplay unit Speed-/odometer function.
The display will show the selected setting km
or Miles. #
Change the selected setting with the0076
button. #
Toswitch the additional speedome ter on/
off: usethe0064 or0063 button toselect
Addit. speedo.
The cur rent selection will appear. #
Press the0076 button tochange the setting.
Ve hicle submenu #
Use the0064 or0063 button toselect the
Vehicle submenu. #
Press the0076 button toconfirm. #
Toset the permanent limiter: usethe0064
or 0063 button toselect Limit speed (winter
tyres).
The display will show the cur rent setting. #
Tochange the setting: pressthe0076 but‐
to n. #
Tosave the entr y:press the0076 button.
% Yo
u can find fur ther information in "Perma‐
nent limiter" (/ page160). In
stru ment clus ter and on-board computer 18 9

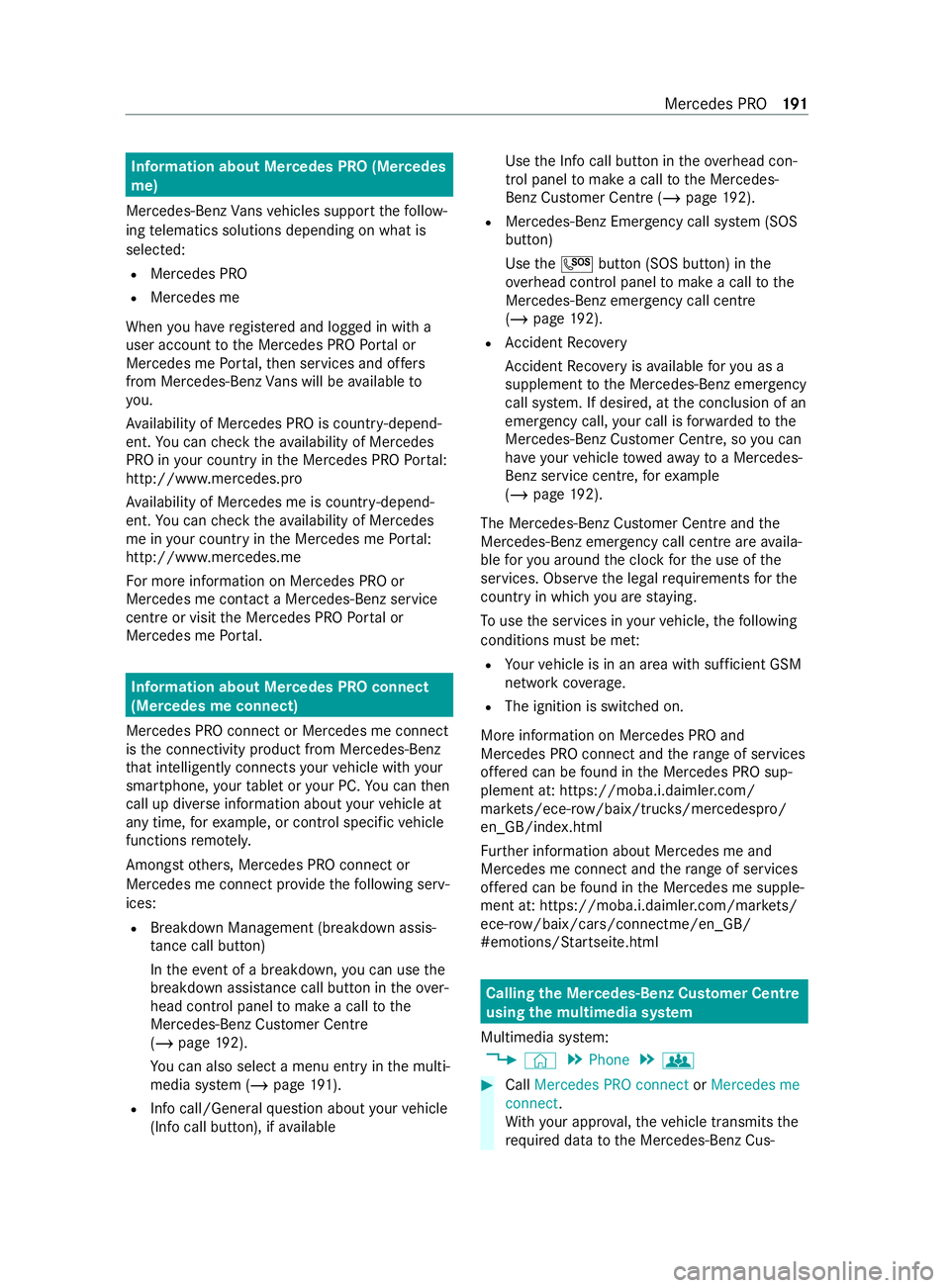

Information about Mercedes PRO (Mercedes
me)
Mercedes-Benz Vans vehicles support thefo llow‐
ing telematics solutions depending on what is
selec ted:
R Mercedes PRO
R Mercedes me
When you ha veregis tere d and logged in with a
user account tothe Mercedes PRO Portal or
Mercedes me Portal, then services and of fers
from Mercedes-Benz Vans will be available to
yo u.
Av ailability of Mercedes PRO is countr y-depend‐
ent. You can check theav ailability of Mercedes
PRO in your country in the Mercedes PRO Portal:
http://www.mercedes.pro
Av ailability of Mercedes me is countr y-depend‐
ent. You can check theav ailability of Mercedes
me in your country in the Mercedes me Portal:
http://www.mercedes.me
Fo r more information on Mercedes PRO or
Mercedes me contact a Mercedes-Benz service
centre or visit the Mercedes PRO Portal or
Mercedes me Portal. Information about Mercedes PRO connect
(Mercedes me connect)
Mercedes PRO connect or Mercedes me connect
is the connectivity product from Mercedes-Benz
th at intelligent lyconnects your vehicle with your
smartphone, your tablet or your PC. You can then
call up diverse information about your vehicle at
any time, forex ample, or control specific vehicle
functions remo tely.
Among stothers, Mercedes PRO connect or
Mercedes me connect pr ovide thefo llowing serv‐
ices:
R Breakdown Management (breakdown assis‐
tance call button)
In theeve nt of a breakdown, you can use the
breakdown assis tance call button in theove r‐
head control panel tomake a call tothe
Mercedes-Benz Cus tomer Centre
(/ page 192).
Yo u can also select a menu ent ryinthe multi‐
media sy stem (/ page191).
R Info call/General question about your vehicle
(Info call button), if available Use
the Info call button in theov erhead con‐
trol panel tomake a call tothe Mercedes-
Benz Cus tomer Centre (/ page192).
R Mercedes-Benz Emer gency call sy stem (SOS
button)
Use the0053 button (SOS button) in the
ov erhead cont rol panel tomake a call tothe
Mercedes-Benz emergency call centre
( / page 192).
R Accident Recovery
Ac cident Recovery isavailable foryo u as a
supplement tothe Mercedes-Benz emer gency
call sy stem. If desired, at the conclusion of an
emer gency call, your call is forw arded tothe
Mercedes-Benz Cus tomer Centre, so you can
ha ve your vehicle towe daw ay toa Mercedes-
Benz service centre, forex ample
(/ page 192).
The Mercedes-Benz Cust omer Centre andthe
Mercedes-Benz emer gency call centre are availa‐
ble foryo u around the clock forth e use of the
services. Obser vethe legal requ irements forthe
country in whi chyou are stay ing.
To use the services in your vehicle, thefo llowing
conditions must be me t:
R Your vehicle is in an area with suf ficient GSM
network co verage.
R The ignition is switched on.
More information on Mercedes PRO and
Mercedes PRO connect and thera nge of services
of fere d can be found in the Mercedes PRO sup‐
plement at: https://moba.i.daimler.com/
mar kets/ece-r ow/baix/truc ks/mercedespro/
en_GB/index.html
Fu rther information about Mercedes me and
Mercedes me connect and thera nge of services
of fere d can be found in the Mercedes me supple‐
ment at: https://moba.i.daimler.com/mar kets/
ece-r ow/baix/ca rs/connectme/en_GB/
#emotions/S tartseite.html Calling
the Mercedes-Benz Cus tomer Centre
using the multimedia sy stem
Multimedia sy stem:
4 © 5
Phone 5
g #
Call Mercedes PRO connect orMercedes me
connect.
Wi th your appr oval, theve hicle transmits the
re qu ired data tothe Mercedes-Benz Cus‐ Mercedes PRO
191

A sy
stem update consists of thre esteps:
R Downloading or copying of the data requ ired
fo r ins tallation
R Installation of the downloaded sy stem update
R Activating the downloaded sy stem update by
re starting the sy stem
% An Internet connection is
requ ired for online
updates. For automatic online updates, your
ve hicle must ha vea permanent lyins talled
communication module.
% Yo
u can start the software update manually
via the sy stem settings. If automatic software
updates are activated, the sy stem updates
will be downloaded automatically . Settings
fo r automatic software updates can also be
made in the sy stem settings.
The multimedia sy stem pr ovides a cor responding
message when a sy stem update is available.
Yo u ha vethefo llowing selection options:
R Download
The sy stem update will be downloaded in the
bac kground.
R Details
Info rm ation about the pending sy stem update
is displa yed.
R Later
The sy stem update can be downloaded man‐
ually at a later time.
Deep sy stem updates
Deep sy stem updates access vehicle or sy stem
settings and can therefore only be car ried out
when theve hicle is stationary and the ignition is
switched off.
When the download of a deep sy stem update is
comple teand the downloaded sy stem update is
re ady for ins tallation, you will be notified, for
ex ample, af terth e next ignition cycle.
% Pa
rk theve hicle safely in a suitable location
before starting the ins tallation.
Re quirements forth e ins tallation:
R The ignition is switched off.
R Notes and warnings ha vebeen read and
accep ted.
R The electric parking brake has been applied.
If all requirements are met, the downloaded sys‐
te m update is ins talled. The multimedia sy stem
cann otbe operated while the downloaded sy stem update is being ins
talled and vehicle functions
are restricted.
If er rors should occur during the ins tallation, the
multimedia sy stem automatically attem ptsto
re store the pr evious version. If restoration of the
pr ev ious version is not possible, a symbol
appears on the media displa y.Consult a qualified
specialist workshop toresol vethe problem. Setting up a
Wi-Fi hotspot Requ
irements:
R To
set up theWi -Fi connection of the mul‐
timedia sy stem with extern al hotspots:
th ere is no communication module ins talled.
R The device tobe connected supports at least
one of the types of connection described.
Multimedia sy stem:
4 © 5
Settings 5
System
5 Wi-Fi & Bluetooth
Ac tivating/deactivating Wi-Fi #
Select Wi-Fi.
Connecting the multimedia sy stem toan
ex tern al hotspot via Wi-Fi
The type of connection es tablished must be
selected on the multimedia sy stem and on the
device tobe connected.
% The connection procedure may dif
fer depend‐
ing on the device. Follow the instructions that
are shown in the displa y.Fu rther information
can be found in the manufacturer's operating
instructions. #
Select Internet settings . #
Select Connect via Wi-Fi. #
Select Add hotspot .
Connecting using a security key #
Select the options 0048ofthe desired Wi-Fi
networ k. #
Select Connect using security key. #
Have the security key displa yed on the device
to be connected (see the manufacturer's
operating instructions). #
Ente rth is security key on the multimedia sys‐
te m. #
Confirm the entry with¡. 19 8
MBUX multimedia sy stem

The
following vehicle status data is transmitted:
R The transmission position engaged
R The distinction between par ked, standstill,
ro lling and driving
R The day/night mode of the instrument clus ter
The transfer of this data is used toalter how con‐
te nt is displ ayed tocor respond tothe driving sit‐
uation.
The following position data is transmitted:
R Coordinates
R Speed R
Compass direction
R Accele ration di rection
This da tais only transfer red while the navigation
sy stem is active, in order toimpr oveit (e.g. so it
can continue functioning when in a tunnel). We
b br owser overview
The web br owser is launched on the home screen
af te r selecting Mercedes PRO & Apps or
Mercedes me & Apps viaz Browser. 1
URL entry
2 Bookmar ks
3 Web page, back
4 Web page, forw ards
5 Torefresh/s top
6 Options
% Some functions are countr
y-dependent.
% We
bsites cann otbe shown while theve hicle
is in motion. Ra
dio and media Overview of the symbols and functions in the media menu
Symbo
lD esignation Function
00D0 Pla
yS electtostart or continue playbac k.
00CF Pa
use Selecttopause the playbac k. 208
MBUX multimedia sy stem

Note
s on loading guidelines &
DANG ER Risk of exhaust gas poisoning
Combustion engines emit poisonous exhaust
ga ses such as carbon monoxide. Exhaust
ga ses can enter theve hicle interior if theta il‐
gate is open when the engine is running,
especially if theve hicle is in motion. #
Always switch off the engine before
opening theta ilgate. #
Never drive with theta ilgate open. &
WARNING Risk of injury from unsecured
objects in theve hicle
When objects are unsecured or inadequately
secured, they can slip, tip over or be thro wn
about, striking vehicle occupants.
This also applies to:
R luggage or loads
R seats which ha vebeen remo ved and are
being transpor ted in theve hicle in an
exc eptional case
There is a risk of injur y,particularly in the
ev ent of braking manoeuvres or abrupt
ch anges in direction. #
Alwaysstow objects in such a wayth at
th ey cannot be tossed about. #
Before tr avelling, secure objects, lug‐
ga ge or load topreve ntthem slipping or
tipping over. #
When a seat is remo ved, keep it prefera‐
bly outside theve hicle. &
WARNING Risk of accident due toincor‐
re ctly positioned load
The centre of gr avity of the load can be too
high and/or toofa rto wa rdsth ere ar.
This can significantly impair handling as well
as steering and braking characteristics. #
Always make sure that the cent reof
gr av ity of the load is between the axles
and as low as possible near there ar
axle. &
WARNING Risk of accident due to
exc eeding the permissible wheel/axle
loads or the gross vehicle weight
The driving characteristics, as well as steering
and braking, may be greatly impaired. Over‐
loaded tyres may overheat and bur stas a
consequence. #
When transpo rting a load, alw ays
obser vethe permissible wheel loads,
axle loads and the maximum permissi‐
ble gross mass forth eve hicle (including
occupants). &
WARNING Risk of injury if unsuitable
climbing aids are used
In theev ent that you use openings in the
bodywork or attachments as steps, you
could:
R Slip and/or fall.
R Damage theve hicle and thus slip and fall. #
Always use non-slip, stable climbing
aids, e.g. a suitable ladder. *
NO
TEDama gecaused bythe use of
openings in the bodywork or de tach able
part as a step Using
the lo wer guide of the sliding door (car‐
ri age) as a step can damage the trim and/or
mechanism of the sliding door. #
Do not use the guide of the sliding door
(car riage) as a step. If
yo u are using a roof luggage rack , please no te
th e maximum roof load and the maximum load
capacity of thero of luggage rack ( /page 278).
The handling characteristics of your vehicle are
dependent on the load distribution.
Therefore, please obser vethefo llowing no tes
when loading:
R the load must not pr otru de abo vethe upper
edge of the seat backrests.
R if possible, alw ays transport the load in the
load compartment.
R fastenthe load tothe tie-down eyes and dis‐
tribute the load evenly among them. 212
Transporting

Load compa
rtment variants
Yo u can vary the load compartment according to
yo ur transpo rtation requirements as follo ws:
R byfolding there ar seat backrests or rear
ben chseat backrests forw ard totheta ble
position
R byfolding there ar seats forw ards
R byfolding there ar ben chseat forw ards
R byremoving there ar seats and/or there ar
ben chseat
R byremoving the seat/bunk combination
R byfolding up or removing the bed extension
of the seat/bunk combination
Yo u will find information about there ar seats and
th ere ar ben chseat in the "Seats" section
(/ page 74). Securing loads
Note
s on load securing *
NO
TEDama getotheve hicle if the maxi‐
mum loading capacity of the lashing
points is exceeded If
yo u combine various lashing points to
secure a load, alw aystak eth e maximum load‐
ing capacity of thewe akest lashing point into
account.
During maximum full- stop braking, forc es may
act which can multiply thewe ight of the load. #
Always use se veral lashing points todis‐
tribute and spread the load. #
Distribute the load on the lashing points
eve nly. Obser
vethe information relating tothe maximum
loading capacity of the lashing points
(/ page 278).
As the driver, you are responsible for ensuring the
fo llowing:
R The load is secured against slipping, tipping,
rolling or falling off.
Ta ke usual traf fic conditions as well as swerv‐
ing or full brake application and bad roads
into account.
R The applicable requ irements and guidelines
re lating toload-securing practices are met.
If th is is not the case, this may const itute a
punishable of fence, depending on local legis‐ lation and any ensuing conse
quences.
Obser vecountr y-specific la ws.
Make sure that the load is secure before every
jou rney and at regular inter vals during a long
journe y.Ad just the load securing as necessar y.
Information on how tosecure loads cor rectly can
be obtained from the manufacturers of the load
securing aids or lashing material for load secur‐
ing, forex ample.
Also obse rveth e no tes on loading guidelines
(/ page 212).
When securi ng loads, obser vethefo llowing:
R Fill spaces between the load and the load
compartment walls or wheel wells. Forth is
purpose, use rigid load securing aids, such as
ch oc ks,wo oden fixings or padding.
R Attach secured and stabilised loads in all
directions.
Use the lashing points or the tie-down eyes
and guide rails in there ar compartment.
Only use lashing materials, such as lashing
nets and lashing stra ps, which ha vebeen tes‐
te d in accordance with cur rent standards
(e.g. DIN EN). Alw ays use the lashing points
closest tothe load and pad sharp edges.
% Yo
u can obtain lashing material tested in
accordance with cur rent standards (e.g.
DIN EN) from a specialist company or from a
qu alified specialist workshop.
Note onthe lashing points and tie-down eyes
on the load compa rtment floor forto uring
mo torc ycles (vehicle category M1) Example: lashing angle
for optimal load security
0057 Vertical tothe load compartment floor
0058 Load compartment floor 214
Transporting

Note
s on maintenance
+ ENVIRONMENTA
LNO TEEnvironmen‐
ta lly pollution from disposal not in an
environmentally responsible manner If,
for operating reasons, individual main te‐
nance workis car ried out under your own
direction, the environmen tal pr otection
re qu irements must be obser ved. When dis‐
posing of operating fluids, e.g. engine oil, the
legal requ irements must be obser ved. This
also af fects all pa rts th at ha vecome into con‐
ta ct with operating fluids, e.g. filters. #
Dispose of em pty containers, cleaning
clo ths and care products in an environ‐
mentally responsible manner. #
Follow the instructions for use of care
products. #
Do not allow th e enginetorun longer
th an necessary when stationar y. When
working on theve hicle, comply with all
saf etyre gulations, such as the operating instruc‐
tions, regulations concerning hazardous materi‐
als, environmental pr otection measures, work
saf ety and accident pr evention regulations.
Yo u must secure theve hicle on jack stands of
suf ficient load capacity if workis being car ried
out underneath theve hicle.
Please also referto the no tes about qualified spe‐
cialist workshops (/ page 22).
The scope and regularity of the inspection and
maintenance workprimarily depend on the of ten
diverse operating conditions.
Yo u can obtain fur ther information concerning
th e servicing of your vehicle from a qualified spe‐
cialist workshop, e.g. a Mercedes-Benz Service
Centre.
Yo u will find information about ope rating fluids
appr oved for Mercedes-Benz and capacities
under "Opera ting Fluids and Capacities"
(/ page 269).
Obser vethe information under "Mercedes-Benz
GenuineParts" (/ page16). Se
rvice inter val display Service inter
val display function The ASSY
STPLUS service inter val display on the
instrument clus ter display pr ovides information on
there maining time or dis tance be fore the next
service due date.
Under arduous operating conditions or if theve hi‐
cle is subjected toinc reased loads, the ASS YST
PLUS service inter val display may shor tenthe
service inter val.
Yo u can obtain fur ther information concerning
th e servicing of your vehicle from a qualified spe‐
cialist workshop. Displaying
the service due da te Re
quirements
R The ignition is switched on.
On-board computer: 4 Service 5
ASSYST PLUS
The next service due date is displa yed. #
Toexitth e displa y:press the0076 or0038
st eering-wheel button. Information on
regular maintenance work *
NO
TEPremature wearthro ugh failure to
obser veservice due dates Maintenance
workwhich is not car ried out at
th eright time or incomple tely can lead to
inc reased wear and damage totheve hicle. #
Adhere tothe prescribed service inter‐
va ls. #
Always ha vethe prescribed mainte‐
nance workcar ried out at a qualified
specialist workshop. Note
s on special service requ irements The prescribed service inter
val is based on nor‐
mal vehicle use. Maintenance workwill need to
be per form ed more of tenth an presc ribed if the
ve hicle is operated under arduous operating con‐
ditions or increased loads.
Arduous operating conditions include:
R regular city driving with frequent intermediate
st ops
R frequent short-dis tance driving
R frequent ope ration in mountainous terrain or
on poor road sur faces 220
Maintenance and care

Example: engine oil
filler opening #
Obser vethe information rega rding appr oved
engine oil under "Operating fluids and capaci‐
ties" (/ page273). #
Unscr ewand remo vethe cap 1. #
Top up engine oil. #
Fitthe cap 1onthefiller opening and
tigh ten.
When doing so, make su rethat the cap
engages cor rectly. #
If present, check the oil le vel using the oil dip‐
st ick (/ page 223). #
Inthe case of vehicles without an oil dipstic k,
ch eck the oil le vel with the on-board com‐
puter af terth e next journey (/ page 222).
It is necessary torunth e engine for an extended
pe riod af ter each oil top up tocor rectly de tect
th e oil le vel. Fill le velch anges during oil top ups
may not be immediately visible. Depending on the
driving profile, the new oil le vel can only be dis‐
pla yed af ter a driving time of up to60 minutes.
If necessa ry, only top up thequ antity of oil shown
in the instrument clus ter display and check the
oil le vel again af terth e next journe y. Checking/topping up
the coolant &
WARNING Risk offire ‑ and inju ryfrom
antifreeze
If antifreeze comes into contact with hot com‐
ponent parts in the engine compartment, it
may ignite. #
Allow the engine tocool down before
yo uto p up the antifreeze. #
Make sure that no antifreeze spills out
next tothefiller opening. #
Thoroughly clean the antifreeze from
component parts before starting the
ve hicle. &
WARNING Risk of scalding from hot
coolant
If yo u open the cap, you could be scalded. #
Letthe mo tor cool down before opening
th e cap. #
When opening the cap, wear pr otective
gl ove s and saf etygl asses. #
Open the cap slowly torelease pres‐
sure. Only
check and top up the coolant le vel when the
ve hicle is stationary on a le vel sur face and the
engine has cooled down. The coolant temp era‐
ture must be below 50°C. &
WARNING Risk of burn s from hot com‐
ponent parts in the engine compartment
Cer tain component pa rts in the engine com‐
partment can be very hot, e.g. the engine, the
cooler and pa rts of theex haust sy stem. #
Allow the engine tocool down and only
to uch component parts desc ribed in the
fo llowing. Coolant con
tains glyc ol and is therefore poison‐
ous. #
Obser vethe information under "Operating flu‐
ids and capacities" (/ page274).
* NO
TEPaint wo rkdamage due tocoolant If coolant
gets on painted sur faces, the paint‐
wo rkcan be damaged. #
Add coolant carefully. #
Remo vespilled coolant. Re
gular lych eck the engine cooling sy stem and
th e heating sy stem for leaks . Ifthere is a loss of
coolant, ha vethe cause de term ined and rectified
in a qualified specialist workshop without dela y. Maintenance and care
225
