Mercury Grand Marquis 1997 Owner's Manuals

161
% [GF03900( ALL)12/95]
Traction-Lok Axle (If equipped)
[GF04000( ALL)12/95]
This axle provides added traction on slippery
surfaces, particularly when one wheel is on a
poor traction surface. Under normal conditions
the Traction-Lok axle functions as a standard
rear axle.
*
[GF04100( ALL)03/96]
Extended use of other than matching size tires
on a Traction-Lok rear axle could result in a
permanent reduction in effectiveness. This loss of
effectiveness does not affect normal driving and
should not be noticeable to the driver.
*
[GF04200( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
%
*
[GF04300( BCGV)03/96]
Traction Assist
TM
(If equipped)
*
[GF04400( BCGV)03/96]
Your vehicle may be equipped with the optional
Traction Assist
TM
system. This system helps
prevent wheel spin in order to improve tire
traction and is an especially useful feature when
you drive in hilly areas or on slippery, icy or
snowy roads.
[GF04500( BCGV)05/96]
Traction Assist
TM
works automatically by rapidly
applying and releasing the brakes to prevent one
or both of the rear drive wheels from spinning
during acceleration.
[GF04800( BCGV)12/95]
During the Traction Assist
TM
function, which
most often occurs during low speed acceleration
on slippery surfaces, a noise may be heard
coming from the engine compartment. This noise
is created by the ABS pump and is normal and
may last for a few seconds during the
acceleration of the vehicle.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

162 [GF04900( BCGV)05/96]In general, this system improves your vehicle's
stability and acceleration performance when road
conditions warrant. Traction Assist
TM
is fully
effective up to approximately 25 mph
(40 km/h). At 25 mph (40 km/h) the function
begins to taper off until it no longer operates
above 34 mph (55 km/h).
[GF05000( BCGV)12/95]
If the Traction Assist
TM
system is cycled
excessively, the system will shut down to
prevent the rear brakes from overheating.
During this shutdown period, the word OFF in
the traction assist switch will be illuminated
showing that the traction assist system is
inoperative. A cooling down period is required
to prevent damage to the rear brakes. This time
period varies and depends on brake usage
during the cooling down period. Anti-Lock
braking is not affected and will function
normally during the cool down period.
[GF05100( BCGV)12/95]
NOTE: Traction-Lok axles are not an available
option on vehicles equipped with
traction assist.
%
*
[GF05200( ALL)01/96]
Steering Your Vehicle
%*
[GF05300( ALL)01/96]
Your vehicle comes with power steering. Power
steering uses energy from the engine to help
steer your vehicle.
%*
[GF05400( ALL)03/96]
If the amount of effort needed to steer your
vehicle changes at a constant vehicle speed, have
the power steering system checked. If the power
steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually
but it takes more effort.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

163
*
[GF05500( ALL)01/96]
Never hold the steering wheel to the extreme
right or left for more than five seconds if the
engine is running. This can damage the power
steering pump.
[GF05590( GV)05/96]
Speed Sensitive Power Steering
*
[GF05700( GV)12/95]
The steering system in your vehicle is speed
sensitive. This means that the steering effort is
light for parking and heavier for highway
driving. However, if you have to swerve around
an object or another vehicle, your steering will
have full power assist.
% [GF05900( GV)12/95]Rear Air Suspension System
(If equipped)
[GF06000( GV)12/95]
If your vehicle is equipped with an automatic
load leveling rear air suspension system, it will
maintain the rear vehicle height at a constant
level by automatically adding air or releasing air
from the rear air springs to offset changes in
vehicle loads.
[GF06100( GV)12/95]
A shutoff switch is located in the trunk on the
right hand vertical trim panel. If this switch is in
the OFF position, the automatic leveling system
will not operate. The switch should be OFF
whenever jacking up or towing the vehicle. If
you have the mechanical cluster, ªAIR SUSPº
will appear in the cluster, if you have an
electronic cluster, ªCHECK AIR SUSPENSIONº
will appear in the message center when the
ignition switch is in the ON position, and either
the shutoff switch is in the OFF position, or a
system fault has been detected.
*
[GF06200( GV)12/95]
Normal vehicle operation does not require any
action by the driver.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

164
*
[GF06300( GV)01/96]
RWARNING
On vehicles equipped with Air
Suspension, turn OFF the Air Suspension
switch prior to jacking, hoisting or towing
your vehicle.
[GF06400( GV)12/95]
half page art:0010164-A
The air suspension switch Ð located on the right-hand
vertical trim panel
%*
[GF06500( ALL)12/95]
Driving with an Automatic
Overdrive Transmission
*
[GF06700( BCGV)12/95]
The automatic overdrive transmission operates
very much like a regular automatic transmission,
except it offers the extra overdrive feature.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

165 %
*
[GF06800( ALL)05/96]
Putting Your Vehicle in Gear
*
[GF06900( ALL)05/96]
RWARNING
Hold the brake pedal down while you
move the gearshift lever from position to
position. If you do not hold the brake
pedal down, your vehicle may move
unexpectedly and injure someone.
*
[GF07000( GV)03/96]
To move the shifter out of P (Park), the ignition
key must be turned to the ON position. This
vehicle is also equipped with the brake shift
interlock safety feature which prevents shifting
the transmission out of the P (Park) position
without the brake pedal being depressed if the
key is in the ON position.
*
[GF07200( ALL)12/95]
To operate:
*
[GF07300( ALL)12/95]
1. Start the engine.
*
[GF07400( ALL)12/95]
2. Depress and hold the brake pedal.
*
[GF07500( ALL)12/95]
3. Move the gearshift lever out of P (Park).
%*
[GF07600( ALL)12/95]
Your vehicle is equipped with a Brake Shift
Interlock safety feature. This feature prevents the
gearshift from being moved from the P (Park)
position until the brake pedal is depressed. This
feature is active when the ignition is in the ON
position. If the gearshift lever CANNOT be
moved from P (Park) with the brake pedal
depressed:
*
[GF07700( ALL)12/95]
1. Turn the engine off and remove the ignition
key.
*
[GF07800( ALL)12/95]
2. Apply parking brake.
*
[GF07900( ALL)04/96]
3. Reinsert the ignition key and turn clockwise
to the first position.
*
[GF08000( ALL)01/96]
4. Depress the brake pedal, move the gearshift
lever to N (Neutral) and start the engine.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

166
*
[GF08100( ALL)05/96]
RWARNING
DO NOT DRIVE YOUR VEHICLE UNTIL
YOU VERIFY THAT THE BRAKELAMPS
ARE WORKING.
*
[GF08200( ALL)05/96]
If you need to shift out of P (Park) by using the
alternate procedure described above, it is
possible that a fuse has blown and that your
brakelamps may also not be functional. Please
refer to the chapter titledRoadside Emergenciesin
this Owner Guide for instructions on checking
and replacing fuses.
% [GF08400( GV)12/95]

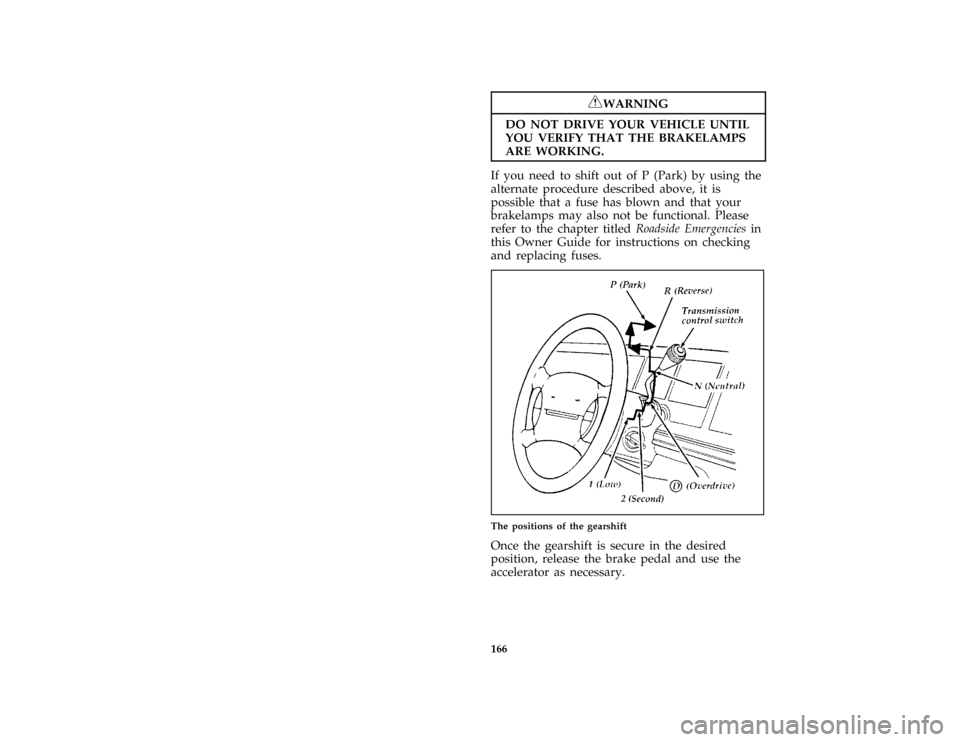

half page art:0010213-F
The positions of the gearshift
*
[GF08700( ALL)01/96]
Once the gearshift is secure in the desired
position, release the brake pedal and use the
accelerator as necessary.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

167 %
*
[GF08800( ALL)05/96]
R (Reverse)
*
[GF08900( ALL)05/96]
With the gearshift in the R (Reverse) position,
the vehicle will move backward. You should
always come to a complete stop before shifting
into or out of R (Reverse).
*
[GF09000( ALL)01/96]
N (Neutral)
[GF09100( ALL)12/95]
As in P (Park), there is no power transferred
through the transmission. However, the final
drive is not locked so the wheels are free to
rotate. The vehicle may be started in the N
position, but the ignition key cannot be
removed.
%*
[GF09200( ALL)05/96]
Driving
[GF09300( GV)12/95]
Your vehicle's gearshift is on the steering
column. The Transmission Control Switch (TCS)
is located on the end of the gearshift lever. The
Transmission Control Indicator Light (O/D OFF)
is located on the instrument panel. You can put
the gearshift lever in any of the several
positions.
[GF09600( GV)12/95]
The O/D OFF light is off (not illuminated)
during normal vehicle operation. This allows the
transmission to upshift and downshift from 1st
through 4th gears. When the TCS is pressed, the
Transmission Control Indicator Light will
illuminate (O/D OFF) on the instrument panel.
When this O/D OFF is illuminated the
transmission will upshift and downshift from 1st
through 3rd gears.
[GF09800( ALL)12/95]
If the O/D OFF light does not come ªonº when
the TCS is depressed or if the light ªFLASHESº
when you are driving, have your vehicle
serviced at the first opportunity. If this condition
persists, damage could occur to the transmission.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

168
*
[GF09900( BCGV)05/96]
To return the transmission to normal operation
(1st through 4th gear) depress the TCS again.
This switch may be used to cancel overdrive any
time the vehicle is being driven. Each time your
vehicle is started, the overdrive system will
automatically be in the normal overdrive mode
and the light will not be illuminated.
%*
[GF10100( GV)05/96]
When to usej(Overdrive)
*
[GF10300( ALL)12/95]
Overdrive is the usual driving position for an
automatic overdrive transmission. It works the
same way Drive works, automatically upshifting
or downshifting as the vehicle speeds or slows.
*
[GF10400( ALL)12/95]
However, Overdrive also shifts into a fourth
gear Ðan overdrive gear Ð when your vehicle
cruises at an appropriate consistent speed for
any length of time. This fourth gear will increase
your fuel economy when you travel at cruising
speeds.
[GF10600( GV)12/95]
When to usej(Overdrive) Ð with
Transmission Control Switch activated
(TCS)
[GF10800( GV)12/95]
Overdrive may not be appropriate for certain
terrain. If the transmission shifts back and forth
between Third and Fourth gears while you are
driving on hilly roads or if your vehicle does
not have adequate power for climbing hills,
press the TCS located on the shift lever.
*
[GF10900( BCGV)12/95]
You can depress the TCS at any speed.
*
[GF11100( ALL)05/96]
When to use 2 (Second)
*
[GF11200( ALL)12/95]
Use 2 (Second) for start-up on slippery roads or
to give you more engine braking to slow your
vehicle on downgrades.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

169
*
[GF11300( ALL)05/96]
When to use 1 (Low)
*
[GF11400( ALL)12/95]
Use 1 (Low) when driving down steep grades. It
gives more engine braking to slow your vehicle
than 2 (Second) on the downgrades. You can
upshift from 1 (Low) to 2 (Second) or from 1
(Low) to Overdrive at any speed.
*
[GF11500( ALL)05/96]
P (Park)
*
[GF11600( ALL)12/95]
Always come to a complete stop before you shift
into P (Park). Make sure that the gearshift is
securely latched in P (Park). This locks the
transmission and prevents the rear wheels from
rotating.
*
[GF11700( ALL)05/96]
RWARNING
Always set the parking brake fully and
make sure the gearshift is latched in P
(Park). Turn off the ignition whenever you
leave your vehicle.
*
[GF11800( ALL)05/96]
RWARNING
Never leave your vehicle unattended
while it is running.
*
[GF11900( GV)12/95]
You can tell a column-mounted gearshift is
securely latched in P (Park) if the lever is
adjacent to the P (Park) and you cannot move it
without pulling it toward you and rotating it
downward.
%
*
[GF15500( ALL)01/96]
Driving With a Heavy Load
*
[GF15600( ALL)01/96]
There are limits to the amount of weight your
vehicle can carry or tow. The total weight of
your vehicle, plus the weight of the passengers
and cargo, should never be more than the Gross
Vehicle Weight Rating (GVWR). Also, the weight
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

170that your vehicle carries over the front axle and
rear axle should never be more than the Gross
Axle Weight Rating (GAWR) for the respective
axle.
% [GF15700( ALL)12/95]
You can find your vehicle's GVWR and GAWR
on the Safety Compliance Certification Label on
the left front door lock facing or the door latch
post pillar.
*
[GF15800( ALL)01/96]
The weight limits of your vehicle's tires affect
the GVWR or GAWR limitations. Usage of
replacement tires with higher weight limits than
originals does not increase GVWR or GAWR.
Usage of lower capacity replacement tires may
lower GVWR and GAWR limitations.
*
[GF15900( ALL)01/96]
RWARNING
Do not exceed the GVWR or the GAWR
specified on the Safety Compliance
Certification Label.
%*
[GF16000( ALL)01/96]
Limiting Your Vehicle's Load
*
[GF16100( ALL)12/95]
The load that you add to your vehicle must not
exceed the maximum load stated on the Safety
Compliance Certification Decal attached to the
left front door pillar.
*
[GF16200( ALL)01/96]
To figure the weight of your vehicle's load, add
the weights of:
*
[GF16300( ALL)01/96]
q
the driver and passengers
*
[GF16400( ALL)01/96]
q
luggage and any other items that you put in
your vehicle
*
[GF16600( ALL)01/96]
q
the weight of any equipment that has been
added to your vehicle since it was delivered
to your dealer
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996
