Mercury Grand Marquis 1997 Owner's Manuals

171
*
[GF16700( ALL)01/96]
If you do not know the actual weights of these
items, use the following procedure to figure the
weight of a load:
*
[GF16800( ALL)01/96]
1. Weigh your vehicle without the driver,
passengers and luggage. You might take
your vehicle to a shipping company or an
inspection station for trucks.
*
[GF16900( ALL)01/96]
2. Then weigh your vehicle with the driver,
passengers and luggage.
*
[GF17000( ALL)01/96]
3. Subtract the first reading from the second to
figure the total weight of the load.
*
[GF17100( ALL)11/92]
After determining this load, you must also make
sure that the total weight of your vehicle, plus
the load it carries, is less than its GVWR. Also,
make sure that the weight your vehicle carries
over each axle is less than the GAWR for the
respective axle.
*
[GF17200( ALL)01/96]
If your vehicle exceeds the GVWR, remove cargo
from your vehicle accordingly. If your vehicle
exceeds the GAWR for either axle, shift the load
or remove cargo accordingly.
*
[GF17300( ALL)01/96]
RWARNING
Improper distribution of your vehicle's
load or carrying weight in excess of the
amount shown on the tire decal can cause
rapid tire wear or loss of vehicle control.
%
*
[GF17500( GV)05/96]
Trailer Towing
*
[GF17505( GV)05/96]
Your vehicle is not equipped to tow. No towing
packages are available through Ford or
Lincoln/Mercury dealers.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

172
%*
[GF23600( ALL)01/96]
Driving Under Special Conditions
%*
[GF23700( ALL)01/96]
Tips for Safe Driving
*
[GF23800( ALL)01/96]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[GF23900( ALL)01/96]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
%*
[GF24000( ALL)01/96]
Driving in Bad Weather
%*
[GF24100( ALL)01/96]
Slippery roads
*
[GF24200( ALL)01/96]
Drive cautiously on wet or snowy roads:
*
[GF24300( ALL)01/96]
q
Do not quickly move the steering wheel
unless necessary.
*
[GF24400( ALL)01/96]
q
Drive slower than you normally would.
*
[GF24500( ALL)01/96]
q
Do not use speed control.
*
[GF24600( ALL)01/96]
q
Give your vehicle more distance to stop.
[GF24700( ALL)04/96]
q
Pump the brake pedal steadily and evenly to
avoid locking your wheels. (Does not apply
to vehicles with anti-lock brakes.)
*
[GF24800( ALL)01/96]
q
Consider using one of the lower gears.
*
[GF25000( BCGV)01/96]
RWARNING
To avoid skidding and losing control on
slippery roads, do not downshift into 1
(First) when you are moving faster than
20 mph (30 km/h).
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

173
*
[GF25100( ALL)05/96]
RWARNING
Do not use the speed control in heavy
traffic or on roads that are winding,
slippery, or unpaved.
[GF25200( GV)12/95]
If your vehicle gets stuck (for example, in mud
or snow), you may try to ªrockº it out of the
spot. Shift, in a steady rhythm, between forward
(2 [Second] gear is the recommended forward
gear) and reverse gears. At the same time, press
lightly on the accelerator.
*
[GF25400( ALL)05/96]
RWARNING
Do not spin the wheels at over 35 mph
(55 km/h). The tires may fail and injure a
passenger or bystander.
[GF25500( ALL)12/95]
By moving the vehicle backward and forward,
you may gain enough momentum to move out
of the spot. Do not rock the vehicle for more
than a few minutes. This may overheat the
engine, damage the transmission, or damage the
tires. If you are still stuck after a minute or two
of rocking, call for a tow truck.
%*
[GF25600( ALL)01/96]
High water
*
[GF25700( ALL)01/96]
Do not drive through flooded areas unless you
are sure that the water is below the bottom of
the wheel rims.
*
[GF25800( ALL)01/96]
If you must drive through high water, drive
slowly. You may have limited traction or wet
brakes, so allow extra stopping distance because
your vehicle will not stop as quickly as usual.
*
[GF25900( ALL)01/96]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
File:09rcgfg.ex
Update:Thu Sep 19 12:26:42 1996

175
Roadside Emergencies
[ER00175( ALL)03/96]
Hazard Flashers
*
[ER00200( ALL)01/96]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
% [ER00300( GV)12/95]Fuses, High Current Fuses, Fuse
Links, and Circuit Breakers
*
[ER00500( ALL)05/96]
Fuses (conventional and high current) and circuit
breakers protect your vehicle's wiring system
from overloading. If electrical parts in your
vehicle are not working, the system may have
been overloaded and blown a fuse or tripped a
circuit breaker. Before you replace or repair any
electrical parts, check the appropriate fuses
(conventional and high current) or circuit
breakers.
*
[ER00600( ALL)12/95]
The following charts tell you which fuses or
circuit breakers protect the wiring for each
electrical part of your vehicle. If a fuse blows or
a circuit breaker opens a circuit,allthe parts of
your vehicle that use that circuit will not work.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

176
*
[ER00700( ALL)05/96]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
[ER01200( GV)12/95]

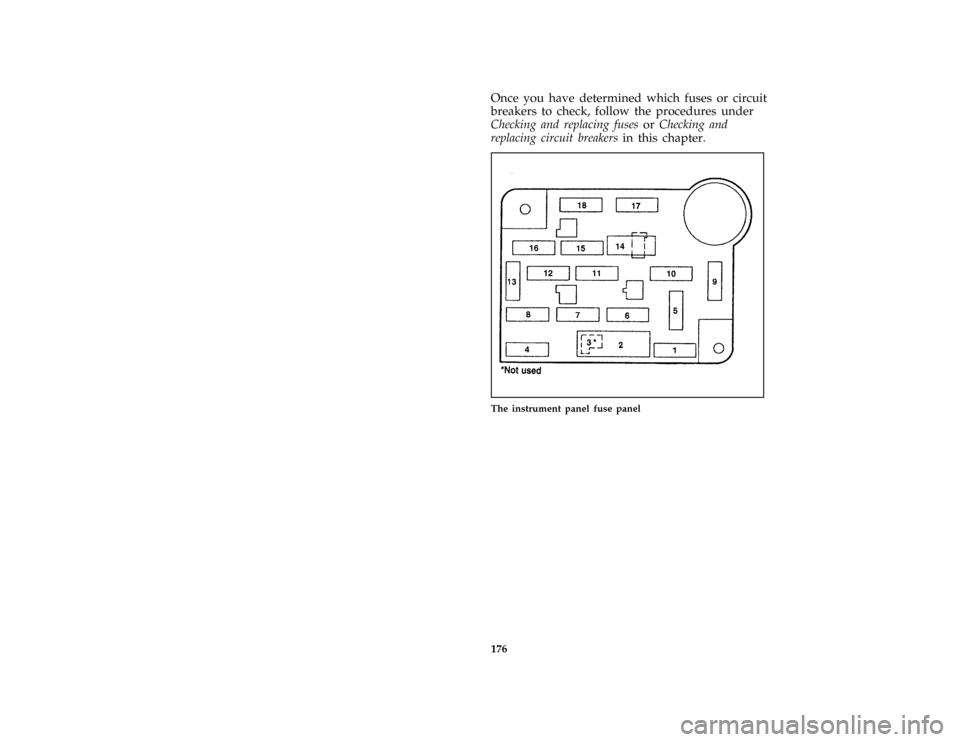

half page art:0011155-C
The instrument panel fuse panel
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

177 %
*
[ER01300( ALL)05/96]

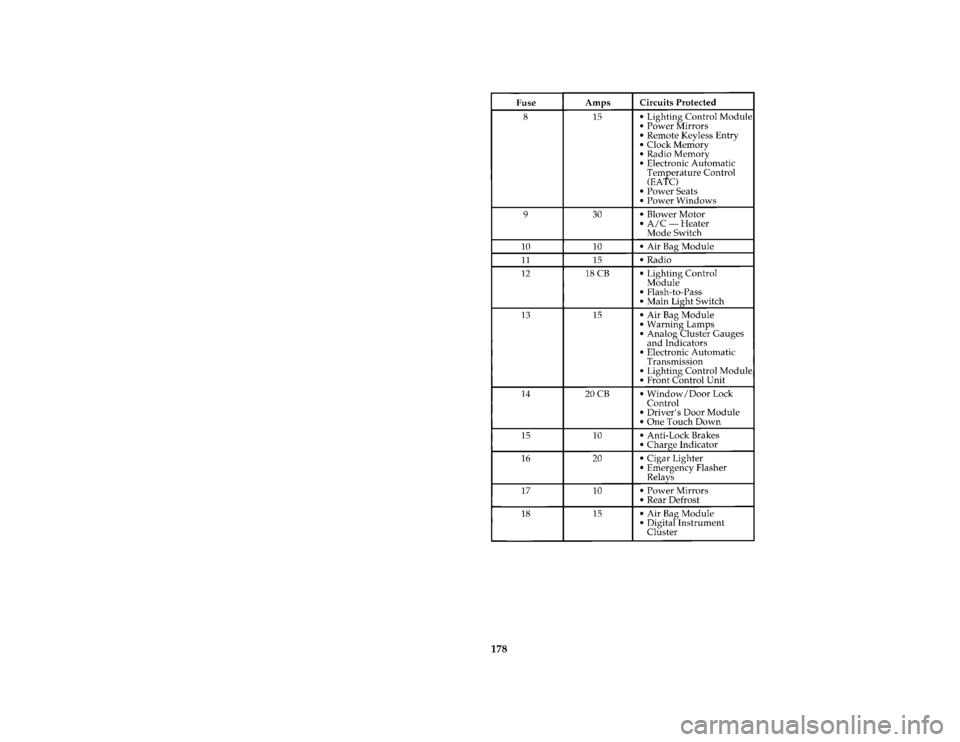

The Instrument Panel Fuses, Circuit
Breakers and Relays
[ER02000( G )12/95]
thirty-six pica chart:0011316-DFile:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

178 [ER02200( G )12/95]
thirty-six pica chart:0011315-D
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

179 %
*
[ER02300( ALL)12/95]
High Current Fuses
*
[ER02400( ALL)12/95]
High current fuses are circuit protectors that are
part of the wiring harness for some electrical
equipment. These, like fuses, open when the
circuit load exceeds their amperage rating. High
current fuses may be purchased from your Ford
or Lincoln-Mercury dealer.
[ER02600( GV)12/95]
The high current fuse panel is located in the
engine compartment near the battery.
*
[ER02700( ALL)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER02800( ALL)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

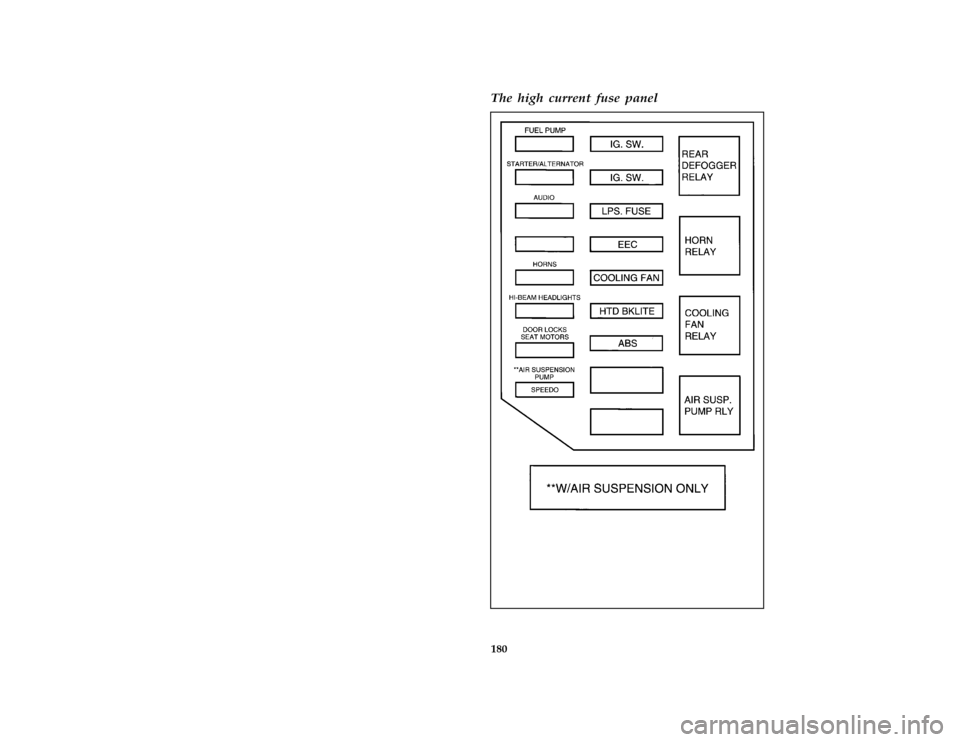

180 % [ER03100( ALL)12/95]The high current fuse panel
[ER03400( G )12/95]
full page art:0010700-FFile:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

181 [ER03600( ALL)12/95]
The high current fuses and relays
[ER04000( G )12/95]
twenty-two pica chart:0010690-JFile:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
