Removing and Replacing the Tire
[ER14700( GV)12/95]
1. Find the jacking location notches (a
depression on plastic moulding) near the tire
that you are changing. Align the two tabs on
jack with rectangular notch on sheet metal.
Slowly push jack straight until the tabs are
against the side of the frame. MAKE SURE
THE JACK IS PROPERLY POSITIONED
UNDER THE FRAME. Turn the handle of
the jack clockwise until the wheel is
completely off the ground.
*
[ER14800( ALL)01/96]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
[ER15000( ALL)12/95]
half page art:0010759-A
The improper lift point
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

193
*
[ER15100( ALL)05/96]
NOTE: Never use the differential housing as a
lift point.
% [ER15300( GV)12/95]
quarter page art:0010687-A
Jacking locations
[ER15400( GV)12/95]
quarter page art:0010688-A
Locating the notch for the jack Ð rear wheels
[ER15500( GV)12/95]
quarter page art:0010689-A
Locating the notch for the jack Ð front wheels
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

194
*
[ER15600( ALL)12/95]
2. Turn the jack handle clockwise until the
wheel clears the ground. Remove the wheel
lug nuts.
*
[ER15750( GV)03/96]
3. If you are replacing the front tire (with
aluminum wheels) with the temporary spare
tire, you need to remove the black dust
shield. Gently pull the shield over the rubber
o-rings and slide it off the wheel studs.
Because the rubber o-rings are soft, they
should pass through the holes in the shield.
If the rings do not pass through the holes,
remove them from the wheel studs. Save the
black dust shield for future use, and ensure
the rubber o-rings are removed from wheel
studs.
*
[ER15775( GV)03/96]
4. Replace the flat tire with the spare tire,
making sure that the air valve stem is facing
outward.
*
[ER15850( GV)03/96]
5. Reinstall the lug nuts, tightening until the
wheel is snug against the hub. The beveled
edges on the lug nuts face inward. Do not
fully tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
*
[ER15950( GV)03/96]
6. Lower the vehicle by turning the jack handle
counterclockwise.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

195
*
[ER16050( GV)03/96]
7. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration. As soon as possible, have your
dealer or a qualified service technician check
the lug nuts for proper torque specifications.
% [ER16100( ALL)12/95]
quarter page art:0010350-A

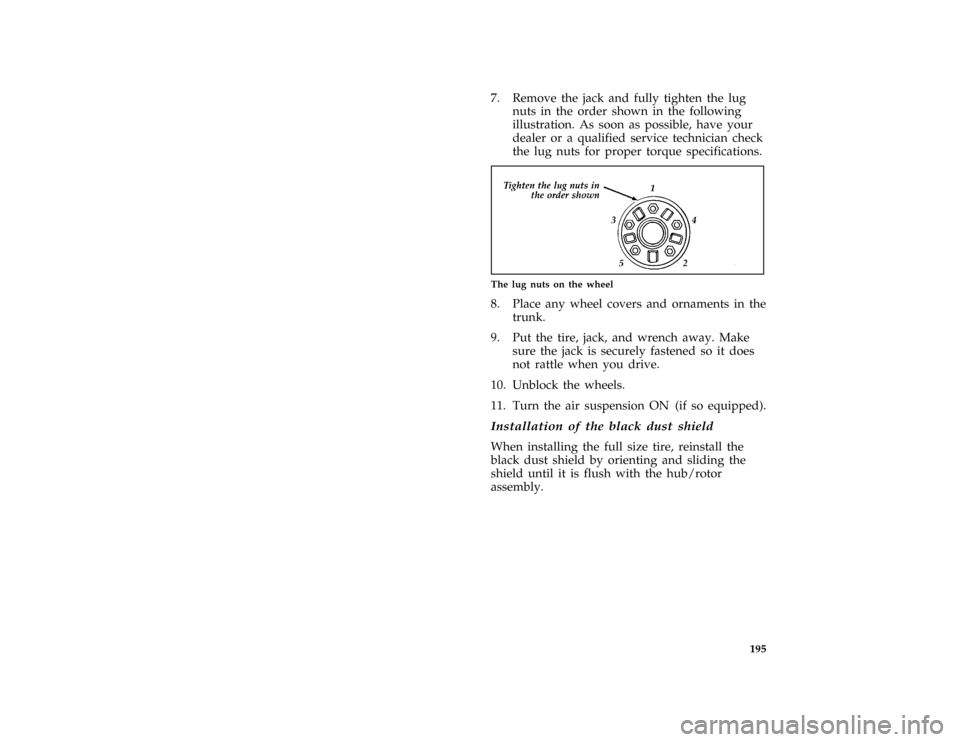

The lug nuts on the wheel
[ER16250( GV)03/96]
8. Place any wheel covers and ornaments in the
trunk.
*
[ER16350( GV)03/96]
9. Put the tire, jack, and wrench away. Make
sure the jack is securely fastened so it does
not rattle when you drive.
*
[ER16450( GV)03/96]
10. Unblock the wheels.
[ER16500( GV)03/96]
11. Turn the air suspension ON (if so equipped).
[ER16560( GV)03/96]
Installation of the black dust shield
[ER16570( GV)03/96]
When installing the full size tire, reinstall the
black dust shield by orienting and sliding the
shield until it is flush with the hub/rotor
assembly.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

196 %
*
[ER17700( GV)12/95]
Aluminum wheel
[ER17800( GV)12/95]
half page art:0011501-A

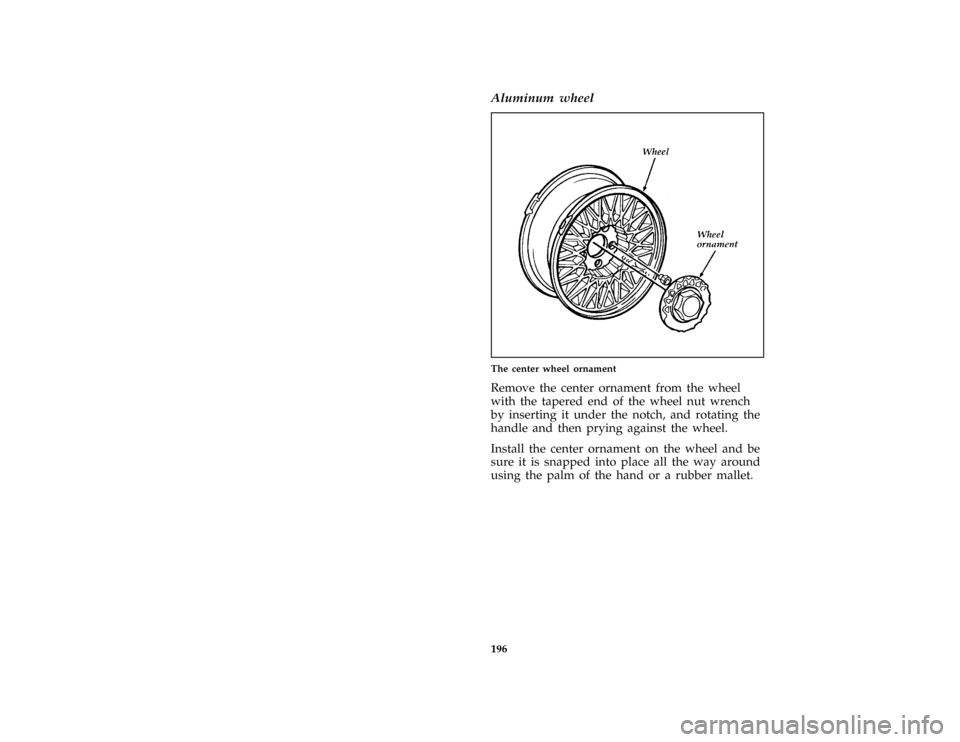

The center wheel ornament
[ER17900( GV)12/95]
Remove the center ornament from the wheel
with the tapered end of the wheel nut wrench
by inserting it under the notch, and rotating the
handle and then prying against the wheel.
*
[ER18000( GV)12/95]
Install the center ornament on the wheel and be
sure it is snapped into place all the way around
using the palm of the hand or a rubber mallet.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

197
*
[ER18100( GV)05/96]
Steel wheel with full wheelcover
[ER18200( GV)12/95]
half page art:0010615-C

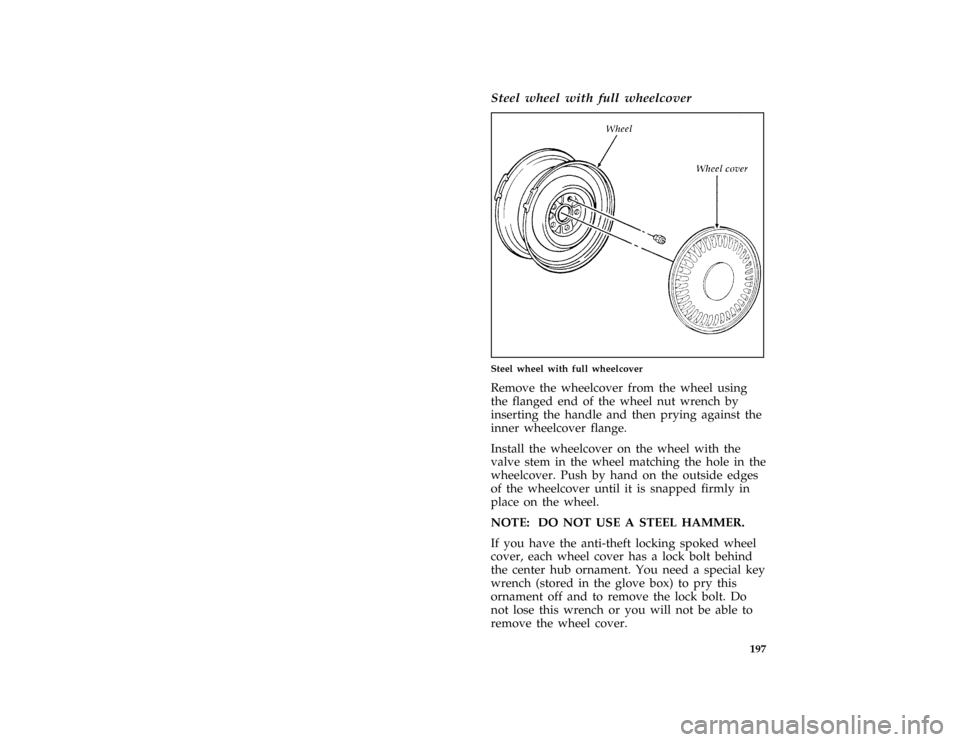

Steel wheel with full wheelcover
*
[ER18300(M GV)05/96]
Remove the wheelcover from the wheel using
the flanged end of the wheel nut wrench by
inserting the handle and then prying against the
inner wheelcover flange.
*
[ER18400(M GV)05/96]
Install the wheelcover on the wheel with the
valve stem in the wheel matching the hole in the
wheelcover. Push by hand on the outside edges
of the wheelcover until it is snapped firmly in
place on the wheel.
*
[ER18500( GV)05/96]
NOTE: DO NOT USE A STEEL HAMMER.
*
[ER18600( GV)05/96]
If you have the anti-theft locking spoked wheel
cover, each wheel cover has a lock bolt behind
the center hub ornament. You need a special key
wrench (stored in the glove box) to pry this
ornament off and to remove the lock bolt. Do
not lose this wrench or you will not be able to
remove the wheel cover.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

198
*
[ER18700( GV)05/96]
The key wrench has a registration number
attached to it. Keep the registration number in a
safe place. Complete the registration card and
return it to the manufacturer as soon as you buy
the vehicle. To replace the key wrench, send the
I.D. card to the manufacturer.
%
*
[ER19900( ALL)02/96]
Jump-Starting Your Vehicle
*
[ER19950( ALL)02/96]
Your vehicle's battery may die if you leave the
lights on or any electrical equipment on after
you turn the engine off. If this happens, you
may be able to jump-start your vehicle with a
booster battery.
*
[ER20000( ALL)02/96]
RWARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
*
[ER20100( ALL)02/96]
RWARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
%*
[ER20200( ALL)02/96]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[ER20300( ALL)05/96]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

199
*
[ER20400( ALL)02/96]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[ER20500( ALL)02/96]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
%*
[ER20600( ALL)02/96]
Preparing Your Vehicle
[ER20700( ALL)02/96]
NOTE: also see label on battery.
*
[ER20800( ALL)02/96]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[ER20900( ALL)02/96]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[ER21000( ALL)02/96]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[ER21100( ALL)02/96]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

200
*
[ER21200( ALL)02/96]
5. Turn on the heater fan in both vehicles.
Turning on the fan helps protect the
electrical system from voltage surges. Turn
off all other switches and lights in both
vehicles to prevent possible damage to either
vehicle's electrical systems.
%*
[ER21300( ALL)02/96]
Connecting the jumper cables
*
[ER21400( ALL)02/96]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[ER21500( ALL)02/96]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[ER21600( ALL)02/96]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
[ER21700( ALL)02/96]
4. Connect the other end of that cable to a
good metallic surface on the engine or frame
of the disabled vehicle making sure it is
clear of any rotating engine components. The
following illustrations show where you can
find a metallic surface.
*
[ER21800( ALL)02/96]
RWARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996

201 [ER22200( GV)05/96]
full page art:0010336-G

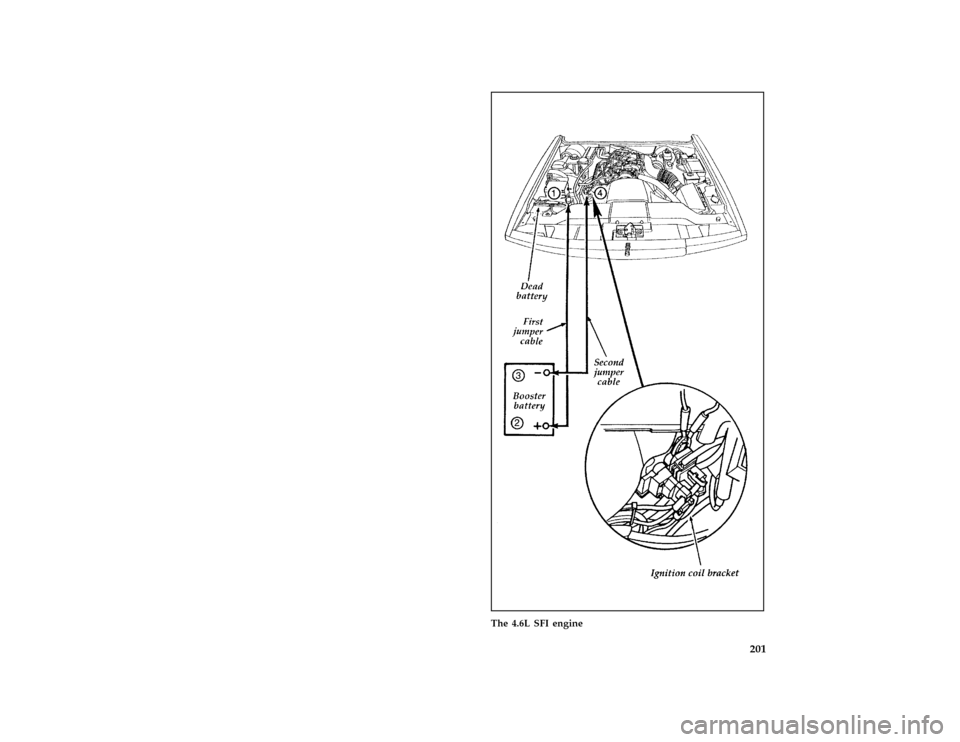

The 4.6L SFI engine
