Page 181 of 305
![Mercury Grand Marquis 1997 Owners Manuals 182 [ER04300( G )12/95]
sixteen pica chart:0010691-H
%*
[ER04400( ALL)01/96]
Checking and Replacing Fuses
*
[ER04500( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER04800( GV)12/95]
1. Mercury Grand Marquis 1997 Owners Manuals 182 [ER04300( G )12/95]
sixteen pica chart:0010691-H
%*
[ER04400( ALL)01/96]
Checking and Replacing Fuses
*
[ER04500( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER04800( GV)12/95]
1.](/img/33/10921/w960_10921-180.png)

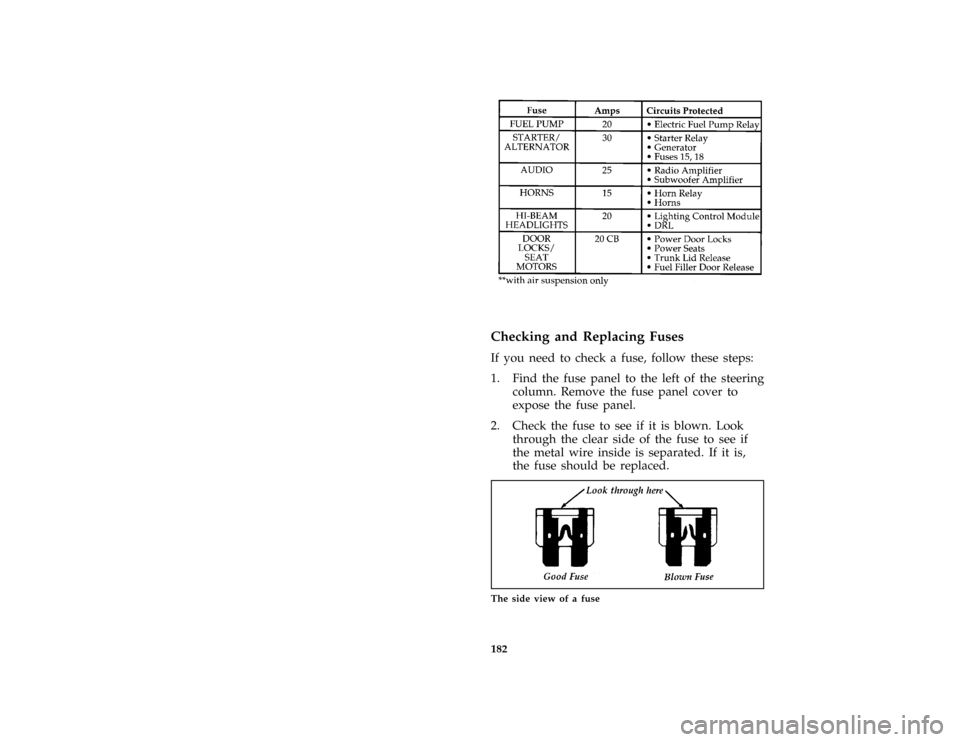

182 [ER04300( G )12/95]
sixteen pica chart:0010691-H
%*
[ER04400( ALL)01/96]
Checking and Replacing Fuses
*
[ER04500( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER04800( GV)12/95]
1. Find the fuse panel to the left of the steering
column. Remove the fuse panel cover to
expose the fuse panel.
[ER05000( BCGV)12/95]
2. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse should be replaced.
[ER05200( ALL)12/95]
quarter page art:0010416-A
The side view of a fuse
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 182 of 305
![Mercury Grand Marquis 1997 Owners Manuals 183 [ER05300( GV)12/95]
3. Replace the fuse with one that has the right
amperage rating. (See the following charts.)
[ER05600( ALL)12/95]
eight pica chart:0001092-B[ER05700(M GV)12/95]
six pica chart: Mercury Grand Marquis 1997 Owners Manuals 183 [ER05300( GV)12/95]
3. Replace the fuse with one that has the right
amperage rating. (See the following charts.)
[ER05600( ALL)12/95]
eight pica chart:0001092-B[ER05700(M GV)12/95]
six pica chart:](/img/33/10921/w960_10921-181.png)

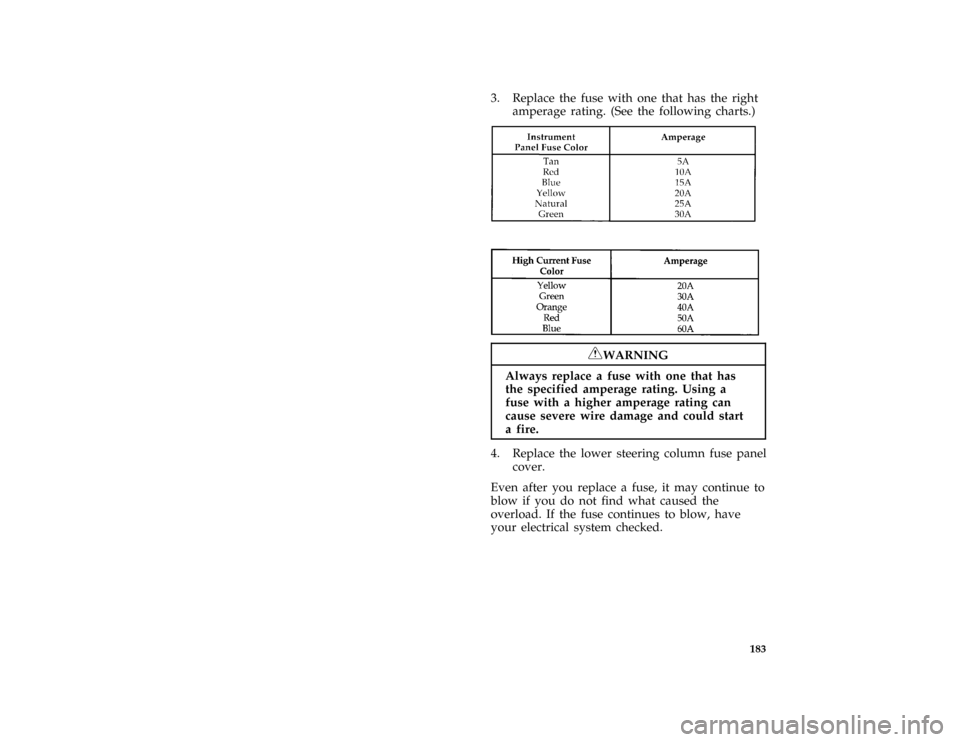

183 [ER05300( GV)12/95]
3. Replace the fuse with one that has the right
amperage rating. (See the following charts.)
[ER05600( ALL)12/95]
eight pica chart:0001092-B[ER05700(M GV)12/95]
six pica chart:0001093-B*
[ER05900( ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER06200( GV)05/96]
4. Replace the lower steering column fuse panel
cover.
*
[ER06300( BCGV)04/96]
Even after you replace a fuse, it may continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 183 of 305
![Mercury Grand Marquis 1997 Owners Manuals 184 %
*
[ER06400( ALL)05/96]
Circuit Breakers
*
[ER06500( ALL)05/96]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to Mercury Grand Marquis 1997 Owners Manuals 184 %
*
[ER06400( ALL)05/96]
Circuit Breakers
*
[ER06500( ALL)05/96]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to](/img/33/10921/w960_10921-182.png)
184 %
*
[ER06400( ALL)05/96]
Circuit Breakers
*
[ER06500( ALL)05/96]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to locate the fuse
panel.
[ER06600( ALL)12/95]
Circuit breakers will reset themselves and allow
the electrical parts to work again once the
overload on the circuit is removed. If the circuit
breakers continue to cut off electricity, have your
vehicle's electrical system checked.
*
[ER06700( ALL)01/96]
Diagnostic equipment is needed to check circuit
breakers. Refer to the manufacturer's
instructions.
*
[ER06800( ALL)05/96]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
[ER06900(M GV)05/96]
Since the circuit breaker for the headlamps is
mounted in the headlamp switch, you must
replace the entire switch to install a new circuit
breaker.
[ER07000( GV)12/95]
Fuse Links
[ER07100( GV)12/95]
Fuse links are circuit protectors that are part of
the wiring harness for some electrical equipment.
These, like fuses, open when the circuit lead
exceeds their amperage rating. Fuse links may be
purchased from your Ford or Lincoln-Mercury
dealer. See the following charts to find out
which electrical parts are protected by a fuse
link.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 184 of 305
![Mercury Grand Marquis 1997 Owners Manuals 185 [ER07200( GV)12/95]
ten pica chart:0010407-E
%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch
Mercury Grand Marquis 1997 Owners Manuals 185 [ER07200( GV)12/95]
ten pica chart:0010407-E
%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch](/img/33/10921/w960_10921-183.png)
185 [ER07200( GV)12/95]
ten pica chart:0010407-E
%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch
[ER07500( ALL)05/96]
If the engine cranks but does not start or does
not start after a collision, the fuel system shut-off
switch may have been activated. The shut-off
switch is a device intended to stop the fuel
system when your vehicle has been involved in
a substantial jolt.
*
[ER07600( BCGV)04/96]
Once the shut-off switch is activated, you must
reset the switch by hand before you can start
your vehicle. The switch is on the left side of the
trunk.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 185 of 305
![Mercury Grand Marquis 1997 Owners Manuals 186 [ER08000( GV)12/95]
half page art:0010014-DThe fuel system shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all Mercury Grand Marquis 1997 Owners Manuals 186 [ER08000( GV)12/95]
half page art:0010014-DThe fuel system shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all](/img/33/10921/w960_10921-184.png)

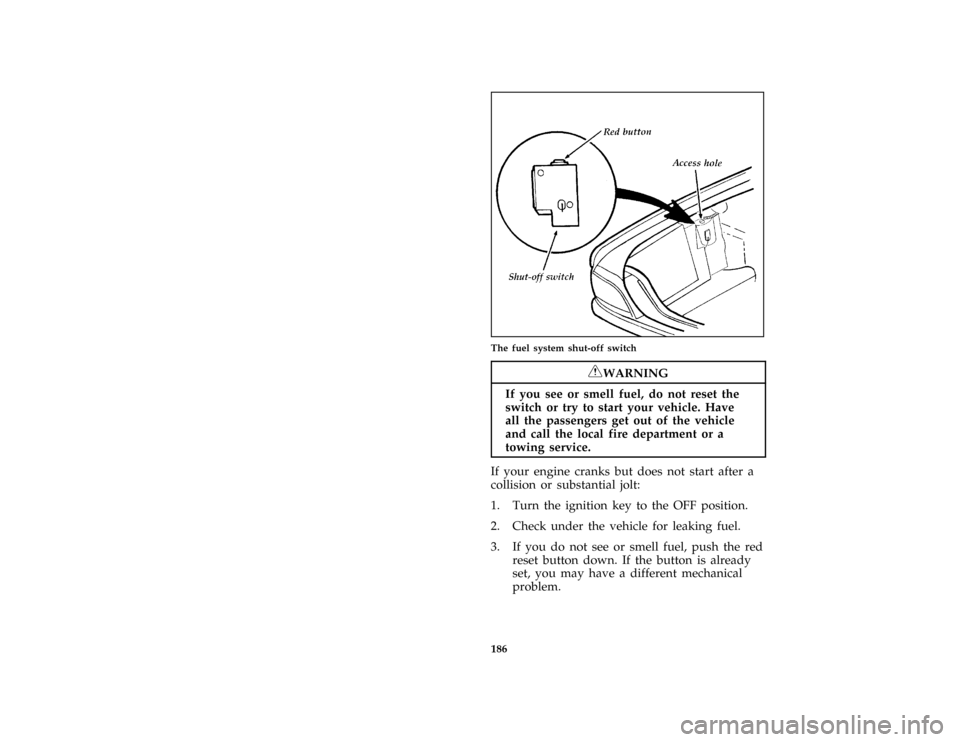

186 [ER08000( GV)12/95]
half page art:0010014-DThe fuel system shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ER08200( ALL)03/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER08300( ALL)01/96]
1. Turn the ignition key to the OFF position.
*
[ER08400( ALL)03/96]
2. Check under the vehicle for leaking fuel.
*
[ER08500( ALL)01/96]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 186 of 305
![Mercury Grand Marquis 1997 Owners Manuals 187
*
[ER08600( ALL)01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER08700( ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If Mercury Grand Marquis 1997 Owners Manuals 187
*
[ER08600( ALL)01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER08700( ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If](/img/33/10921/w960_10921-185.png)
187
*
[ER08600( ALL)01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER08700( ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ER08800( ALL)01/96]
6. Check all vehicle warning lights before
driving the vehicle.
%
*
[ER09300( ALL)02/96]
Changing a Tire
*
[ER09400( ALL)02/96]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
%*
[ER09500( ALL)02/96]
The Temporary Spare Tire
%*
[ER09600( GV)02/96]
You may have a high pressure temporary spare
tire. This spare tire is smaller than a regular tire
and is designed for emergency use only. Use it
only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with
the words ªTEMPORARY USE ONLYº so that
you can easily identify it.
*
[ER09800( ALL)02/96]
NOTE: Extended use of other than
conventional spare tires on a
Traction-Lok rear axle could result in a
permanent reduction in effectiveness.
This loss of effectiveness does not
affect normal driving and should not
be noticeable to the driver.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 187 of 305
![Mercury Grand Marquis 1997 Owners Manuals 188
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injur Mercury Grand Marquis 1997 Owners Manuals 188
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injur](/img/33/10921/w960_10921-186.png)
188
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
*
[ER10000( ALL)02/96]
When you drive with the temporary spare tire,
DO NOT:
*
[ER10100( ALL)02/96]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[ER10200( ALL)02/96]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[ER10300( ALL)02/96]
q
tow a trailer.
*
[ER10400( ALL)02/96]
q
use tire chains on this tire.
*
[ER10500( ALL)02/96]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[ER10600( ALL)02/96]
q
use the wheel for any other type of vehicle.
*
[ER10700(MBCG )02/96]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 188 of 305
![Mercury Grand Marquis 1997 Owners Manuals 189 % [ER10800( GV)02/96]
Using the Conventional Spare Tire
(If equipped)
[ER10900( GV)05/96]
If you have the conventional spare tire, you can
use it as a spare tire only. This spare tire is
identical Mercury Grand Marquis 1997 Owners Manuals 189 % [ER10800( GV)02/96]
Using the Conventional Spare Tire
(If equipped)
[ER10900( GV)05/96]
If you have the conventional spare tire, you can
use it as a spare tire only. This spare tire is
identical](/img/33/10921/w960_10921-187.png)
189 % [ER10800( GV)02/96]
Using the Conventional Spare Tire
(If equipped)
[ER10900( GV)05/96]
If you have the conventional spare tire, you can
use it as a spare tire only. This spare tire is
identical to the other tires that come with your
vehicle, although the wheel may not match.
%*
[ER11000( ALL)02/96]

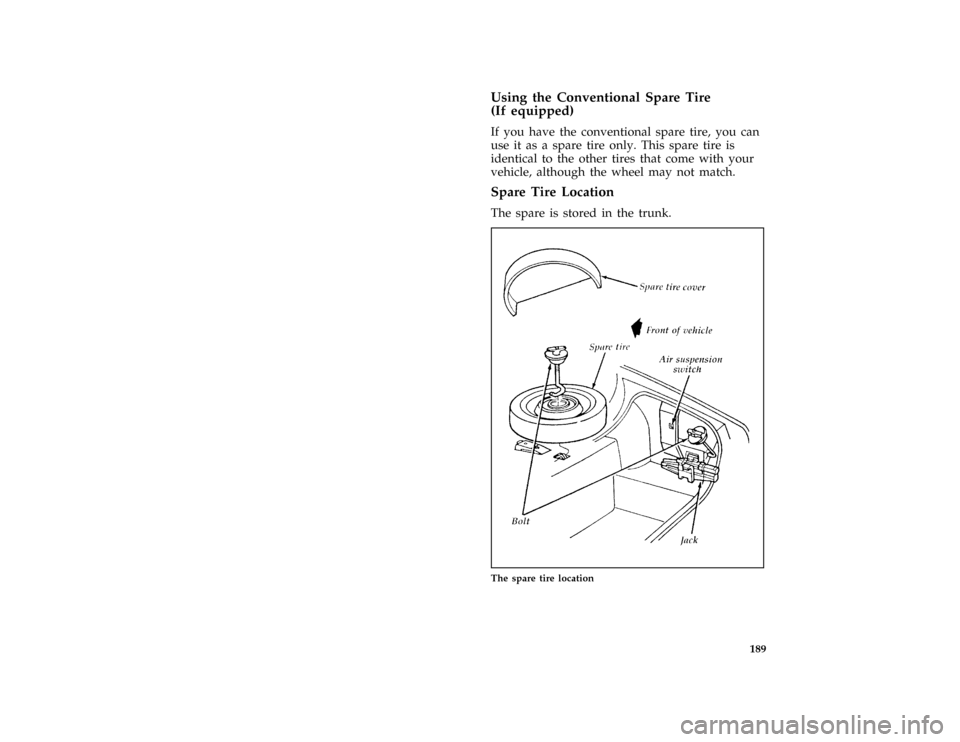

Spare Tire Location
[ER11100( ALL)02/96]
The spare is stored in the trunk.
[ER11400( GV)03/96]
two third page art:0010341-H
The spare tire location
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 189 of 305
![Mercury Grand Marquis 1997 Owners Manuals 190 %
*
[ER11500( ALL)03/96]
To remove the spare tire:
[ER12400( GV)03/96]
1. Lift off the spare tire cover (if equipped).
*
[ER12500( GV)03/96]
2. Unscrew the wing-nut holding down the
spare tire.
[E Mercury Grand Marquis 1997 Owners Manuals 190 %
*
[ER11500( ALL)03/96]
To remove the spare tire:
[ER12400( GV)03/96]
1. Lift off the spare tire cover (if equipped).
*
[ER12500( GV)03/96]
2. Unscrew the wing-nut holding down the
spare tire.
[E](/img/33/10921/w960_10921-188.png)
190 %
*
[ER11500( ALL)03/96]
To remove the spare tire:
[ER12400( GV)03/96]
1. Lift off the spare tire cover (if equipped).
*
[ER12500( GV)03/96]
2. Unscrew the wing-nut holding down the
spare tire.
[ER12600( GV)03/96]
3. Lift out the spare tire.
%*
[ER12700( ALL)03/96]
Preparing to Change the Tire
*
[ER12900( BCGV)03/96]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
*
[ER13100( BCGV)03/96]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[ER13200( ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
[ER13300( GV)12/95]
Turn off the air suspension switch (if equipped)
prior to jacking.
*
[ER13400( GV)01/96]
RWARNING
On vehicles equipped with Air
Suspension, turn OFF the Air Suspension
switch prior to jacking, hoisting or towing
your vehicle.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
Page 190 of 305
![Mercury Grand Marquis 1997 Owners Manuals 191 [ER13500( GV)12/95]
quarter page art:0010573-A
The air suspension switch Ð located in the trunk
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground Mercury Grand Marquis 1997 Owners Manuals 191 [ER13500( GV)12/95]
quarter page art:0010573-A
The air suspension switch Ð located in the trunk
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground](/img/33/10921/w960_10921-189.png)
191 [ER13500( GV)12/95]
quarter page art:0010573-A
The air suspension switch Ð located in the trunk
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[ER13700( ALL)01/96]
2. Get out the spare tire and jack.
*
[ER13800( GV)01/96]
RWARNING
On vehicles equipped with Air
Suspension, turn OFF the Air Suspension
switch prior to jacking, hoisting or towing
your vehicle.
[ER14100( GV)12/95]
3. Remove any optional wheel covers or wheel
ornaments with the tapered end of a wheel
nut wrench. Insert the handle of the wrench
and twist it against the inner wheel cover
flange. For more about removing wheel
covers, see the information later in this
section.
[ER14300( GV)12/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts.
File:10rcerg.ex
Update:Wed Jun 19 09:54:58 1996
