Checking and Adding Engine Oil
*
[MC06600( ALL)01/96]
Since the proper amount of engine oil is
important for safe engine operation, check the oil
using the dipstick each time you put fuel in
your vehicle. Remember the engine must be off,
the oil must be warm and the vehicle must be
parked on level ground.
%*
[MC06700( ALL)01/96]
Checking the engine oil level:
*
[MC06800( ALL)01/96]
1. Turn the engine off after it has warmed up
and allow a few minutes for the engine oil
to drain back into the oil pan.
*
[MC06900( BCGV)01/96]
2. Set the parking brake, making sure the
gearshift is securely latched in P (Park).
*
[MC07100( ALL)01/96]
3. Open the hood. Protect yourself from engine
heat.
*
[MC07200( ALL)01/96]
4. Locate the engine oil dipstick (highlighted in
yellow) and carefully pull it out of the
engine.
*
[MC07300( ALL)01/96]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
[MC07500( GV)12/95]

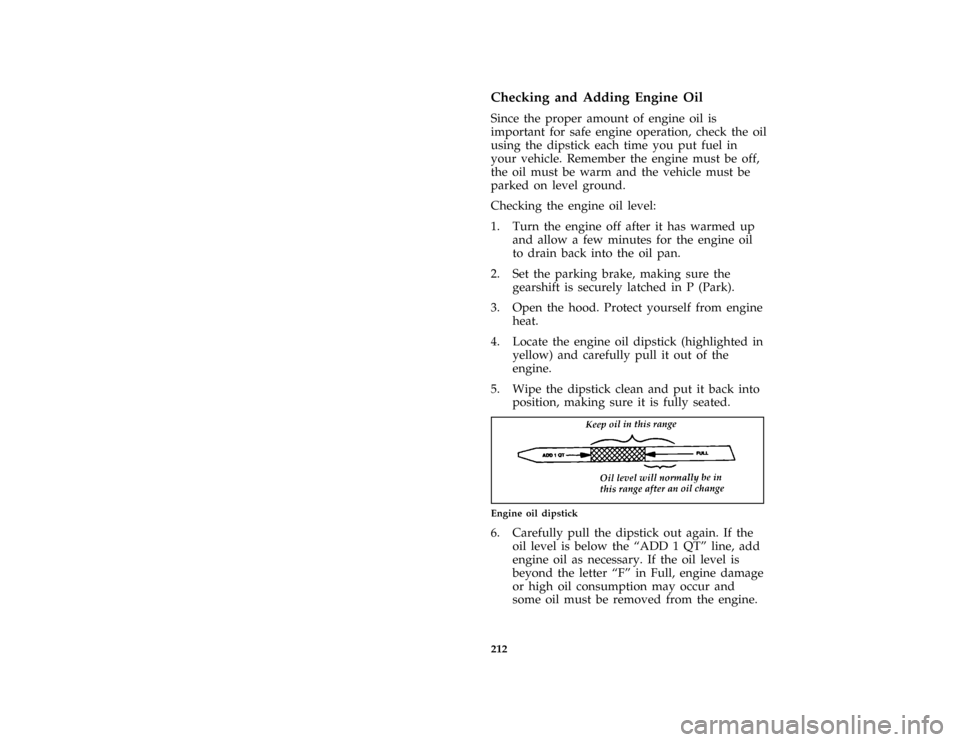

one inch art:0000970-A
Engine oil dipstick
*
[MC07700( BCGV)03/96]
6. Carefully pull the dipstick out again. If the
oil level is below the ªADD 1 QTº line, add
engine oil as necessary. If the oil level is
beyond the letter ªFº in Full, engine damage
or high oil consumption may occur and
some oil must be removed from the engine.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

213
*
[MC07800( ALL)01/96]
7. Put the dipstick back in and make sure it is
fully seated.
*
[MC07900( ALL)01/96]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[MC08000( ALL)01/96]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
%*
[MC08100( ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC08200( ALL)01/96]
Change the engine oil and oil filterper the
following, whichever occurs first.
*
[MC08300( ALL)01/96]
one third page art:0060618-C
*
[MC08400( ALL)02/96]
Refer to theMaintenance Schedulebooklet for
additional information.
%*
[MC08500( ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

214
*
[MC08600( ALL)01/96]
RWARNING
Continuous contact with USED motor oil
has caused cancer in laboratory mice.
*
[MC08700( ALL)01/96]
Protect your skin by washing with soap and
water.
%
*
[MC08800( ALL)05/96]
Brake Fluid
*
[MC08900( ALL)01/96]
Under normal circumstances, your vehicle
should not use up brake fluid rapidly. However,
expect the level of the brake fluid to slowly fall
as you put more mileage on your vehicle and
the brake lining wears.
[MC09000( BCGV)04/96]
Check the brake fluid at each scheduled engine
oil change or at least once a year. You can do
this by looking at the fluid level in the plastic
reservoir on the master cylinder. Also, see label
on reservoir cap. (To locate the master cylinder,
seeThe Engine Typesin the Index.) The fluid
level should be between the MAX fill mark and
3/8" below the MAX fill line.
*
[MC09200( ALL)01/96]
RWARNING
Brake fluid is toxic.
*
[MC09300( ALL)01/96]
If brake fluid contacts eyes, flush eyes with
running water for 15 minutes. Get medical
attention if irritation persists. If taken internally,
drink water and induce vomiting. Get medical
attention immediately.
%*
[MC09400( ALL)03/96]
If the fluid is low, carefully clean and remove
the filler cap from the reservoir. Fill the
reservoir to the MAX line with Ford High
Performance DOT 3 Brake Fluid C6AZ-19542-AB
or DOT 3 equivalent fluid meeting Ford
specification ESA-M6C25-A.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

215
*
[MC09500( ALL)01/96]
RWARNING
If you use a brake fluid that is not DOT
3, you will cause permanent damage to
your brakes.
*
[MC09600( ALL)01/96]
Do not fill the reservoir above the MAX line.
[MC09700( GV)05/96]

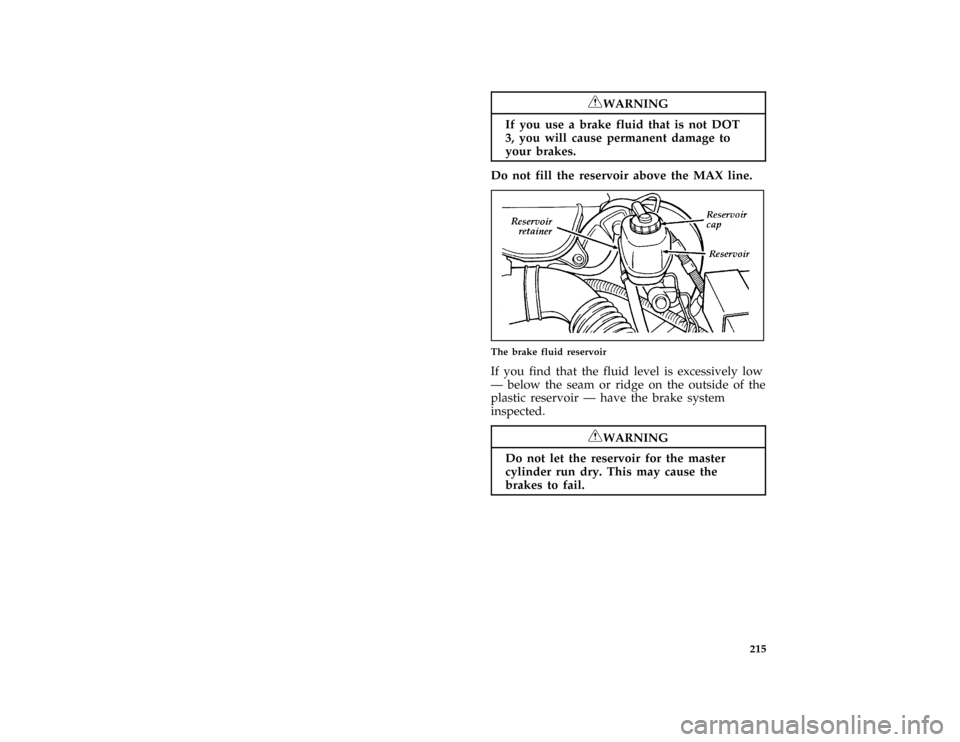

one third page art:0010385-B
The brake fluid reservoir
*
[MC10100( ALL)01/96]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
*
[MC10200( ALL)01/96]
RWARNING
Do not let the reservoir for the master
cylinder run dry. This may cause the
brakes to fail.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

216
%*
[MC10900( ALL)02/96]
Windshield Washer Fluid
%*
[MC11000( ALL)03/96]
Washer Fluid
[MC11100( ALL)04/96]
Check the level of the windshield washer fluid
periodically. The reservoir for washer fluid is
located on the driver's side of the engine
compartment. Do not operate the washer when
the reservoir is empty.
[MC11400( GV)05/96]
one third page art:0010474-C
The reservoir for the windshield washer fluid
*
[MC11500( ALL)01/96]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
%*
[MC11600( ALL)02/96]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOCs) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

217
%*
[MC11700( ALL)01/96]
Engine Coolant
%*
[MC11800( ALL)01/96]
Checking the Engine Coolant
*
[MC11900( ALL)05/96]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
*
[MC12100( BCGV)05/96]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
%*
[MC12200( ALL)12/95]
Your vehicle's coolant protects your engine from
overheating in the summer and from freezing in
the winter. Check the level of the coolant at least
once a month. Simply look at the engine coolant
reservoir located in the engine compartment. To
locate the reservoir, see the diagram of your
vehicle's engine underEngine Type, in this
chapter.
*
[MC12300( ALL)02/96]
The coolant additives also protect the entire
cooling system from internal passageway
corrosion and these additives lubricate the water
pump. The coolant should be serviced as noted
in theMaintenance Schedulebooklet.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

218 [MC12500( BCGV)03/96]

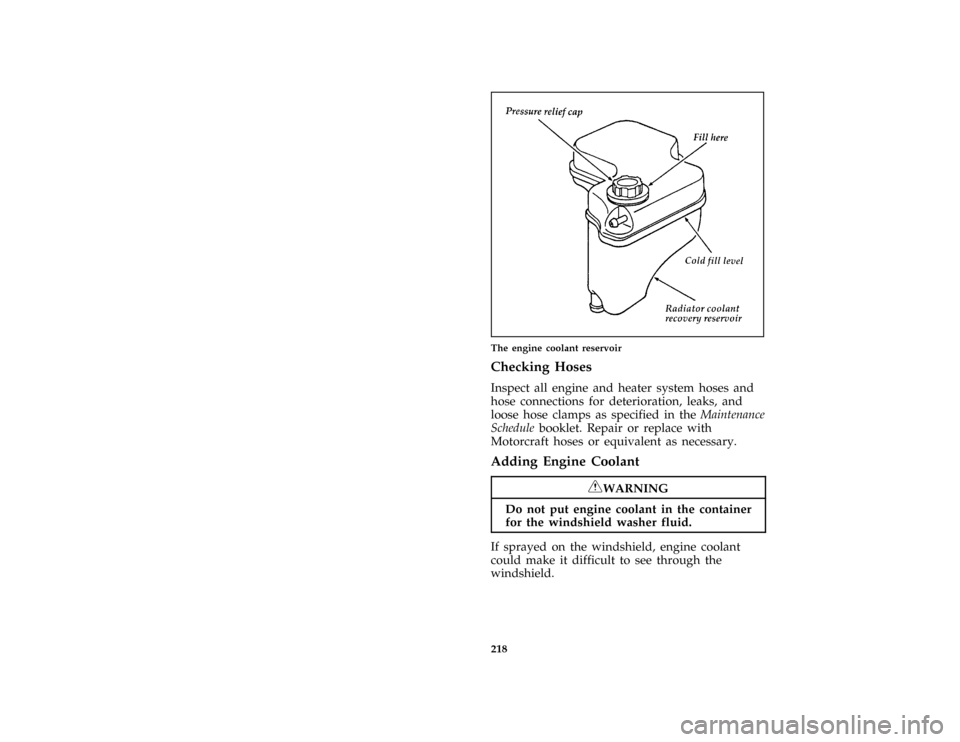

half page art:0010761-DThe engine coolant reservoir
%*
[MC12700( ALL)01/96]
Checking Hoses
[MC12800( ALL)04/96]
Inspect all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in theMaintenance
Schedulebooklet. Repair or replace with
Motorcraft hoses or equivalent as necessary.
*
[MC12900( ALL)05/96]
Adding Engine Coolant
*
[MC13000( ALL)05/96]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[MC13105( GV)05/96]
If sprayed on the windshield, engine coolant
could make it difficult to see through the
windshield.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

219
*
[MC13110( GV)05/96]
When the engine is cool, add a 50/50 mixture of
engine coolant and water to the engine coolant
recovery reservoir Ð DO NOT ADD DIRECTLY
TO THE RADIATOR. Add straight water only in
an emergency, but you should replace it with a
50/50 mixture of coolant and distilled water as
soon as possible.
*
[MC13115( GV)05/96]
Check the coolant level in the coolant recovery
reservoir the next few times you drive the
vehicle. If necessary, add enough of a 50/50
mixture of coolant and water to bring the liquid
level to the fill line on the reservoir.
*
[MC13305( GV)05/96]
RWARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[MC13405( GV)05/96]
If you must remove the coolant recovery cap,
follow these steps to avoid personal injury:
*
[MC13605( GV)05/96]
1. Before you remove the cap, turn the engine
off and let it cool.
*
[MC13705( GV)05/96]
2. When the engine is cool, wrap a thick cloth
around the cap. Slowly turn cap
counterclockwise to the first stop.
*
[MC13805( GV)05/96]
3. Step back while the pressure releases.
*
[MC13905( GV)05/96]
4. When you are sure that all the pressure has
been released, use the cloth to press the cap
down, turn it counterclockwise, and remove
it.
*
[MC14505( ALL)05/96]
Use Ford Premium Cooling System Fluid
E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)
or an equivalent premium engine coolant that
meets Ford specification ESE-M97B44-A. Ford
Premium Engine Coolant is an optimized
formula that will protect all metals and rubber
elastomers used in Ford cooling systems for 4
years or 50,000 miles (80,000 km).
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

220
*
[MC14510( ALL)05/96]
Do not use alcohol or methanol antifreeze or any
engine coolants mixed with alcohol or methanol
antifreeze. Do not use supplemental coolant
additives in your vehicle. These additives may
harm your engine cooling system. The use of an
improper coolant may void the warranty of your
vehicle's engine cooling system.
*
[MC14605( ALL)05/96]
Recycled engine coolant
*
[MC14705( ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved processes.
Not all coolant recycling processes produce
coolant which meets Ford specification
ESE-M97B44-A, and use of such coolant may
harm engine and cooling system components.
*
[MC14805( ALL)05/96]
Always dispose of used automotive fluids in a
responsible manner. Follow your community's
regulations and standards for recycling and
disposing of automotive fluids.
*
[MC14905( ALL)05/96]
Coolant refill capacity
*
[MC14910( ALL)05/96]
To find out how much fluid your vehicle's
cooling system can hold, refer toRefill capacities
in theCapacities and specificationschapter.
*
[MC14915( ALL)05/96]
Have your dealer check the engine cooling
system for leaks if you have to add more than a
quart (liter) of engine coolant per month.
*
[MC15005( ALL)05/96]
Severe winter climate
*
[MC15010( ALL)05/96]
If you drive in extremely cold climates (less than
-34ÊF [-36ÊC]), it may benecessary to increase
the coolant concentration above 50%. Refer to
the chart on the coolant container to ensure the
coolant concentration in your vehicle is such that
the coolant will not freeze at the temperature
level in which you drive during winter months.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996

221
Never increase the engine coolant concentration
above 60%. Leave a 50/50 mixture of engine
coolant and water in your vehicle year-round in
non-extreme climates.
%*
[MC15200( ALL)05/96]
Engine Coolant Drain and Flush
[MC15300( ALL)04/96]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
*
[MC15400( ALL)12/95]
Engine Coolant Refill Procedure
*
[MC15500( ALL)12/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
*
[MC15600( ALL)12/95]
NOTE: It is imperative the following
procedure be adhered to. Failure to do
so could result in damage to your
engine.
*
[MC17400( ALL)12/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
Remove the heater hose and clamp, located
on the rear of the intake manifold.
*
[MC17500( ALL)12/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount. Add coolant to the reservoir until
the coolant continuously flows out of the tube
in the rear of engine. Reattach hose and
secure clamp.
[MC17600( ALL)12/95]
q
Continue to fill the reservoir until the coolant
is at the FULL COLD level.
*
[MC17700( ALL)12/95]
q
Reinstall the pressure cap to the fully
installed position.
File:11rcmcg.ex
Update:Thu Jun 20 11:04:35 1996
