window MITSUBISHI 380 2005 Workshop Manual

DOOR
BODY42-53

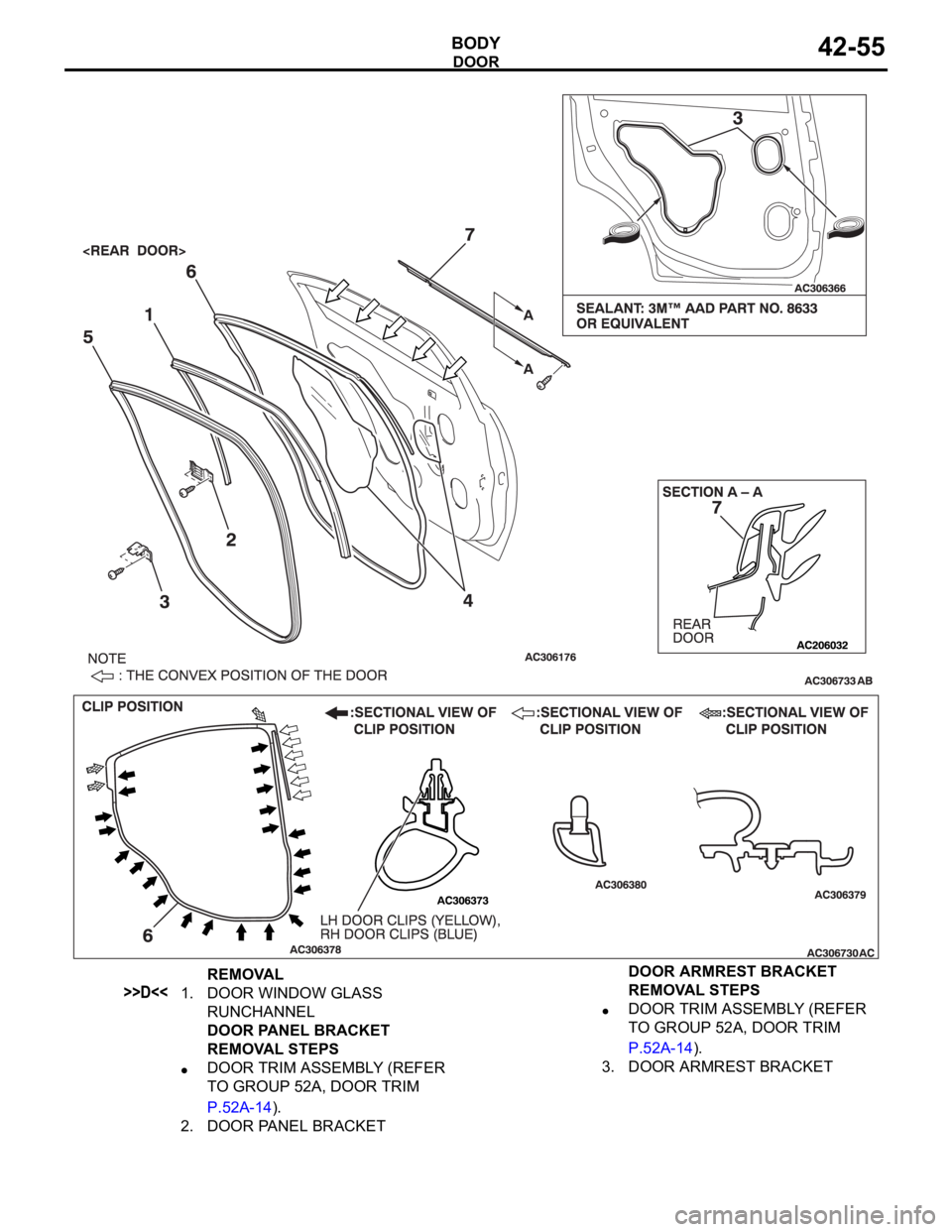

REMOVAL
>>D<<1. DOOR WINDOW GLASS
RUNCHANNEL
WATERPROOF FILM AND DOOR
PANEL CORE REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
DOOR INSIDE HANDLE (REFER TO
P.42-46).
2. DOOR ARMREST BRACKET
>>A<<3. WATERPROOF FILM
4. DOOR PANEL CORE
DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS
FRONT SCUFF PLATE (REFER TO
GROUP 52A, TRIMS P.52A-11).
>>C<<5. DOOR OPENING INNER
WEATHERSTRIP (BODY SIDE)DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS
DOOR CHECK MOUNTING BOLT
(BODY SIDE) (REFER TO P.42-37).
>>B<<6. DOOR OPENING OUTER
WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
REMOTE CONTROLLED MIRROR
ASSEMBLY (REFER TO GROUP 51,
DOOR MIRROR P.51-28).
7. DOOR BELTLINE MOLDING

DOOR
BODY42-55
REMOVAL
>>D<<1. DOOR WINDOW GLASS
RUNCHANNEL
DOOR PANEL BRACKET
REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
2. DOOR PANEL BRACKETDOOR ARMREST BRACKET
REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
3. DOOR ARMREST BRACKET

DOOR
BODY42-59

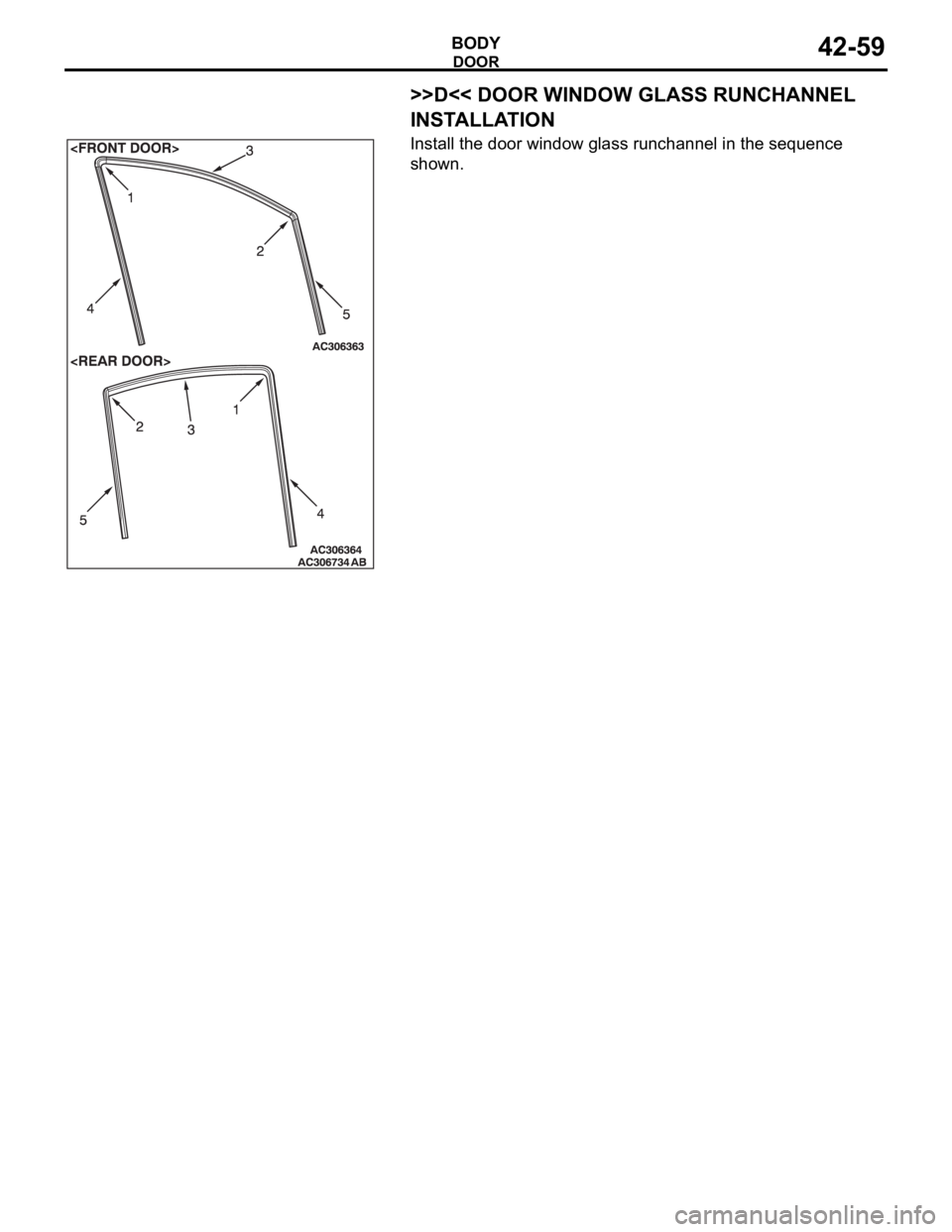

>>D<< DOOR WINDOW GLASS RUNCHANNEL
INSTALLATION
Install the door window glass runchannel in the sequence
shown.

SPECIFICATIONS
BODY42-87
SERVICE SPECIFICATIONSM1421000300299


SEALANT AND ADHESIVESM1421000500204


ITEM STANDARD VALUE
Door inside handle knob play mm
(in)Front 26.1 - 58.1 (1.028 - 2.287) [Target
value 41 (1.61)]
Rear 30.3 - 58.1 (1.193 - 2.287) [Target
value 41 (1.61)]
Door inside handle lock knob stroke mm (in) 21.6 (0.850)
Door outside handle play mm (in) Front 10
3.5 (0.39 0.138)
Rear 11.2
4 (0.441 0.16)
Power window operation current A 5
1 [Power supply voltage 14.5
0.5V 25
C (77F)]
ITEM STANDARD VALUE
Roof lid glass operation current A 7 or less [at 20
C(68F)]
ITEM SPECIFIED ADHESIVE
Rear window glass 3 M
AAD part No. 8609 super fast urethane and 3 M AAD part No.
8608 super fast urethane primer or equivalent
Windshield
ITEM SPECIFIED SEALANT REMARK
Waterproof film 3 M
AAD Part No. 8633 or equivalent Ribbon sealer
ITEM SPECIFIED ADHESIVE TAPE
Front door opening outer
weatherstripAdhesive tape: Double-sided tape [7 mm (0.28 in) width, 85 mm (3.35
in) length and 0.8 mm (0.03 in) thickness]
Rear door opening outer
weatherstripAdhesive tape: Double-sided tape [7 mm (0.28 in) width, 50 mm (1.97
in) length and 0.8 mm (0.031 in) thickness]
ITEM SPECIFIED SEALANT REMARK
Trunk lid hinge 3 M
AAD part No. 8531 Heavy drip check sealer,
3 M
AAD part No. 8646 Automotive joint and
seam sealer or equivalentBody sealer
