Interior MITSUBISHI 380 2005 Owner's Guide

INTERIOR52A-2
FRONT SEAT ASSEMBLY* . . . . . . .52A-21
REMOVAL AND INSTALLATION . . . . . . . . 52A-21
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . 52A-23
POWER SEAT CONTINUITY AND
DIAGNOSTIC CHECKS . . . . . . . . . . . . . . . 52A-23
OPERATION CHECK OF POWER
SEAT MOTOR . . . . . . . . . . . . . . . . . . . . . . 52A-29
MEMORY SEAT CONTROLLER (MSC). . . 52A-31
DISASSEMBLY AND ASSEMBLY RH SIDE52A-33
DISASSEMBLY AND ASSEMBLY LH SIDE52A-37
REMOVAL SERVICE POINT . . . . . . . . . . . 52A-42
FRONT SEAT TRIM COVER
REMOVAL AND FITMENT . . . . . . . . . . . . . 52A-43
REAR SEAT CUSHION TRIM COVER
REMOVAL AND FITMENT . . . . . . . . . . . . . 52A-46
REAR SEAT BACK TRIM COVERREMOVAL AND FITMENT . . . . . . . . . . . . . 52A-49
REAR SEAT ASSEMBLY . . . . . . . . . .52A-55
REMOVAL AND INSTALLATION . . . . . . . . 52A-55
DISASSEMBLY AND REASSEMBLY . . . . . 52A-57
FRONT SEAT BELT* . . . . . . . . . . . . .52A-58
REMOVAL AND INSTALLATION . . . . . . . . 52A-58
INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . 52A-59
REAR SEAT BELT . . . . . . . . . . . . . . .52A-59
REMOVAL AND INSTALLATION . . . . . . . . 52A-59
SPECIFICATIONS . . . . . . . . . . . . . . .52A-60
FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . 52A-60

GENERAL DESCRIPTION
INTERIOR52A-3
GENERAL DESCRIPTIONM1521000100184
OPERATION
.
Seat belt warning system
If the driver turn the ignition switch to the "ON" posi-
tion without fastening the seat belt, the seat belt
warning light illuminates.
SEAT BELT DIAGNOSISM1523000700182
The seat belt warning system is controlled by the
Simplified Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, SWS diagnosis
P.54B-101.
SPECIAL TOOLSM1521000600327
TOOL TOOL NUMBER AND
NAMESUPERSESSION APPLICATION
MB990784
Ornament removerGeneral service
toolRemoval of switch, trim,
etc.

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-4
INSTRUMENT PANEL ASSEMBLY
REMOVAL AND INSTALLATIONM1521001700684
Refer to GROUP 52B, SRS Service Precautions P.52B-16 and Air bag Module and Clock Spring
P.52B-237 before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as
marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assem-
bly."
NAME SYMBOL SIZE (D
L) mm COLOR SHAPE
TAPPING SCREW a 5
12 BLACK
b5
16 -
c5
20 -
d5
20 BLACK
e6
16 GREEN
f8
15 -
WASHER
ASSEMBLY BOLTg6
16 -
h6
25 -
i6
16 -

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-5
REMOVAL STEPS
1. GLOVEBOX ASSEMBLY
2. INSTRUMENT PANEL PARCEL
BOX
3. GLOVEBOX LOCKHOOD LOCK RELEASE HANDLE
(REFER TO GROUP 42, HOOD
P.42-8.)
4. INSTRUMEN LOWER PANEL
5. INSTURMENT CENTER PANEL
ASSEMBLY REMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-6
6. RADIO AND CD PLAYER,
ASSEMBLY
7. RADIO, CD PLAYER AND CD
CHANGER ASSEMBLY
8. CONSOLE METER HOOD
11. MULTI-CENTER DISPLAY
ASSEMBLY
12. INSTRUMENT DIGITAL CLOCK
ASSEMBLY
13. CENTER CONSOLE ASSEMBLY
14. INSTURMENT PANEL GARNISH
15. COMBINATION METER
ASSEMBLY
FRONT PILLAR TRIM (REFER TO
P.52A-11.)
16. FRONT SPEAKER GARNISH
17. TWEETER
18. INSTRUMENT PANEL SIDE
COVER
19. INSTRUMETN PANEL SIDE AIR
OUTLET
AIR BAG MODULE ASSEMBLY
(DRIVER’S SIDE) (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING P.52B-237.)
STEERING WHEEL ASSEMBLY
(REFER TO GROUP 37,
STEERING WHEEL P.37-23.)
20. STEERING COLUMN COVERREMOVAL STEPS (Continued)
<>CLOCK SPRING CONNECTOR
<>COLUMN SWITHC CONNECTOR
CLOCK SPRING AND COLUMN
SWITCH ASSEMBLY (REFER TO
GROUP 37, STEERING SHAFT
P.37-25.)
21. INTERIOR TEMPERATURE
SENSOR (GROUP 55B,
SENSORS 55-160.)
22. INSTRUMENT PANEL FRONT
END GARNISH
23. PHOTO SENSOR (GROUP 55B,
SENSORS 55-160.) AND
SECURITY LED.
FLOOR CONSOLE ASSEMBLY
(REFER TO P.52A-10.)
COWL SIDE TRIM (REFER TO
P.52A-11.)
<>AIR BAG MODULE CONNECTOR
(PASSENGER’S SIDE) (REFER
TO GROUP 52B, AIR BAG
MODULE AND CLOCK SPRING
P.52B-237.)
25. INSTRUMENT PANEL ASSEMBLYREMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-7
CLIP AND CLAW POSITIONS

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-8
REMOVAL SERVICE POINT
.
<> CONNECTOR DISCONNECTION
Disconnect the connectors shown in the illustration.
1. CLOCK SPRING CONNECTOR (6)
2. CLOCK SPRING CONNECTOR (4-Y)
3. COLUMN SWITCH CONNECTOR (10)
4. AIR BAG MODULE (FRONT PASSENGER’S SIDE)
CONNECTOR (4-Y)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-9
DISASSEMBLY AND ASSEMBLYM1521001900376
DISASSEMBLY STEPS
1. DISTRIBUTION DUCT. REAR
CONSOLE DUCTS REFER TO
GROUP 55 HEATER ,AIR
CONDITIONING AN
VENTILATION P.55-175
2. BACKBONE BRACKET3. AIR BAG MODULE ASSEMBLY
(FRONT PASSENGER’S SIDE)
(REFER TO GROUP 52B, AIR
BAG MODULE(S) AND CLOCK
SPRING P.52B-237.)
4. SIDE DEFROSTER DUCT
5. DEFROSTER NOZZLE
6. COMBINATION METER BRACKET
7. GLOVEBOX STRIKER
8. INSTRUMENT PANELDISASSEMBLY STEPS

FLOOR CONSOLE ASSEMBLY
INTERIOR52A-10
FLOOR CONSOLE ASSEMBLY
REMOVAL AND INSTALLATIONM1521002200314
REMOVAL STEPS
1. GEARSHIFT LEVER PANEL
2. HEATED SEAT SWITCH
SWITCH>
3. ACCESSORY SOCKET (ACC)
(REFERTO GROUP 54A,
ACCESSORY SOCKET
P.54A-174.)
4. ACCESSORY SOCKET COVER
5. FRONT BOX
6. PLATE
7. FLOOR CONSOLE ASSEMBLY8. LID LOCK LEVER
9. HINGE
10. LID
11. INNER BOX
12. ACCESSORY SOCKET (+B)
(REFERTO GROUP 54A,
ACCESSORY SOCKET
P.54A-174.)
13. ACCESSORY SOCKET COVER
14. FLOOR CONSOLE
15. ACCESSORY SOCKET HARNESS
16. REAR BRACKETREMOVAL STEPS (Continued)

TRIMS
INTERIOR52A-11

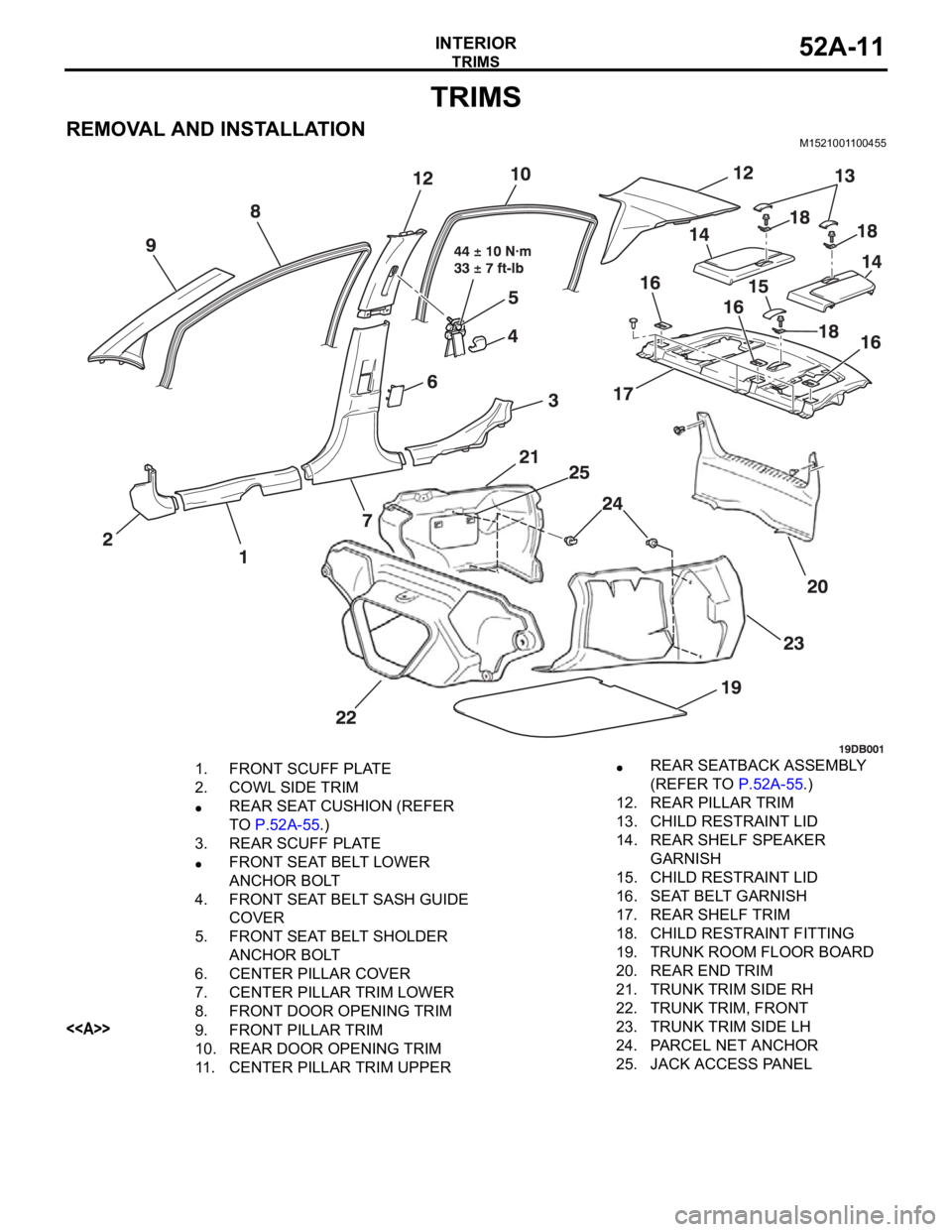

TRIMS
REMOVAL AND INSTALLATIONM1521001100455
1. FRONT SCUFF PLATE
2. COWL SIDE TRIM
REAR SEAT CUSHION (REFER
TO P.52A-55.)
3. REAR SCUFF PLATE
FRONT SEAT BELT LOWER
ANCHOR BOLT
4. FRONT SEAT BELT SASH GUIDE
COVER
5. FRONT SEAT BELT SHOLDER
ANCHOR BOLT
6. CENTER PILLAR COVER
7. CENTER PILLAR TRIM LOWER
8. FRONT DOOR OPENING TRIM
<>9. FRONT PILLAR TRIM
10. REAR DOOR OPENING TRIM
11. CENTER PILLAR TRIM UPPER
REAR SEATBACK ASSEMBLY
(REFER TO P.52A-55.)
12. REAR PILLAR TRIM
13. CHILD RESTRAINT LID
14. REAR SHELF SPEAKER
GARNISH
15. CHILD RESTRAINT LID
16. SEAT BELT GARNISH
17. REAR SHELF TRIM
18. CHILD RESTRAINT FITTING
19. TRUNK ROOM FLOOR BOARD
20. REAR END TRIM
21. TRUNK TRIM SIDE RH
22. TRUNK TRIM, FRONT
23. TRUNK TRIM SIDE LH
24. PARCEL NET ANCHOR
25. JACK ACCESS PANEL
