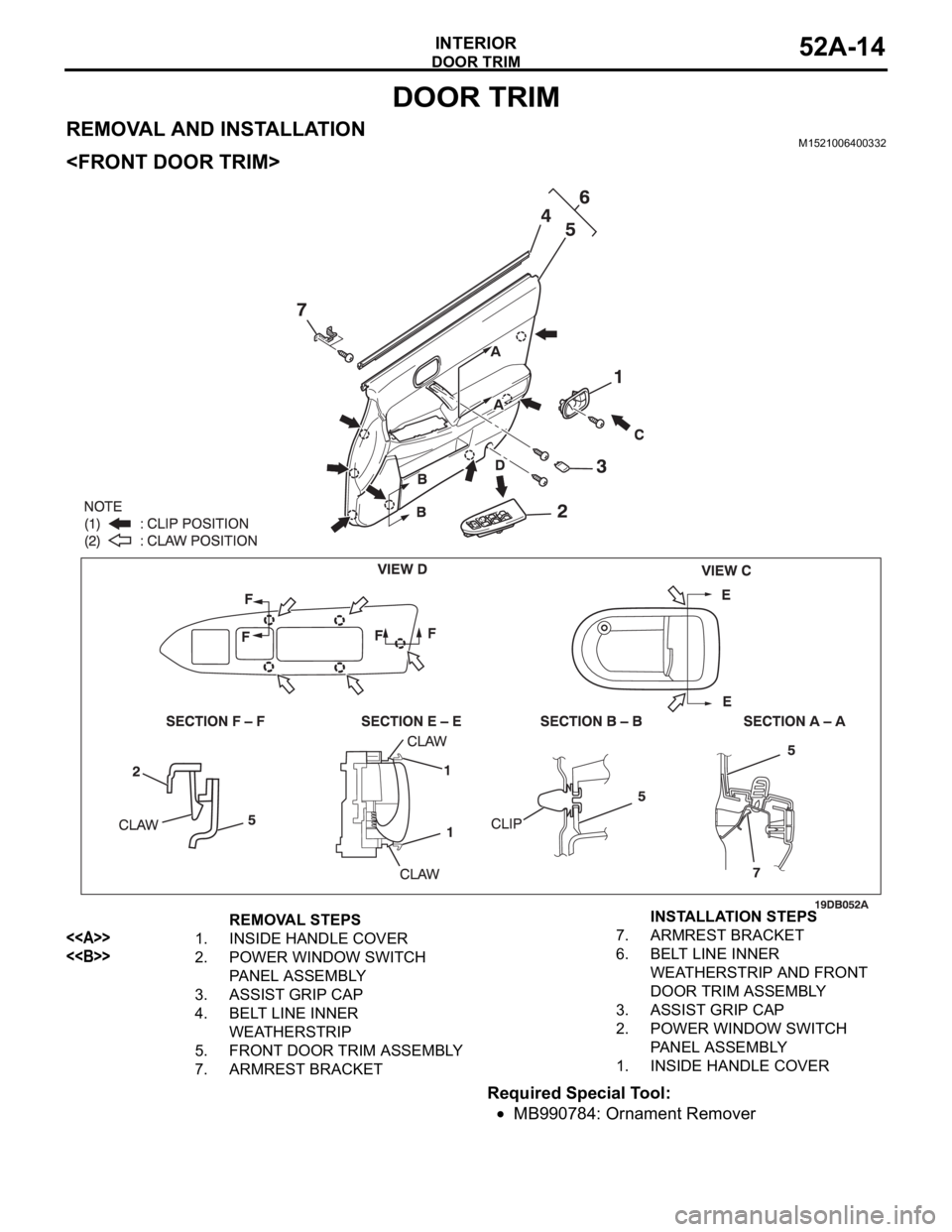

DOOR TRIM
INTERIOR52A-17
DISASSEMBLY AND ASSEMBLYM1521006900100

DISASSEMBLY STEPS
1. ASSIST GRIP
2. POWER WINDOW MAIN SWITCH
3. REMOTE CONTROLLED MIRROR
SWITCH4. POWER WINDOW MEIN SWITCH
PA N E L
5. ARMREST BRACKET
6. ARMREST
7. FRONT DOOR TRIMDISASSEMBLY STEPS

DOOR TRIM
INTERIOR52A-18

DISASSEMBLY STEPS
1. POWER WINDOW SUB SWITCH
2. POWER WINDOW SUB SWITCH
PA N E L3. ARMREST
4. REAR DOOR TRIMDISASSEMBLY STEPS

HEADLINING
INTERIOR52A-19
HEADLINING
REMOVAL AND INSTALLATIONM1521001400360
Pre-removal and Post-installation Operation
Front Seat Assembly (Refer to P.52A-21.)
Removal and Installation of Rear Seat Cushion Assembly
and Rear Seatback Assembly (Refer to P.52A-55.)
Removal and Installation of Front Pillar Trim, Center Pillar
Trim Upper and Rear Pillar Trim (Refer to P.52A-11.)
REMOVAL STEPS
1. SUN VISOR
2. SUN VISOR HOLDER
3. OVERHEAD CONSOLE
ASSEMBLY
4. DOME LIGHT ASSEMBLY (REFER
TO GROUP 54A, DOME LIGHT
P.54A-163.)
5. ASSIST GRIP PLUG
6. ROOF INSIDE ASSIST GRIP
ASSIST GRIP>
7. SUNROOF OPENING TRIM
8. ROOF HARNESS CLAMP
INSTRUMENT PANEL SIDE
COVER (REFER TO P.52A-4.)
9. ROOF HARNESS CONNECTOR
FLOOR CONSOLE ASSEMBLY
(REFER TO P.52A-10.)
PARKING BRAKE LEVER
ASSEMBLY MOUNTING BOLT
(REFER TO GROUP 36, PARKING
BRAKE LEVER P.36-6.)
<>10. HEADLINING ASSEMBLY
11. OVERHEAD CONSOLE BRACKET
12. FRONT HEADLINING PAD REMOVAL STEPS (Continued)

INSIDE REAR VIEW MIRROR
INTERIOR52A-20
REMOVAL SERVICE POINT
.
<> HEADLINING ASSEMBLY REMOVAL
Remove the front passenger's door check (body side mounting
bolt), open the front passenger's door and remove the headlin-
ing assembly. (Refer to GROUP 42, Door Assembly P.42-37.)
INSIDE REAR VIEW MIRRORM1521002600248
REMOVAL SERVICE POINT
.
INSIDE REAR VIEW MIRROR REMOVAL
Insert a narrow flat-tip screwdriver into the slit in the inside rear
view mirror bracket, keep the spring pushed in and remove the
inside rear view mirror in the direction of the arrow in the illus-
tration.
NOTE: While the spring is pushed in, the connection between
the spring and the pawl of the button is released.
13. CENTER HEADLINING PAD
14. REAR HEADLINING PAD
15. ROOF INSIDE ASSIST GRIP
BRACKET ROOF INSIDE ASSIST GRIP>
16. ASSIST GRIP BRACKETREMOVAL STEPS (Continued)

FRONT SEAT ASSEMBLY
INTERIOR52A-21
FRONT SEAT ASSEMBLY
REMOVAL AND INSTALLATIONM1522001300560
Before removing the front seat assembly, refer to GROUP 52B, Service Precautions
P.52B-16 and Air Bag Module and Clock Spring P.52B-237.
2. HEADREST
FRONT SEAT ASSEMBLY
REMOVAL STEPS
3. SEAT BELT SWITCH
CONNECTOR
4. POWER SEAT CONNECTOR RH
SEAT>
6. POWER SEAT CONNECTOR
7. SIDE-AIR BAG MODULE
CONNECTOR SIDE-AIR BAG>
8. FRONT SEAT REAR ANCHOR
COVER
>>A<<10. FRONT SEAT ASSEMBLYFRONT SEAT ASSEMBLY
REMOVAL STEPS (Continued)
