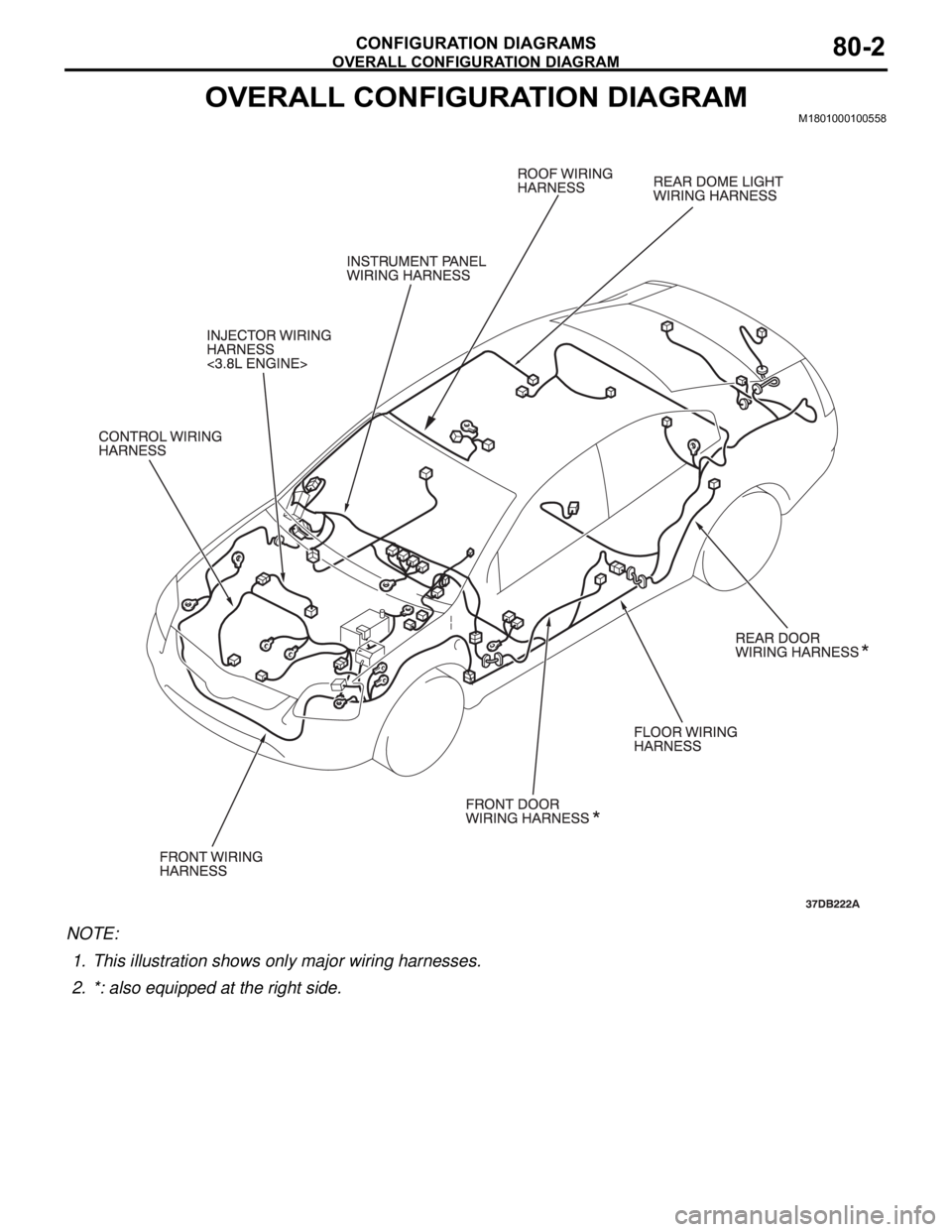

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-2
OVERALL CONFIGURATION DIAGRAMM1801000100558
NOTE: .
1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

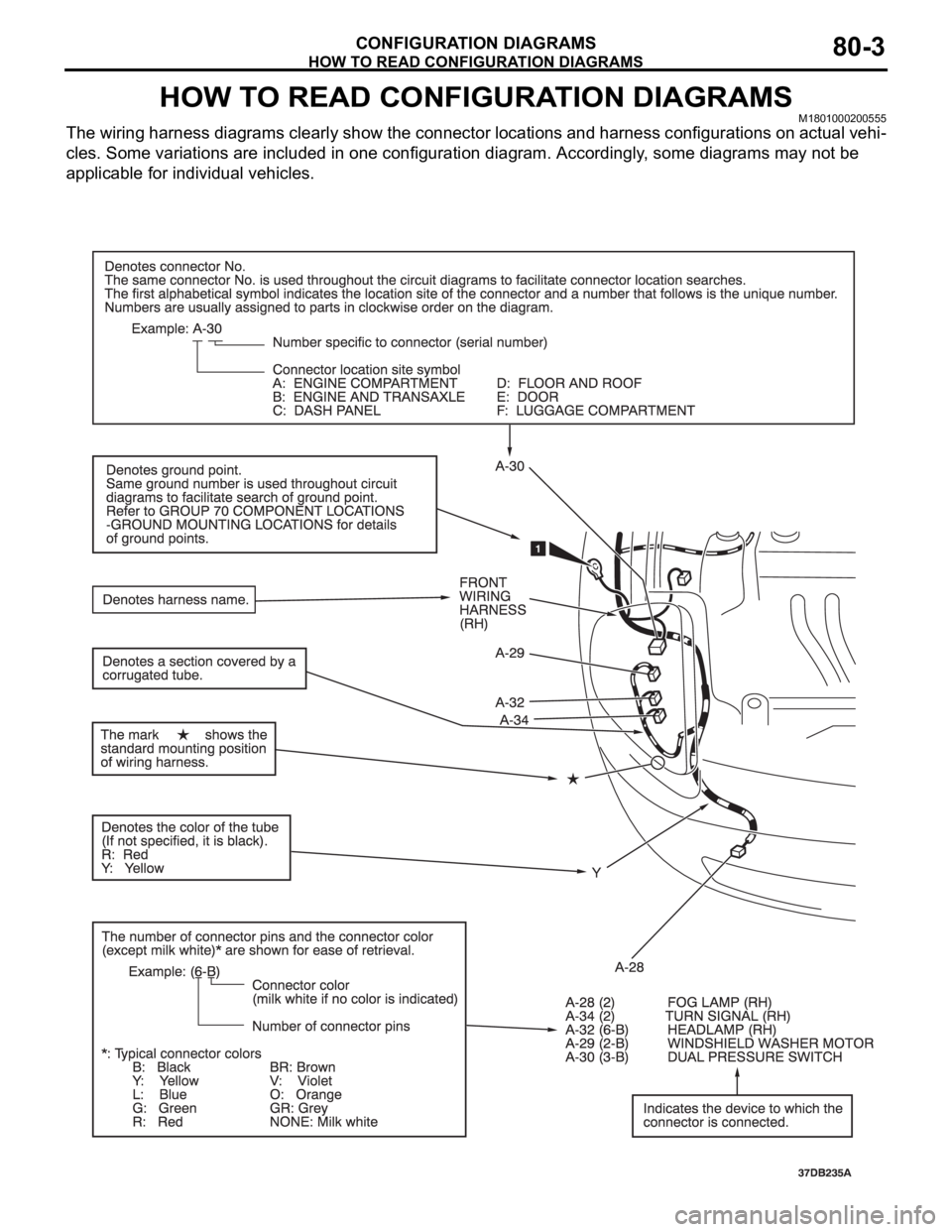

HOW TO READ CONFIGURATION DIAGRAMS
CONFIGURATION DIAGRAMS80-3
HOW TO READ CONFIGURATION DIAGRAMSM1801000200555
The wiring harness diagrams clearly show the connector locations and harness configurations on actual vehi-
cles. Some variations are included in one configuration diagram. Accordingly, some diagrams may not be
applicable for individual vehicles.

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-4
ENGINE COMPARTMENTM1801000301403
A-01 (2-B) WHEEL SPEED SENSOR (FRONT:
RH)
A-02 (26-B) ABS-ECU OR ABS/TCL-ECU
A-03 (5-B) WINDSHIELD WIPER MOTOR
A-04 (2-B) WHEEL SPEED SENSOR (FRONT:
LH)
A-05X (4) FOG LAMP RELAY
A-06X (4) HORN RELAY
A-10X (4) FAN CONTROL RELAYA-11X (11) FRONT-ECU
A-12X (11) FRONT-ECU
A-13 (17-GR) FRONT WIRING HARNESS AND
CONTROL WIRING HARNESS
COMBINATION
A-14 (6-GR) GROUNDING CONNECTOR
A-17 (2) SIDE TURN SIGNAL LAMP (LH)
A-18 (2) FRONT TURN SIGNAL LAMP (LH)
A-20 (6) HEADLAMP COMBINATION (LH)

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-5
A-22 (2-B) FOG LAMP (LH)
A-23 (2-Y) FRONT IMPACT SENSOR (LH)
A-24 (3-B) RADIATOR AND CONDENSER FAN
CONTROLLER MODULE
A-25 (2-BR) AMBIENT TEMPERATURE SENSOR
A-26 (2-B) HOOD SECURITY SWITCH
A-27 (2-Y) FRONT IMPACT SENSOR (RH)
A-28 (2-B) FOG LAMP (RH)
A-29 (2) WINDSHIELD WASHER MOTORA-30 (3-B) A/C PRESSURE SENSOR
A-32 (6) HEADLAMP COMBINATION (RH)
A-34 (2) FRONT TURN SIGNAL LAMP (RH)
A-35 (2) SIDE TURN SIGNAL LAMP (RH)
A-36 (1-B) HORN (LOW)
A-37 (1-B) HORN (HIGH)
A-38 (2) CONDENSOR FAN CONNECTION
TO CONTROLLER MODULE

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-6
ENGINE AND TRANSMISSIONM1801000401079
B-01 (2-GR) INJECTOR 1
B-02 (3-B) MANIFOLD ABSOLUTE PRESSURE
SENSOR
B-03 (2-GR) INJECTOR 3
B-04 (2-GR) INJECTOR 5
B-05 (2-B) EVAPORATIVE EMISSION PURGE
SOLENOID
B-06 (6-B) THROTTLE BODY ASSEMBLY
B-07 (2-GR) BRAKE FLUID LEVEL SWITCHB-08 (4-GR) RIGHT BANK HEATED OXYGEN
SENSOR (REAR)
B-09 (4-B) RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)
B-10 (5) MASS AIRFLOW SENSOR
B-16X (4) A/T CONTROL RELAY
B-17X (4) MPI RELAY
B-18X (4) A/C COMPRESSOR CLUTCH RELAY

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-7
B-19 (34) A/T-ECU
B-20 (60) ENGINE-ECU
B-21 (94) ENGINE-ECU
B-22 (26) A/T-ECU
B-24 (4-GR) LEFT BANK HEATED OXYGEN
SENSOR (REAR)
B-25 (4-B) LEFT BANK HEATED OXYGEN
SENSOR (FRONT)
B-26 (2-GR) INJECTOR 6B-27 (2-GR) INJECTOR 4
B-28 (1-B) A/C COMPRESSOR ASSEMBLY
B-29 (1-B) ENGINE OIL PRESSURE SWITCH
B-30 (2-GR) INJECTOR 2
B-31 (1-B) POWER STEERING PRESSURE
SWITCH
B-32 (10-B) CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-8
B-101 (3-GR) IGNITION COIL 1
B-102 (3-GR) IGNITION COIL 3
B-103 (3-GR) IGNITION COIL 5
B-104 (2-B) ENGINE COOLANT TEMPERATURE
SENSOR
B-106 (3-B) CAMSHAFT POSITION SENSORB-107 (3-GR) OUTPUT SHAFT SPEED SENSOR
B-108 (10-GR) A/T CONTROL SOLENOID VALVE
ASSEMBLY
B-109 (3-B) INPUT SHAFT SPEED SENSOR
B-110 (10-B) TRANSMISSION INHIBITOR
(RANGE) SWITCH

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-9
B-112 (1) STARTER
B-113 (1-B) STARTER
B-114 (3-GR) IGNITION COIL 6
B-115 (1) ALTERNATOR
B-116 (2) ALTERNATORB-117 (3-GR) IGNITION COIL 4
B-118 (3-GR) IGNITION COIL 2
B-119 (3-B) CRANKSHAFT POSITION SENSOR
B-120 (2-GR) KNOCK SENSOR

DASH PANEL
CONFIGURATION DIAGRAMS80-10
DASH PANELM1801000601147
C-02 (22) J/C (3)
C-04 (4) PHOTO SENSOR AND
SECURITY LED
C-05 (20-B) MULTI CENTRE DISPLAY UNIT
C-06 (4) CLOCK DISPLAY CENTRE DISPLAY>
C-07 (2) CLUTCH SWITCH (M/T)
C-08 (4) HAZARD WARNING LIGHT SWITCH
C-11 (2) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATIONC-12 (22) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (RH)
COMBINATION
C-13 (8) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-15 (20-B) A/C-ECU
C-16 (16-B) A/C-ECU
C-17 (2) ACCESSORY SOCKET (1)

DASH PANEL
CONFIGURATION DIAGRAMS80-11
C-21 (2) TRUNK OPEN SWITCH
C-24 (6-B) ACCELERATOR PEDAL POSITION
SENSOR
C-25 (16) FRONT WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION
C-26 (14) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (LH)
COMBINATION
C-27 (4) INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATIONC-28 (43) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-29 (38) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION
C-30 (4) STOPLAMP SWITCH
C-32 (6) MODE SELECT SWITCH
