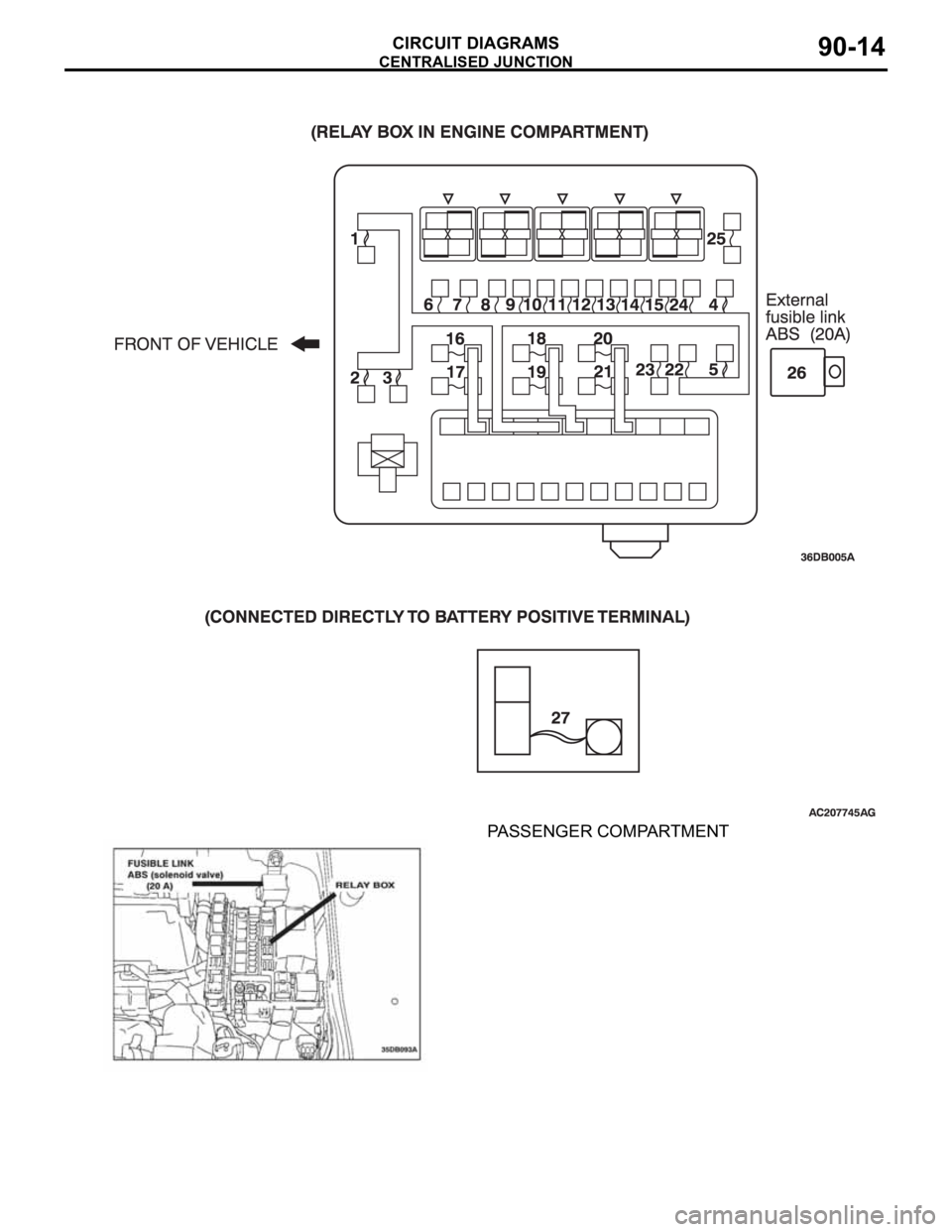

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-15

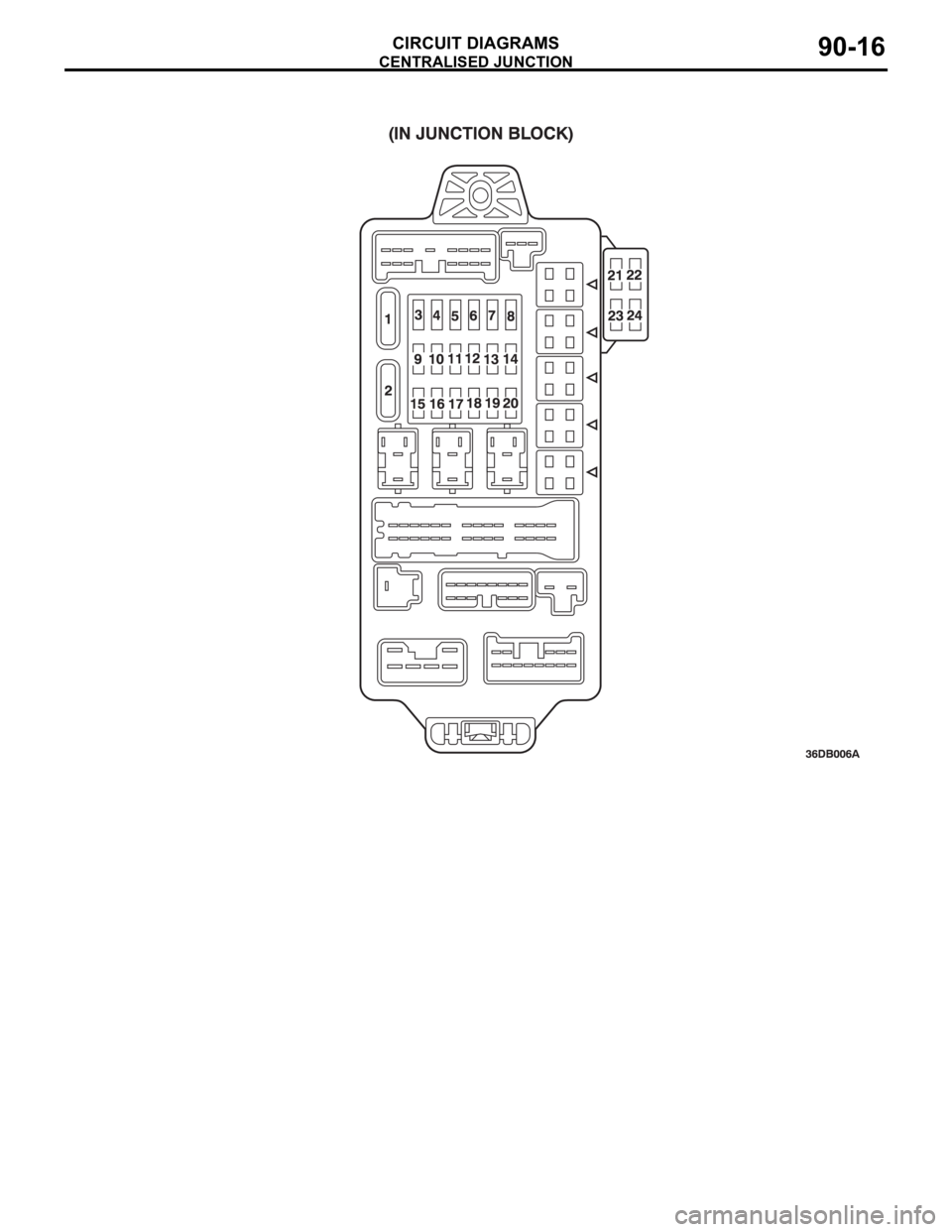

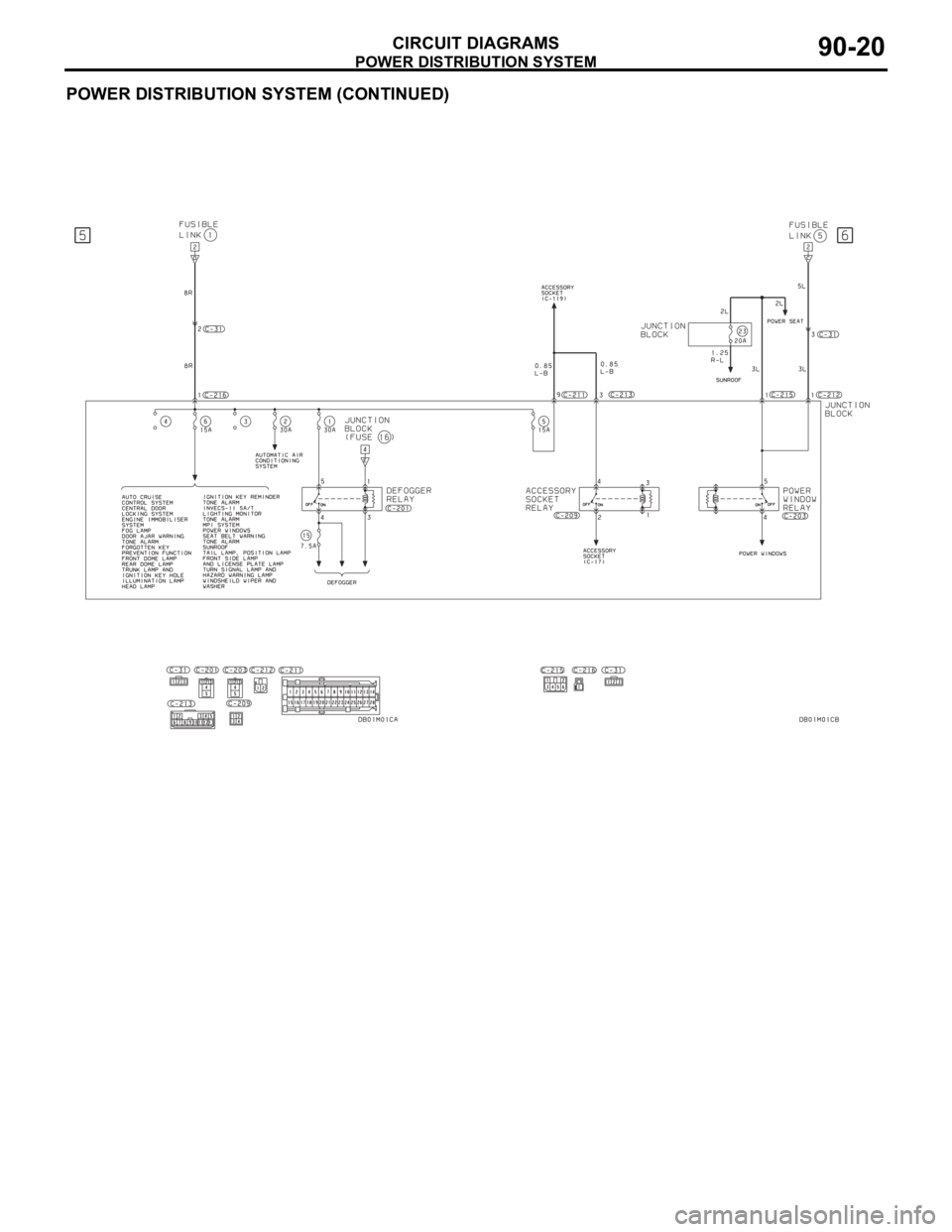

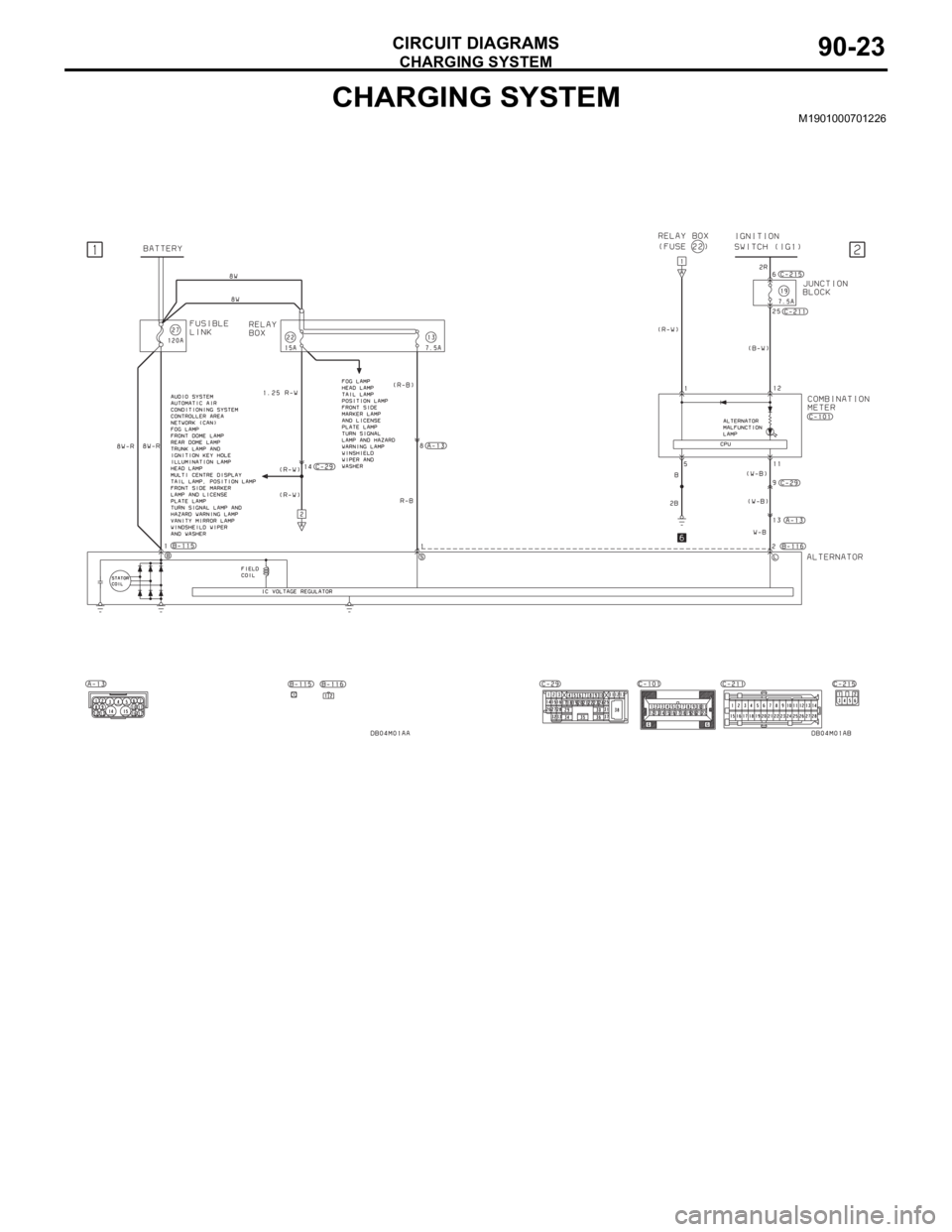

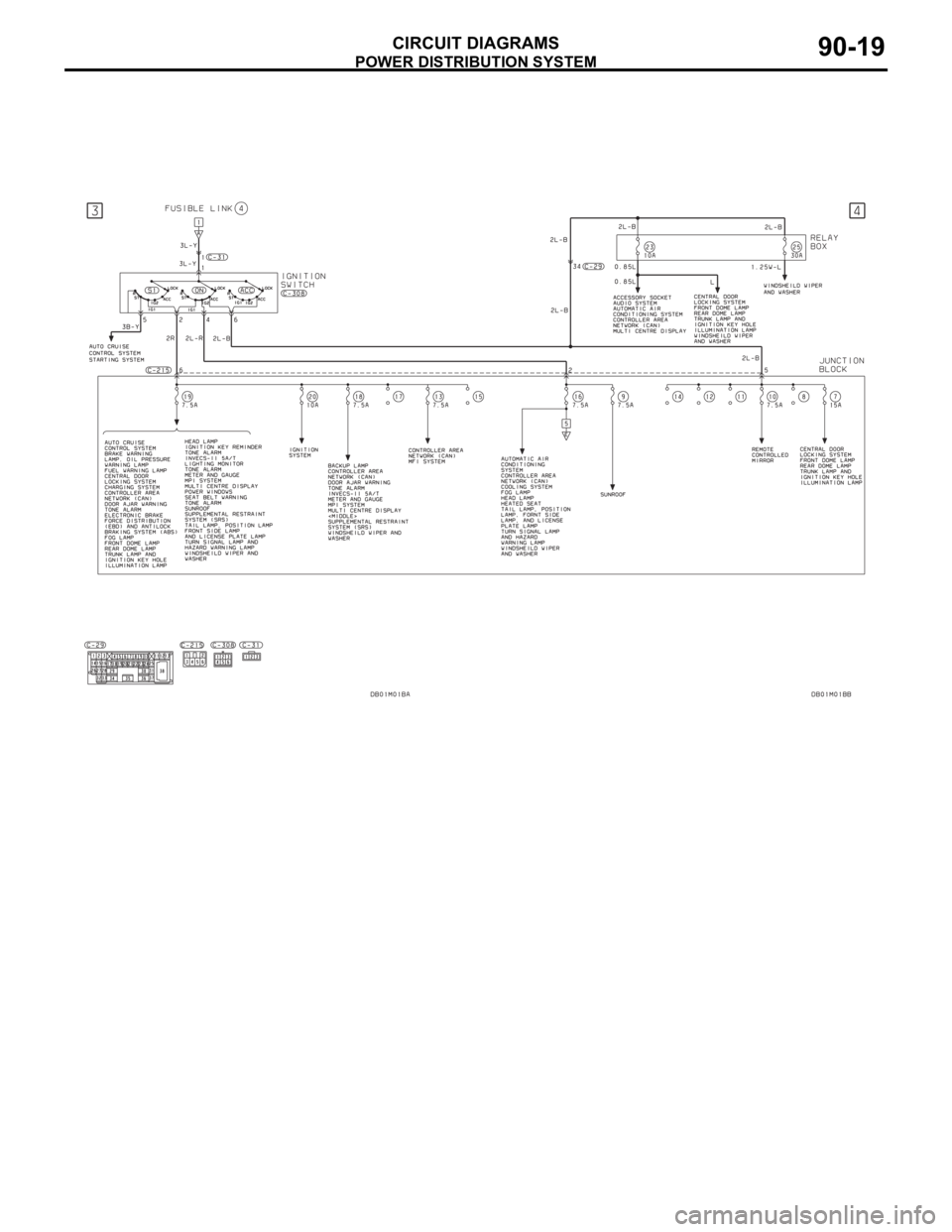

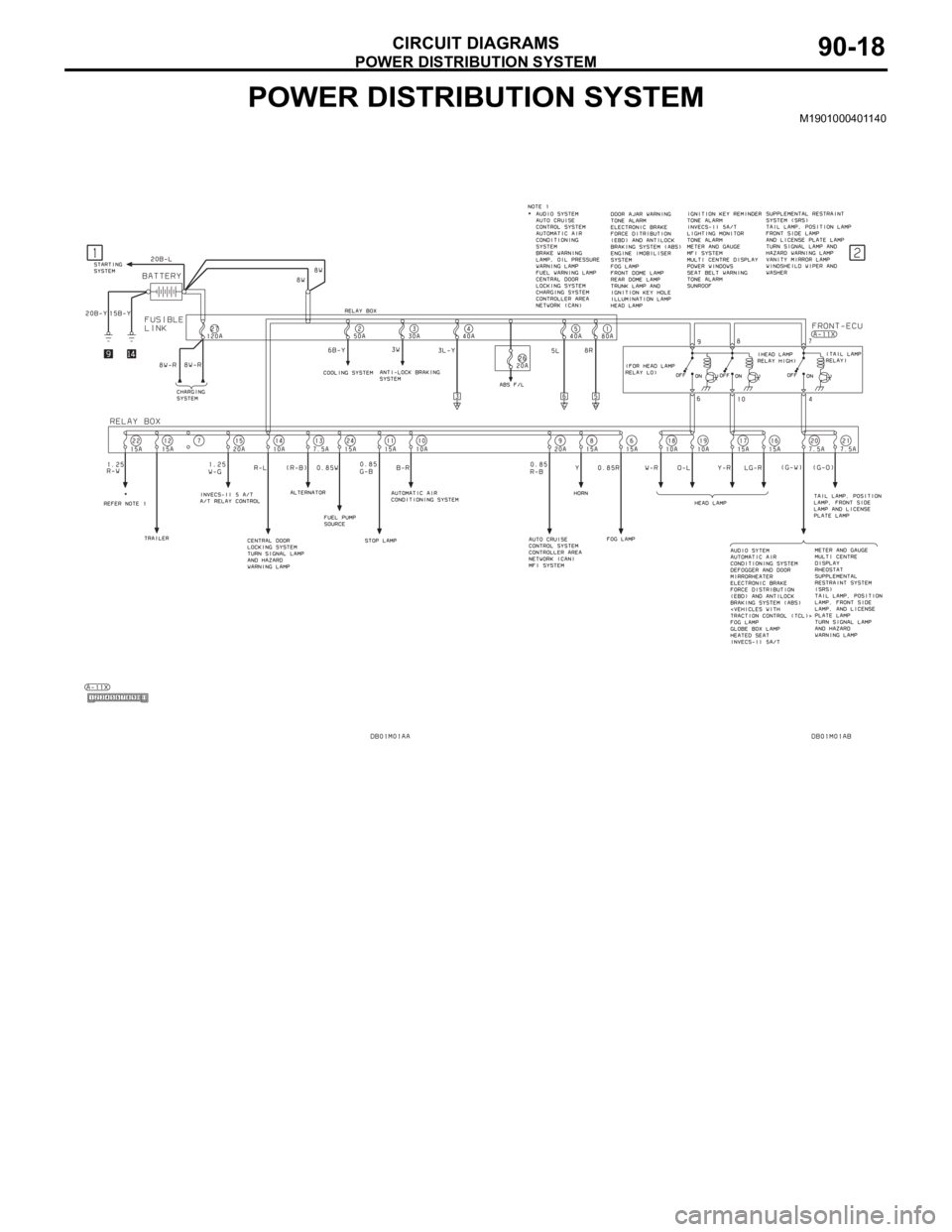

NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT
1 Fusible link No.1 Fuse 30 Green Rear window demister
2 30 Green Blower motor and resistor
3
4
5 15 Blue Accessory socket
6 15 Blue Data link connector and ETACS-ECU
7 Ignition switch (ACC) 15 Blue ETACS-ECU
8
9 Ignition switch (IG2) 7.5 Brown Sunroof assembly
10 Ignition switch (ACC) 7.5 Brown Remote controlled mirror
11
12
13 Ignition switch (IG1) 7.5 Brown Fuel pump relay and Engine ECU
14 Ignition switch (ACC) 20 Yellow Windscreen wiper
15 Fusible link No.1
(Fuse No.5 in junction
block)7.5 Brown Remote controlled mirror
16 Ignition switch (IG2) 7.5 Brown A/C compressor clutch relay,
A/C-ECU, blower relay, condenser
fan motor, fan control relay,
front-ECU, outside/inside air selection
damper control motor and rear
window defogger relay
17 Ignition switch (IG1)
18 7.5 Brown A/T control relay, input shaft speed
sensor, output shaft speed sensor,
Engine ECU, rear combination lamp
and SRS-ECU
19 7.5 Brown ABS-ECU, ABS/TCL-ECU, column
switch, combination meter,
ETACS-ECU, multi-center display unit
and SRS-ECU
20 10 Red Ignition coil
21
22
23 Fusible link No.5 20 Yellow Sunroof assembly
24
CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-17
CENTRALISED RELAY
NOTE: The triangle mark on the relay housing should face that on the relay box.CONNECTOR NO. NAME CONNECTOR NO. NAME
A-05X Fog lamp relay A-16X
A-06X Horn relay B-11X
A-07XB-12X
A-08XB-13X
A-09XB-14X
A-10X Fan control relay B-15X
A-11X Front-ECU B-16X A/T control relay
A-12X Front-ECU B-17X
MPI relay
A-15X
B-18X A/C compressor clutch relay
