MITSUBISHI 380 2005 Workshop Manual

SENSOR
COMPONENT LOCATIONS70-12

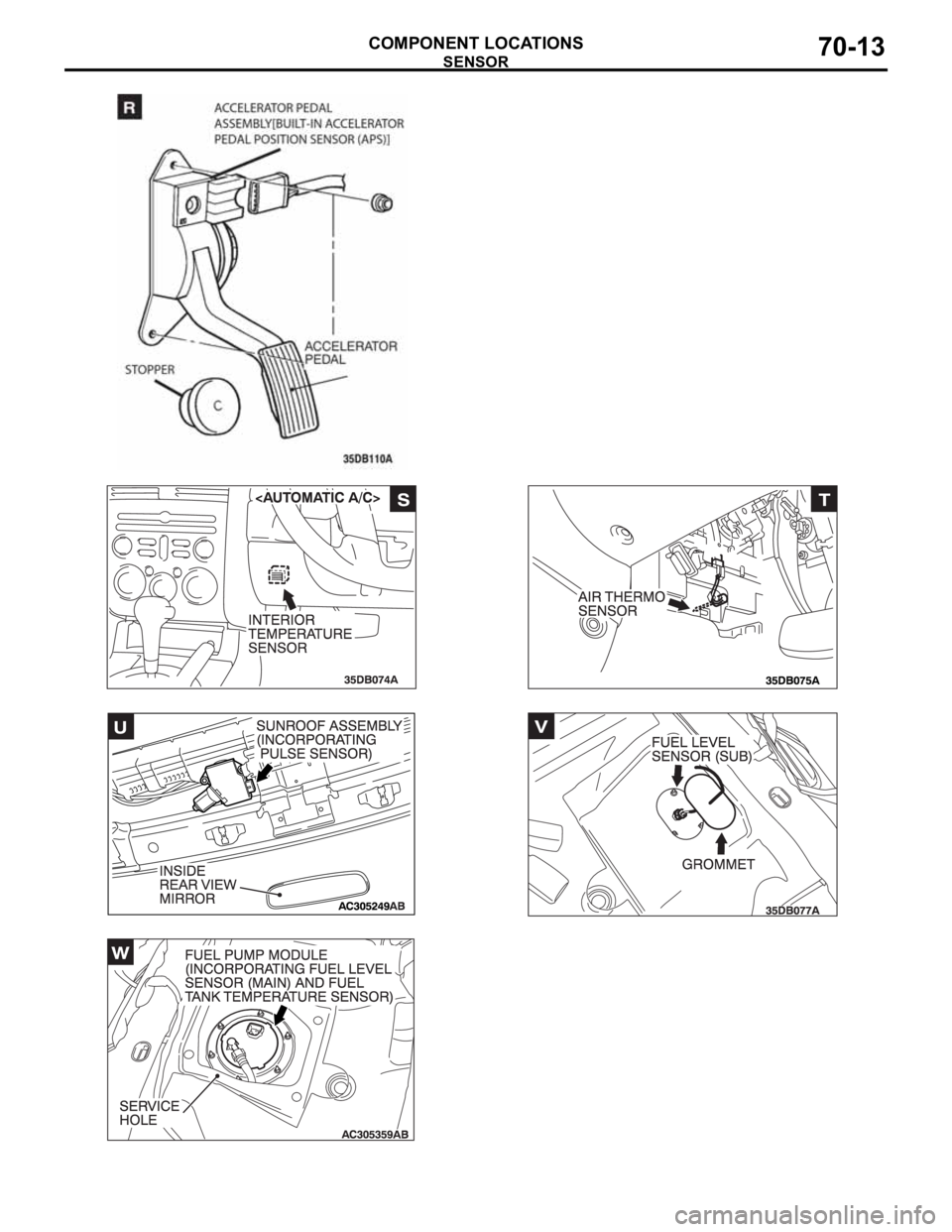

SENSOR
COMPONENT LOCATIONS70-13

CONTROL UNIT
COMPONENT LOCATIONS70-14
CONTROL UNITM1701000700360
NAME SYMBOL NAME SYMBOL

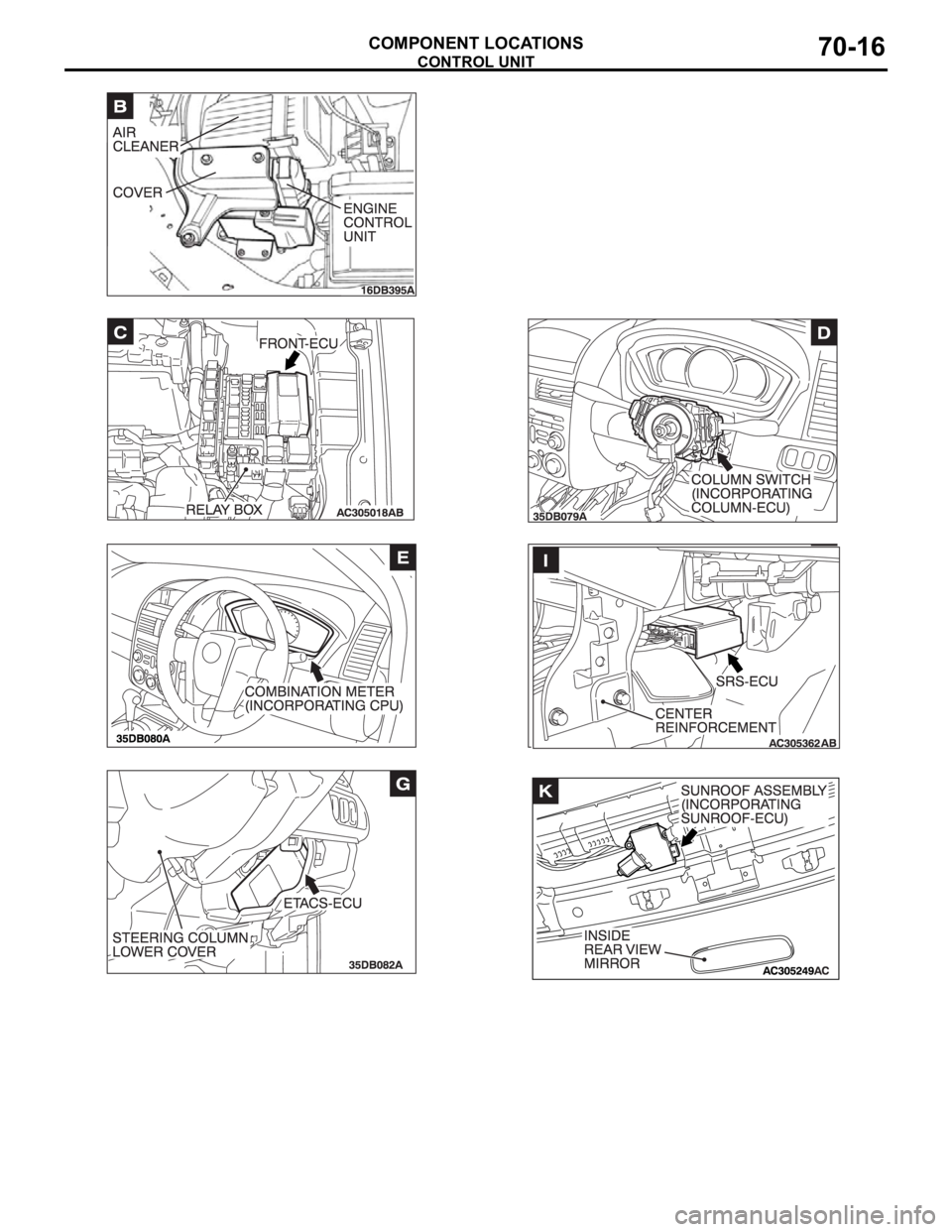

ABS-ECU or ABS/TCL-ECU A Multi center display unit F
A/C-ECU J Engine-ECU B
Column switch (incorporating
column-ECU)D Power window main switch
(incorporating CPU)M
Combination meter (incorporating CPU) E SRS-ECU I
ETACS-ECU G Sunroof assembly (incorporating
sunroof-ECU)K
Front-ECU C A/T-ECU L

CONTROL UNIT
COMPONENT LOCATIONS70-15

CONTROL UNIT
COMPONENT LOCATIONS70-16

SOLENOID AND SOLENOID VALVE
COMPONENT LOCATIONS70-17
SOLENOID AND SOLENOID VALVEM1701000800378
NAME SYMBOL NAME SYMBOL
A/T control solenoid valve assembly E
Evaporative emission purge solenoid B Hydraulic unit (incorporating ABS
solenoid valve)A

OTHER DEVICES
COMPONENT LOCATIONS70-18
OTHER DEVICESM1701005600302
NAME SYMBOL NAME SYMBOL
Power steering pressure switch A

OTHER DEVICES
COMPONENT LOCATIONS70-19

NOTES
