Sound system MITSUBISHI 380 2005 Workshop Manual

GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-2
GENERAL DESCRIPTION
COMMUNICATION METHODM1549013000547
As shown in the figure, SWS communications con-
nect the ETACS*
1-ECU, the column switch (in the
column-ECU), the front-ECU, and the sunroof-ECU.
CAN*
2*3 communications connect the ETACS-ECU,
the powertrain control module, the A/C-ECU, the
SRS-ECU, the combination meter, the ABS-ECU,
and the middle-grade multi center display. These two
communications groups are connected to form a
dedicated network for sending multiplex data.NOTE: *
1ETACS: Electronic Time and Alarm Control
System
NOTE: *
2CAN: Controller Area Network
NOTE: *
3: For details on CAN, see Group 54C.
OPERATIONM1549013100566
TONE ALARM FUNCTION
.
TRIP COMPUTER TONE ALARM FUNC-
TION
The ETACS-ECU sounds the buzzer when the
buzzer signal is sent from the combination meter.
.
LAMP REMINDER TONE ALARM
FUNCTION
When the taillamps or headlamps are ON, if the igni-
tion key is on "OFF" and the driver's door is opened,
a tone alarm will sound continuously to warn that the
lamp is illuminated. However, if the taillamps or
headlamps have been turned off by the headlamp
automatic-shutdown function, the tone alarm will not
sound.
.

GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-3

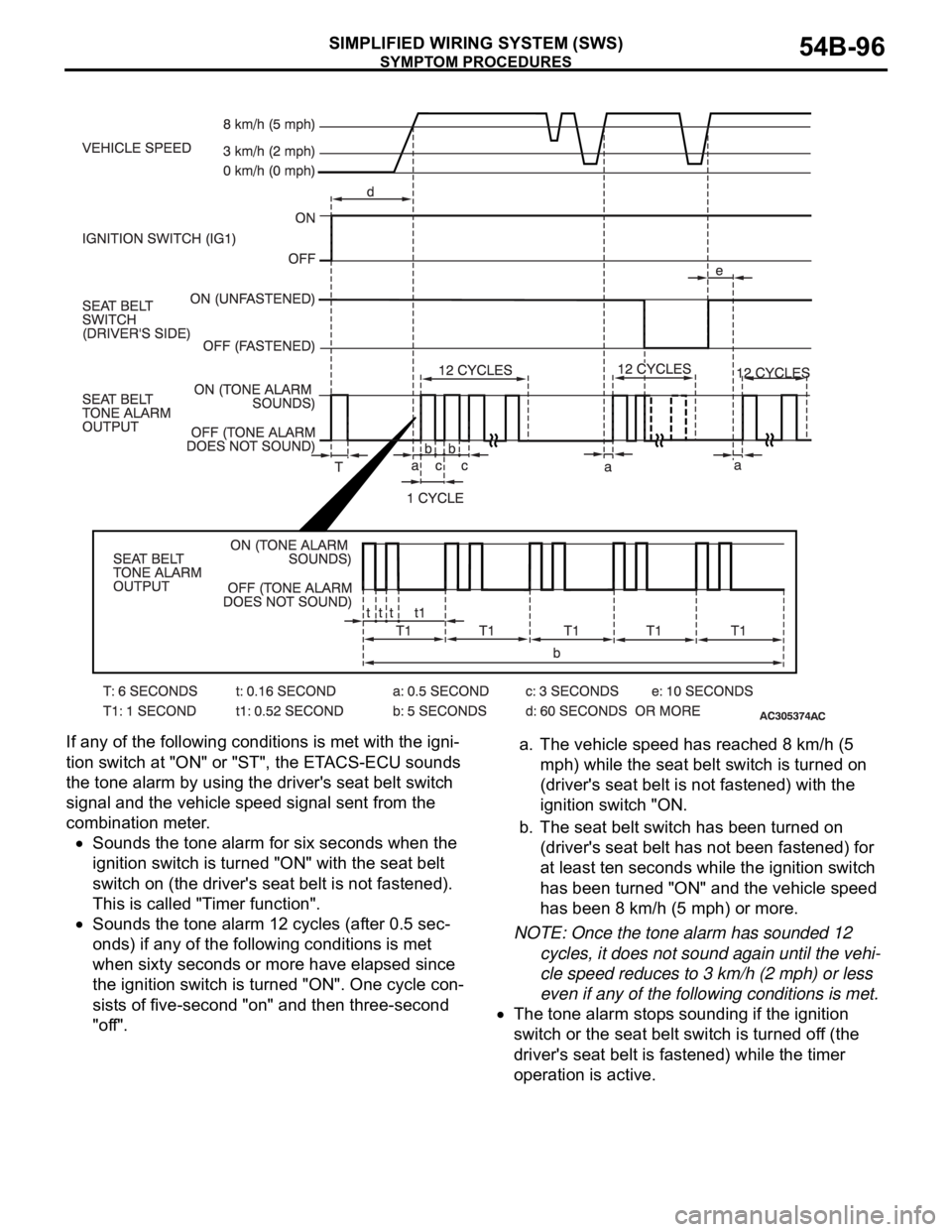

SEAT BELT TONE ALARM FUNCTION
If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU sounds
the tone alarm by using the driver's seat belt switch
signal and the vehicle speed signal sent from the
combination meter.
Sounds the tone alarm for six seconds when the
ignition switch is turned "ON" with the seat belt
switch on (the driver's seat belt is not fastened).
This is called "Timer function".
Sounds the tone alarm 12 cycles (after 0.5 sec-
onds) if any of the following conditions is met
when sixty seconds or more have elapsed since
the ignition switch is turned "ON". One cycle con-
sists of five-seconds "on" and then three-seconds
"off".
a. The vehicle speed has reached 8 km/h (5
mph) while the seat belt switch is turned on
(driver's seat belt is not fastened) with the
ignition switch "ON.
b. The seat belt switch has been turned on
(driver's seat belt has not been fastened) for
at least ten seconds while the ignition switch
has been turned "ON" and the vehicle speed
has been 8 km/h or more.
NOTE: Once the tone alarm has sounded 12
cycles, it does not sound again until the vehi-
cle speed reduces to 3 km/h (2 mph) or less
even if any of the following conditions is met.
The tone alarm stops sounding if the ignition
switch or the seat belt switch is turned off (the
driver's seat belt is fastened) while the timer
operation is active.
.
DOOR AJAR WARNING BUZZER
The buzzer is sounded 4 times by the ETACS-ECU
to warn the driver if any door is open when the igni-
tion is switched ON and the vehicle speed reaches 8
km/h or faster. The buzzer will continue to sound for
4 times even if the ignition, door status, or vehicle
speed requirements are not maintained.
.
MULTI CENTER DISPLAY OPERATION
TONE
The ETACS-ECU sounds the buzzer when the
buzzer signal is sent from the multi center display.
.
TURN-SIGNAL LAMP BUZZER
The ETACS-ECU sounds the buzzer in sync with the
turn-signal lamps or hazard warning lamps.
CENTRAL DOOR LOCKING SYSTEM
.
CENTRAL DOOR LOCKING SYSTEM
OPERATION
Door unlocking by operating the driver’s door lock
key cylinder:
When the ignition key is inserted in the driver’s
door lock key cylinder and turned clockwise to
unlock the driver’s door, the ETACS-ECU oper-
ates its door unlock relay and passes a current
through the door lock actuator of the driver’s door
for 0.25 seconds to unlock only the driver’s door.
When the ignition key is turned clockwise again,
the ETACS-ECU operates its door unlock relay
and passes a current through the door lock actu-
ators of all doors for 0.25 seconds and to unlock
all doors.
Door locking or unlocking by operating the driver’s or
front passenger’s door lock switch:
When the door is locked by the driver’s or front
passenger’s door lock switch, the ETACS-ECU
operates its door lock relay and passes a current
through the door lock actuators of all doors for
0.25 seconds to lock all doors.
When the door is unlocked by the driver’s or front
passenger's door lock switch, the ETACS-ECU
operates its door unlock relay and passes a cur-
rent through the door lock actuators of all doors
for 0.25 seconds to unlock all doors.
When the door is locked and unlocked by driver’s
or front passenger's door lock switch consecu-
tively, the ETACS-ECU operates its door lock
relay and passes a current through the door lock
actuators of all doors for 0.25 seconds to lock all
doors. Then, the ETACS-ECU operates its door
unlock relay and passes a current through the
door lock actuators of all doors for 0.25 seconds
to unlock all doors. Due to this, there may be a
time lag between the driver’s or front passenger's
door lock switch actuation and the time when all
doors are unlocked.

GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-4
.
FORGOTTEN KEY PREVENTION
FUNCTION
If the driver's door is locked while it is open and
when the key is still in the ignition key cylinder,
approximately 0.3 second later the ETACS-ECU
activates the unlock relay output for 0.25 second
to prevent the door from being locked with the
key inside the vehicle. In addition, if locking the
door was not prevented, a re-try current is sent
(an unlock relay output ON is sent for 0.25 sec-
ond up to 5 times including the first attempt).
If the passenger's door or driver's door are locked
while the passenger's door is open and when the
key is still in the ignition key cylinder, approxi-
mately 0.3 second later the ETACS-ECU acti-
vates the unlock relay output for 0.25 second to
prevent the door from being locked with the key
inside the vehicle. In addition, if locking the door
was not prevented, a re-try current is sent (an
unlock relay output ON is sent for 0.25 second up
to 5 times including the first attempt).
POWER WINDOW RELAY CONTROL
.
POWER WINDOW RELAY OPERATION
If the ignition switch is turned to "ON" or "ACC" posi-
tion, the power window relay is energized to activate
the power windows.
.
POWER WINDOW TIMER FUNCTION
Even after the ignition is switched off, the
ETACS-ECU keeps the power window relay acti-
vated for approximately 30 seconds, enabling raising
and lowering of the power windows by using the
power window switches. After approximately 30 sec-
onds, the power window relay is deactivated. During
this timed operation, if the driver or passenger doors
are opened, the power window relay is deactivated
from that moment.
KEYLESS ENTRY SYSTEM
.
KEYLESS ENTRY HAZARD ANSWER-
BACK FUNCTION
If the keyless entry transmitter is used to send a lock
signal to the ETACS-ECU, all doors, the liftgate, and
the glass hatch are locked and the hazard warning
lamps flash once. If an unlock signal is sent, the
driver's door is unlocked first, and if a second signal
is sent, all doors, the liftgate, and the glass hatch are
unlocked. Each time the unlock signal is sent, the
hazard warning lamps flash twice.
.
KEYLESS ENTRY HORN ANSWERBACK
FUNCTION
If the keyless entry transmitter is used to send 2 lock
signals to the ETACS-ECU, the first signal locks all
doors, while the second signal sounds the horn once.
.
TRUNK UNLOCK FUNCTION
Press the "TRUNK" button twice within 5 seconds
and the trunk lid will be unlocked.
.
TIMED LOCKING MECHANISM
After unlocking the doors with the keyless entry
transmitter, if no doors are opened or if the ignition
key is not inserted, the ETACS-ECU automatically
locks the doors in 30 seconds.
SUNROOF CONTROL
.
SUNROOF TIMER FUNCTION
The ETACS-ECU enables opening and closing of the
sunroof for 30 seconds after the ignition is switched
off. During this timed operation, if the driver's or front
passenger’s door is opened, the sunroof timer func-
tion is deactivated from that moment.
WINDSHIELD WIPERS AND WASHERS
.
LOW SPEED WIPER, HIGH SPEED WIPER
CONTROL
When the ignition switch in at the ACC or ON
position, and the windshield low speed wiper
switch of the column switch is turned ON, the
front-ECU turns ON the windshield wiper drive
signal, turns OFF (LO) the windshield wiper
speed relay, and operates the windshield wiper at
low speed.
When the windshield high speed wiper switch is
turned ON, the windshield wiper drive signal is
turned ON, the windshield wiper speed switching
relay is turned ON (HI), and the windshield wiper
is operated at high speed.
.

SWS DIAGNOSIS
SIMPLIFIED WIRING SYSTEM (SWS)54B-17
ETACS
NOTE: For item No.43, the diagnostic tool
MB991958 (MUT-III Sub Assembly) also displays
"ON" when the lamp reminder tone alarm or the seat
belt tone alarm function is triggered.
.
CHECK
ITEMITEM NO. DISPLAY ON
DIAGNOSTIC
TOOLCHECK CONDITION NORMAL
CONDITION
Tone alarm 43 BUZZER When requirements for sounding each
warning tone alarm are not satisfiedOFF
Front fog
lamps36 F.FOG LAMP
1. Lighting switch: HEAD
2. Fog lamp switch: ONON
Other than the condition above OFF
Driver’s door
switch32 FRONT DOOR
SWDriver’s door switch and Front passenger’s
door switch is on ON
Driver’s door switch and Front passenger’s
door switch is offOFF
Headlamp
automatic
shutoff
function35 H/L AUTO-CUT
1. Lighting switch: Other than OFF
2. Ignition switch: from ON or START to
LOCK (OFF) or ACC
3. Front door switch: ON (front door open) OFF to ON (after
approximately one
second)
When requirements for the headlamp
automatic shutoff are not satisfiedOFF
Ignition
switch (ACC)31 IG SW (ACC) Ignition switch: ACC or ON ON
Ignition switch: LOCK (OFF) or START OFF
Ignition
switch (IG1)30 IG SW (IG1) Ignition switch: ON or START ON
Ignition switch: LOCK (OFF) or ACC OFF
Windshield
intermittent
wiper interval37 INT WIPE
TIME1. Ignition switch: ACC or ON
2. Operate the intermittent wiper control,
and change the wiper intervalThe diagnostic tool
MB991958
(MUT-III Sub
Assembly)
displays
intermittent wiper
interval in
response to the
intermittent wiper
control positions.

SWS DIAGNOSIS
SIMPLIFIED WIRING SYSTEM (SWS)54B-23
For checking item "HEADLAMP HI", the diagnostic
tool MB991958 (MUT-III Sub Assembly) displays
"OFF" on the item No.2 "DIMMER SW" when the
headlamps are at high-beam. Therefore, the
diagnostic tool MB991958 (MUT-III Sub Assembly)
should display "ON" momentarily when the dimmer
switch is operated.
.
TURN SIGNAL
.
BUZZER
NOTE: The headlamp automatic shutoff function
operates approximately one second after the lighting
monitor tone alarm starts sounding, and then the
tone alarm ceases sounding.
.
ITEM ITEM NO. INPUT SIGNAL DISPLAY ON
DIAGNOSTIC TOOLNORMAL CONDITION
TURN-SIG.LH 10 Turn-signal lamp
switch (RH)T/S RH SW (COLUMN
ECU)OFF
11 Tu r n - s i g n a l l a m p
switch (LH)T/S LH SW (COLUMN
ECU)ON
30 Ignition switch
(IG1)IG SW (IG1) (ETACS ECU) ON
TURN-SIG.RH 10 Turn-signal lamp
switch (RH)T/S RH SW (COLUMN
ECU)ON
11 Tu r n - s i g n a l l a m p
switch (LH)T/S LH SW (COLUMN
ECU)OFF
30 Ignition switch
(IG1)IG SW (IG1) (ETACS ECU) ON
ITEM ITEM NO. INPUT SIGNAL DISPLAY ON DIAGNOSTIC
TOOLNORMAL CONDITION
LGT
MONI.ALRM00 Headlamp switch
HEADLAMP SW (COLUMN
ECU)Either is ON
01 Tail lamp switch TAILLAMP SW (COLUMN
ECU)
30 Ignition switch
(IG1)IG SW (IG1) (ETACS ECU) OFF
32 Front door switch FRONT DOOR SW (ETACS
ECU)ON
35 Headlamp
automatic shutoff
functionH/L AUTO-CUT (ETACS
ECU)OFF
43 Tone alarm BUZZER (ETACS ECU) ON
OTHER
ALARM30 Ignition switch
(IG1)IG SW (IG1) (ETACS ECU) ON
43 Tone alarm BUZZER (ETACS ECU) ON

SWS DIAGNOSIS
SIMPLIFIED WIRING SYSTEM (SWS)54B-24
SUNROOF
PULSE CHECK
M1549015100562
1. The input signals (signals other than SWS
communication line signals), which are
compatible with the SWS monitor by using the
diagnostic tool MB991958 (MUT-III Sub
Assembly) or voltmeter, can be confirmed by the
Pulse Check.2. Use the diagnostic tool MB991958 (MUT-III Sub
Assembly) or voltmeter to check the following
input signals.
NOTE: If a problem is found in the Pulse Check,
refer to Input Signal Chart P.54B-61.
Switches and their conditions, which are applicable
for Pulse CheckITEM ITEM NO. INPUT SIGNAL DISPLAY ON
DIAGNOSTIC TOOLNORMAL CONDITION
SUNROOF
OPE.30 Ignition switch
(IG1)IG SW (IG1) (ETACS ECU) ON
72 Response by the
sunroof-ECUS/R ECU ACK (SUNROOF
ECU)INPUT CHECK (only
momentarily when switch is
operated)
INPUT SIGNAL REQUIREMENTS FOR SOUNDING TONE
ALARM
Key reminder switch When the ignition key is pulled out
Hazard warning lamp switch When the switch is turned from off to on
Door switches A door is opened when all the doors are
closed
Door lock key cylinder switch When a door is locked or unlocked by a key
cylinder
Door lock actuators Move the door lock knob from lock position
to unlock position or vice versa
Door lock switch (incorporated in the power window main
switch and front power window sub switch)When a door is locked or unlocked by a door
lock switch
Keyless entry transmitter When the switch is turned from off to on
Interior lamp loaded signal Illuminates the interior lamps

SYMPTOM CHART
SIMPLIFIED WIRING SYSTEM (SWS)54B-57
SYMPTOM CHARTM1549000801159
ECU COMMUNICATION SYSTEM
FUNCTION SYSTEM
SYMPTOM INSPECTION
PROCEDUREREFERENCE
PA G E
Communication with the SWS monitor kit is not possible. A-1
P.54B-63
Communication with the column switch (column-ECU) is not possible. A-2
P.54B-68
Communication with the ETACS-ECU is not possible. A-3
P.54B-74
Communication with the front-ECU is not possible. A-4
P.54B-80
Communication with the sunroof-ECU is not possible. A-5
P.54B-87
SYSTEM SYMPTOM INSPECTION
PROCEDUREREFERENCE
PA G E
Tone alarm General description concerning the tone alarm
P.54B-94
Light reminder tone alarm function does not work
normally.B-2
P.54B-98
Seat belt tone alarm function does not work
normally.B-3
P.54B-101
Door ajar warning buzzer function does not work
normally.B-4
P.54B-106
The multi center display does not sound normally
when it is operated. B-5
P.54B-112
Turn-signal lamp buzzer function does not work
normally.B-6
P.54B-116
Central door locking
systemGeneral description concerning central door
locking system
P.54B-118
The central door locking system does not work at
all.C-1
P.54B-122
Some doors do not lock or unlock. C-2
P.54B-129
All the doors do not lock or unlock with just the
door lock switch operation.C-3
P.54B-142
All the doors do not lock or unlock with just the
door lock key cylinder key operation.C-4
P.54B-143
Forgotten key prevention function does not work
normally.C-5
P.54B-144

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-95
Light reminder tone alarm function
When the taillights or headlamps is the ON position, if the igni-
tion key is removed and the driver's door is opened, a tone
alarm will sound continuously to warn that the lamps are on.
However, if the taillights or headlamps have been turned off by
the headlamp automatic-shutoff function, the tone alarm will not
sound.
Seat belt tone alarm function

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-96
If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU sounds
the tone alarm by using the driver's seat belt switch
signal and the vehicle speed signal sent from the
combination meter.
Sounds the tone alarm for six seconds when the
ignition switch is turned "ON" with the seat belt
switch on (the driver's seat belt is not fastened).
This is called "Timer function".
Sounds the tone alarm 12 cycles (after 0.5 sec-
onds) if any of the following conditions is met
when sixty seconds or more have elapsed since
the ignition switch is turned "ON". One cycle con-
sists of five-second "on" and then three-second
"off".a. The vehicle speed has reached 8 km/h (5
mph) while the seat belt switch is turned on
(driver's seat belt is not fastened) with the
ignition switch "ON.
b. The seat belt switch has been turned on
(driver's seat belt has not been fastened) for
at least ten seconds while the ignition switch
has been turned "ON" and the vehicle speed
has been 8 km/h (5 mph) or more.
NOTE: Once the tone alarm has sounded 12
cycles, it does not sound again until the vehi-
cle speed reduces to 3 km/h (2 mph) or less
even if any of the following conditions is met.
The tone alarm stops sounding if the ignition
switch or the seat belt switch is turned off (the
driver's seat belt is fastened) while the timer
operation is active.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-97
Door ajar warning buzzer
The buzzer is sounded 4 times by the ETACS-ECU to warn the
driver if any door is open when the ignition is switched ON and
the vehicle speed reaches 8 km/h (5 mph) or faster. The buzzer
will continue to sound for 4 times even if the ignition, door sta-
tus, or vehicle speed requirements are not maintained.
NOTE: The warning buzzer can be customized on vehicles
equipped with a multi center display. Refer to P.54B-486.
Multi center display operation tone center display >
The ETACS-ECU sounds the buzzer when the buzzer signal is
sent from the center display.
Turn-signal lamp buzzer
The ETACS-ECU sounds the buzzer in sync with the turn-sig-
nal lamps or hazard warning lamps.
NOTE: The turn-signal lamp buzzer can be customized on
vehicles equipped with a multi center display (middle grade
type). Refer to P.54B-486.
General circuit diagram for lamp reminder tone alarm function. P.90-111
General circuit diagram for seat belt tone alarm function. P.90-113
