MITSUBISHI CARISMA 2000 1.G Owners Manual

FOR PLEASANT DRIVING
6–11
H11A325d
To listen to a tapeEH30D-Ac1-Cassette slot
2-TAPE button
3-Cassette eject button
4/5- PROG (Program selector, Fast-forward/Fast-rewind) buttons
6- MTL (Tape selector) button
7-
(Dolby noise reduction) button
8- Tape travel display window
9- TAPE indicator
10-
(Dolby noise reduction) indicator
11 - M T L ( Tape selector) indicator

FOR PLEASANT DRIVING
6–12
1. After checking to be sure the tape in
the cassette is wound tightly, push a
cassette straight into the slot; the tape
player will automatically start playing.
When a cassette is inserted, the tape
player will begin playing even if the
radio is being used. The tape player
will also start playing when the TAPE
button (2) is pressed with a tape cas-
sette in the player even if the radio is
being used.
2. Press the
(Dolby noise reduction)
button (7) when playing Dolby NR en-
coded tapes. The Dolby noise reduc-
tion circuitry reduces tape hiss. The
indicator illuminates when the circuit is
activated. Pressing the
(Dolby
noise reduction) button a second time
will switch off the Dolby system.
NOTE
Dolby noise reduction is manufactured
under licence from Dolby Laboratories
Licensing Corporation.
“DOLBY” and the Double-D symbol
are
trademarks of Dolby Laboratories Licensing
Corporation.
3. When listening to a metal or chrome
tape, press the MTL button (6).
The indicator will illuminate when the
button is pressed.NOTE
Use this button only when listening to a metal
or chrome tape.
4. To adjust the volume and tone, refer to
the section “How to adjust the vo-
lume”, and “How to adjust the tone”
on
page 6–5.
5. Press two PROG buttons (4 or 5) sim-
ultaneously. The tape will then run op-
posite to its current direction, as
shown by the display (8). If the button
is not pressed, the tape direction will
change automatically at the end of the
tape.
6. Press the Cassette eject button (3);
the tape will automatically stop and the
cassette will eject.
7. For information concerning the handl-
ing of tape cassettes, refer to the sec-
tion “Handling of cassette tapes”
on
page 6–27.
Fast forward Fast rewind
H11A266a
How to fast forward/rewind the
tape
Fast forwardPress the PROG button (4 or 5) that is in the
same direction as shown by the display (8)
to fast forward.
Fast rewindPress the PROG button (4 or 5) that is in the
opposite direction as shown by the display
(8) to rewind.
Lightly press one of the unpressed buttons
(4 or 5) to stop the tape during fast forward
or rewind operation.

FOR PLEASANT DRIVING
6–13
H11A259d

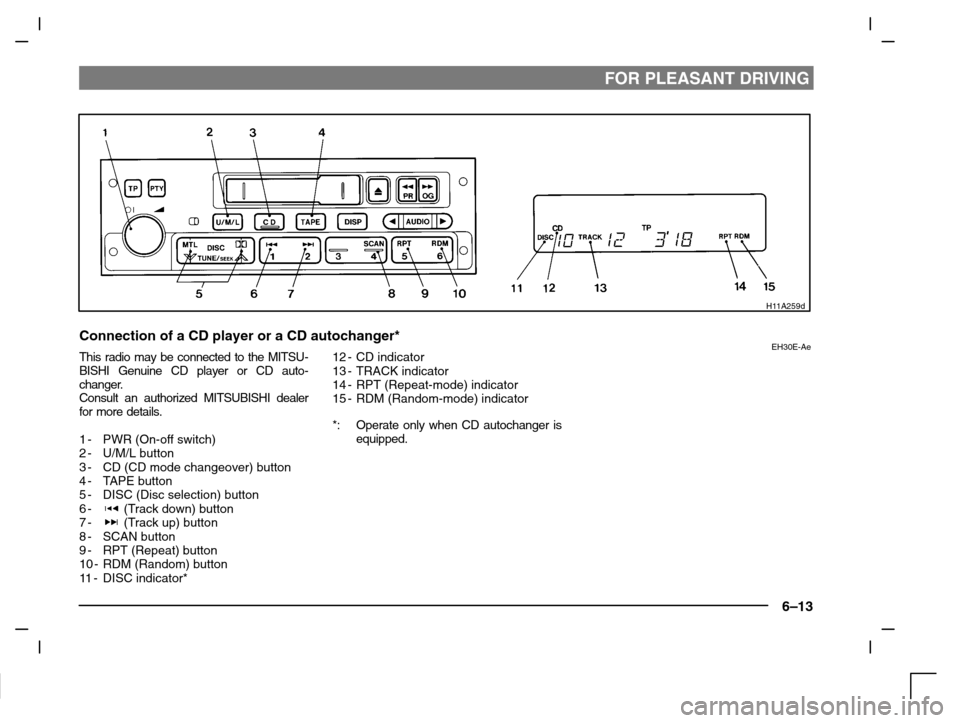

Connection of a CD player or a CD autochanger*EH30E-AeThis radio may be connected to the MITSU-
BISHI Genuine CD player or CD auto-
changer.
Consult an authorized MITSUBISHI dealer
for more details.
1-PWR (On-off switch)
2-U/M/L button
3-CD (CD mode changeover) button
4-TAPE button
5-DISC (Disc selection) button
6-
(Track down) button
7- (Track up) button
8-SCAN button
9-RPT (Repeat) button
10 - RDM (Random) button
11-DISC indicator*12 - CD indicator
13 - TRACK indicator
14 - RPT (Repeat-mode) indicator
15 - RDM (Random-mode) indicator
*: Operate only when CD autochanger is
equipped.

FOR PLEASANT DRIVING
6–14
To listen to a CD
1. Press the CD button (3) and the CD
mode will be selected, starting play-
back.
NOTE
If the system is equipped with CD auto-
changer, press the DISC button (5), to select
another disc. Every time the
side of the
DISC button is pressed, the next disc is se-
lected. Every time the
side of the button is
pressed, changeover to the previous disc is
made.
2. To adjust the volume and tone, refer to
the section “How to adjust the volume”
and “How to adjust the tone” on page
6–4.
3. To stop the CD, turn off the power by
pressing the PWR switch (1) or make
changeover to the other mode by
pressing the TAPE button (4) or U/M/L
button (2).
4. For information concerning the handl-
ing of compact discs, refer to the sec-
tion “Handling of compact discs” on
page 6–27.
To find the start of a desired track
The start of each track on a disc can be
found by using the
or button (6 or 7).
Track up:Press the button (7) the number of tracks
to skip over.
The frequency-display window will display
the number of tracks thus selected.
Track down:Press the button (6) the number of tracks
to skip over.
The frequency-display window will display
the number of tracks thus selected.
How to repeat the same track
You can repeatedly listen to the same track
by pressing the RPT button (9).
Press the RPT button, and the RPT indicator
(14) will come on.
To r e lease, press the button again.
To change the order of tracks
played back (For CD player)
Press the RDM button (10), and the RDM
indicator (15) will illuminate and tracks for
playback will be randomly selected. To re-
lease, press the button again.
To change the order of discs
played back (For CD autochanger)
Press the RDM button (10), and the RDM
indicator (15) will illuminate and random
tracks for playback will be selected randomly
from all discs loaded into the autochanger.
To r e lease, press the button again.
How to use the SCAN button
Use the SCAN button (8) to search for a par-
ticular track, etc. When this button is
pressed, the first 10 seconds of each track
on the disc will be played.
The disc will advance at fast-forward speed
between each 10-second played in this way.
Press the SCAN button again, to play the
track ordinary. After completion of this scan-
ning of tracks, the disc will begin ordinary
play.

FOR PLEASANT DRIVING
6–15
H11A320d

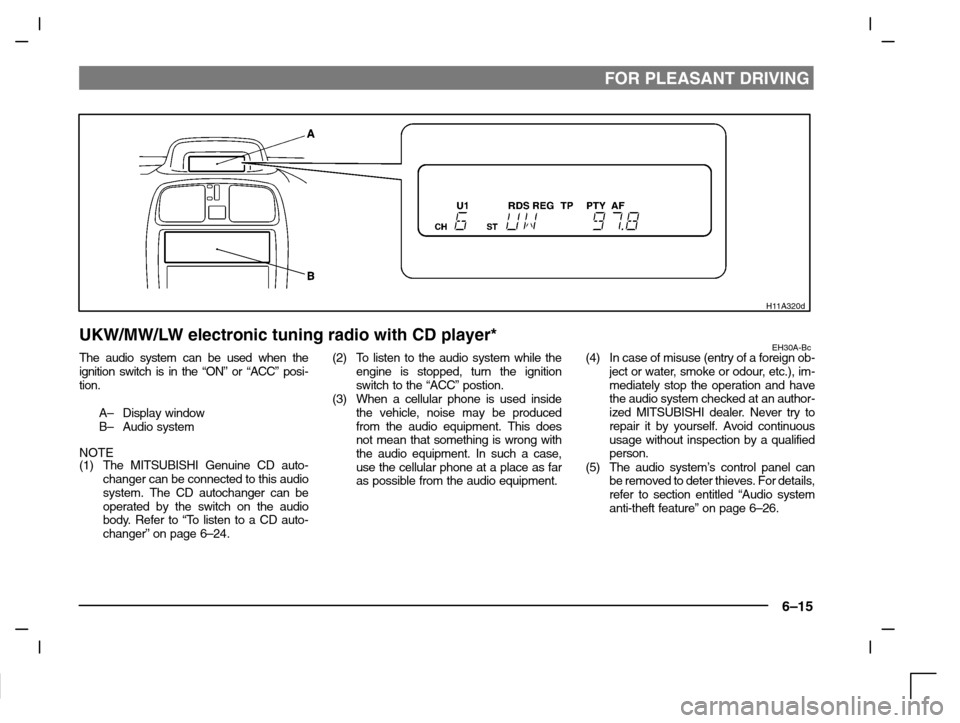

UKW/MW/LW electronic tuning radio with CD player*EH30A-BcThe audio system can be used when the
ignition switch is in the “ON” or “ACC” posi-
tion.
A– Display window
B– Audio system
NOTE
(1) The MITSUBISHI Genuine CD auto-
changer can be connected to this audio
system. The CD autochanger can be
operated by the switch on the audio
body. Refer to “To listen to a CD auto-
changer” on page 6–24.(2) To listen to the audio system while the
engine is stopped, turn the ignition
switch to the “ACC” postion.
(3) When a cellular phone is used inside
the vehicle, noise may be produced
from the audio equipment. This does
not mean that something is wrong with
the audio equipment. In such a case,
use the cellular phone at a place as far
as possible from the audio equipment.(4) In case of misuse (entry of a foreign ob-
ject or water, smoke or odour, etc.), im-
mediately stop the operation and have
the audio system checked at an author-
ized MITSUBISHI dealer. Never try to
repair it by yourself. Avoid continuous
usage without inspection by a qualified
person.
(5) The audio system’s control panel can
be removed to deter thieves. For details,
refer to section entitled “Audio system
anti-theft feature” on page 6–26.

FOR PLEASANT DRIVING
6–16
H11A330d

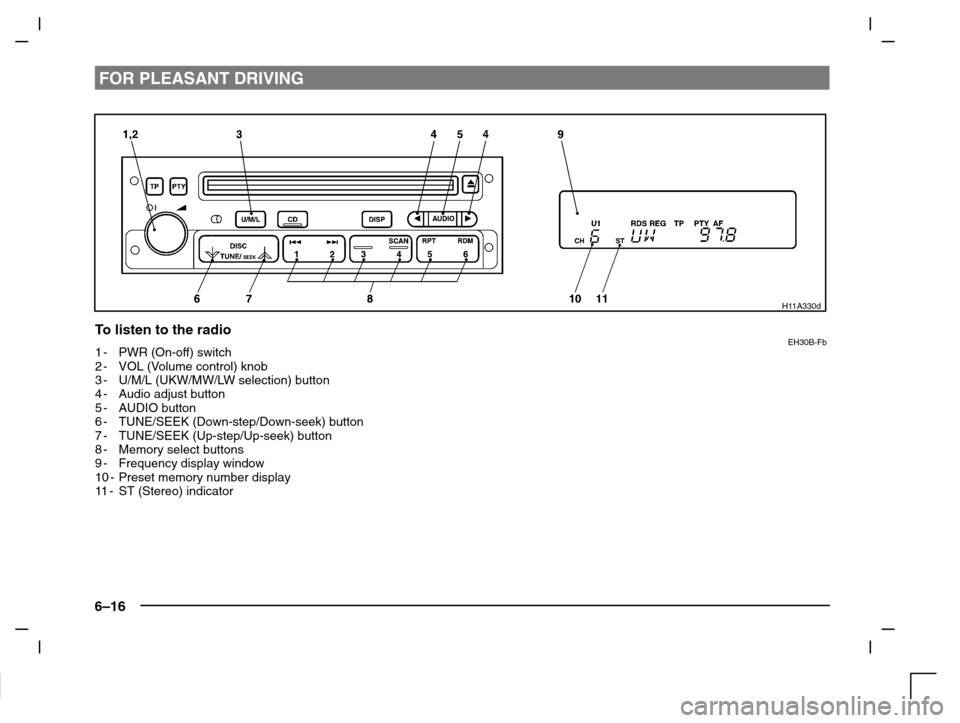

To listen to the radioEH30B-Fb1-PWR (On-off) switch
2-VOL (Volume control) knob
3-U/M/L (UKW/MW/LW selection) button
4-Audio adjust button
5-AUDIO button
6-TUNE/SEEK (Down-step/Down-seek) button
7-TUNE/SEEK (Up-step/Up-seek) button
8-Memory select buttons
9-Frequency display window
10 - Preset memory number display
11-ST (Stereo) indicator

FOR PLEASANT DRIVING
6–17
1. Press the PWR switch (1) to turn on
the radio.
Press the PWR switch again to switch
it off.
2. Press the U/M/L button (3) to select
the desired band (U1/U2/MW/LW).
3. Press the TUNE/SEEK button (6 or 7)
or one of the memory select buttons
(8) to tune to a station.
Refer to “How to adjust the tune” or
“How to enter frequencies in the mem-
ory” on page 6–18.

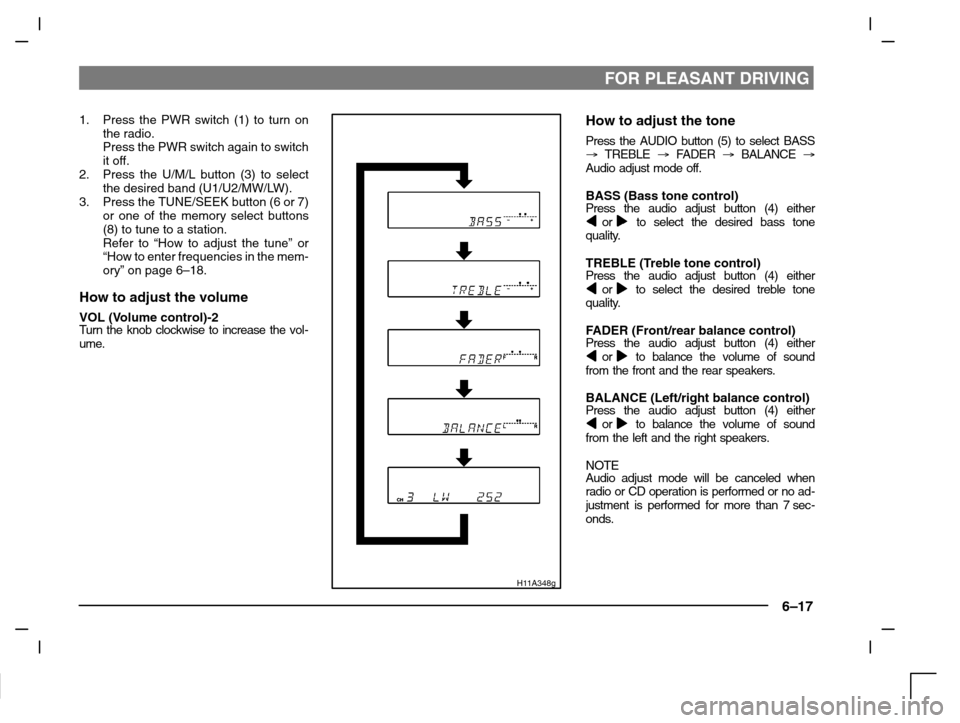

How to adjust the volume
VOL (Volume control)-2Turn the knob clockwise to increase the vol-
ume.
H11A348g
How to adjust the tone
Press the AUDIO button (5) to select BASS

TREBLE
FA D E R
BALANCE

Audio adjust mode off.
BASS (Bass tone control)Press the audio adjust button (4) either or to select the desired bass tone
quality.
TREBLE (Treble tone control)Press the audio adjust button (4) either or to select the desired treble tone
quality.
FADER (Front/rear balance control)Press the audio adjust button (4) either or to balance the volume of sound
from the front and the rear speakers.
BALANCE (Left/right balance control)Press the audio adjust button (4) either or to balance the volume of sound
from the left and the right speakers.
NOTEAudio adjust mode will be canceled when
radio or CD operation is performed or no ad-
justment is performed for more than 7 sec-
onds.

FOR PLEASANT DRIVING
6–18

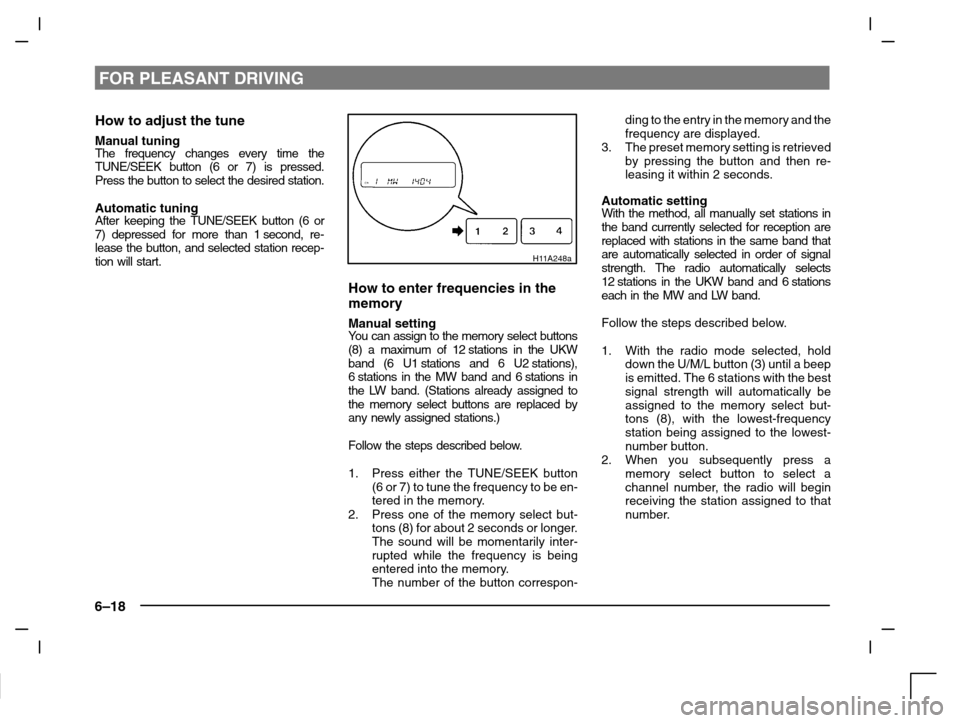

How to adjust the tune
Manual tuningThe frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired station.
Automatic tuningAfter keeping the TUNE/SEEK button (6 or
7) depressed for more than 1 second, re-
lease the button, and selected station recep-
tion will start.
H11A248a
How to enter frequencies in the
memory
Manual settingYo u c a n assign to the memory select buttons
(8) a maximum of 12 stations in the UKW
band (6 U1 stations and 6 U2 stations),
6 stations in the MW band and 6 stations in
the LW band. (Stations already assigned to
the memory select buttons are replaced by
any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button
(6 or 7) to tune the frequency to be en-
tered in the memory.
2. Press one of the memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.
The number of the button correspon-ding to the entry in the memory and the
frequency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then re-
leasing it within 2 seconds.
Automatic settingWith the method, all manually set stations in
the band currently selected for reception are
replaced with stations in the same band that
are automatically selected in order of signal
strength. The radio automatically selects
12 stations in the UKW band and 6 stations
each in the MW and LW band.
Follow the steps described below.
1. With the radio mode selected, hold
down the U/M/L button (3) until a beep
is emitted. The 6 stations with the best
signal strength will automatically be
assigned to the memory select but-
tons (8), with the lowest-frequency
station being assigned to the lowest-
number button.
2. When you subsequently press a
memory select button to select a
channel number, the radio will begin
receiving the station assigned to that
number.

FOR PLEASANT DRIVING
6–19
H11A345d

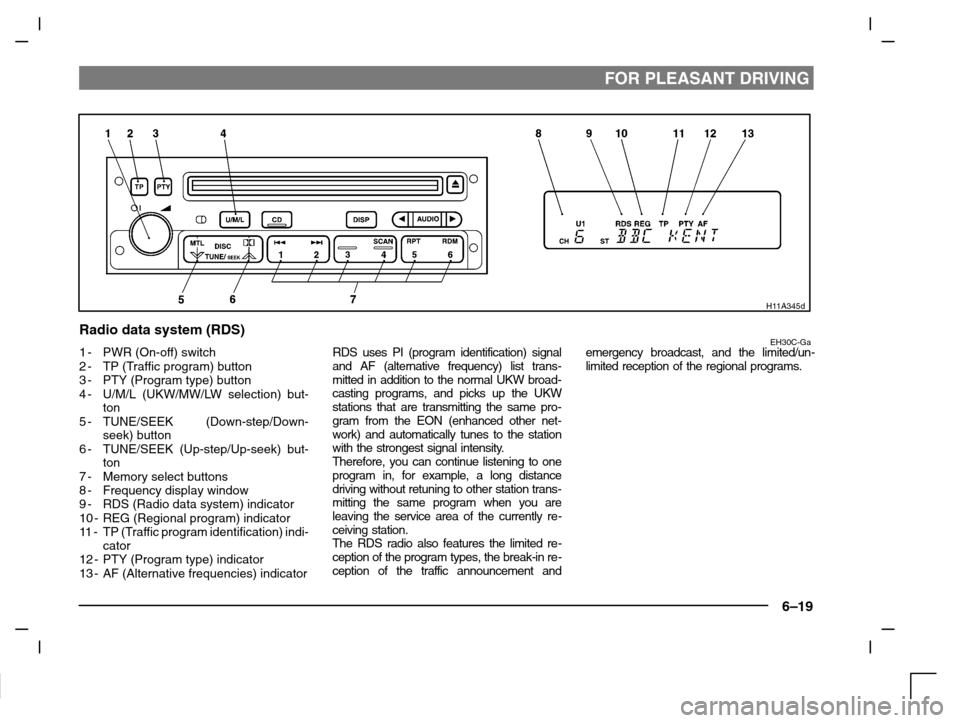

Radio data system (RDS)EH30C-Ga1-PWR (On-off) switch
2-TP (Traffic program) button
3-PTY (Program type) button
4-U/M/L (UKW/MW/LW selection) but-
ton
5-TUNE/SEEK (Down-step/Down-
seek) button
6-TUNE/SEEK (Up-step/Up-seek) but-
ton
7-Memory select buttons
8-Frequency display window
9-RDS (Radio data system) indicator
10 - REG (Regional program) indicator
11-TP (Traffic program identification) indi-
cator
12 - PTY (Program type) indicator
13 - AF (Alternative frequencies) indicatorRDS uses PI (program identification) signal
and AF (alternative frequency) list trans-
mitted in addition to the normal UKW broad-
casting programs, and picks up the UKW
stations that are transmitting the same pro-
gram from the EON (enhanced other net-
work) and automatically tunes to the station
with the strongest signal intensity.
Therefore, you can continue listening to one
program in, for example, a long distance
driving without retuning to other station trans-
mitting the same program when you are
leaving the service area of the currently re-
ceiving station.
The RDS radio also features the limited re-
ception of the program types, the break-in re-
ception of the traffic announcement andemergency broadcast, and the limited/un-
limited reception of the regional programs.

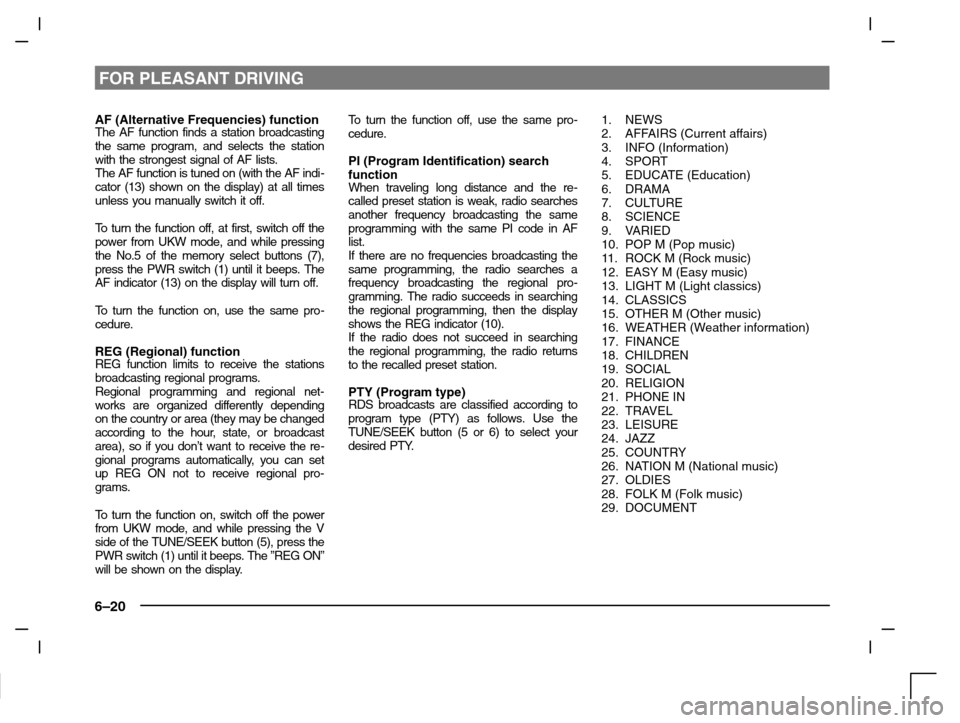

FOR PLEASANT DRIVING
6–20
AF (Alternative Frequencies) functionThe AF function finds a station broadcasting
the same program, and selects the station
with the strongest signal of AF lists.
The AF function is tuned on (with the AF indi-
cator (13) shown on the display) at all times
unless you manually switch it off.
To turn the function off, at first, switch off the
power from UKW mode, and while pressing
the No.5 of the memory select buttons (7),
press the PWR switch (1) until it beeps. The
AF indicator (13) on the display will turn off.
To turn the function on, use the same pro-
cedure.
REG (Regional) functionREG function limits to receive the stations
broadcasting regional programs.
Regional programming and regional net-
works are organized differently depending
on the country or area (they may be changed
according to the hour, state, or broadcast
area), so if you don’t want to receive the re-
gional programs automatically, you can set
up REG ON not to receive regional pro-
grams.
To turn the function on, switch off the power
from UKW mode, and while pressing the V
side of the TUNE/SEEK button (5), press the
PWR switch (1) until it beeps. The ”REG ON”
will be shown on the display.To turn the function off, use the same pro-
cedure.
PI (Program Identification) search
function
When traveling long distance and the re-
called preset station is weak, radio searches
another frequency broadcasting the same
programming with the same PI code in AF
list.
If there are no frequencies broadcasting the
same programming, the radio searches a
frequency broadcasting the regional pro-
gramming. The radio succeeds in searching
the regional programming, then the display
shows the REG indicator (10).
If the radio does not succeed in searching
the regional programming, the radio returns
to the recalled preset station.
PTY (Program type)RDS broadcasts are classified according to
program type (PTY) as follows. Use the
TUNE/SEEK button (5 or 6) to select your
desired PTY.1. NEWS
2. AFFAIRS (Current affairs)
3. INFO (Information)
4. SPORT
5. EDUCATE (Education)
6. DRAMA
7. CULTURE
8. SCIENCE
9. VARIED
10. POP M (Pop music)
11.ROCK M (Rock music)
12. EASY M (Easy music)
13. LIGHT M (Light classics)
14. CLASSICS
15. OTHER M (Other music)
16. WEATHER (Weather information)
17. FINANCE
18. CHILDREN
19. SOCIAL
20. RELIGION
21. PHONE IN
22. TRAVEL
23. LEISURE
24. JAZZ
25. COUNTRY
26. NATION M (National music)
27. OLDIES
28. FOLK M (Folk music)
29. DOCUMENT
