Page 251 of 280

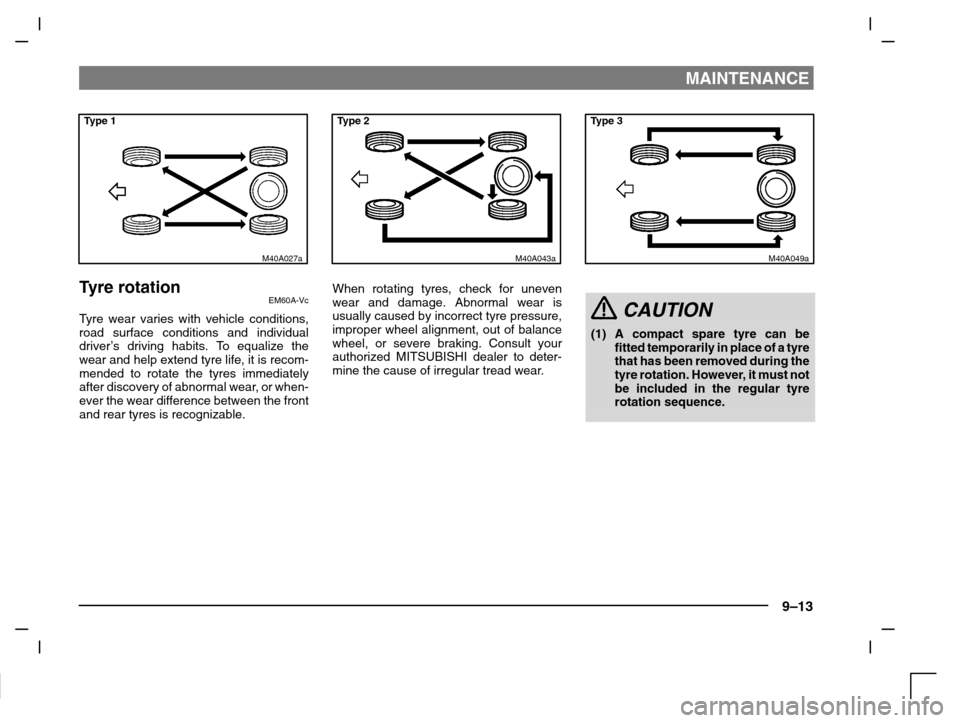

MAINTENANCE
9–13
Type 1
M40A027a
Tyre rotationEM60A-Vc
Tyre wear varies with vehicle conditions,
road surface conditions and individual
driver’s driving habits. To equalize the
wear and help extend tyre life, it is recom-
mended to rotate the tyres immediately
after discovery of abnormal wear, or when-
ever the wear difference between the front
and rear tyres is recognizable.
Type 2
M40A043a
When rotating tyres, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tyre pressure,
improper wheel alignment, out of balance
wheel, or severe braking. Consult your
authorized MITSUBISHI dealer to deter-
mine the cause of irregular tread wear.
Type 3
M40A049a
CAUTION
(1) A compact spare tyre can be
fitted temporarily in place of a tyre
that has been removed during the
tyre rotation. However, it must not
be included in the regular tyre
rotation sequence.
Page 252 of 280

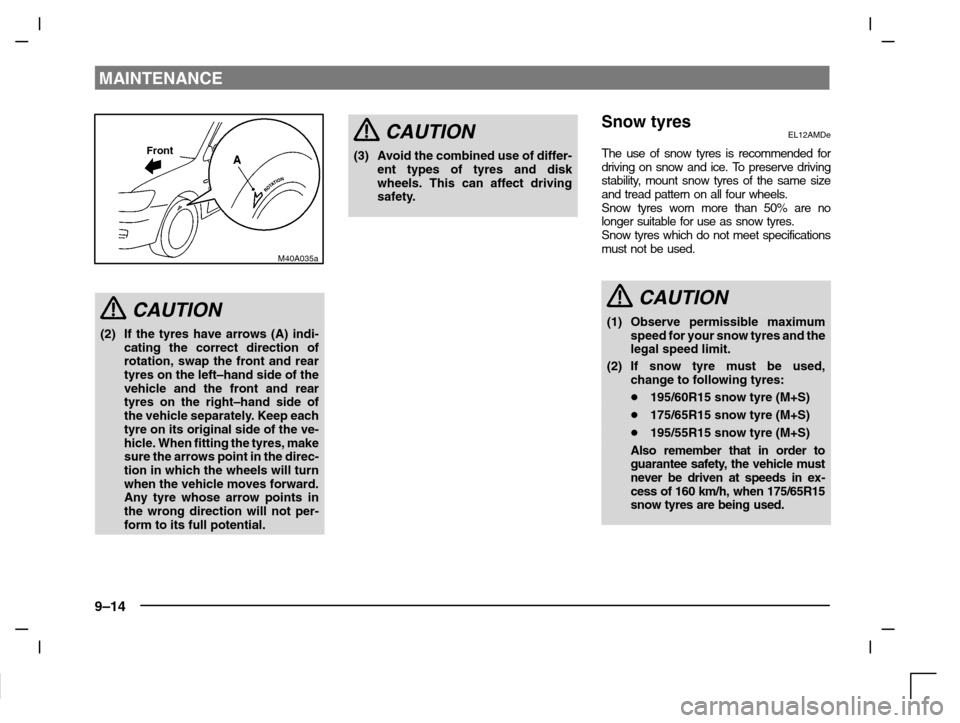

MAINTENANCE
9–14
Front
M40A035a
CAUTION
(2) If the tyres have arrows (A) indi-
cating the correct direction of
rotation, swap the front and rear
tyres on the left–hand side of the
vehicle and the front and rear
tyres on the right–hand side of
the vehicle separately. Keep each
tyre on its original side of the ve-
hicle. When fitting the tyres, make
sure the arrows point in the direc-
tion in which the wheels will turn
when the vehicle moves forward.
Any tyre whose arrow points in
the wrong direction will not per-
form to its full potential.
CAUTION
(3) Avoid the combined use of differ-
ent types of tyres and disk
wheels. This can affect driving
safety.
Snow tyresEL12AMDe
The use of snow tyres is recommended for
driving on snow and ice. To preserve driving
stability, mount snow tyres of the same size
and tread pattern on all four wheels.
Snow tyres worn more than 50% are no
longer suitable for use as snow tyres.
Snow tyres which do not meet specifications
must not be used.
CAUTION
(1) Observe permissible maximum
speed for your snow tyres and the
legal speed limit.
(2) If snow tyre must be used,
change to following tyres:
195/60R15 snow tyre (M+S)
175/65R15 snow tyre (M+S)
195/55R15 snow tyre (M+S)
Also remember that in order to
guarantee safety, the vehicle must
never be driven at speeds in ex-
cess of 160 km/h, when 175/65R15
snow tyres are being used.
Page 253 of 280

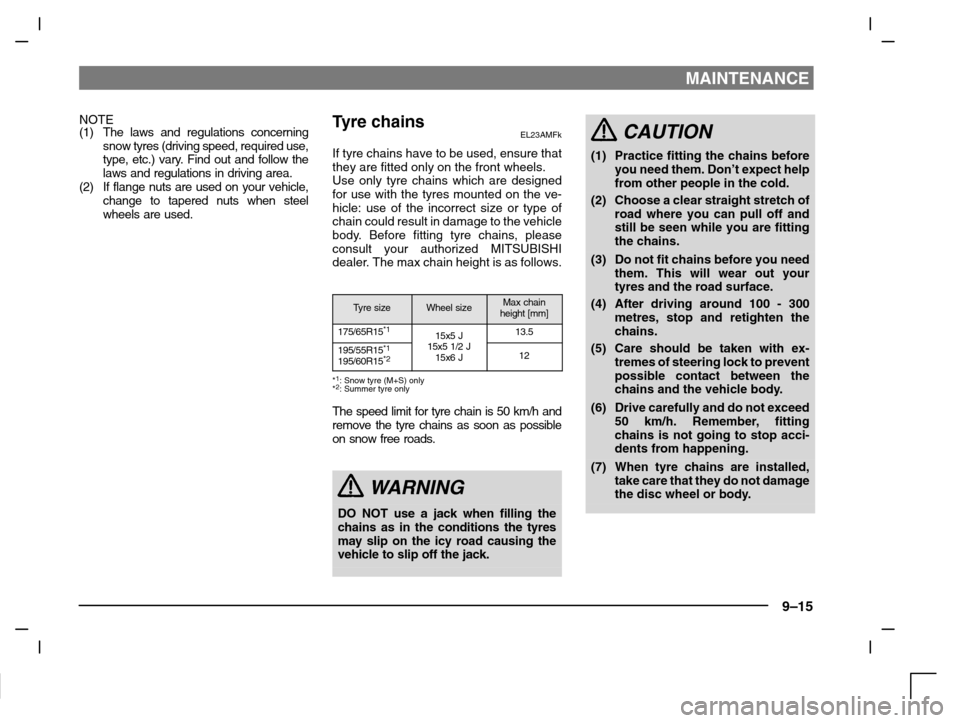

MAINTENANCE
9–15
NOTE
(1) The laws and regulations concerning
snow tyres (driving speed, required use,
type, etc.) vary. Find out and follow the
laws and regulations in driving area.
(2) If flange nuts are used on your vehicle,
change to tapered nuts when steel
wheels are used.Tyre chainsEL23AMFk
If tyre chains have to be used, ensure that
they are fitted only on the front wheels.
Use only tyre chains which are designed
for use with the tyres mounted on the ve-
hicle: use of the incorrect size or type of
chain could result in damage to the vehicle
body. Before fitting tyre chains, please
consult your authorized MITSUBISHI
dealer. The max chain height is as follows.
Ty r e s i z eWheel sizeMax chain
height [mm]
175/65R15*115x5 J13.5
195/55R15*1195/60R15*215x5 1/2 J
15x6 J12
*1: Snow tyre (M+S) only
*2: Summer tyre only
The speed limit for tyre chain is 50 km/h and
remove the tyre chains as soon as possible
on snow free roads.
WARNING
DO NOT use a jack when filling the
chains as in the conditions the tyres
may slip on the icy road causing the
vehicle to slip off the jack.
CAUTION
(1) Practice fitting the chains before
you need them. Don’t expect help
from other people in the cold.
(2) Choose a clear straight stretch of
road where you can pull off and
still be seen while you are fitting
the chains.
(3) Do not fit chains before you need
them. This will wear out your
tyres and the road surface.
(4) After driving around 100 - 300
metres, stop and retighten the
chains.
(5) Care should be taken with ex-
tremes of steering lock to prevent
possible contact between the
chains and the vehicle body.
(6) Drive carefully and do not exceed
50 km/h. Remember, fitting
chains is not going to stop acci-
dents from happening.
(7) When tyre chains are installed,
take care that they do not damage
the disc wheel or body.
Page 254 of 280

MAINTENANCE
9–16
CAUTION
(8) Do not install a tyre chain on an
emergency wheel which is com-
pact in size. If one of the front
wheels is punctured, replace it
with one of the rear wheels and in-
stall the compact spare wheel in
that place before fitting a tyre
chain.
(9) An aluminium wheel can be dam-
aged by a tyre chain while driving.
When fitting a tyre chain on an
aluminium wheel, take care that
any part of the chain and fitting
cannot be brought into contact
with the disc wheel.
(10) On vehicles with wheel covers,
remove the wheel covers before
installing a tyre chain, otherwise
they may be damaged by the tyre
chain. (Refer to page 8–8)
(11) When installing or removing a
tyre chain, take care that hands
and other parts of your body are
not injured by the sharp edges of
the vehicle body.
(12) Install the chains only on the front
tyres and tighten them as tightly
as possible with the ends secure-
ly fastened.
NOTE
The laws and regulations concerning the
use of tyre chains vary. Find out and follow
the laws and regulations in driving area. In
most countries, it is prohibited by the law to
use tyre chains on roads without snow.
Fuel, engine coolant, oil and
exhaust gas leakage
EM14A-Bd
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNING
If you see a suspicious fuel leak or if
you smell fuel, do not operate the ve-
hicle; call your authorized MITSUBI-
SHI dealer for assistance.
Exterior and interior lamp
operation
EM35A-Ad
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable
cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuse, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the lamp
bulbs, refer to the section entitled “For
emergencies”.
If the fuses and bulbs are all OK, take the ve-
hicle to an authorized MITSUBISHI dealer
for inspection and repair.
Meter, gauge and indication/
warning lamp operation
Run the engine to check the operation of all
meters, gauges, and indication/warning
lamps.
If there is anything wrong, take the vehicle to
an authorized MITSUBISHI dealer for in-
spection.
Page 255 of 280

MAINTENANCE
9–17
M18A011a
Clutch pedal free play*EM17A-Ya
Press down the clutch pedal with your
fingers until initial resistance is felt.
This distance should be within the specified
range.
A- Free play: 6 to 13 mm
If the clutch pedal free play is not within the
standard range, have the clutch pedal ad-
justed at an authorized MITSUBISHI dealer.
M18A011a
Brake pedal free playEM18A-Ga
Stop the engine, depress the brake pedal
several times, and press down the pedal
with your fingers until initial resistance is felt.
This distance should be within the specified
range.
A- Free play: 3 to 8 mm
If the brake pedal free play is not within the
standard range, have the brake pedal ad-
justed at an authorized MITSUBISHI dealer.
I27A085a
Parking brake lever strokeEM19A–Xd
Pull the parking brake lever up to check the
number of ”clicks” that the ratchet makes.
One click represents a lever movement of
one notch. The lever should move the speci-
fied number of notches for normal brake ap-
plication.
A- Parking brake lever stroke
5 to 7 notches
(Parking brake adjustment when pulled
with the force of 200N)
If the parking brake lever stroke is out of the
standard range, have the brake lever ad-
justed at an authorized MITSUBISHI dealer.
Page 256 of 280

MAINTENANCE
9–18

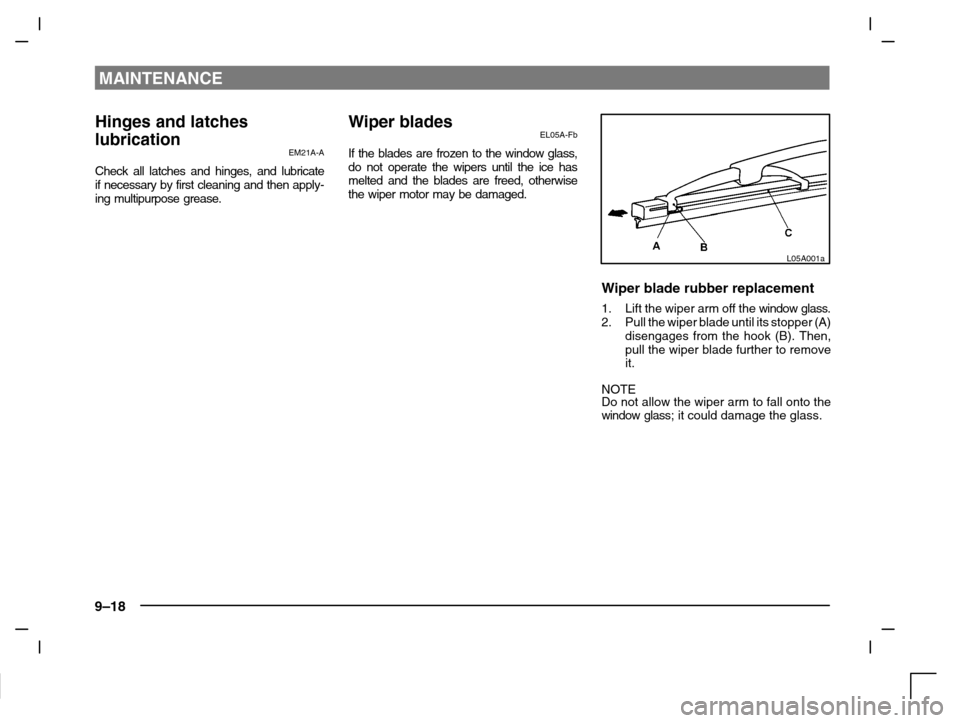

Hinges and latches
lubrication
EM21A-A
Check all latches and hinges, and lubricate
if necessary by first cleaning and then apply-
ing multipurpose grease.
Wiper bladesEL05A-Fb
If the blades are frozen to the window glass,
do not operate the wipers until the ice has
melted and the blades are freed, otherwise
the wiper motor may be damaged.
L05A001a
Wiper blade rubber replacement
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade until its stopper (A)
disengages from the hook (B). Then,
pull the wiper blade further to remove
it.
NOTE
Do not allow the wiper arm to fall onto the
window glass; it could damage the glass.
Page 257 of 280

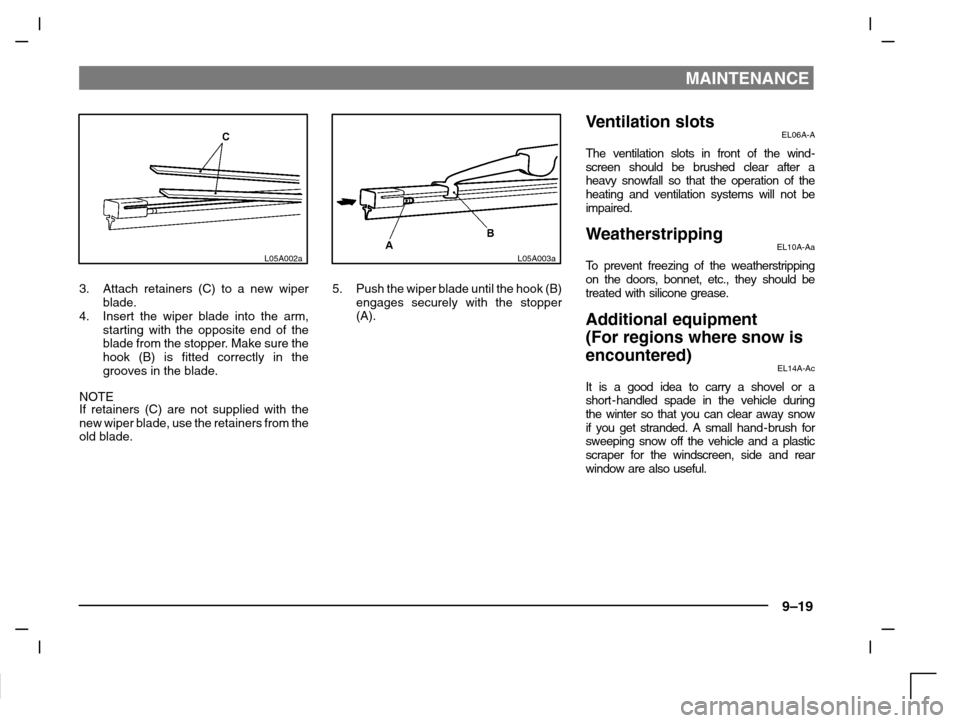

MAINTENANCE
9–19
L05A002a
3. Attach retainers (C) to a new wiper
blade.
4. Insert the wiper blade into the arm,
starting with the opposite end of the
blade from the stopper. Make sure the
hook (B) is fitted correctly in the
grooves in the blade.
NOTE
If retainers (C) are not supplied with the
new wiper blade, use the retainers from the
old blade.
L05A003a
5. Push the wiper blade until the hook (B)
engages securely with the stopper
(A).
Ventilation slotsEL06A-A
The ventilation slots in front of the wind-
screen should be brushed clear after a
heavy snowfall so that the operation of the
heating and ventilation systems will not be
impaired.
WeatherstrippingEL10A-Aa
To prevent freezing of the weatherstripping
on the doors, bonnet, etc., they should be
treated with silicone grease.
Additional equipment
(For regions where snow is
encountered)
EL14A-Ac
It is a good idea to carry a shovel or a
short - handled spade in the vehicle during
the winter so that you can clear away snow
if you get stranded. A small hand - brush for
sweeping snow off the vehicle and a plastic
scraper for the windscreen, side and rear
window are also useful.
Page 258 of 280

GENERAL INFORMATION
1 - 20
Page 259 of 280

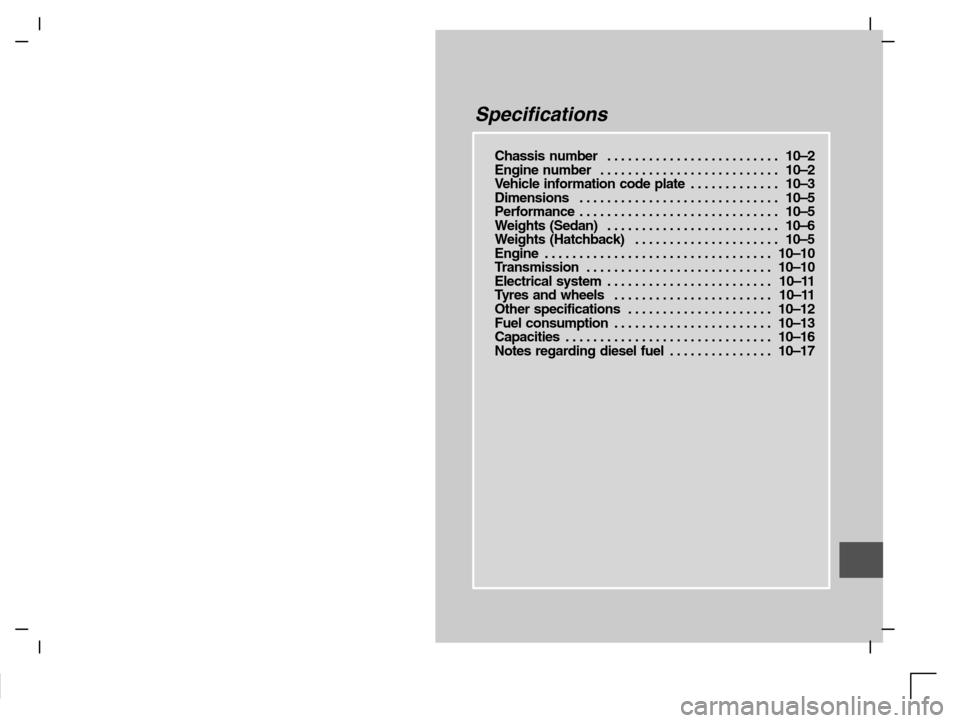

Specifications
Chassis number 10–2. . . . . . . . . . . . . . . . . . . . . . . . .
Engine number 10–2. . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle information code plate 10–3. . . . . . . . . . . . .
Dimensions 10–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance 10–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weights (Sedan) 10–6. . . . . . . . . . . . . . . . . . . . . . . . .
Weights (Hatchback) 10–5. . . . . . . . . . . . . . . . . . . . .
Engine 10–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmission 10–10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical system 10–11. . . . . . . . . . . . . . . . . . . . . . . .
Tyres and wheels 10–11. . . . . . . . . . . . . . . . . . . . . . .
Other specifications 10–12. . . . . . . . . . . . . . . . . . . . .
Fuel consumption 10–13. . . . . . . . . . . . . . . . . . . . . . .
Capacities 10–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes regarding diesel fuel 10–17. . . . . . . . . . . . . . .
Page 260 of 280

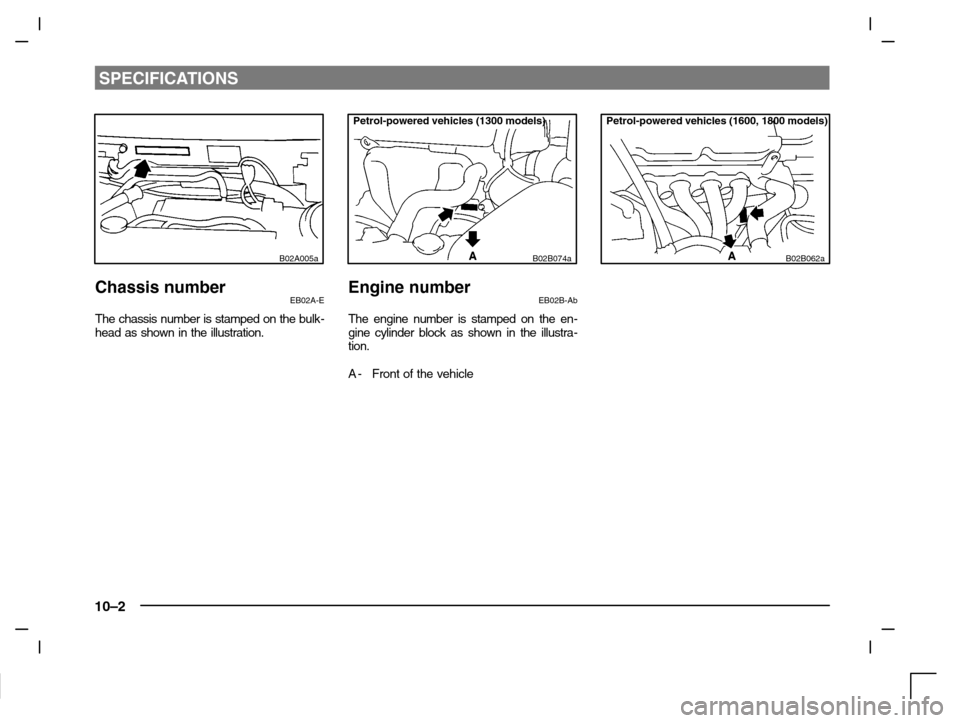

SPECIFICATIONS
10–2
B02A005a
Chassis numberEB02A-E
The chassis number is stamped on the bulk-
head as shown in the illustration.
Petrol-powered vehicles (1300 models)
B02B074a
Engine numberEB02B-Ab
The engine number is stamped on the en-
gine cylinder block as shown in the illustra-
tion.
A- Front of the vehicle
Petrol-powered vehicles (1600, 1800 models)
B02B062a
