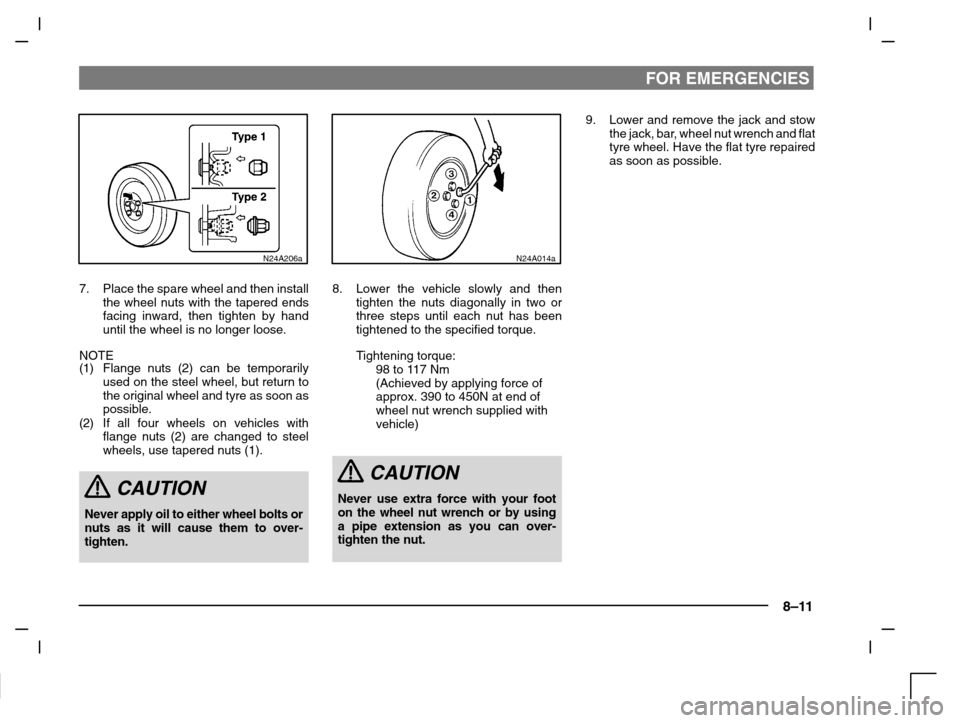

Page 211 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–11
N24A206a
7. Place the spare wheel and then install
the wheel nuts with the tapered ends
facing inward, then tighten by hand
until the wheel is no longer loose.
NOTE
(1)Flange nu

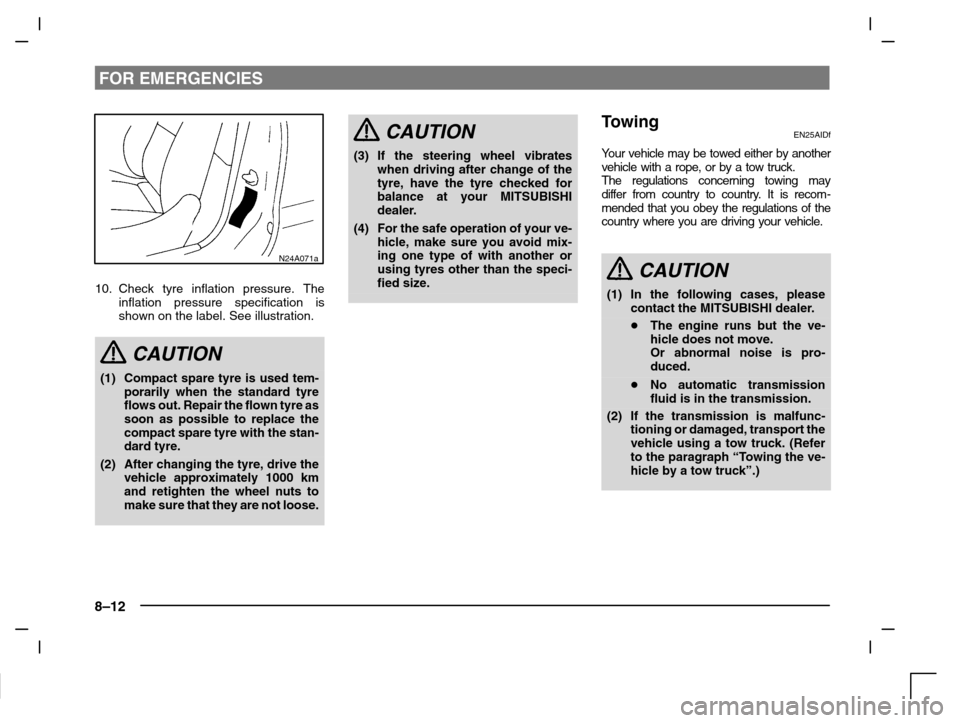

Page 212 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–12
N24A071a
10. Check tyre inflation pressure. The
inflation pressure specification is
shown on the label. See illustration.
CAUTION
(1) Compact spare tyre is used tem-
porarily wh

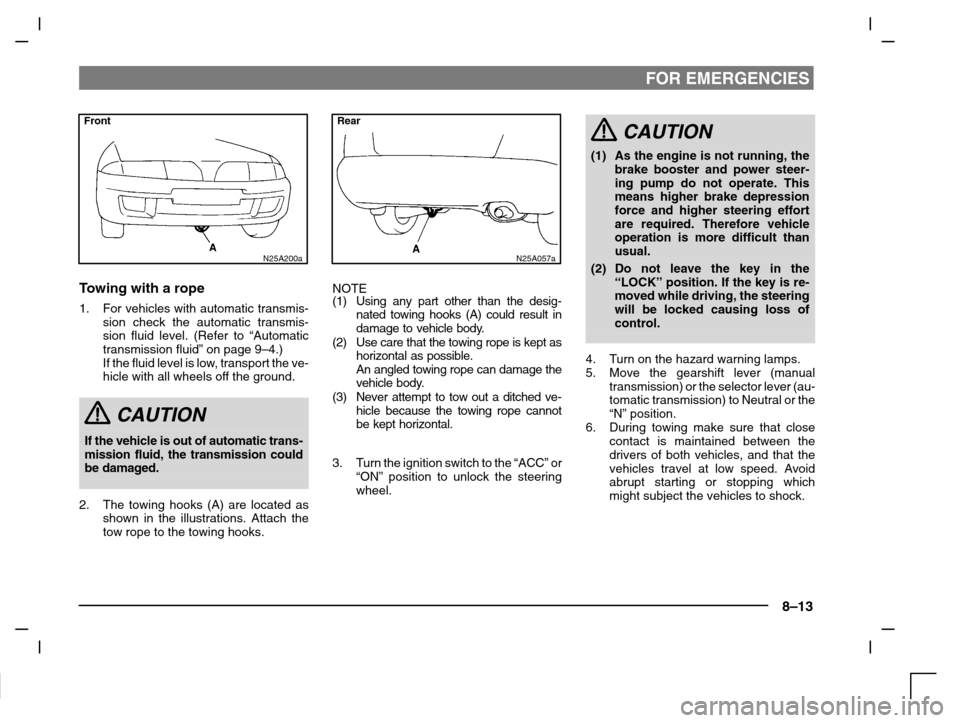

Page 213 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–13
Front
N25A200a
Towing with a rope
1. For vehicles with automatic transmis-
sion check the automatic transmis-
sion fluid level. (Refer to “Automatic
transmission fluid” on p

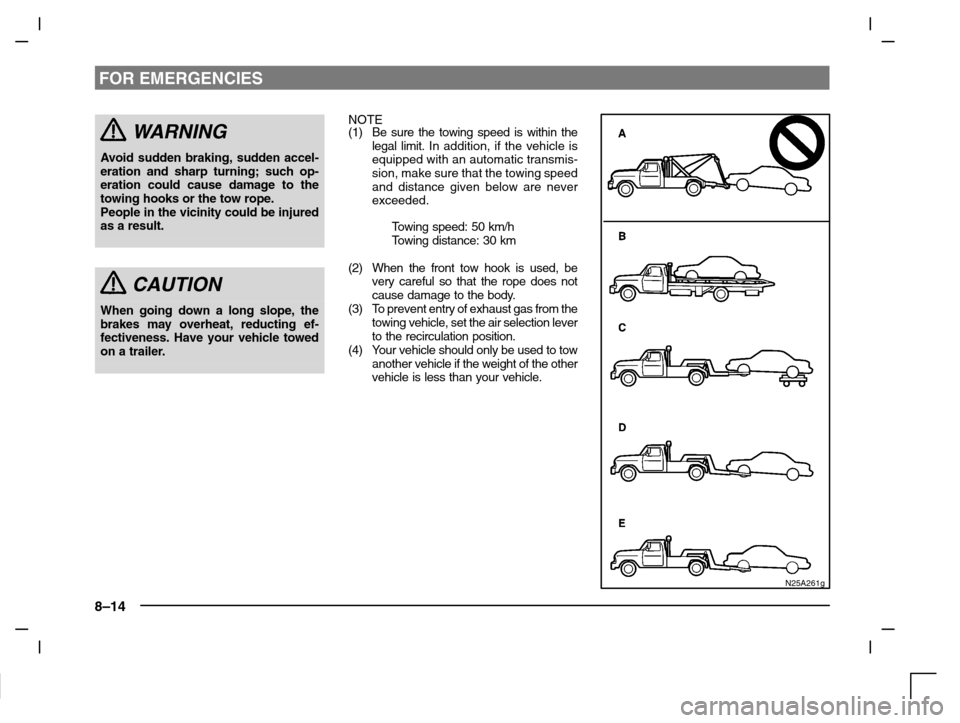

Page 214 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–14
WARNING
Avoid sudden braking, sudden accel-
eration and sharp turning; such op-
eration could cause damage to the
towing hooks or the tow rope.
People in the vicinity could be i

Page 215 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–15
Towing the vehicle by a tow truck
CAUTION
(1) This vehicle cannot be towed by
a tow truck using Type A equip-
ment to prevent the bumper from
deformation. If this vehicle is
tow

Page 216 of 280

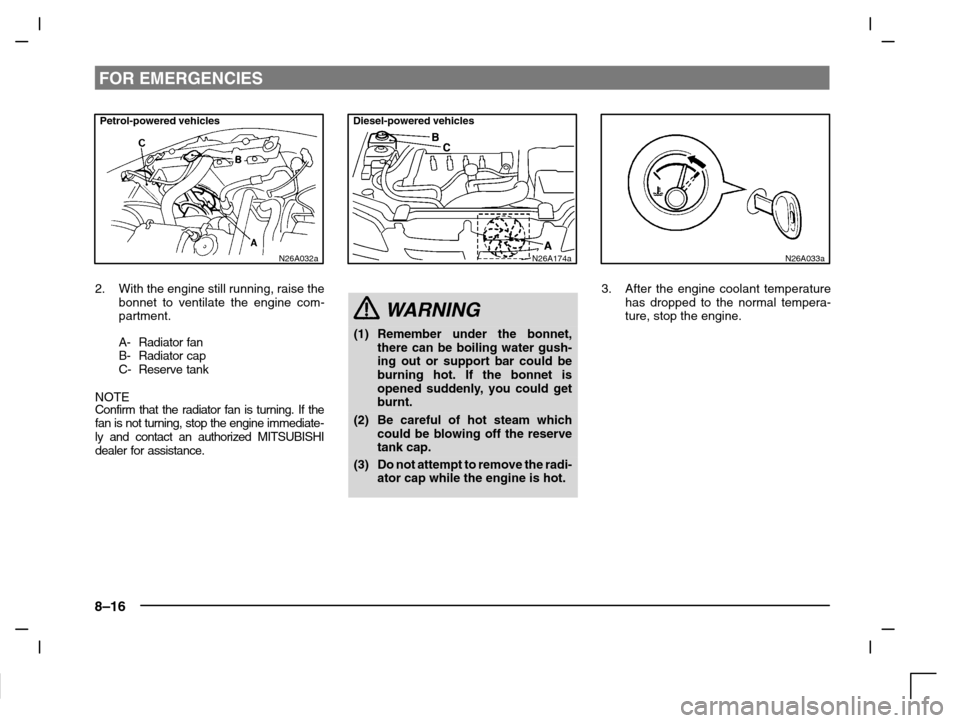

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–16
Petrol-powered vehicles
N26A032a
2. With the engine still running, raise the
bonnet to ventilate the engine com-
partment.
A- Radiator fan
B- Radiator cap
C- Reserve tank
NOTE
C

Page 217 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–17
Petrol-powered vehicles
N26A034a
4. Check the coolant level in the reserve
tank. If there is none, make sure that
the engine has cooled down before re-
moving the radiator cap,

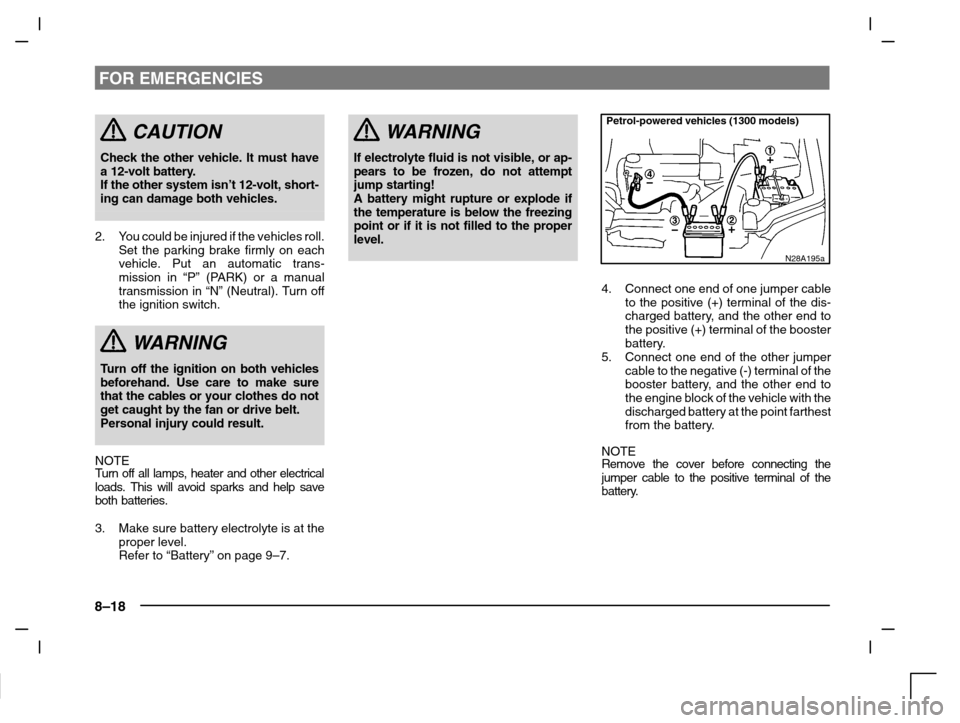

Page 218 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–18
CAUTION
Check the other vehicle. It must have
a 12-volt battery.
If the other system isn’t 12-volt, short-
ing can damage both vehicles.
2. You could be injured if the vehicle

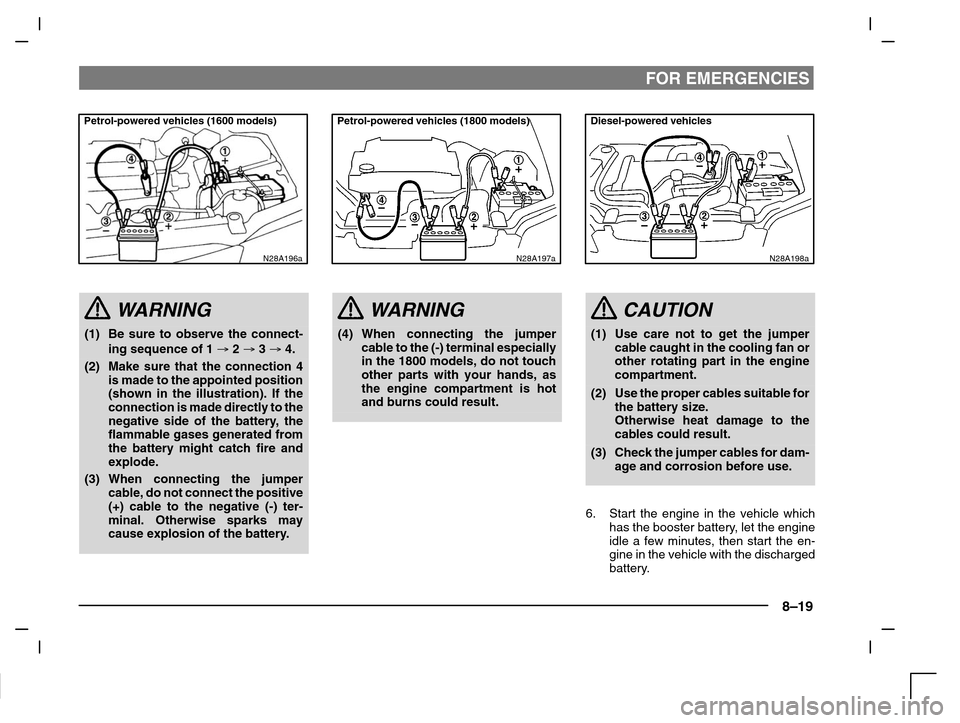

Page 219 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–19
Petrol-powered vehicles (1600 models)
N28A196a
WARNING
(1) Be sure to observe the connect-
ing sequence of 1  2  3  4.
(2) Make sure that the connection 4
is made to the appo

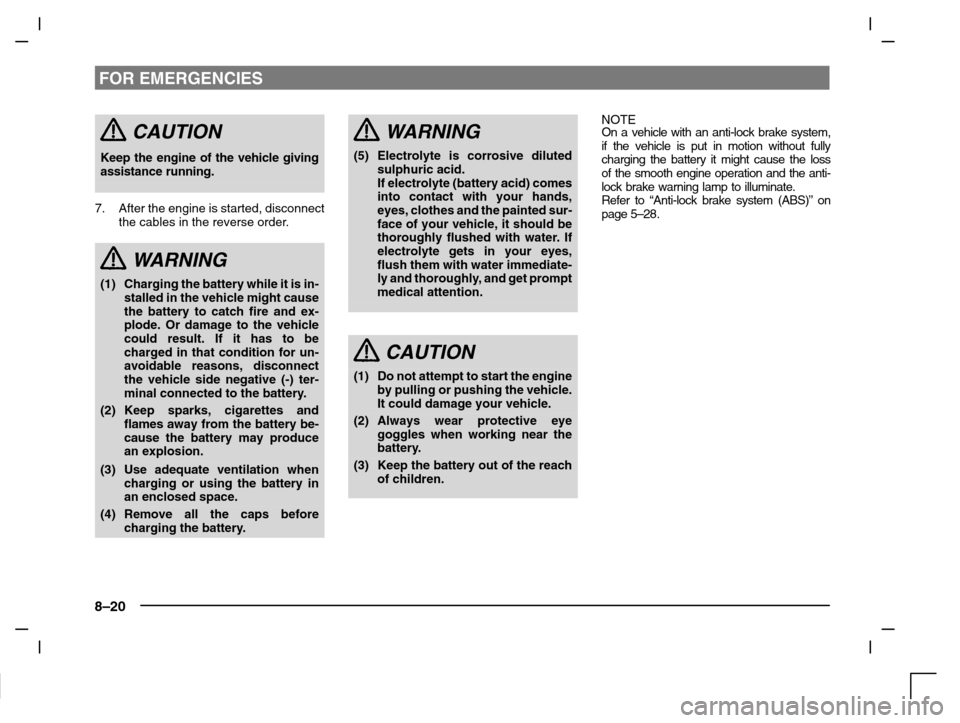

Page 220 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–20
CAUTION
Keep the engine of the vehicle giving
assistance running.
7. After the engine is started, disconnect
the cables in the reverse order.
WARNING
(1) Charging the battery wh
