MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–21
N07A017a

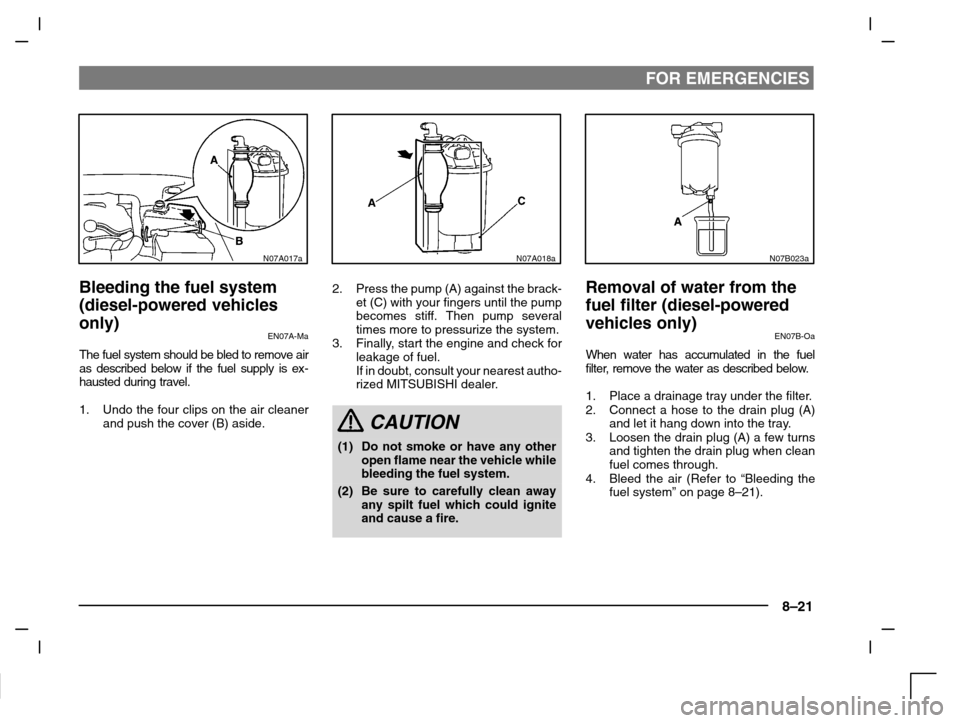

Bleeding the fuel system
(diesel-powered vehicles
only)
EN07A-Ma
The fuel system should be bled to remove air
as described below if the fuel supply is ex-
hausted duri

Page 222 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–22
CAUTION
(1) Do not smoke or have any other
open flame near the vehicle while
bleeding the fuel system.
(2) Be sure to carefully clean away
any water drained out, because
any fue

Page 223 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–23
N09A031a
In the engine compartment, the fuse box is
located as shown in the illustration.
N29B071a
Fuse load capacityEN29BMKd
The fuse capacity and the name of the elec-
trical

Page 224 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–24

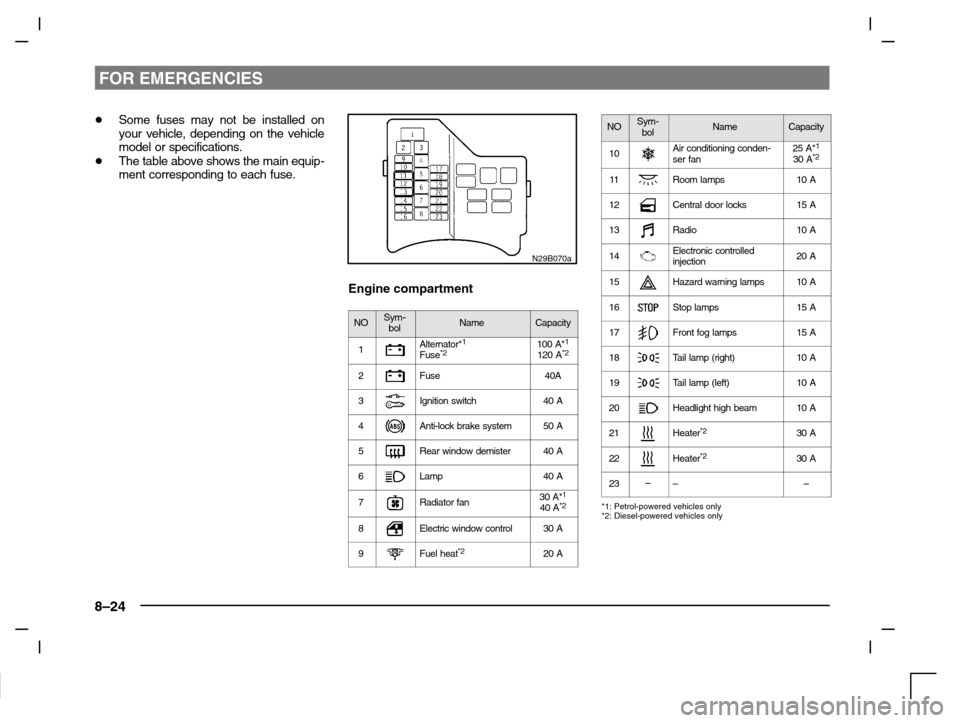

Some fuses may not be installed on
your vehicle, depending on the vehicle
model or specifications.
The table above shows the main equip-
ment corresponding to each fuse.
N29B0

Page 225 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–25
Some fuses may not be installed on
your vehicle, depending on the vehicle
model or specifications.
The table above shows the main equip-
ment corresponding to each fuse.
N29C0

Page 226 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–26
N29C001a
5. Insert a new fuse of the same capacity
into the clip and insert the fuse at the
same place in the fuse box.
CAUTION
(1) If the newly inserted fuse blows
again after

Page 227 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–27
Hatchback
N10B173a

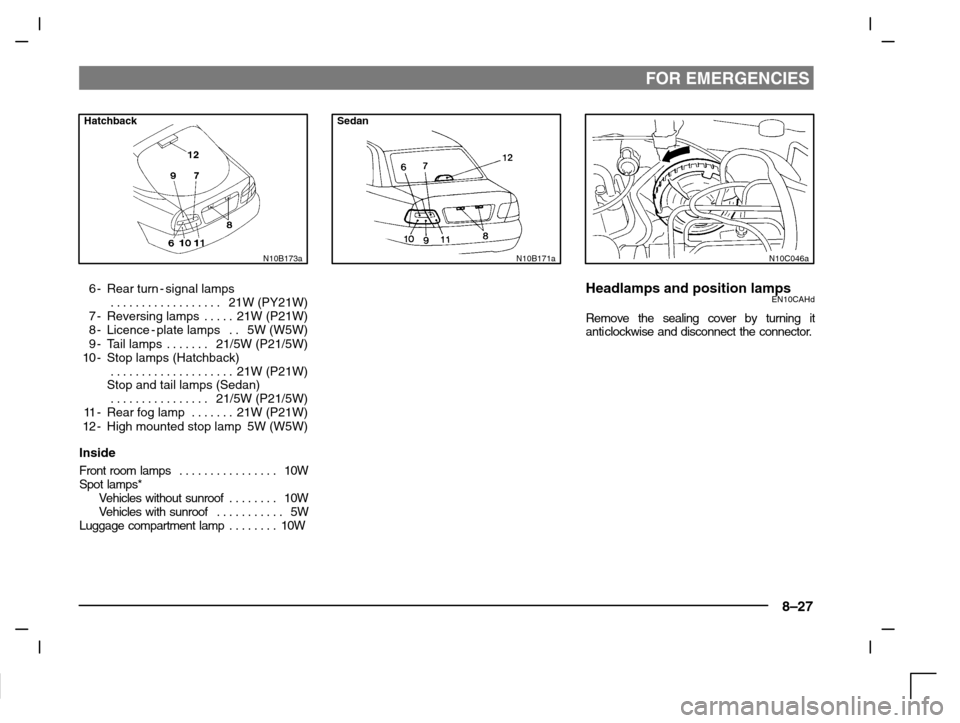

6-Rear turn - signal lamps
21W (PY21W) . . . . . . . . . . . . . . . . . .
7-Reversing lamps 21W (P21W). . . . .
8-Licence - plate lamps 5W (W5W). .
9-Tail

Page 228 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–28
N10C123a

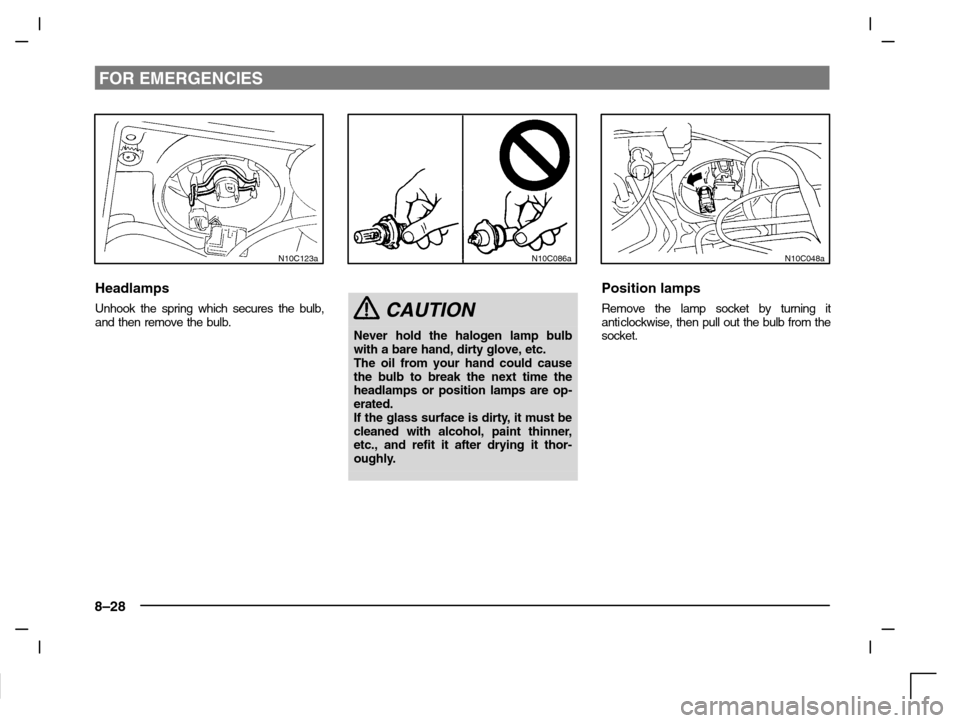

Headlamps
Unhook the spring which secures the bulb,
and then remove the bulb.
N10C086a
CAUTION
Never hold the halogen lamp bulb
with a bare hand, dirty glove, etc.
The

Page 229 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–29
N10F055a

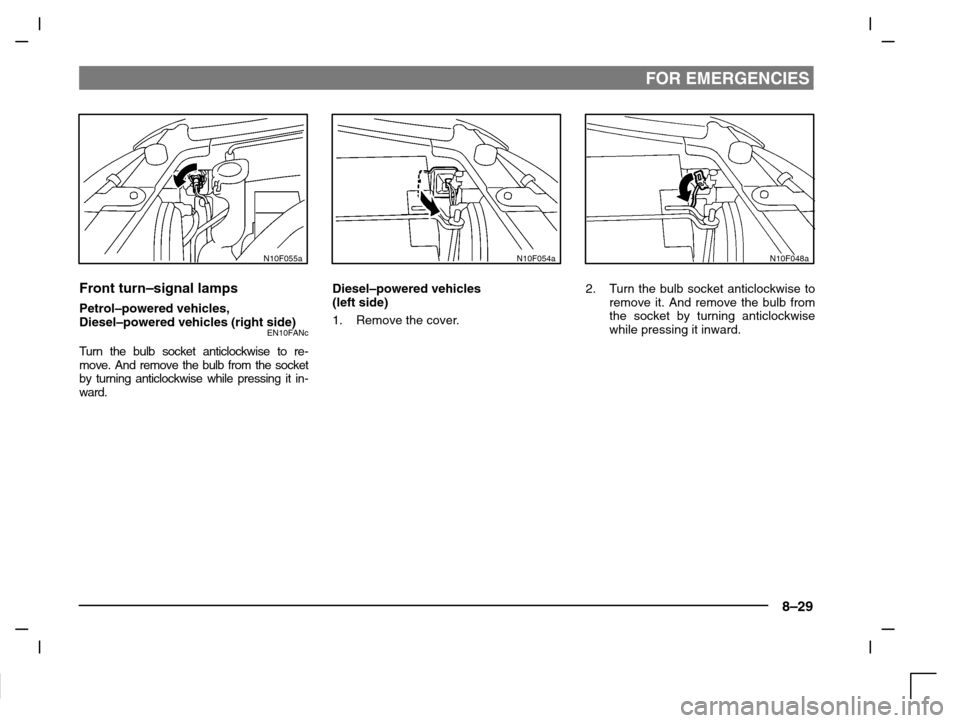

Front turn–signal lamps
Petrol–powered vehicles,
Diesel–powered vehicles (right side)
EN10FANc
Turn the bulb socket anticlockwise to re-
move. And remove the bulb

Page 230 of 280

MITSUBISHI CARISMA 2000 1.G Owners Manual FOR EMERGENCIES
8–30
N10E002a

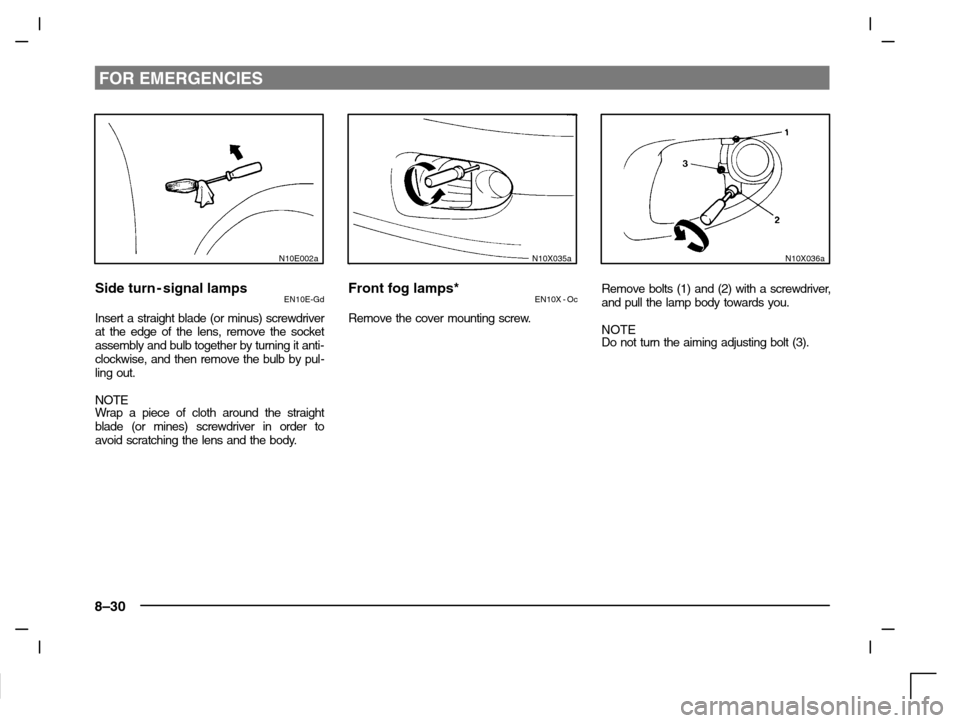

Side turn - signal lampsEN10E-Gd
Insert a straight blade (or minus) screwdriver
at the edge of the lens, remove the socket
assembly and bulb together by turning it anti
