SPECIFICATIONS
10–3
Diesel-powered vehicles
B02B063aC21A012a

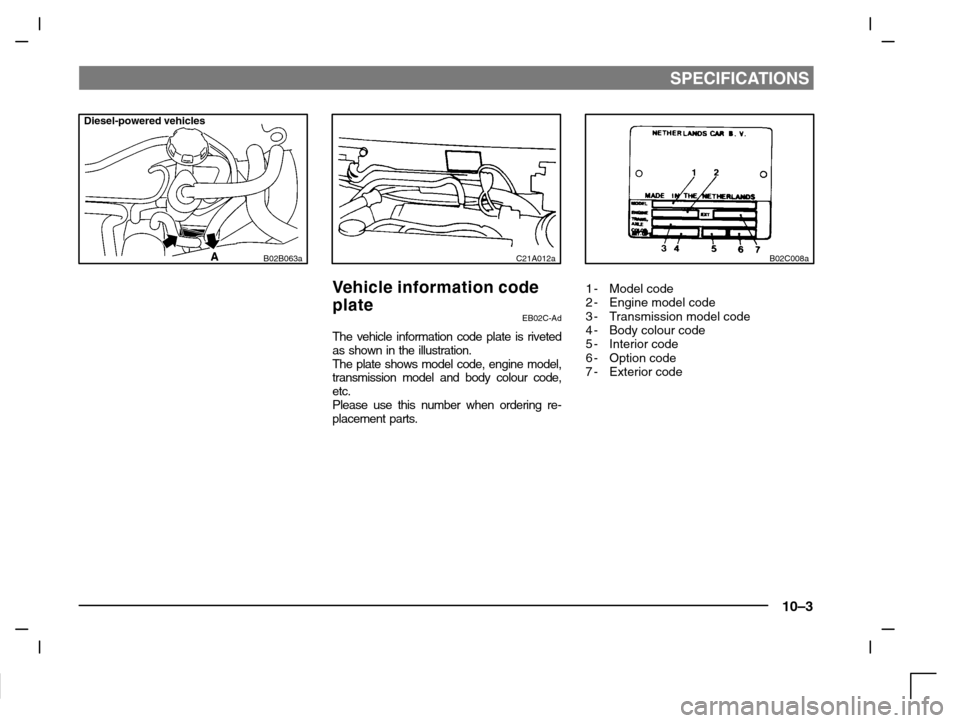

Ve h i c l e i n f ormation code
plate
EB02C-Ad
The vehicle information code plate is riveted
as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code,
etc.
Please use this number when ordering re-
placement parts.
B02C008a
1-Model code
2-Engine model code
3-Transmission model code
4-Body colour code
5-Interior code
6-Option code
7-Exterior code
Page 262 of 280

SPECIFICATIONS
10–4

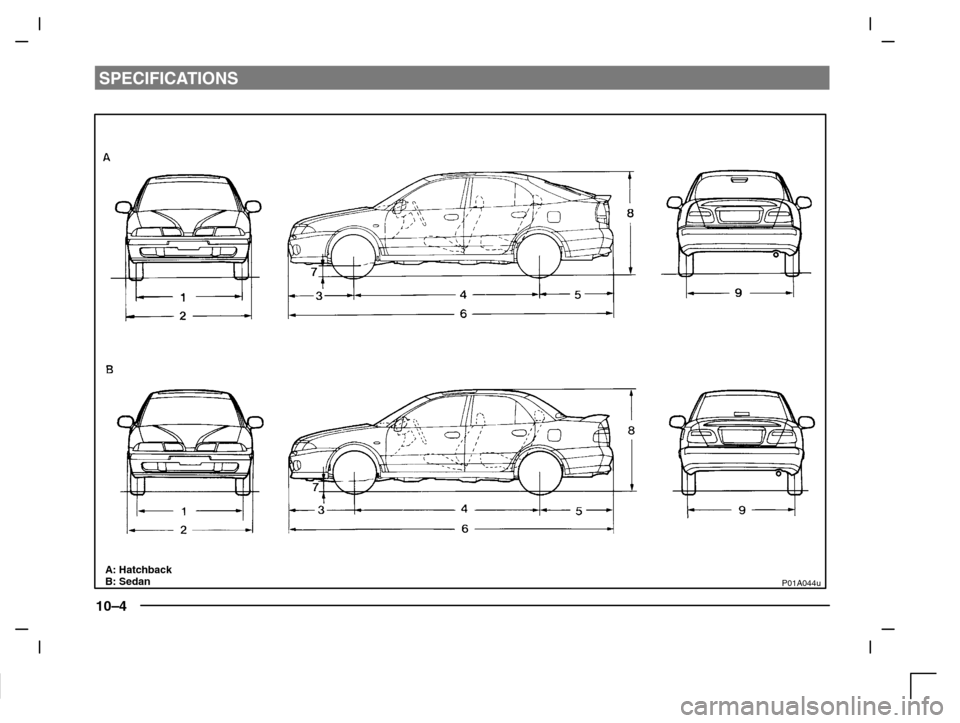

A: Hatchback
B: SedanP01A044u
Page 263 of 280

SPECIFICATIONS
10–5

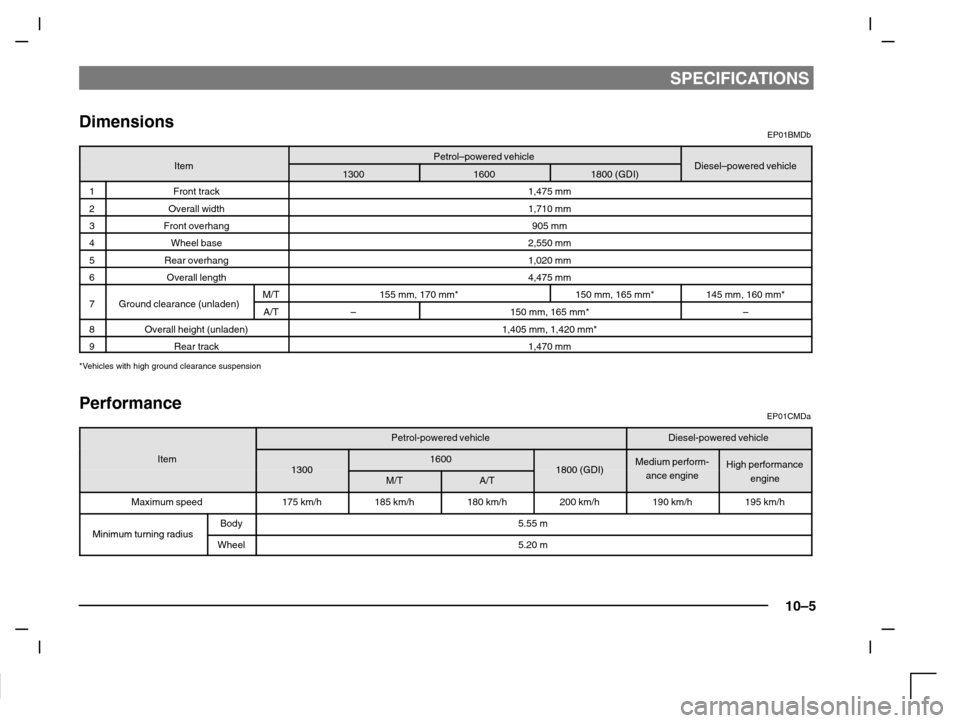

DimensionsEP01BMDb
ItPetrol–powered vehicleDi l d hi lItem130016001800 (GDI)Diesel–powered vehicle
1Front track1,475 mm
2Overall width1,710 mm
3Front overhang905 mm
4Wheel base2,550 mm
5Rear overhang1,020 mm
6Overall length4,475 mm
7Gdl (ld)M/T155 mm, 170 mm*150 mm, 165 mm*145 mm, 160 mm*7Ground clearance (unladen)A/T–150 mm, 165 mm*–
8Overall height (unladen)1,405 mm, 1,420 mm*
9Rear track1,470 mm
*Vehicles with high ground clearance suspension
PerformanceEP01CMDa
Petrol-powered vehicleDiesel-powered vehicle
Item130016001800 (GDI)Medium perform-High performance1300M/TA/T1800 (GDI)ance enginegpengine
Maximum speed175 km/h185 km/h180 km/h200 km/h190 km/h195 km/h
Minimum turning radiusBody5.55 mMinimum turning radiusWheel5.20 m
Page 264 of 280

SPECIFICATIONS
10–6

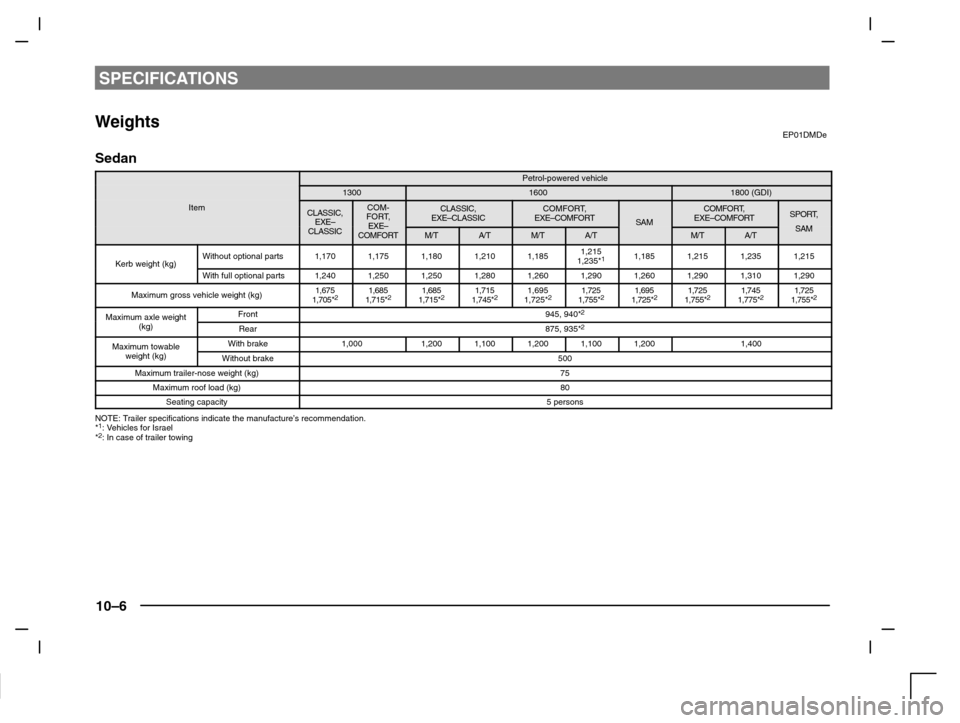

Weights EP01DMDe
Sedan
Petrol-powered vehicle
130016001800 (GDI)
ItemCLASSIC,
EXE–COM-
FORT,
EXE–
CLASSIC,
EXE–CLASSICCOMFORT,
EXE–COMFORTSAMCOMFORT,
EXE–COMFORTSPORT,
SAMCLASSICEXE–
COMFORTM/TA/TM/TA/TM/TA/TSAM
Kerb weight (kg)Without optional parts1,1701,1751,1801,2101,1851,215
1,235*11,1851,2151,2351,215g(g)With full optional parts1,2401,2501,2501,2801,2601,2901,2601,2901,3101,290
Maximum gross vehicle weight (kg)1,675
1,705*21,685
1,715*21,685
1,715*21,715
1,745*21,695
1,725*21,725
1,755*21,695
1,725*21,725
1,755*21,745
1,775*21,725
1,755*2
Maximum axle weightFront945, 940*2g(kg)Rear875, 935*2
Maximum towableWith brake1,0001,2001,1001,2001,1001,2001,400weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*1: Vehicles for Israel
*2: In case of trailer towing
Page 265 of 280

SPECIFICATIONS
10–7

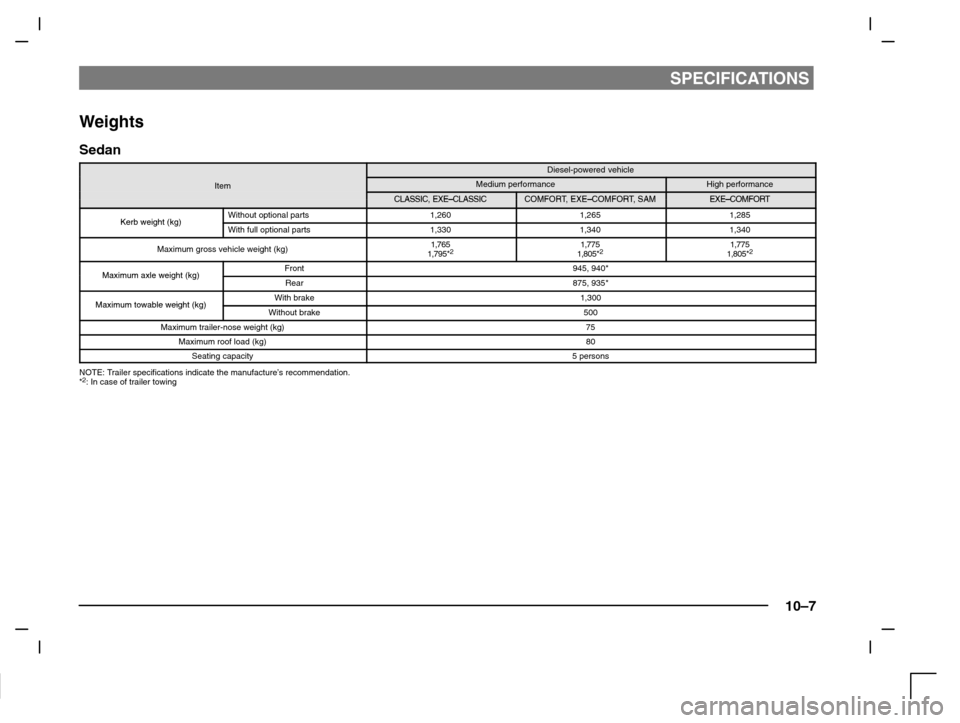

Weights
Sedan
Diesel-powered vehicle
ItemMedium performanceHigh performance
CLASSIC EXE–CLASSICCOMFORT EXE–COMFORT SAMEXE–COMFORTCLASSIC, EXE–CLASSICCOMFORT, EXE–COMFORT, SAMEXE–COMFORT
Kerb weight (kg)Without optional parts1,2601,2651,285Kerb weight (kg)With full optional parts1,3301,3401,340
Maximum gross vehicle weight (kg)1,765
1,795*21,775
1,805*21,775
1,805*2
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weight (kg)With brake1,300Maximum towable weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*2: In case of trailer towing
Page 266 of 280

SPECIFICATIONS
10–8

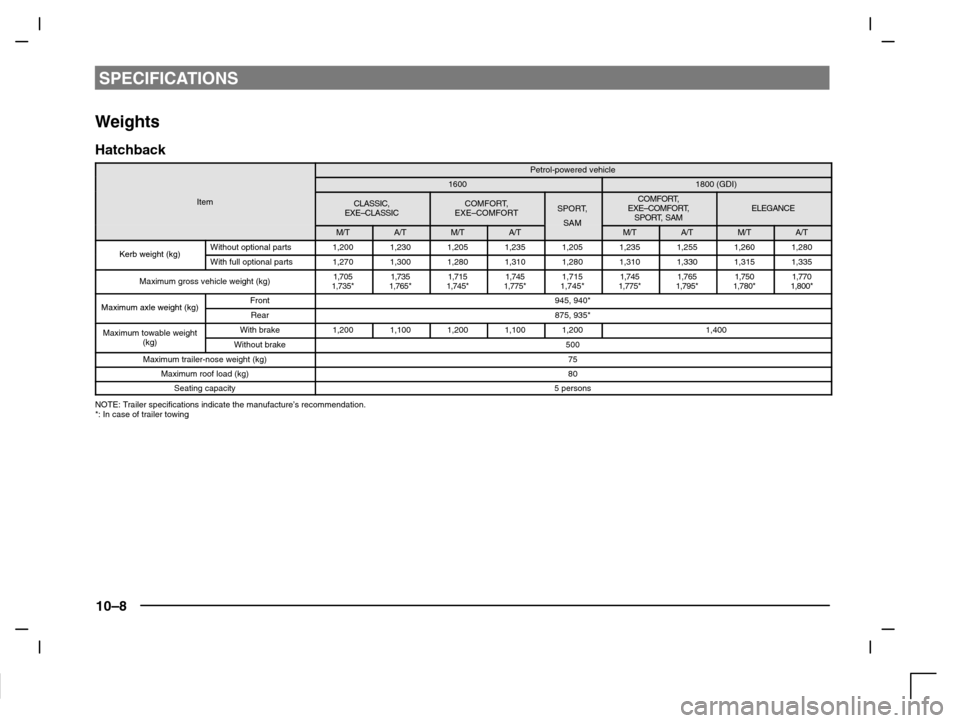

Weights
Hatchback
Petrol-powered vehicle
16001800 (GDI)
ItemCLASSIC,
EXE–CLASSICCOMFORT,
EXE–COMFORTSPORT,
SAM
COMFORT,
EXE–COMFORT,
SPORT, SAMELEGANCE
M/TA/TM/TA/TSAMM/TA/TM/TA/T
Kerb weight (kg)Without optional parts1,2001,2301,2051,2351,2051,2351,2551,2601,280Kerb weight (kg)With full optional parts1,2701,3001,2801,3101,2801,3101,3301,3151,335
Maximum gross vehicle weight (kg)1,705
1,735*1,735
1,765*1,715
1,745*1,745
1,775*1,715
1,745*1,745
1,775*1,765
1,795*1,750
1,780*1,770
1,800*
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weightWith brake1,2001,1001,2001,1001,2001,400g(kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*: In case of trailer towing
Page 267 of 280

SPECIFICATIONS
10–9
Weights
Hatchback
Diesel-powered vehicle
Medium performanceHigh performanceItemCLASSIC,COMFORT,EXE–COMFORTEXE–COMFORT,ELEGANCESAM,EXE–CLASSICEXE–COMFORT,
SAM,SPORTELEGANCESAM
Kerb weight (kg)Without optional parts1,2801,2851,3051,3101,305Kerb weight (kg)With full optional parts1,3501,3601,3601,3651,360
Maximum gross vehicle weight (kg)1,785
1,815*21,795
1,825*1,795
1,825*1,800
1,830*1,795
1,825*
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weight (kg)With brake1,300Maximum towable weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*: In case of trailer towing
Page 268 of 280

SPECIFICATIONS
10–10
EngineEP01EMDb
Petrol-powered vehicleDiesel-powered vehicleItem130016001800 (GDI)Medium performanceHigh performance130016001800 (GDI)penginegpengine
Engine typeFour-cylinder, in line water-cooled, four-cycle
single overhead camshaftFour-cylinder, in line water-
cooled, four-cycle double
overhead camshaftFour-cylinder, in line water-cooled, four-cycle
single overhead camshaft
Engine model
Total displacement
Bore
Stroke
Compression ratio4G13
1,299 cc
71.0 mm
82.0 mm
10:14G92
1,597 cc
81.0 mm
77.5 mm
10:14G93
1,834 cc
81.0 mm
89.0 mm
12:1Medium performance engine: F9Q1
High performance engine: F9Q2
1,870 cc
80.0 mm
93.0 mm
19:1
Valve clearanceIntakeAutomatically adjusted0.20 mmValve clearanceExhaustAutomatically adjusted0.40 mm
Firing order1-3-4-2
Maximum output60 kW/5 000 r/min76 kW/6 000 r/minM/T90 kW/5,500 r/min75 kW/4 000 r/min85 kW/4 000 r/minMaximum output60 kW/5,000 r/min76 kW/6,000 r/minA/T92 kW/5,500 r/min75 kW/4,000 r/min85 kW/4,000 r/min
Maximum torque120 Nm/4,000 r/min141 Nm/4,500 r/min174 Nm/3,750 r/min215 Nm/3,250 r/min265 Nm/2,500 r/min
TransmissionEP01FMDa
Petrol-powered vehicleDiesel-poweredItem130016001800 (GDI)pvehicle
M/TM/TA/TM/TA/TM/T
Gear ratio
1st
2nd
3rd
4th
5th
Reverse3.727
2.047
1.321
0.966
0.794
3.5453.363
1.863
1.321
0.966
0.794
3.5452.842
1.529
1.000
0.712
–
2.4803.583
1.947
1.266
0.970
0.767
3.3632.842
1.529
1.000
0.712
–
2.4803.384
1.904
1.193
0.868
0.652
3.297
Page 269 of 280

SPECIFICATIONS
10–11

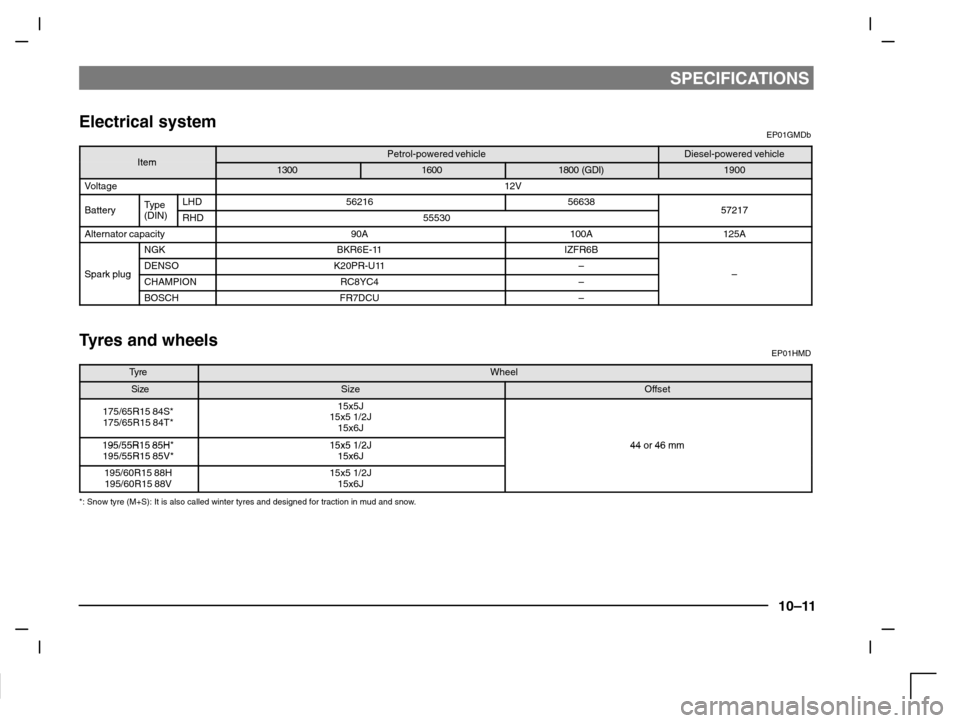

Electrical systemEP01GMDb
ItemPetrol-powered vehicleDiesel-powered vehicleItem130016001800 (GDI)1900
Voltage12V
BatteryTypeLHD562165663857217Batteryyp(DIN)RHD5553057217
Alternator capacity90A100A125A
NGKBKR6E-11IZFR6B
Spark plugDENSOK20PR-U11–Spark plugCHAMPIONRC8YC4––
BOSCHFR7DCU–
Tyres and wheelsEP01HMD
Ty r eWheel
SizeSizeOffset
175/65R15 84S*
175/65R15 84T*15x5J
15x5 1/2J
15x6J
195/55R15 85H*15x5 1/2J44 or 46 mm195/55R15 85H
195/55R15 85V*15x5 1/2J
15x6J44 or 46 mm195/55R15 85V*15x6J
195/60R15 88H
195/60R15 88V15x5 1/2J
15x6J
*: Snow tyre (M+S): It is also called winter tyres and designed for traction in mud and snow.
Page 270 of 280

SPECIFICATIONS
10–12
Other specificationsEP01IMDb
ItemPetrol-powered vehicleDiesel powered vehicleItem1300, 16001800 (GDI)Diesel-powered vehicle
Fuel controlMulti-point injectionGasoline direct injectionInjectionFuel systemFuel pumpElectric motor typeElectric motor and
Mechanical single plunger typeCommon rail type
ClutchDry single disc clutch with diaphragm spring, hydraulic action
Steering systemRack and pinion type, power assisted
SuspensionFrontIndependent type, Mac Pherson sturt, coil springSuspensionRearIndependent type, multi-link, coil spring
TypeHydraulic, diagonally connected double circuit system with power assistance, anti-lock brake*
Service brakesFrontVentilated disc brakes
RearDisc brakes
Parking brakesParking brake acts mechanically on rear wheels
*: Option
