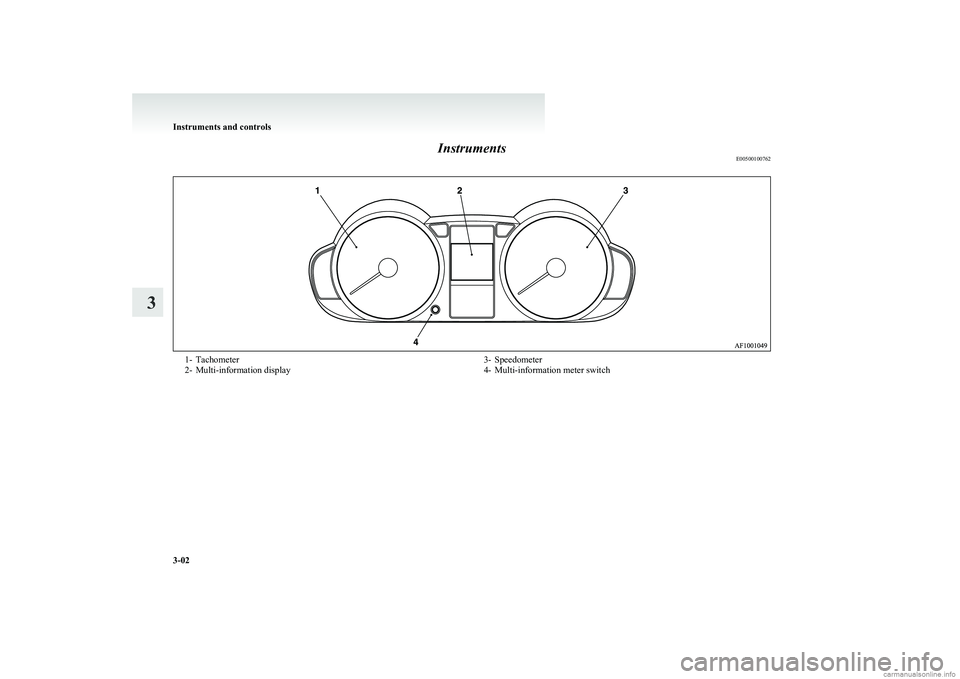

InstrumentsE005001007621- Tachometer
2- Multi-information display3- Speedometer
4- Multi-information meter switch
Instruments and controls
3-02
3

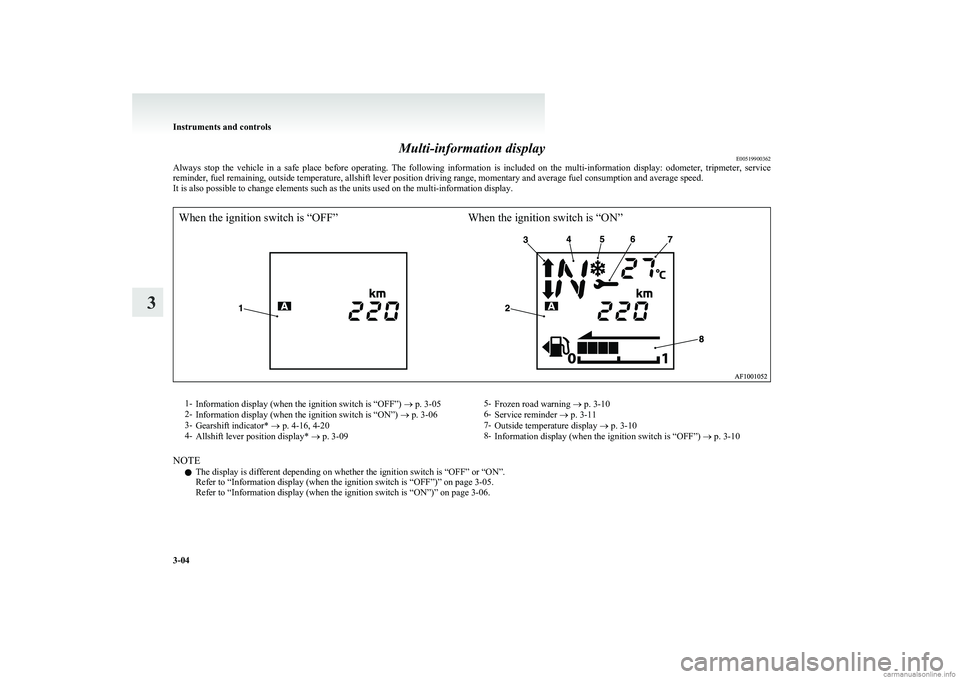

Multi-information displayE00519900362
Always stop the vehicle in a safe place before operating. The following information is included on the multi-information display: odometer, tripmeter, service
reminder, fuel remaining, outside temperature, allshift lever position driving range, momentary and average fuel consumption and average speed.
It is also possible to change elements such as the units used on the multi-information display.
When the ignition switch is “OFF”When the ignition switch is “ON”1- Information display (when the ignition switch is “OFF”) ® p. 3-05
2- Information display (when the ignition switch is “ON”) ® p. 3-06
3- Gearshift indicator* ® p. 4-16, 4-20
4- Allshift lever position display* ® p. 3-095-
Frozen road warning ® p. 3-10
6- Service reminder ® p. 3-11
7- Outside temperature display ® p. 3-10
8- Information display (when the ignition switch is “OFF”) ® p. 3-10
NOTE
l The display is different depending on whether the ignition switch is “OFF” or “ON”.
Refer to “Information display (when the ignition switch is “OFF”)” on page 3-05.
Refer to “Information display (when the ignition switch is “ON”)” on page 3-06.
Instruments and controls
3-04
3

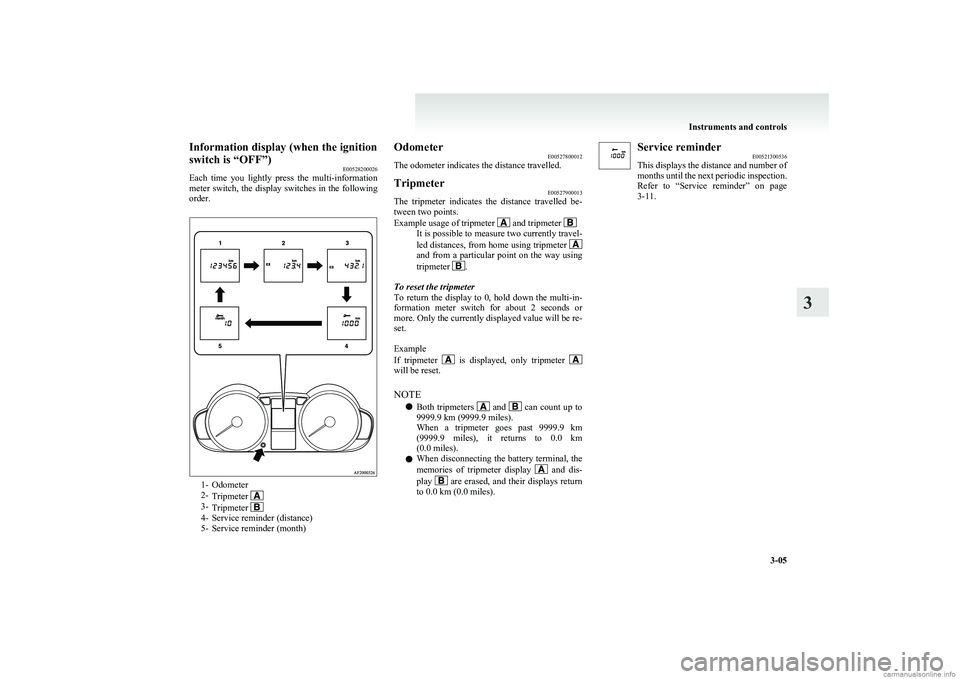

Information display (when the ignition
switch is “OFF”) E00528200026
Each time you lightly press the multi-information
meter switch, the display switches in the following
order.
1- Odometer
2- Tripmeter
3-Tripmeter 4- Service reminder (distance)
5- Service reminder (month)
Odometer E00527800012
The odometer indicates the distance travelled.Tripmeter E00527900013
The tripmeter indicates the distance travelled be-
tween two points.
Example usage of tripmeter
and tripmeter It is possible to measure two currently travel-
led distances, from home using tripmeter
and from a particular point on the way using
tripmeter .
To reset the tripmeter
To return the display to 0, hold down the multi-in-
formation meter switch for about 2 seconds or
more. Only the currently displayed value will be re-
set.

Example
If tripmeter
is displayed, only tripmeter will be reset.
NOTE l Both tripmeters
and can count up to
9999.9 km (9999.9 miles).
When a tripmeter goes past 9999.9 km
( 9999.9 miles), it returns to 0.0 km
(0.0 miles).
l When disconnecting the battery terminal, the
memories of tripmeter display
and dis-
play are erased, and their displays return
to 0.0 km (0.0 miles).
Service reminder E00521300536
This displays the distance and number of
months until the next periodic inspection.
Refer to “Service reminder” on page
3-11.
Instruments and controls
3-05
3

Information display (when the ignition switch is “ON”)E00528300027

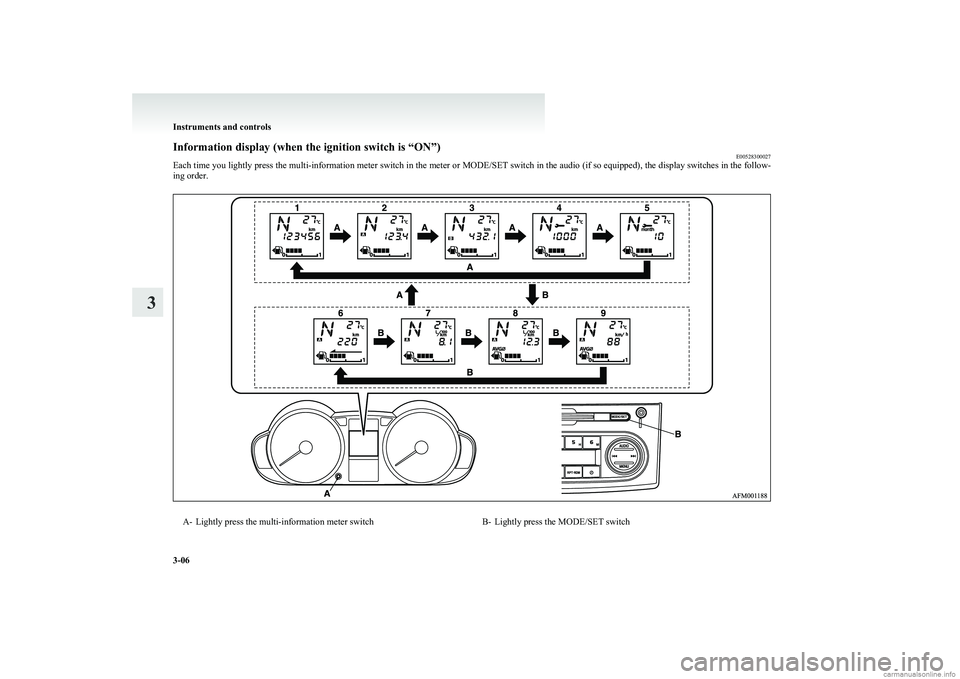

Each time you lightly press the multi-information meter switch in the meter or MODE/SET switch in the audio (if so equipped), the display switches in the follow-
ing order.A- Lightly press the multi-information meter switchB- Lightly press the MODE/SET switch

Instruments and controls
3-06
3

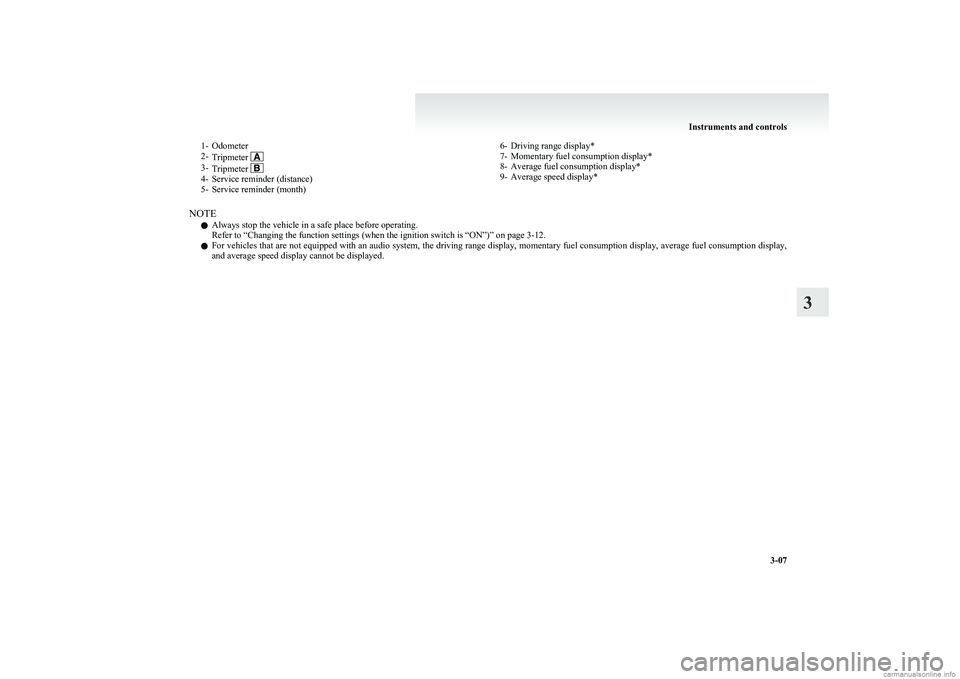

1- Odometer
2- Tripmeter
3-Tripmeter 4- Service reminder (distance)
5- Service reminder (month)
6- Driving range display*
7- Momentary fuel consumption display*
8- Average fuel consumption display*
9- Average speed display*
NOTE
l Always stop the vehicle in a safe place before operating.
Refer to “Changing the function settings (when the ignition switch is “ON”)” on page 3-12.
l For vehicles that are not equipped with an audio system, the driving range display, momentary fuel consumption display, average fuel consumption display,
and average speed display cannot be displayed.
Instruments and controls
3-07
3

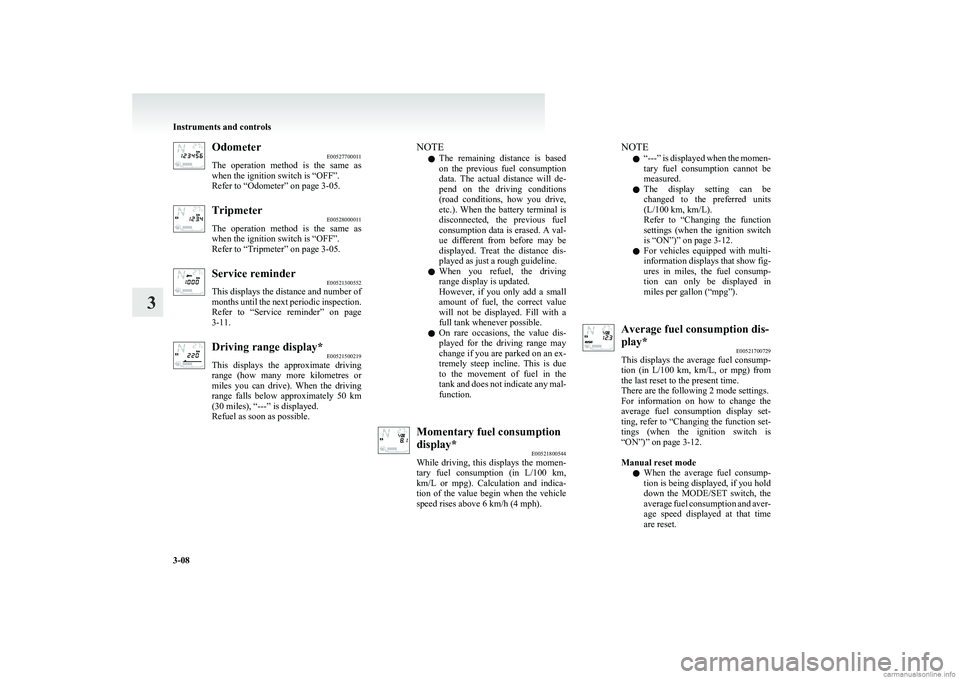

OdometerE00527700011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Odometer” on page 3-05.Tripmeter E00528000011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Tripmeter” on page 3-05.Service reminder E00521300552
This displays the distance and number of
months until the next periodic inspection.
Refer to “Service reminder” on page
3-11.Driving range display* E00521500219
This displays the approximate driving
range (how many more kilometres or
miles you can drive). When the driving
range falls below approximately 50 km
(30 miles), “---” is displayed.
Refuel as soon as possible.NOTE
l The remaining distance is based
on the previous fuel consumption
data. The actual distance will de-
pend on the driving conditions
(road conditions, how you drive,
etc.). When the battery terminal is
disconnected, the previous fuel
consumption data is erased. A val-
ue different from before may be
displayed. Treat the distance dis-
played as just a rough guideline.
l When you refuel, the driving
range display is updated.
However, if you only add a small
amount of fuel, the correct value
will not be displayed. Fill with a
full tank whenever possible.
l On rare occasions, the value dis-
played for the driving range may
change if you are parked on an ex-
tremely steep incline. This is due
to the movement of fuel in the
tank and does not indicate any mal-
function.Momentary fuel consumption
display* E00521800544
While driving, this displays the momen-
tary fuel consumption (in L/100 km ,
km/L or mpg). Calculation and indica-
tion of the value begin when the vehicle
speed rises above 6 km/h (4 mph).NOTE
l “
---” is displayed when the momen-
tary fuel consumption cannot be
measured.
l The display setting can be
changed to the preferred units
(L/100 km, km/L).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l For vehicles equipped with multi-
information displays that show fig-
ures in miles, the fuel consump-
tion can only be displayed in
miles per gallon (“mpg”).Average fuel consumption dis-
play* E00521700729
This displays the average fuel consump-
tion (in L/100 km, km/L, or mpg) from
the last reset to the present time.
There are the following 2 mode settings.
For information on how to change the
average fuel consumption display set-
ting, refer to “Changing the function set-
tings (when the ignition switch is
“ON”)” on page 3-12.

Manual reset mode
l When the average fuel consump-
tion is being displayed, if you hold
down the MODE/SET switch, the
average fuel consumption and aver-
age speed displayed at that time
are reset.
Instruments and controls
3-08
3

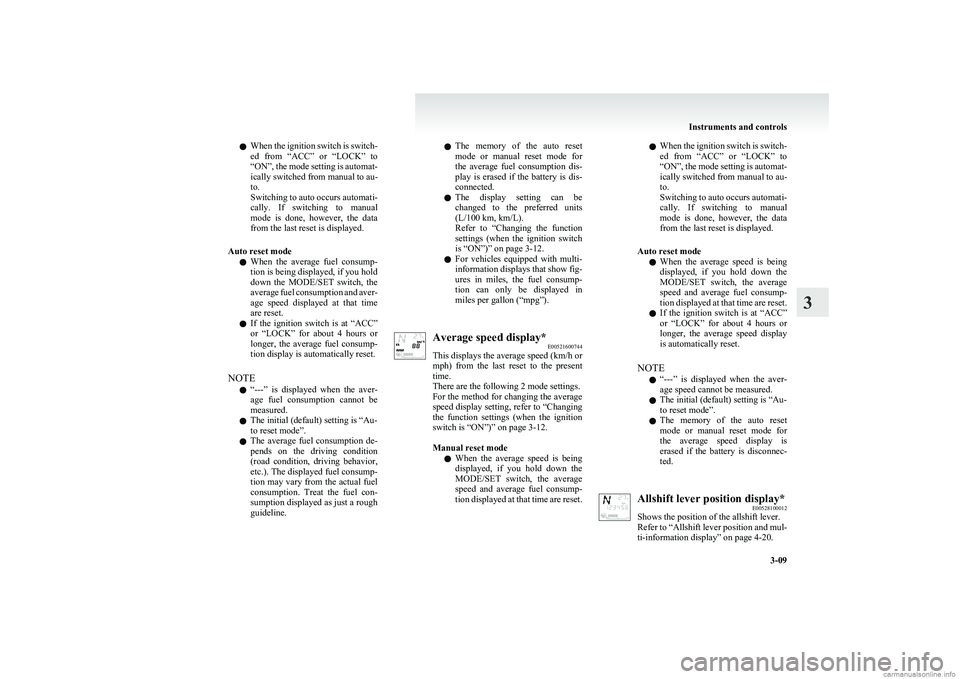

lWhen the ignition switch is switch-
ed from “ACC” or “LOCK” to
“ON”, the mode setting is automat-
ically switched from manual to au-
to.
Switching to auto occurs automati-
cally. If switching to manual
mode is done, however, the data
from the last reset is displayed.
Auto reset mode l When the average fuel consump-
tion is being displayed, if you hold
down the MODE/SET switch, the
average fuel consumption and aver-
age speed displayed at that time
are reset.
l If the ignition switch is at “ACC”
or “LOCK” for about 4 hours or
longer, the average fuel consump-
tion display is automatically reset.
NOTE l “
---” is displayed when the aver-
age fuel consumption cannot be
measured.
l The initial (default) setting is “Au-
to reset mode”.
l The average fuel consumption de-
pends on the driving condition
(road condition, driving behavior,
etc.). The displayed fuel consump-
tion may vary from the actual fuel
consumption. Treat the fuel con-
sumption displayed as just a rough
guideline.l The memory of the auto reset
mode or manual reset mode for
the average fuel consumption dis-
play is erased if the battery is dis-
connected.
l The display setting can be
changed to the preferred units
(L/100 km, km/L).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l For vehicles equipped with multi-
information displays that show fig-
ures in miles, the fuel consump-
tion can only be displayed in
miles per gallon (“mpg”).Average speed display* E00521600744
This displays the average speed (km/h or
mph ) from the last reset to the present
time.
There are the following 2 mode settings.
For the method for changing the average
speed display setting, refer to “Changing
the function settings (when the ignition
switch is “ON”)” on page 3-12.

Manual reset mode
l When the average speed is being
displayed, if you hold down the
MODE/SET switch, the average
speed and average fuel consump-
tion displayed at that time are reset.l When the ignition switch is switch-
ed from “ACC” or “LOCK” to
“ON”, the mode setting is automat-
ically switched from manual to au-
to.
Switching to auto occurs automati-
cally. If switching to manual
mode is done, however, the data
from the last reset is displayed.
Auto reset mode l When the average speed is being
displayed, if you hold down the
MODE/SET switch, the average
speed and average fuel consump-
tion displayed at that time are reset.
l If the ignition switch is at “ACC”
or “LOCK” for about 4 hours or
longer, the average speed display
is automatically reset.
NOTE l “
---” is displayed when the aver-
age speed cannot be measured.
l The initial (default) setting is “Au-
to reset mode”.
l The memory of the auto reset
mode or manual reset mode for
the average speed display is
erased if the battery is disconnec-
ted.Allshift lever position display* E00528100012
Shows the position of the allshift lever.
Refer to “Allshift lever position and mul-
ti-information display” on page 4-20.
Instruments and controls
3-09
3

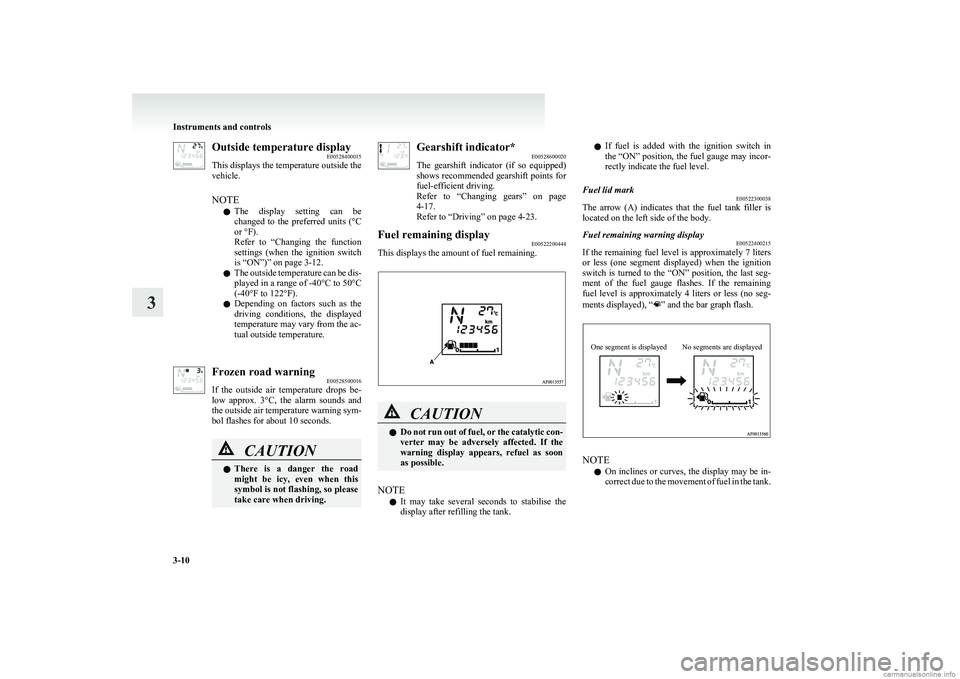

Outside temperature displayE00528400015
This displays the temperature outside the
vehicle.
NOTE l The display setting can be
changed to the preferred units ( °C
or °F).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l The outside temperature can be dis-
played in a range of -40°C to 50°C
(-40°F to 122°F).
l Depending on factors such as the
driving conditions, the displayed
temperature may vary from the ac-
tual outside temperature.Frozen road warning E00528500016
If the outside air temperature drops be-
low approx. 3°C, the alarm sounds and
the outside air temperature warning sym-
bol flashes for about 10 seconds.CAUTIONl There is a danger the road
might be icy, even when this
symbol is not flashing, so please
take care when driving.Gearshift indicator* E00528600020
The gearshift indicator (if so equipped)
shows recommended gearshift points for
fuel-efficient driving.
Refer to “Changing gears” on page
4-17.
Refer to “Driving” on page 4-23.Fuel remaining display E00522200444
This displays the amount of fuel remaining.
CAUTIONlDo not run out of fuel, or the catalytic con-
verter may be adversely affected. If the
warning display appears, refuel as soon
as possible.
NOTE
l It may take several seconds to stabilise the
display after refilling the tank.
l If fuel is added with the ignition switch in
the “ON” position, the fuel gauge may incor-
rectly indicate the fuel level.Fuel lid mark E00522300038
The arrow (A) indicates that the fuel tank filler is
located on the left side of the body.
Fuel remaining warning display E00522400215
If the remaining fuel level is approximately 7 liters
or less (one segment displayed) when the ignition
switch is turned to the “ON” position, the last seg-
ment of the fuel gauge flashes. If the remaining
fuel level is approximately 4 liters or less (no seg-
ments displayed), “
” and the bar graph flash.
One segment is displayedNo segments are displayed
NOTE
l On inclines or curves, the display may be in-
correct due to the movement of fuel in the tank.
Instruments and controls
3-10
3

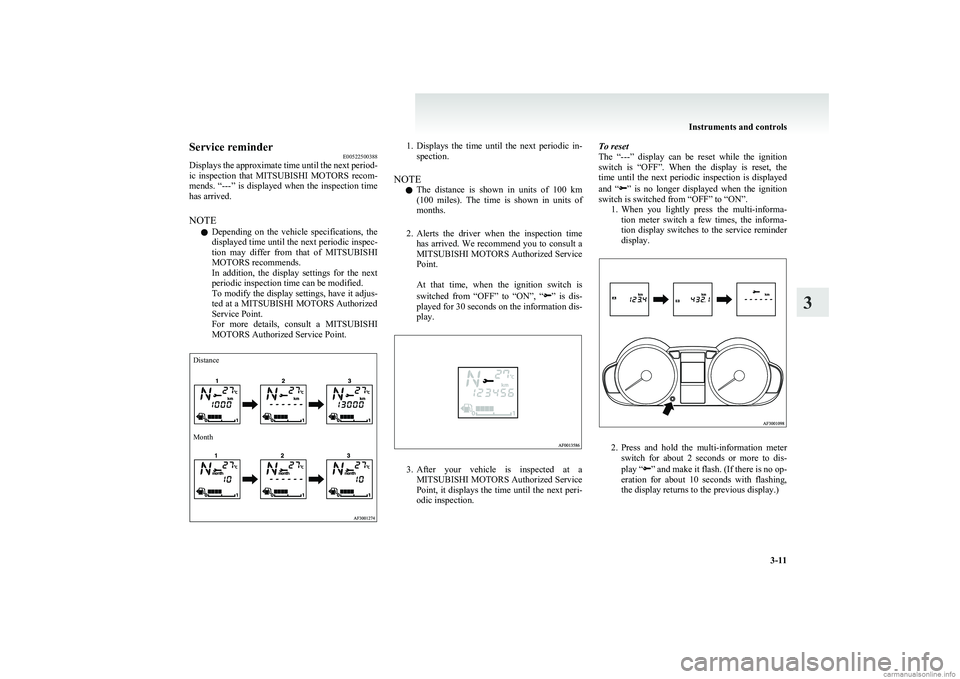

Service reminderE00522500388
Displays the approximate time until the next period-
ic inspection that MITSUBISHI MOTORS recom-
mends. “---” is displayed when the inspection time
has arrived.
NOTE l Depending on the vehicle specifications, the
displayed time until the next periodic inspec-
tion may differ from that of MITSUBISHI
MOTORS recommends.
In addition, the display settings for the next
periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized
Service Point.
For more details, consult a MITSUBISHI
MOTORS Authorized Service Point.DistanceMonth1. Displays the time until the next periodic in-
spection.
NOTE l The distance is shown in units of 100 km
( 100 miles). The time is shown in units of
months.
2. Alerts the driver when the inspection time
has arrived. We recommend you to consult a
MITSUBISHI MOTORS Authorized Service
Point.

At that time, when the ignition switch is
switched from “OFF” to “ON”, “
” is dis-
played for 30 seconds on the information dis-
play.
3. After your vehicle is inspected at a
MITSUBISHI MOTORS Authorized Service
Point, it displays the time until the next peri-
odic inspection.
To reset
The “---” display can be reset while the ignition
switch is “OFF”. When the display is reset, the
time until the next periodic inspection is displayed
and “
” is no longer displayed when the ignition
switch is switched from “OFF” to “ON”. 1.When you lightly press the multi-informa-
tion meter switch a few times, the informa-
tion display switches to the service reminder
display.
2. Press and hold the multi-information meter
switch for about 2 seconds or more to dis-
play “
” and make it flash. (If there is no op-
eration for about 10 seconds with flashing,
the display returns to the previous display.)
Instruments and controls
3-11
3
