Multi-information display
Features and controls 5-145
5
[With ignition switch or operation mode in ON]
N00555101234
Each time the multi-information display switches are operated, the buzzer sounds and the multi-information display changesbetween information such as warnings, trip odometer, average and instant fuel consump- tion, distance range.It is also possible to change elements such as the language and units used on the multi- information display by operating the multi-information display switches.
1- S-AWC drive mode display screen (if
so equipped)
 P.5-71
2-
Warning display screen
 P.5-149
3- ECO mode indicator display screen
 P.5-201
4- Information screen
 P.5-146
5- Selector lever position display
 P.5-65
6- Engine coolant temperature display
 P.5-150
7- Odometer
 P.5-151
8- Cruise control display screen
 P.5-87
9- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-92
10- ECO indicator
 P.5-154
11-
“ ” mark indicator
 P.5-149
12- Fuel remaining display screen
 P.5-150
13- Outside temperature display screen
 P.5-151NOTE
The fuel units, outside temperature units, display language, and other settings can be changed. Refer to “Changing the function settings” onpage 5-155.
Multi-information display switches
BK0277700US.book
145 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-152 Features and controls
5

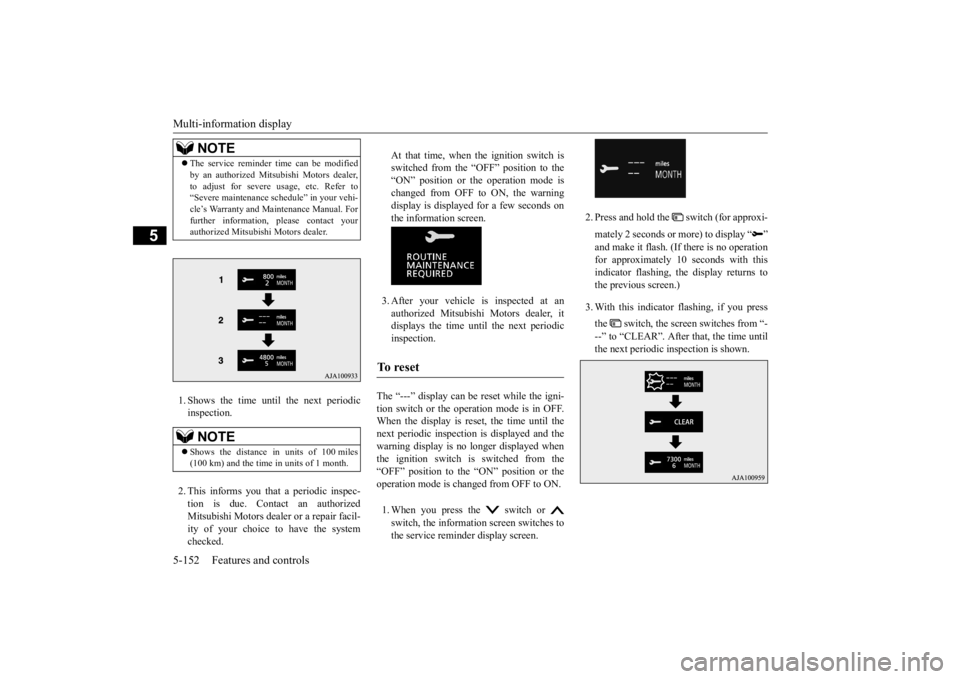

1. Shows the time until the next periodic inspection. 2. This informs you that a periodic inspec- tion is due. Contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice to have the system checked.
At that time, when the ignition switch is switched from the “OFF” position to the “ON” position or the operation mode ischanged from OFF to ON, the warning display is displayed for a few seconds on the information screen. 3. After your vehicle is inspected at an authorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.
The “---” display can be reset while the igni- tion switch or the operation mode is in OFF.When the display is reset, the time until the next periodic inspection is displayed and the warning display is no longer displayed whenthe ignition switch is switched from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON. 1. When you press
the switch or
switch, the information screen switches to the service reminder display screen.
2. Press and hold the switch (for approxi- mately 2 seconds or more) to display “ ” and make it flash. (If there is no operation for approximately 10
seconds with this
indicator flashing, the display returns tothe previous screen.) 3. With this indicator flashing, if you press the switch, the screen switches from “- --” to “CLEAR”. After that, the time until the next periodic inspection is shown.
NOTE
 The service reminder time can be modified by an authorized Mitsubishi Motors dealer, to adjust for severe usage, etc. Refer to “Severe maintenance schedule” in your vehi- cle’s Warranty and Maintenance Manual. Forfurther information, please contact your authorized Mitsubishi Motors dealer.NOTE
 Shows the distance in units of 100 miles (100 km) and the time
in units of 1 month.
To r e s e t
BK0277700US.book
152 ページ ２０１９年３月８日　金曜日　午前９時２３分

Multi-information display 5-154 Features and controls
5
N00578500023
This displays the average speed from the last reset to the present.There are 2 types of mode setting of manual reset and automatic reset. Refer to “Changing the reset mode for aver-age fuel consumption and average speed” on page 5-157. For the method for changing the averagespeed display setting, refer to “Changing the function settings” on page 5-155.
N00578600037
While driving, the instant fuel consumption is shown with a bar graph. The “ ” mark in the instant fuel gauge shows the average fuel consumption. When the instant fuel consumption surpassesthe average fuel consumption, the instant fuel consumption is displayed with a green bar graph.Be conscious of maintaining the instant fuel consumption above the average fuel con-
sumption, it can help you drive with the better fuel consumption.
N00568701032
This indicator will be displayed when fuel-efficient driving is achieved.
N00578700038
This function displays how fuel-efficientlyyou are driving under different driving condi- tions. The ECO drive assist display will change asfollows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
 Average fuel consumption may vary depend- ing on the driving conditions (road condi- tions, how you drive, etc.) The actual fuel consumption may differ from the fuel con- sumption displayed, so treat the fuel con-sumption displayed as just a rough guideline.  Disconnecting the battery cable will erase from memory the manual reset mode or auto reset mode setting for the average fuel con- sumption display.  The display setting can be changed to the preferred units {mpg (US), mpg (UK),L/100km or km/L}. Refer to “Changing the function settings” on page 5-155.
Average speed display
NOTE
NOTE
 The average speed display can be reset sepa- rately in both auto reset mode and manual reset mode.  “---” is displayed when the average speed cannot be measured.  The initial (default) setting is “Auto reset mode”.  The display setting can be changed to the preferred units (mph or km/h). Refer to “Changing the function settings” on page 5-155.  Disconnecting the battery cable will erase from memory the manual reset mode or autoreset mode setting for the average speed dis- play.
Instant fuel consumption dis- play
NOTE
 When the instant fuel
consumption cannot be
measured, a bar graph is not shown.  The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100km or km/L}.Refer to “Changing the function settings” on page 5-155.  It is possible to cancel the green bar graph. Refer to “Changing the function settings” on page 5-155.
ECO indicator ECO Drive Assist
BK0277700US.book
154 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list Features and controls 5-163
5
N00557701090 N00557801411
Indicator light, warning light, and information screen display list Indicator and warning light list 1- Position indicator
 P.5-183
2- Turn signal indicators/hazard warning
lights
 P.5-183
3- Front fog light indicator
 P.5-183
4- High beam indicator
 P.5-183
5- Automatic High Beam (AHB) indicator
(if so equipped)
 P.5-194
6- LED headlight warning light (if so
equipped)
 P.5-193
7- Forward Collision Mitigation system
(FCM) OFF indicator (if so equipped) P.5-108
8- Charging system warning light
 P.5-186
9- Lane Departure Warning (LDW) indi-
cator (if so equipped)
 P.5-123
10- Electric power steering system (EPS)
warning light
 P.5-84
11- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-113
12- Information screen display
 P.5-164
13- Electric parking brake warning light (if
so equipped)
 P.5-184
14- Active stability control (ASC) indicator
 P.5-86
15- Active stability control (ASC) OFF
indicator
 P.5-86
16- Anti-lock braking system warning light
 P.5-82
BK0277700US.book
163 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list
5-164 Features and controls
5
N00557901122
When there is information to be announced, such as light reminder,
the tone sounds and the screen switches to the displays show
n below.
Refer to the appropriate page and take the necessary measures. When the cause of the warning display is eliminated, the warning display goes out automatically.Refer to Warning display list on page 5-165. Refer to Other interrupt displays on page 5-180. 17- Supplemental Restraint System (SRS)
warning light
 P. 4-36
18- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P.5-185
19- Seat belt reminder/warning light
 P.4-18
20- Tire pressure monitoring system warn-
ing light
 P.5-127
21- Brake auto hold indicator (if so
equipped)
 P.5-77
22- Brake warning light
 P.5-184
Information screen display
NOTE
In the following cases, a warning may be displayed on the inform
ation screen and the buzzer may
sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
BK0277700US.book
164 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list Features and controls 5-165
5
N00558001393
Warning display list
Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the igni- tion switch.
 Remove the key. Refer to “Key reminder system” on page 5-36.
 You have forgotten to turn off the lights. Refer
to “Light auto-cutout function (headlights and
other lights)” on page 5-193.
 The washer fluid is running low.
Replenish the container with washer fluid. Refer to “Washer fluid” on page 9-9. Refer to “Capacity” on page 11-7.
 There is a malfunction in the LED headlights.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system. Refer to “LED headlight warning light” on page 5-193.
 The system has received the customer key program- ming request correctly and is currently processing the registration request.
Refer to “Customer key programming (Except for vehi- cles sold in Canada)” on page 5-5.Refer to “Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)” on page 5-28.
BK0277700US.book
165 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list
5-166 Features and controls
5
 There is a fault in the F.A.S.T.-key. Refer
to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page 5-13.
Screen
Cause
Do this (Reference)
BK0277700US.book
166 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list Features and controls 5-167
5
Engine switch is pressed
one time
Engine switch is pressed
two times or more
 Although the engine switch was pressed, the F.A.S.T.-key could not be detected.
 Touch the F.A.S.T.-key to the engine switch. Refer to “If the F.A.S.T.-key is not operating prop- erly” on page 5-26.
 The engine switch is pressed to stop the engine while the selector lever is in a position other than the “P” (PARK) position.
 Place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering system (EPS)” on page 5-84.
 There is a fault in the Anti-lock braking system.
Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock braking system warning lights/display” on page 5-82.
Screen
Cause
Do this (Reference)
BK0277700US.book
167 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list
5-168 Features and controls
5
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-127.
 There is a fault in the tire pressure monitoring sys- tem.
Refer to “Tire Pressure Monitoring System” on page 5-127.
 One of the doors or the liftgate is not completely closed. The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen” on page 5-150.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancelled, please contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice.
Screen
Cause
Do this (Reference)
BK0277700US.book
168 ページ ２０１９年３月８日　金曜日　午前９時２３分

Indicator light, warning light, an
d information screen display list Features and controls 5-169
5
 The driver’s door is open when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode ON reminder system” on page 5-37.
 An attempt was made to lock all the doors and the liftgate when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode OFF reminder system” on page 5-21.
 There is a fault in the electrical system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The automatic transaxle or CVT fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmission (CVT)” on page 5-63.
 The seat belt is not fastened when the ignition switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-18.
Screen
Cause
Do this (Reference)
BK0277700US.book
