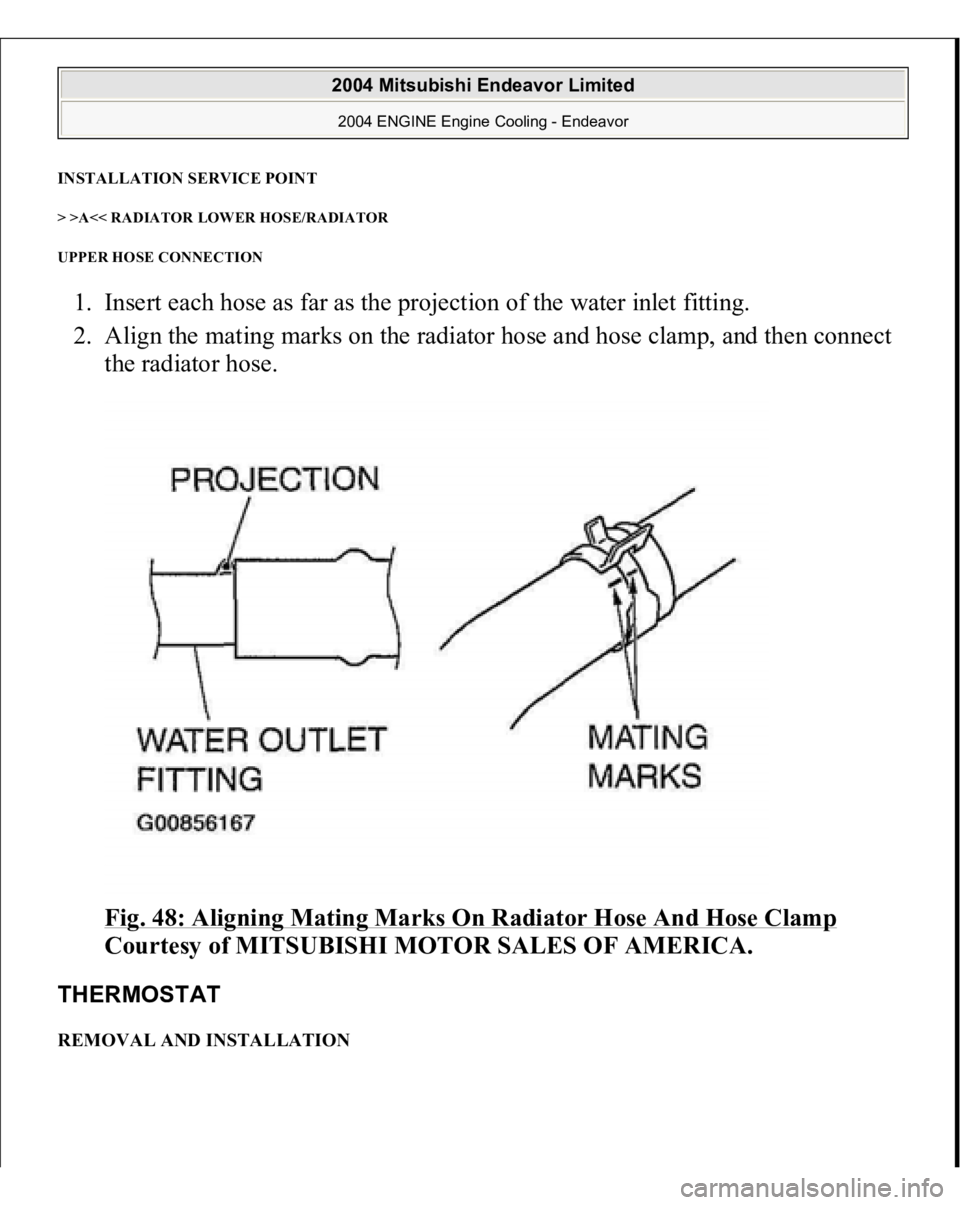

INSTALLATION SERVICE POINT> >A<< RADIATOR LOWER HOSE/RADIATOR
UPPER HOSE CONNECTION 1. Insert each hose as far as the projection of the water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect
the radiator hose.
Fig. 48: Aligning Mating Marks On Radiator Hose And Hose Clamp

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
THERMOSTAT REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 49: Removing/Installing Thermostat Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 50: Removing/Installing Thermostat Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

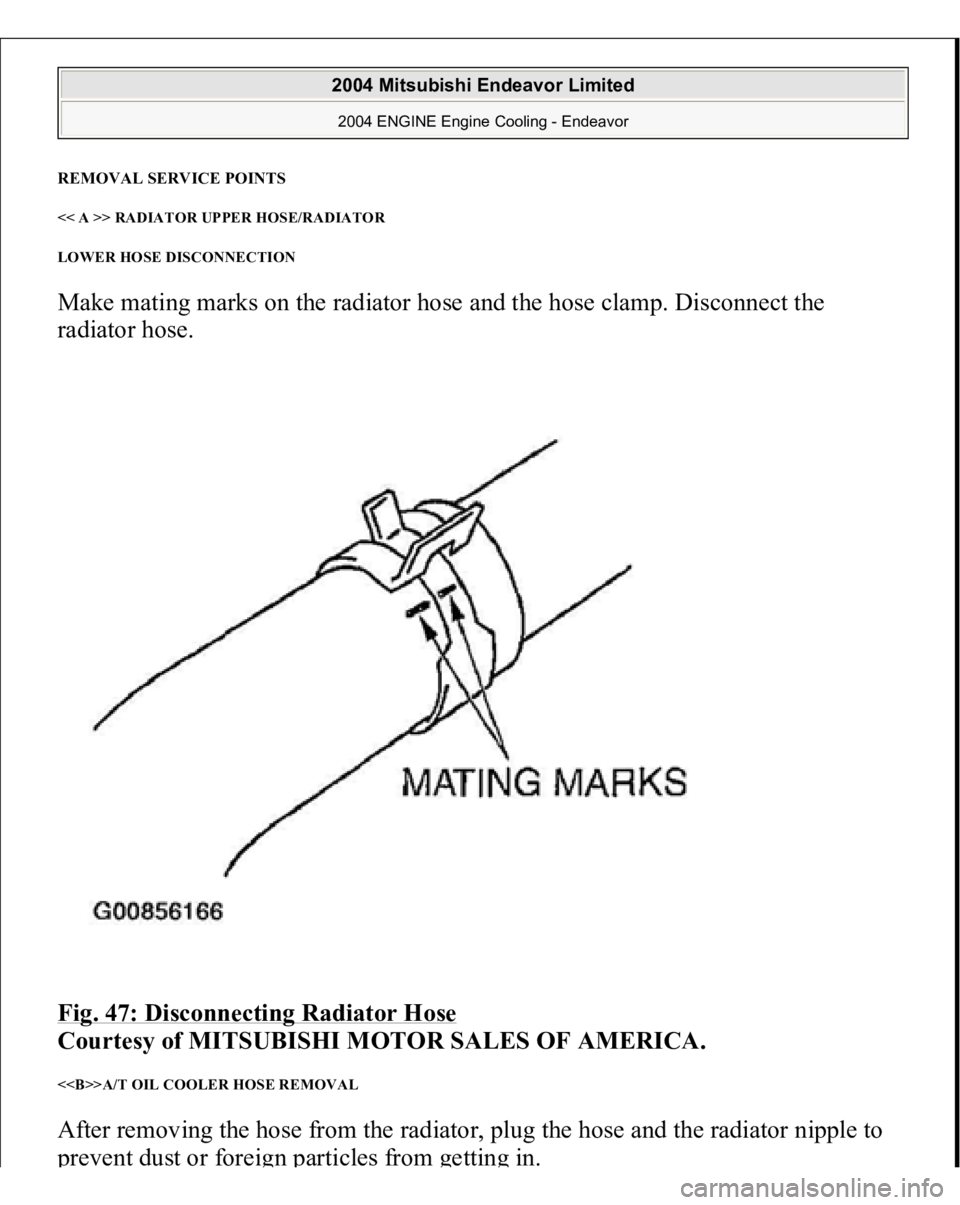

REMOVAL SERVICE POINT << A >> RADIATOR LOWER HOSE DISCONNECTION Make mating marks on the radiator hose and the hose clamp. Disconnect the
radiator hose.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 51: Disconnecting Radiator Lower Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS > >A<< THERMOSTAT INSTALLATION Install the thermostat so that the jiggle valve is facing straight up. Be careful not to
fold or scratch the rubber rin
g.
CAUTION: Make absolutely sure that no oil adheres to the
rubber ring of the thermostat. Also do not fold or
scratch the rubber ring during installation.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 52: Installing Thermostat

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
> >B<< RADIATOR LOWER HOSE CONNECTION 1. Insert each hose as far as the projection of the water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect
the radiator hose.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 53: Connecting Radiator Lower Hose

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION Thermostat Check 1. Immerse the thermostat in water, and heat the water while stirring. Check the
thermostat valve opening temperature.
Standard value: Valve opening temperature: 88°1.5°C. (190+/-3°F)
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 54: Checking Thermostat Valve Opening Temperature

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check that the amount of valve lift is at the standard value when the water is at
the full-opening temperature.
Standard value:
Full-opening temperature:100°C (212°F)
Amount of valve lift: 9.0 mm (0.35 inch) or more
NOTE: Measure the valve height when the thermostat is fully
closed, and use this measurement to compare the valve
height when the thermostat is fully open.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 55: Checking Valve Lift

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WATER PUMP REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Fig. 56: Removing/Installing Water Pump Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT > >A<< O-RING INSTALLATION Fit the O-ring into the groove of the water pipe ends, and apply water to the
circumference of the O-rin
g and the
pipe bores to insert the
pipe assembl
y.
