Fig. 15: Checking Continuity Of Three Diodes

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STATOR 1. Check the continuity between the coil lead. If there is no continuity, replace the
stator. See Fig. 16
.
2. Check the continuity between the coil and the core. If there is continuity
re
place the stator. See Fig. 16
.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

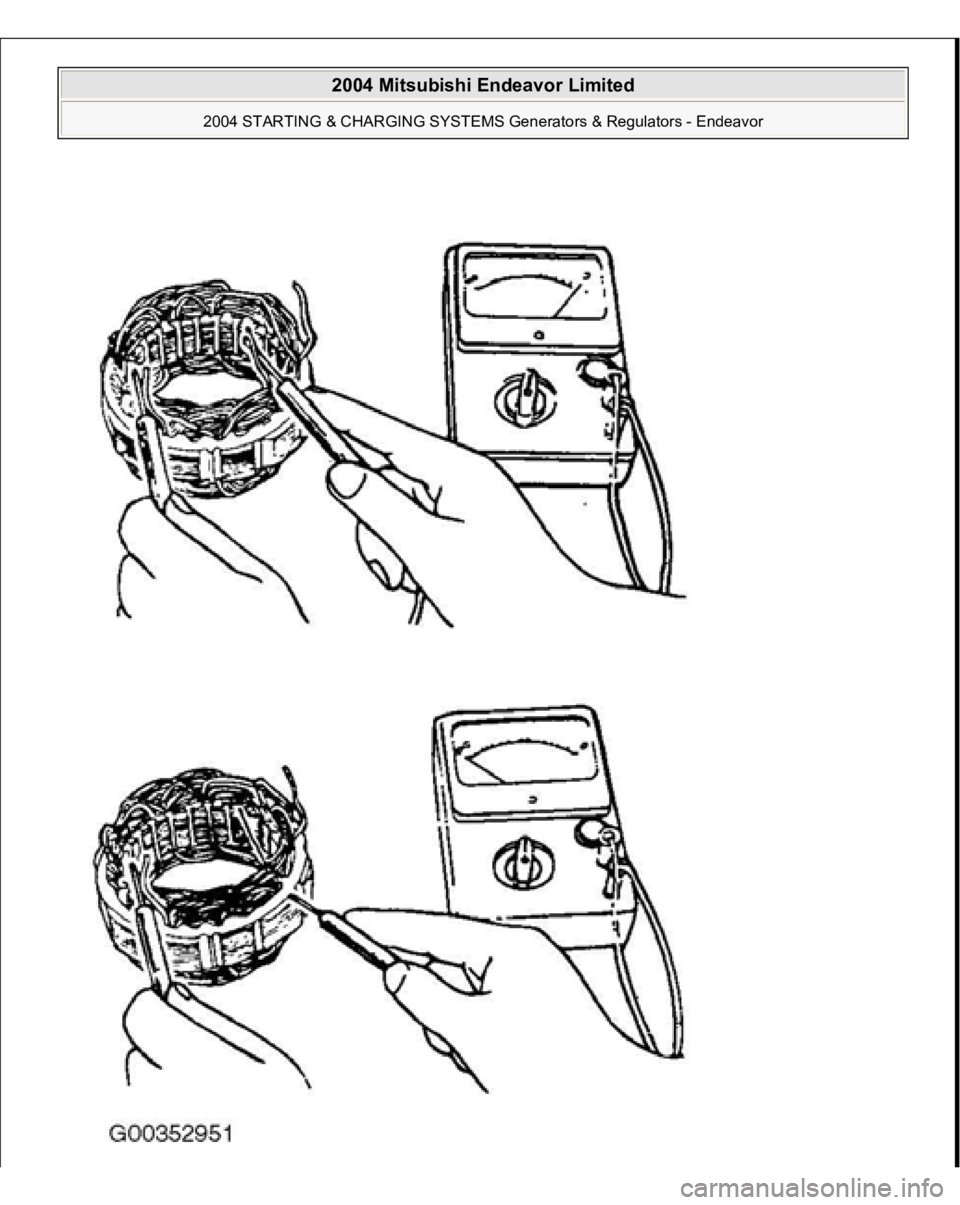

Fig. 16: Testing Stator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL & INSTALLATION GENERATOR For
generator removal and installation
procedures, see Fig. 17
.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

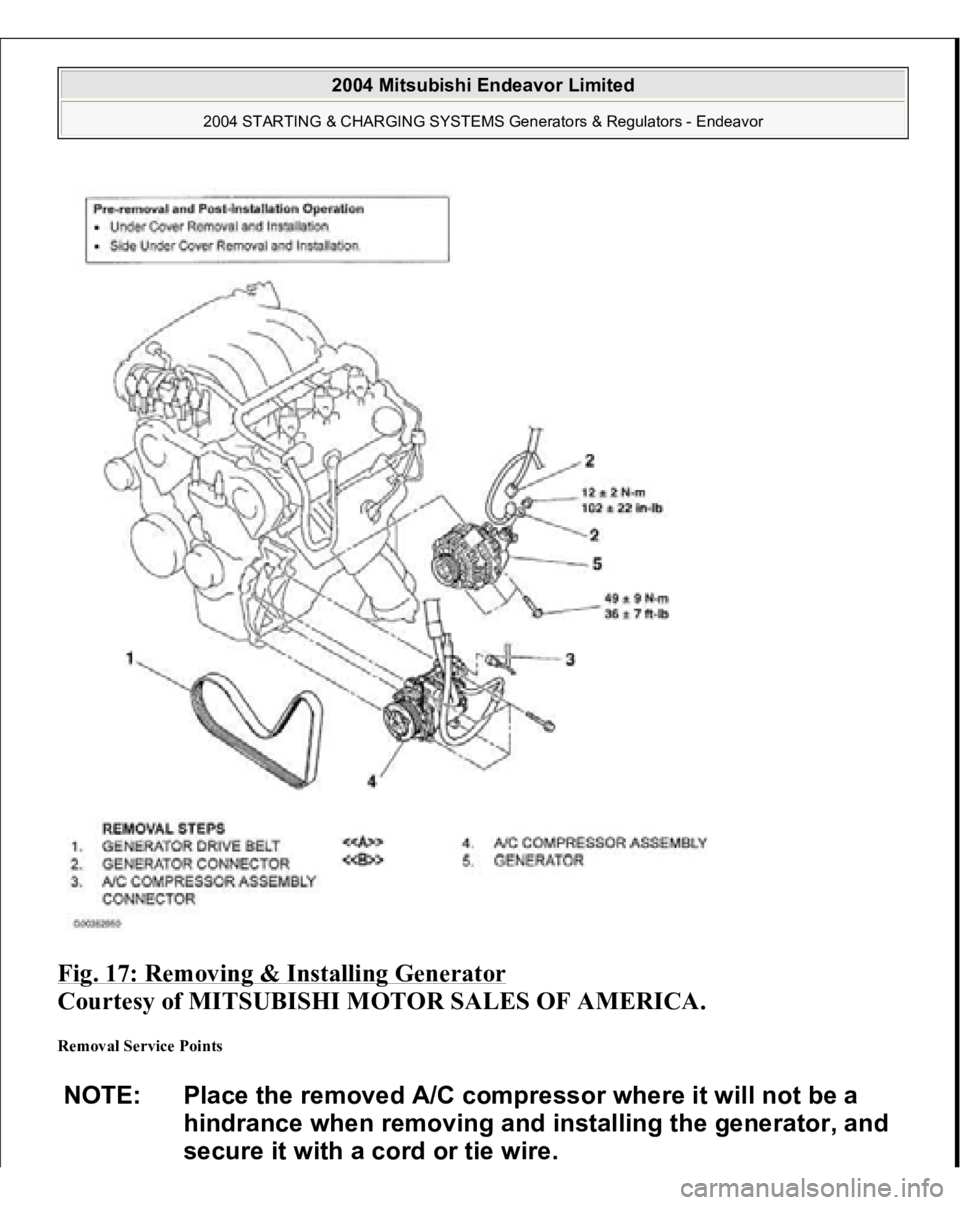

Fig. 17: Removing & Installing Generator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Removal Service Points NOTE: Place the removed A/C compressor where it will not be a
hindrance when removing and installing the generator, and
secure it with a cord or tie wire.
2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

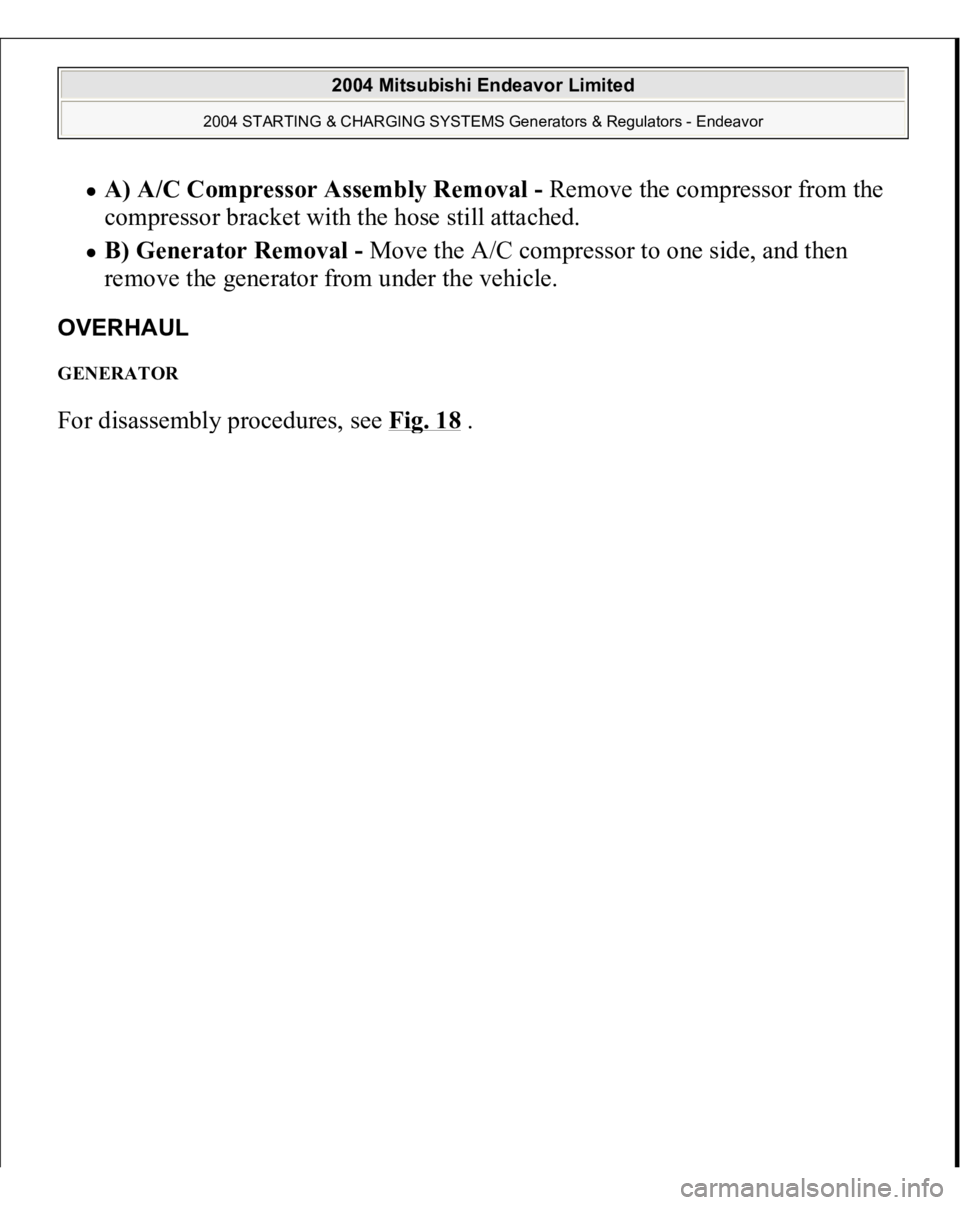

A) A/C Compressor Assembly Removal - Remove the compressor from the
compressor bracket with the hose still attached. B) Generator Removal - Move the A/C compressor to one side, and then
remove the generator from under the vehicle.
OVERHAUL GENERATOR For disassembl
y procedures, see Fi
g. 18
.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

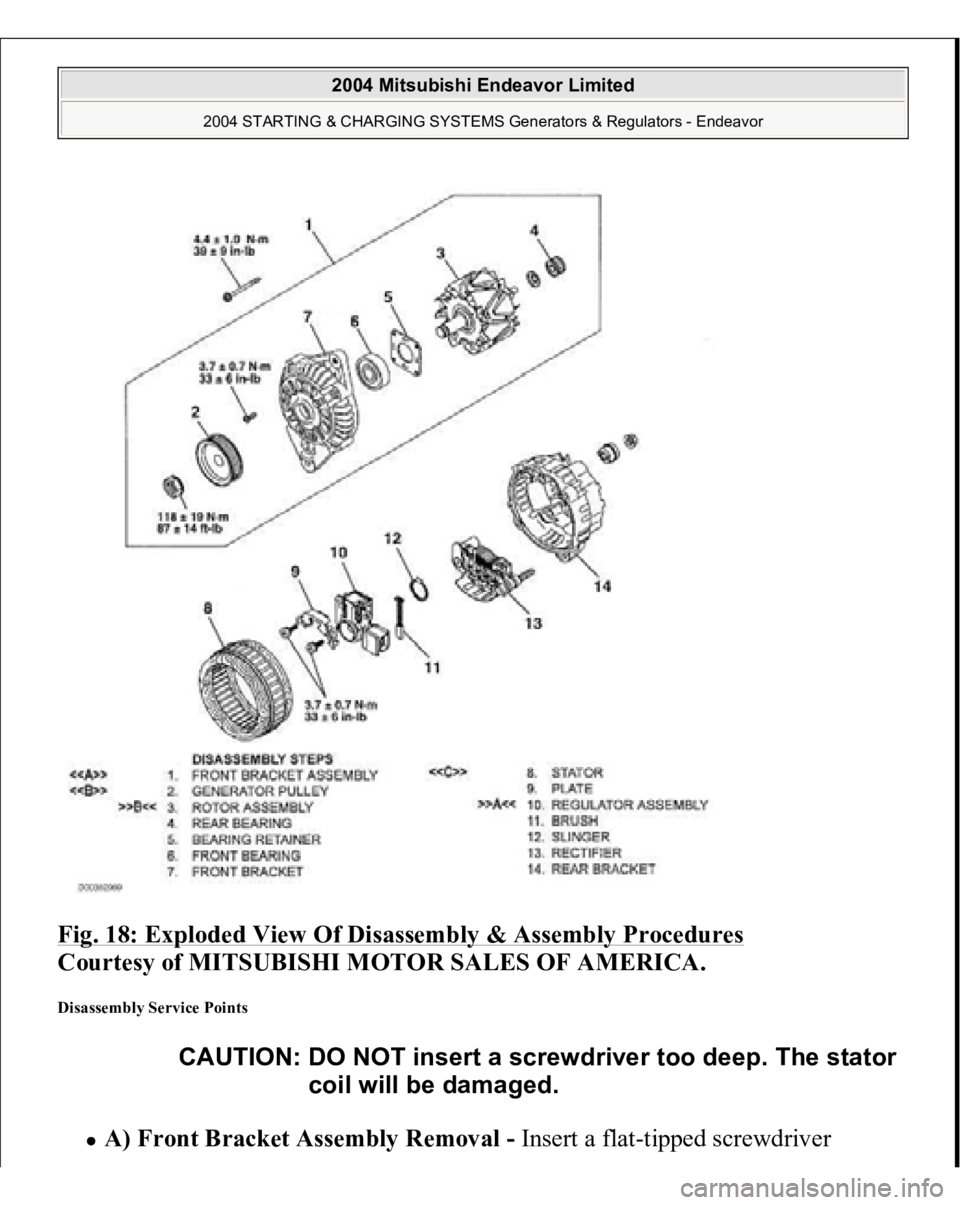

Fig. 18: Exploded View Of Disassembly & Assembly Procedures

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disassembly Service Points
A) Front Bracket Assembly Removal -Insert a fla
t-tipped screwdriver
CAUTION: DO NOT insert a screwdriver too deep. The stator
coil will be damaged.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

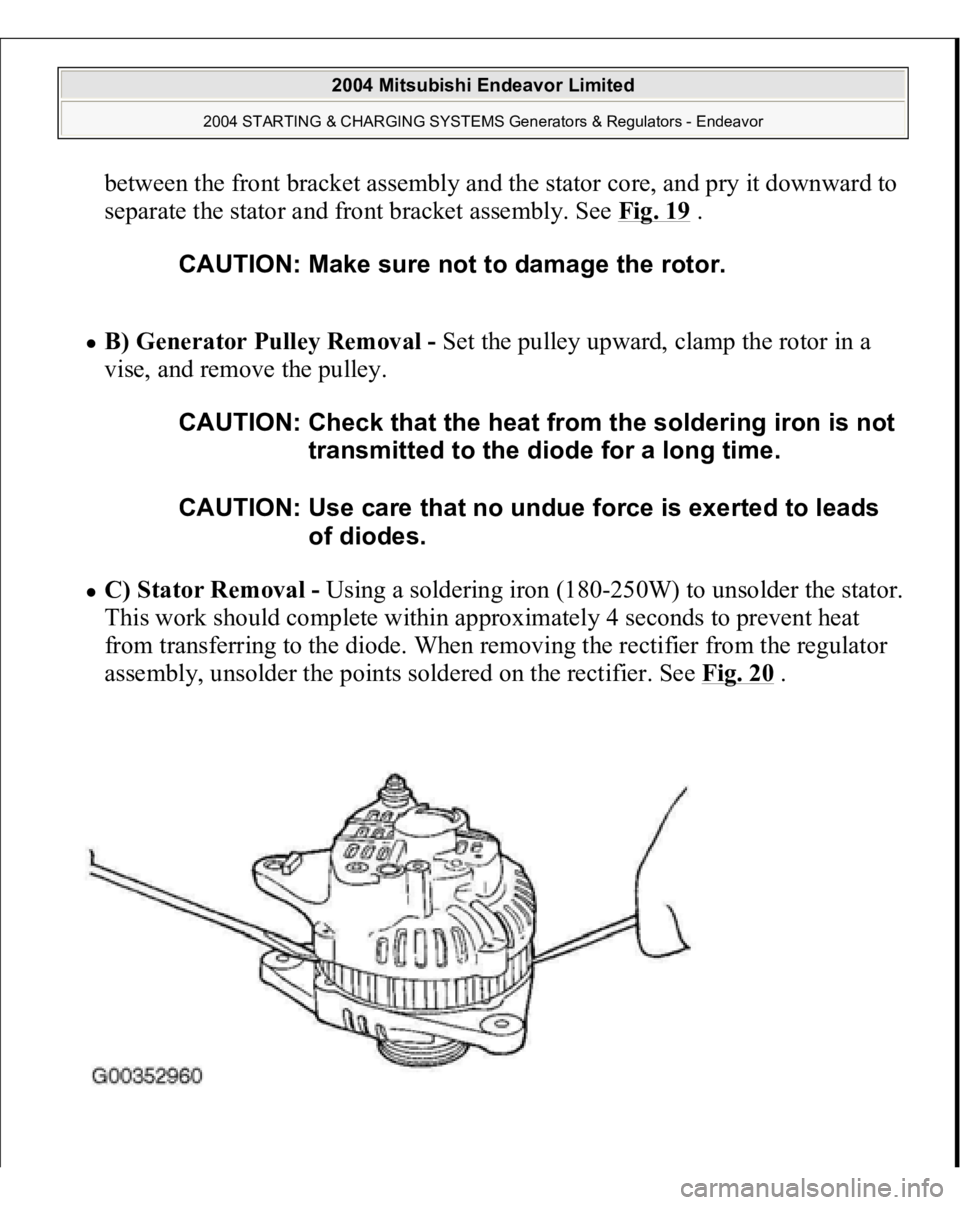

between the front bracket assembly and the stator core, and pry it downward to
separate the stator and front bracket assembly. See Fig. 19
.
B) Generator Pulley Removal - Set the pulley upward, clamp the rotor in a
vise, and remove the pulley. C) Stator Removal - Using a soldering iron (180-250W) to unsolder the stator.
This work should complete within approximately 4 seconds to prevent heat
from transferring to the diode. When removing the rectifier from the regulator
assembly, unsolder the points soldered on the rectifier. See Fig. 20
.
CAUTION: Make sure not to damage the rotor.
CAUTION: Check that the heat from the solderin
g iron is not
transmitted to the diode for a long time.
CAUTION: Use care that no undue force is exerted to leads
of diodes.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

Fig. 19: Removing Front Bracket Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

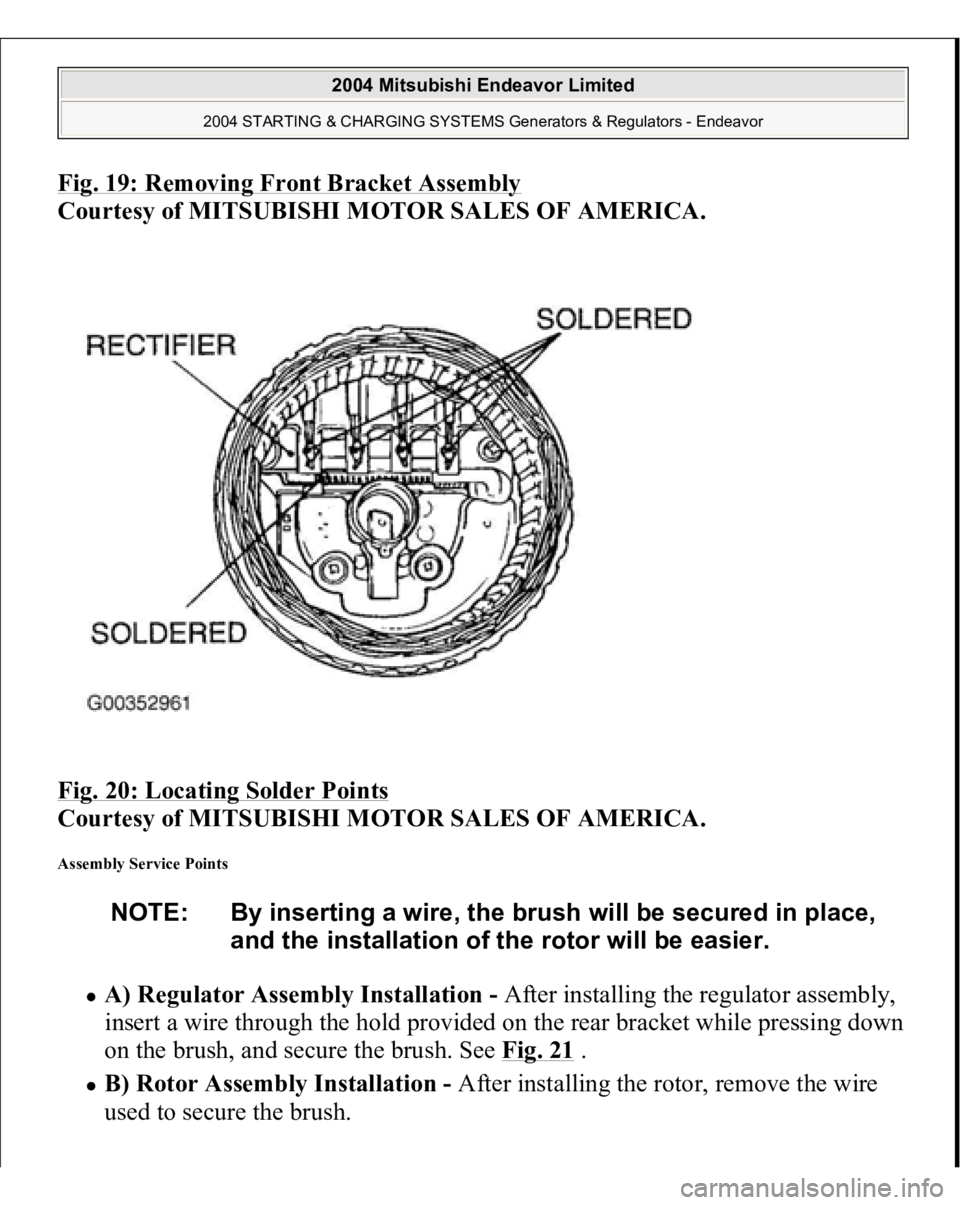

Fig. 20: Locating Solder Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Assembly Service Points
A) Regulator Assembly Installation - After installing the regulator assembly,
insert a wire through the hold provided on the rear bracket while pressing down
on the brush, and secure the brush. See Fig. 21
.
B) Rotor Assembly Installation - After installing the rotor, remove the wire
used to secure the brush. NOTE: By inserting a wire, the brush will be secured in place,
and the installation of the rotor will be easier.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

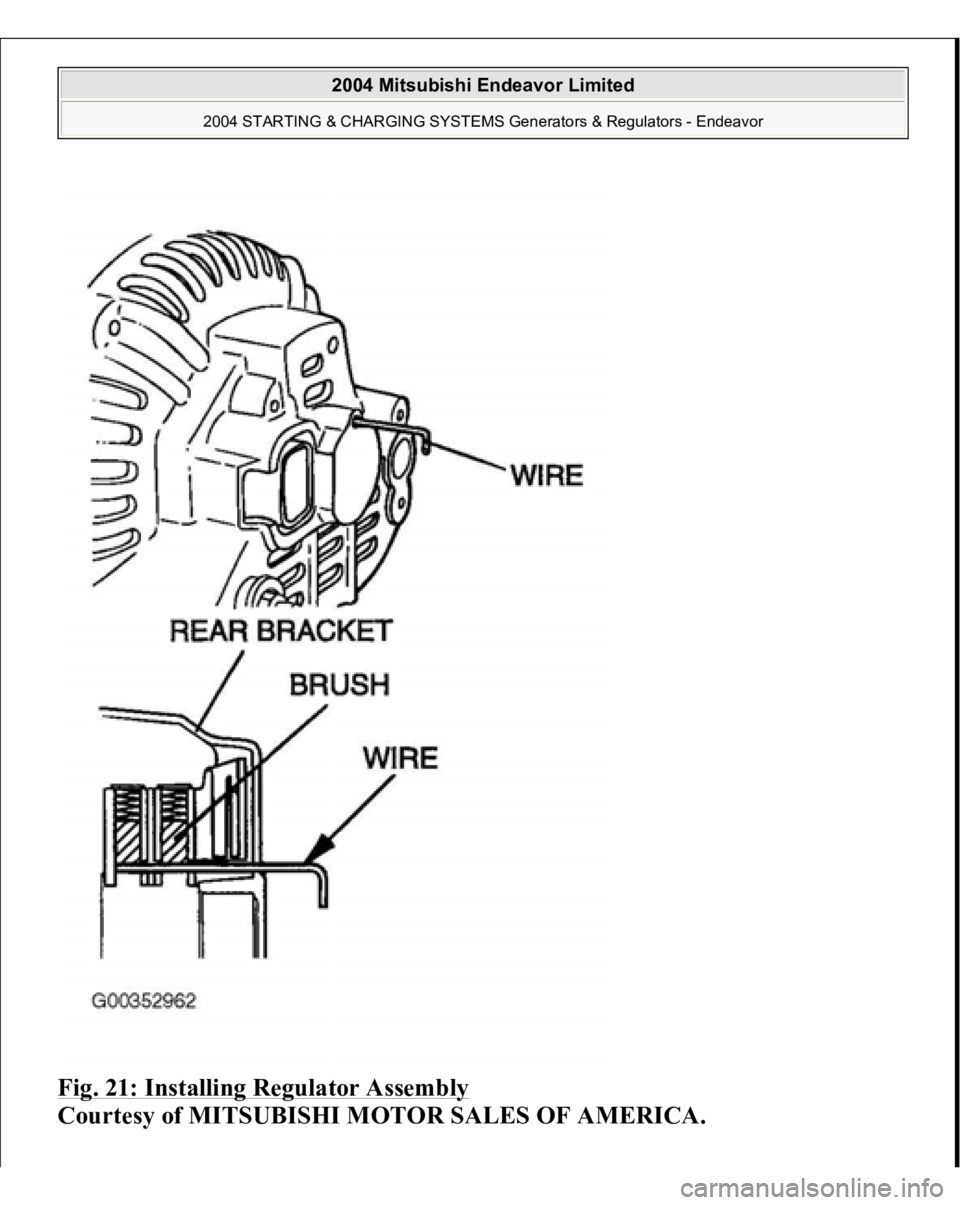

Fig. 21: Installing Regulator Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

TORQUE SPECIFICATION
S
See illustration in REMOVAL & INSTALLATION
or OVERHAUL
.
WIRING DIAGRAMS For wiring diagrams, see STARTING/CHARGING
.
