MITSUBISHI ENDEAVOR 2004 Service Repair Manual

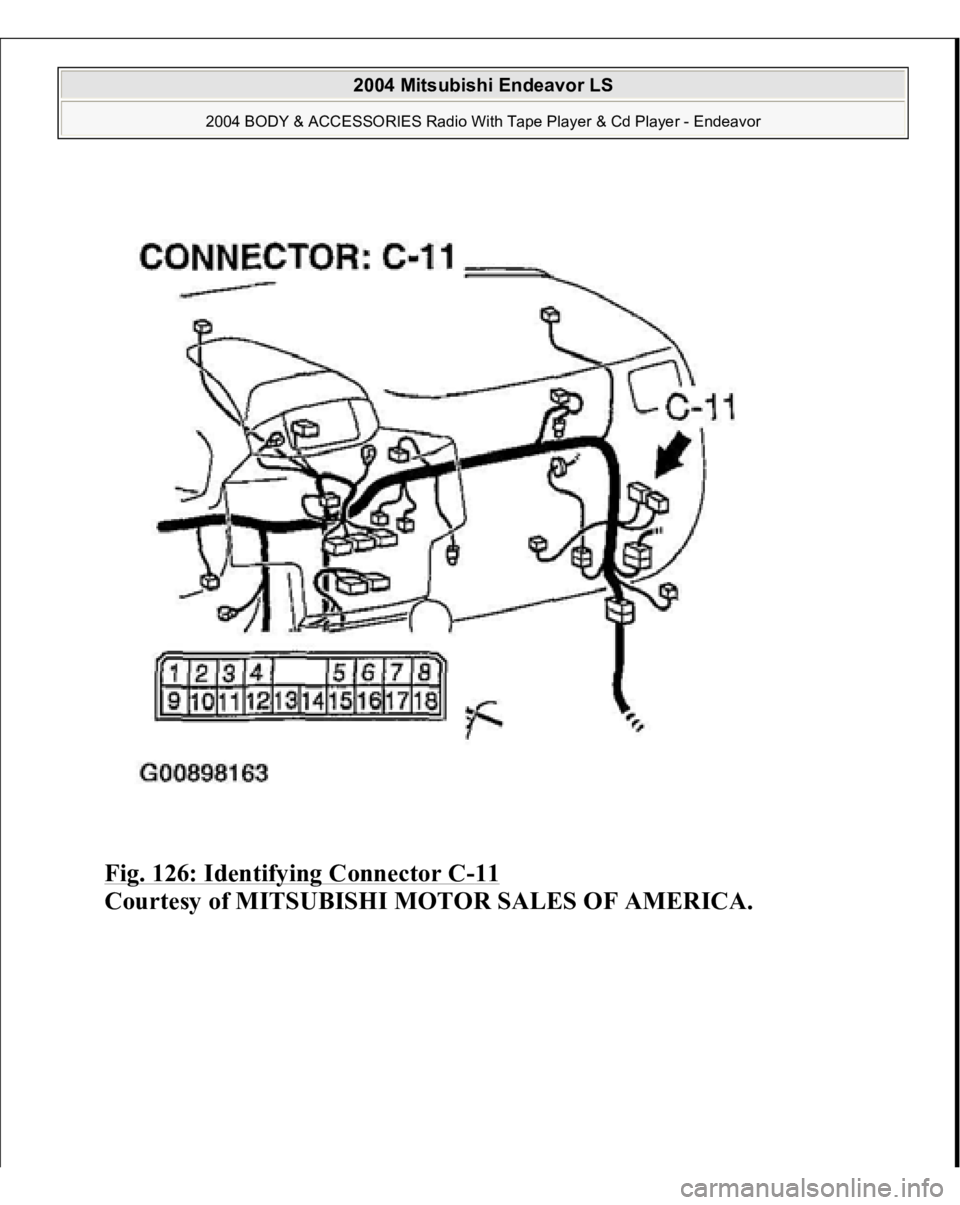

Fig. 126: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

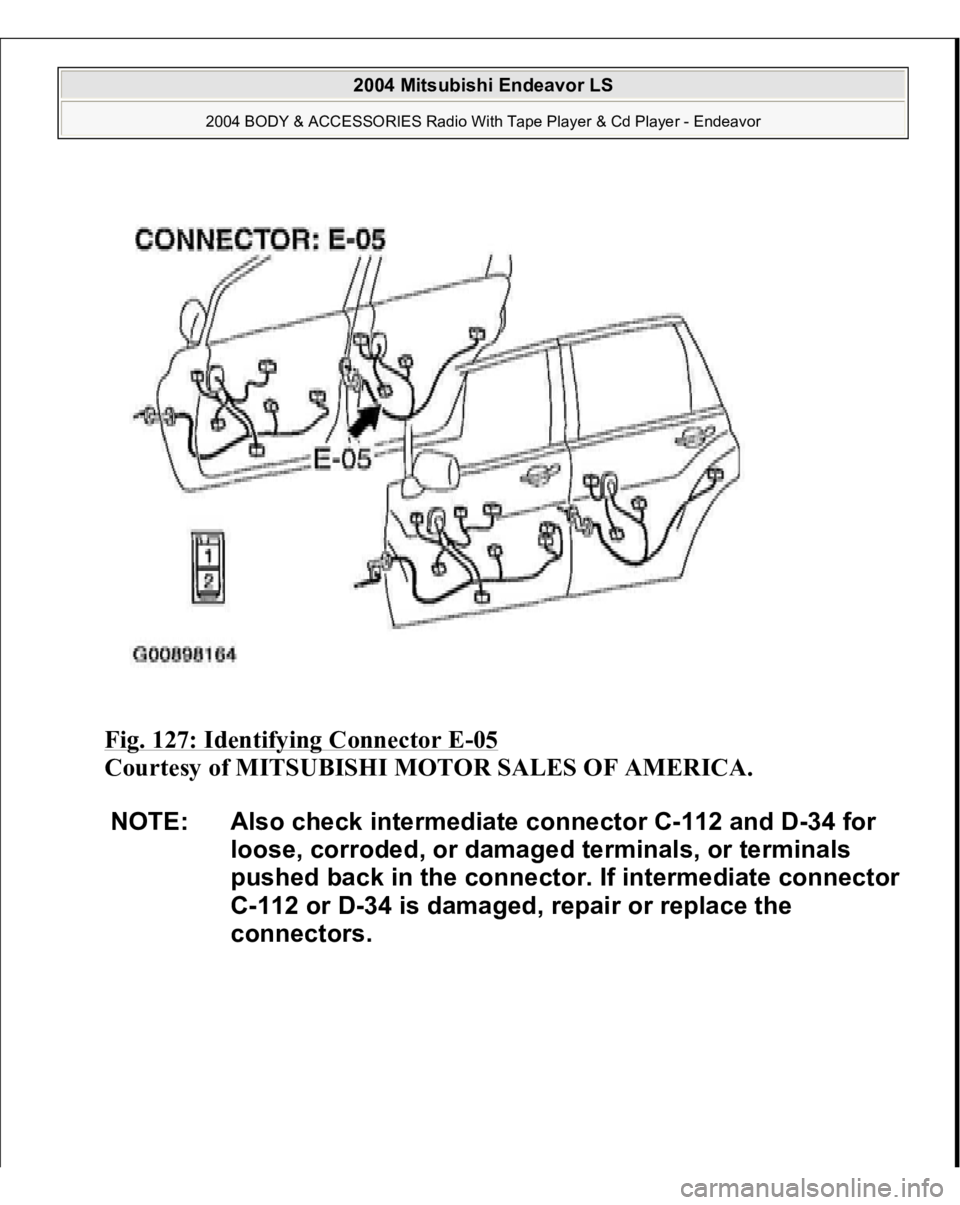

Fig. 127: Identifying Connector E
-05
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-112 and D-34 for
loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector
C-112 or D-34 is damaged, repair or replace the
connectors.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

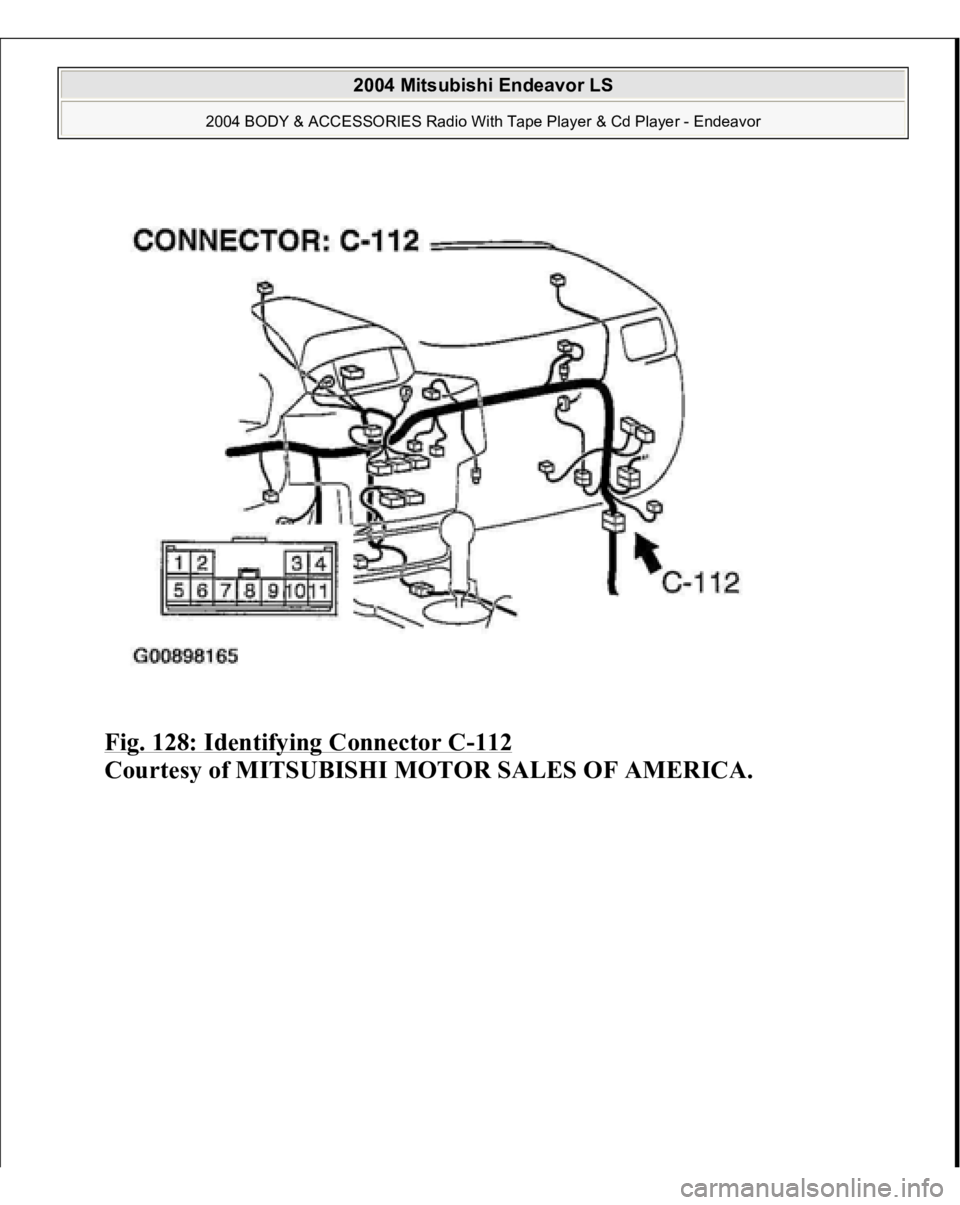

Fig. 128: Identifying Connector C
-112

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

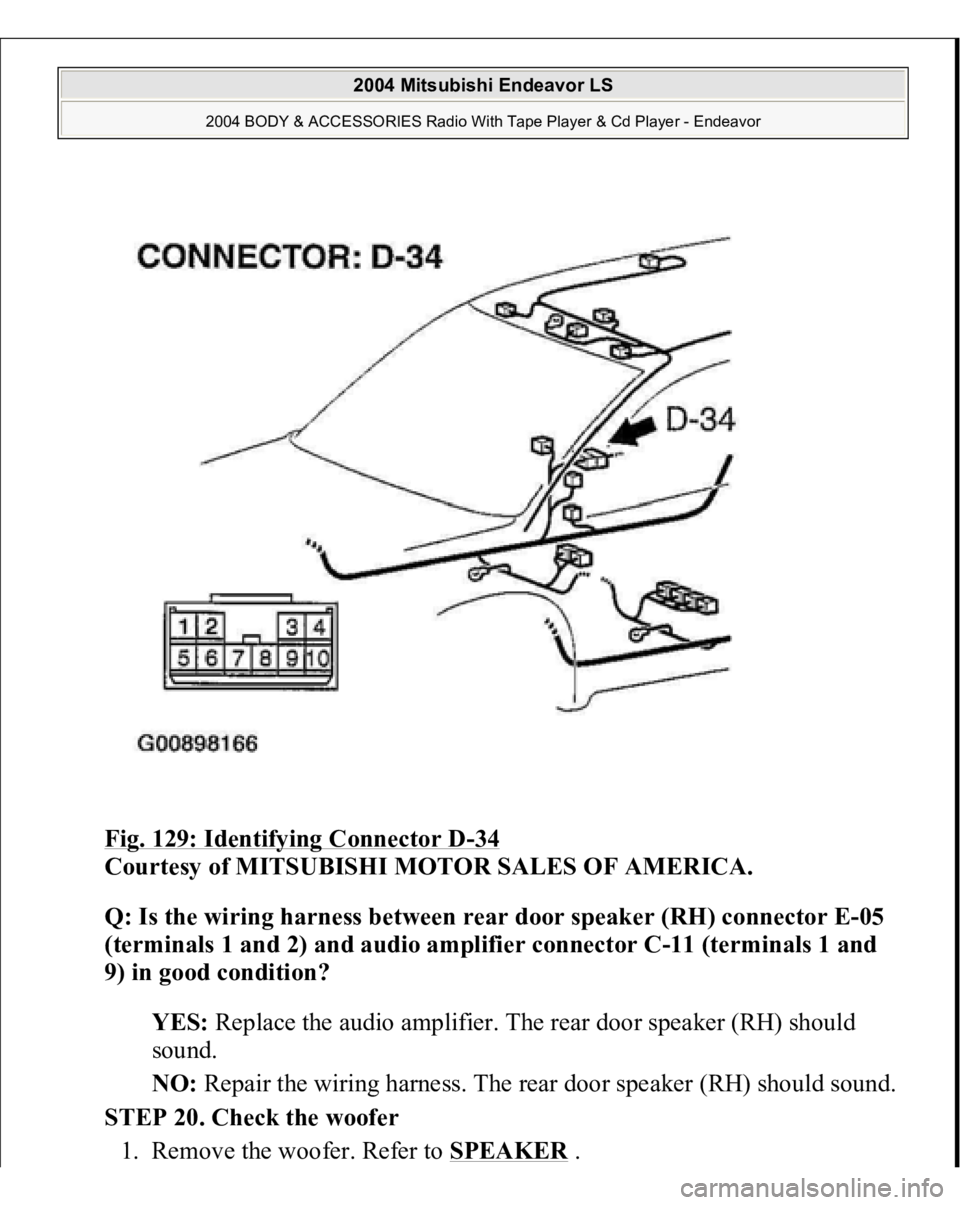

Fig. 129: Identifying Connector D
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between rear door speaker (RH) connector E-05
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 1 and
9) in good condition?
YES: Replace the audio amplifier. The rear door speaker (RH) should
sound.
NO: Repair the wiring harness. The rear door speaker (RH) should sound.
STEP 20. Check the woofer
1. Remove the woofer. Refer to SPEAKER
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2. Check that the woofer generates noise when a five-volt voltage is applied
on the woofer terminal.

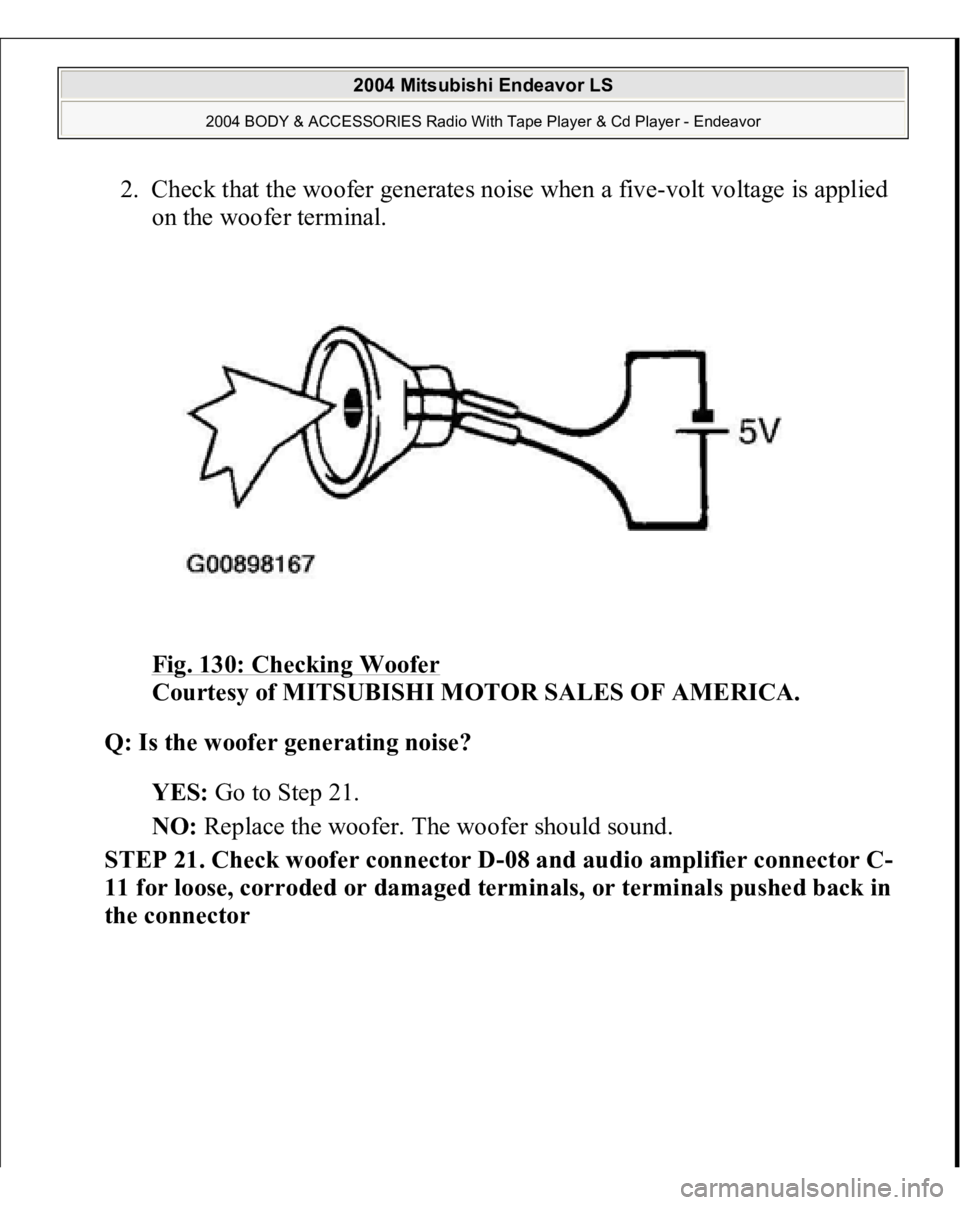

Fig. 130: Checking Woofer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the woofer generating noise?
YES: Go to Step 21.
NO: Replace the woofer. The woofer should sound.
STEP 21. Check woofer connector D-08 and audio amplifier connector C-
11 for loose, corroded or damaged terminals, or terminals pushed back in
the connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

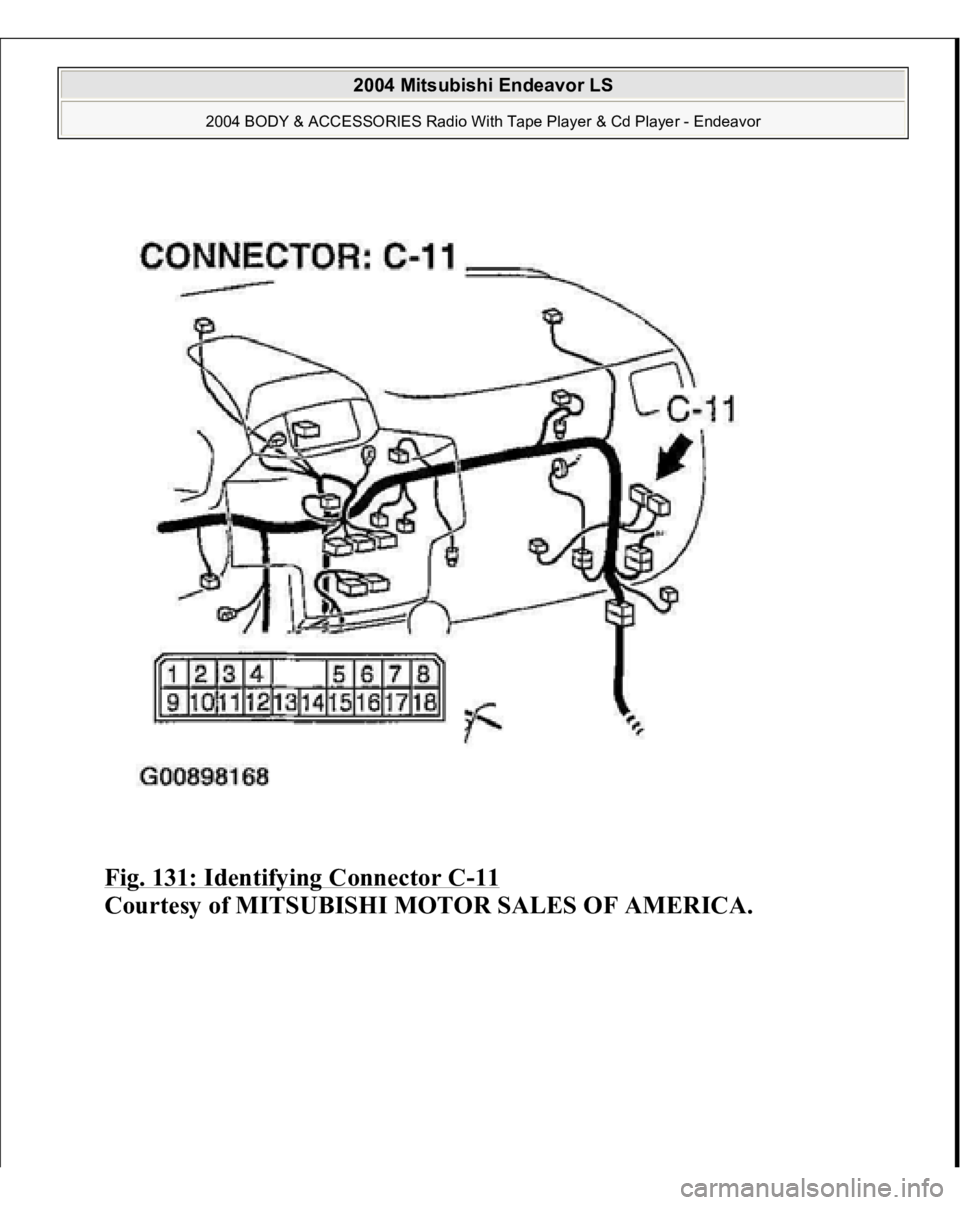

Fig. 131: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

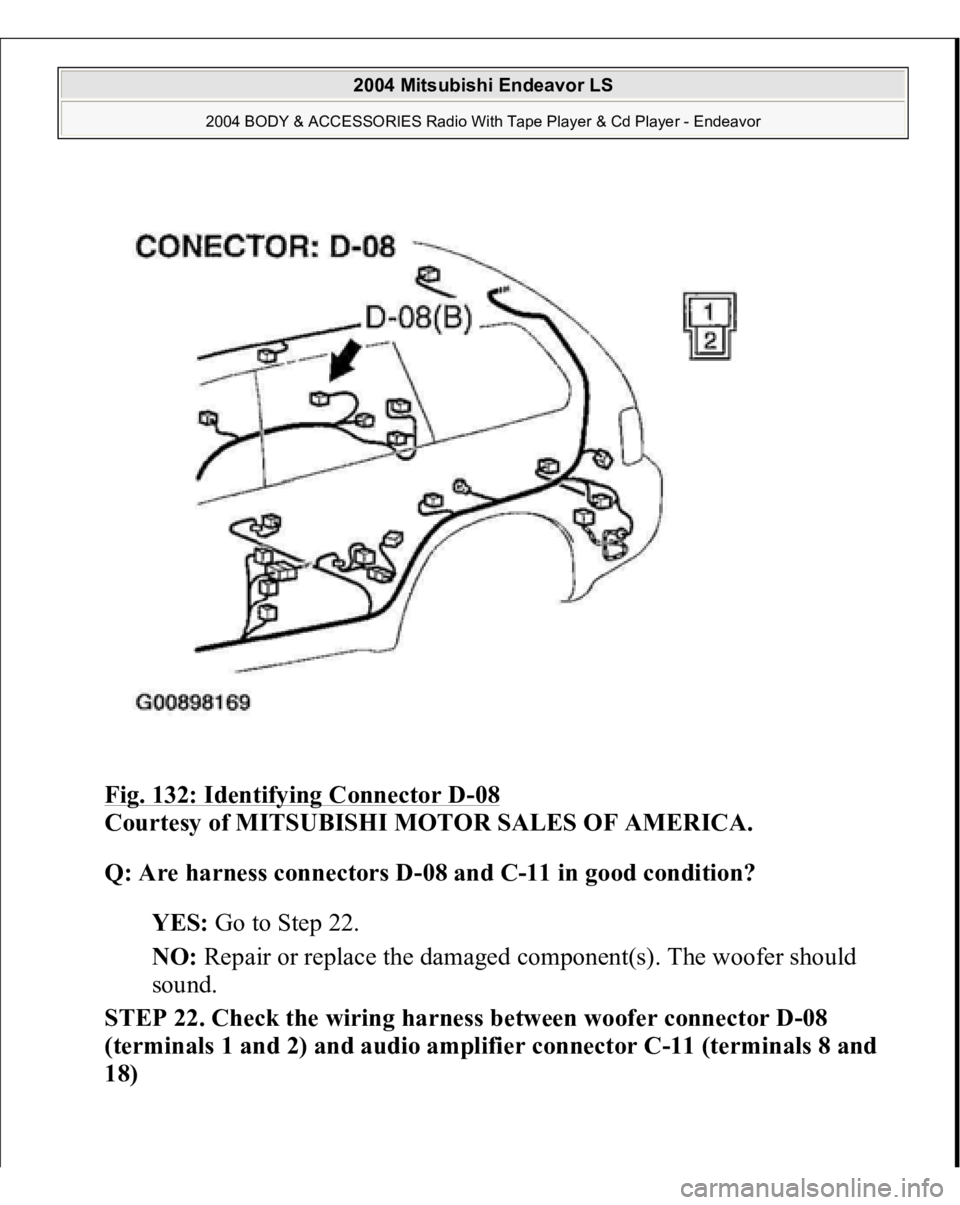

Fig. 132: Identifying Connector D
-08
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors D-08 and C-11 in good condition?
YES: Go to Step 22.
NO: Repair or replace the damaged component(s). The woofer should
sound.
STEP 22. Check the wiring harness between woofer connector D-08
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 8 and
18)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 133: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

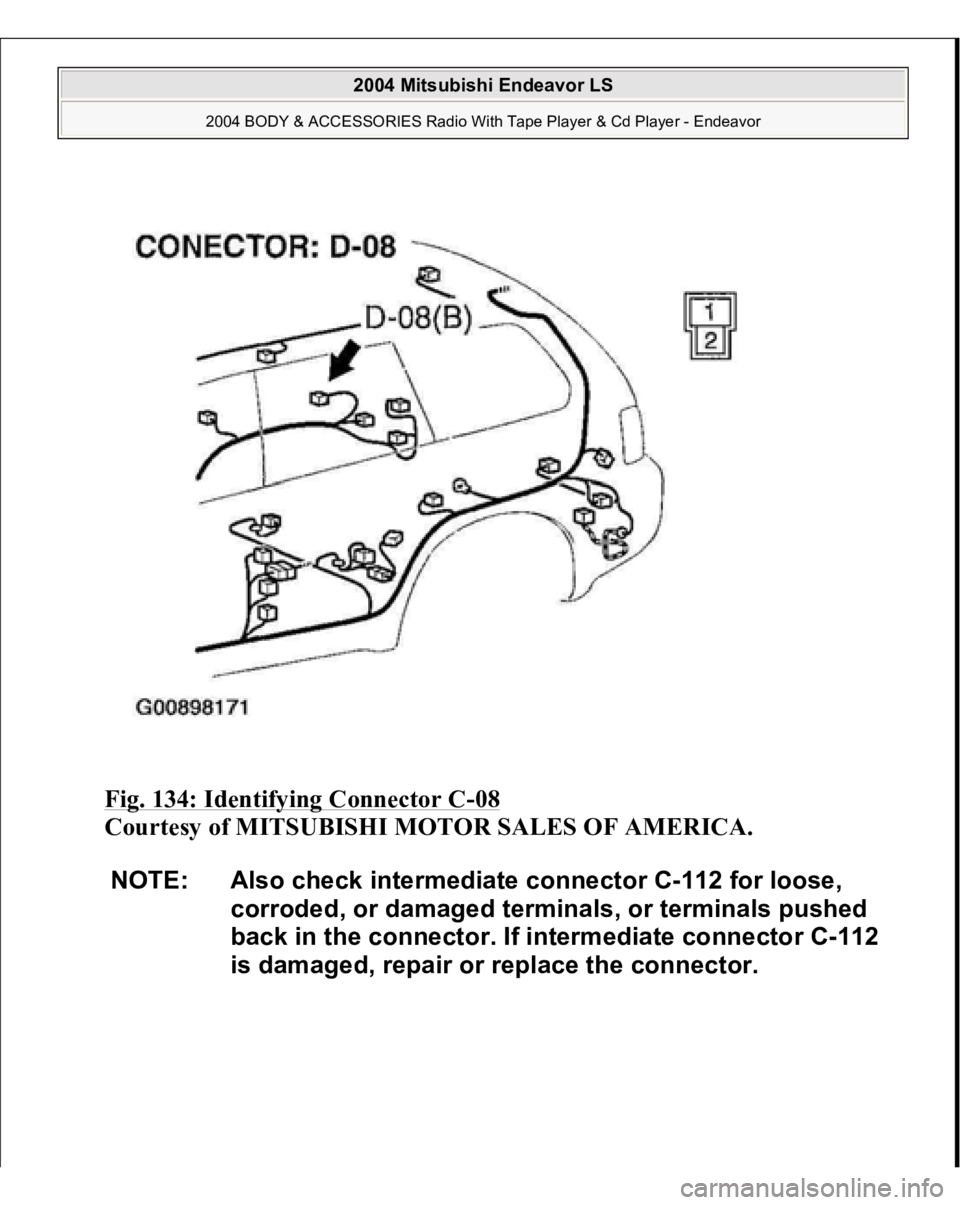

Fig. 134: Identifying Connector C
-08
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-112 for loose,
corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-112
is damaged, repair or replace the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

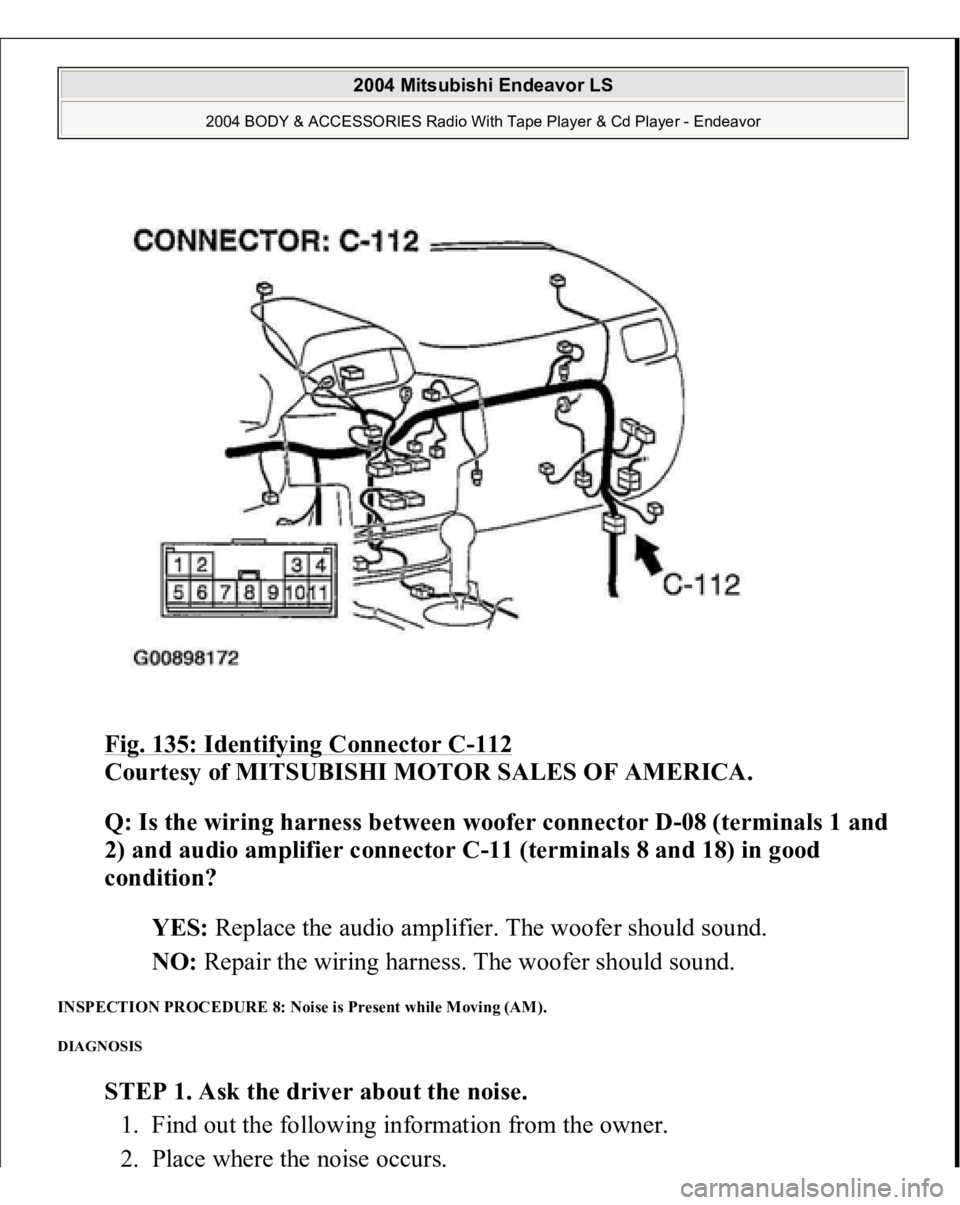

Fig. 135: Identifying Connector C
-112

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between woofer connector D-08 (terminals 1 and
2) and audio amplifier connector C-11 (terminals 8 and 18) in good
condition?
YES: Replace the audio amplifier. The woofer should sound.
NO: Repair the wiring harness. The woofer should sound.
INSPECTION PROCEDURE 8: Noise is Present while Moving (AM). DIAGNOSIS
STEP 1. Ask the driver about the noise.
1. Find out the following information from the owner.
2. Place where the noise occurs.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
