MITSUBISHI ENDEAVOR 2004 Service Repair Manual

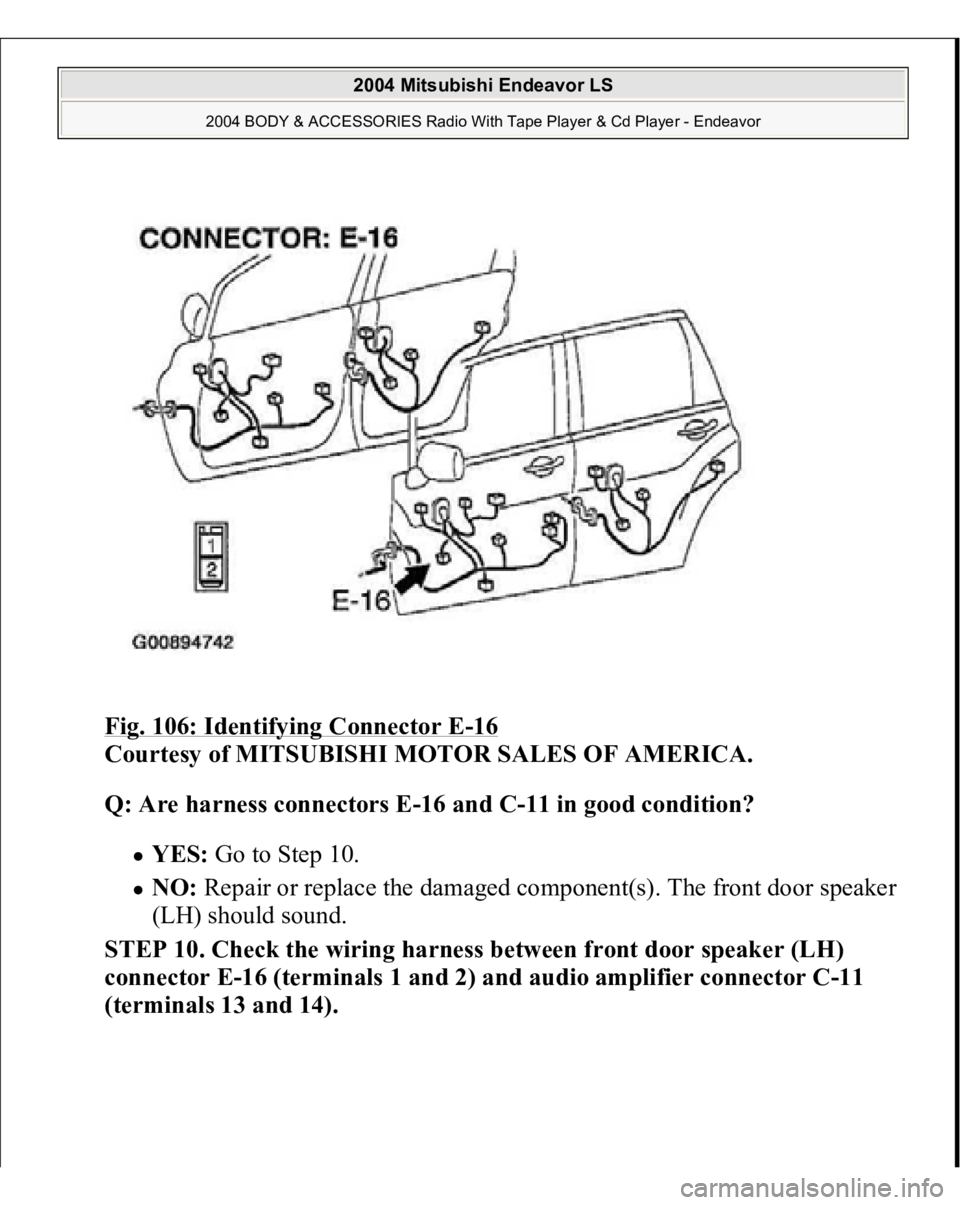

Fig. 106: Identifying Connector E
-16
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors E-16 and C-11 in good condition?
YES: Go to Step 10. NO: Repair or replace the damaged component(s). The front door speaker
(LH) should sound.
STEP 10. Check the wiring harness between front door speaker (LH)
connector E-16 (terminals 1 and 2) and audio amplifier connector C-11
(terminals 13 and 14).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

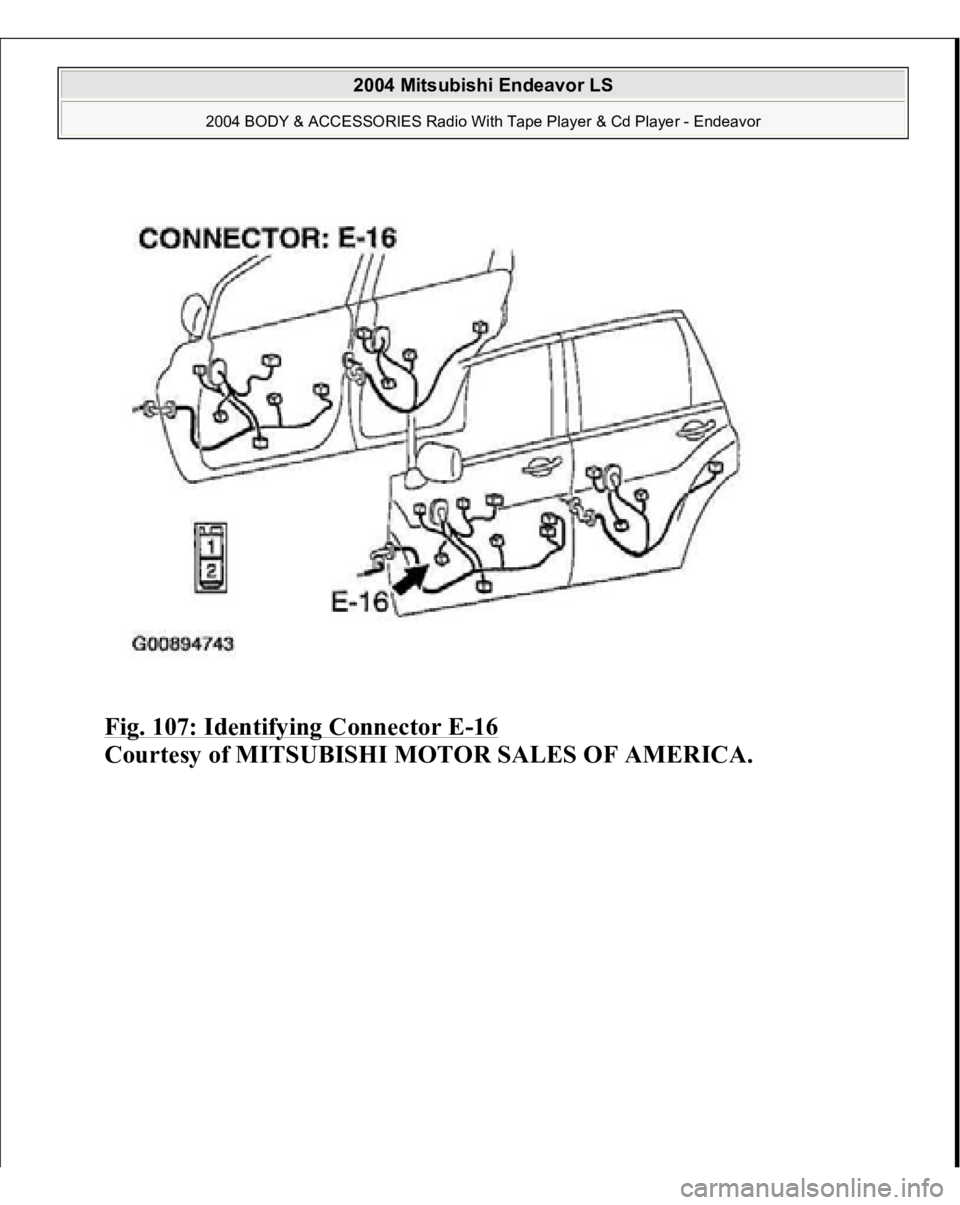

Fig. 107: Identifying Connector E
-16
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

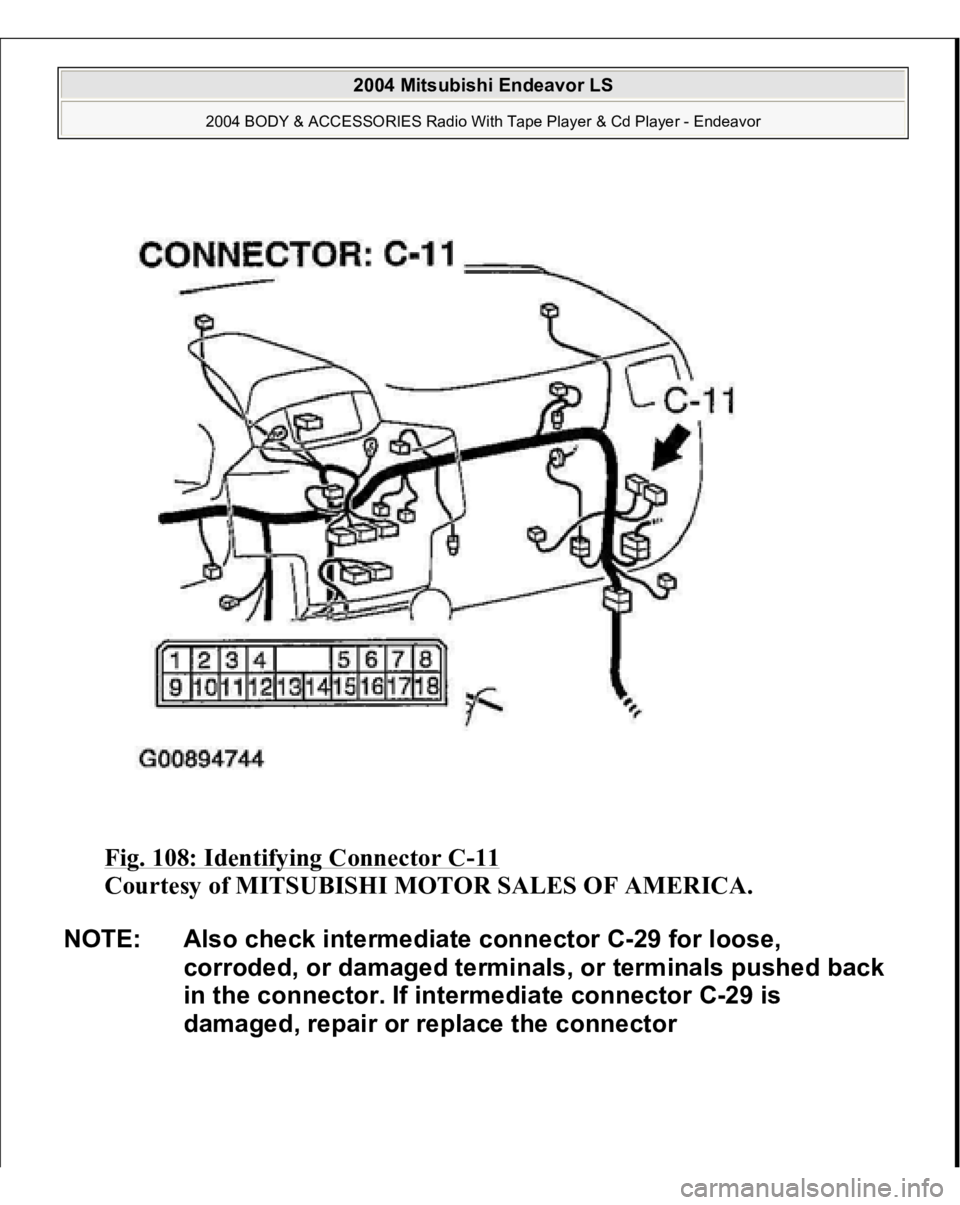

Fig. 108: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-29 for loose,
corroded, or damaged terminals, or terminals pushed back
in the connector. If intermediate connector C-29 is
damaged, repair or replace the connector
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

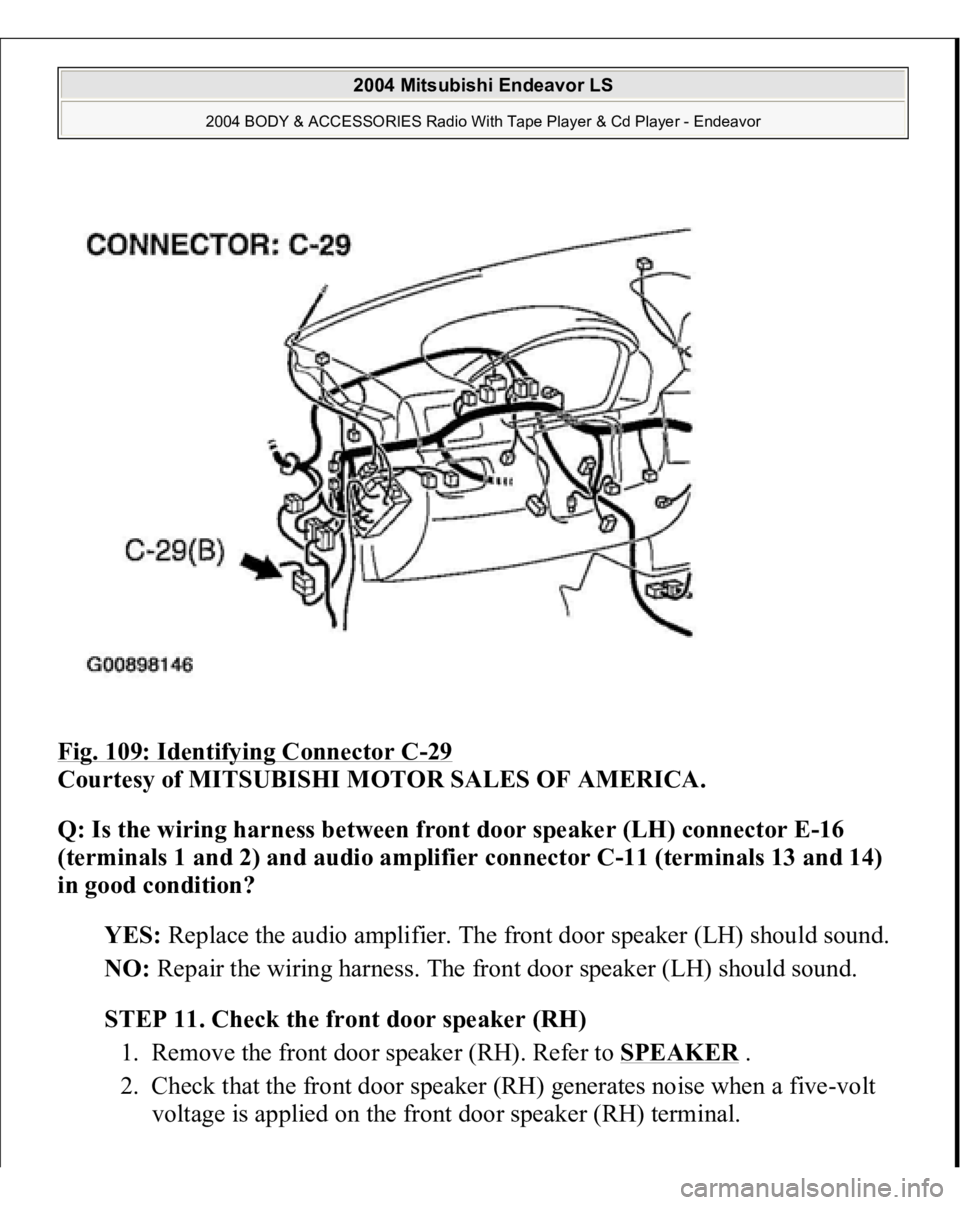

Fig. 109: Identifying Connector C
-29
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between front door speaker (LH) connector E-16
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 13 and 14)
in good condition?
YES: Replace the audio amplifier. The front door speaker (LH) should sound.
NO: Repair the wiring harness. The front door speaker (LH) should sound.
STEP 11. Check the front door speaker (RH)
1. Remove the front door speaker (RH). Refer to SPEAKER
.
2. Check that the front door speaker (RH) generates noise when a five-volt
voltage is applied on the front door speaker (RH) terminal.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

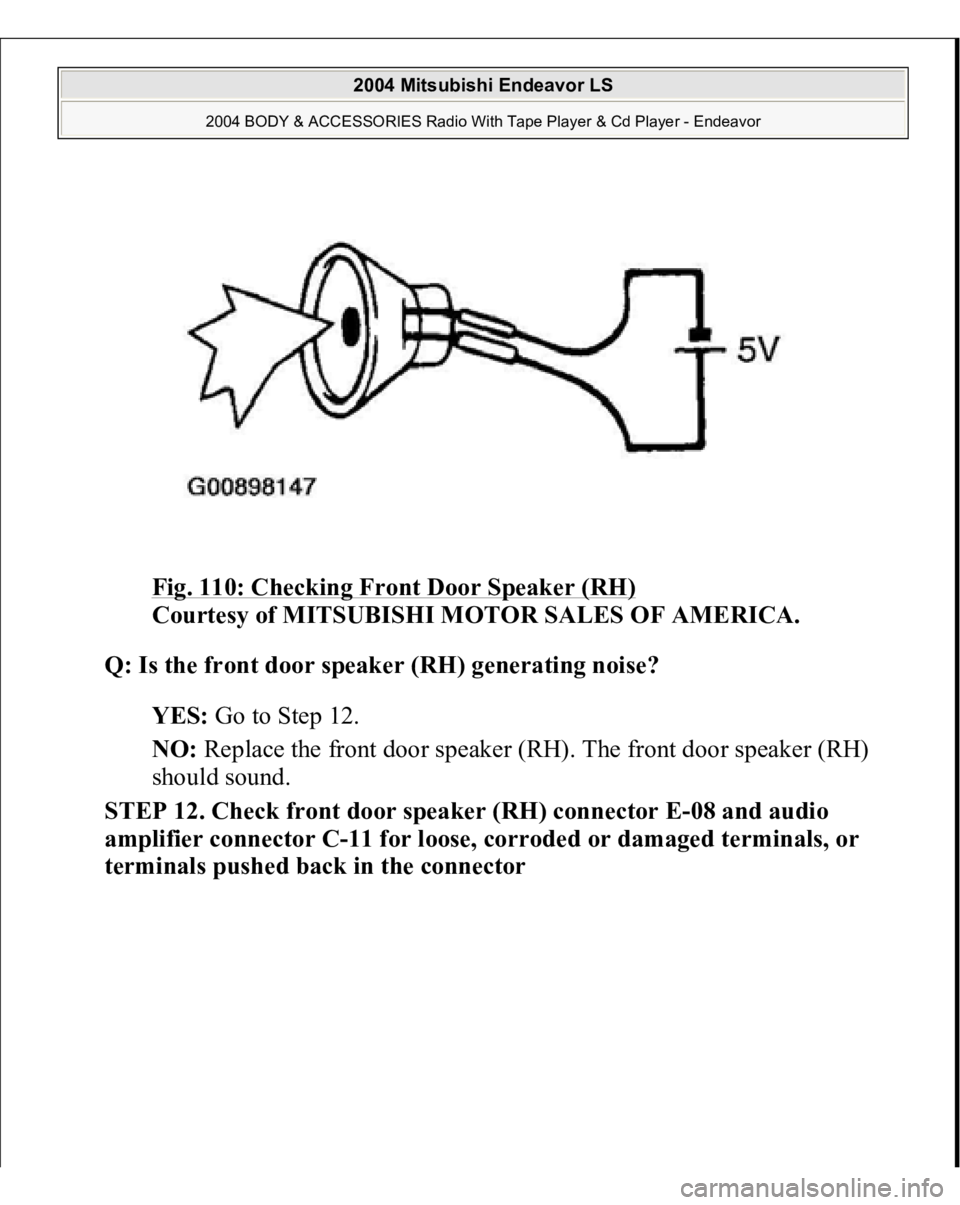

Fig. 110: Checking Front Door Speaker (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the front door speaker (RH) generating noise?
YES: Go to Step 12.
NO: Replace the front door speaker (RH). The front door speaker (RH)
should sound.
STEP 12. Check front door speaker (RH) connector E-08 and audio
amplifier connector C-11 for loose, corroded or damaged terminals, or
terminals pushed back in the connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

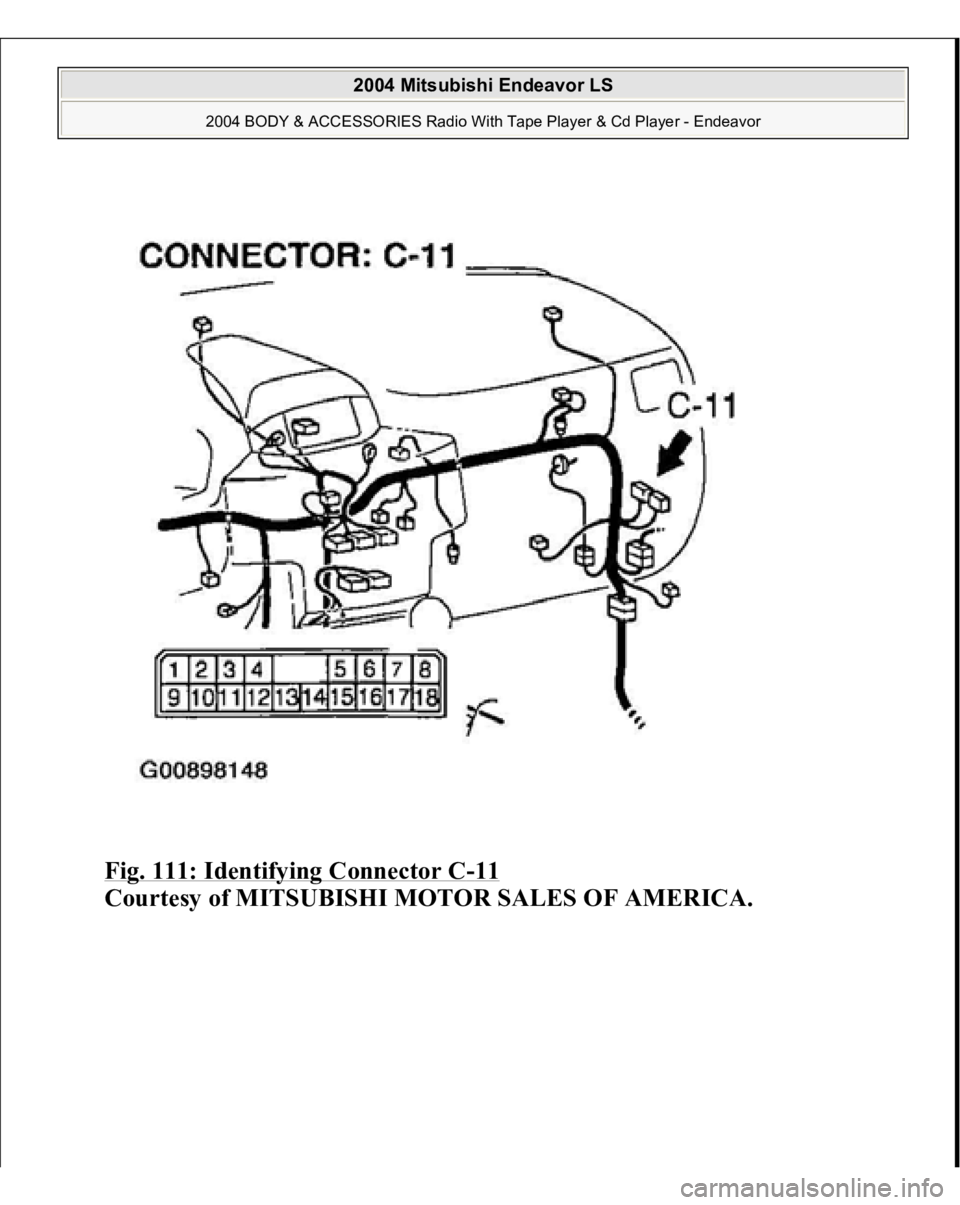

Fig. 111: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

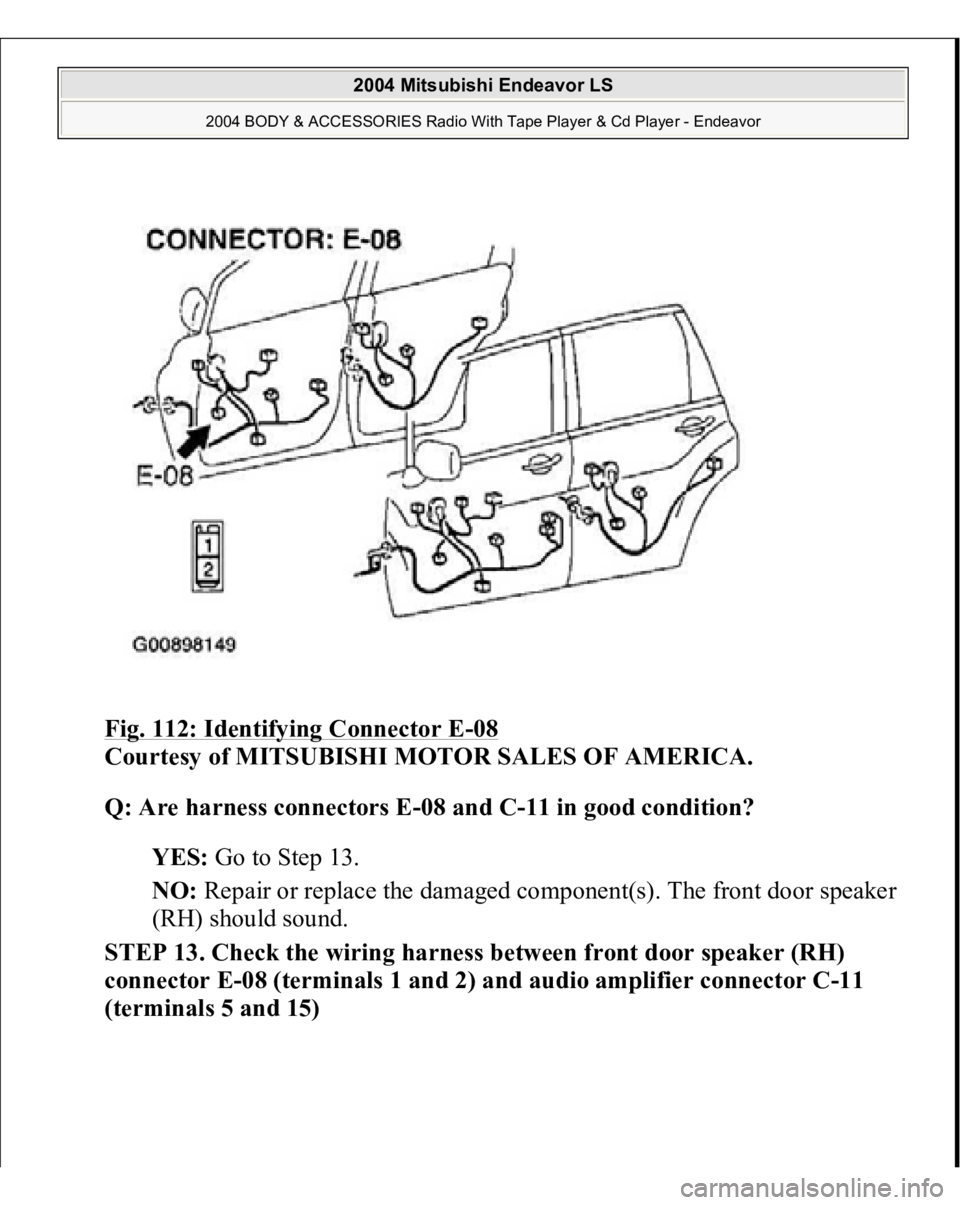

Fig. 112: Identifying Connector E
-08
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors E-08 and C-11 in good condition?
YES: Go to Step 13.
NO: Repair or replace the damaged component(s). The front door speaker
(RH) should sound.
STEP 13. Check the wiring harness between front door speaker (RH)
connector E-08 (terminals 1 and 2) and audio amplifier connector C-11
(terminals 5 and 15)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

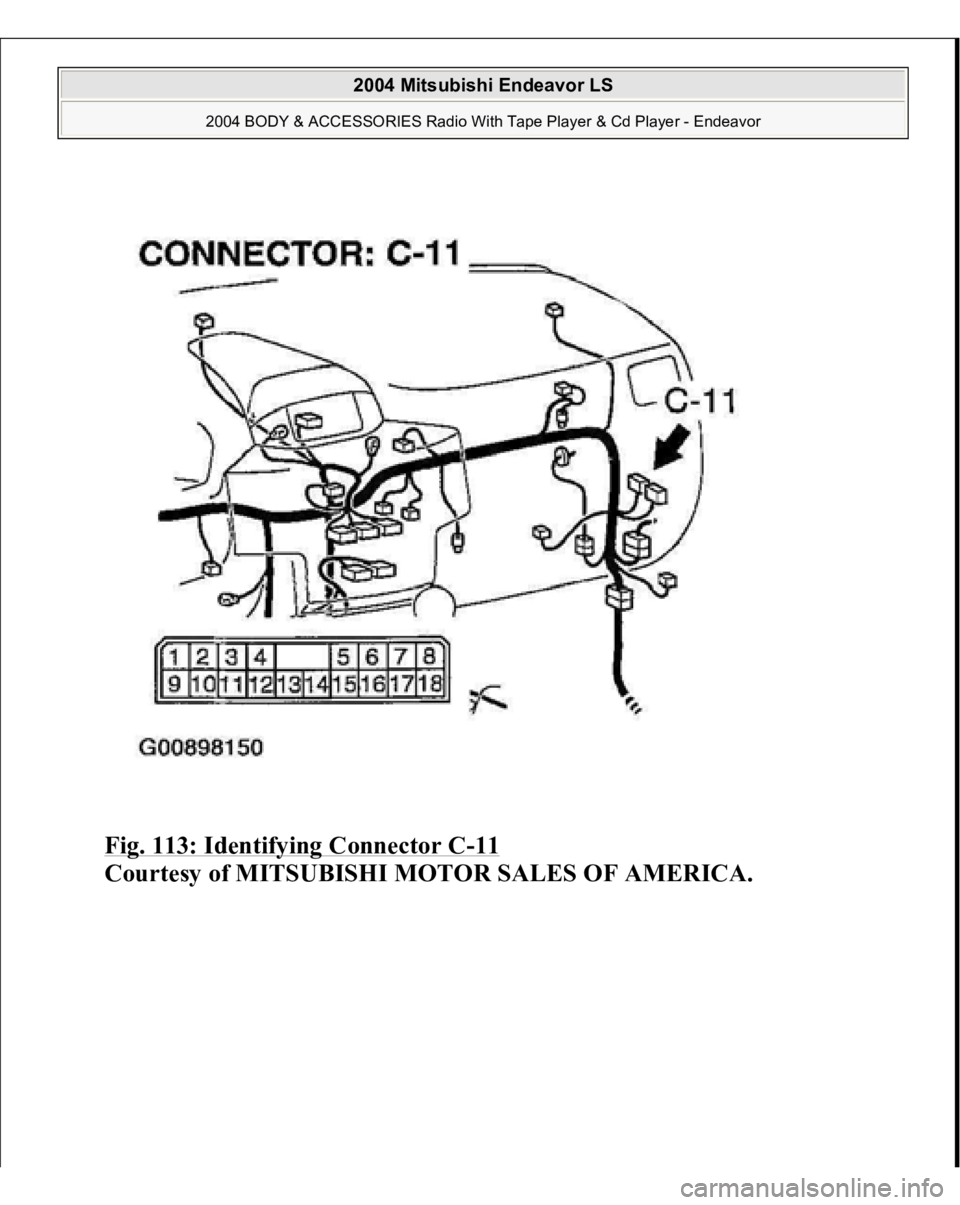

Fig. 113: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

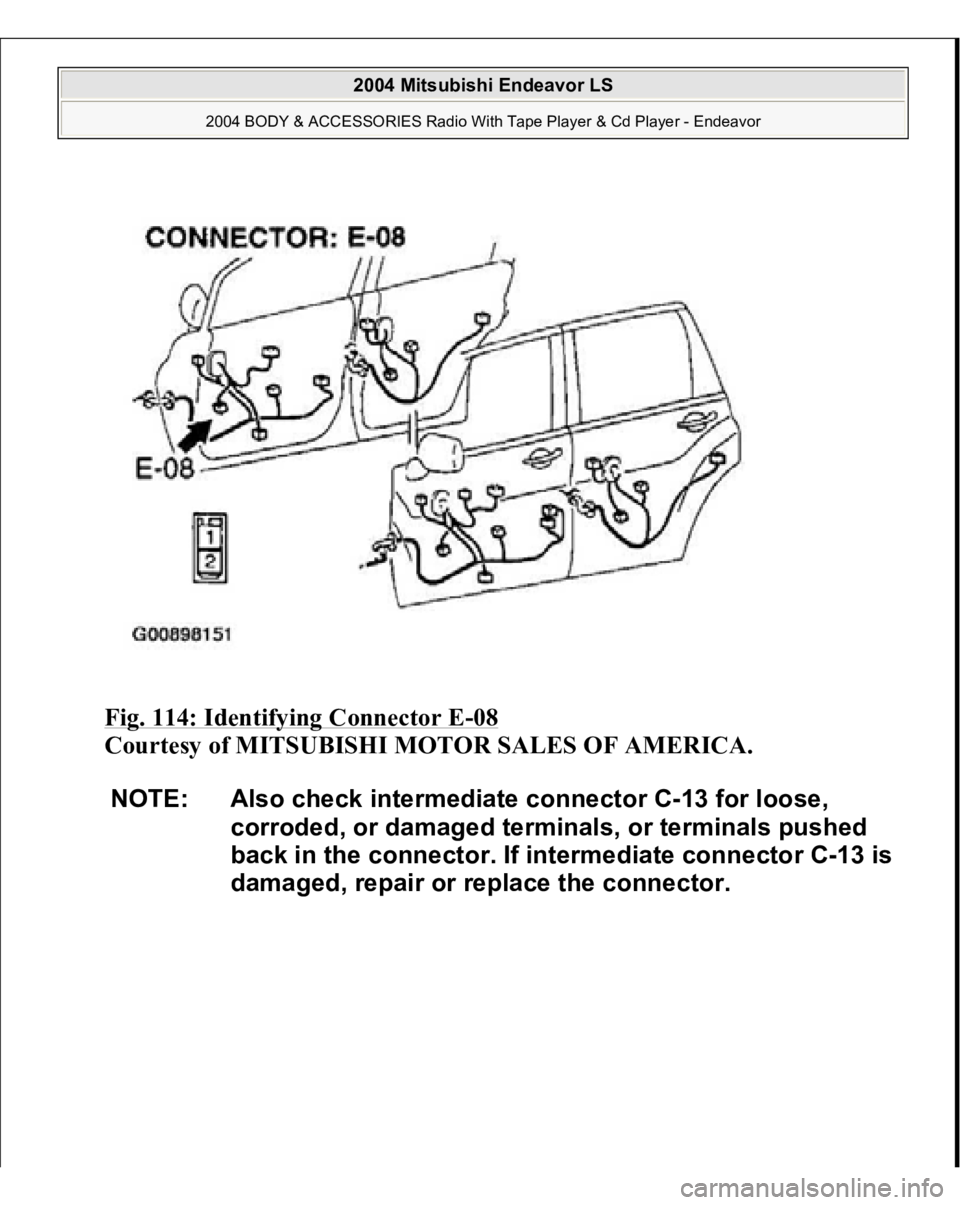

Fig. 114: Identifying Connector E
-08
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-13 for loose,
corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-13 is
damaged, repair or replace the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

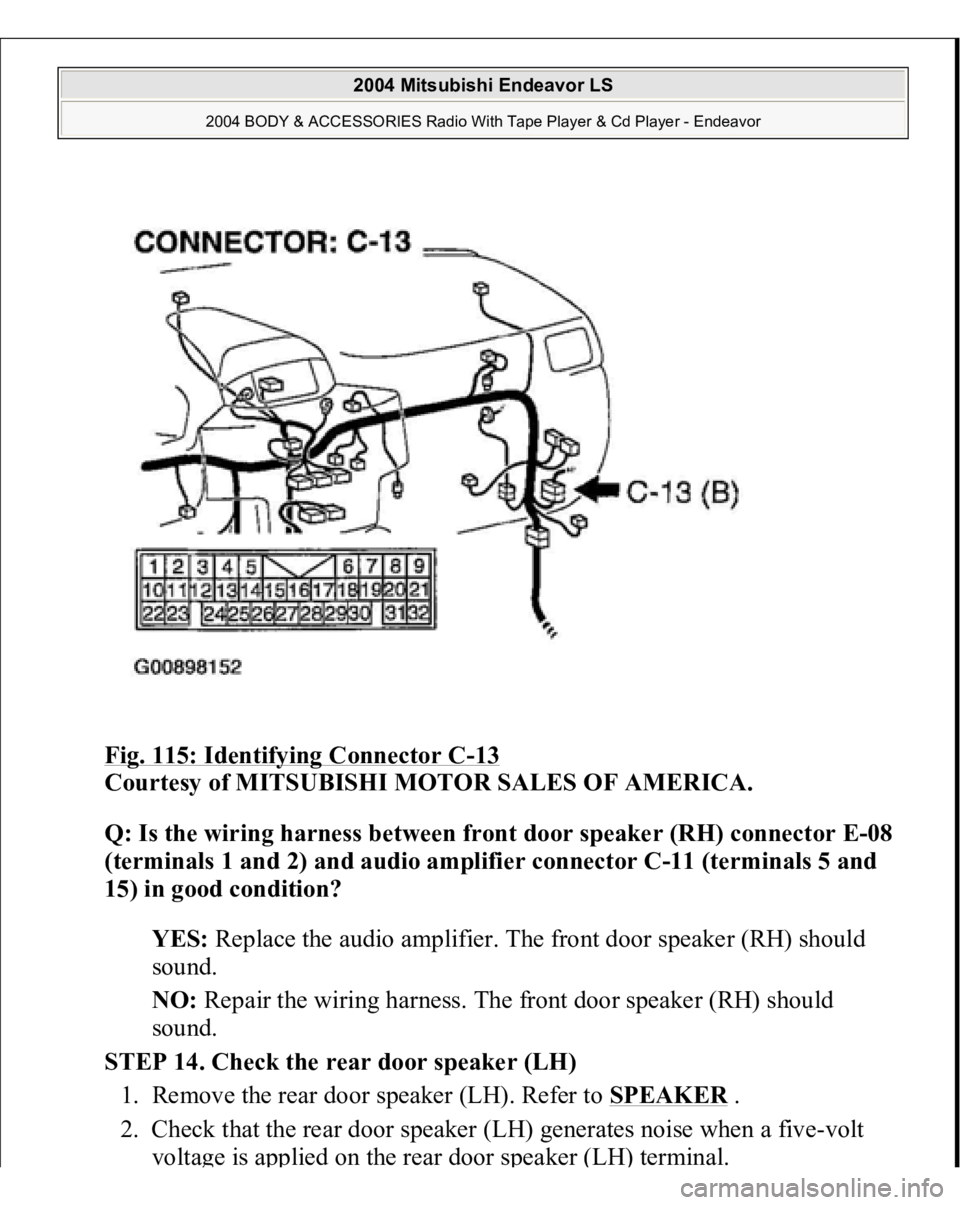

Fig. 115: Identifying Connector C
-13
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between front door speaker (RH) connector E-08
(terminals 1 and 2) and audio amplifier connector C-11 (terminals 5 and
15) in good condition?
YES: Replace the audio amplifier. The front door speaker (RH) should
sound.
NO: Repair the wiring harness. The front door speaker (RH) should
sound.
STEP 14. Check the rear door speaker (LH)
1. Remove the rear door speaker (LH). Refer to SPEAKER
.
2. Check that the rear door speaker (LH) generates noise when a five-volt
volta
ge is a
pplied on the rear door s
peaker
(LH
) terminal.
