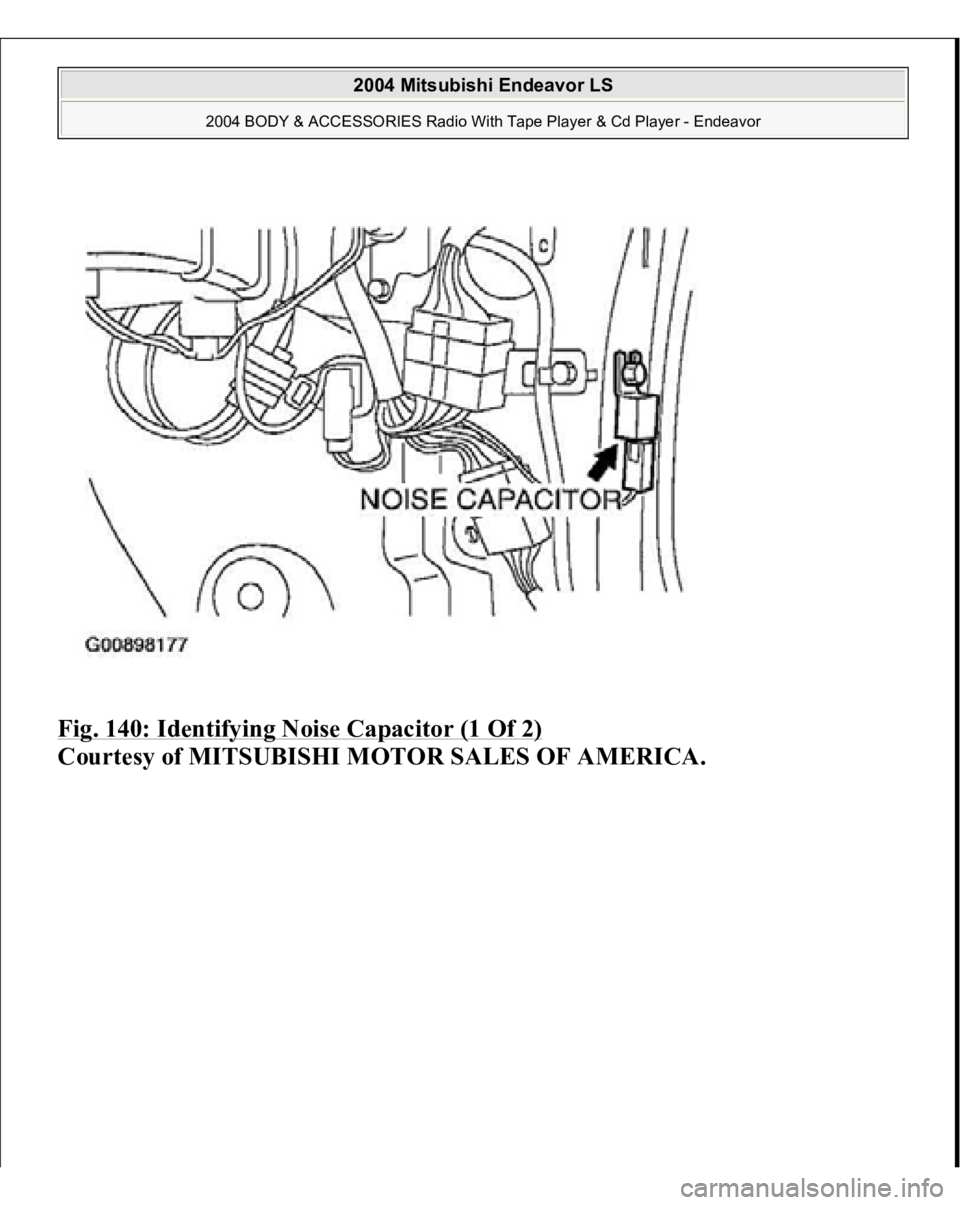

Fig. 140: Identifying Noise Capacitor (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 141: Identifying Noise Capacitor (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION PROCEDURE 14: Noise Appears During Vibration or Shocks. DIAGNOSIS
STEP 1. Check the fit of the mast antenna.
Q: Is the mast antenna base fitted securely?
YES: Go to Step 2.
NO: Install the mast antenna, and tighten the mounting nut (Refer to
INSTALLATION SERVICE POINTS
). Check that there is no noise.
STEP 2. Check the fit of antenna feeder cable.
Q: Is the antenna feeder cable fitted securely?

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

YES: Go to Step 3.
NO: Ensure that the antenna base and the radio and CD player are fitted
securely. Check that there is no noise.
STEP 3. Check radio and CD player connector C-105 or radio, CD player
and CD changer connector C-105, C-110, C-113 and amplifier connector
C-11, C-12 for loose, corroded or damaged terminals, or terminals pushed
back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

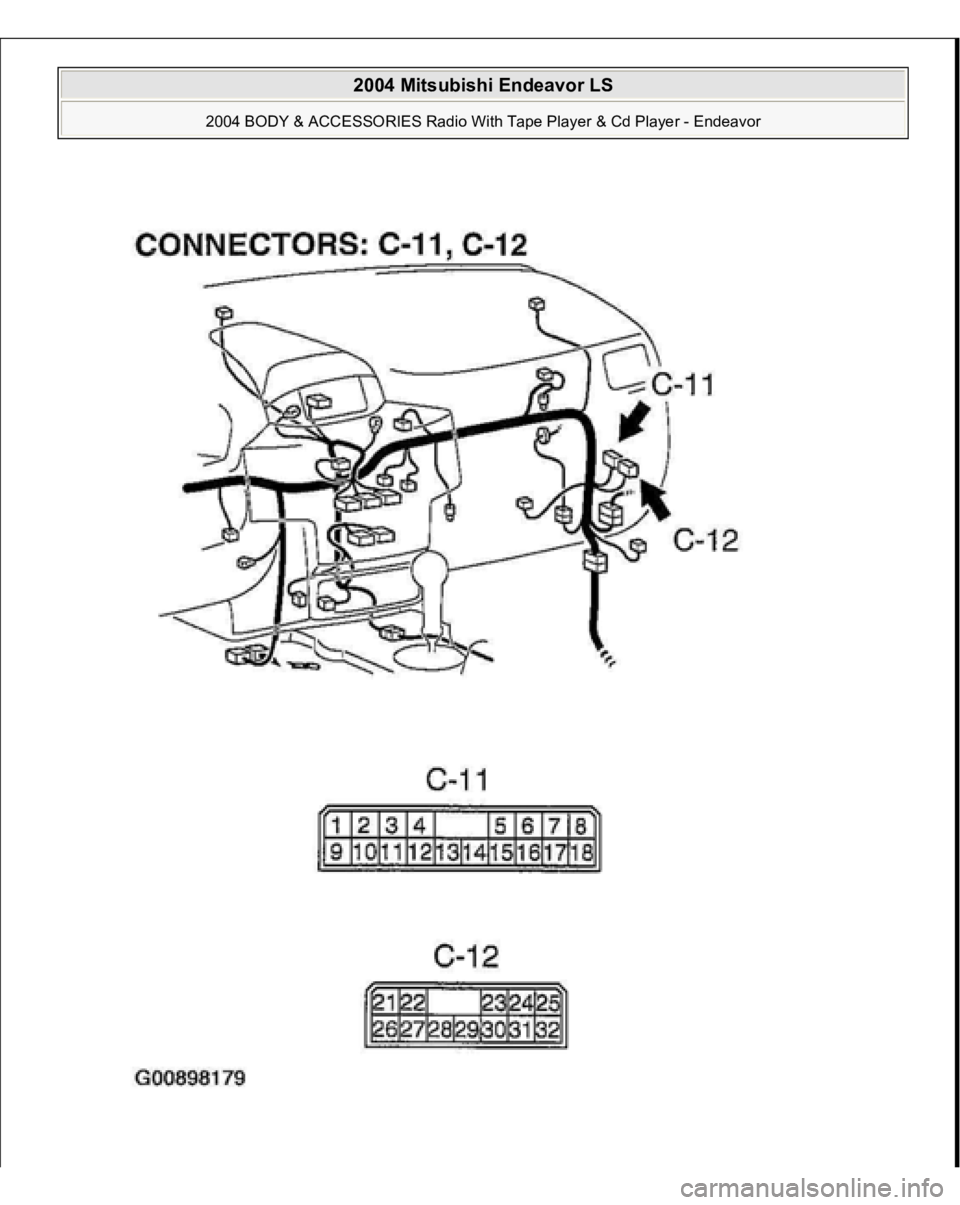

Fig. 142: Identifying Connector C
-11,C
-12
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

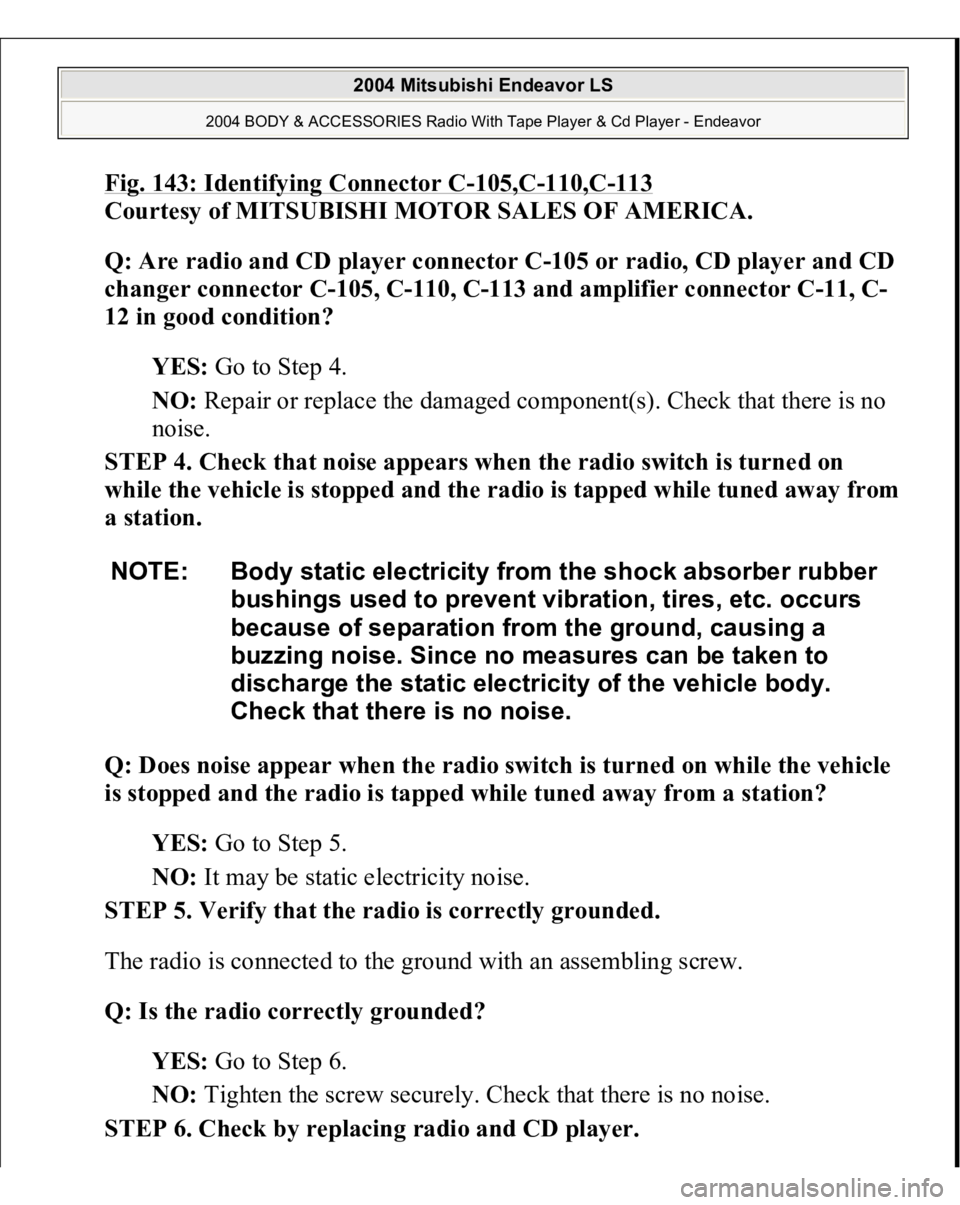

Fig. 143: Identifying Connector C
-105,C
-110,C
-113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are radio and CD player connector C-105 or radio, CD player and CD
changer connector C-105, C-110, C-113 and amplifier connector C-11, C-
12 in good condition?
YES: Go to Step 4.
NO: Repair or replace the damaged component(s). Check that there is no
noise.
STEP 4. Check that noise appears when the radio switch is turned on
while the vehicle is sto
pp
ed and the radio is ta
pp
ed while tuned awa
y from
a station.
Q: Does noise appear when the radio switch is turned on while the vehicle
is stopped and the radio is tapped while tuned away from a station?
YES: Go to Step 5.
NO: It may be static electricity noise.
STEP 5. Verify that the radio is correctly grounded.
The radio is connected to the ground with an assembling screw.
Q: Is the radio correctly grounded?
YES: Go to Step 6.
NO: Tighten the screw securely. Check that there is no noise.
STEP 6. Check by replacing radio and CD player.
NOTE: Body static electricity from the shock absorber rubber
bushings used to prevent vibration, tires, etc. occurs
because of separation from the ground, causing a
buzzing noise. Since no measures can be taken to
discharge the static electricity of the vehicle body.
Check that there is no noise.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Q: Do the other radio and CD player work normally?
YES: Either repair or replace the original radio and CD player. Check that
there is no noise.
NO: Either repair or replace the antenna assembly. Check that there is no
noise.
INSPECTION PROCEDURE 15: Noise is Present While Moving (FM). DIAGNOSIS
STEP 1. Check the state of the antenna.
Q: Is the mast antenna assembled?
YES: Go to Step 2.
NO: Assemble the mast antenna. Check that there is no noise.
STEP 2. Check the radio after adjusting it.
Q: Readjust the radio. Is the noise eliminated?
YES: Check that there is no noise.
NO: Go to Step 3.
STEP 3. Check with several broad casting. NOTE: Multipath noise and fading noise: Because of the
frequency of FM waves in extremely high, it is highly
susceptible to effects from geological formations and
buildings. These effects disrupt the broadcast signal
and obstruct reception in several ways.
Multipath noise
This describes the echo that occurs when the
broadcast signal is reflected by a large obstruction
and enters the receiver with a slight time delay
relative to the direct signal (repetitious buzzing).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Q: Is the problem station or location specific?
YES: The effect of an electrical field condition (multipath noise, fading
noise) could be the cause. Check that there is not noise.
NO: Go to Step 4.
STEP 4. Check that noise appears when the radio switch is turned on
while the vehicle is stopped.
Q: Does noise appear when the radio switch is turned on while the vehicle
is stopped and the radio is tapped while tuned away from a station?
YES: Go to Step 5.
NO: It may be static electricity noise.
STEP 5. Verify that the radio is correctly grounded.
The radio is connected to the ground with an assembling screw.
Q: Is the radio correctly grounded?
YES: Go to Step 6.
NO: Tighten the screw securely. Check that there is no noise.

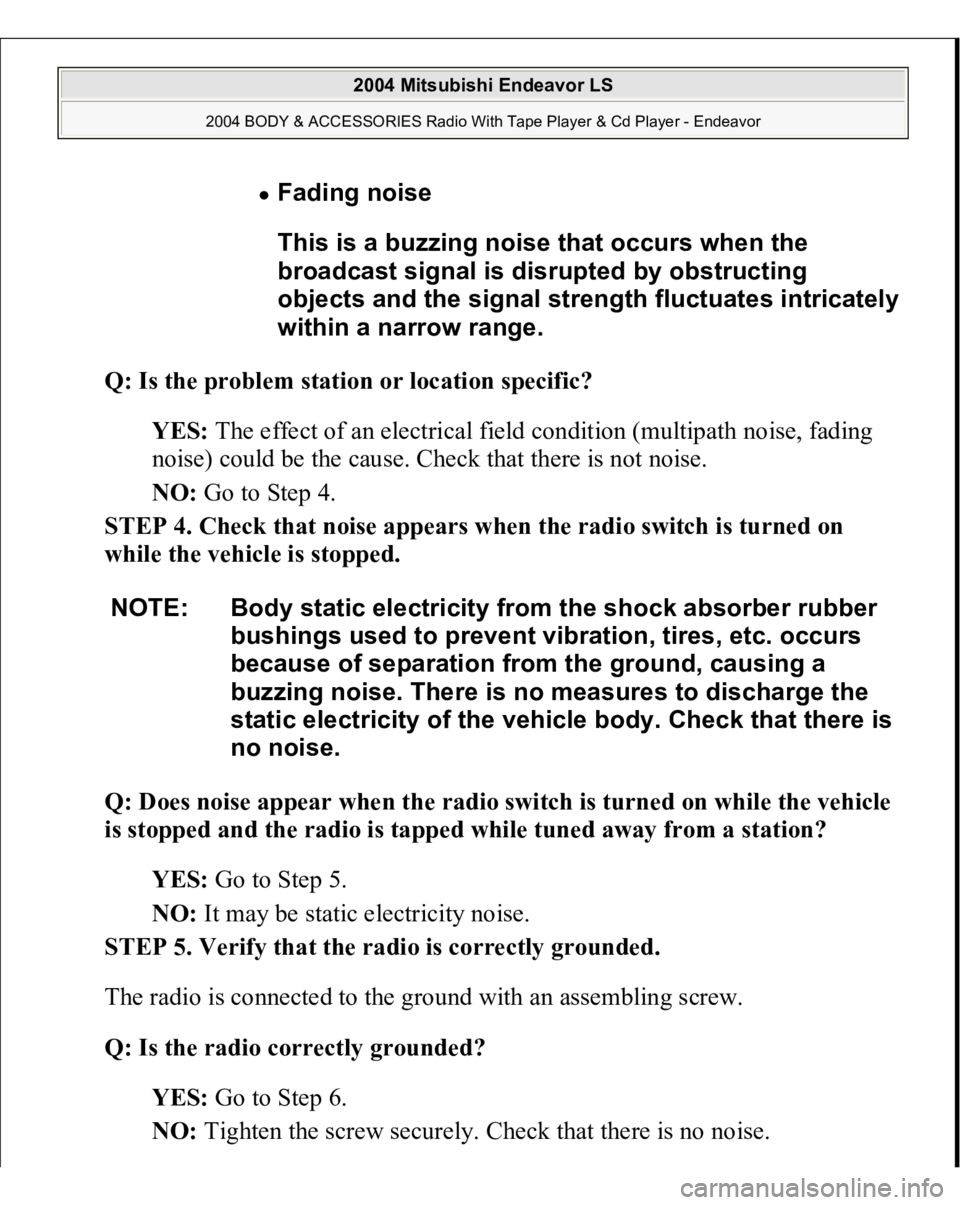

Fading noise
This is a buzzing noise that occurs when the
broadcast signal is disrupted by obstructing
objects and the signal strength fluctuates intricately
within a narrow range.
NOTE: Body static electricity from the shock absorber rubber
bushings used to prevent vibration, tires, etc. occurs
because of separation from the ground, causing a
buzzing noise. There is no measures to discharge the
static electricity of the vehicle body. Check that there is
no noise.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

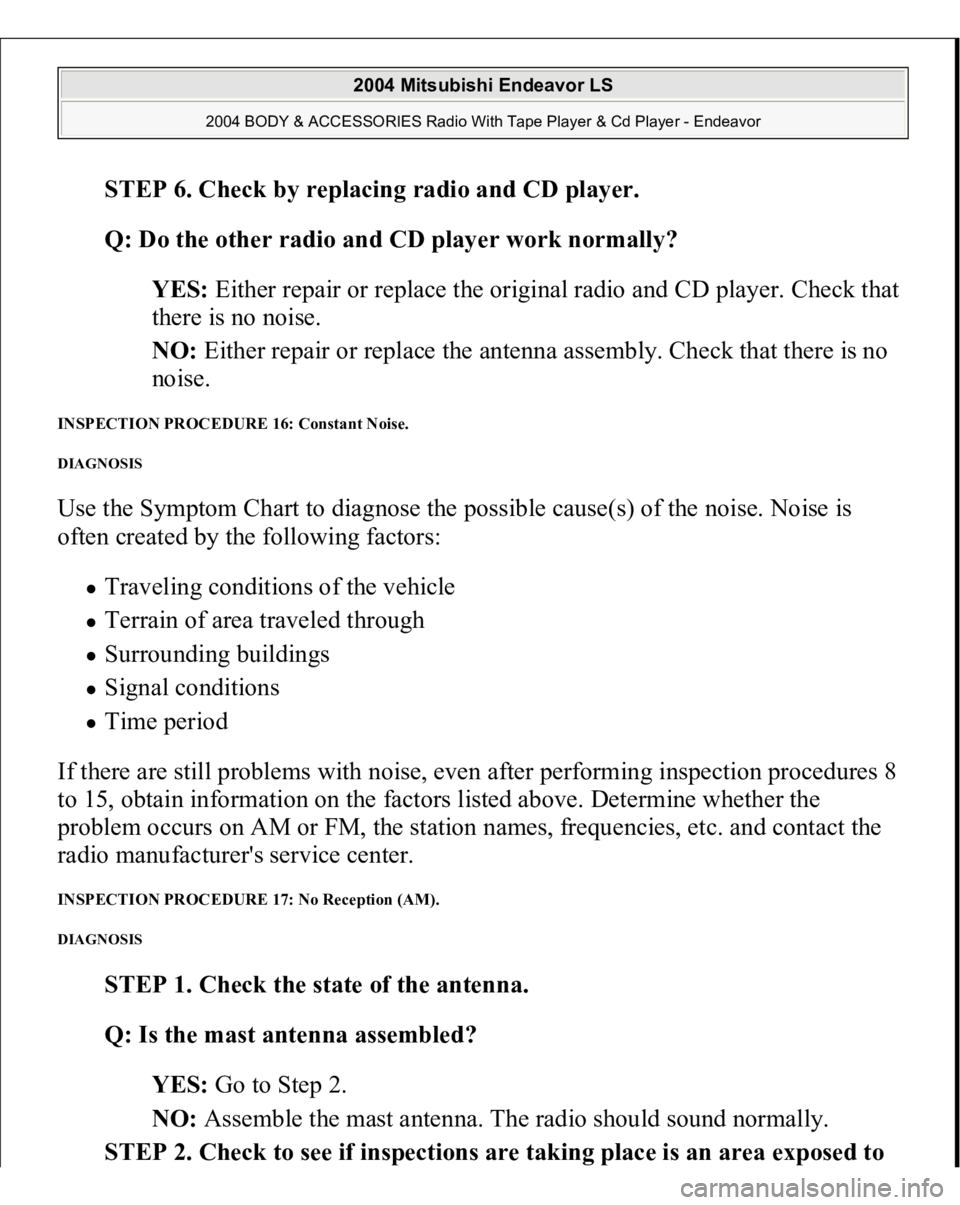

STEP 6. Check by replacing radio and CD player.
Q: Do the other radio and CD player work normally?
YES: Either repair or replace the original radio and CD player. Check that
there is no noise.
NO: Either repair or replace the antenna assembly. Check that there is no
noise.
INSPECTION PROCEDURE 16: Constant Noise. DIAGNOSIS Use the Symptom Chart to diagnose the possible cause(s) of the noise. Noise is
often created by the following factors:
Traveling conditions of the vehicle Terrain of area traveled through Surrounding buildings Signal conditions Time period
If there are still problems with noise, even after performing inspection procedures 8
to 15, obtain information on the factors listed above. Determine whether the
problem occurs on AM or FM, the station names, frequencies, etc. and contact the
radio manufacturer's service center.
INSPECTION PROCEDURE 17: No Reception (AM). DIAGNOSIS
STEP 1. Check the state of the antenna.
Q: Is the mast antenna assembled?
YES: Go to Step 2.
NO: Assemble the mast antenna. The radio should sound normally.
STEP 2. Check to see if inspections are taking place is an area exposed to

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

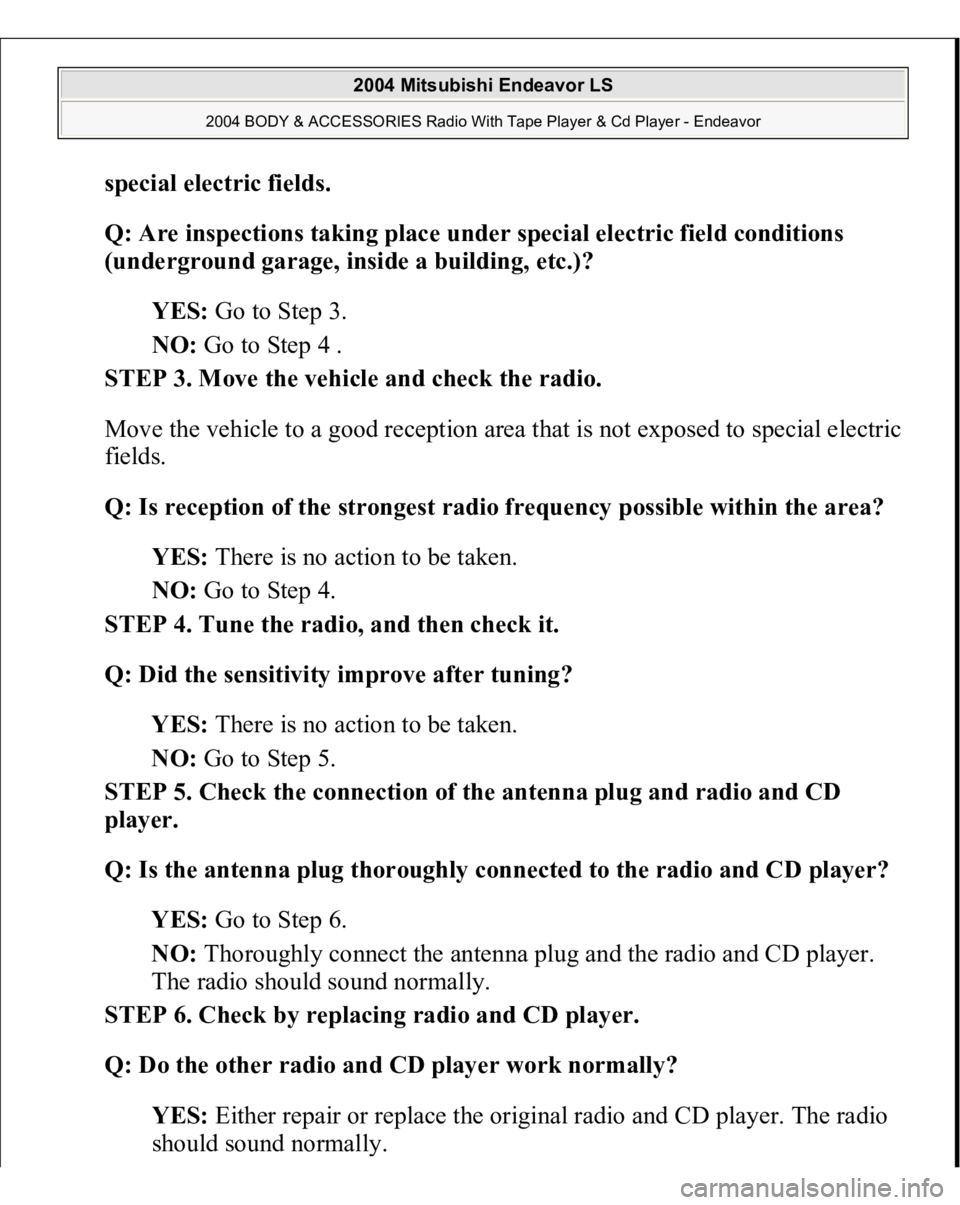

special electric fields
.
Q: Are inspections taking place under special electric field conditions
(underground garage, inside a building, etc.)?
YES: Go to Step 3.
NO: Go to Step 4 .
STEP 3. Move the vehicle and check the radio.
Move the vehicle to a good reception area that is not exposed to special electric
fields.
Q: Is reception of the strongest radio frequency possible within the area?
YES: There is no action to be taken.
NO: Go to Step 4.
STEP 4. Tune the radio, and then check it.
Q: Did the sensitivity improve after tuning?
YES: There is no action to be taken.
NO: Go to Step 5.
STEP 5. Check the connection of the antenna plug and radio and CD
player.
Q: Is the antenna plug thoroughly connected to the radio and CD player?
YES: Go to Step 6.
NO: Thoroughly connect the antenna plug and the radio and CD player.
The radio should sound normally.
STEP 6. Check by replacing radio and CD player.
Q: Do the other radio and CD player work normally?
YES: Either repair or replace the original radio and CD player. The radio
should sound normall
y.
