When removing and installing the steering
wheel, do not let it bump against the air bag
module.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

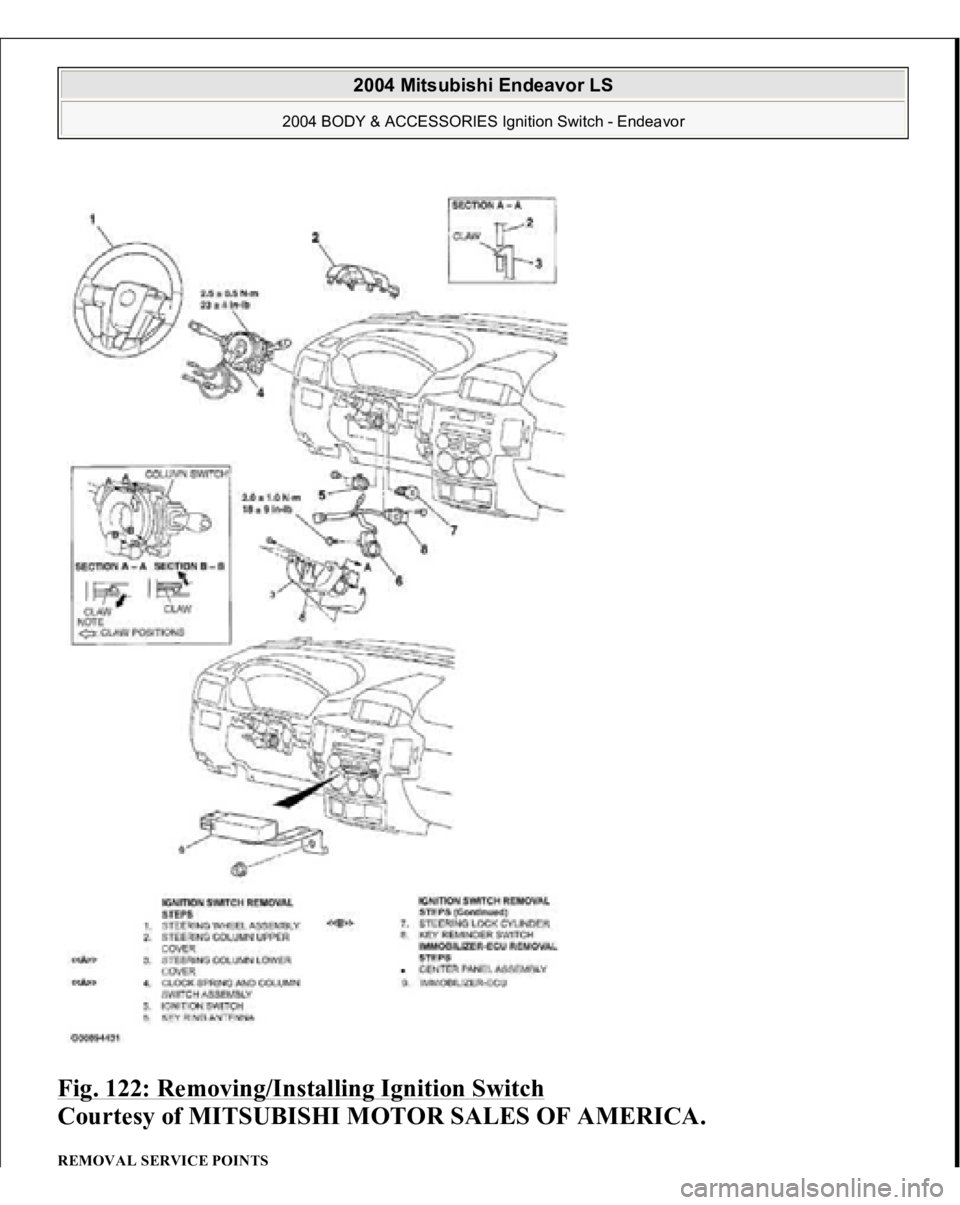

Fig. 122: Removing/Installing Ignition Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

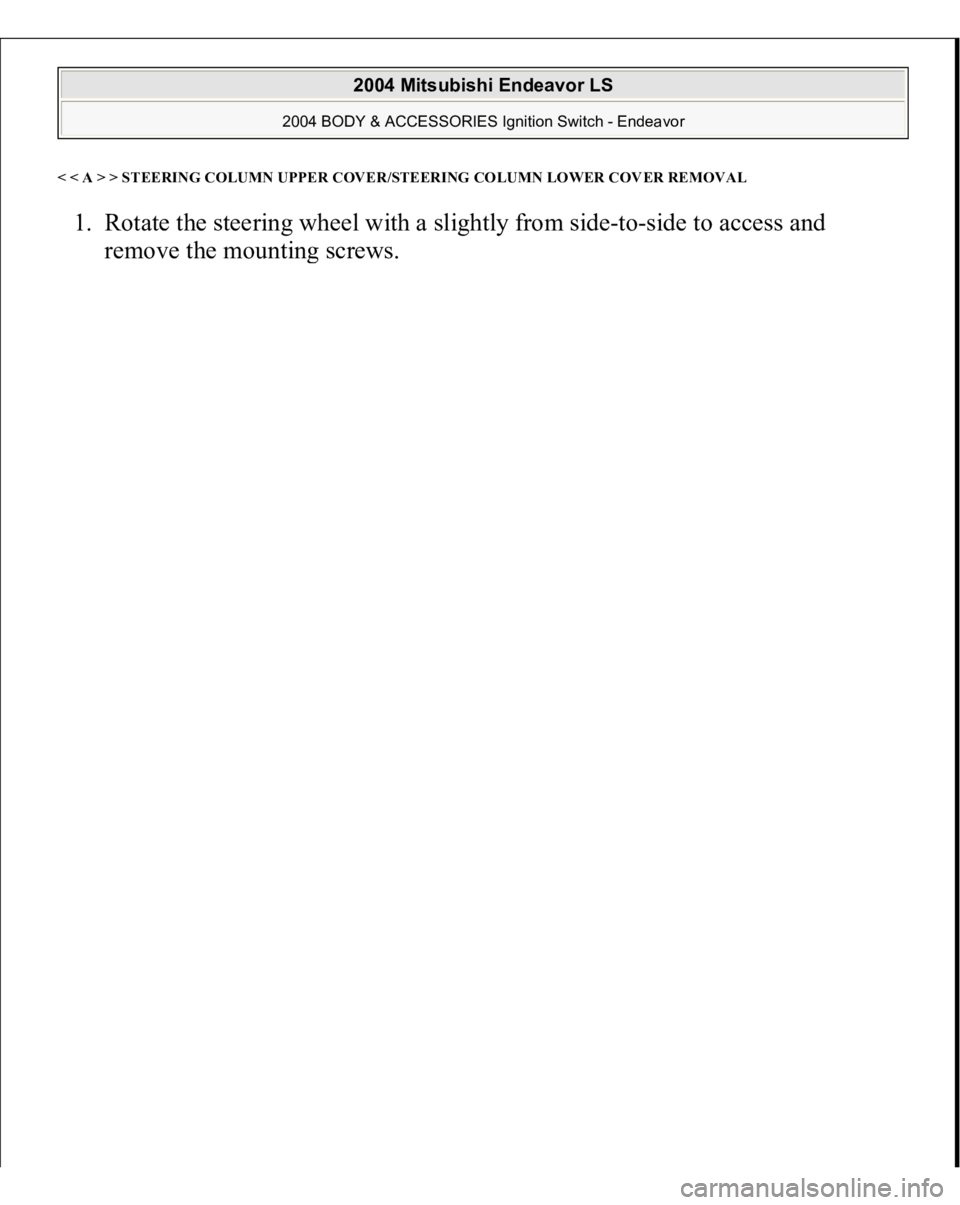

< < A > > STEERING COLUMN UPPER COVER/STEERING COLUMN LOWER COVER REMOVA
L
1. Rotate the steering wheel with a slightly from side-to-side to access and
remove the mountin
g screws.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

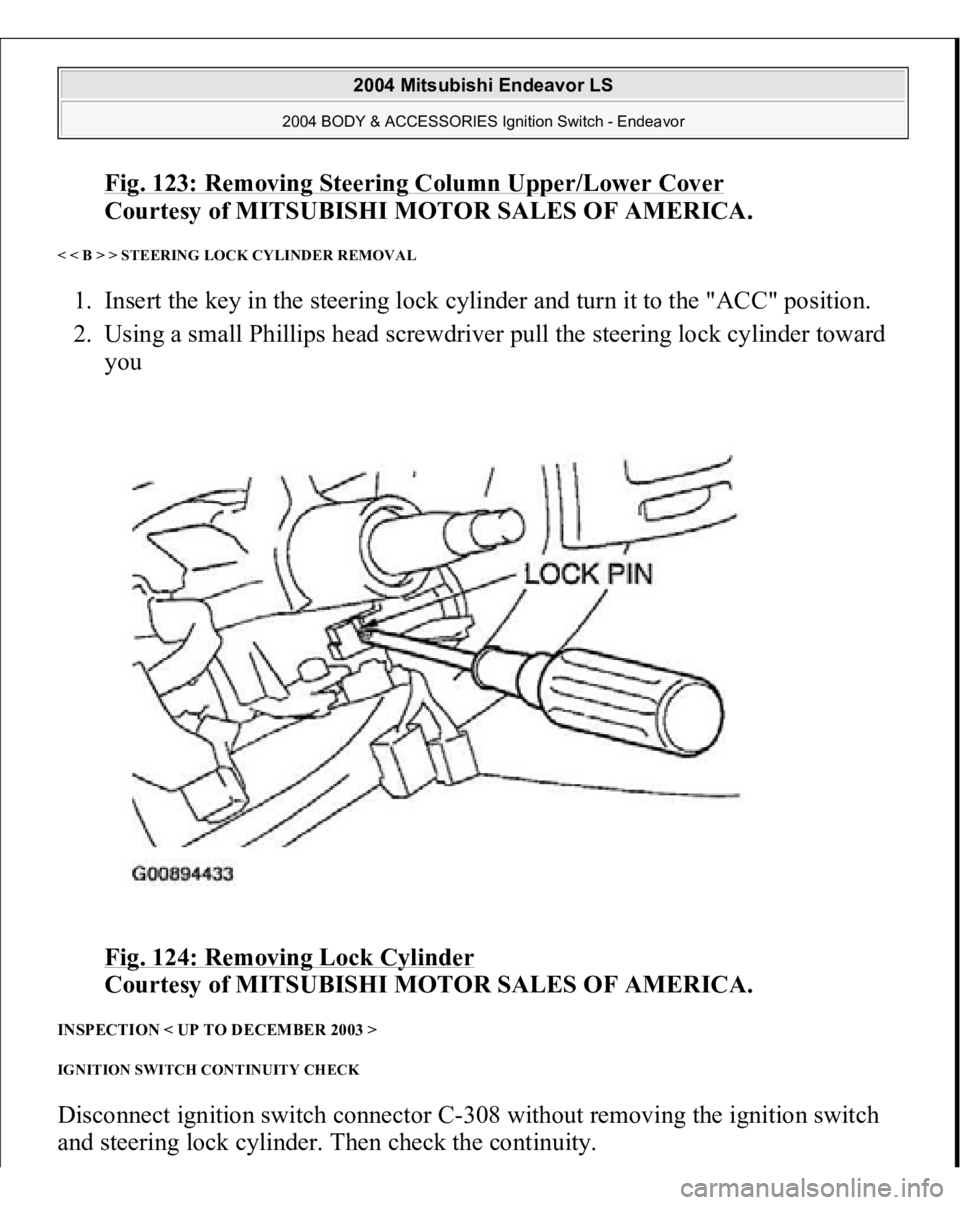

Fig. 123: Removing Steering Column Upper/Lower Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< < B > > STEERING LOCK CYLINDER REMOVAL 1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver pull the steering lock cylinder toward
you
Fig. 124: Removing Lock Cylinder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION < UP TO DECEMBER 2003 > IGNITION SWITCH CONTINUITY CHECK Disconnect ignition switch connector C-308 without removing the ignition switch
and steering lock cylinder. Then check the continuity.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

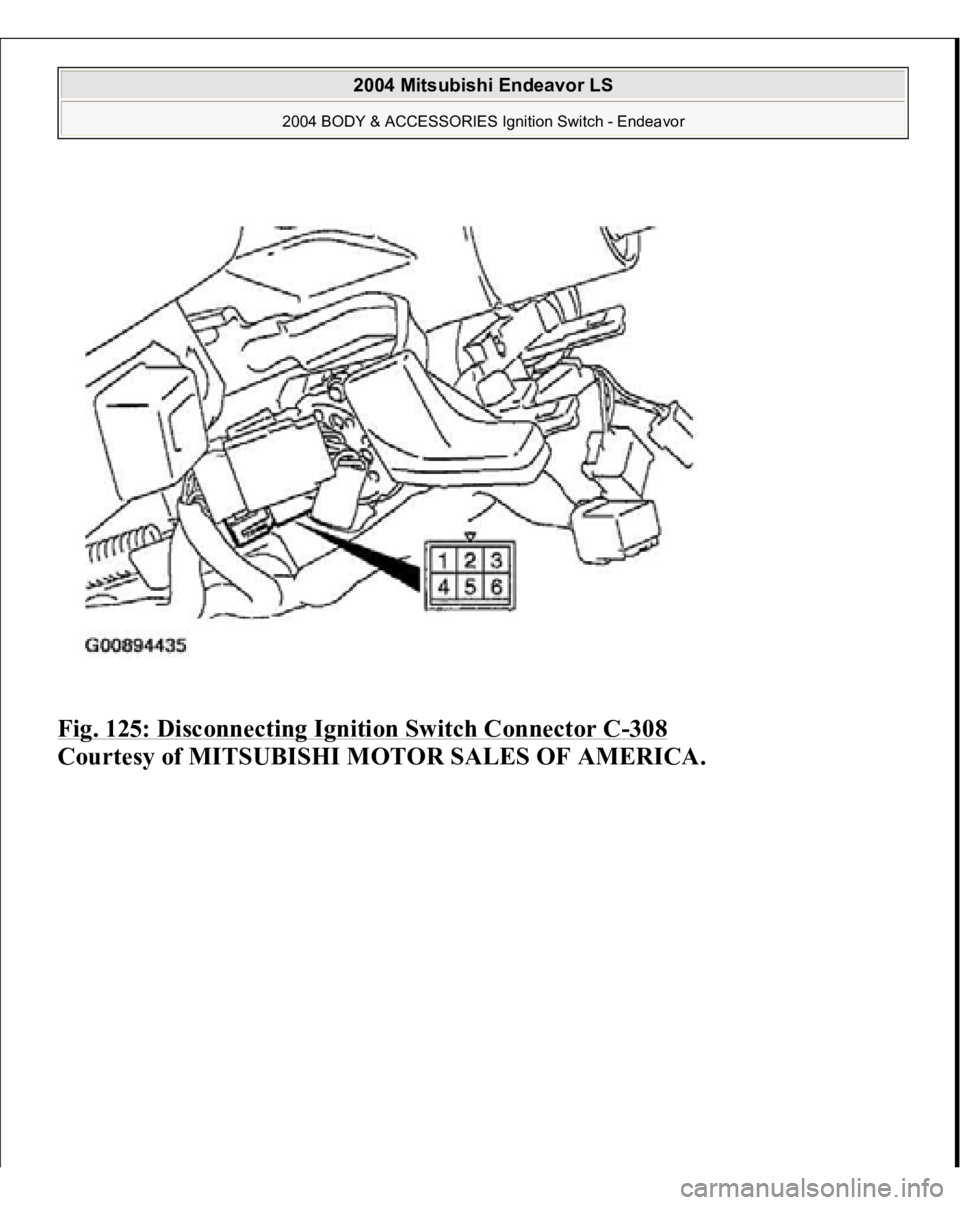

Fig. 125: Disconnecting Ignition Switch Connector C
-308

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

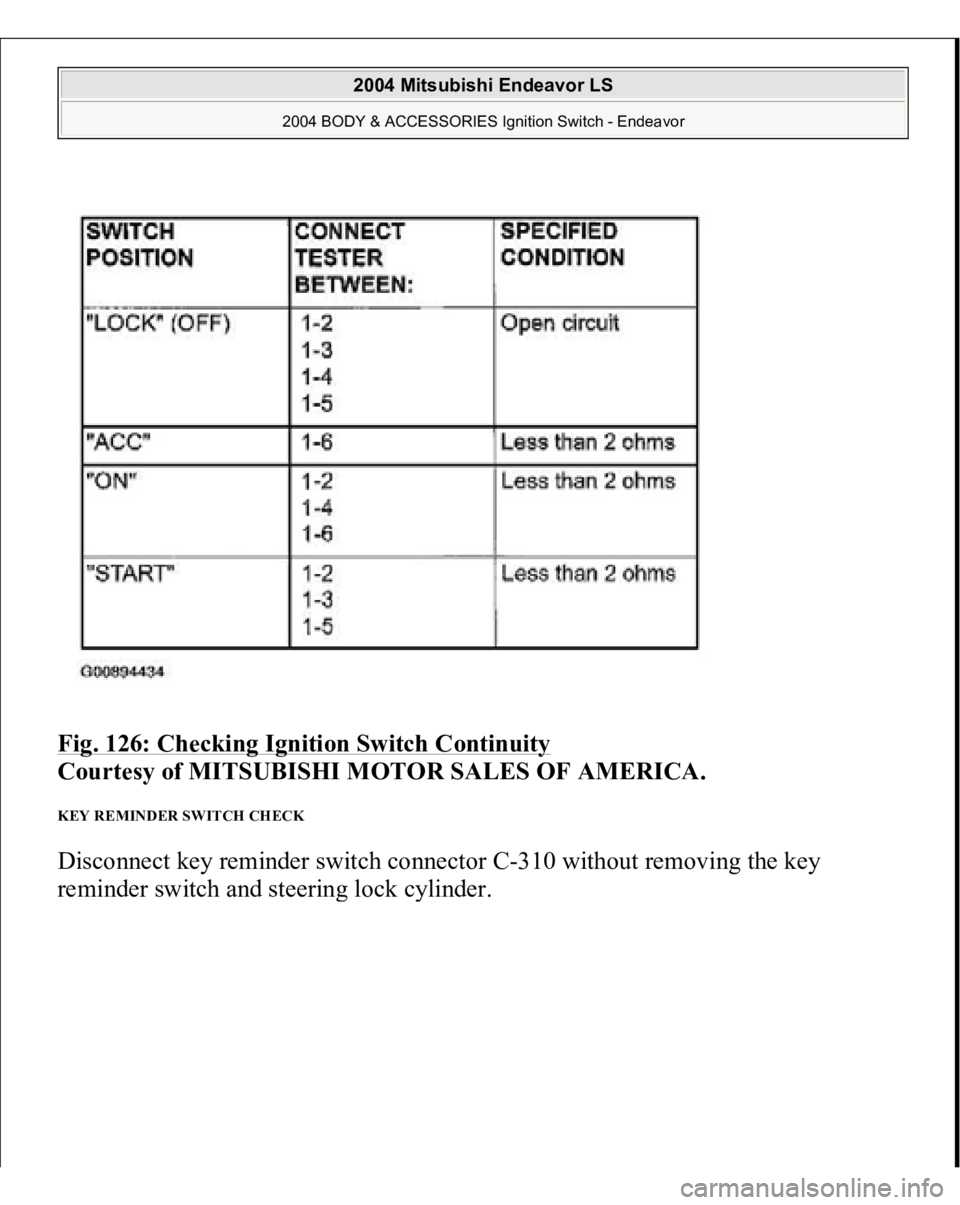

Fig. 126: Checking Ignition Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
KEY REMINDER SWITCH CHECK Disconnect key reminder switch connector C-310 without removing the key
reminder switch and steerin
g lock c
ylinder.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

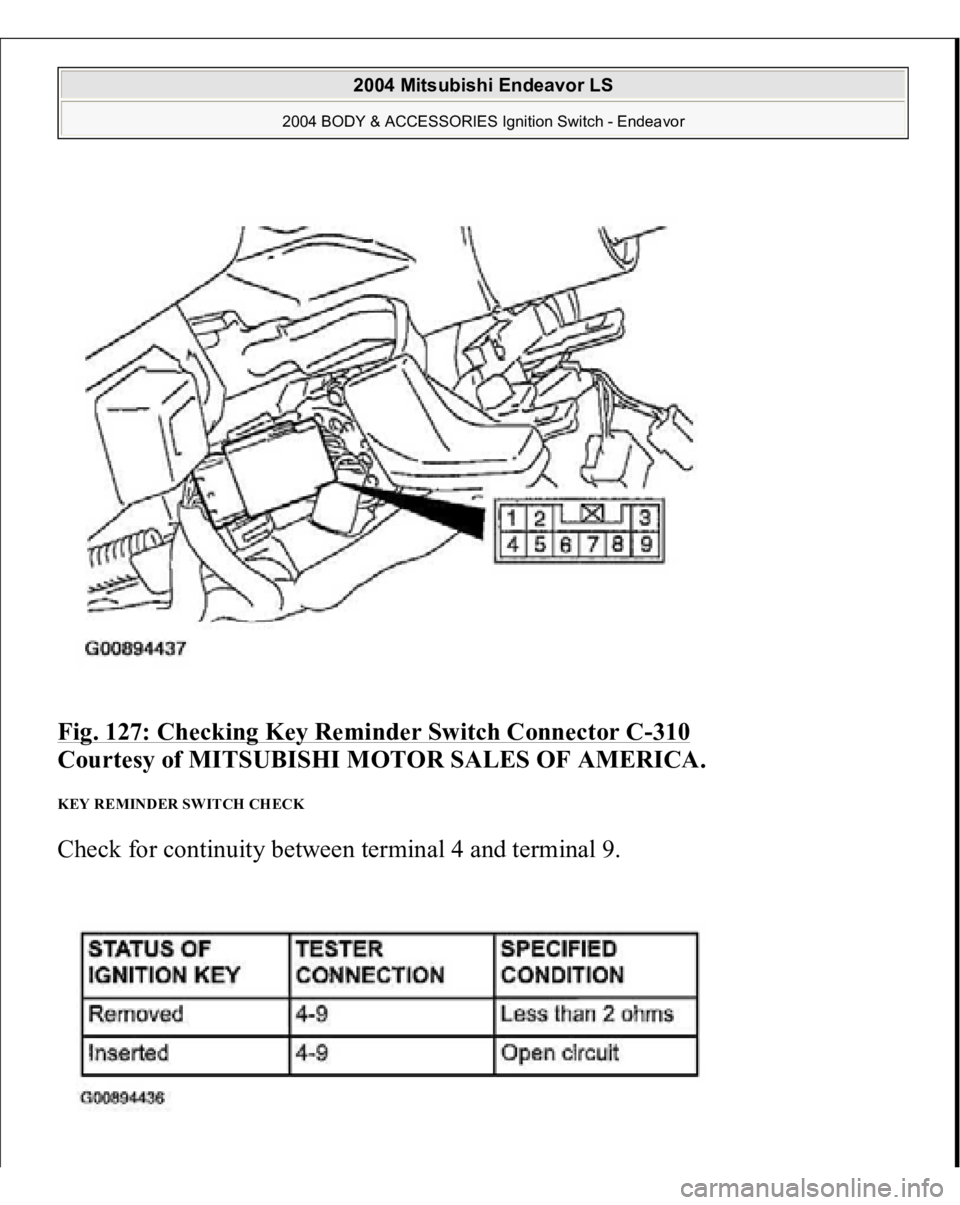

Fig. 127: Checking Key Reminder Switch Connector C
-310

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
KEY REMINDER SWITCH CHECK Check for continuity between terminal 4 and terminal 9.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

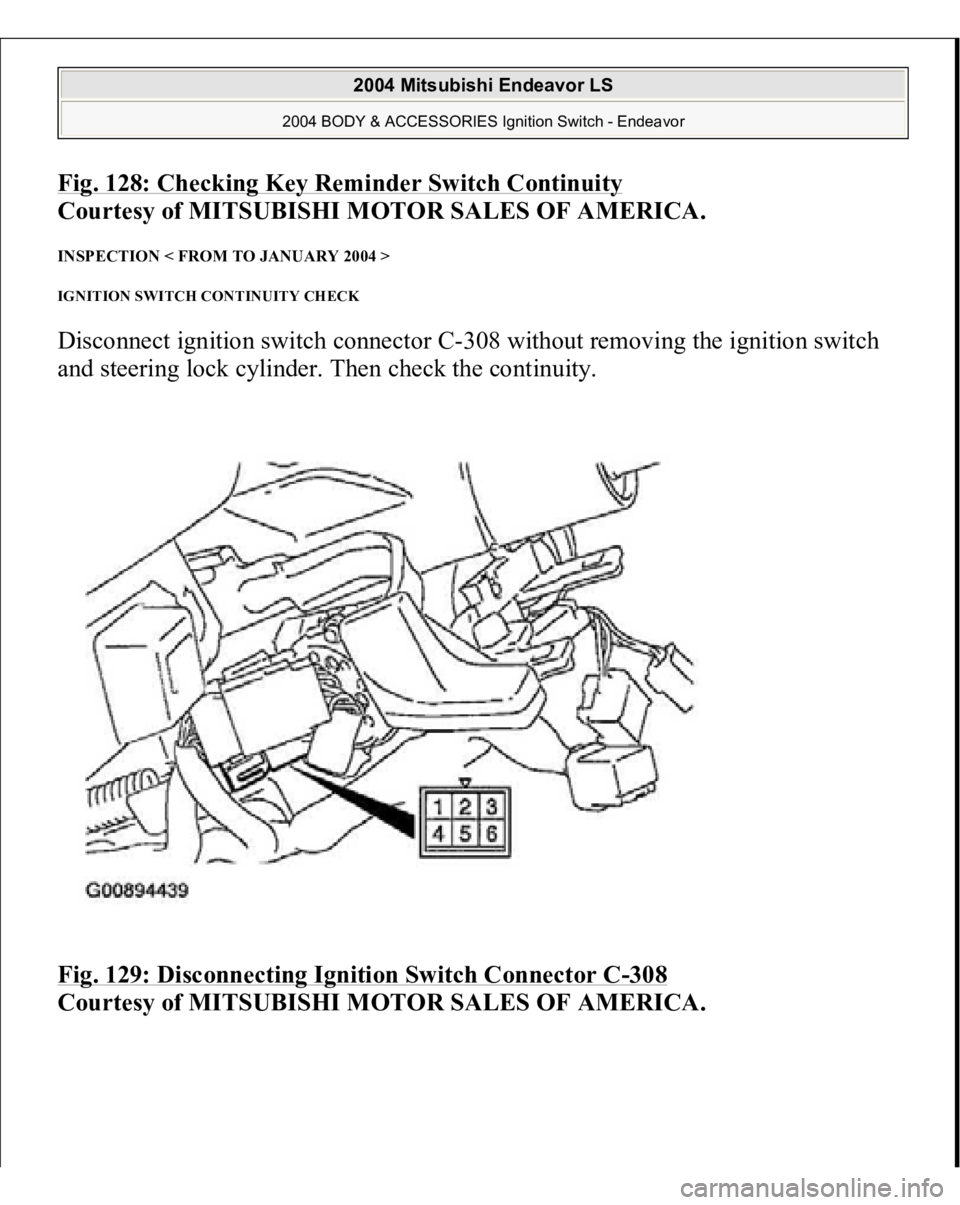

Fig. 128: Checking Key Reminder Switch Continuit
y
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION < FROM TO JANUARY 2004 > IGNITION SWITCH CONTINUITY CHECK Disconnect ignition switch connector C-308 without removing the ignition switch
and steering lock cylinder. Then check the continuity.
Fig. 129: Disconnecting Ignition Switch Connector C
-308

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

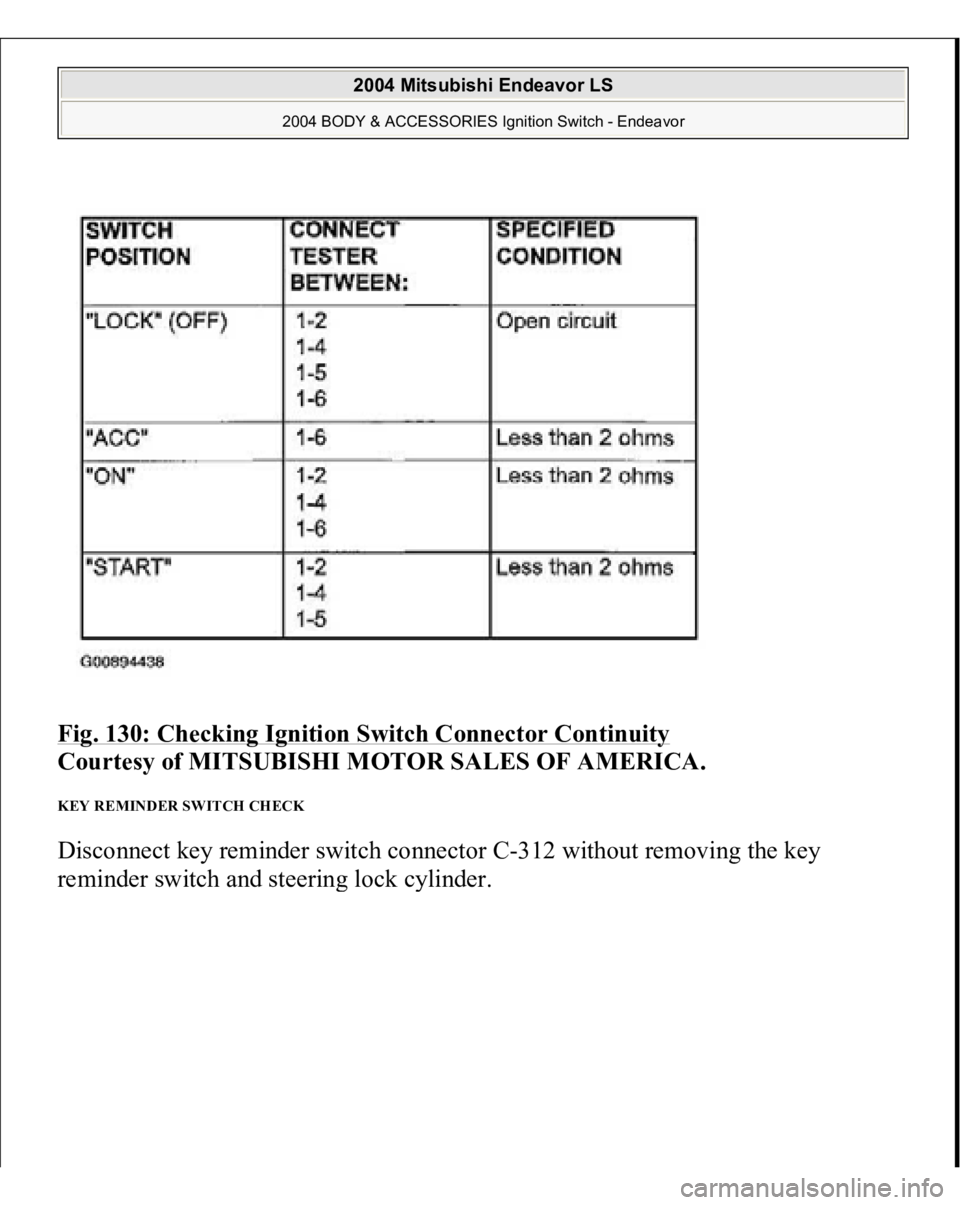

Fig. 130: Checking Ignition Switch Connector Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
KEY REMINDER SWITCH CHECK Disconnect key reminder switch connector C-312 without removing the key
reminder switch and steerin
g lock c
ylinder.
