MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 111: Identifying Immobilizer Indicator Light

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Insert the third ignition key, and turn it to the ON position.
7. The immobilizer-ECU identifies the new key to accept or reject it, and operates
the immobilizer indicator (See the table below).
Fig. 112: Immobilizer Indicator Table

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

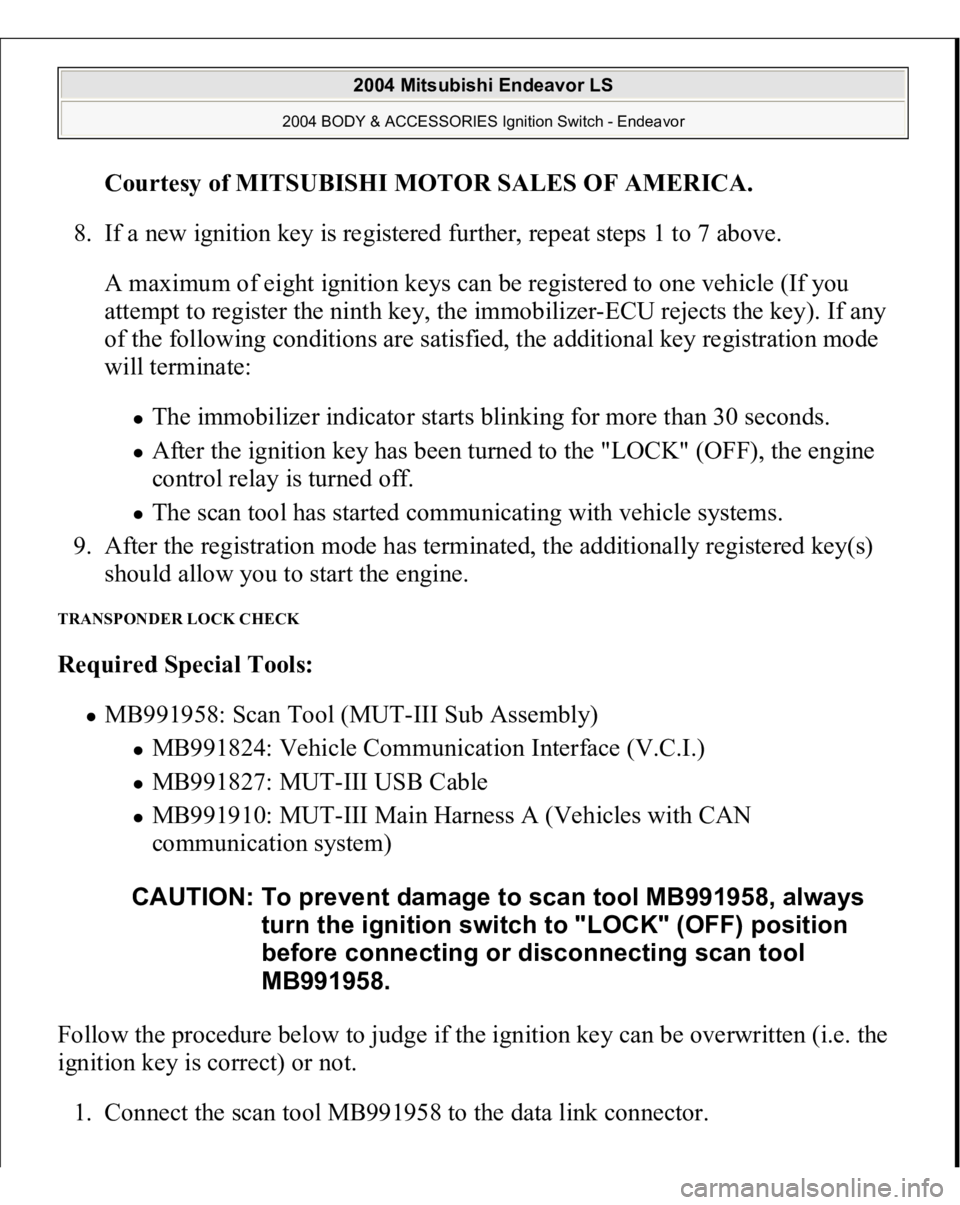

8. If a new ignition key is registered further, repeat steps 1 to 7 above.
A maximum of eight ignition keys can be registered to one vehicle (If you
attempt to register the ninth key, the immobilizer-ECU rejects the key). If any
of the following conditions are satisfied, the additional key registration mode
will terminate:
The immobilizer indicator starts blinking for more than 30 seconds. After the ignition key has been turned to the "LOCK" (OFF), the engine
control relay is turned off. The scan tool has started communicating with vehicle systems.
9. After the registration mode has terminated, the additionally registered key(s)
should allow you to start the engine.
TRANSPONDER LOCK CHECK Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
Follow the procedure below to judge if the ignition key can be overwritten (i.e. the
ignition key is correct) or not.
1. Connect the scan tool MB991958 to the data link connector. CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 113: Connecting Scan Tool MB991958 To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

2. Turn the ignition switch to "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
Fig. 114: Displaying "Select System"

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Choose "IMMOBILIZER" from the "POWER TRAIN" tab.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 115: Displaying "Immobilizer"

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Select "Data List."

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 116: Displaying "Data List"

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. The multi-center display shows whether the ignition key, which has been
inserted in the switch, can be rewritten and how many ignition keys have ever
been re
gistered.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 117: Displaying "Multi
-Center Display"

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 118: Identifying TP Lock Check Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
IGNITION SWITCH REMOVAL AND INSTALLATION < UP TO DECEMBER 2003 > Fig. 119: Removing/Installing Ignition Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS
< < A > > STEERING COLUMN UPPER COVER/STEERING COLUMN LOWER COVER REMOVAL 1. Rotate the steering wheel with a slightly from side-to-side to access and
remove the mountin
g screws.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Fig. 120: Removing Steering Column Upper/Lower Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< < B > > STEERING LOCK CYLINDER REMOVAL 1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward
you.
Fig. 121: Removing Steering Lock Cylinder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL AND INSTALLATION < FROM TO JANUARY 2004 >
WARNING:
Before removing the steering wheel, air bag
module assembly and clock spring refer to AIR BAG RESTRAINT SYSTEMS
).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
