MITSUBISHI ENDEAVOR 2004 Service Repair Manual

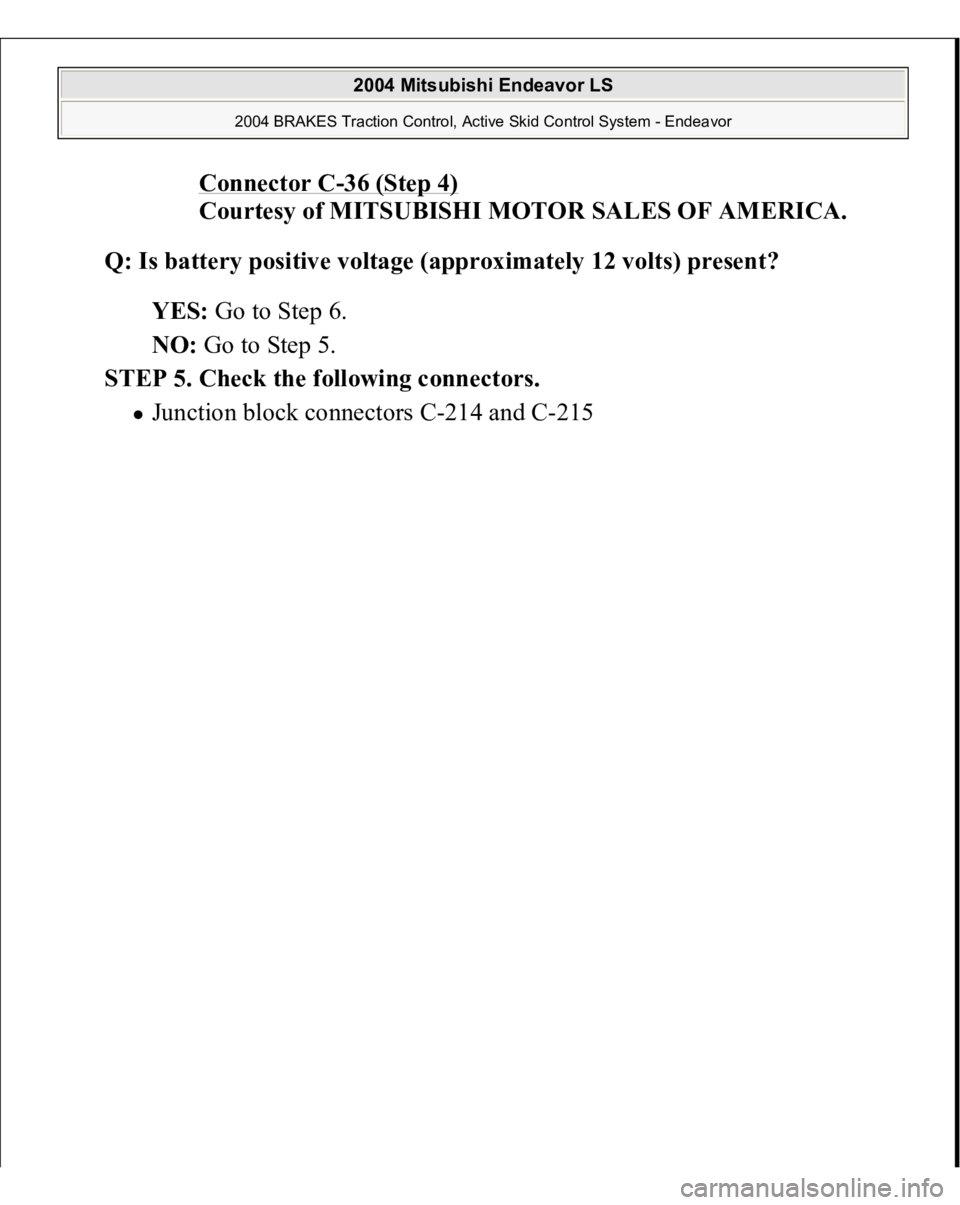

Connector C
-36 (Step 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 6.
NO: Go to Step 5.
STEP 5. Check the following connectors.
Junction block connectors
C-214 and C-215

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

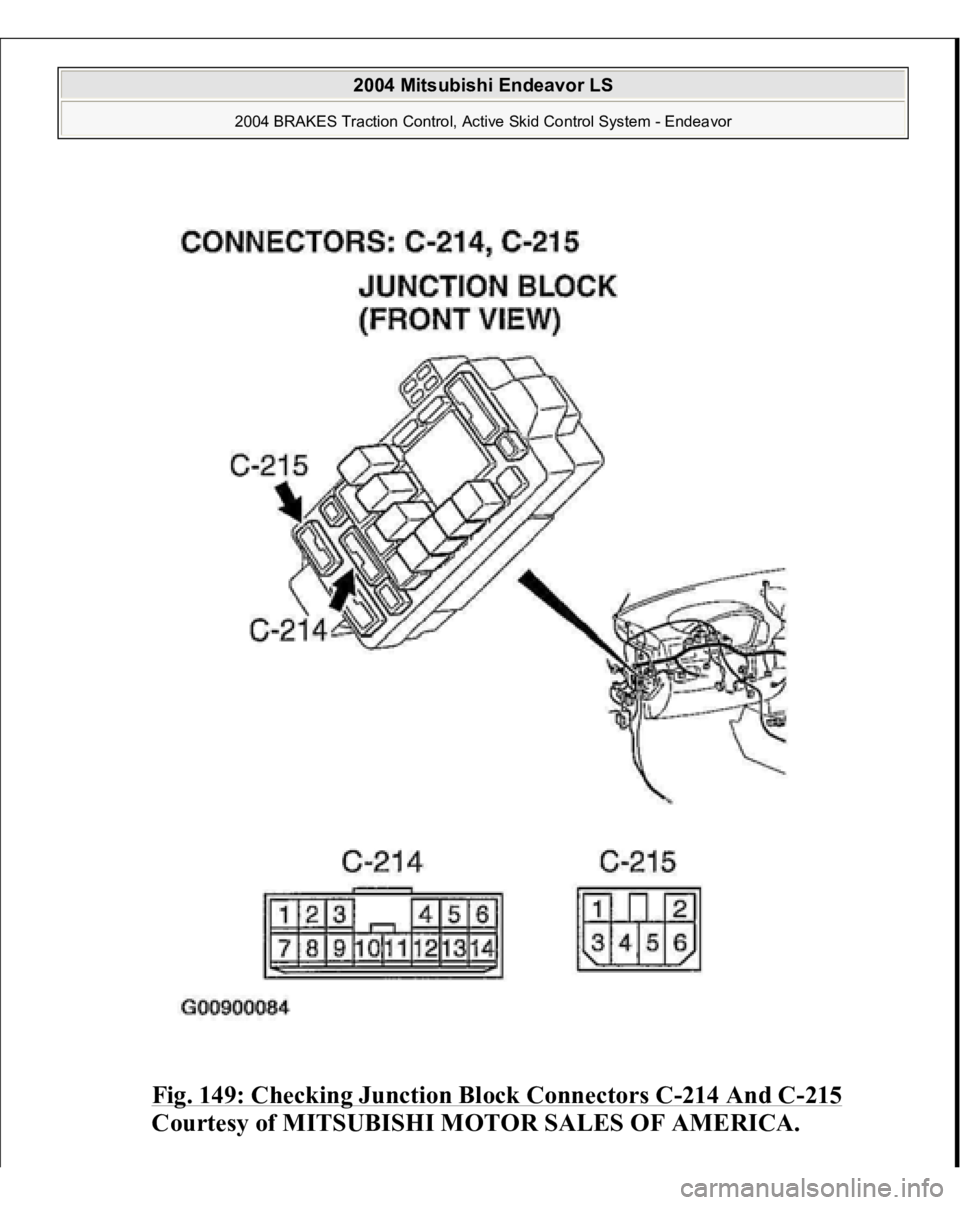

Fig. 149: Checking Junction Block Connectors C
-214 And C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Joint connector (1) C-04
Fig. 150: Checking Joint Connector (1) C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G and yaw rate sensor connector C-36

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

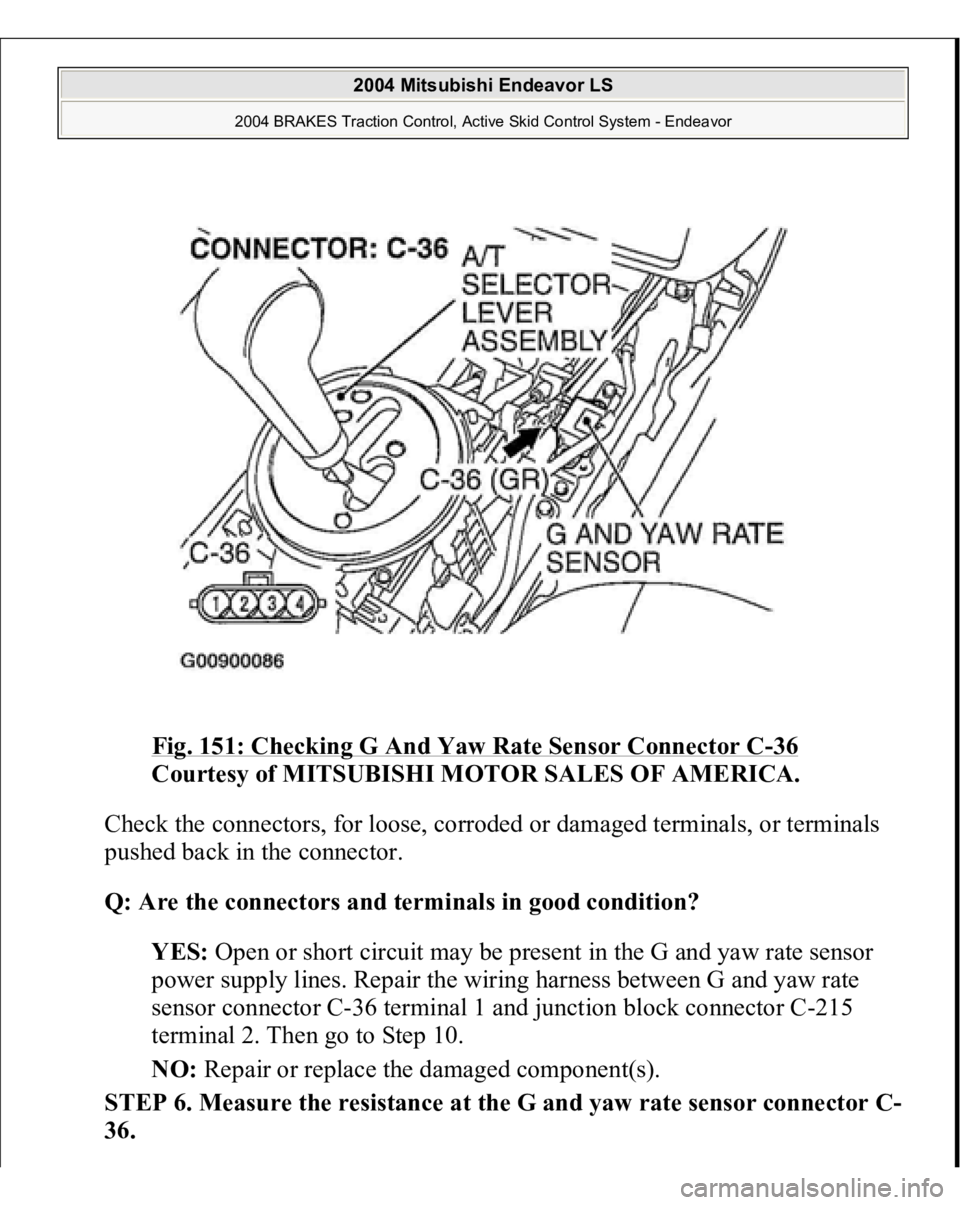

Fig. 151: Checking G And Yaw Rate Sensor Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: Open or short circuit may be present in the G and yaw rate sensor
power supply lines. Repair the wiring harness between G and yaw rate
sensor connector C-36 terminal 1 and junction block connector C-215
terminal 2. Then go to Step 10.
NO: Repair or replace the damaged component(s).
STEP 6. Measure the resistance at the G and yaw rate sensor connector C-
36.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

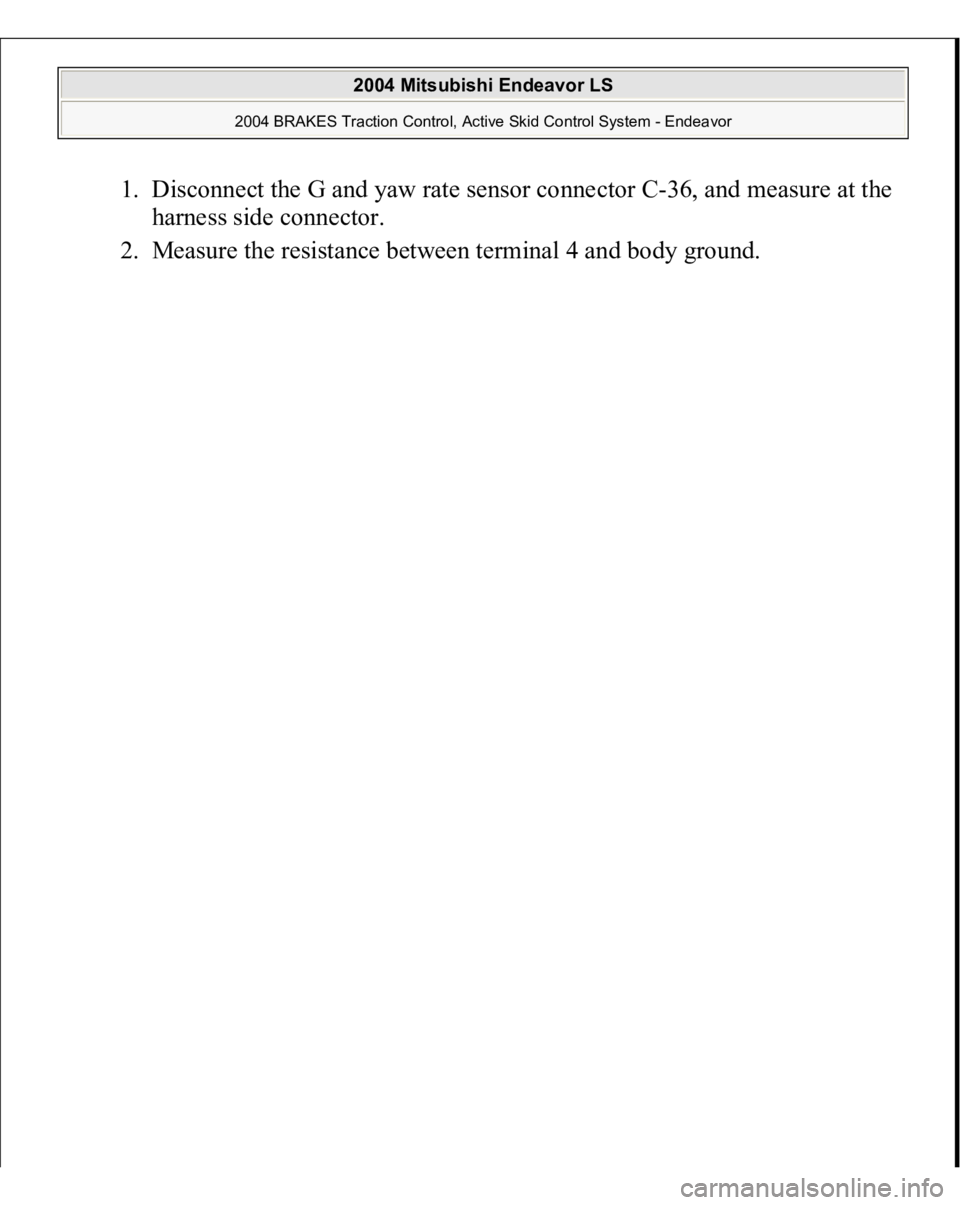

1. Disconnect the G and yaw rate sensor connector C-36, and measure at the
harness side connector.
2. Measure the resistance between terminal 4 and body ground.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

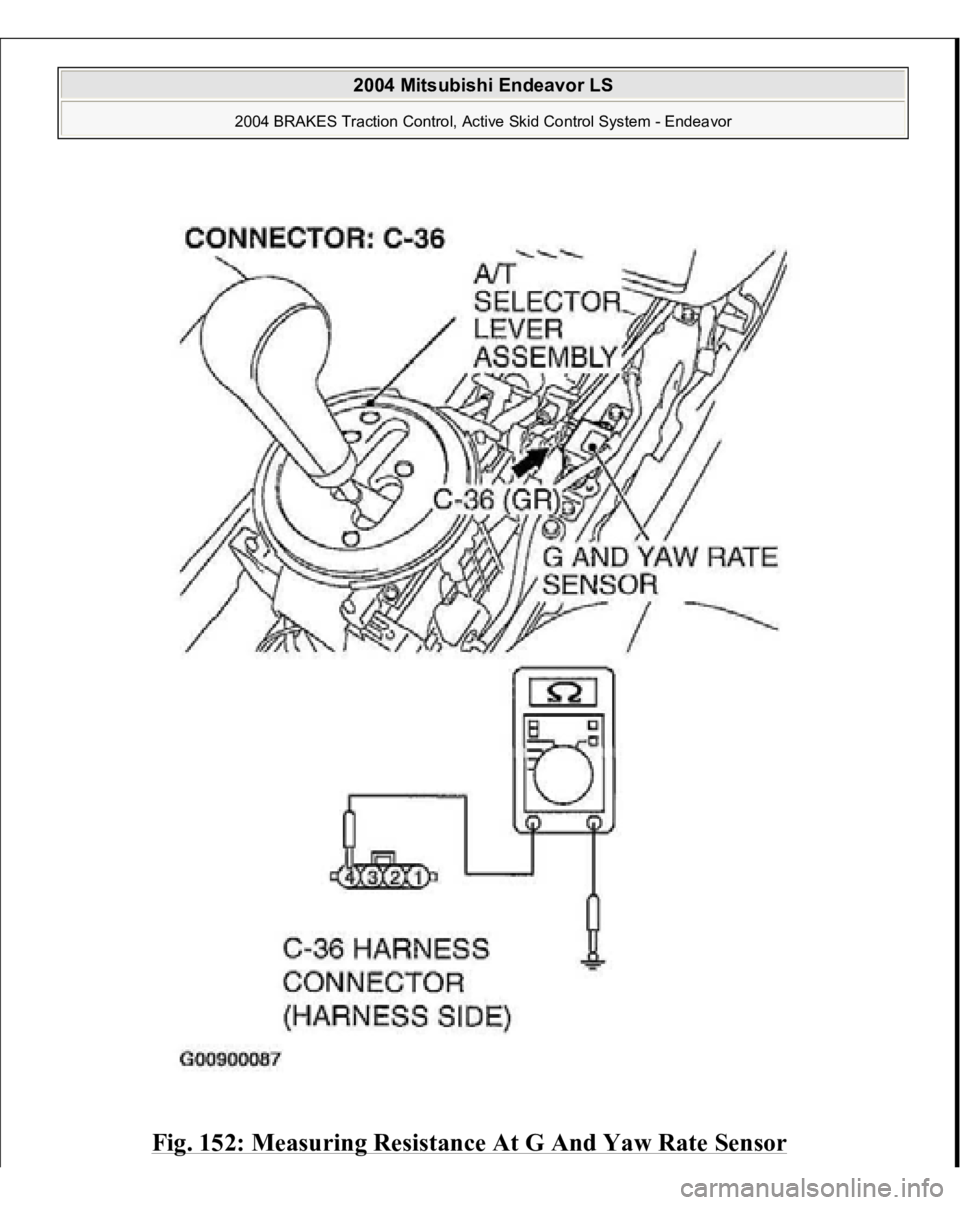

Fig. 152: Measuring Resistance At G And Yaw Rate Sensor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

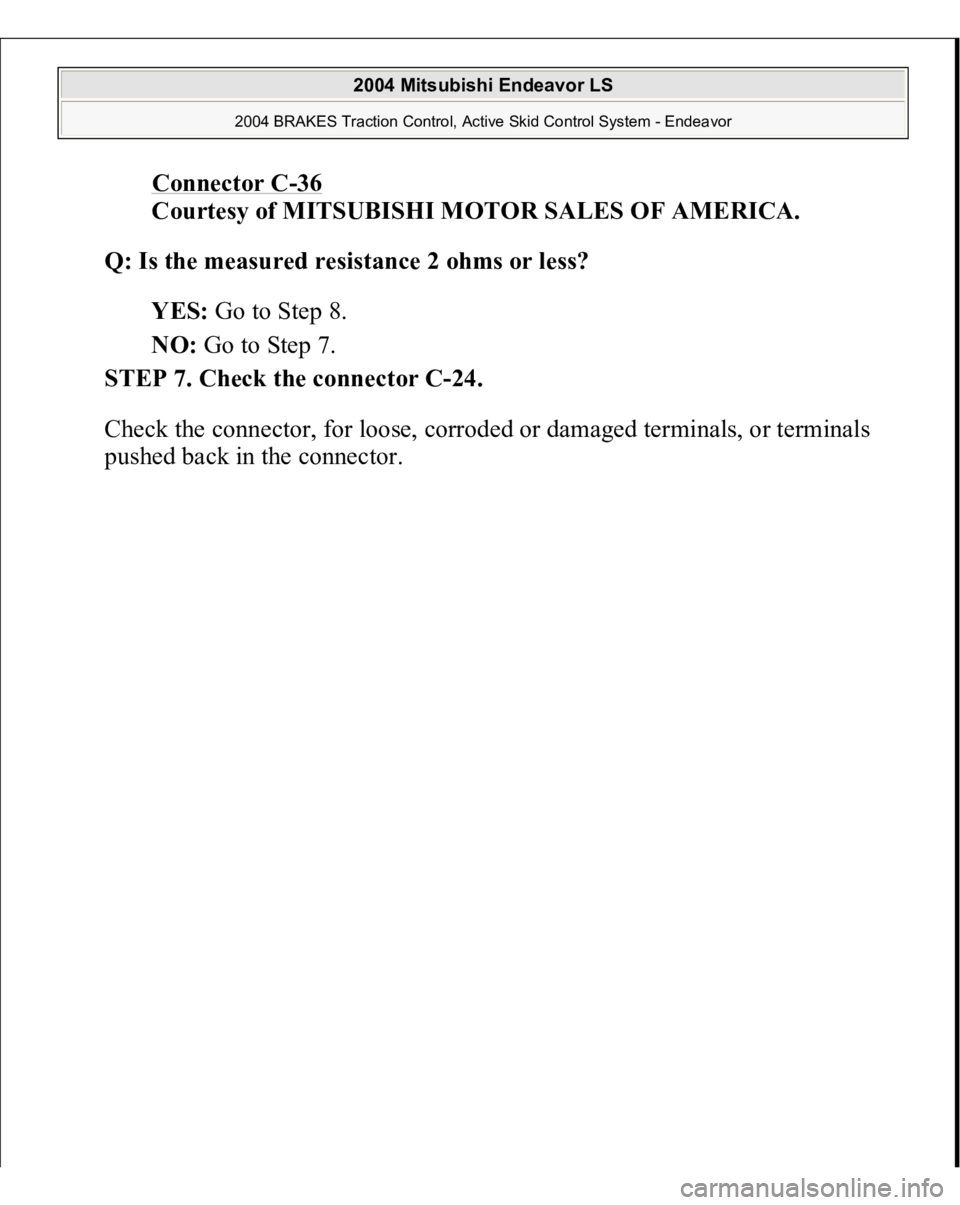

Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 8.
NO: Go to Step 7.
STEP 7. Check the connector C-24.
Check the connector, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

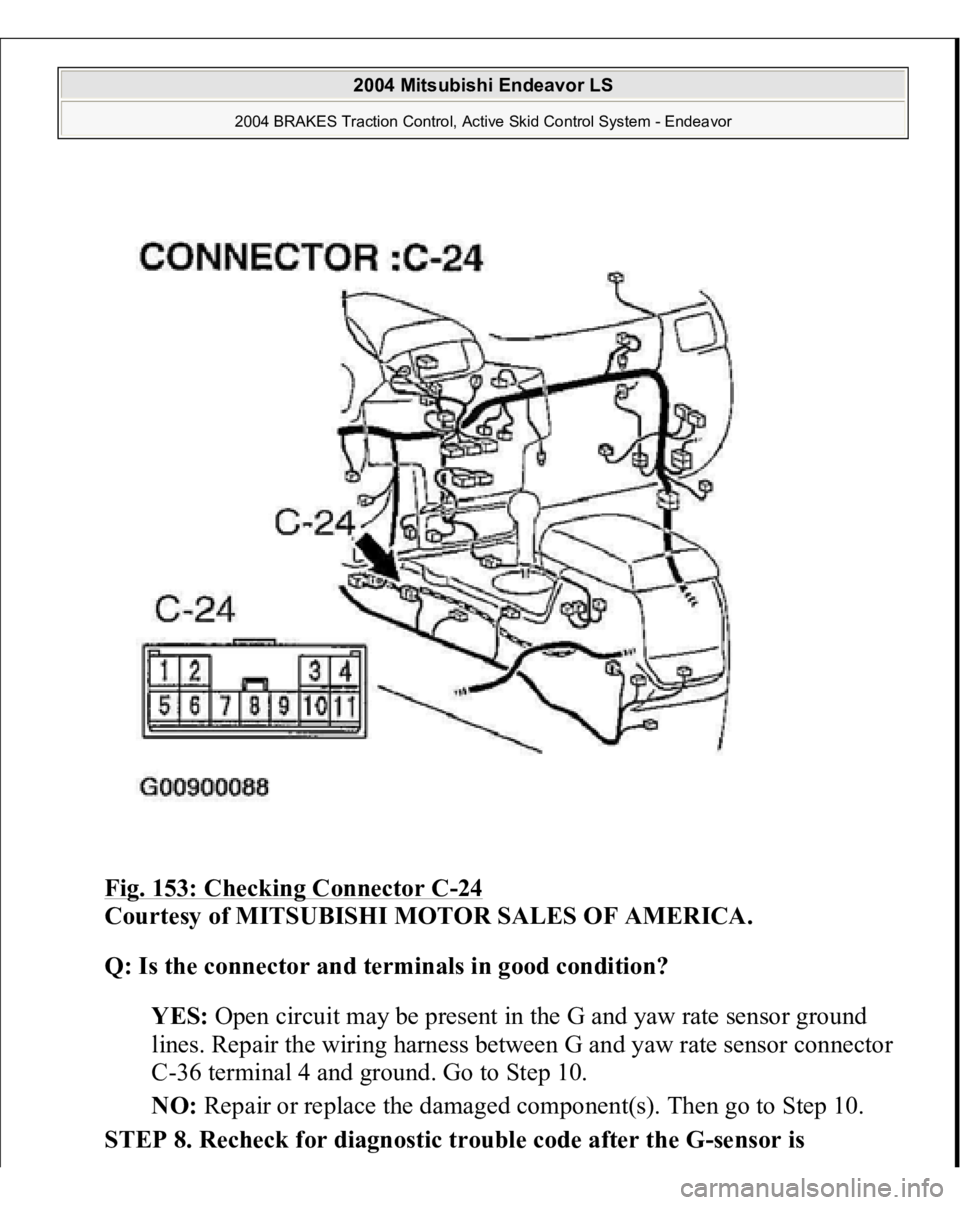

Fig. 153: Checking Connector C
-24
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the connector and terminals in good condition?
YES: Open circuit may be present in the G and yaw rate sensor ground
lines. Repair the wiring harness between G and yaw rate sensor connector
C-36 terminal 4 and ground. Go to Step 10.
NO: Repair or replace the damaged component(s). Then go to Step 10.
STEP 8. Recheck for diagnostic trouble code after the G-sensor is

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

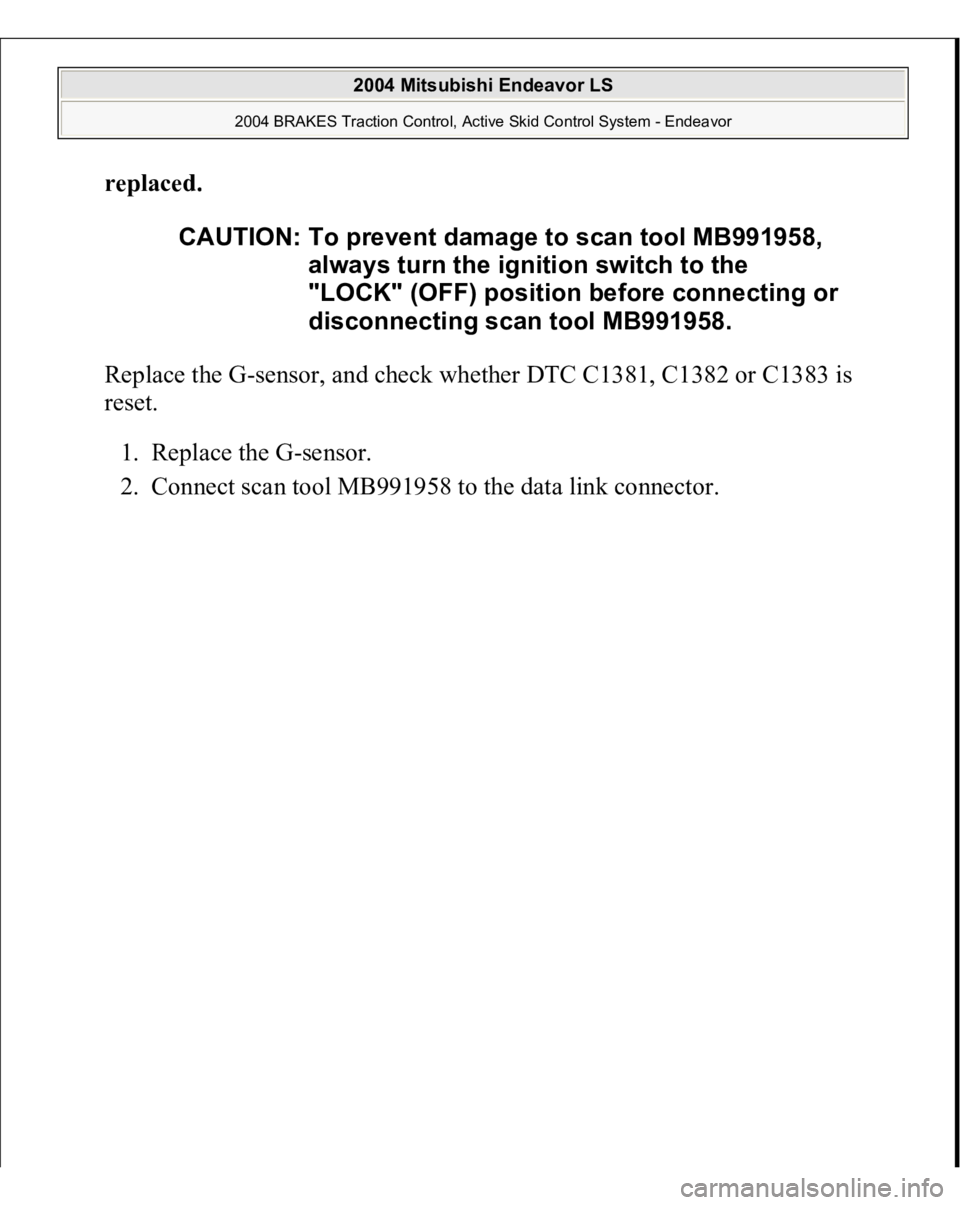

replaced
.
Replace the G-sensor, and check whether DTC C1381, C1382 or C1383 is
reset.
1. Replace the G-sensor.
2. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 154: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
