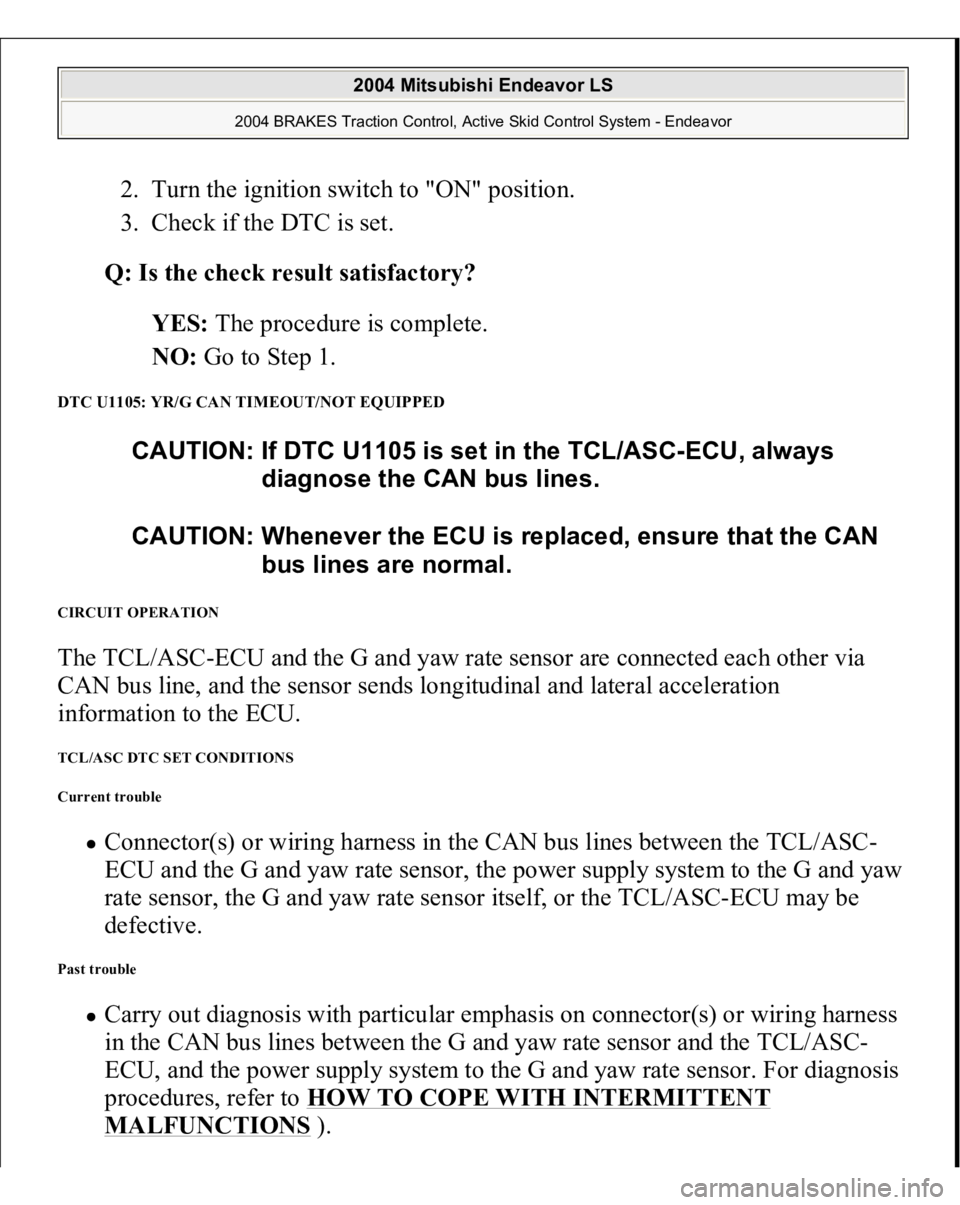

2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: The procedure is complete.
NO: Go to Step 1.
DTC U1105: YR/G CAN TIMEOUT/NOT EQUIPPED CIRCUIT OPERATION The TCL/ASC-ECU and the G and yaw rate sensor are connected each other via
CAN bus line, and the sensor sends longitudinal and lateral acceleration
information to the ECU. TCL/ASC DTC SET CONDITIONS
Current trouble
Connector(s) or wiring harness in the CAN bus lines between the TCL/ASC-
ECU and the G and yaw rate sensor, the power supply system to the G and yaw
rate sensor, the G and yaw rate sensor itself, or the TCL/ASC-ECU may be
defective.
Past trouble
Carry out diagnosis with particular emphasis on connector(s) or wiring harness
in the CAN bus lines between the G and yaw rate sensor and the TCL/ASC-
ECU, and the power supply system to the G and yaw rate sensor. For diagnosis
procedures, refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
). CAUTION: If DTC U1105 is set in the TCL/ASC-ECU, always
diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Malfunction of the G and yaw rate sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Re
pair the CAN bus lines
(Refer to HOW TO DIAGNOSE THE

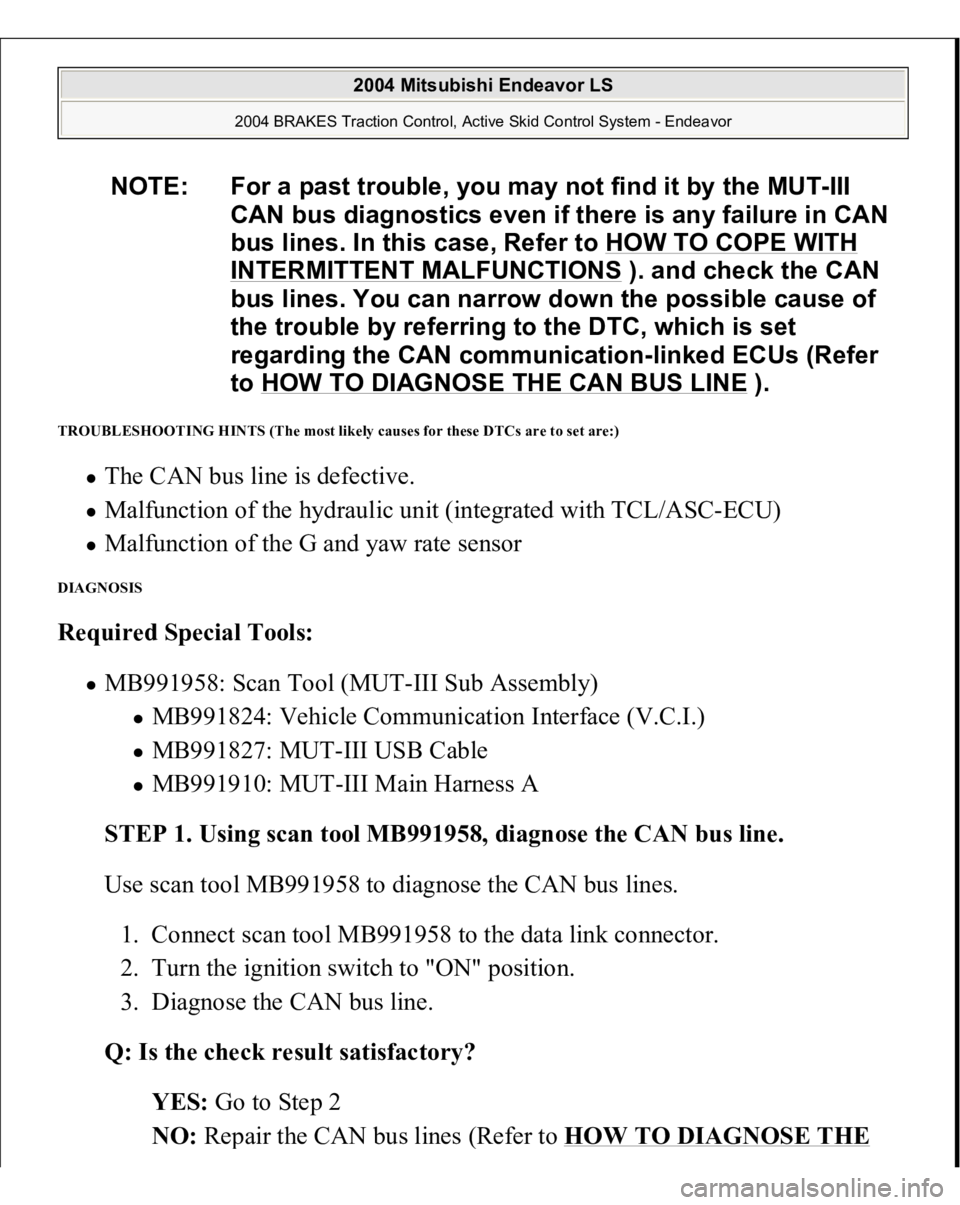

NOTE: For a past trouble, you may not find it by the MUT-III
CAN bus diagnostics even if there is any failure in CAN
bus lines. In this case, Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
). and check the CAN
bus lines. You can narrow down the possible cause of
the trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs (Refer
to HOW TO DIAGNOSE THE CAN BUS LINE
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

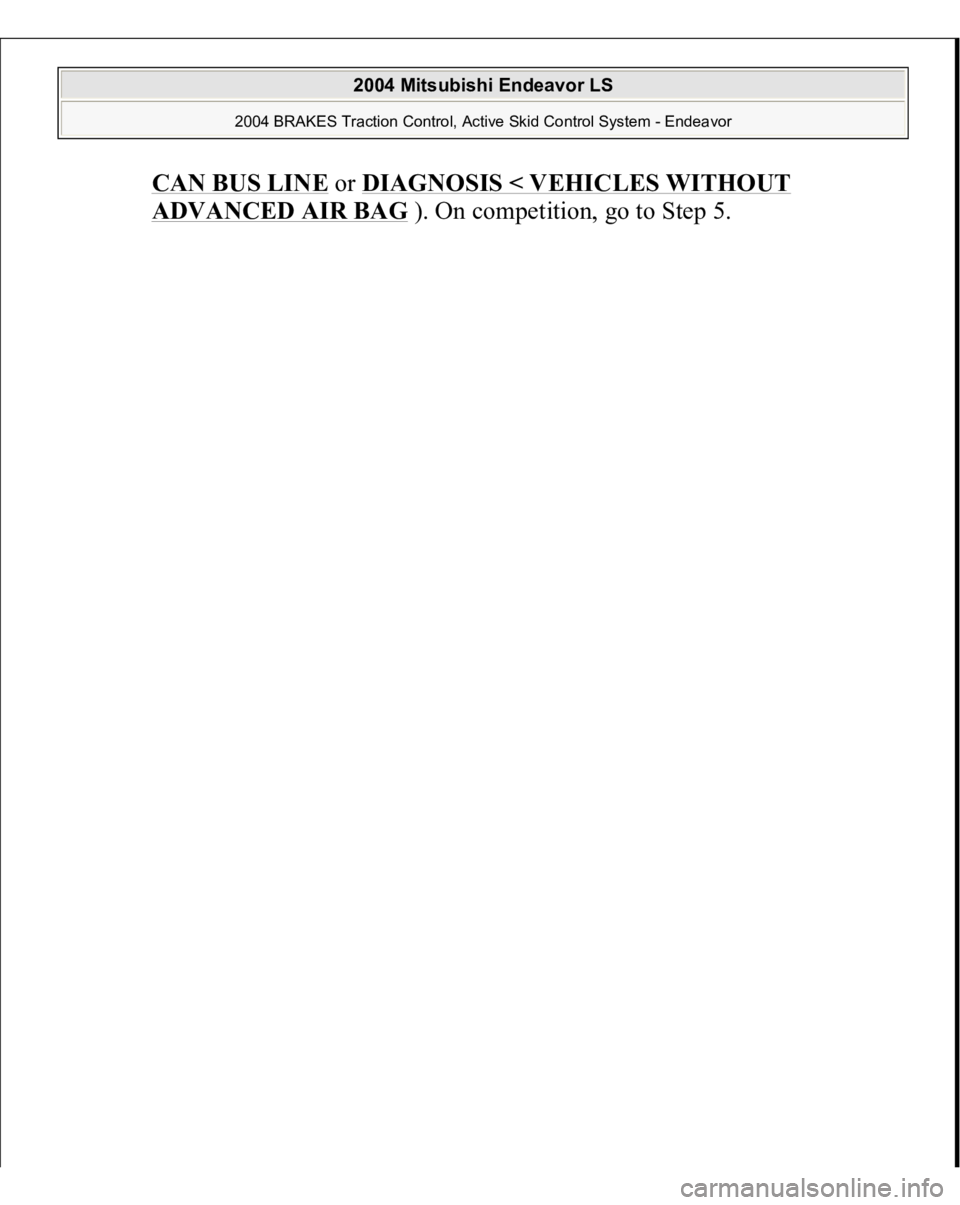

CAN BUS LINE
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). On competition, go to Step 5.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

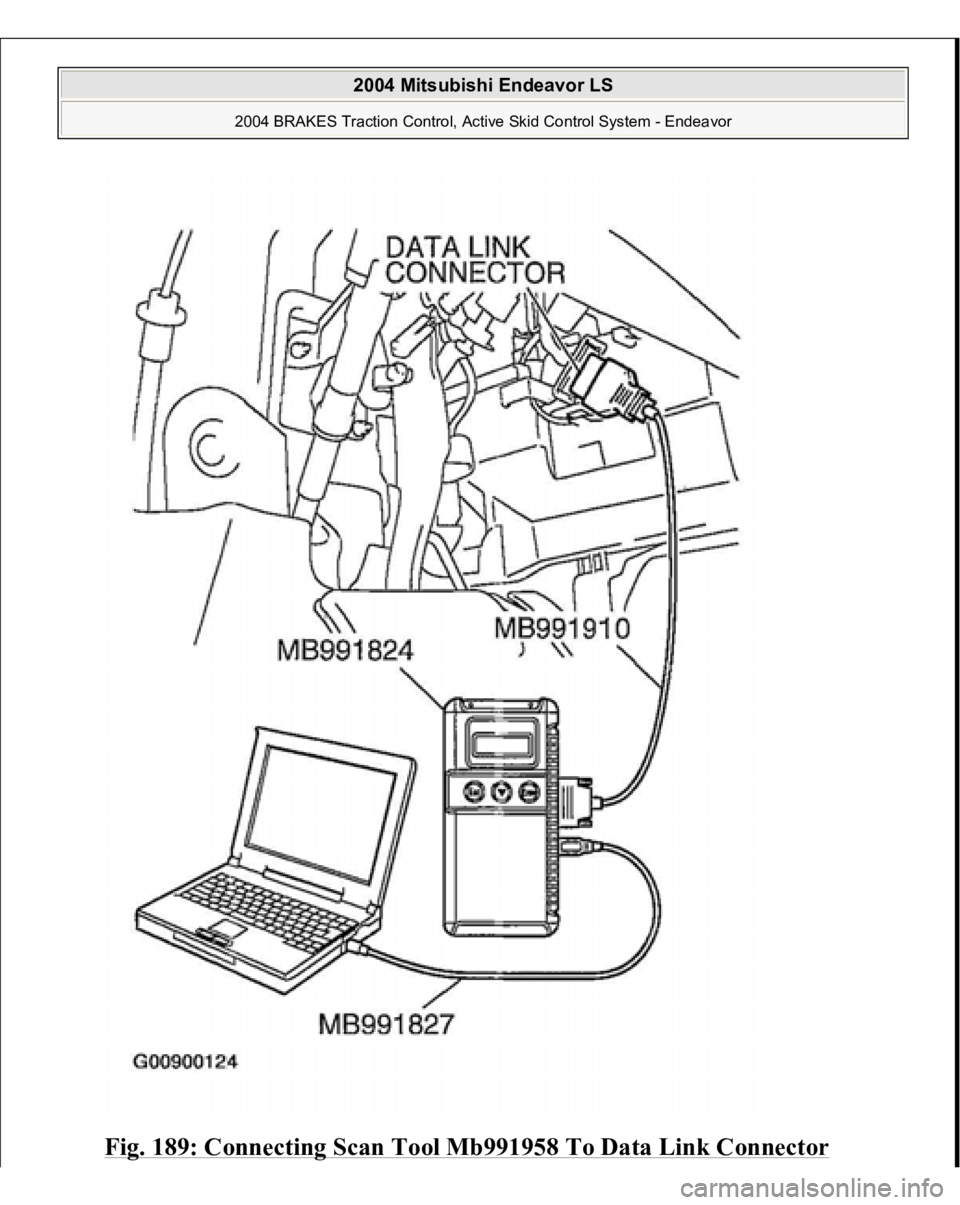

Fig. 189: Connecting Scan Tool Mb991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
STEP 2. Using scan tool MB991958 read the diagnostic trouble code.
Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Power train control module
DTC U1102: ABS-ECU time-out
Combination meter DTC 018: ABS-ECU time-out
Q: Is the DTC set?
YES: Go to Step 3.
NO: Go to Step 4.
STEP 3. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the G and yaw rate sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
NO: Replace hydraulic unit (integrated with TCL/ASC-ECU) and then go
to Step 4.
STEP 4. Recheck for diagnostic trouble code.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

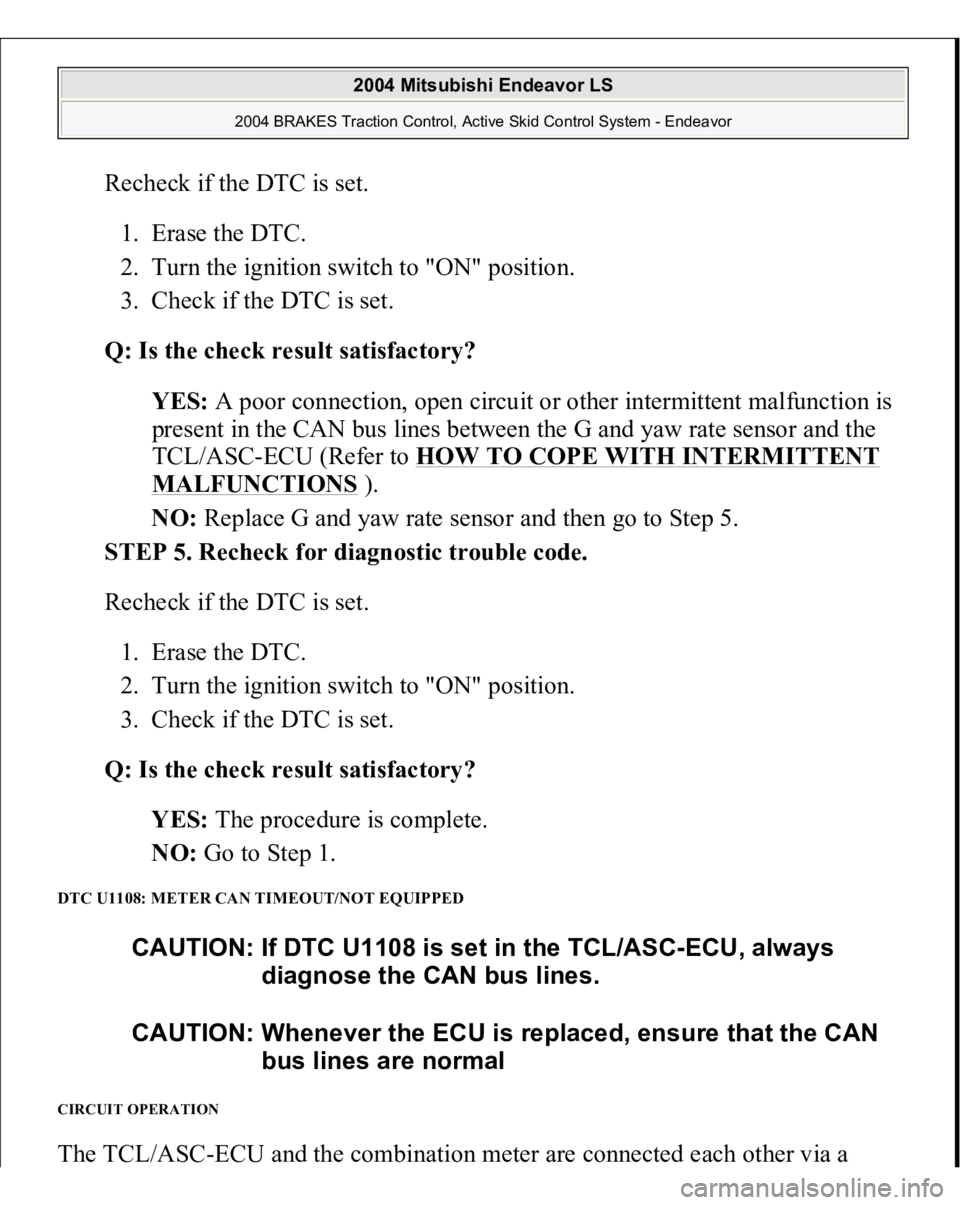

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the G and yaw rate sensor and the
TCL/ASC-ECU (Refer to HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS
).
NO: Replace G and yaw rate sensor and then go to Step 5.
STEP 5. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?
YES: The procedure is complete.
NO: Go to Step 1.
DTC U1108: METER CAN TIMEOUT/NOT EQUIPPED CIRCUIT OPERATION The TCL/ASC-ECU and the combination meter are connected each other via a CAUTION: If DTC U1108 is set in the TCL/ASC-ECU, always
diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

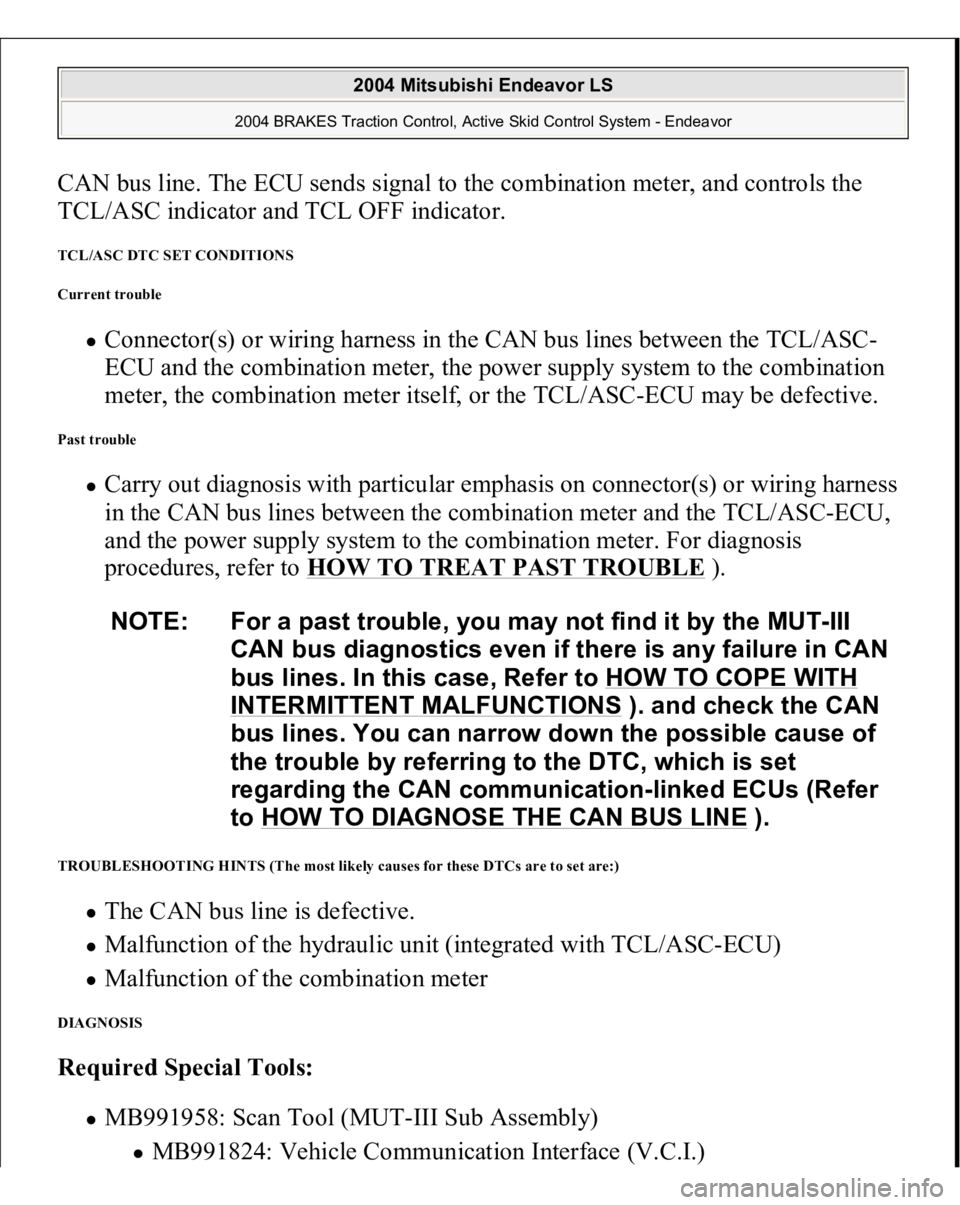

CAN bus line. The ECU sends signal to the combination meter, and controls the
TCL/ASC indicator and TCL OFF indicator. TCL/ASC DTC SET CONDITIONS
Current trouble
Connector(s) or wiring harness in the CAN bus lines between the TCL/ASC-
ECU and the combination meter, the power supply system to the combination
meter, the combination meter itself, or the TCL/ASC-ECU may be defective.
Past trouble
Carry out diagnosis with particular emphasis on connector(s) or wiring harness
in the CAN bus lines between the combination meter and the TCL/ASC-ECU,
and the power supply system to the combination meter. For diagnosis
procedures, refer to HOW TO TREAT PAST TROUBLE
).
TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Malfunction of the combination meter
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface
(V.C.I.
) NOTE: For a past trouble, you may not find it by the MUT-III
CAN bus diagnostics even if there is any failure in CAN
bus lines. In this case, Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
). and check the CAN
bus lines. You can narrow down the possible cause of
the trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs (Refer
to HOW TO DIAGNOSE THE CAN BUS LINE
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 190: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

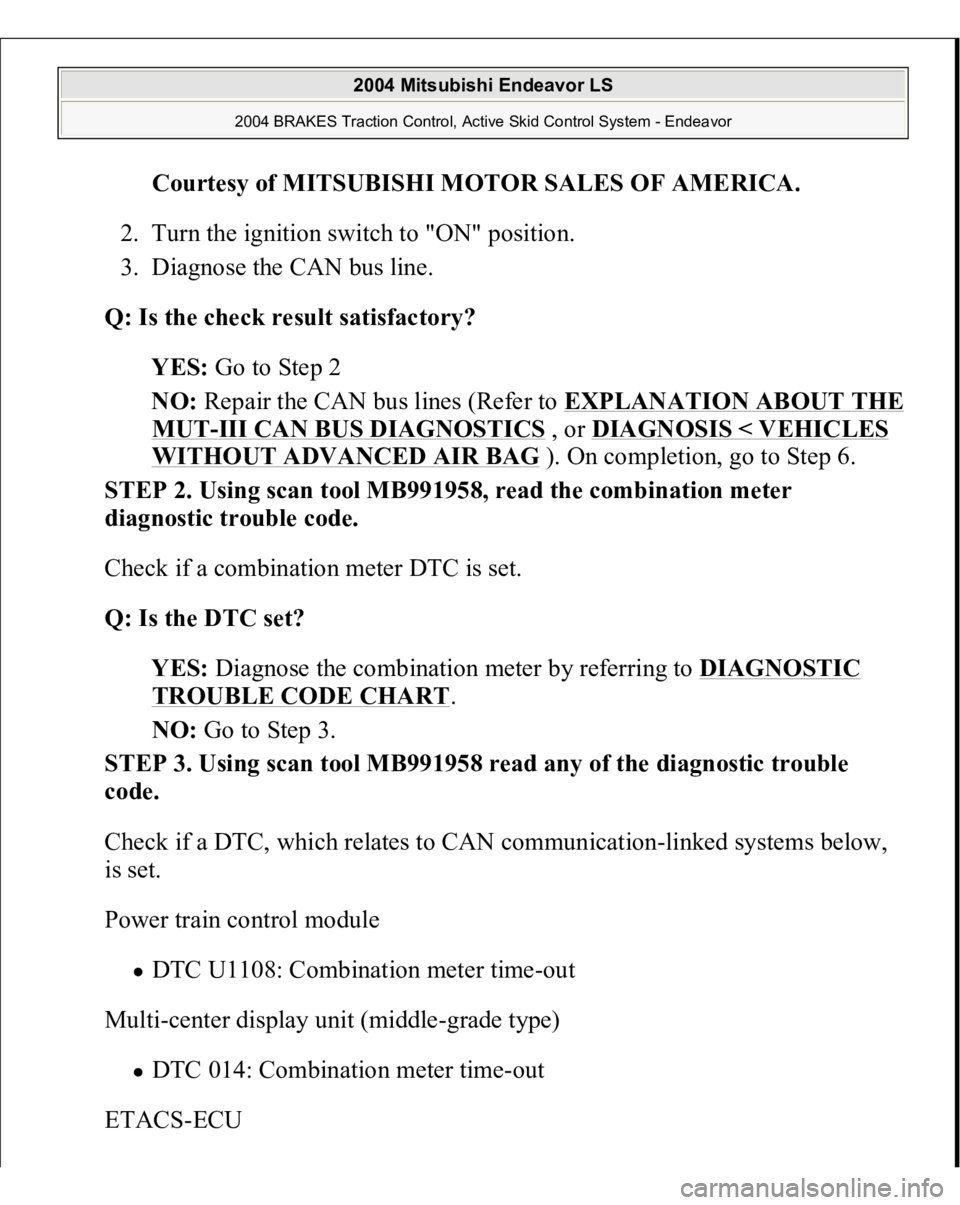

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Repair the CAN bus lines (Refer to EXPLANATION ABOUT THE
MUT
-III CAN BUS DIAGNOSTICS
, or DIAGNOSIS < VEHICLES
WITHOUT ADVANCED AIR BAG
). On completion, go to Step 6.
STEP 2. Using scan tool MB991958, read the combination meter
diagnostic trouble code.
Check if a combination meter DTC is set.
Q: Is the DTC set?
YES: Diagnose the combination meter by referring to DIAGNOSTIC
TROUBLE CODE CHART
.
NO: Go to Step 3.
STEP 3. Using scan tool MB991958 read any of the diagnostic trouble
code.
Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Power train control module
DTC U1108: Combination meter time-out
Multi-center display unit (middle-grade type) DTC 014: Combination meter time-out
ETACS-EC
U
