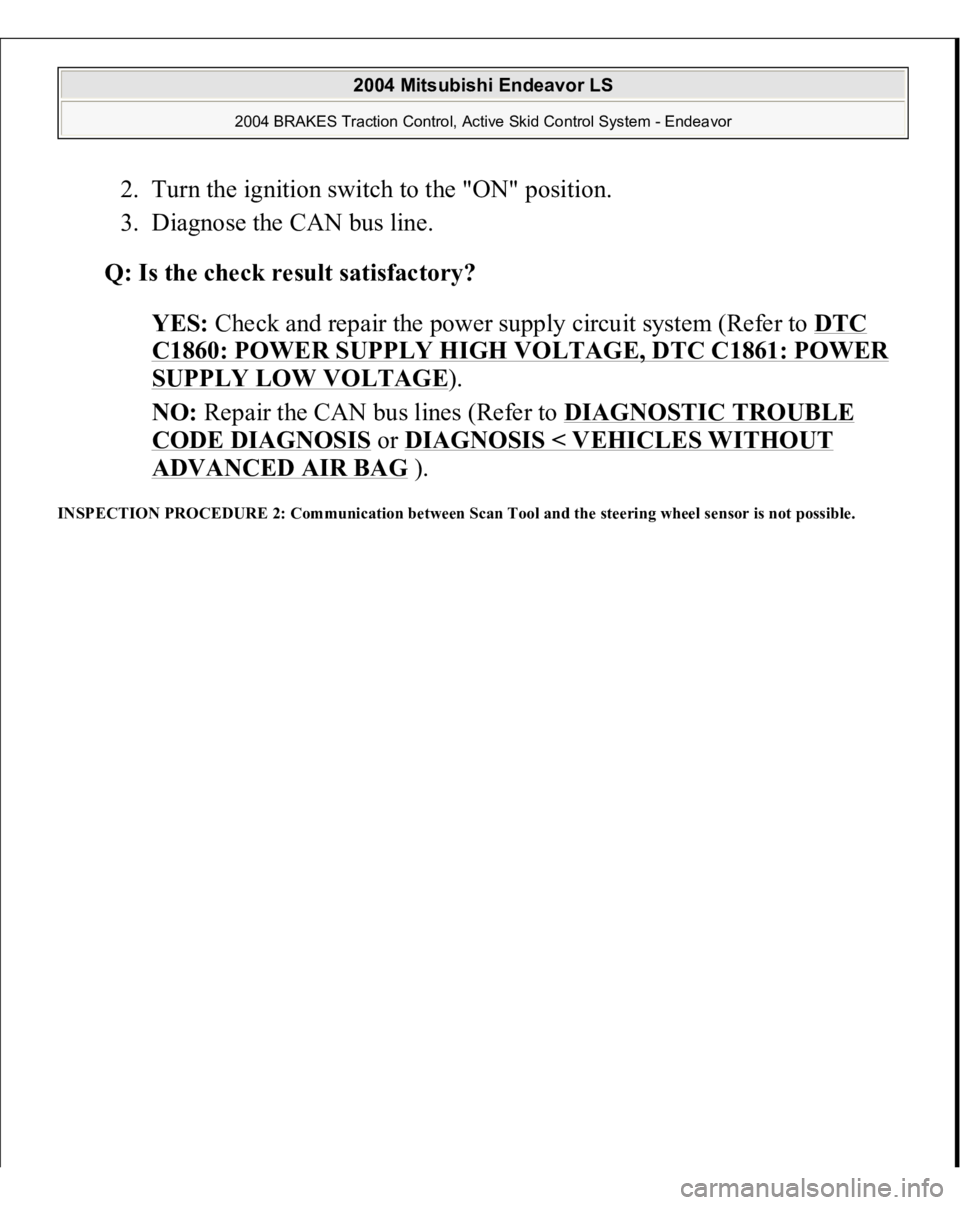

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Check and repair the power supply circuit system (Refer to DTC
C1860: POWER SUPPLY HIGH VOLTAGE, DTC C1861: POWER SUPPLY LOW VOLTAGE
).
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
).
INSPECTION PROCEDURE 2: Communication between Scan Tool and the steering wheel sensor is not possible.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

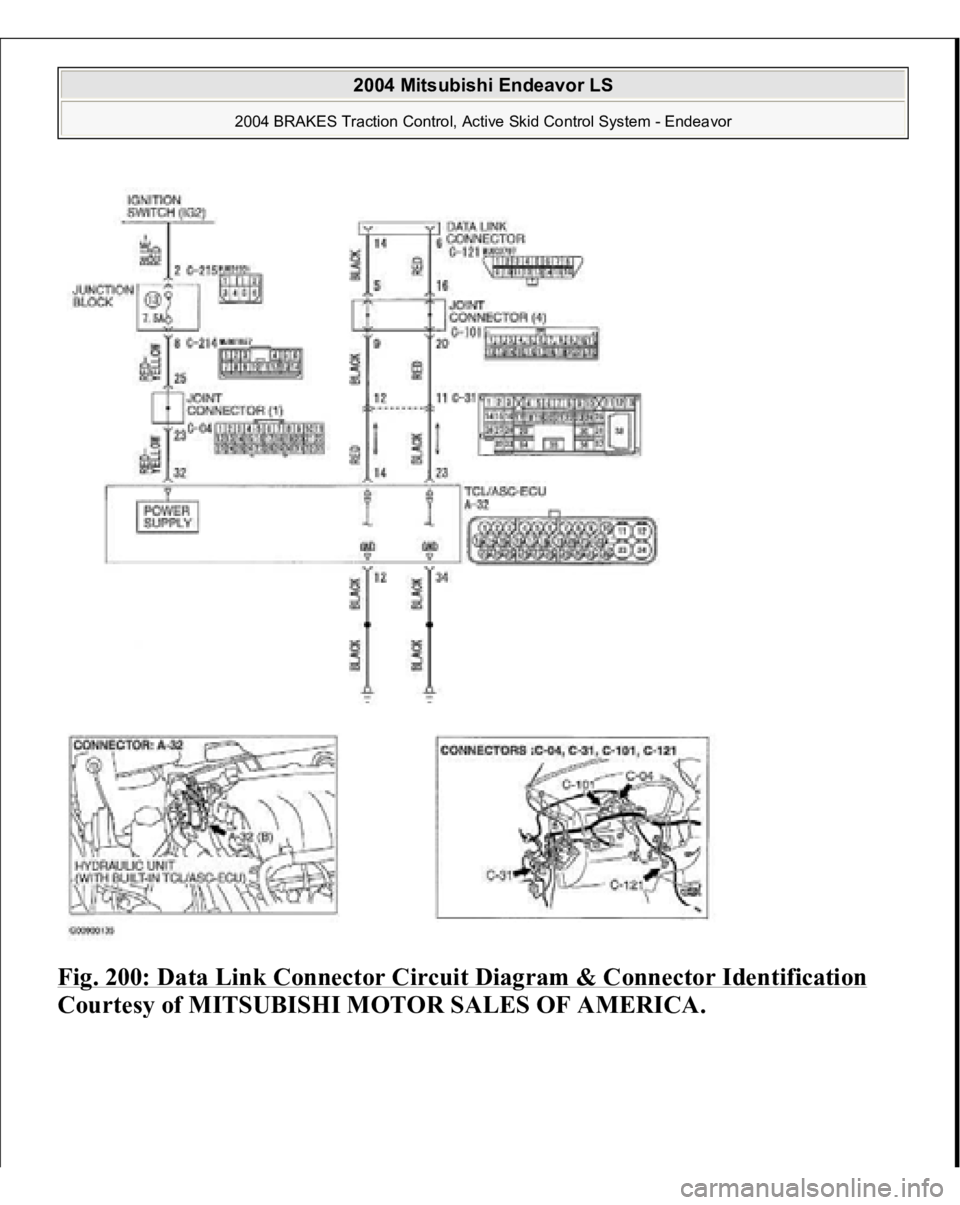

Fig. 200: Data Link Connector Circuit Diagram & Connector Identification

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

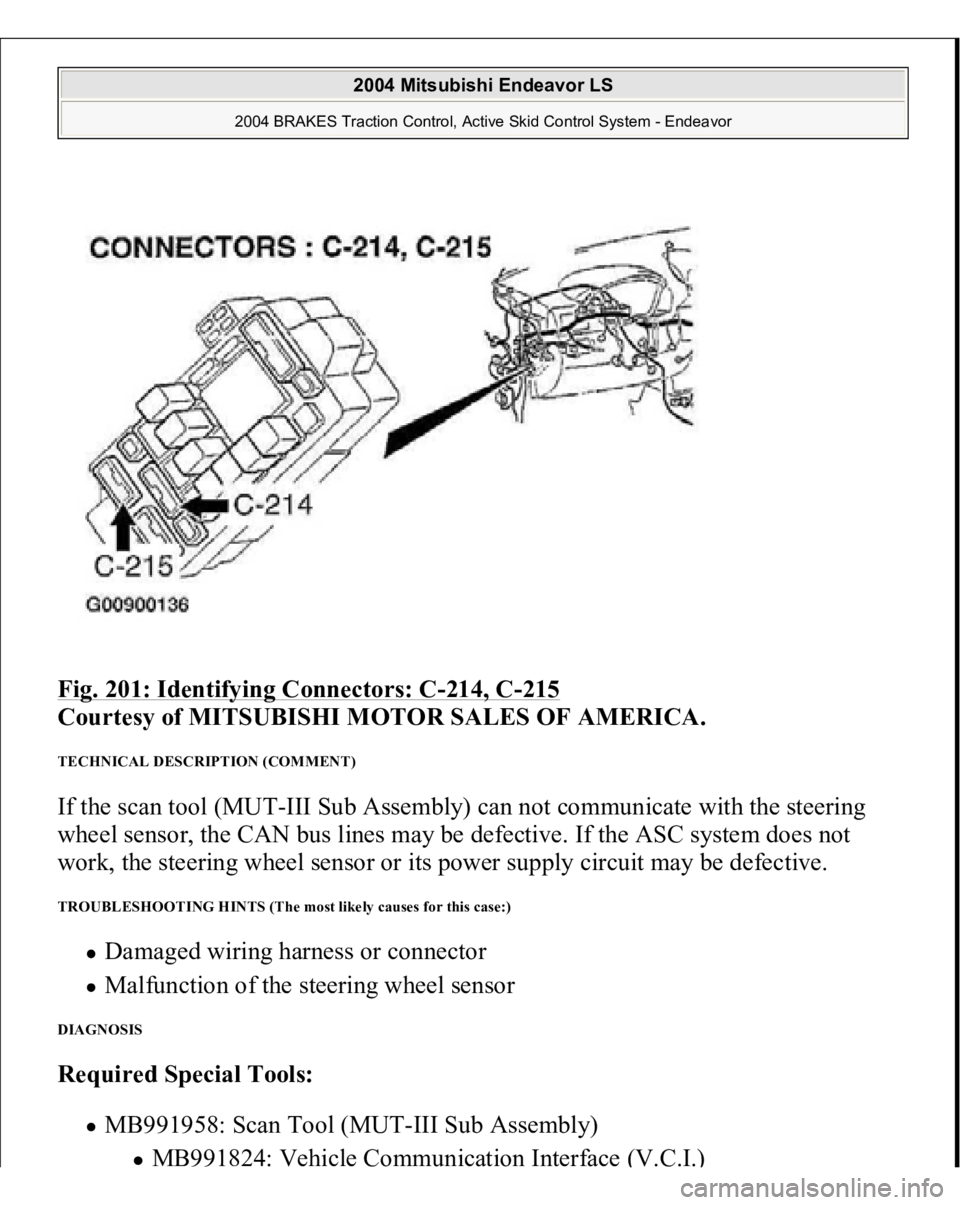

Fig. 201: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TECHNICAL DESCRIPTION (COMMENT) If the scan tool (MUT-III Sub Assembly) can not communicate with the steering
wheel sensor, the CAN bus lines may be defective. If the ASC system does not
work, the steering wheel sensor or its power supply circuit may be defective. TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface
(V.C.I.
)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

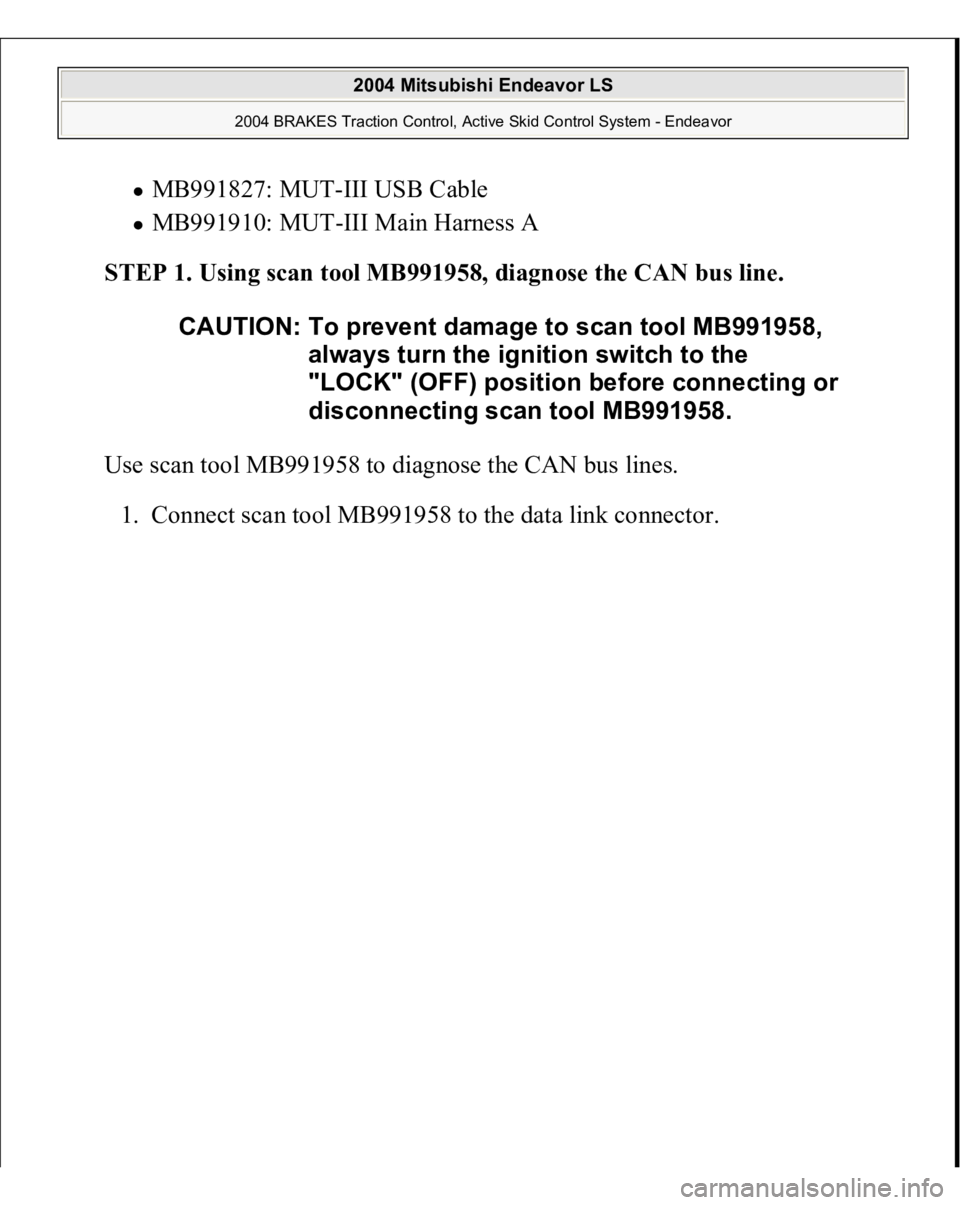

MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

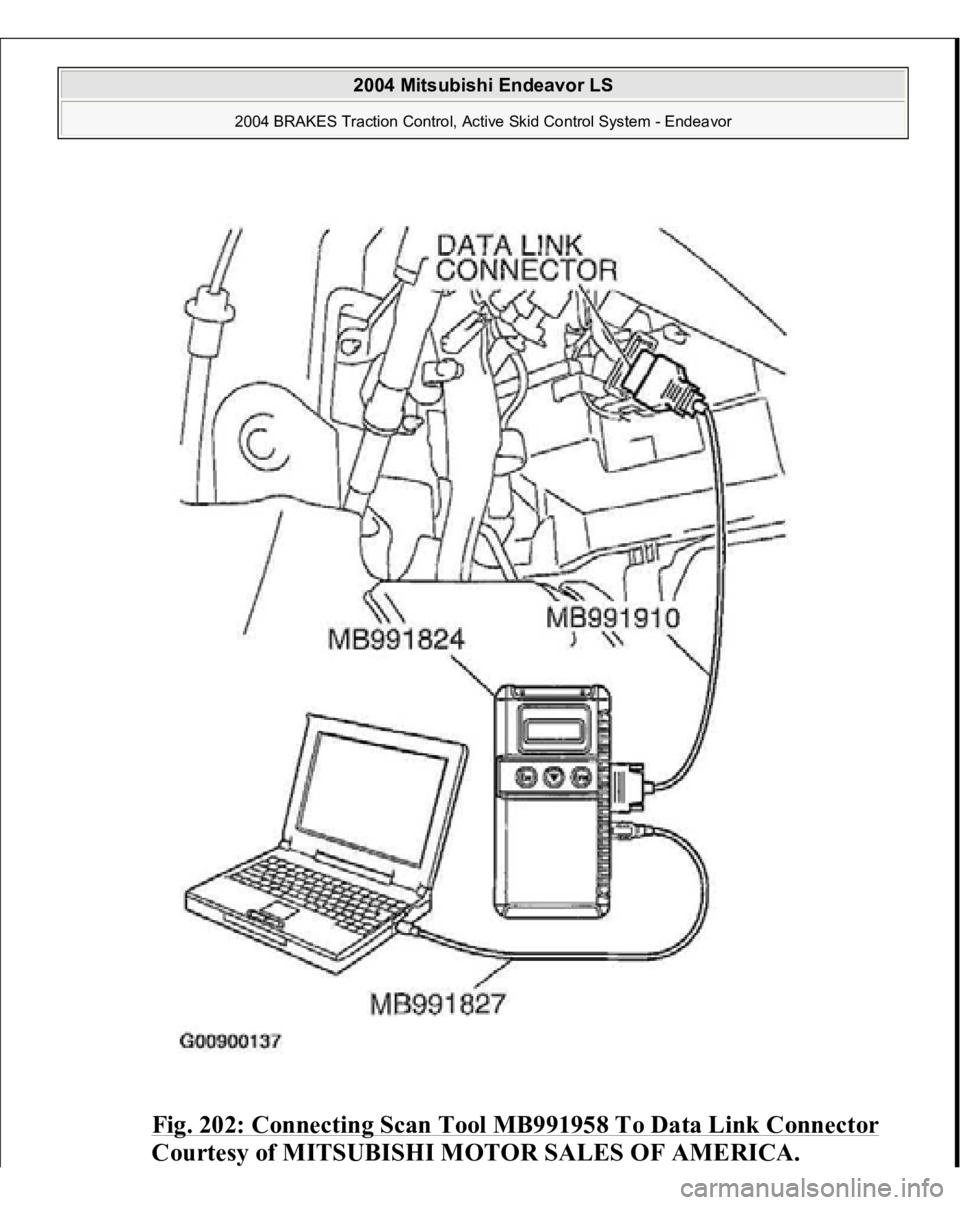

Fig. 202: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

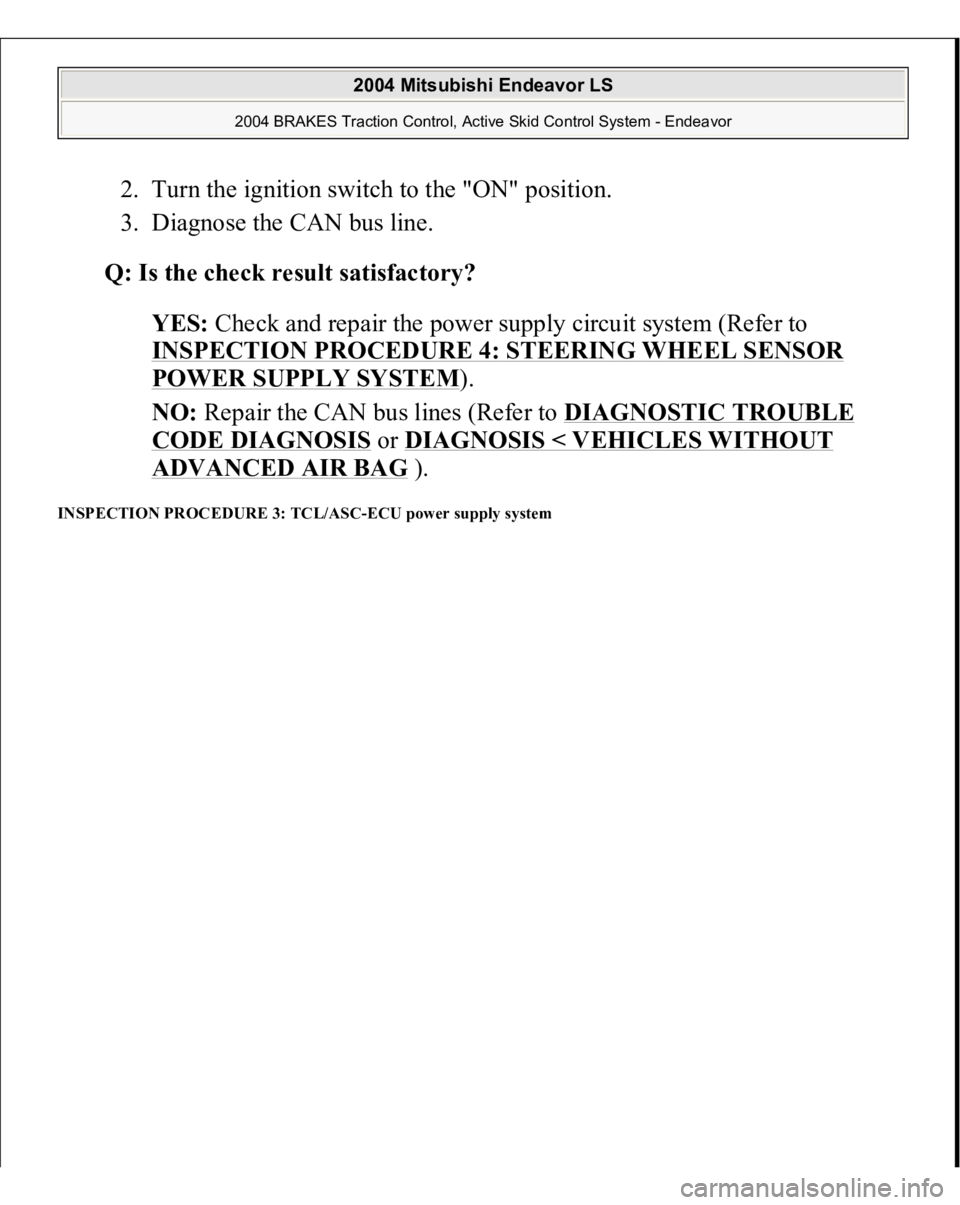

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
Q: Is the check result satisfactory?
YES: Check and repair the power supply circuit system (Refer to
INSPECTION PROCEDURE 4: STEERING WHEEL SENSOR
POWER SUPPLY SYSTEM
).
NO: Repair the CAN bus lines (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
).
INSPECTION PROCEDURE 3: TCL/ASC-ECU power supply system
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

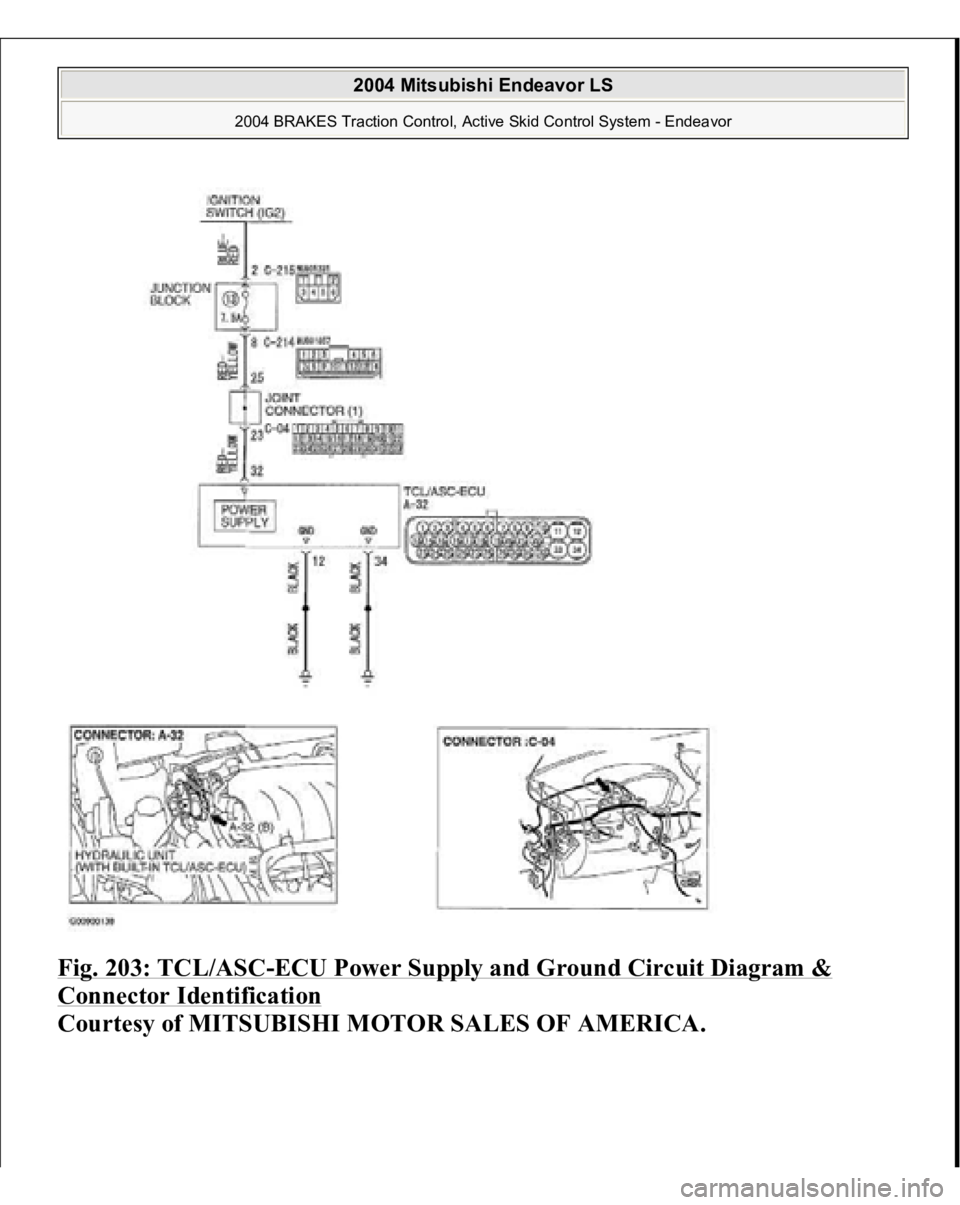

Fig. 203: TCL/ASC
-ECU Power Supply and Ground Circuit Diagram &
Connector Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

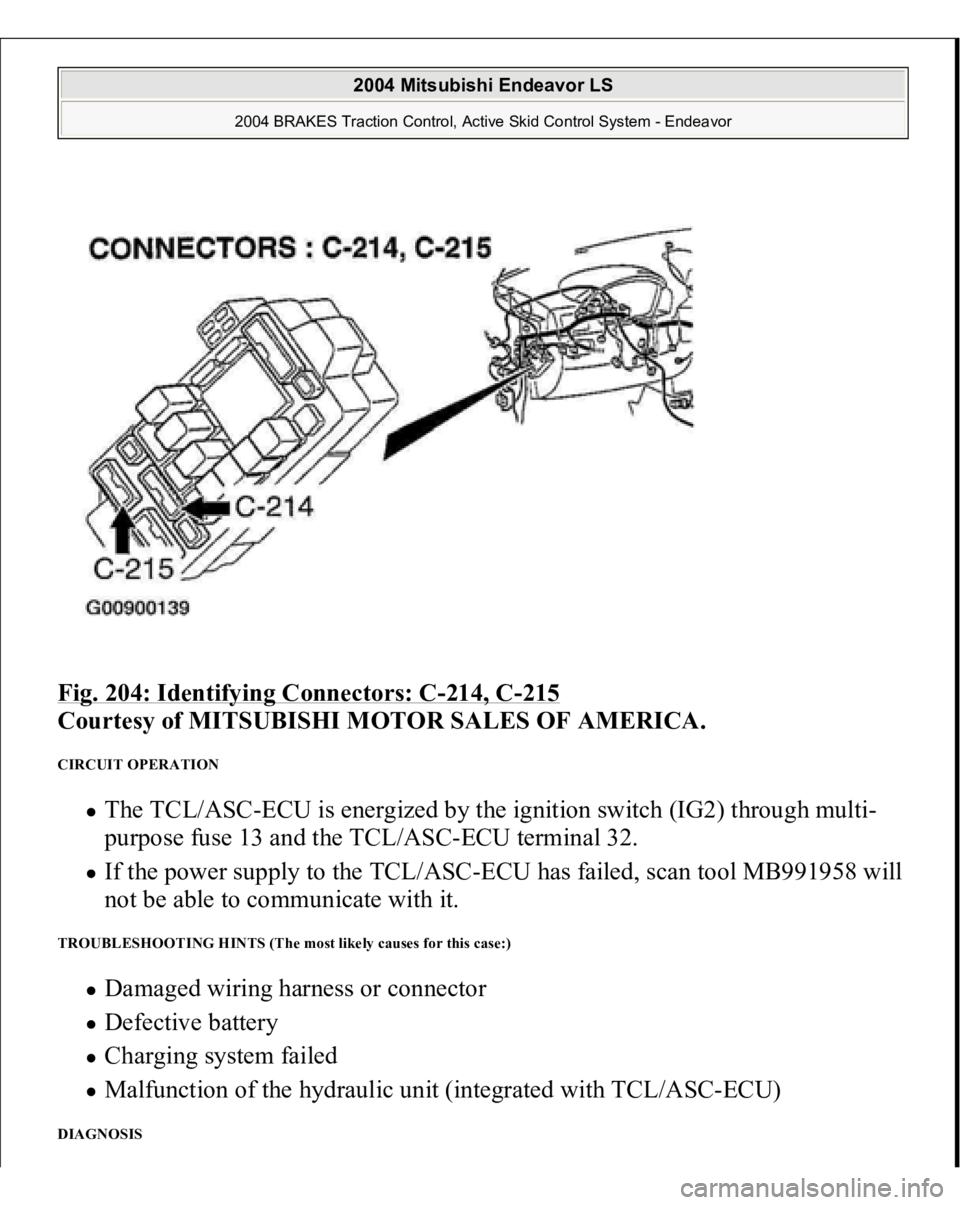

Fig. 204: Identifying Connectors: C
-214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The TCL/ASC-ECU is energized by the ignition switch (IG2) through multi-
purpose fuse 13 and the TCL/ASC-ECU terminal 32. If the power supply to the TCL/ASC-ECU has failed, scan tool MB991958 will
not be able to communicate with it.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Defective battery Charging system failed Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

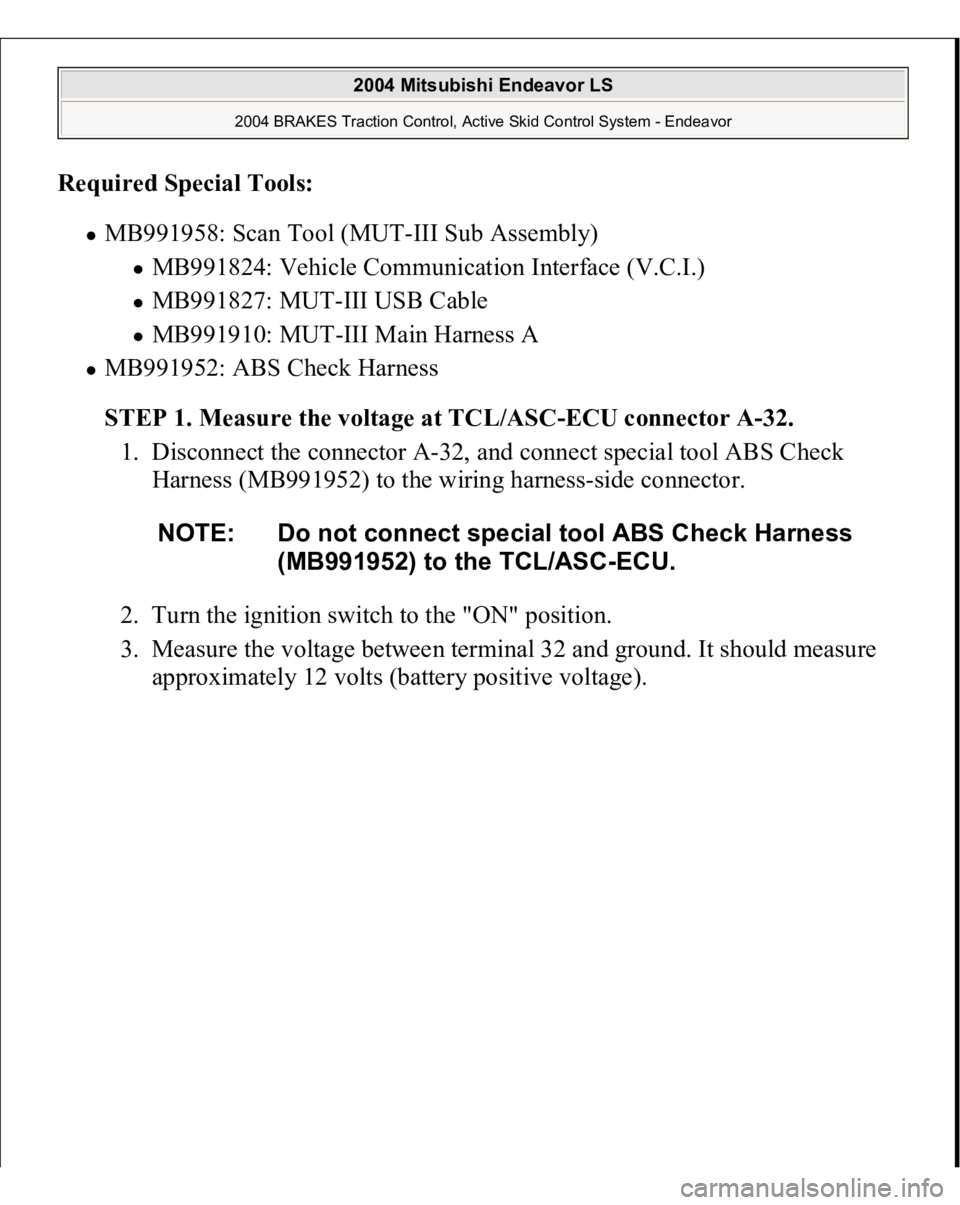

Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Measure the voltage at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 32 and ground. It should measure
approximately 12 volts (battery positive voltage). NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

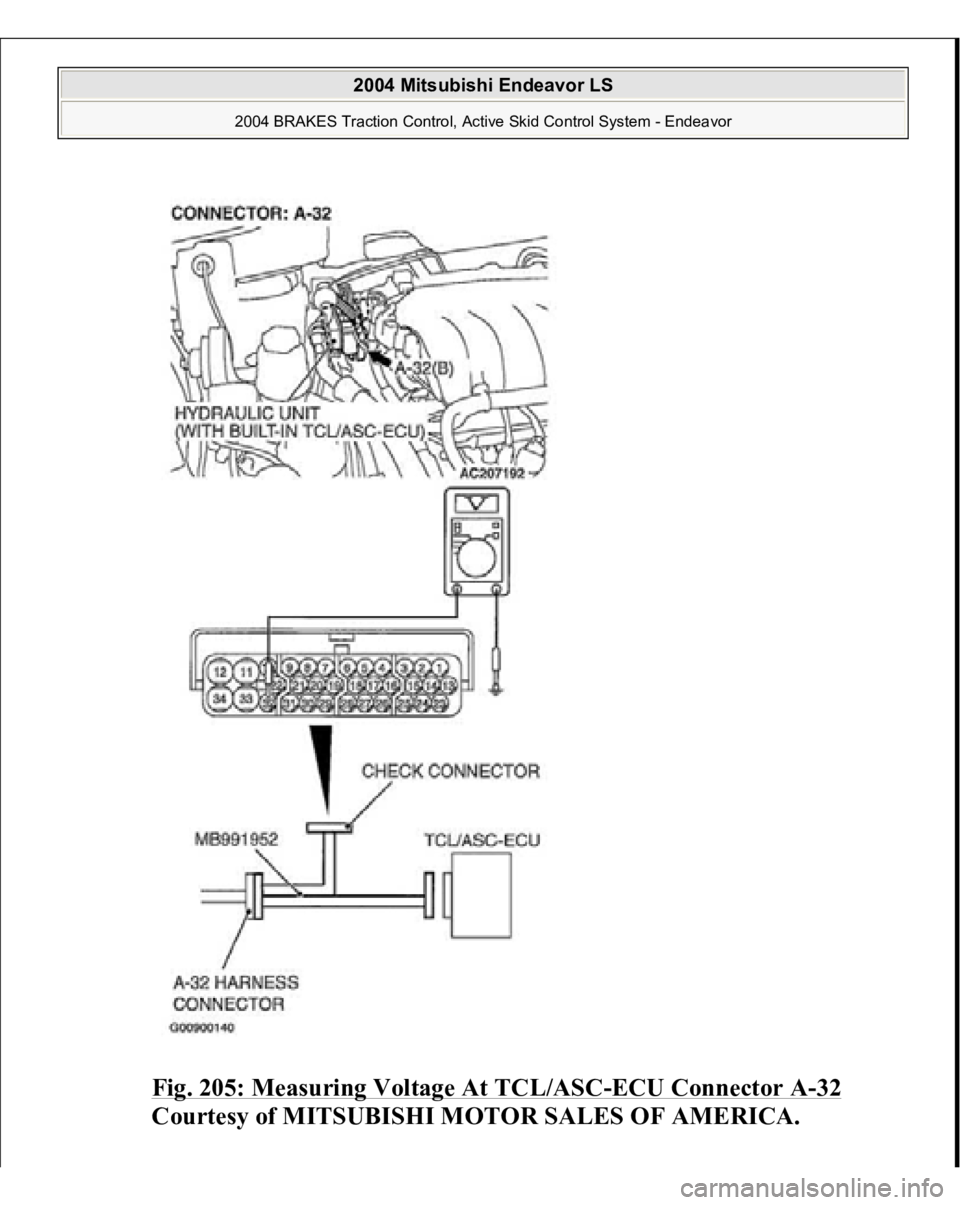

Fig. 205: Measuring Voltage At TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
