Fig. 15: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the TCL diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC C1397 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1100: CAN Communications System Time Out Error Engine Related Data DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives engine
system-related signals from the powertrain control module (PCM) via CAN bus
lines. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Damaged harness or connector. Malfunction of the PCM. Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >.
DIAGNOSIS Required Special Tools: CAUTION:
If DTC U1100 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

MB991958: Scan tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 16: Connectin
g Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

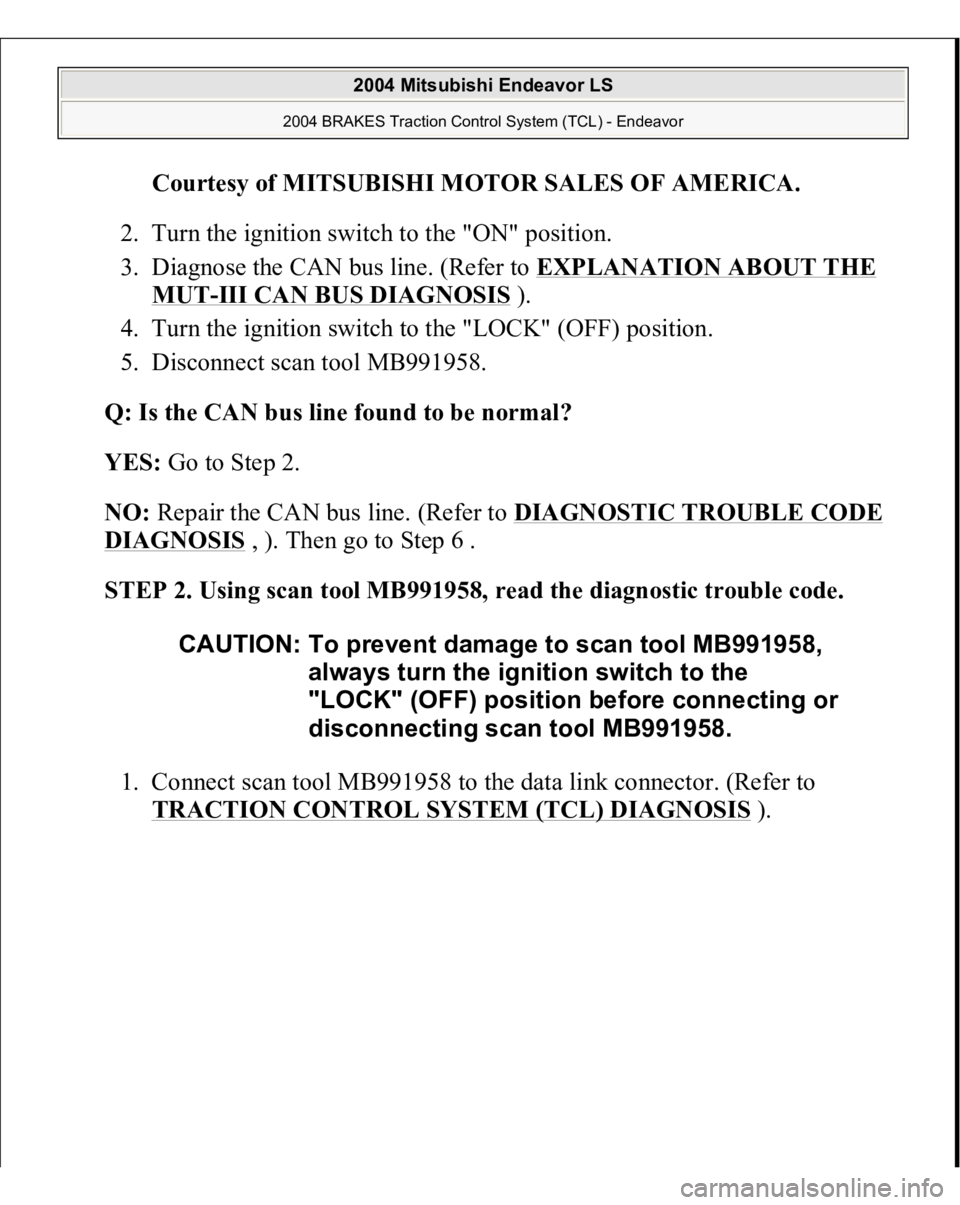

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line. (Refer to EXPLANATION ABOUT THE
MUT
-III CAN BUS DIAGNOSIS
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 2.
NO: Repair the CAN bus line. (Refer to DIAGNOSTIC TROUBLE CODE
DIAGNOSIS
, ). Then go to Step 6 .
STEP 2. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 17: Connecting Scan Tool MB991958 To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

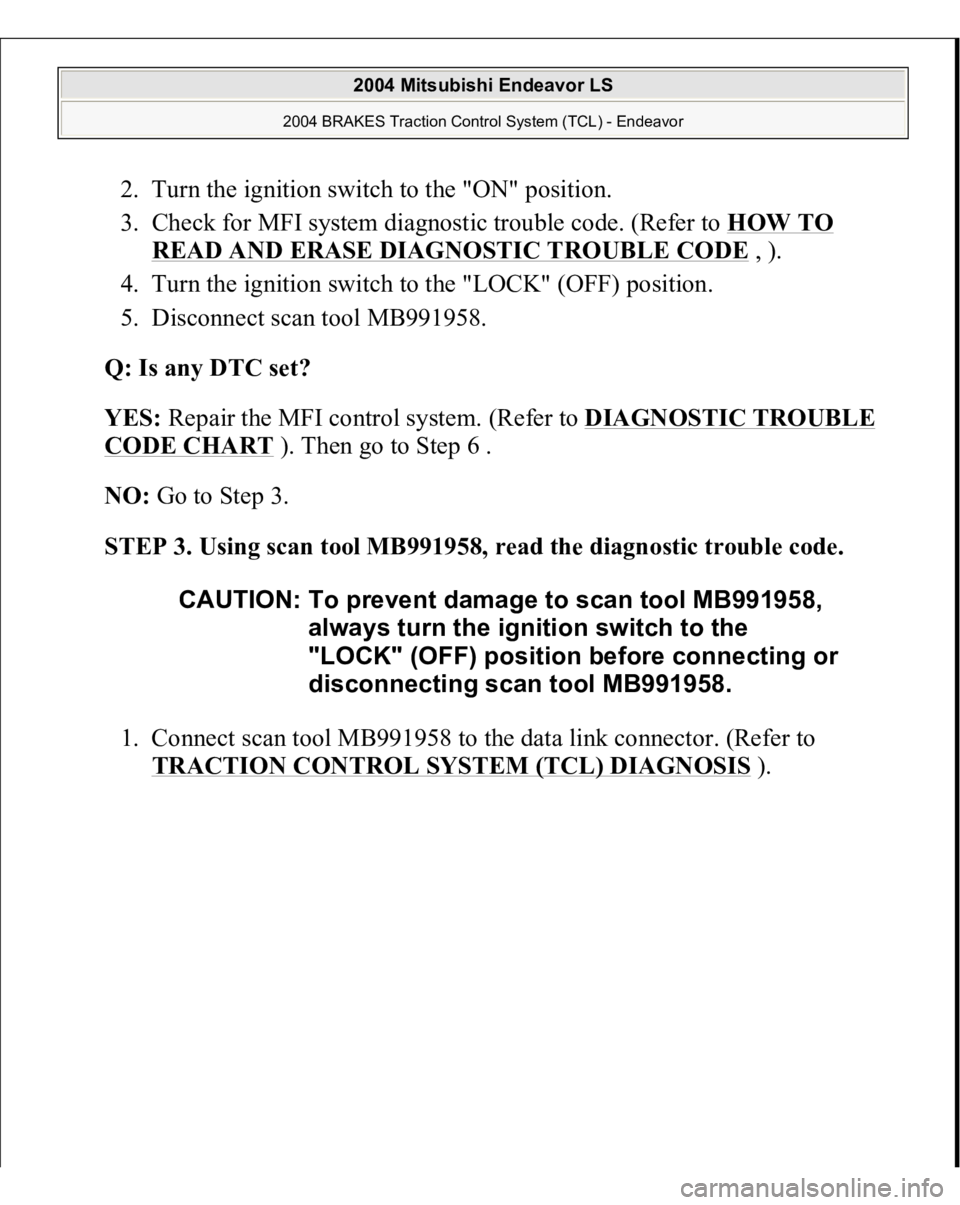

2. Turn the ignition switch to the "ON" position.
3. Check for MFI system diagnostic trouble code. (Refer to HOW TO
READ AND ERASE DIAGNOSTIC TROUBLE CODE
, ).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is any DTC set?
YES: Repair the MFI control system. (Refer to DIAGNOSTIC TROUBLE
CODE CHART
). Then go to Step 6 .
NO: Go to Step 3.
STEP 3. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 18: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

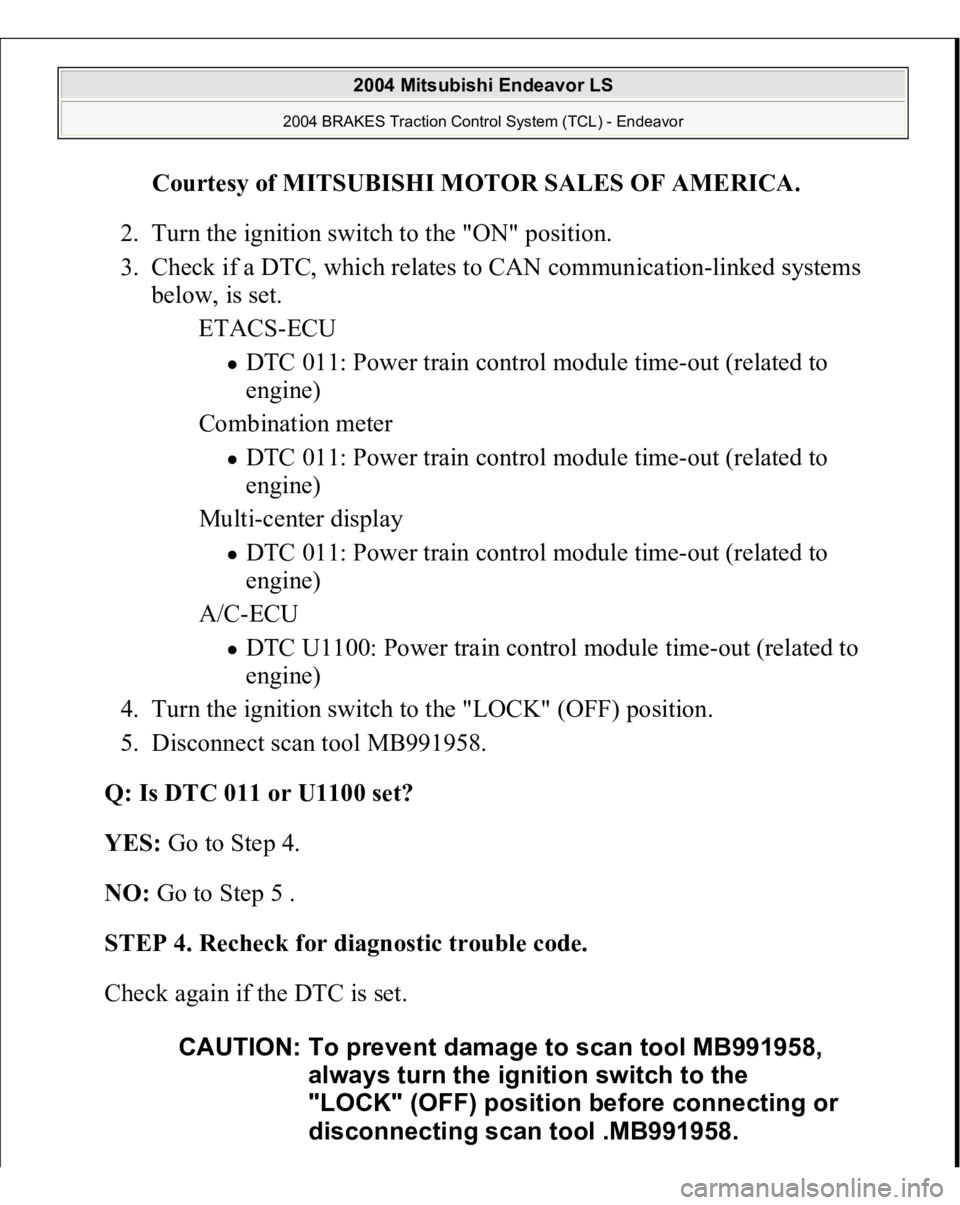

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Check if a DTC, which relates to CAN communication-linked systems
below, is set.
ETACS-ECU
DTC 011: Power train control module time-out (related to
engine)
Combination meter DTC 011: Power train control module time-out (related to
engine)
Multi-center display DTC 011: Power train control module time-out (related to
engine)
A/C-ECU DTC U1100: Power train control module time-out (related to
engine)
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC 011 or U1100 set?
YES: Go to Step 4.
NO: Go to Step 5 .
STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool .MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

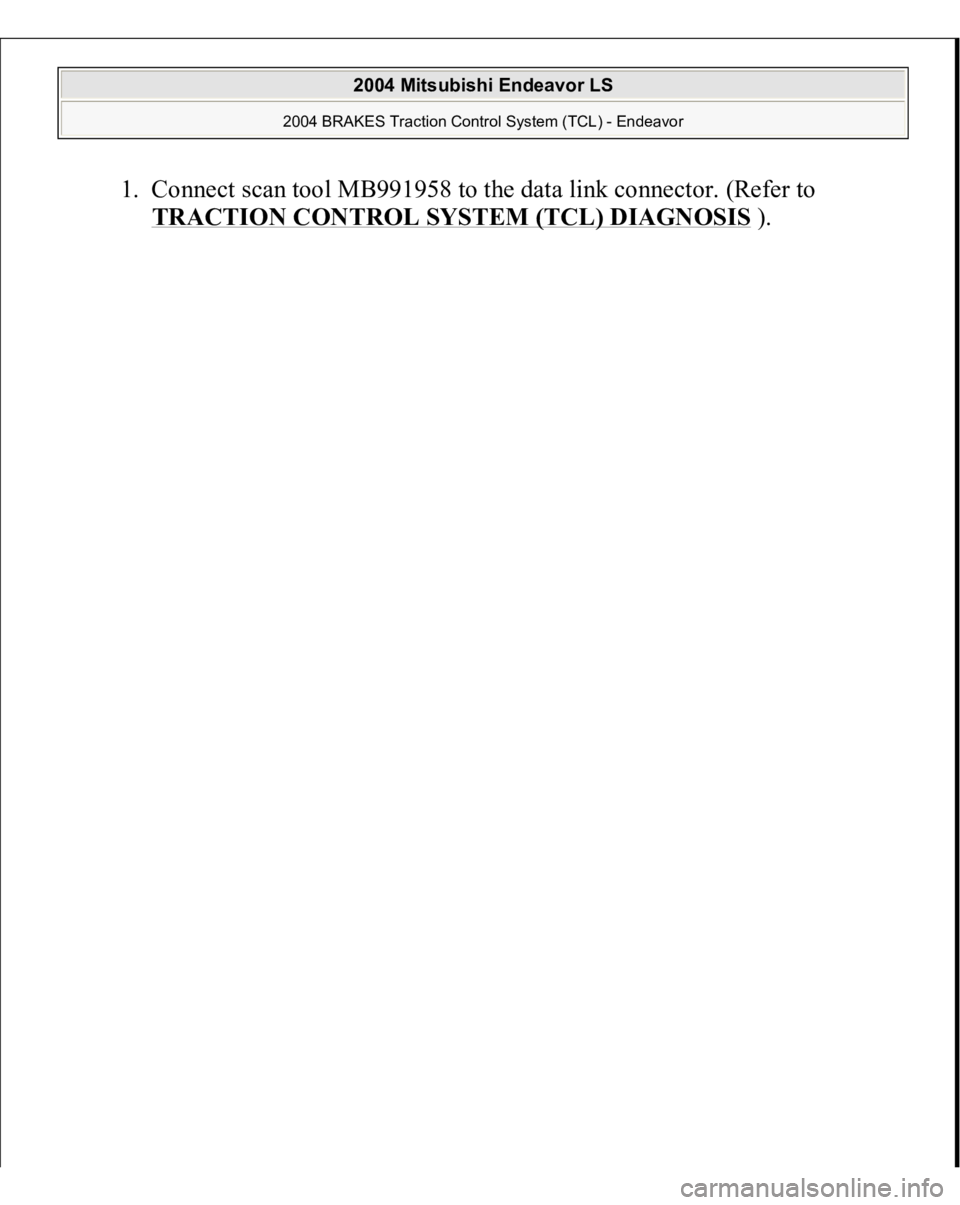

1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
).
