MITSUBISHI ENDEAVOR 2004 Service Repair Manual

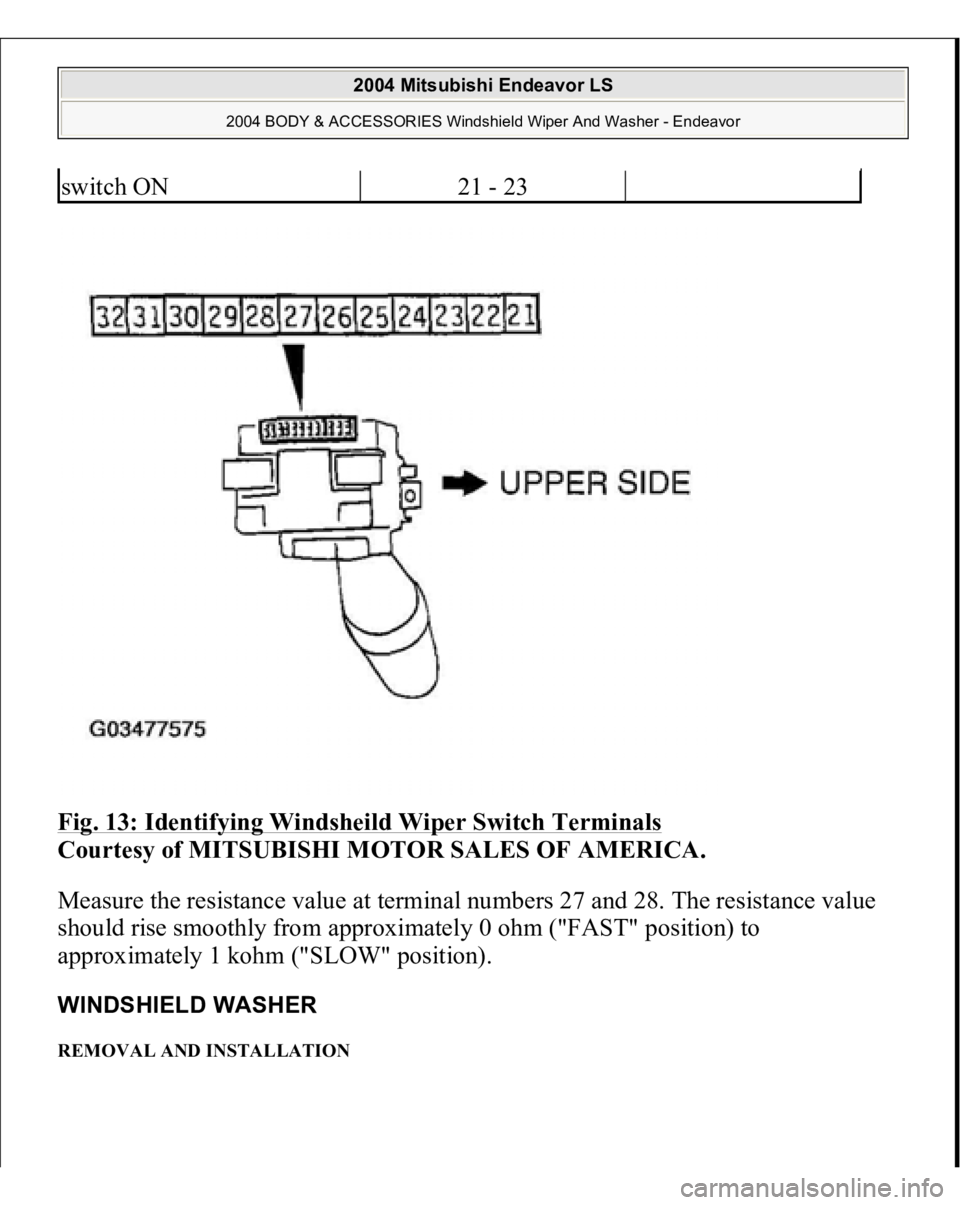

Fig. 13: Identifying Windsheild Wiper Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measure the resistance value at terminal numbers 27 and 28. The resistance value
should rise smoothly from approximately 0 ohm ("FAST" position) to
approximately 1 kohm ("SLOW" position).
WINDSHIELD WASHER REMOVAL AND INSTALLATION switch ON
21 - 23

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

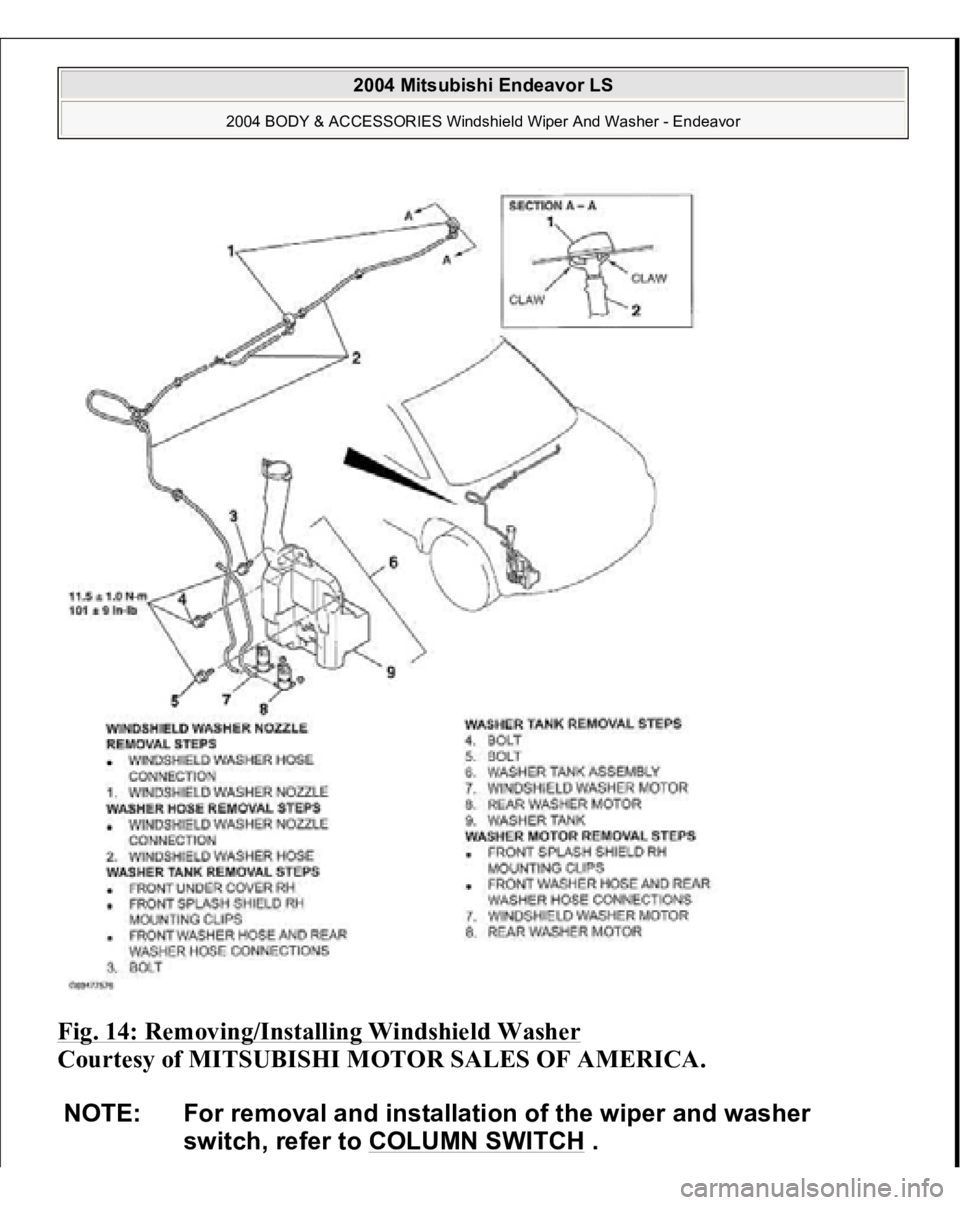

Fig. 14: Removing/Installing Windshield Washer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For removal and installation of the wiper and washer
switch, refer to COLUMN SWITCH
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

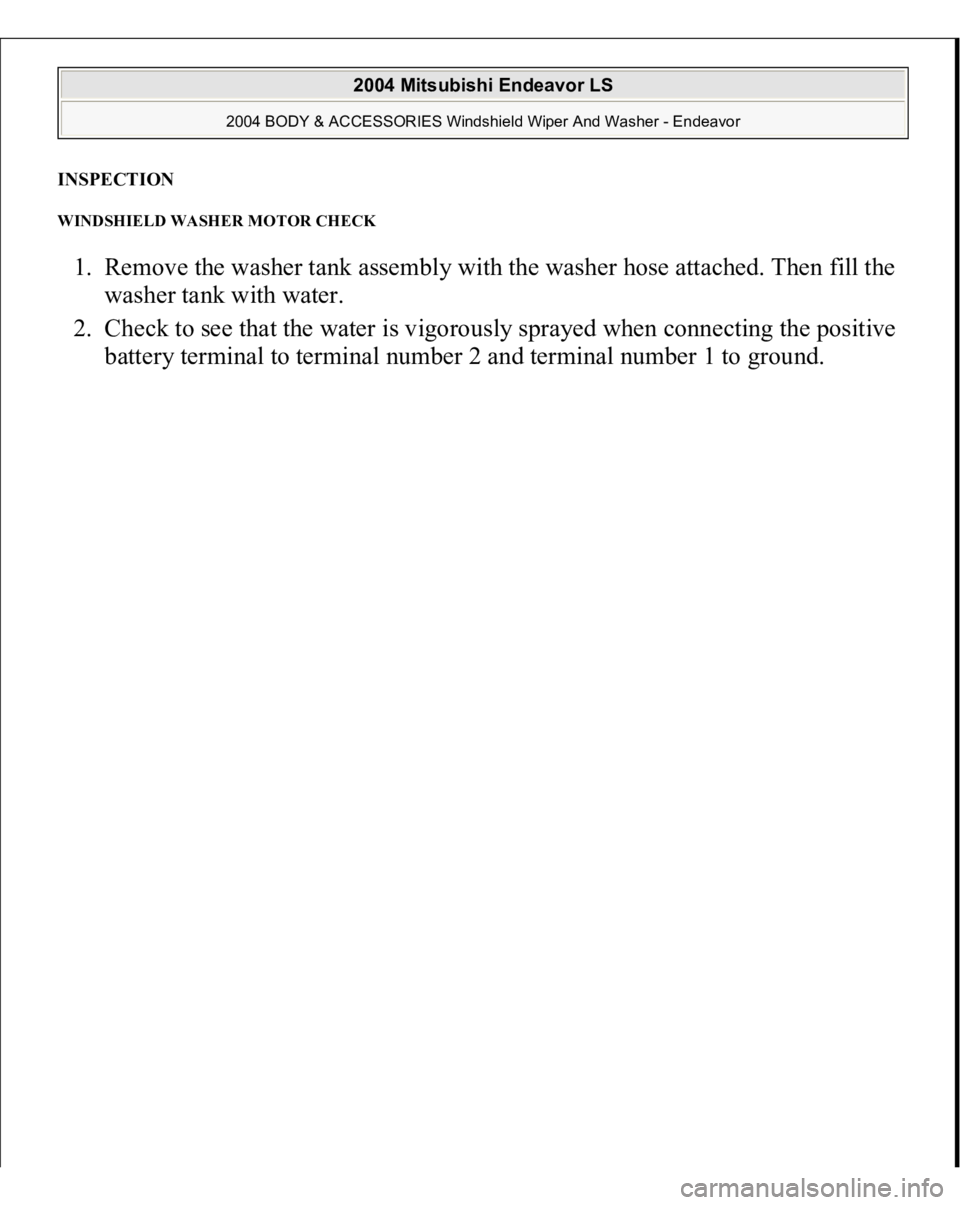

INSPECTION WINDSHIELD WASHER MOTOR CHECK 1. Remove the washer tank assembly with the washer hose attached. Then fill the
washer tank with water.
2. Check to see that the water is vigorously sprayed when connecting the positive
batter
y terminal to terminal number 2 and terminal number 1 to
ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

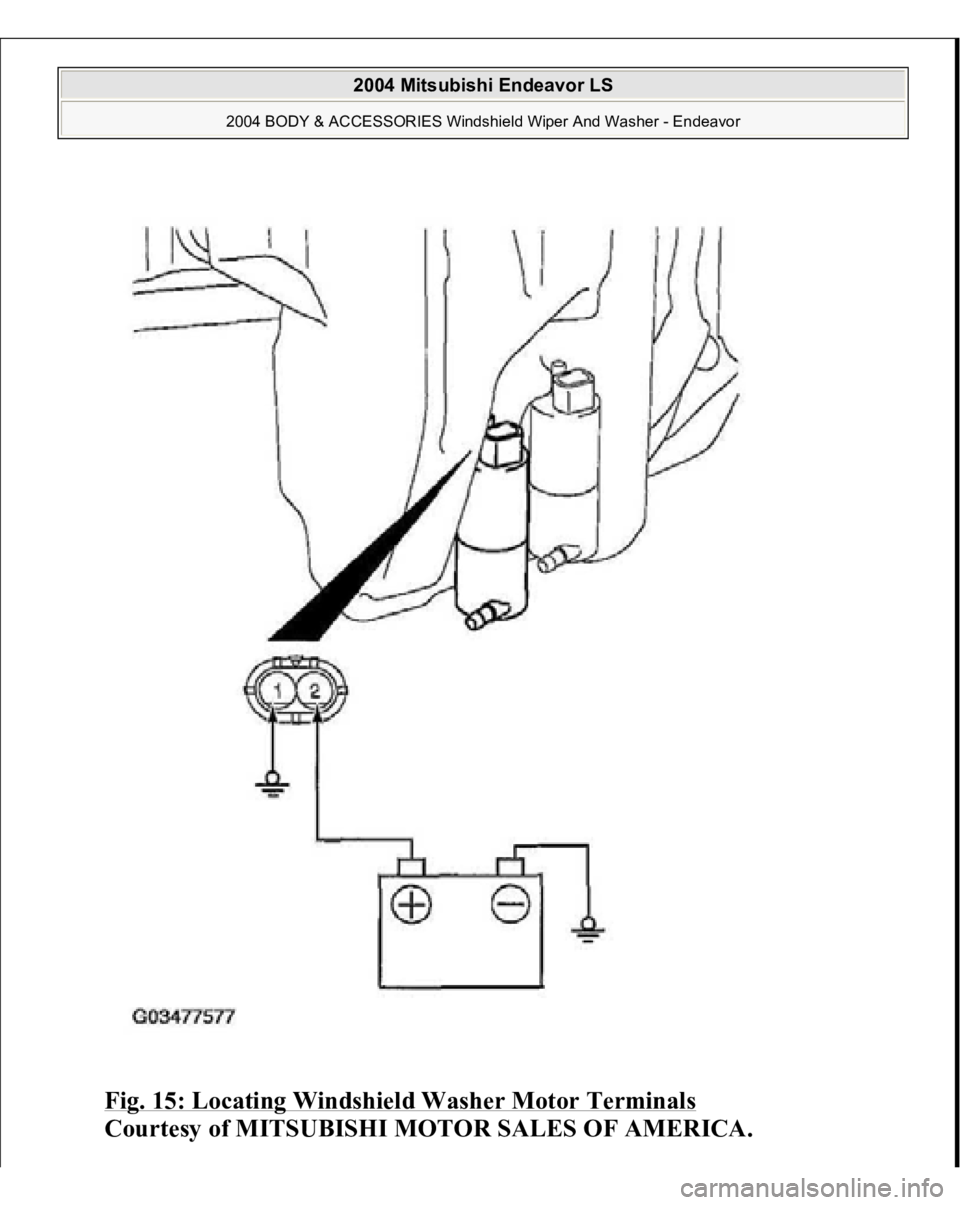

Fig. 15: Locating Windshield Washer Motor Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

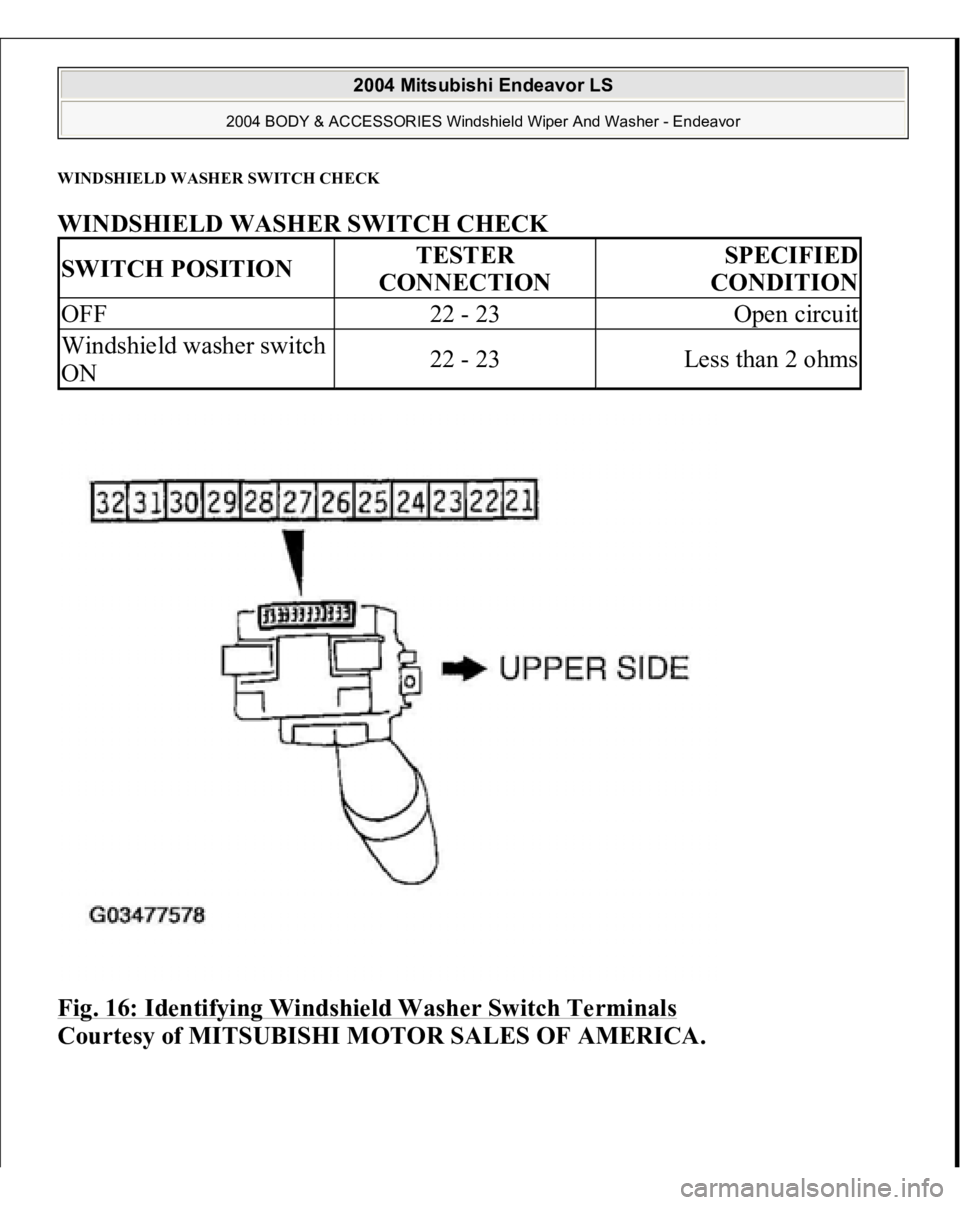

WINDSHIELD WASHER SWITCH CHECKWINDSHIELD WASHER SWITCH CHECK
Fig. 16: Identifying Windshield Washer Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
OFF
22 - 23
Open circuit
Windshield washer switch
ON
22 - 23
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

AIR CONDITIONING

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

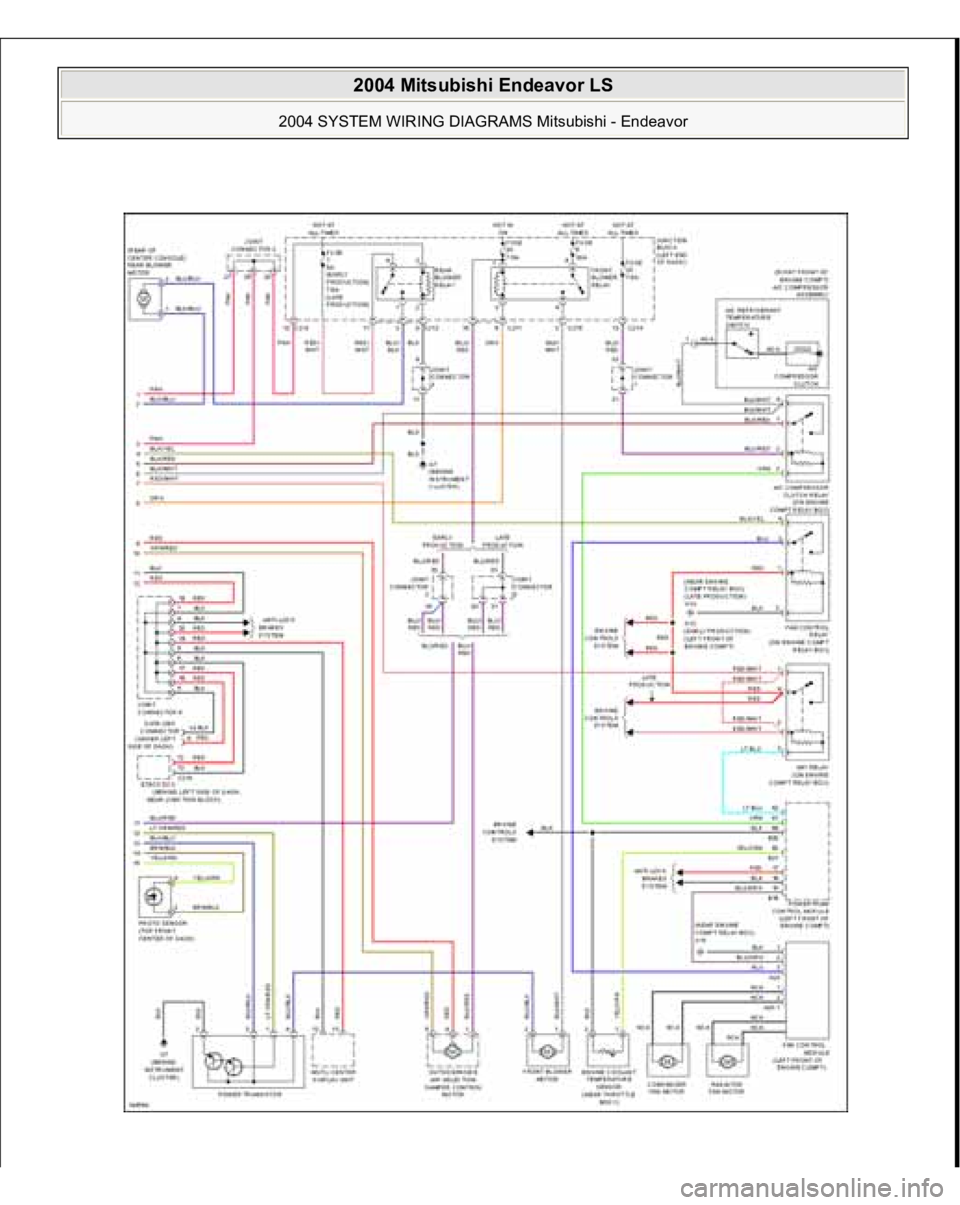

Fig. 1: Automatic A/C Circuit (1 of 2)

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

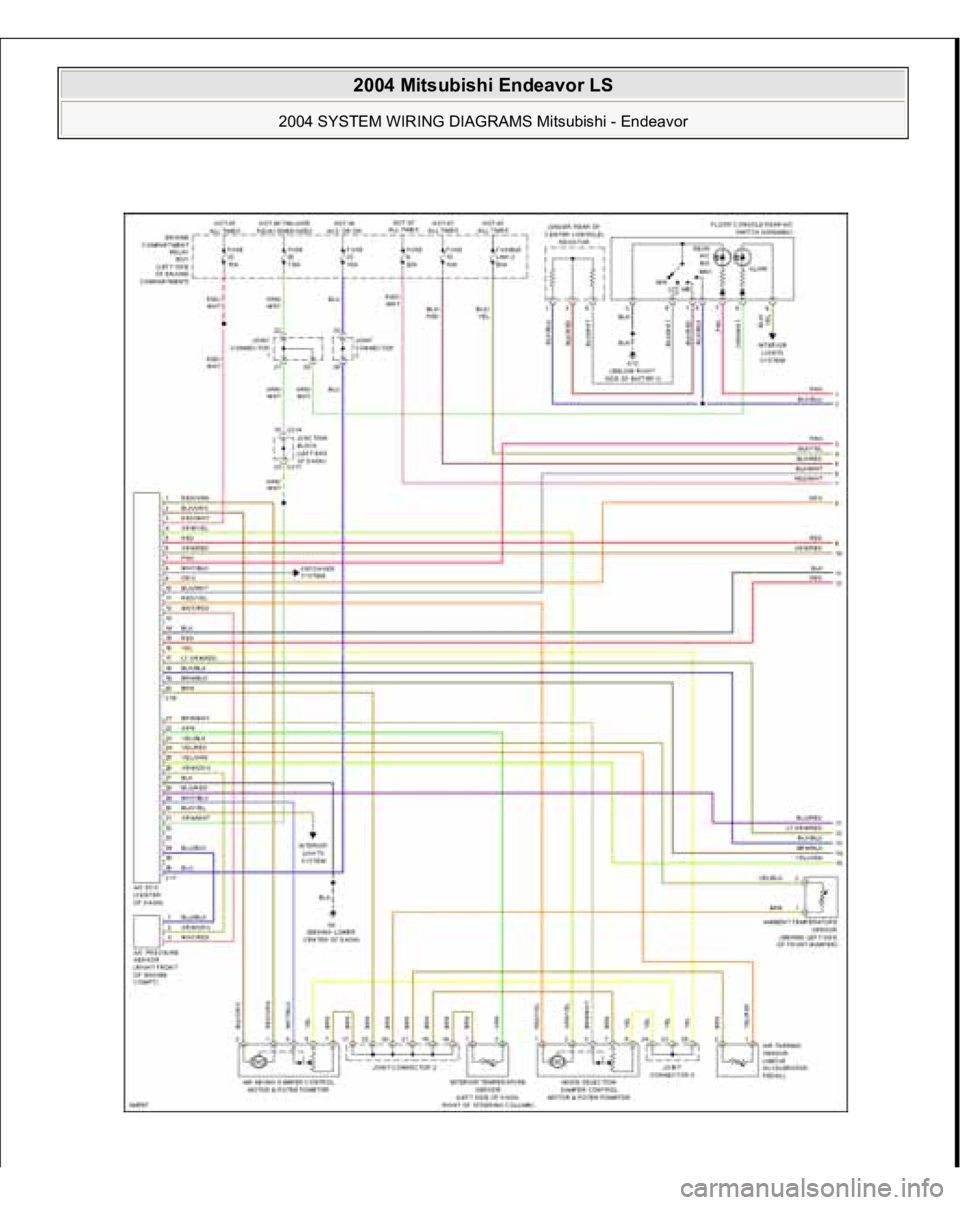

Fig. 2: Automatic A/C Circuit (2 of 2)

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
