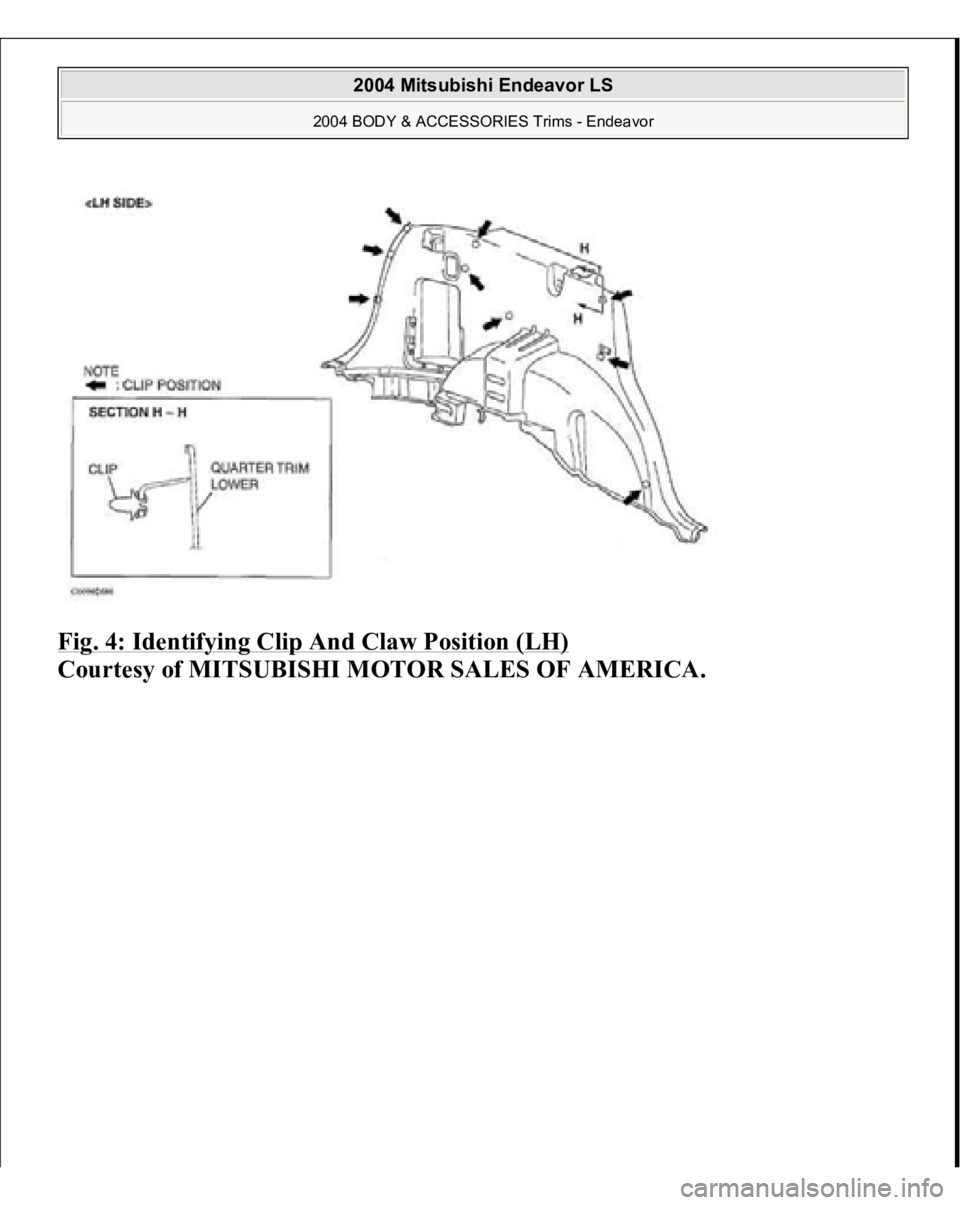

Fig. 4: Identifying Clip And Claw Position (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Trims - Endeavor

2004 Mitsubishi ENDEAVOR 04 - Engine > ENGINE AND ENGINE COOLING :
ENGINE [Part 061000 ]
TSB No: 0413004 NHTSA ID: , July 01, 2004 : Replacement: 0413004R
Summary: power train control module (pcm) reprogramming for spark knock / diagnostic
trouble code (dtc) 0171. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Train > POWER TRAIN [Part 100000 ]
TSB No: 0423001 NHTSA ID: , July 01, 2004 : Replacement: 0423001R
Summary: power train control module (pcm) reprogramming for a/t shift delay. *tt

2004 Mitsubishi ENDEAVOR 04 - Equipment > EQUIPMENT [Part 350000 ]
TSB No: 0454004 NHTSA ID: , May 01, 2004 : Replacement:
Summary: overhead console service parts. *tt

2004 Mitsubishi ENDEAVOR 04 - Air Bag > AIR BAGS [Part 140000 ]
TSB No: 0452B002 NHTSA ID: , March 01, 2004 : Replacement:
Summary: corrected advanced air bag troubleshooting procedures - service manual
revision. *tt

2004 Mitsubishi ENDEAVOR 04 - Differential Unit > POWER TRAIN : DRIVELINE
: DIFFERENTIAL UNIT [Part 105500 ]
TSB No: 0427001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: rear differential noise diagnosis. *mr

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 0442A001 NHTSA ID: , February 01, 2004 : Replacement:
Summary: remote keyless entry (all 2004 models). *tt

2004 Mitsubishi ENDEAVOR 04 - ABS Antilock > SERVICE BRAKES,
HYDRAULIC : ANTILOCK [Part 036000 ]
TSB No: 0435002 NHTSA ID: , January 01, 2004 : Replacement:
Summary: abs and tcl diagnostic trouble codes - service manual revision. *tt

2004 Mitsubishi ENDEAVOR 04 - Other Fuel > FUEL SYSTEM, OTHER [Part
090000 ]
TSB No: 0413001 NHTSA ID: , January 01, 2004 : Replacement:
Summary: electronic throttle valve (etv) initialization procedures - service manual
revision. 2004 lancer and lancer sportback models also included. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Steering > STEERING : HYDRAULIC
POWER ASSIST SYSTEM [Part 015000 ]
TSB No: 0437A001 NHTSA ID: , January 01, 2004 : Replacement:
Summary: power steering pump pressure switch replacement part availability. *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 0342B004 NHTSA ID: , October 01, 2003 : Replacement:
Summary: water leakage may occur at the floorboard due to possible conditions. water in
the floorboard can eventually saturate the silencers under carpet, causing a musty smell.
*tt

2004 Mitsubishi ENDEAVOR 04 - Windshield Blower > VISIBILITY :
DEFROSTER/DEFOGGER SYSTEM : WINDSHIELD : BLOWER [Part 138110 ]
TSB No: 0355008 NHTSA ID: , October 01, 2003 : Replacement:
Summary: debris (such as leaves, etc) entering the front cowl area may clog the
evaporator housing drain tube. if this occurs, the evaporator housing may fill up with
condensation and overflow into the passenger compartment, and into the blower mot

2004 Mitsubishi ENDEAVOR 04 - Windshield Blower > VISIBILITY :
DEFROSTER/DEFOGGER SYSTEM : WINDSHIELD : BLOWER [Part 138110 ]
TSB No: 0355008R NHTSA ID: , October 01, 2003 : Replacement: 0355003
Summary: debris (such as leaves, etc.) entering the front cowl area may clog the
evaporator housing drain tube. if this occurs, the evaporator housing may fill up with
condensation and overflow into the passenger compartment, and into the blower mo

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 0342B003 NHTSA ID: , October 01, 2003 : Replacement:

Summary: this bulletin contains repair procedures for possible conditions which may
cause water leakage into the vehicle's spare tire well, resulting in a musty smell. *tt

2004 Mitsubishi ENDEAVOR 04 - Air conditioner > EQUIPMENT : ELECTRICAL :
AIR CONDITIONER [Part 353600 ]
TSB No: 0355010 NHTSA ID: , October 01, 2003 : Replacement:
Summary: air conditioner expansion valve whooping noise coming from the passenger
side of the instrument panel which occurs during normal air conditioning operation. *tt

2004 Mitsubishi ENDEAVOR 04 - Side Rear Glass > VISIBILITY : GLASS,
SIDE/REAR [Part 132000 ]
TSB No: 0342A003 NHTSA ID: , September 01, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Power Window > VISIBILITY : POWER
WINDOW DEVICES AND CONTROLS [Part 133000 ]
TSB No: 0342A001 NHTSA ID: , August 13, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Differential Unit > POWER TRAIN : DRIVELINE
: DIFFERENTIAL UNIT [Part 105500 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: rear differential noise. *tt

2004 Mitsubishi ENDEAVOR 04 - Bumper > STRUCTURE : BODY : BUMPERS
[Part 162200 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: rear bumper poor fit. *tt

2004 Mitsubishi ENDEAVOR 04 - Windshield Wiper Washer > VISIBILITY :
WINDSHIELD WIPER/WASHER [Part 136000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: windshield washer spray. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: power plant check harness mb991923 available for loan at no charge for a
limited time only. *tt

2004 Mitsubishi ENDEAVOR 04 - Door Hinge > STRUCTURE : BODY : DOOR :
HINGE AND ATTACHMENTS [Part 162310 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: door panel / interior trim panels coming loose. *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: roof crossbars. *tt

2004 Mitsubishi ENDEAVOR 04 - Side Rear Glass > VISIBILITY : GLASS,
SIDE/REAR [Part 132000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: front door glass coming loose from regulator. *tt

2004 Mitsubishi ENDEAVOR 04 - Engine > ENGINE AND ENGINE COOLING :
ENGINE [Part 061000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: oil drip on oil filter. *tt

2004 Mitsubishi ENDEAVOR 04 - Radio CD Player > EQUIPMENT : ELECTRICAL :
RADIO/TAPE DECK/CD ETC. [Part 353400 ]
TSB No: 0354006 NHTSA ID: , June 01, 2003 : Replacement:
Summary: condensed diagnostic information and quick-reference troubleshooting charts
for servicing the audio systems with multi-center display used in the 2004 endeavor. *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 94 NHTSA ID: , June 01, 2003 : Replacement:
Summary: wind deflector installation to reduce wind turbulence inside the vehicle when
driving with the sunroof open. *tt

2004 Mitsubishi ENDEAVOR 04 - Radio CD Player > EQUIPMENT : ELECTRICAL :
RADIO/TAPE DECK/CD ETC. [Part 353400 ]
TSB No: 0354005 NHTSA ID: , May 01, 2003 : Replacement:
Summary: improper alignment between the cd player and the cd opening on the center
instrument panel may cause difficulty ejecting cds. *tt

2004 Mitsubishi ENDEAVOR 04 - Tires > TIRES [Part 190000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: tire pressure monitoring system (tpms). *tt

2004 Mitsubishi ENDEAVOR 04 - Body > STRUCTURE : BODY [Part 162000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: undercoating appearance. *tt

2004 Mitsubishi ENDEAVOR 04 - Trailer Hitch > TRAILER HITCHES [Part 210000 ]
TSB No: 0300009 NHTSA ID: , May 01, 2003 : Replacement:
Summary: tow hitch torque specification. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical System > ELECTRICAL SYSTEM [Part
110000 ]
TSB No: 0352A002 NHTSA ID: , May 01, 2003 : Replacement:
Summary: center instrument panel removal. *tt

2004 Mitsubishi ENDEAVOR 04 - Labels > EQUIPMENT : OTHER : LABELS [Part
355100 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: immobilizer engine control unit (ecu) serial number sticker. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: whip antenna shipping location and installation during pre-delivery inspection
(pdi). *tt

2004 Mitsubishi ENDEAVOR 04 - Automatic Transmission > POWER TRAIN :
AUTOMATIC TRANSMISSION [Part 103000 ]
TSB No: 0323004 NHTSA ID: , April 01, 2003 : Replacement:
Summary: color variation of the automatic transmission fluid (aft) used in certain
mitsubishi vehicles. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical System > ELECTRICAL SYSTEM [Part
110000 ]
TSB No: 0354003 NHTSA ID: , March 01, 2003 : Replacement:
Summary: customization using multi-center display. *tt

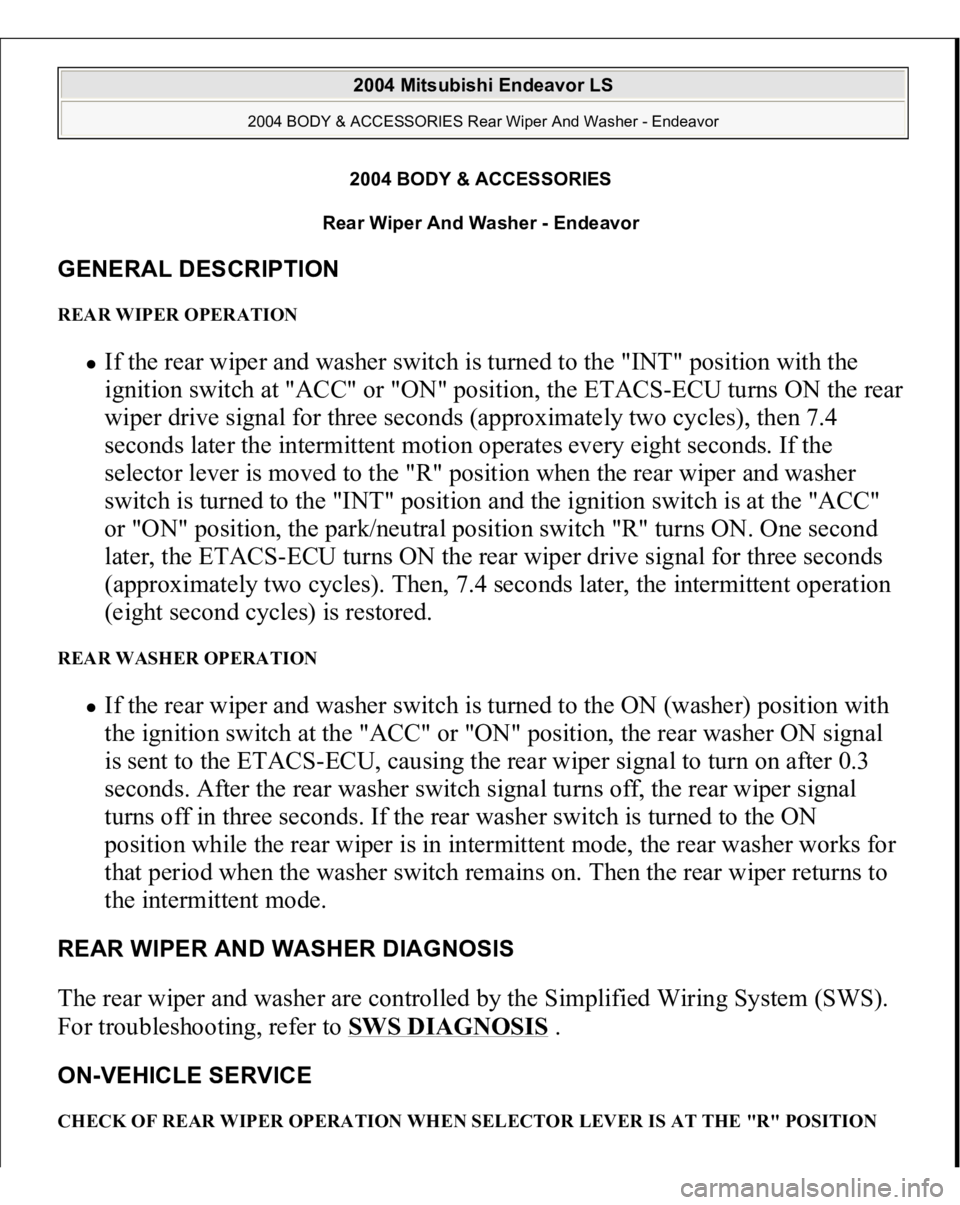

2004 BODY & ACCESSORIES
Rear Wiper And Washer - Endeavor
GENERAL DESCRIPTION REAR WIPER OPERATION
If the rear wiper and washer switch is turned to the "INT" position with the
ignition switch at "ACC" or "ON" position, the ETACS-ECU turns ON the rear
wiper drive signal for three seconds (approximately two cycles), then 7.4
seconds later the intermittent motion operates every eight seconds. If the
selector lever is moved to the "R" position when the rear wiper and washer
switch is turned to the "INT" position and the ignition switch is at the "ACC"
or "ON" position, the park/neutral position switch "R" turns ON. One second
later, the ETACS-ECU turns ON the rear wiper drive signal for three seconds
(approximately two cycles). Then, 7.4 seconds later, the intermittent operation
(eight second cycles) is restored.
REAR WASHER OPERATION
If the rear wiper and washer switch is turned to the ON (washer) position with
the ignition switch at the "ACC" or "ON" position, the rear washer ON signal
is sent to the ETACS-ECU, causing the rear wiper signal to turn on after 0.3
seconds. After the rear washer switch signal turns off, the rear wiper signal
turns off in three seconds. If the rear washer switch is turned to the ON
position while the rear wiper is in intermittent mode, the rear washer works for
that period when the washer switch remains on. Then the rear wiper returns to
the intermittent mode.
REAR WIPER AND WASHER DIAGNOSIS The rear wiper and washer are controlled by the Simplified Wiring System (SWS).
For troubleshooting, refer to SWS DIAGNOSIS
.
ON-VEHICLE SERVICE CHECK OF REAR WIPER OPERATION WHEN SELECTOR LEVER IS AT THE "R" POSITION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

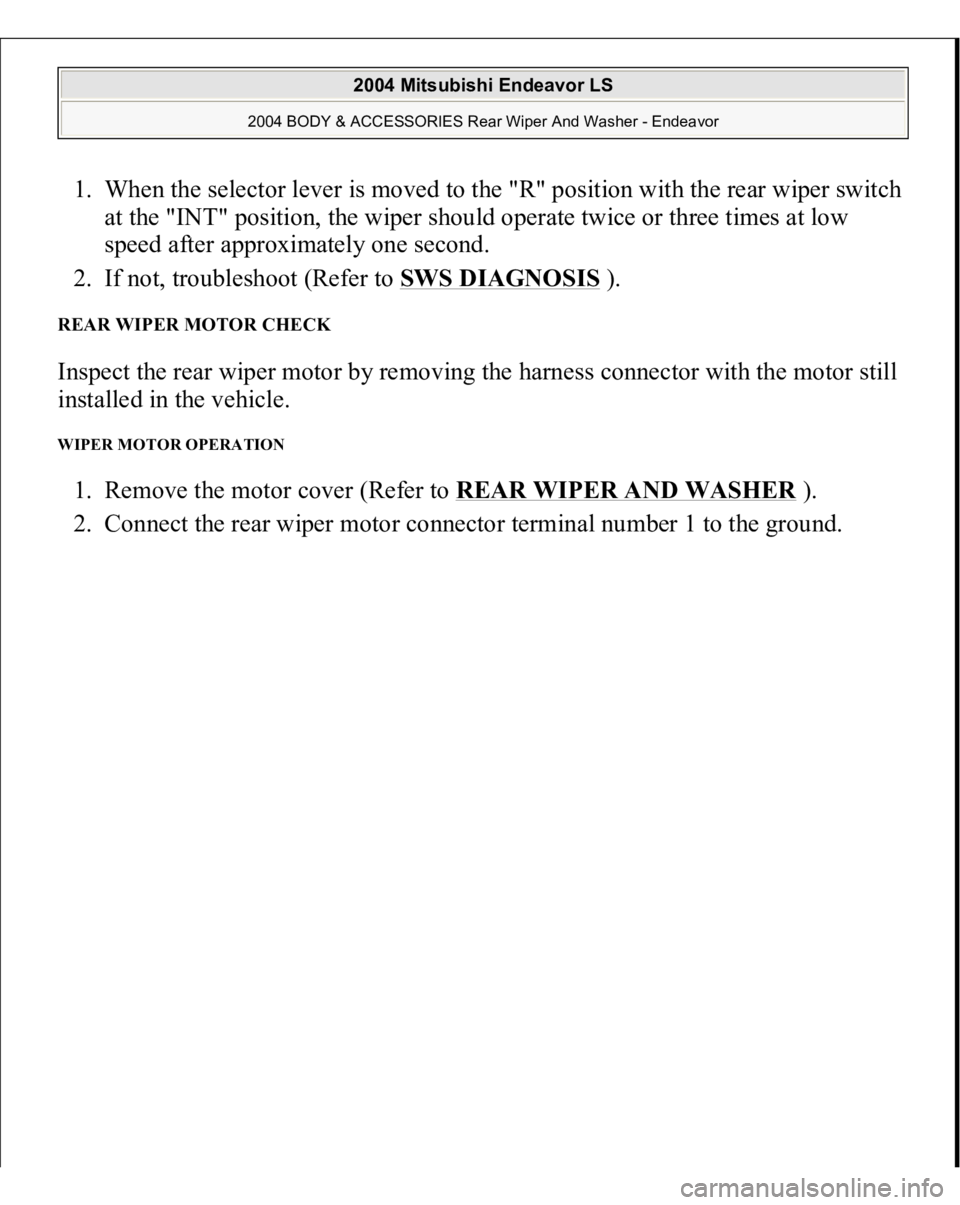

1. When the selector lever is moved to the "R" position with the rear wiper switch
at the "INT" position, the wiper should operate twice or three times at low
speed after approximately one second.
2. If not, troubleshoot (Refer to SWS DIAGNOSIS
).
REAR WIPER MOTOR CHECK Inspect the rear wiper motor by removing the harness connector with the motor still
installed in the vehicle. WIPER MOTOR OPERATION 1. Remove the motor cover (Refer to REAR WIPER AND WASHER
).
2. Connect the rear wiper motor connector terminal num
ber 1 to the ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

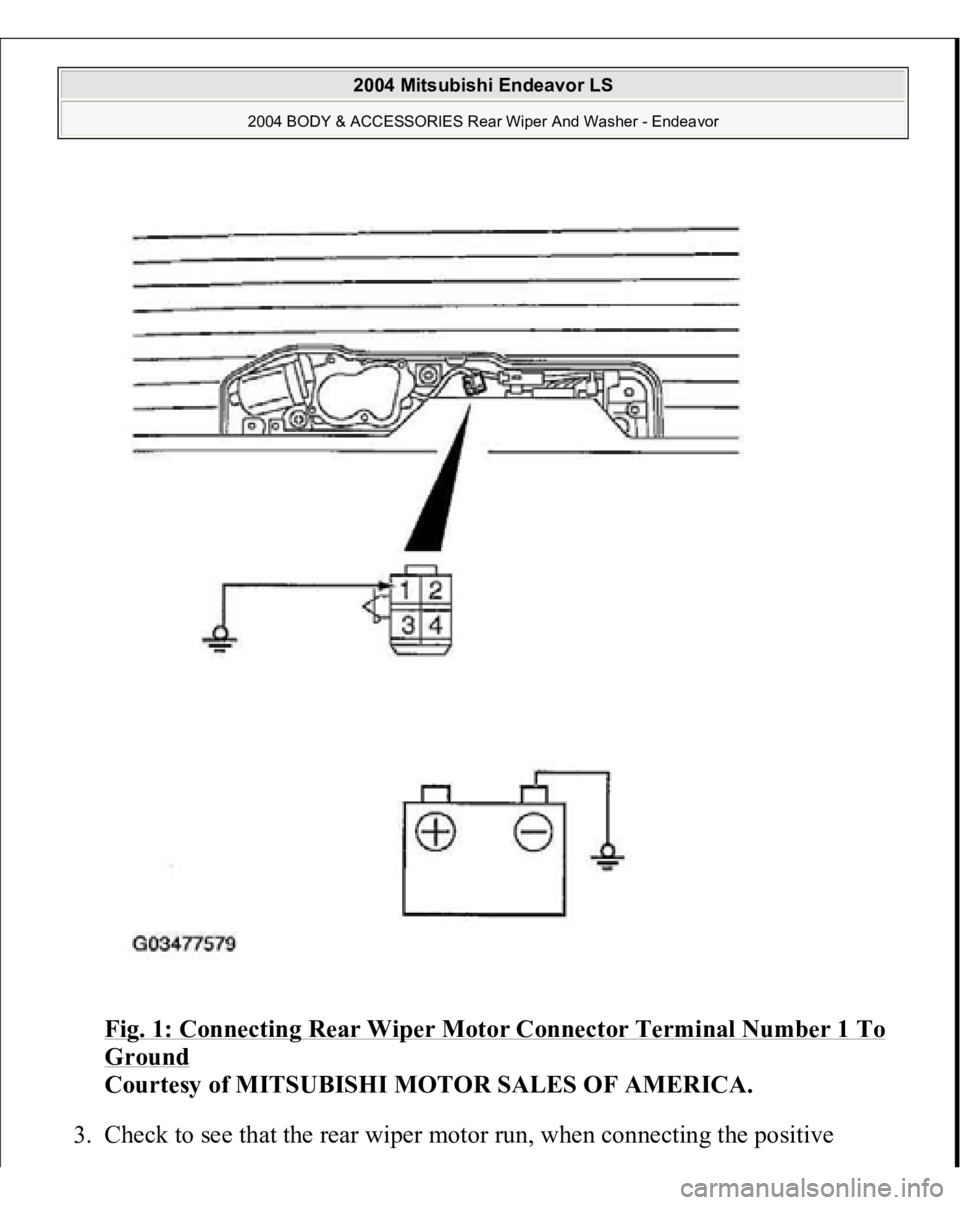

Fig. 1: Connecting Rear Wiper Motor Connector Terminal Number 1 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check to see that the rear wiper motor run, when connecting the positive

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor
