MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 3: Installing Wiper Arm & Blade Assembly (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

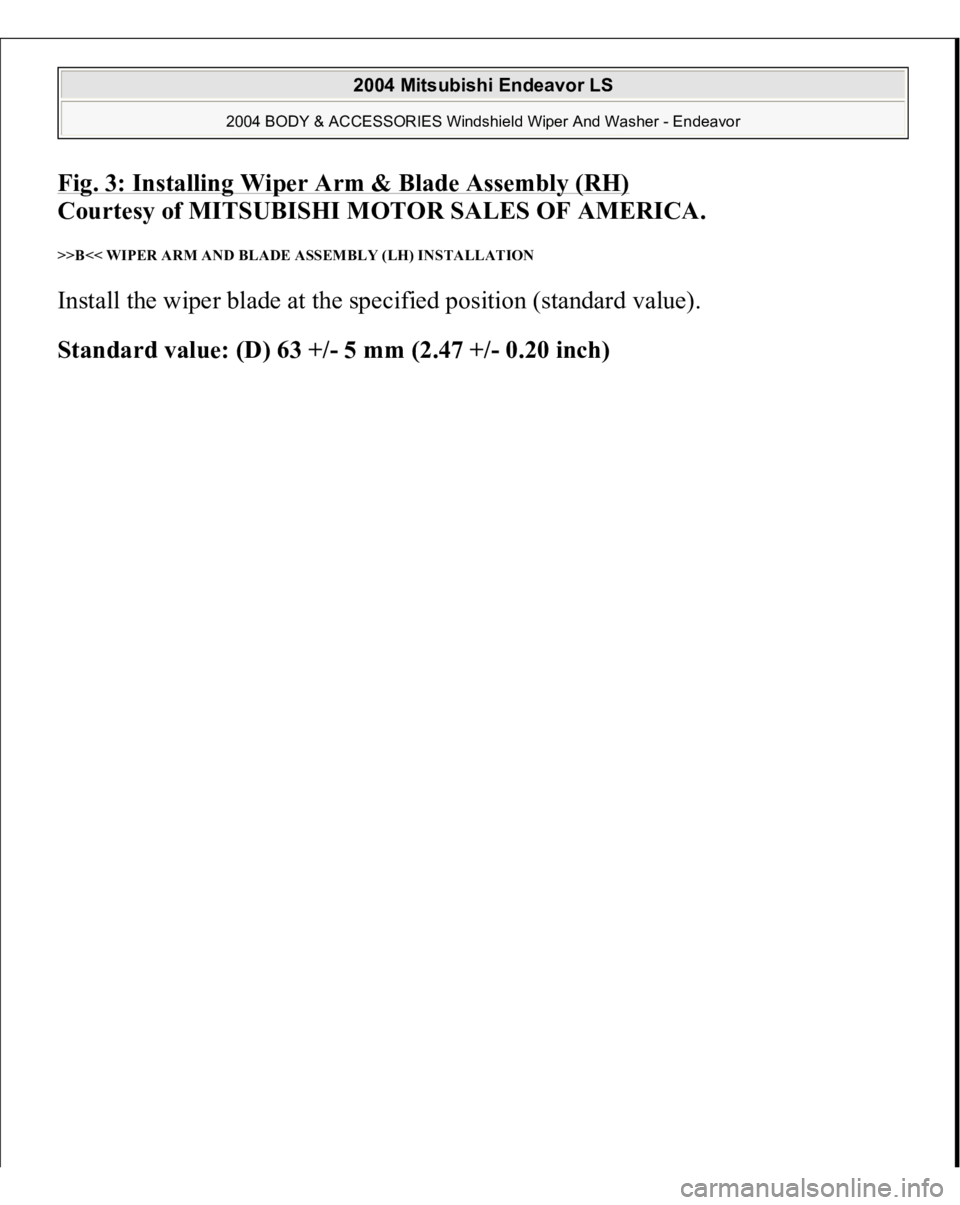

>>B<< WIPER ARM AND BLADE ASSEMBLY (LH) INSTALLATION Install the wiper blade at the specified position (standard value).
Standard value: (D) 63 +/- 5 mm (2.47 +/- 0.20 inch)
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

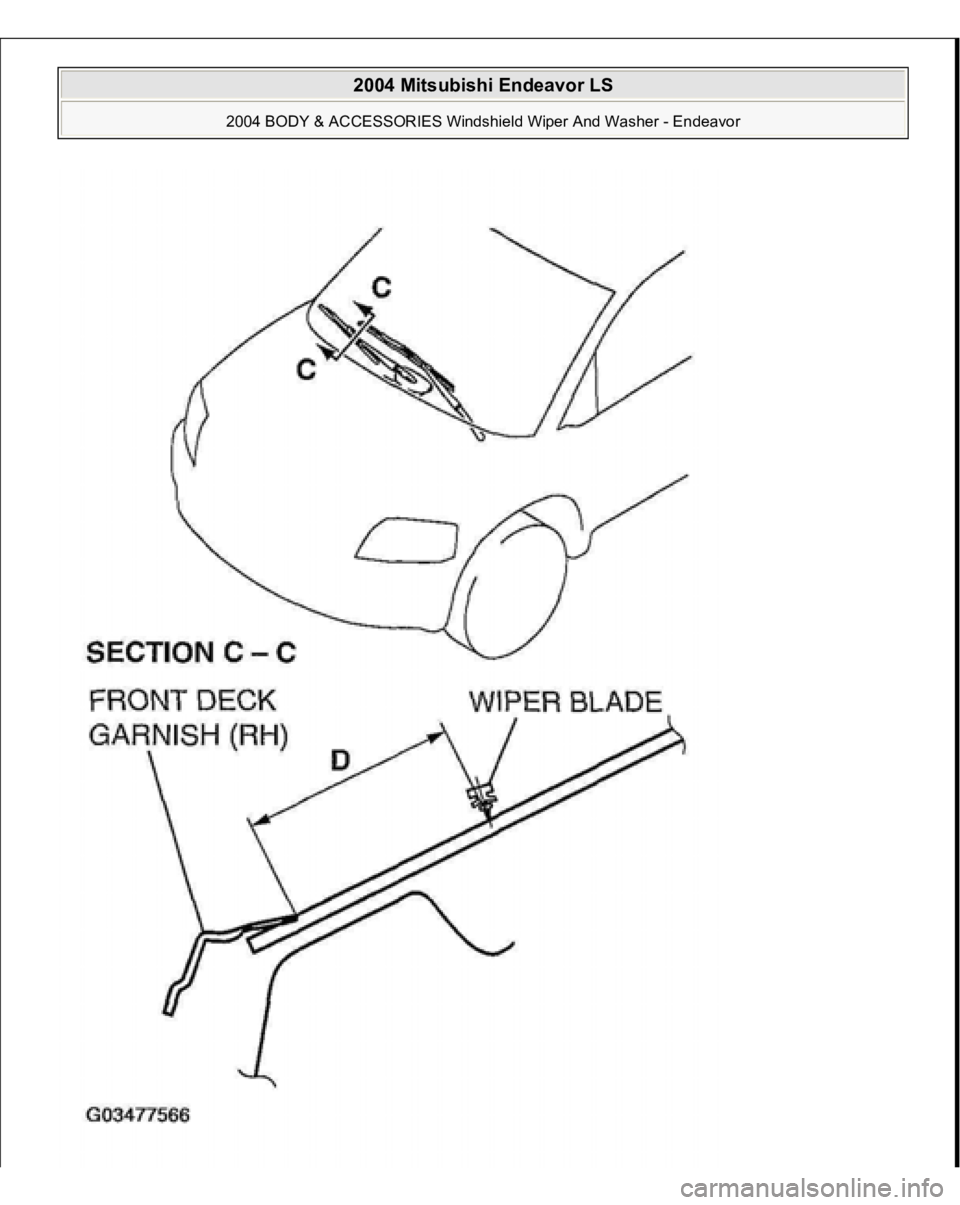

Fig. 4: Installing Wiper Arm & Blade Assembly (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

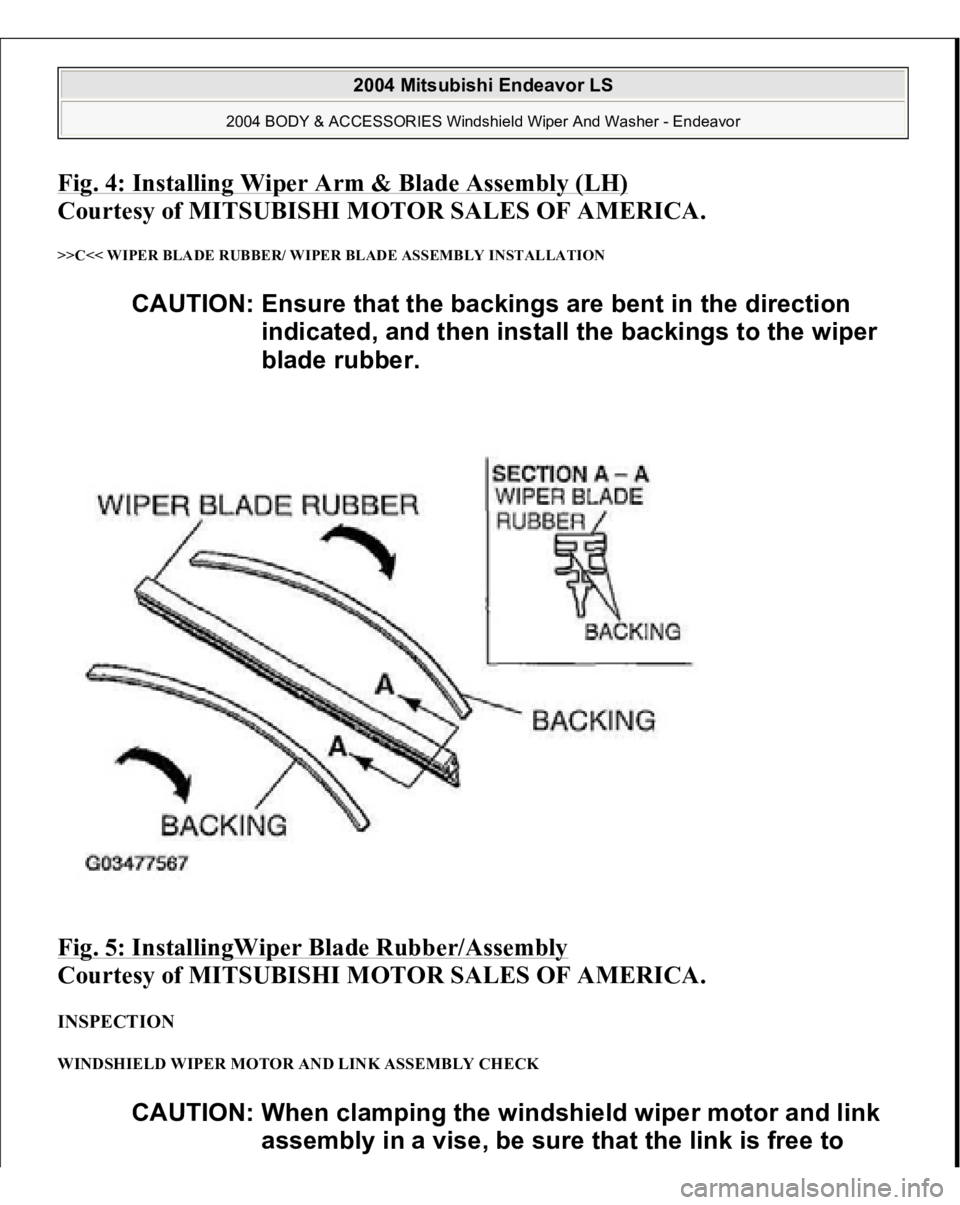

>>C<< WIPER BLADE RUBBER/ WIPER BLADE ASSEMBLY INSTALLATION Fig. 5: InstallingWiper Blade Rubber/Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY CHECK
CAUTION: Ensure that the backings are bent in the direction
indicated, and then install the backings to the wiper
blade rubber.CAUTION: When clamping the windshield wiper motor and link
assembly in a vise, be sure that the link is free to

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

1. Clamp the windshield wiper motor and link assembly in a vise as shown.

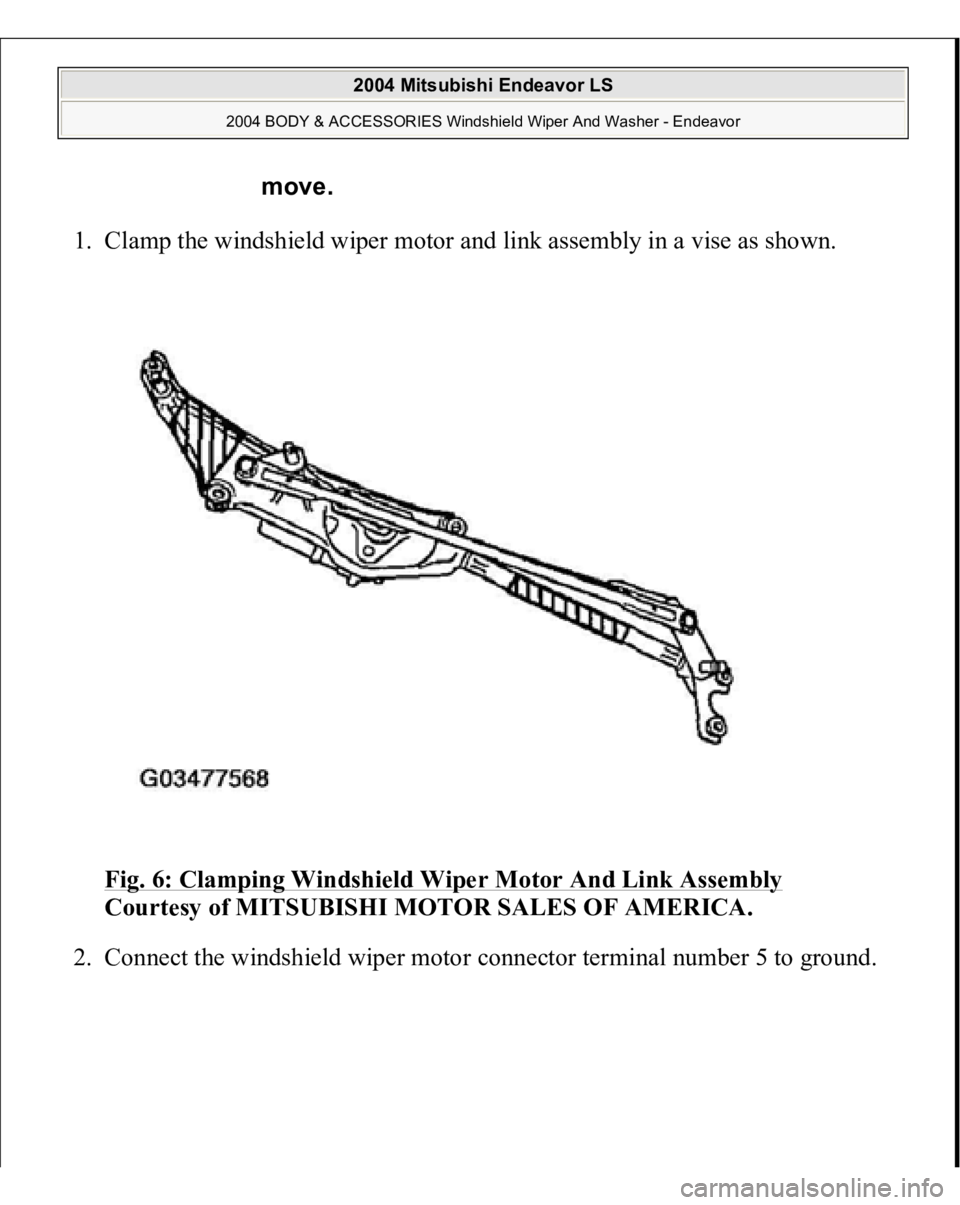

Fig. 6: Clamping Windshield Wiper Motor And Link Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Connect the windshield wi
per motor connector terminal number 5 to
ground. move.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

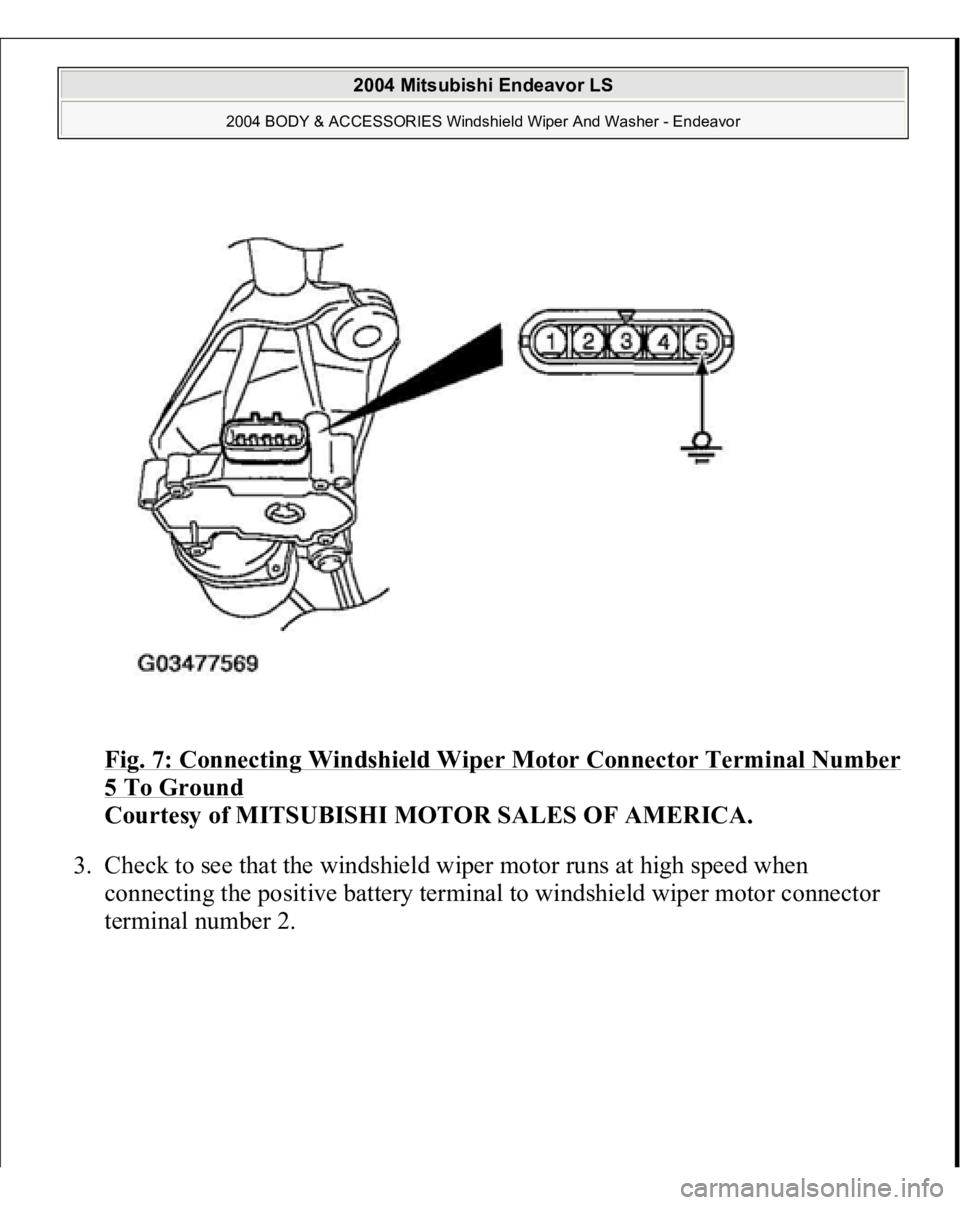

Fig. 7: Connecting Windshield Wiper Motor Connector Terminal Number 5 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check to see that the windshield wiper motor runs at high speed when
connecting the positive battery terminal to windshield wiper motor connector
terminal number 2.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

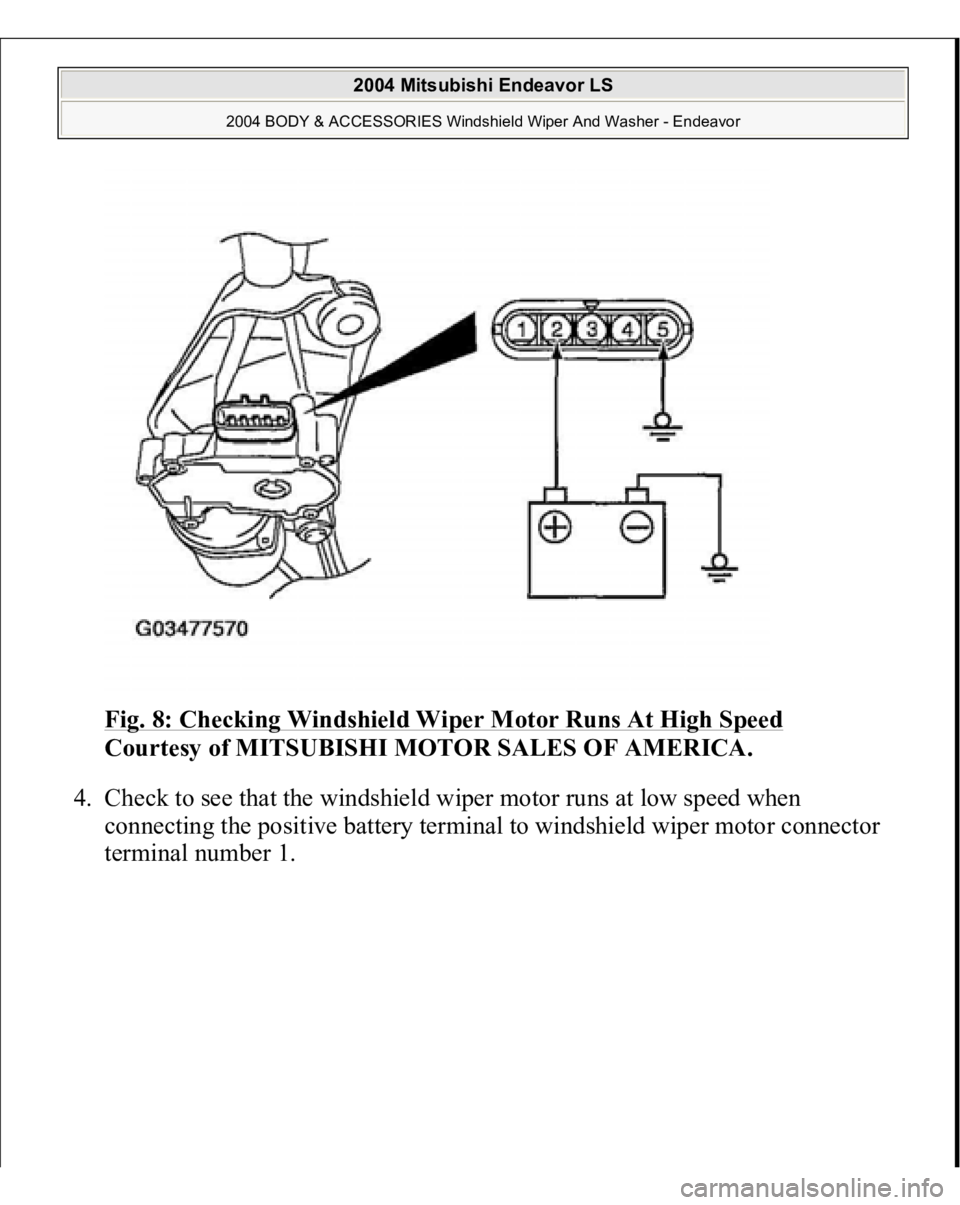

Fig. 8: Checking Windshield Wiper Motor Runs At High Speed

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Check to see that the windshield wiper motor runs at low speed when
connecting the positive battery terminal to windshield wiper motor connector
terminal number 1.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

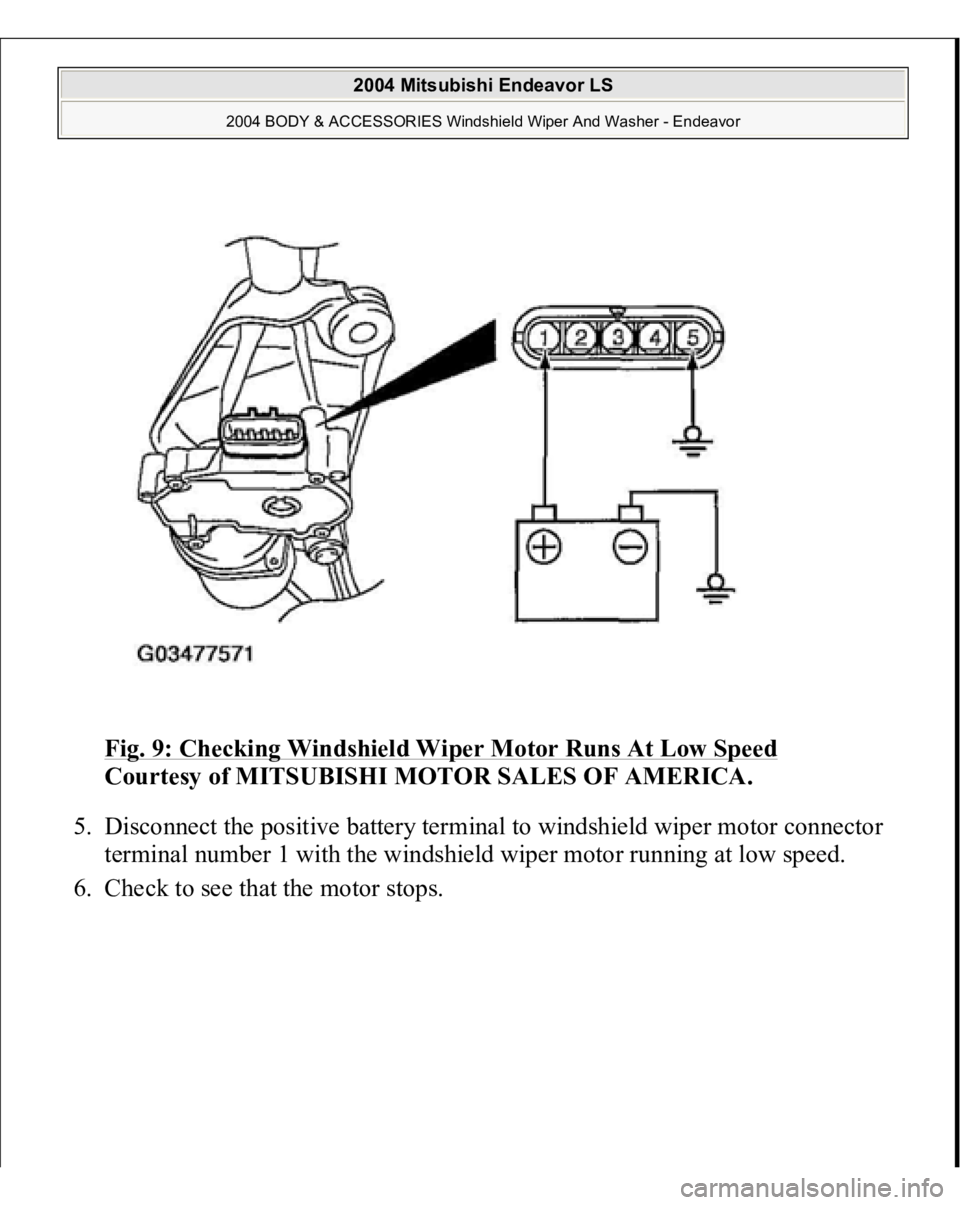

Fig. 9: Checking Windshield Wiper Motor Runs At Low Speed

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Disconnect the positive battery terminal to windshield wiper motor connector
terminal number 1 with the windshield wiper motor running at low speed.
6. Check to see that the motor stops.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

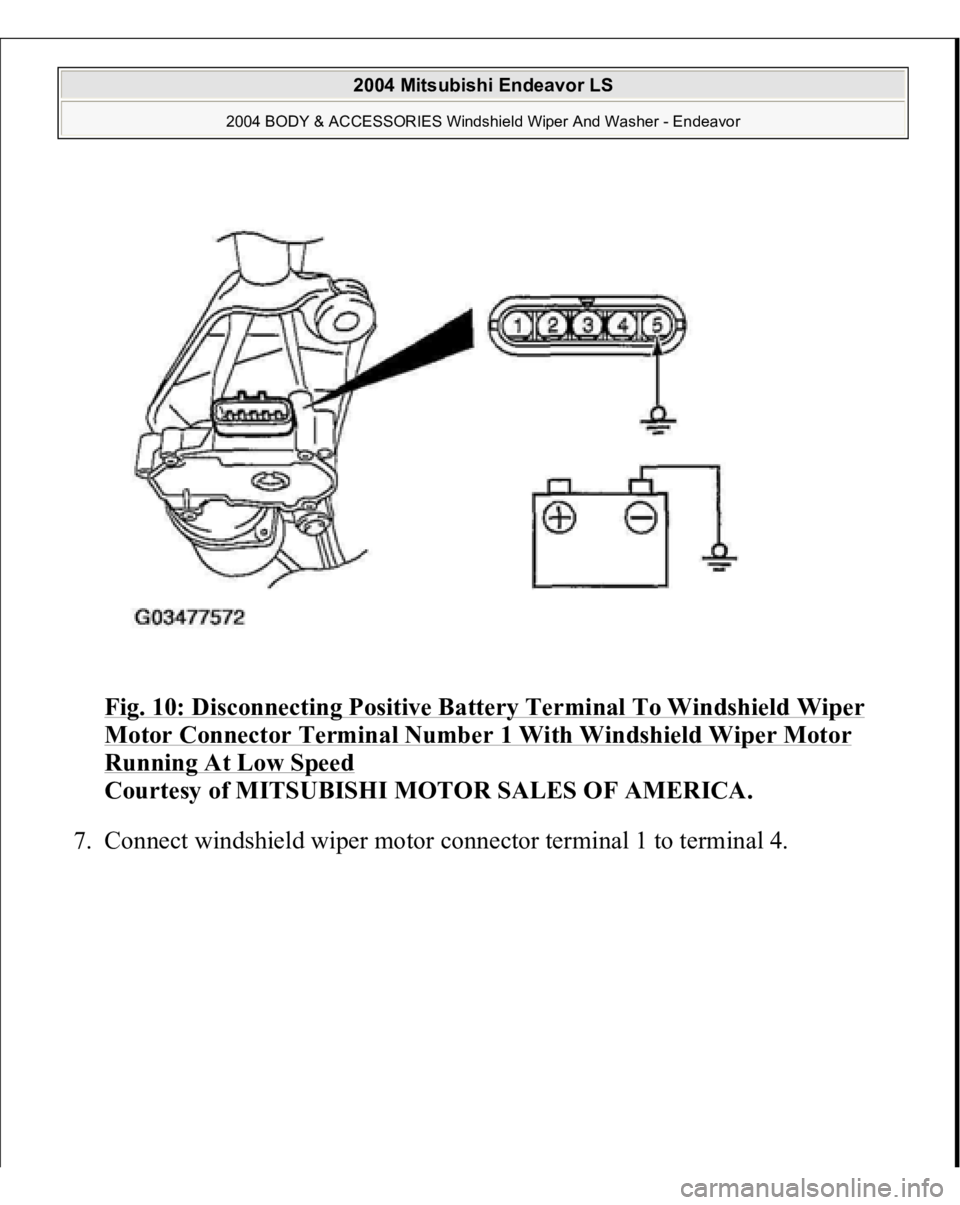

Fig. 10: Disconnecting Positive Battery Terminal To Windshield Wiper Motor Connector Terminal Number 1 With Windshield Wiper Motor Running At Low Speed

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Connect windshield wiper motor connector terminal 1 to terminal 4.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

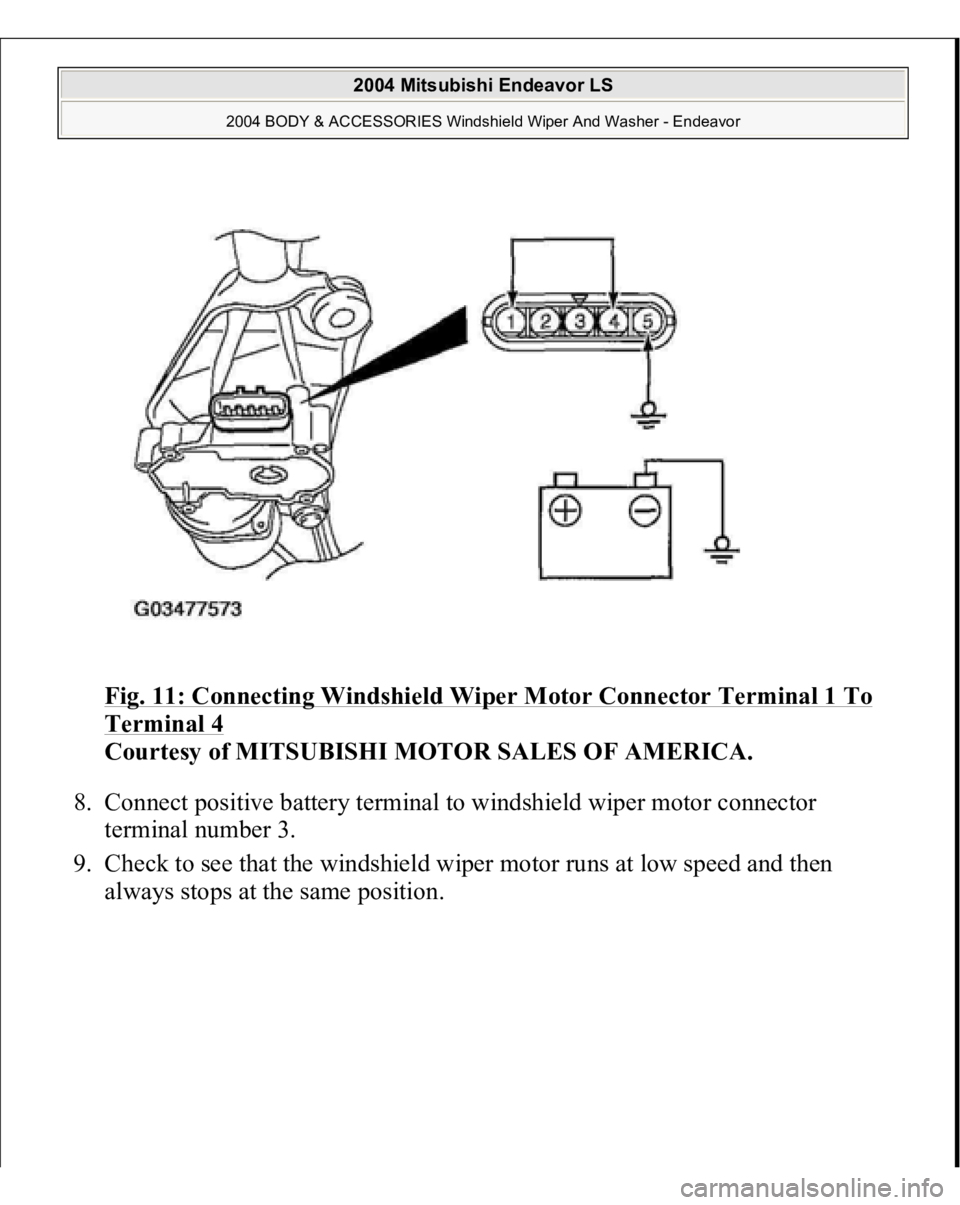

Fig. 11: Connecting Windshield Wiper Motor Connector Terminal 1 To Terminal 4

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Connect positive battery terminal to windshield wiper motor connector
terminal number 3.
9. Check to see that the windshield wiper motor runs at low speed and then
alwa
ys sto
ps at the same
position.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

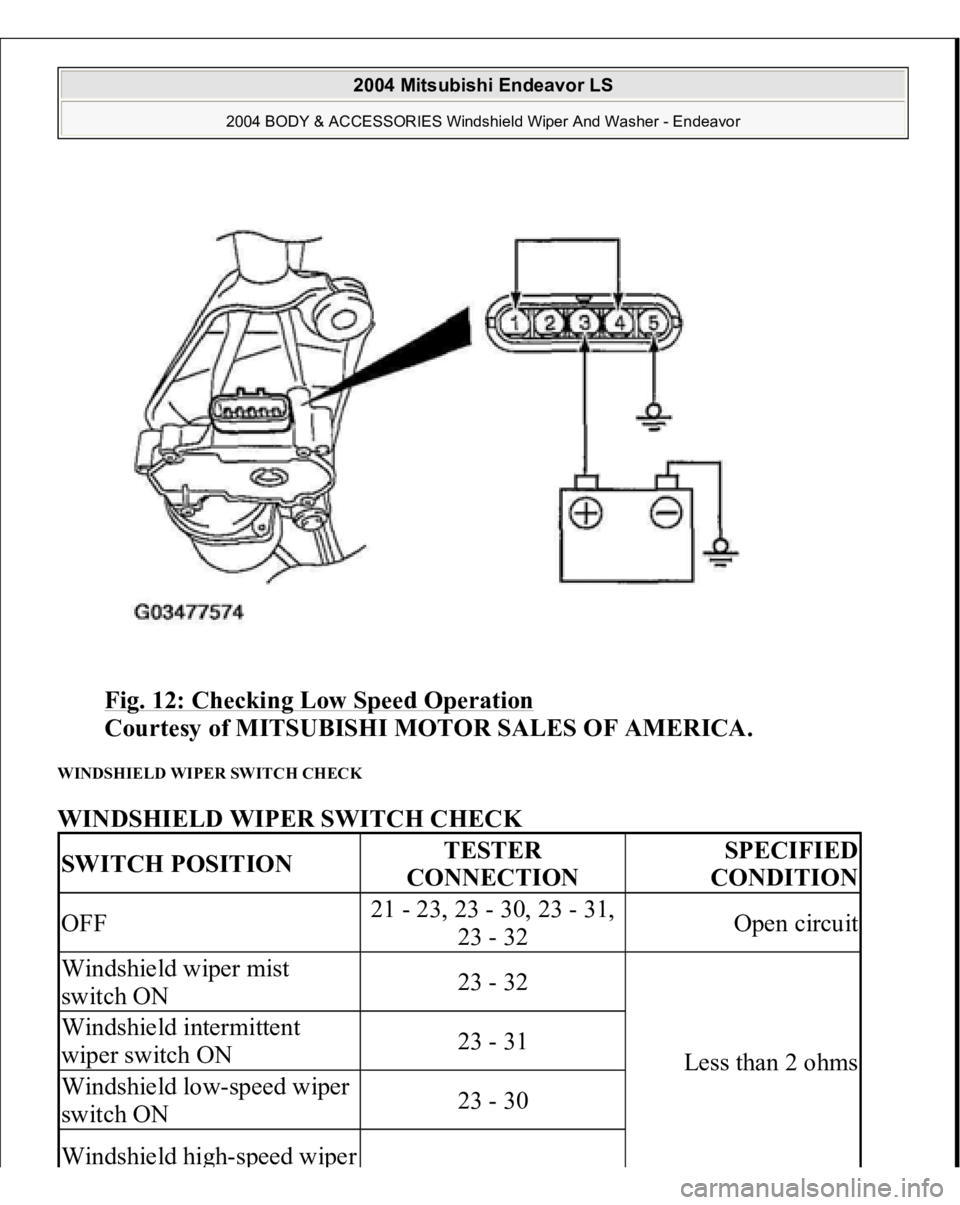

Fig. 12: Checking Low Speed Operation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WINDSHIELD WIPER SWITCH CHECK WINDSHIELD WIPER SWITCH CHECK SWITCH POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
OFF
21 - 23, 23 - 30, 23 - 31,
23 - 32
Open circuit
Windshield wiper mist
switch ON
23 - 32
Less than 2 ohms
Windshield intermittent
wiper switch ON
23 - 31
Windshield low-speed wiper
switch ON
23 - 30
Windshield hi
gh-s
peed wi
per

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor
