MITSUBISHI ENDEAVOR 2004 Service Repair Manual

battery terminal to rear wiper motor connector terminal number 3.

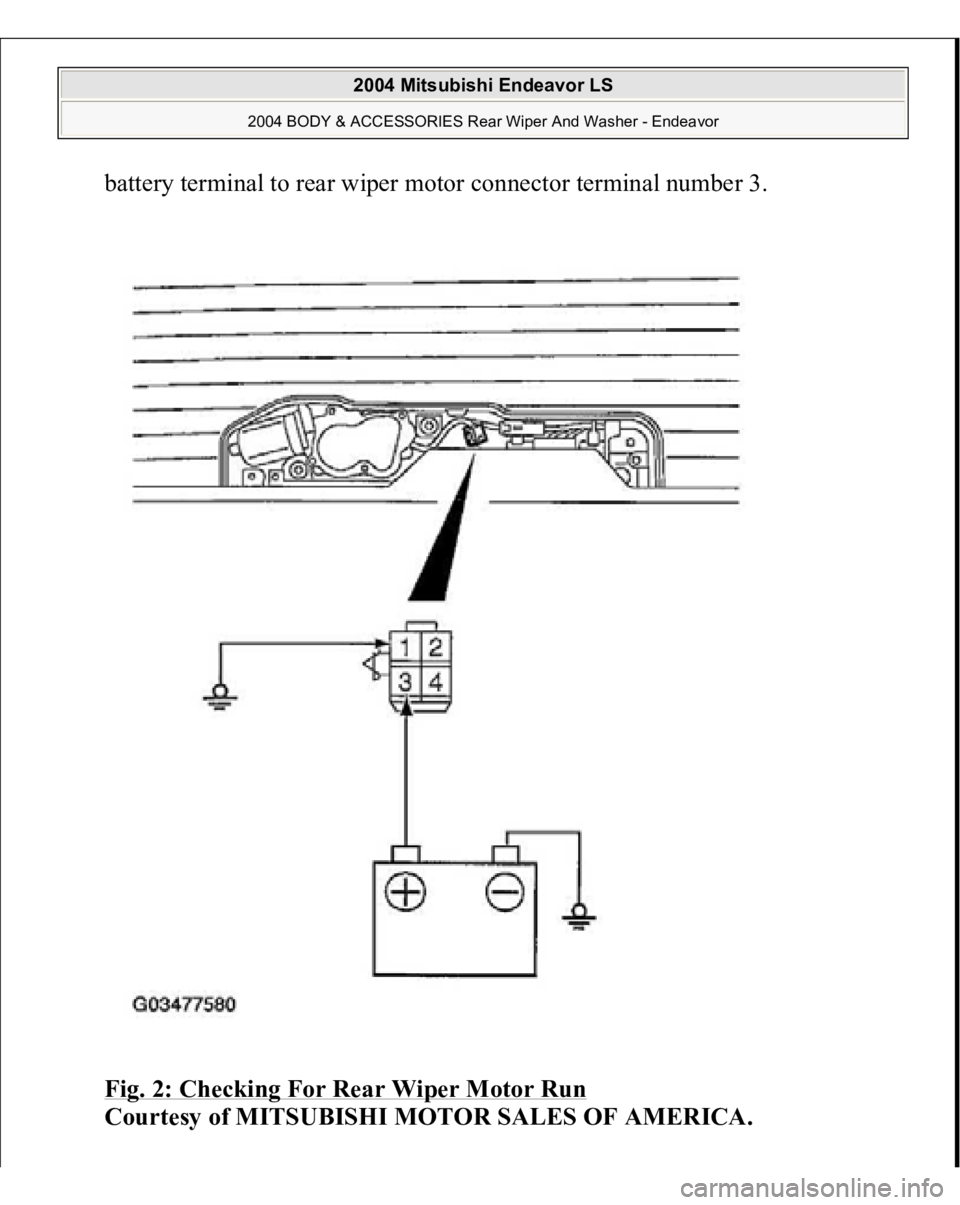

Fig. 2: Checking For Rear Wiper Motor Run

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

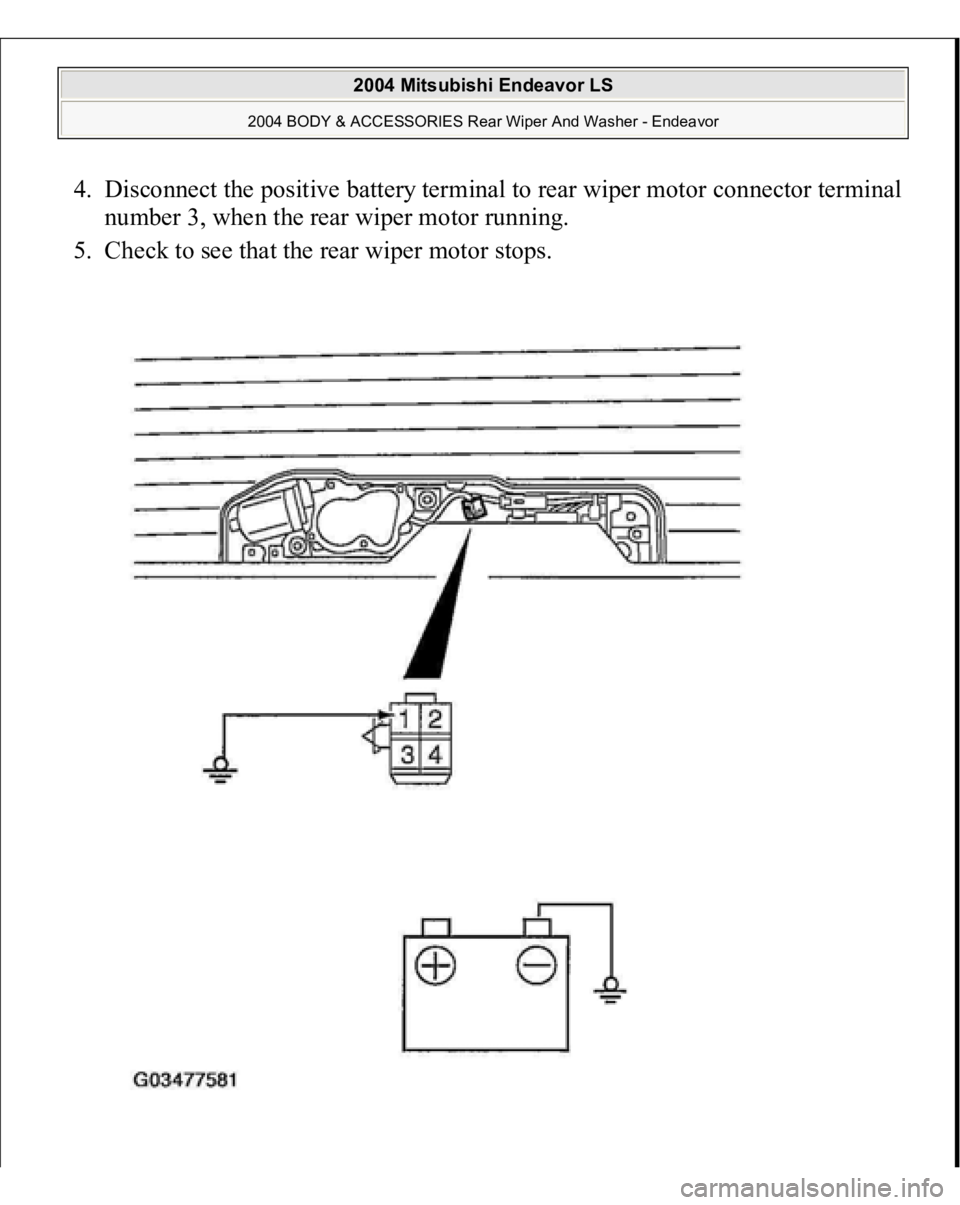

4. Disconnect the positive battery terminal to rear wiper motor connector terminal
number 3, when the rear wiper motor running.
5. Check to see that the rear wiper motor stops.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

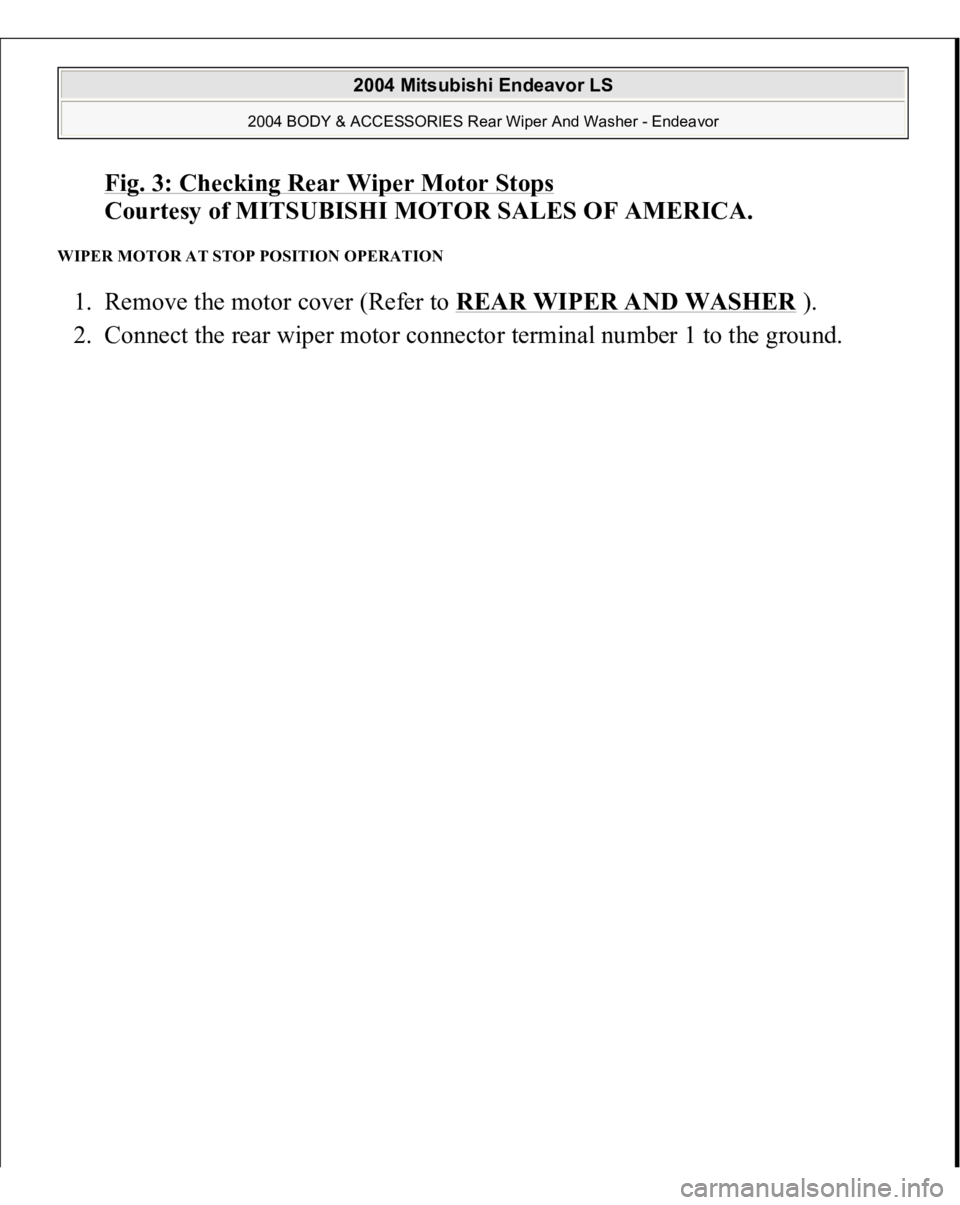

Fig. 3: Checking Rear Wiper Motor Stop
s
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WIPER MOTOR AT STOP POSITION OPERATION 1. Remove the motor cover (Refer to REAR WIPER AND WASHER
).
2. Connect the rear wi
per motor connector terminal num
ber 1 to the
ground.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

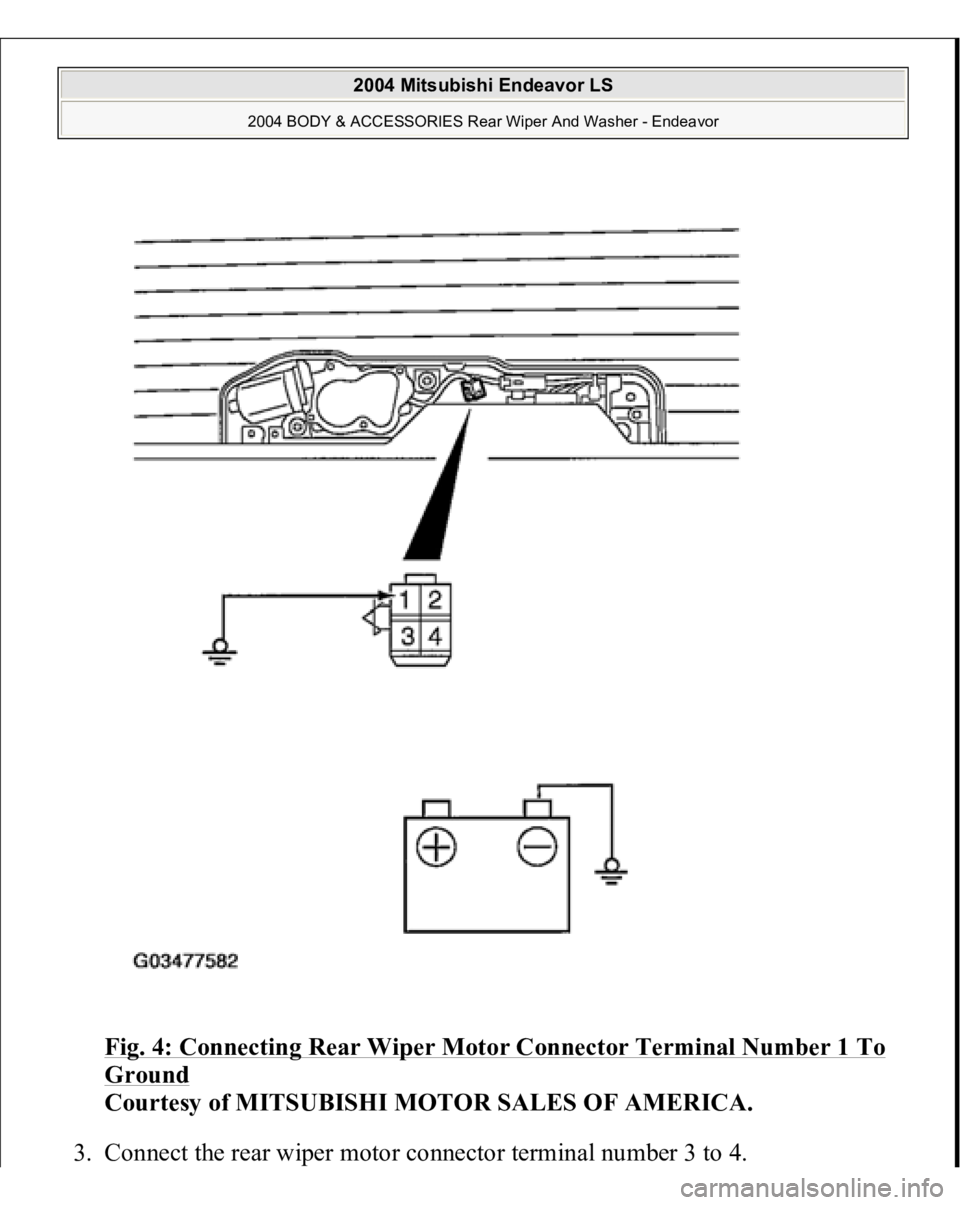

Fig. 4: Connecting Rear Wiper Motor Connector Terminal Number 1 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Connect the rear wiper motor connector terminal num
ber 3 to 4.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

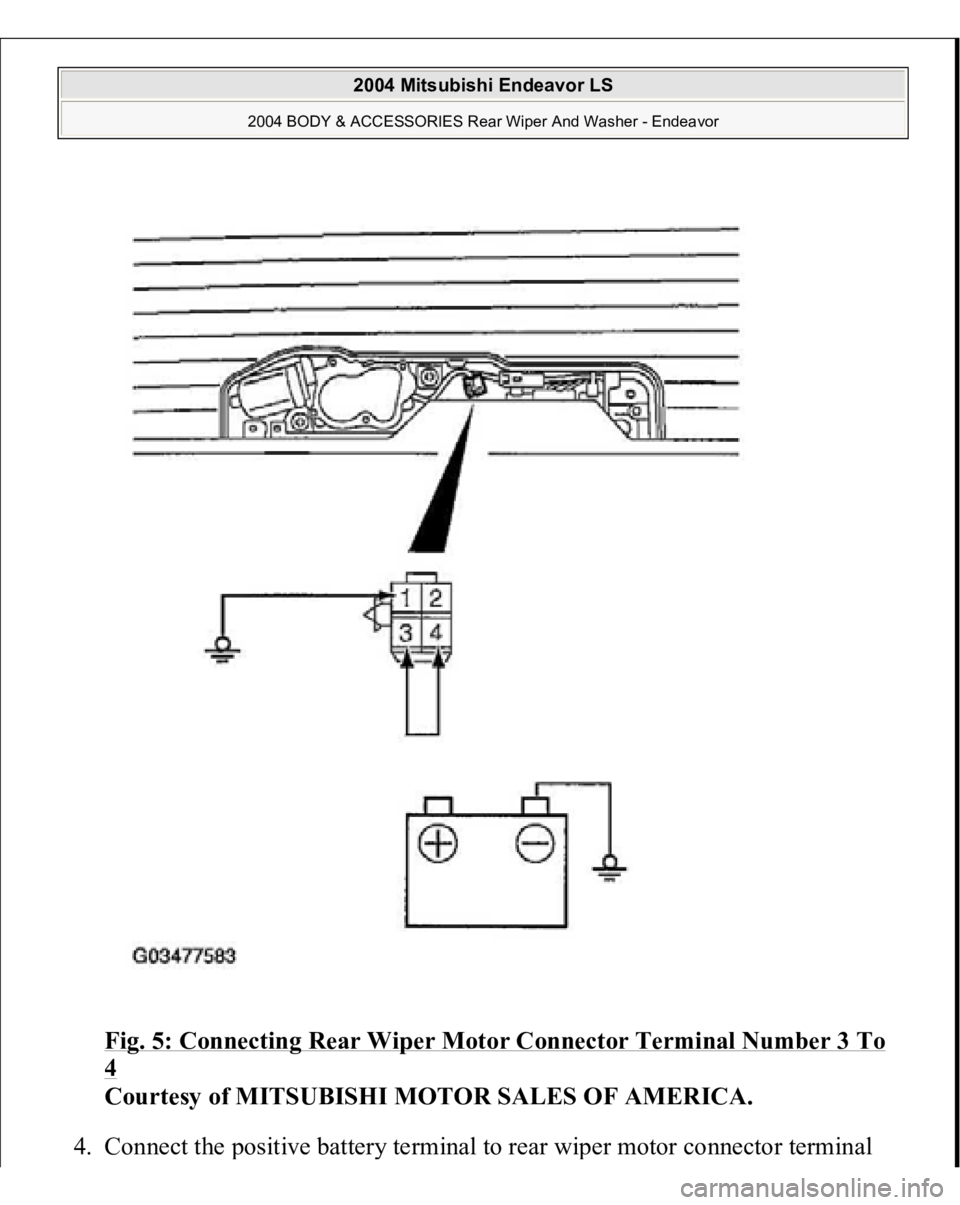

Fig. 5: Connecting Rear Wiper Motor Connector Terminal Number 3 To 4
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Connect the
positive batter
y terminal to rear wi
per motor connector terminal

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

number 2.
5. Check to see that the rear wiper motor runs and then stops at the automatic stop
position.
Fig. 6: Checking Rear Wiper Stops At Automatic Stop Position

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
REAR WASHER FLUID EJECTION CHECK If the rear washer does not spray washer fluid within the area shown, adjust it by
moving it.

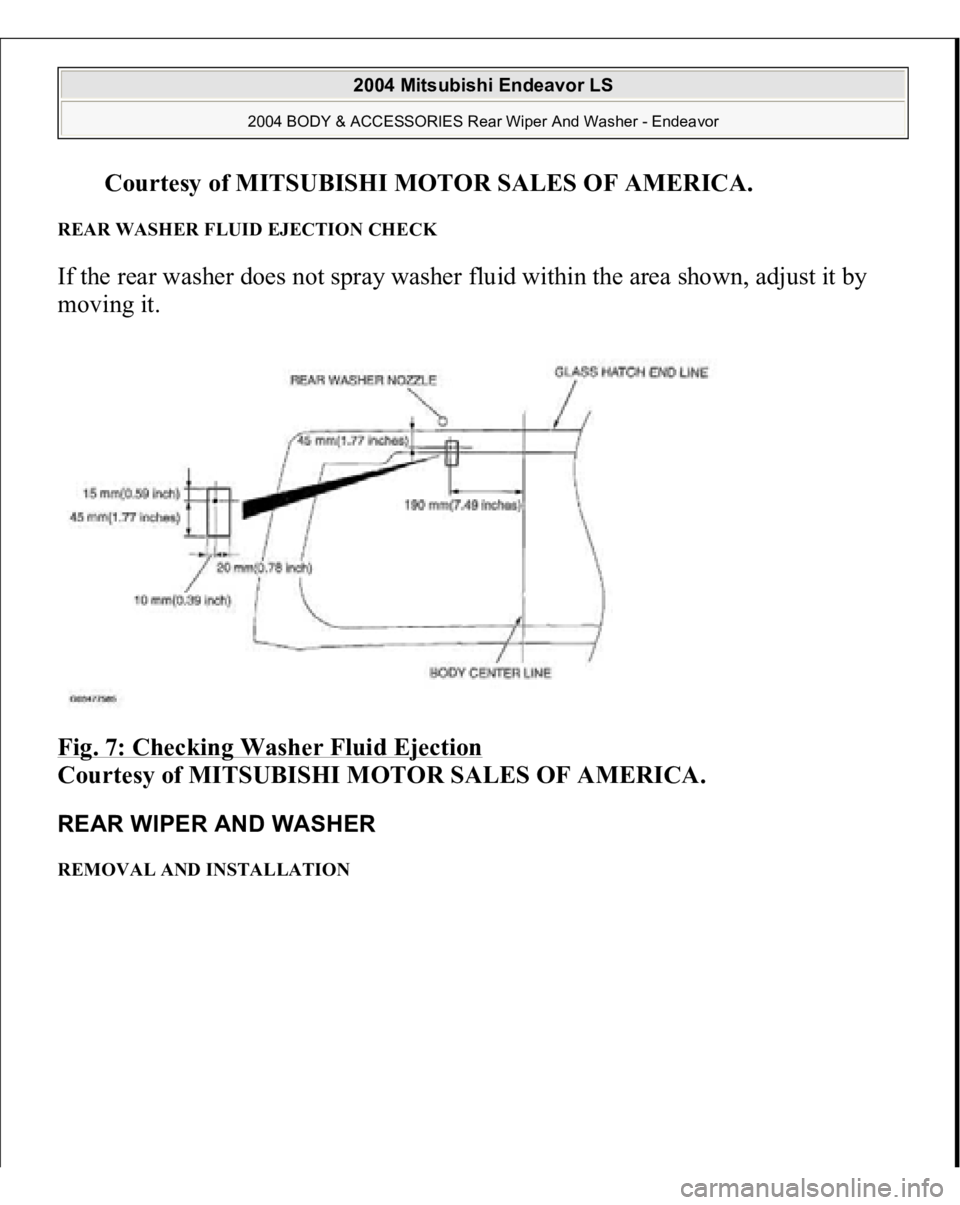

Fig. 7: Checking Washer Fluid Ejection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR WIPER AND WASHER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

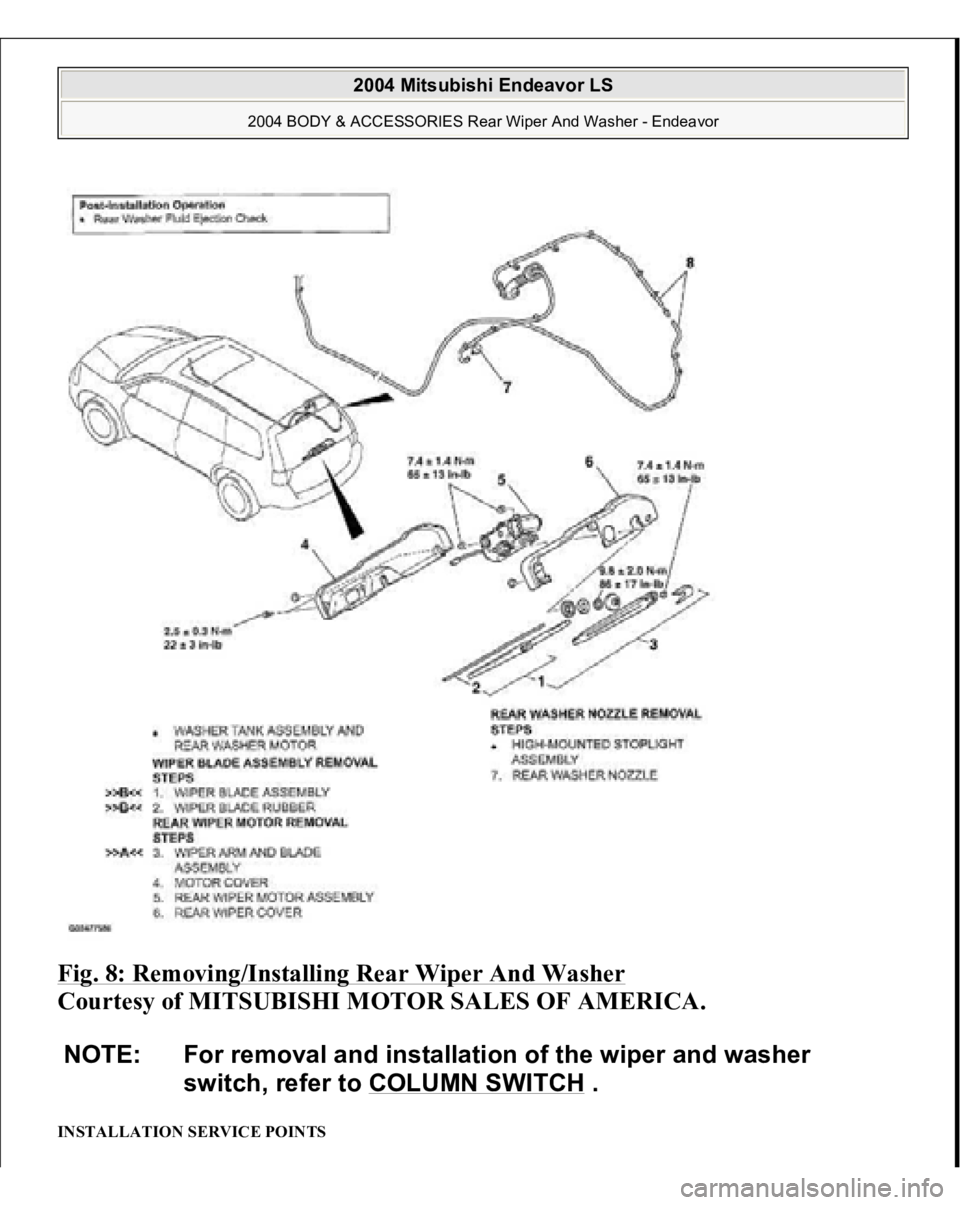

Fig. 8: Removing/Installing Rear Wiper And Washer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS NOTE: For removal and installation of the wiper and washer
switch, refer to COLUMN SWITCH
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

>>A<< REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATIONBefore installing the rear wiper arm and blade assembly, operate the rear wiper
motor so that the motor stops at the predetermined park position. Install the rear
wipe arm and blade assembly and adjust the rear wiper blade position so that the
blade end stops at the predetermined position (standard position).
Standard value: (A) 40 +/- 5 mm (1.57 +/- 0.20 inch)

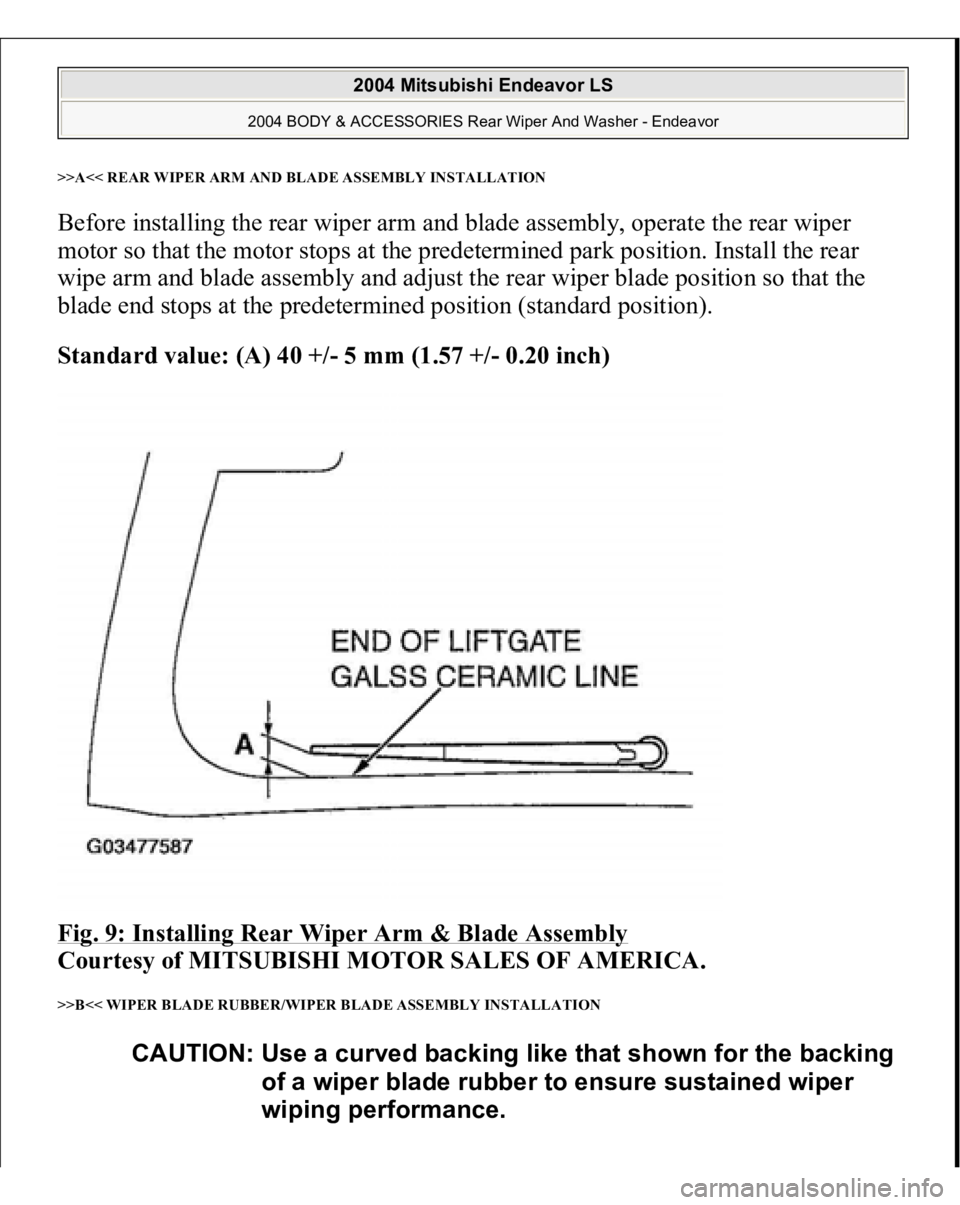

Fig. 9: Installing Rear Wiper Arm & Blade Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< WIPER BLADE RUBBER/WIPER BLADE ASSEMBLY INSTALLATION
CAUTION: Use a curved backing like that shown for the backing
of a wiper blade rubber to ensure sustained wiper
wiping performance.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

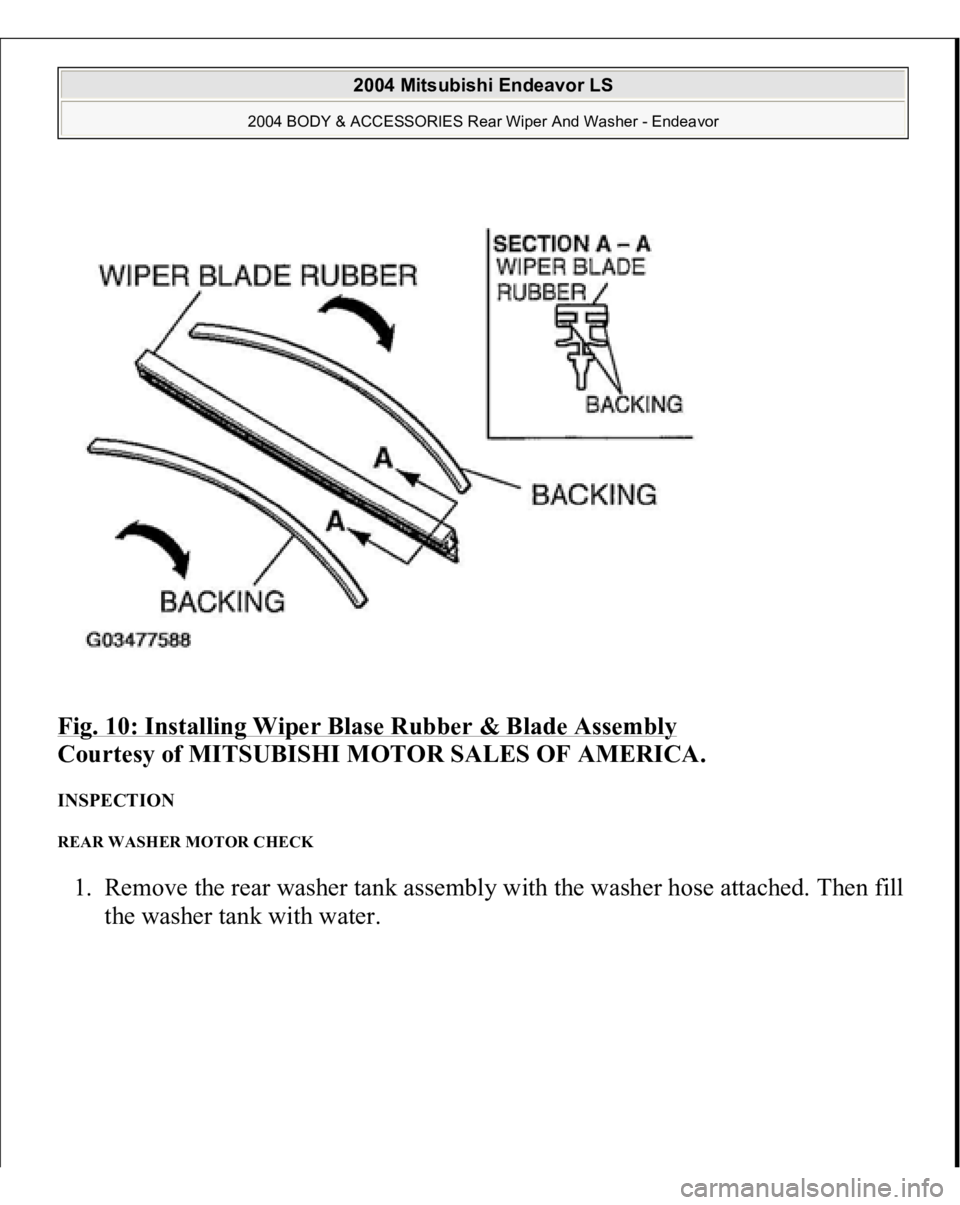

Fig. 10: Installing Wiper Blase Rubber & Blade Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION REAR WASHER MOTOR CHECK 1. Remove the rear washer tank assembly with the washer hose attached. Then fill
the washer tank with water.
