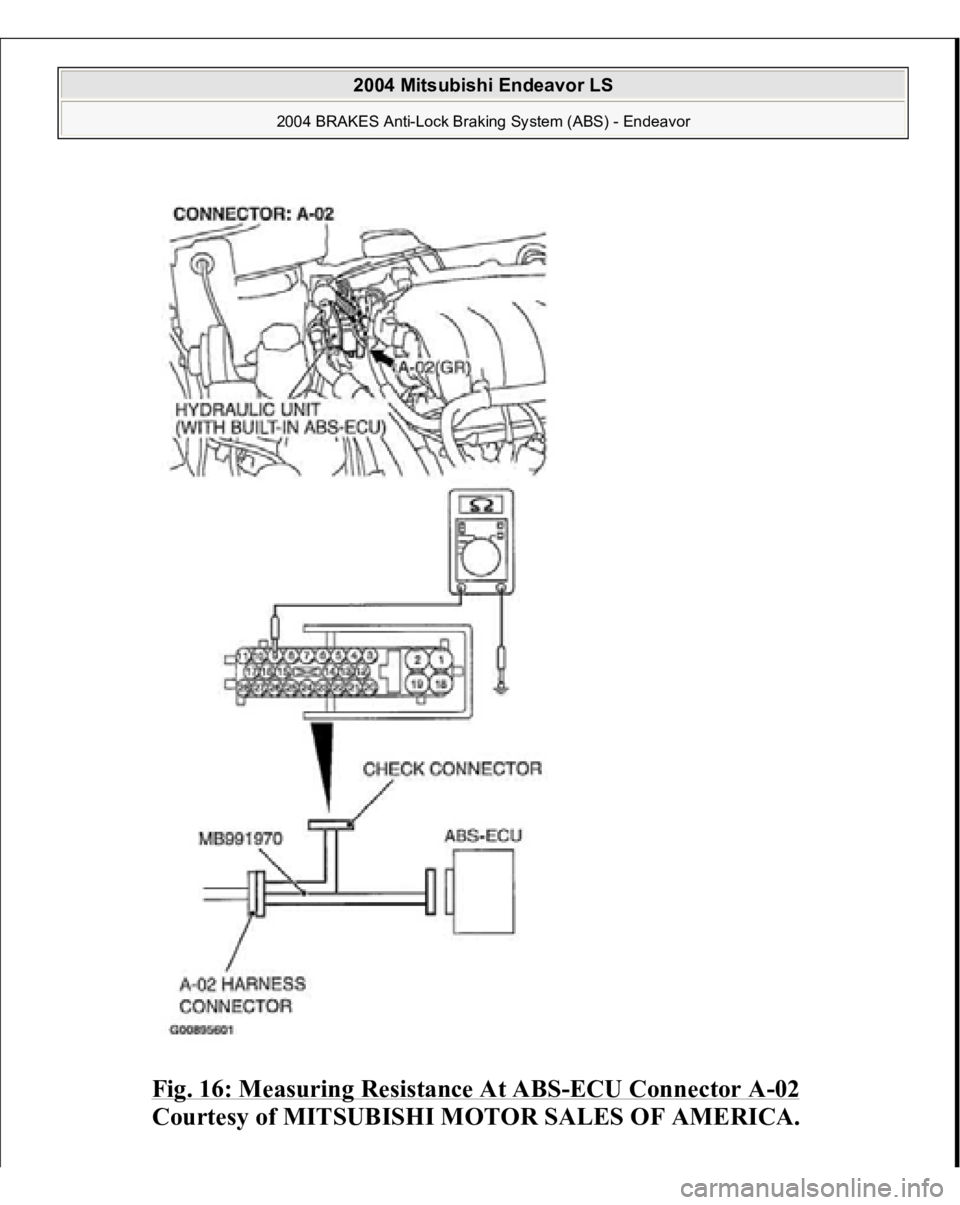

Fig. 16: Measuring Resistance At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Q: Does continuity exist?
YES (Continuity exists between terminal 9 or terminal 10 and body
ground): Go to Step 7 .
YES (Continuity exists between terminal 26 or terminal 16 and body
ground): Go to Step 9 .
YES (Continuity exists between terminal 11 or terminal 17 and body
ground): Go to Step 11 .
YES (Continuity exists between terminal 28 or terminal 27 and body
ground): Go to Step 13 .
NO: Go to Step 6.
STEP 6. Measure the resistance at the ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between the ABS-ECU connector terminals.
DTC C1200 is set: Between terminal 9 and terminal 10 DTC C1205 is set: Between terminal 26 and terminal 16 DTC C1210 is set: Between terminal 11 and terminal 17 DTC C1215 is set: Between terminal 28 and terminal 27
Standard Value: 1.24 - 1.64 kohm NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

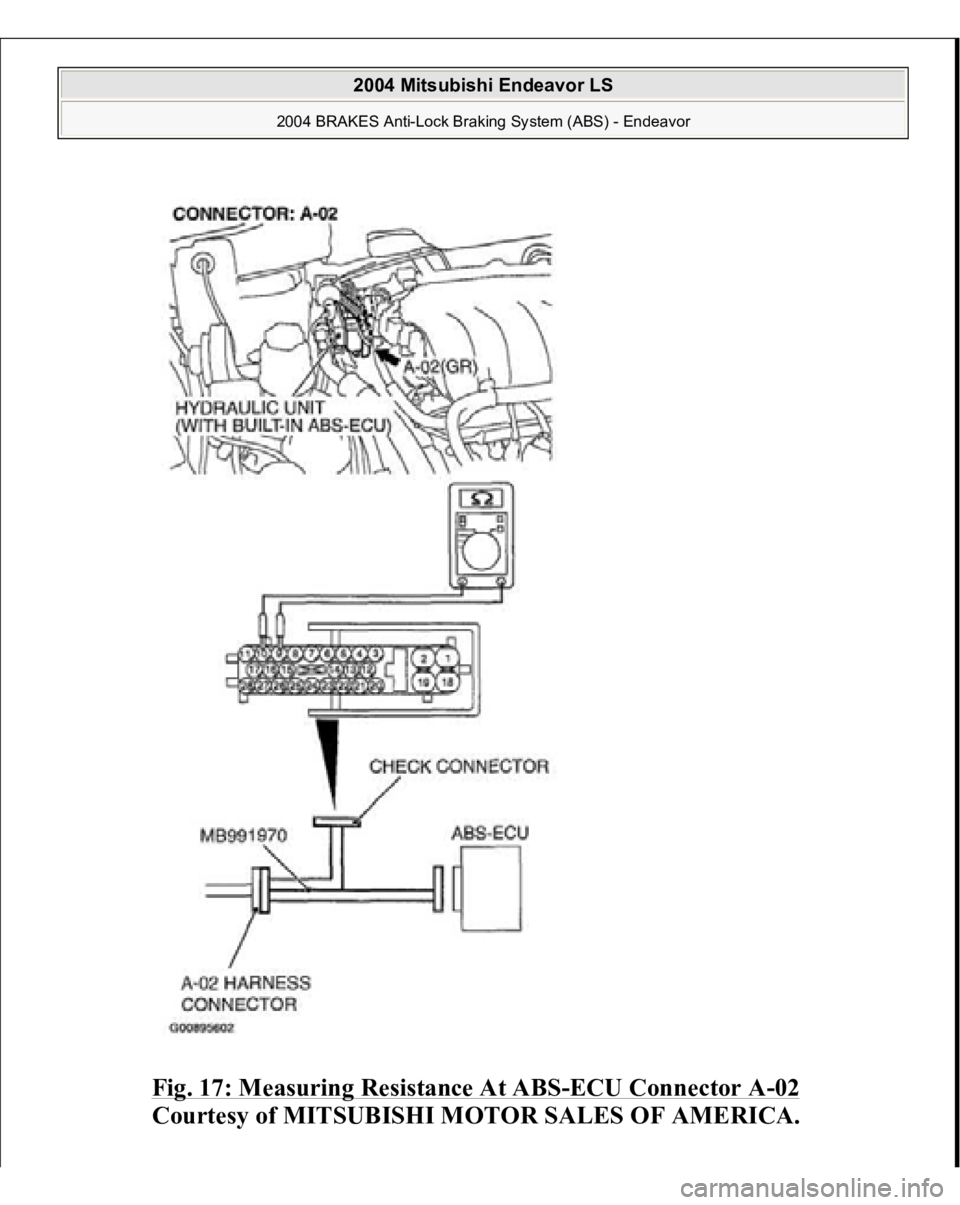

Fig. 17: Measuring Resistance At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Q: Is the resistance between terminals 16 and 26, 9 and 10, 27 and 28, or
11 and 17 within the standard value?
YES (When resistances between all terminals are within the standard
value): Go to Step 16 .
NO (When resistance between terminals 9 and 10 is not within the
standard value): Go to Step 7.
NO (When resistance between terminals 16 and 26 is not within the
standard value): Go to Step 9 .
NO (When resistance between terminals 11 and 17 is not within the
standard value): Go to Step 11 .
NO (When resistance between terminals 27 and 28 is not within the
standard value): Go to Step 13 .
STEP 7. Check ABS-ECU connector A-02 and ABS sensor < front : RH >
connector A-31 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 18: Checking ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 19: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are ABS-ECU connector A-02 and ABS sensor < front: RH >
connector A-31 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17 .
NO: Go to Step 8.
STEP 8. Check the harness wires between ABS-ECU connector A-02
(terminal 16, 26) and ABS sensor < front: RH > connector A-31 (terminal
2, 1).

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

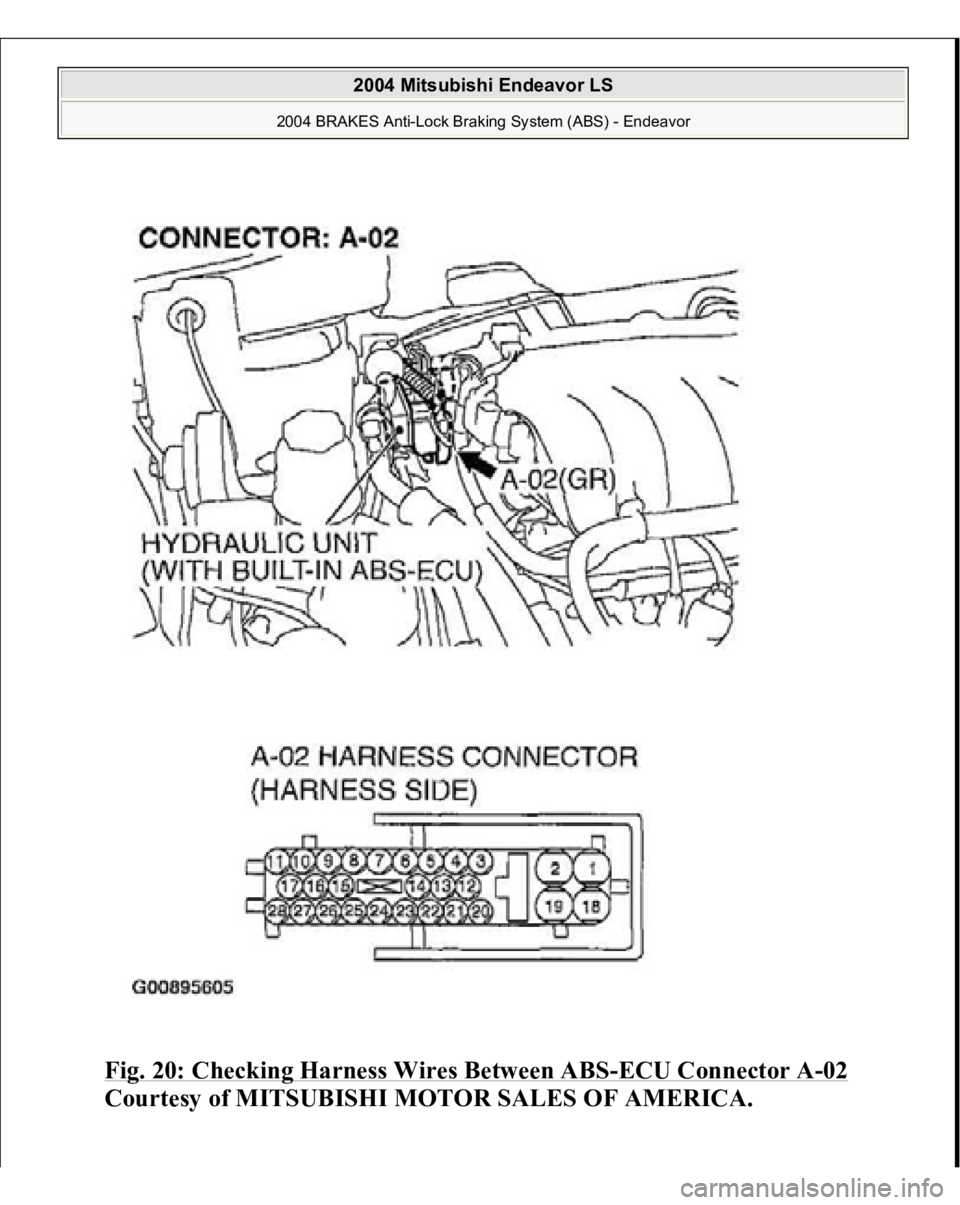

Fig. 20: Checking Harness Wires Between ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 21: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between ABS-ECU connector A-02 (terminal 9, 10)
and ABS sensor < front: RH > connector A-31 (terminal 1, 2) damaged?
YES: Repair the wiring harness. Then go to Step 17 .
NO: Go to Step 15 .
STEP 9. Check ABS-ECU connector A-02 and ABS sensor < front: LH >
connector A-14 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

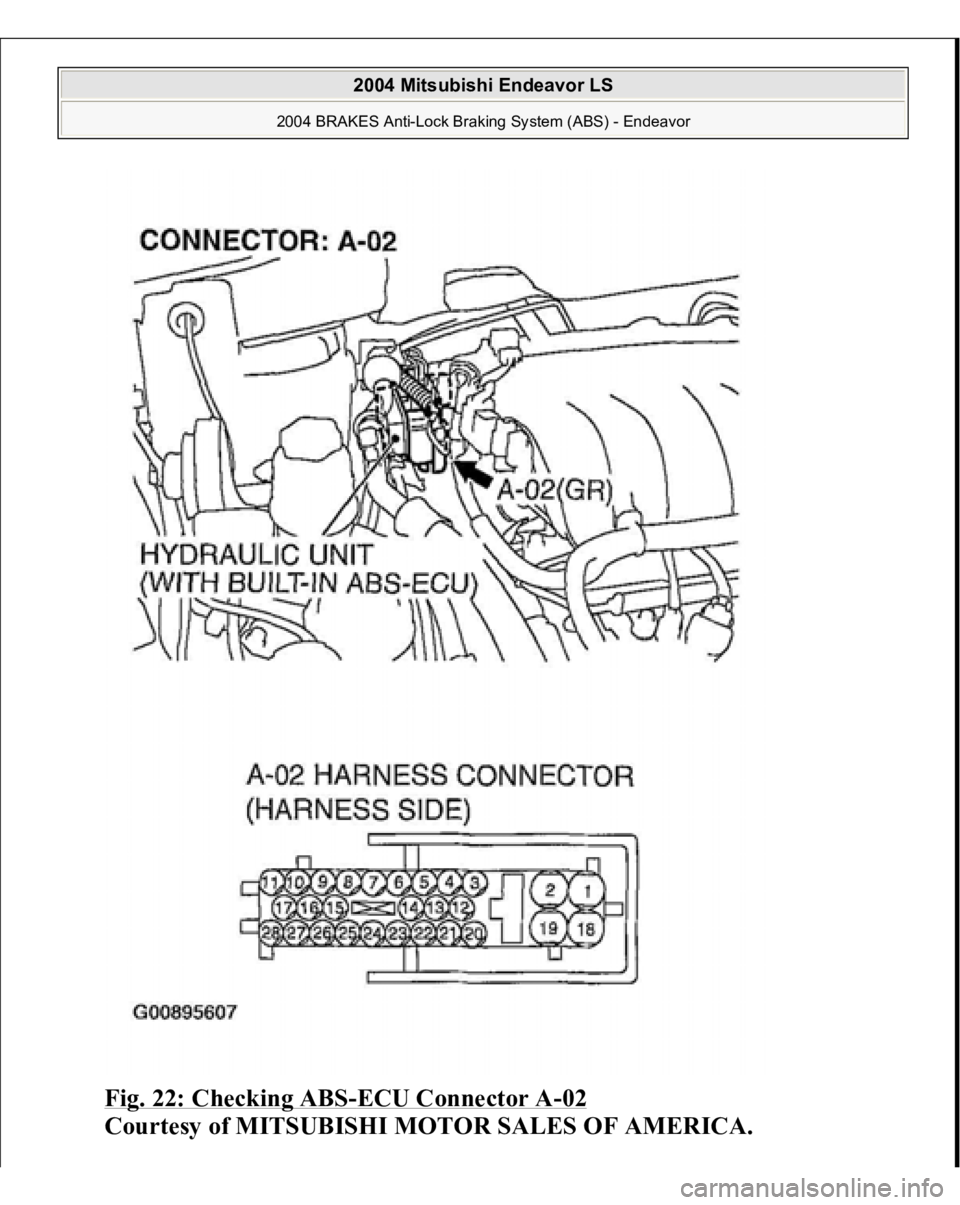

Fig. 22: Checking ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 23: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are ABS-ECU connector A-02 and ABS sensor < front: LH >
connector A-14 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17 ..
NO: Go to Step 10.
STEP 10. Check the harness wires between ABS-ECU connector A-02
(terminal 16, 26) and ABS sensor < front: LH > connector A-14 (terminal
1, 2).

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
