2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 18: Checking Harness Between PCM And Body
-Side Harness
Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position and the "CRUISE" (MAIN)
switch to the "OFF" position.

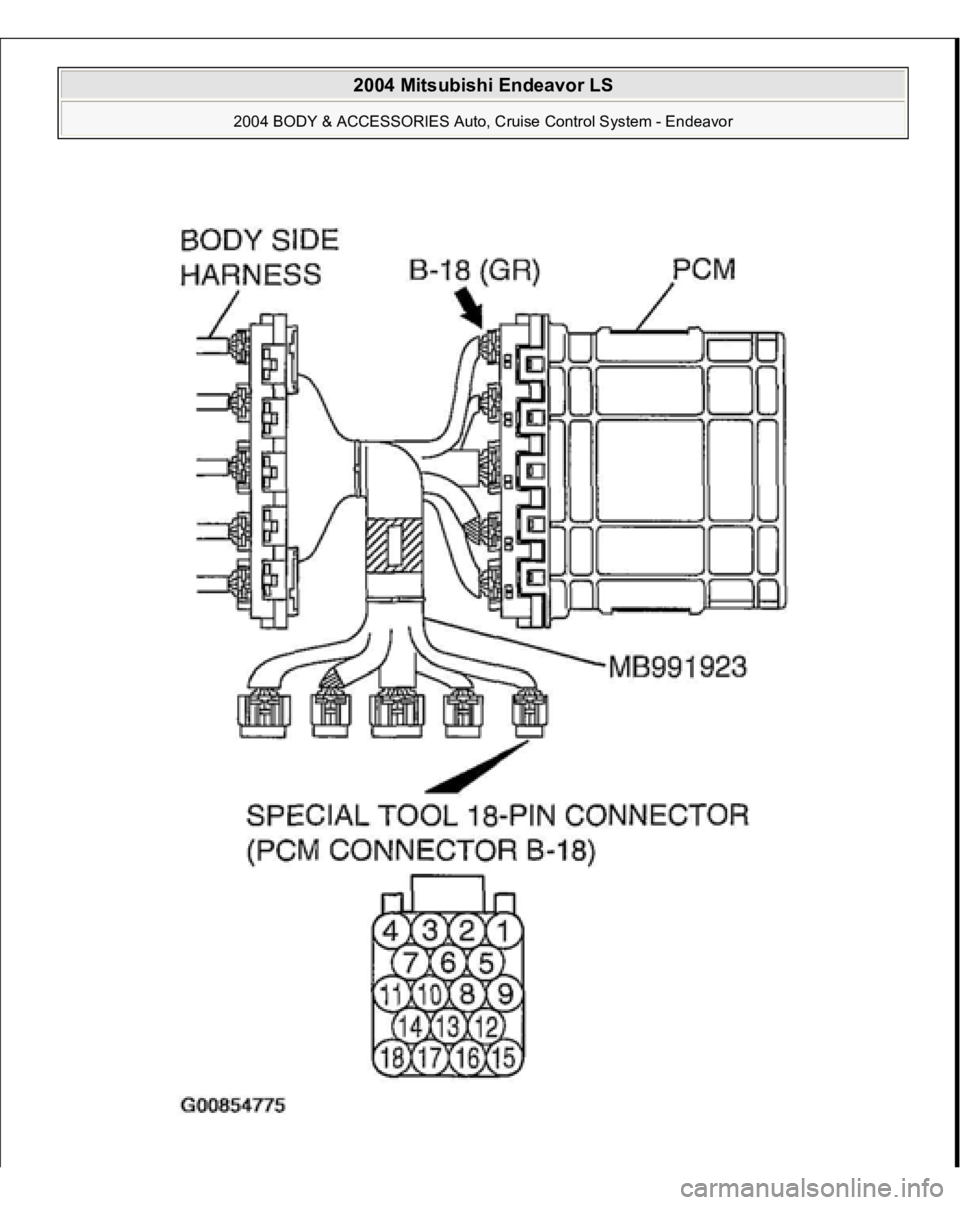

4. Measure the power supply voltage between special tool 18-pin connector
terminal 12 (PCM connector B-18 terminal 12) and ground.
Fig. 19: Measuring Power Supply Voltage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Turn the i
gnition switch to the "OFF"
position.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

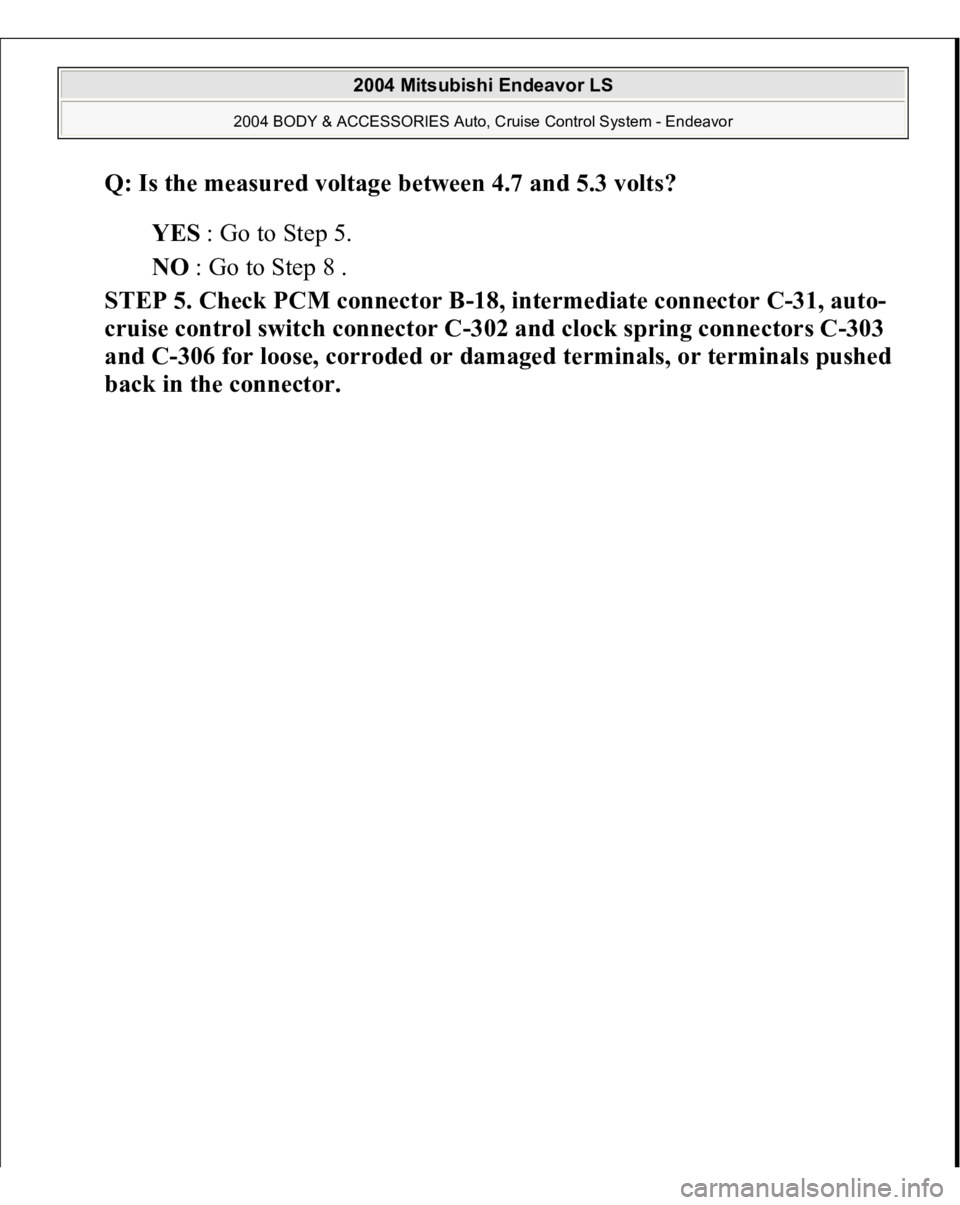

Q: Is the measured voltage between 4.7 and 5.3 volts?
YES : Go to Step 5.
NO : Go to Step 8 .
STEP 5. Check PCM connector B-18, intermediate connector C-31, auto-
cruise control switch connector C-302 and clock spring connectors C-303
and C-306 for loose, corroded or damaged terminals, or terminals pushed
back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

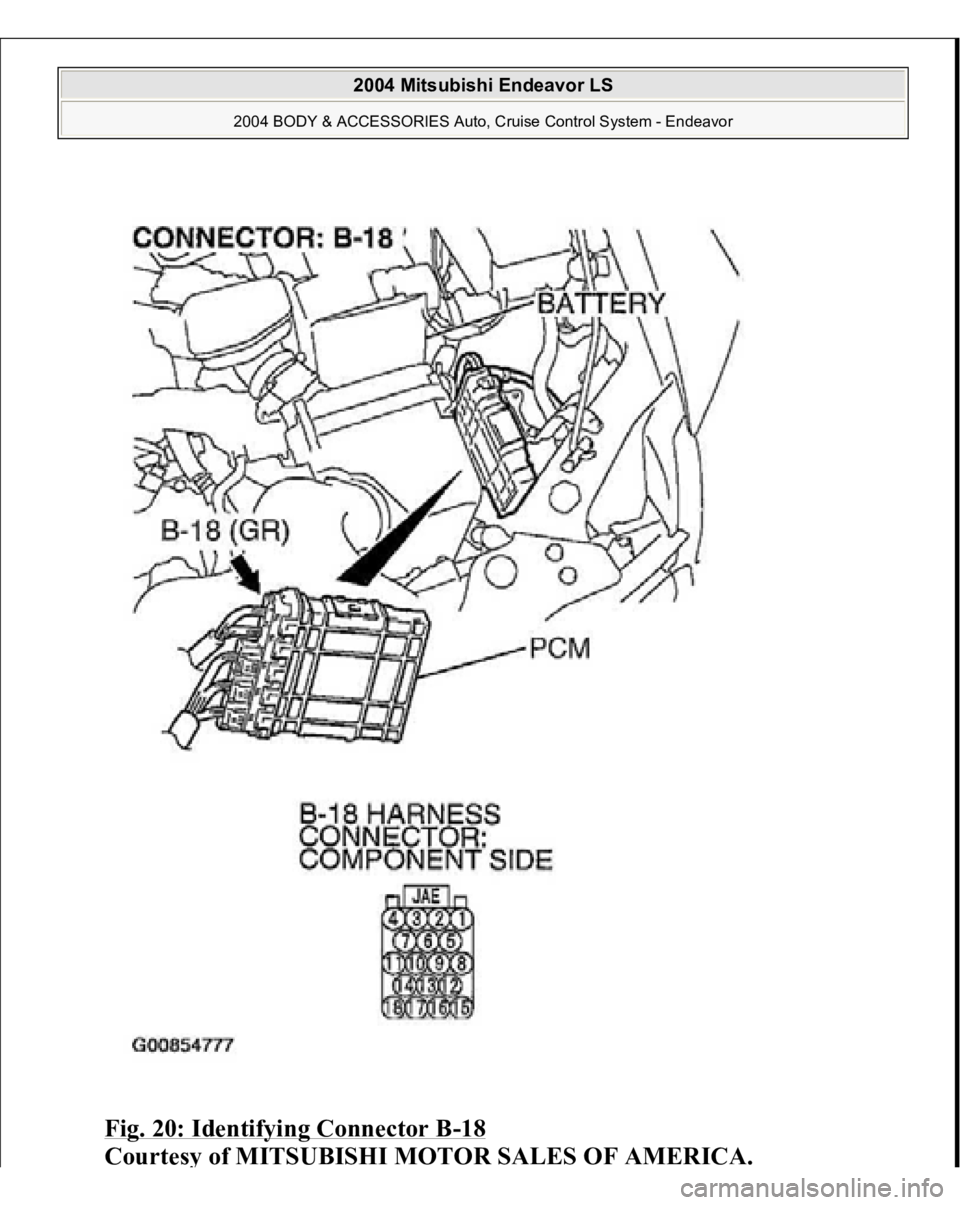

Fig. 20: Identifying Connector B
-18
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

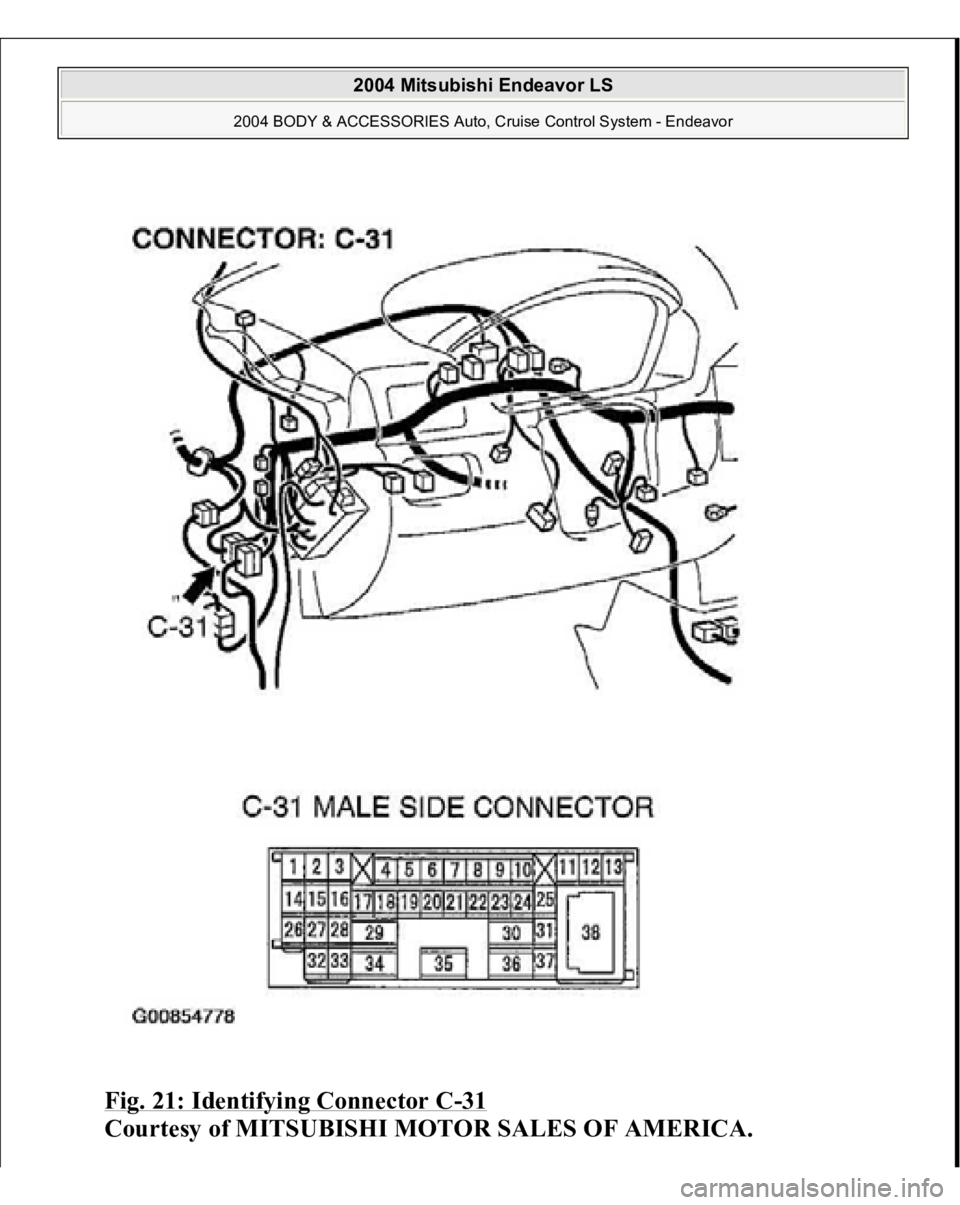

Fig. 21: Identifying Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

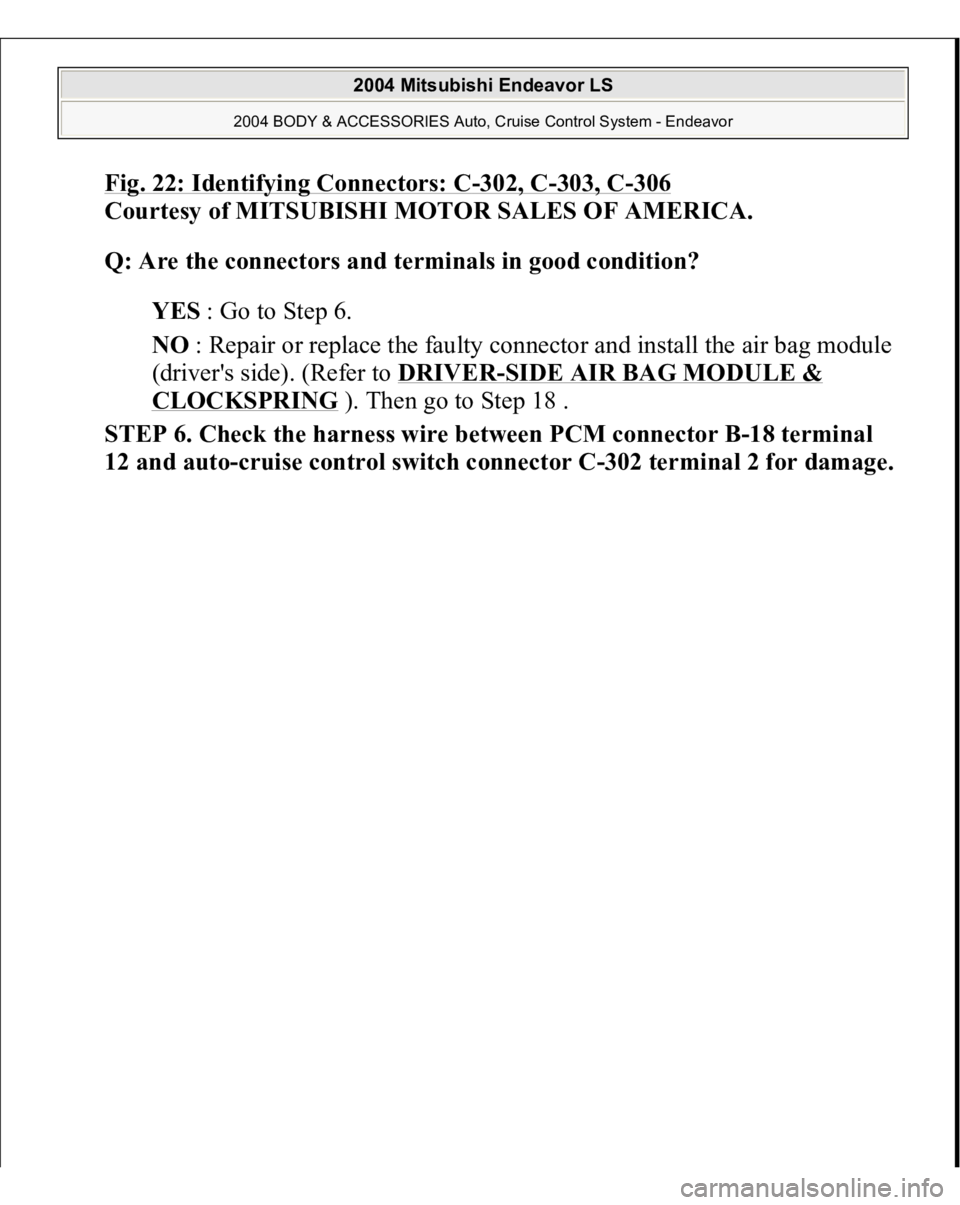

Fig. 22: Identifying Connectors: C
-302, C
-303, C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connectors and terminals in good condition?
YES : Go to Step 6.
NO : Repair or replace the faulty connector and install the air bag module
(driver's side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 6. Check the harness wire between PCM connector B-18 terminal
12 and auto-cruise control switch connector C-302 terminal 2 for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

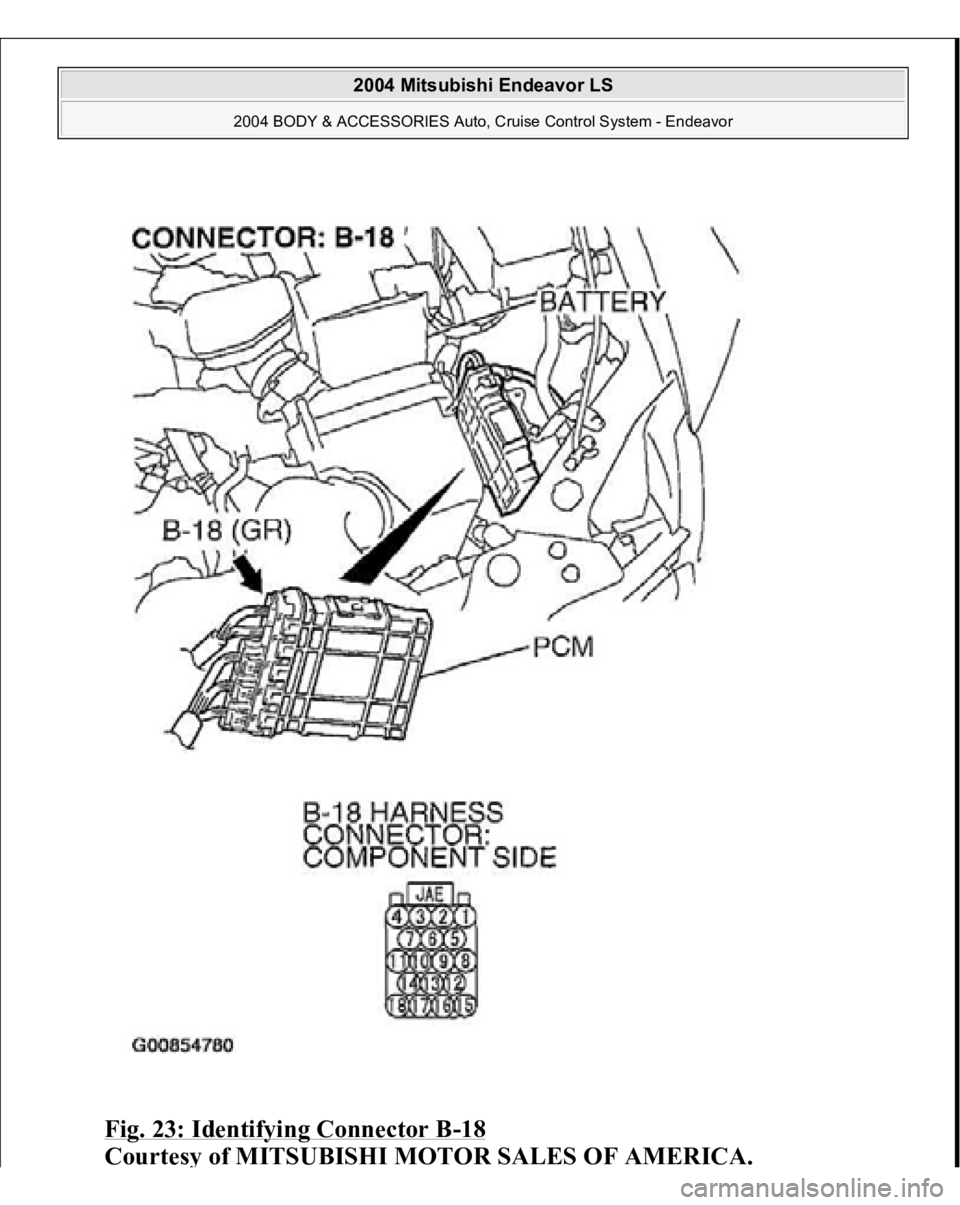

Fig. 23: Identifying Connector B
-18
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

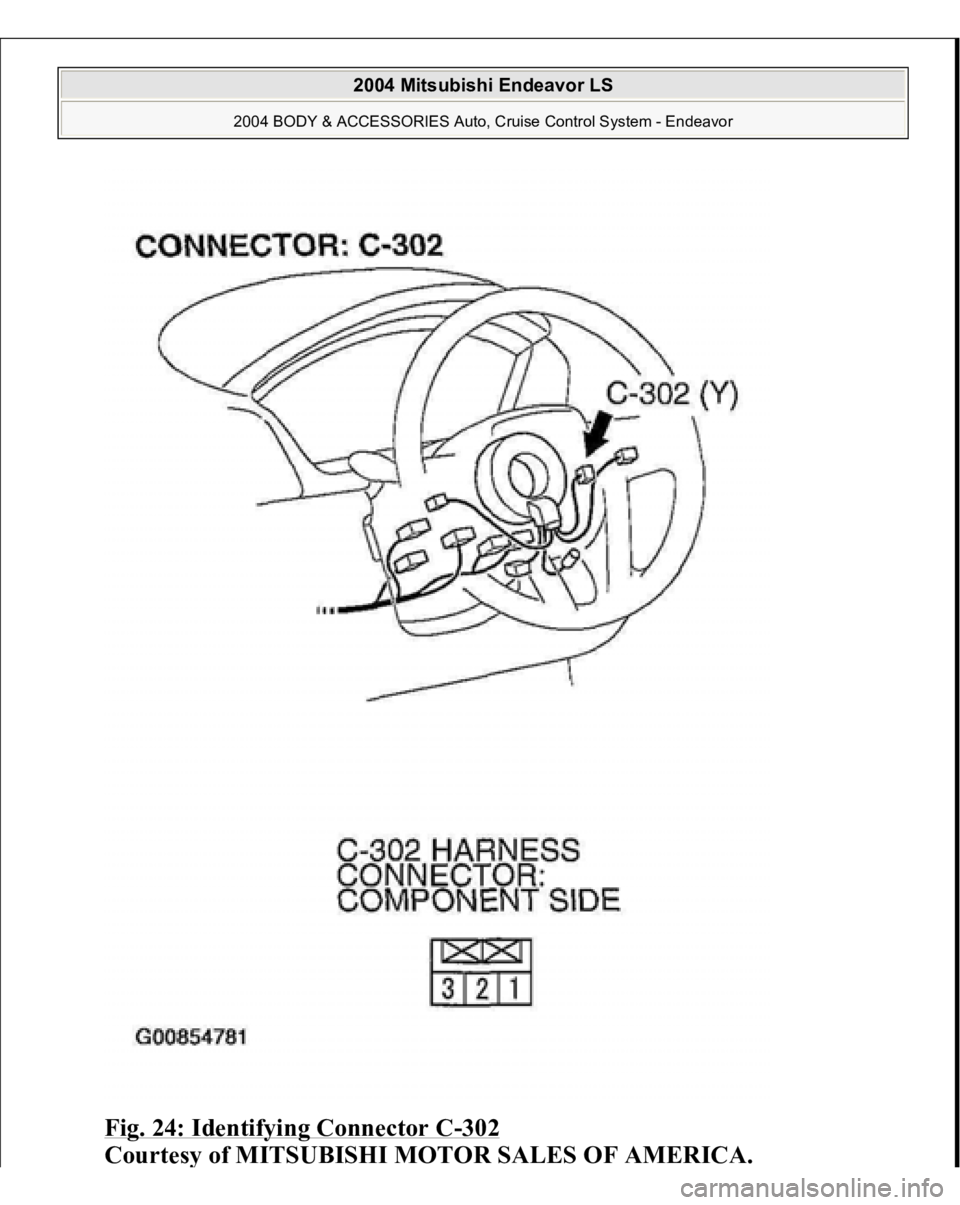

Fig. 24: Identifying Connector C
-302

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

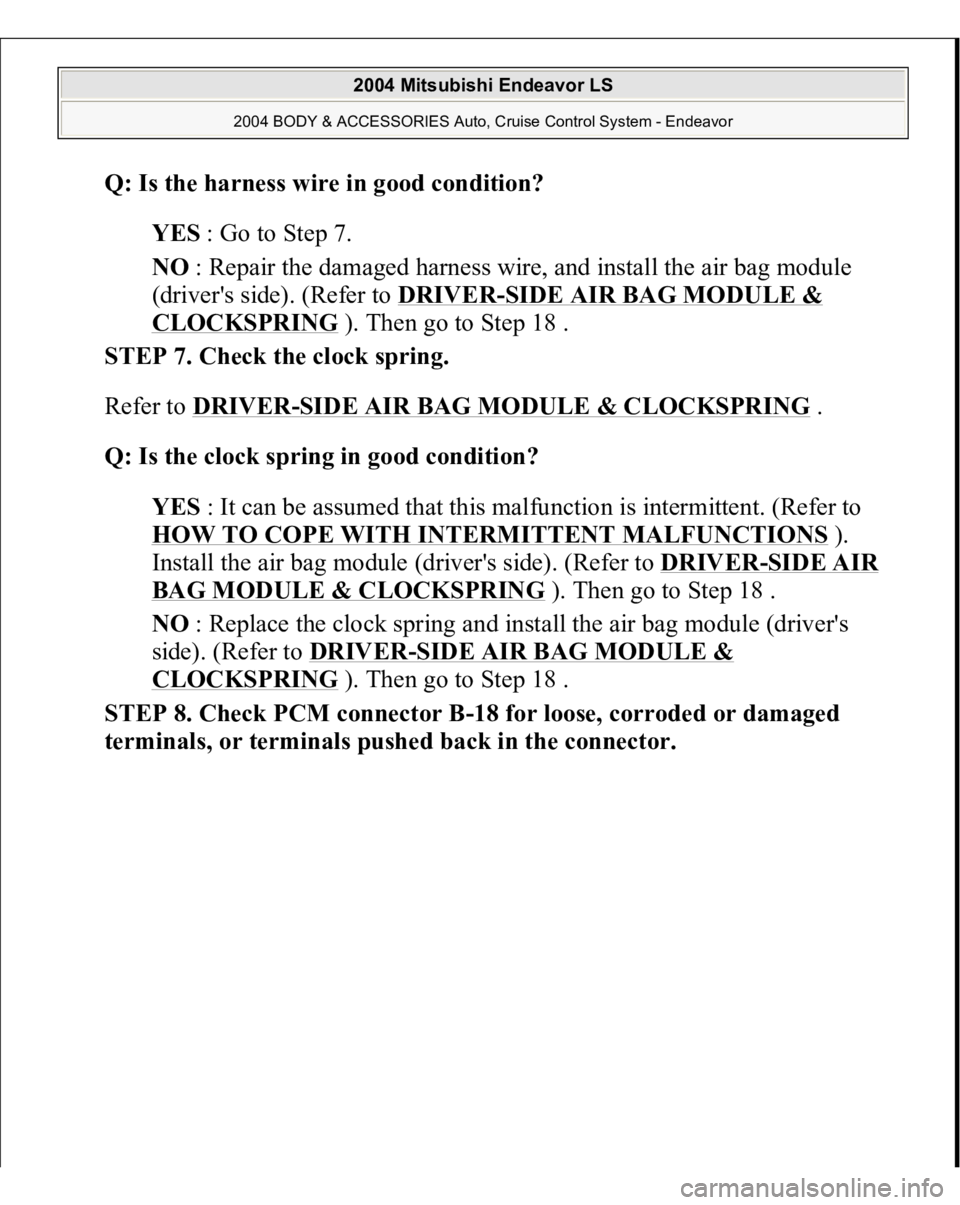

Q: Is the harness wire in good condition?
YES : Go to Step 7.
NO : Repair the damaged harness wire, and install the air bag module
(driver's side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 7. Check the clock spring.
Refer to DRIVER
-SIDE AIR BAG MODULE & CLOCKSPRING
.
Q: Is the clock spring in good condition?
YES : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
Install the air bag module (driver's side). (Refer to DRIVER
-SIDE AIR
BAG MODULE & CLOCKSPRING
). Then go to Step 18 .
NO : Replace the clock spring and install the air bag module (driver's
side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 8. Check PCM connector B-18 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
