2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

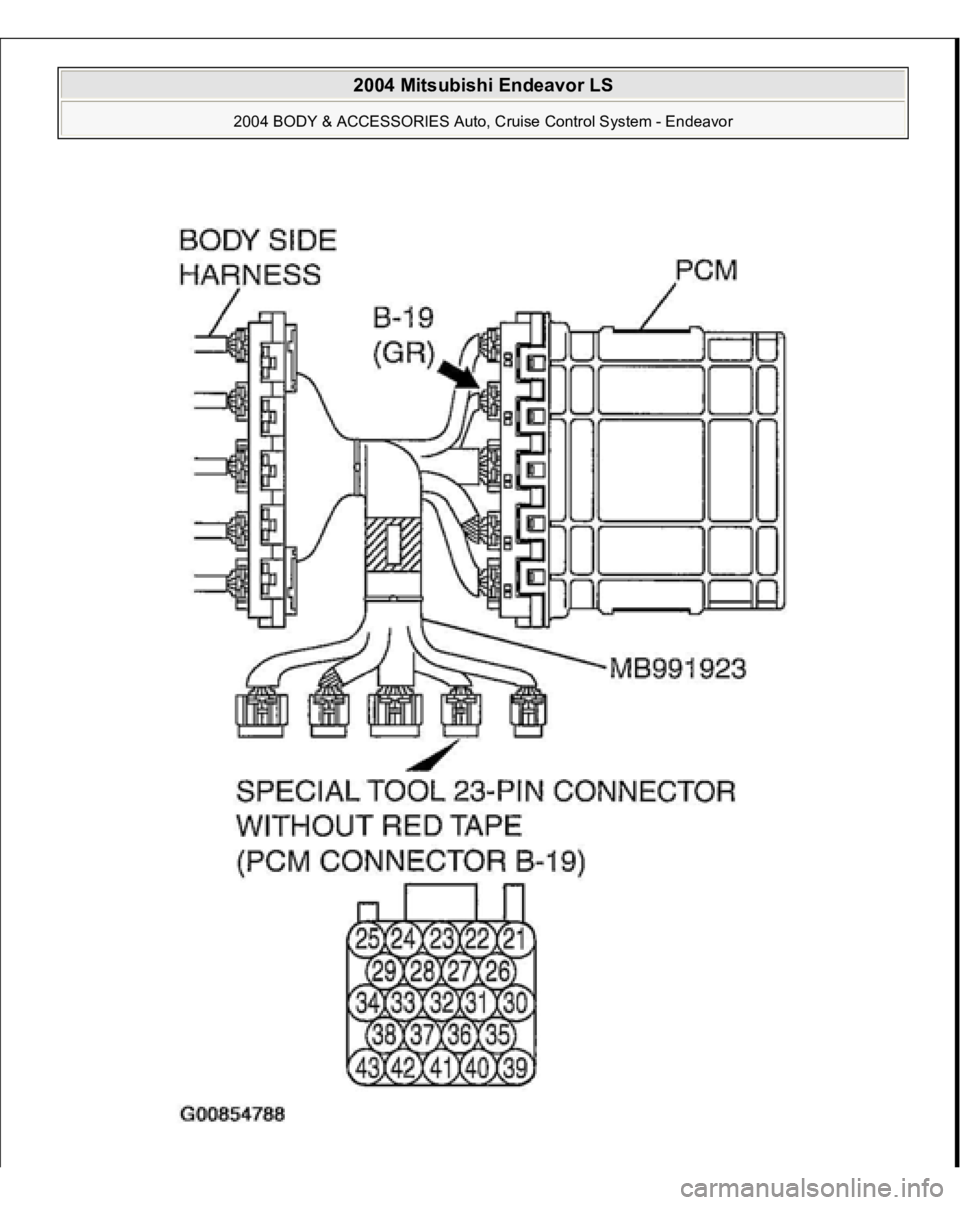

Fig. 31: Connecting Special Tool Between PCM & Body
-Side Harness
Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position and the "CRUISE" (MAIN)
switch to the "ON" position.
4. Measure the ground voltage between special tool 23-pin connector
(without red tape) terminal 28 (PCM connector B-19 terminal 28) and
ground.

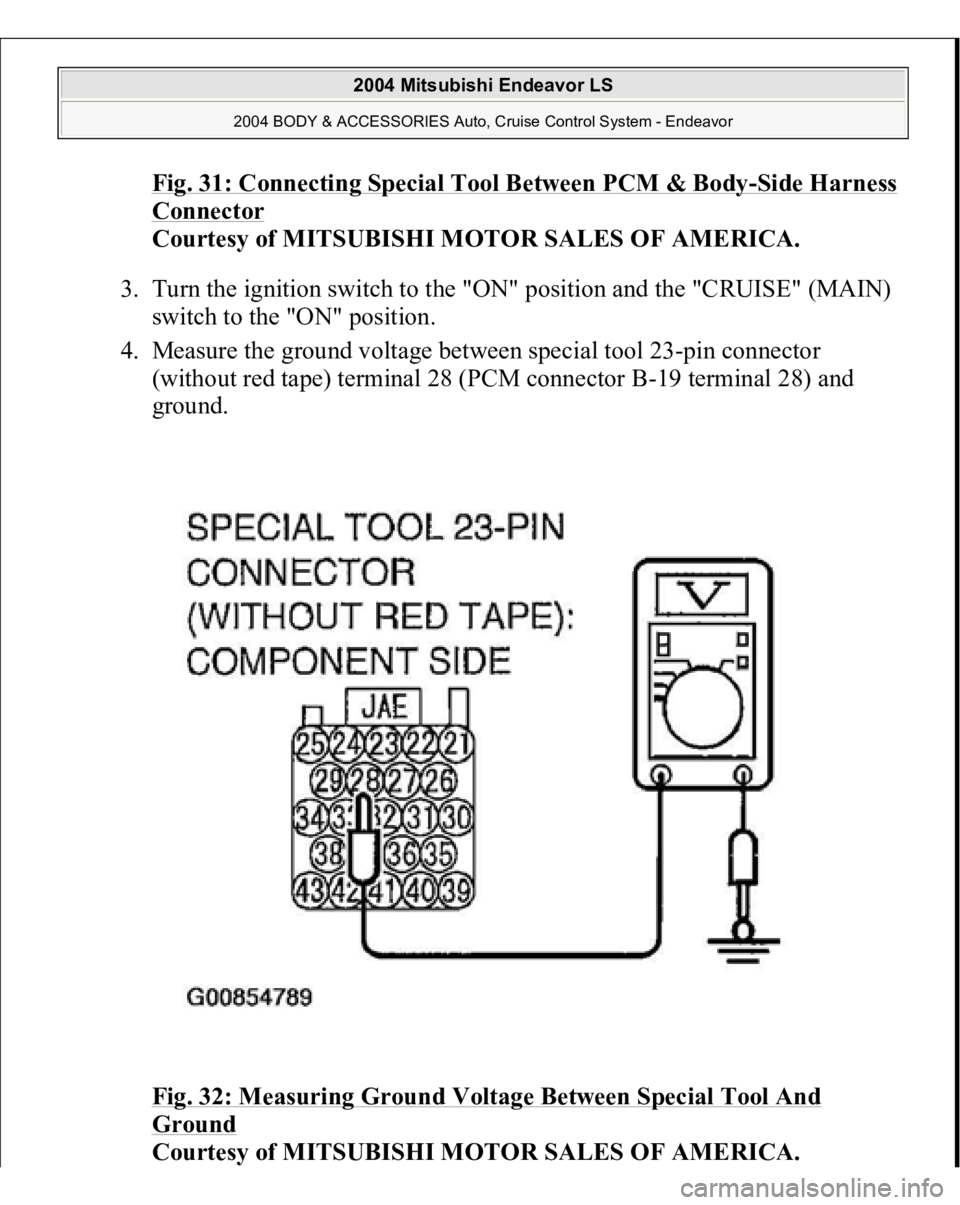

Fig. 32: Measuring Ground Voltage Between Special Tool And
Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

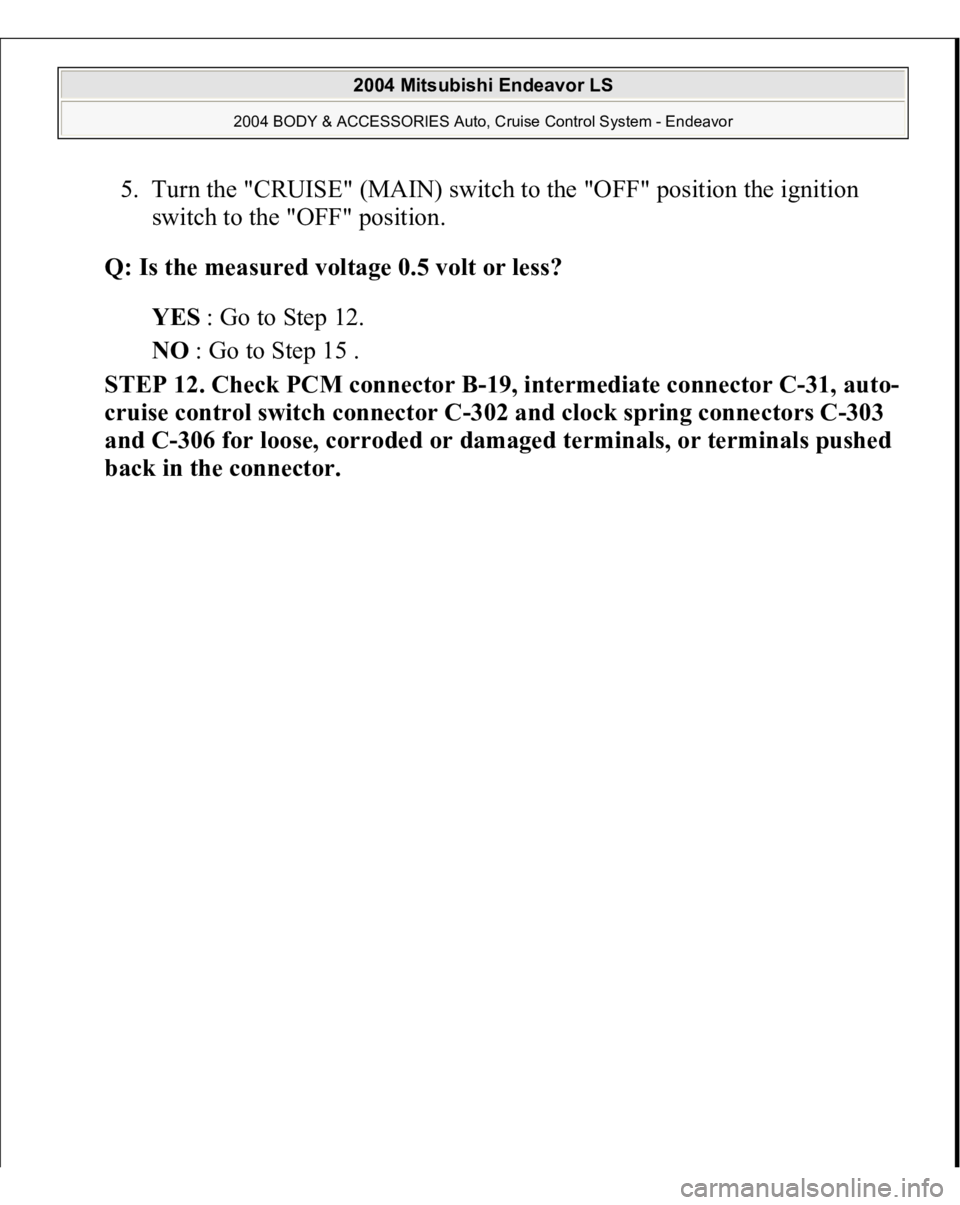

5. Turn the "CRUISE" (MAIN) switch to the "OFF" position the ignition
switch to the "OFF" position.
Q: Is the measured voltage 0.5 volt or less?
YES : Go to Step 12.
NO : Go to Step 15 .
STEP 12. Check PCM connector B-19, intermediate connector C-31, auto-
cruise control switch connector C-302 and clock spring connectors C-303
and C-306 for loose, corroded or damaged terminals, or terminals pushed
back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

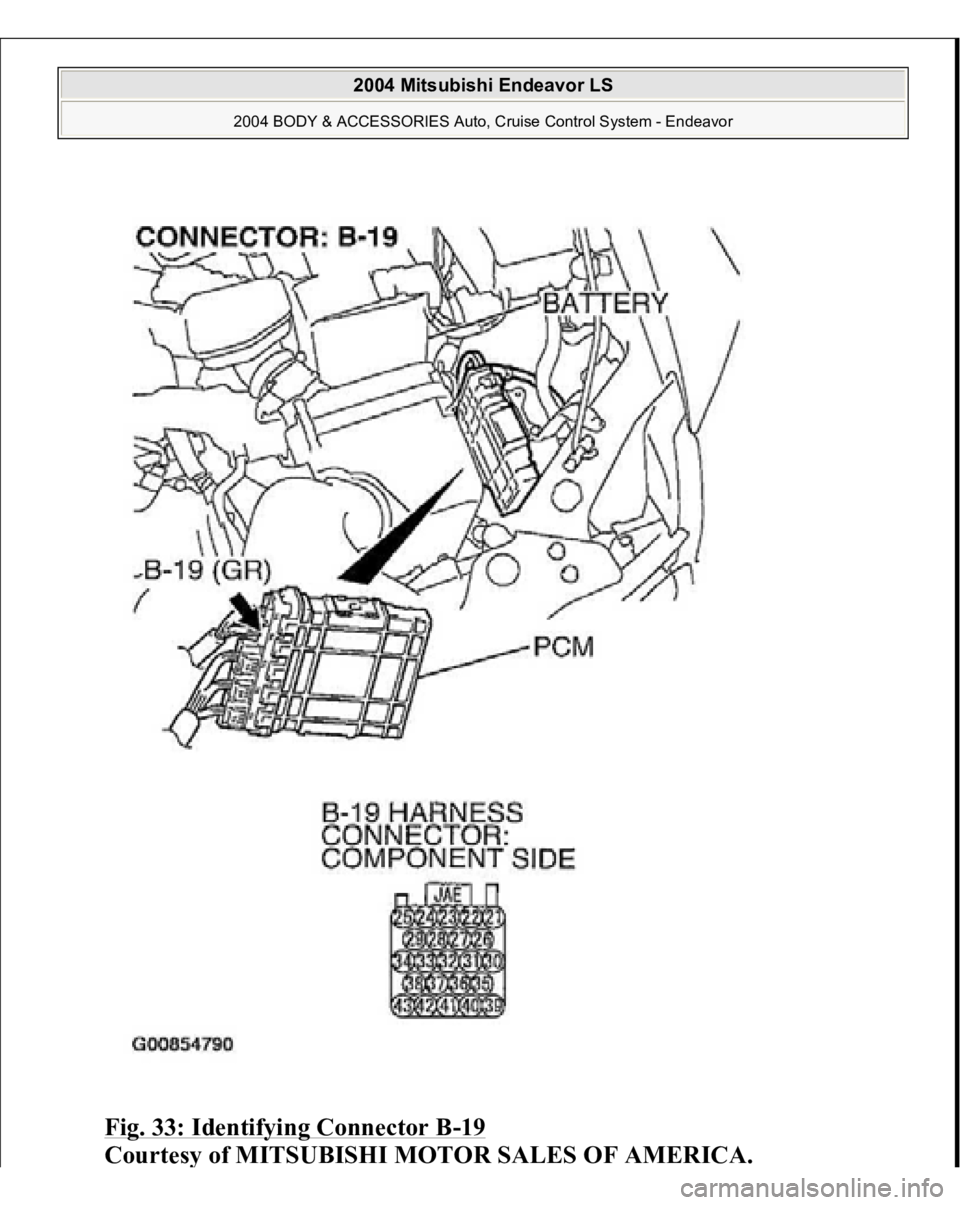

Fig. 33: Identifying Connector B
-19
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

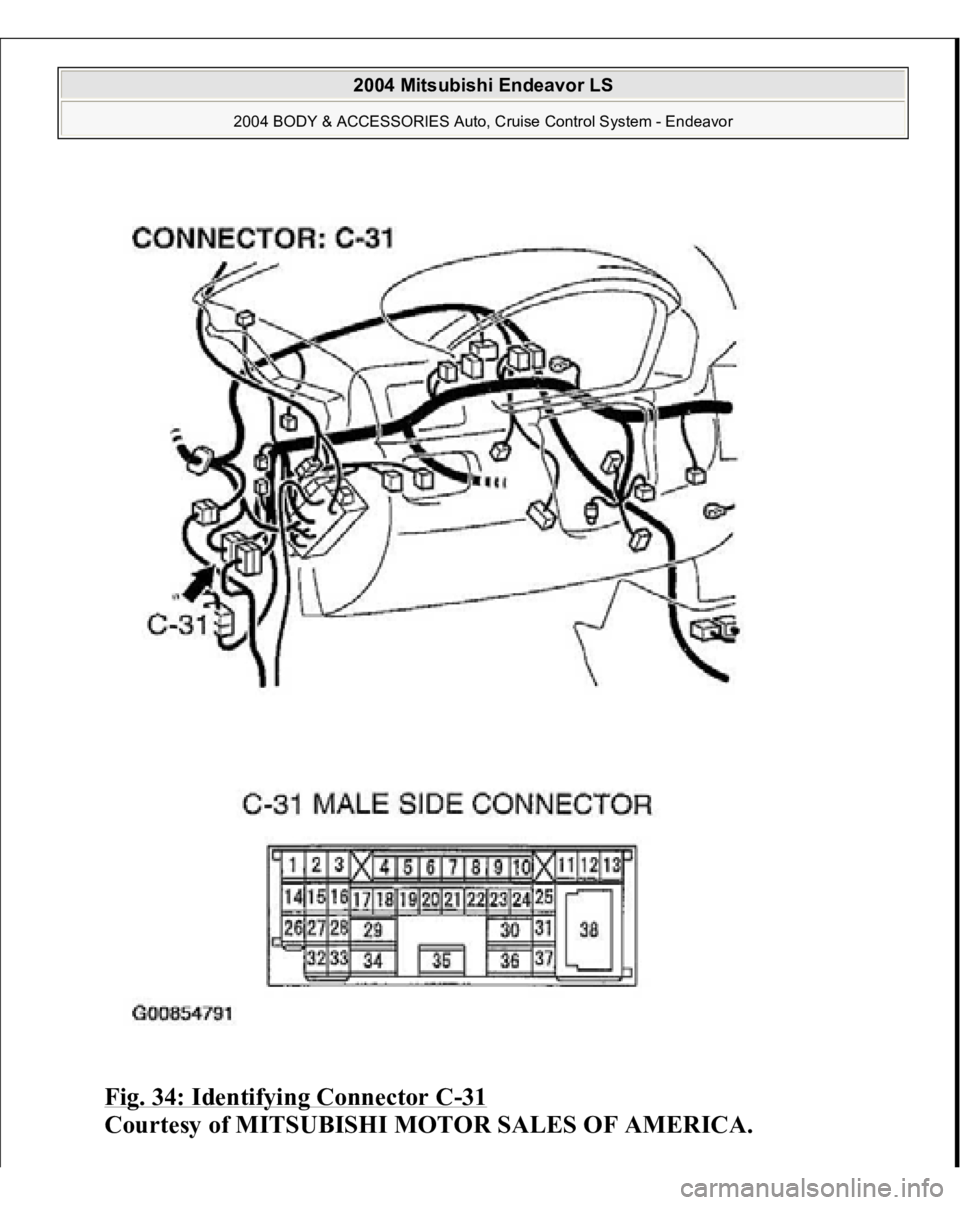

Fig. 34: Identifying Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

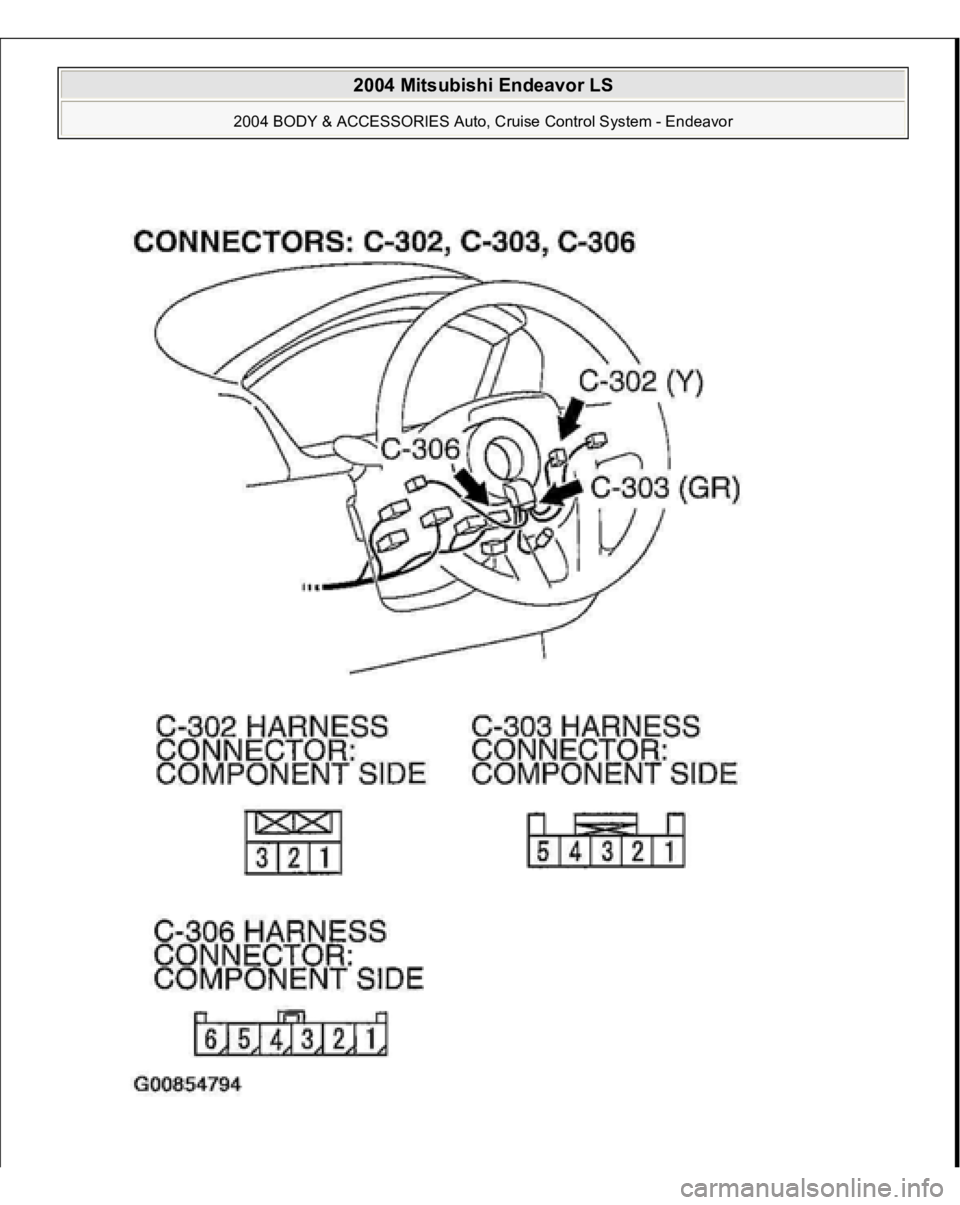

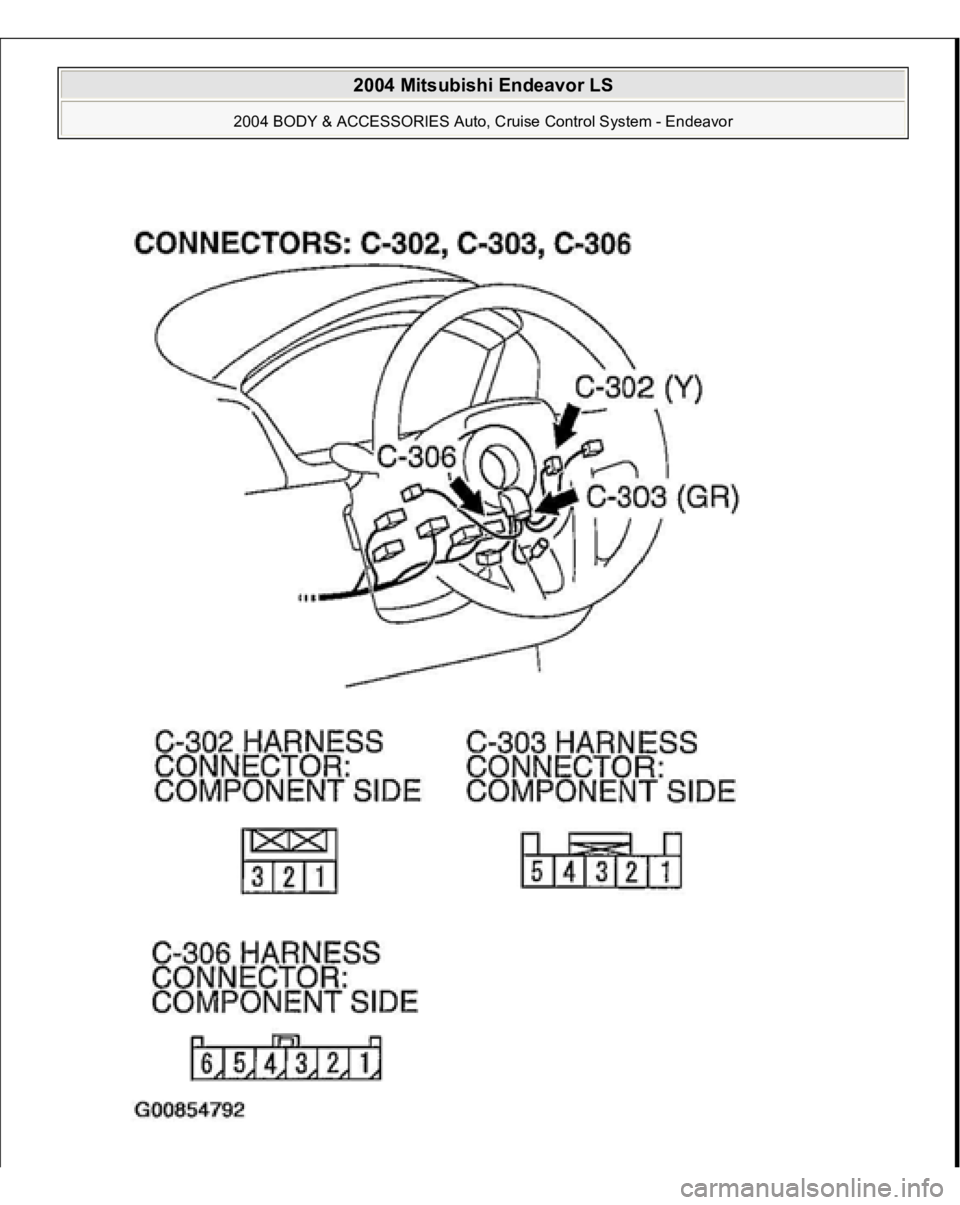

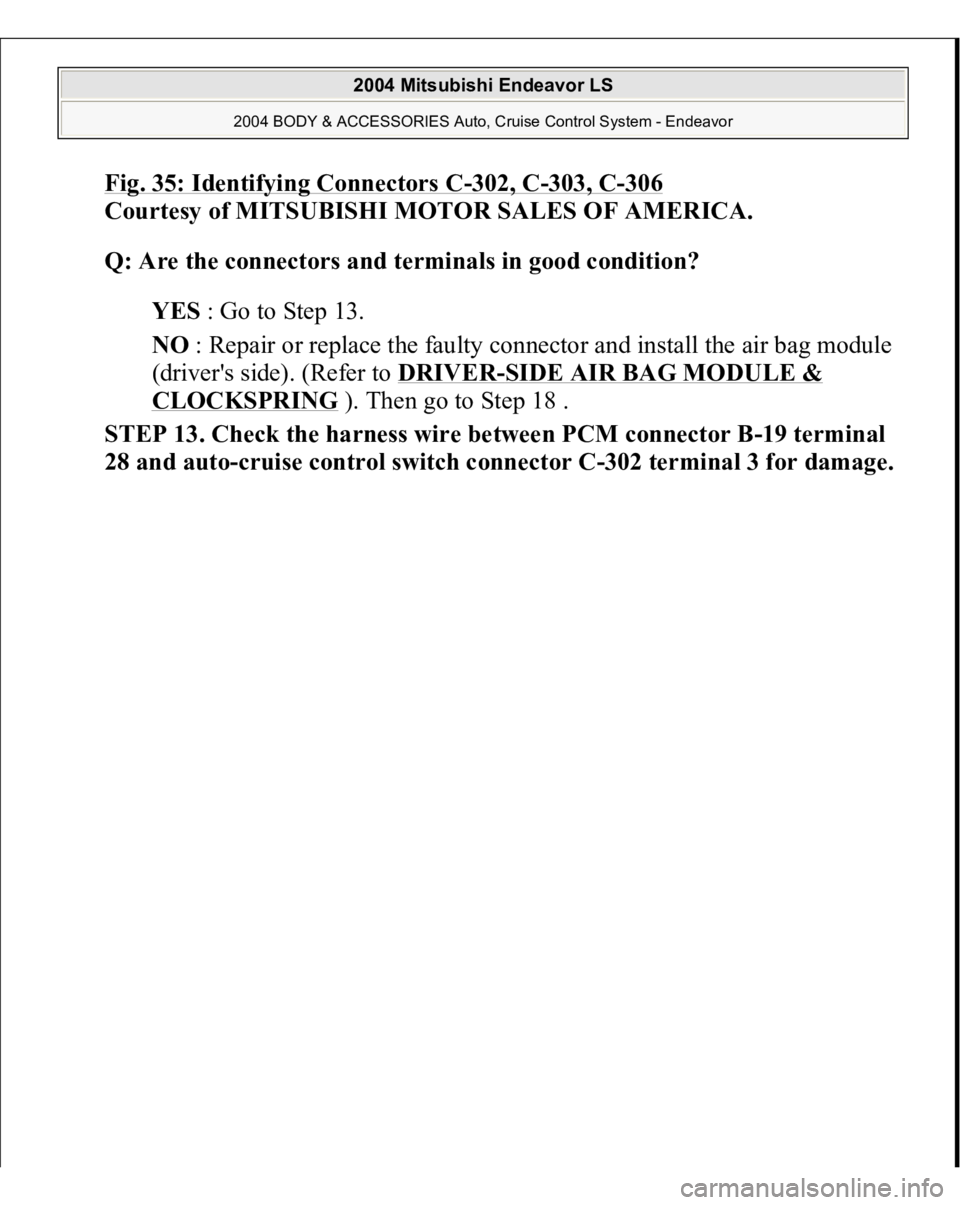

Fig. 35: Identifying Connectors C
-302, C
-303, C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connectors and terminals in good condition?
YES : Go to Step 13.
NO : Repair or replace the faulty connector and install the air bag module
(driver's side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 13. Check the harness wire between PCM connector B-19 terminal
28 and auto-cruise control switch connector C-302 terminal 3 for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

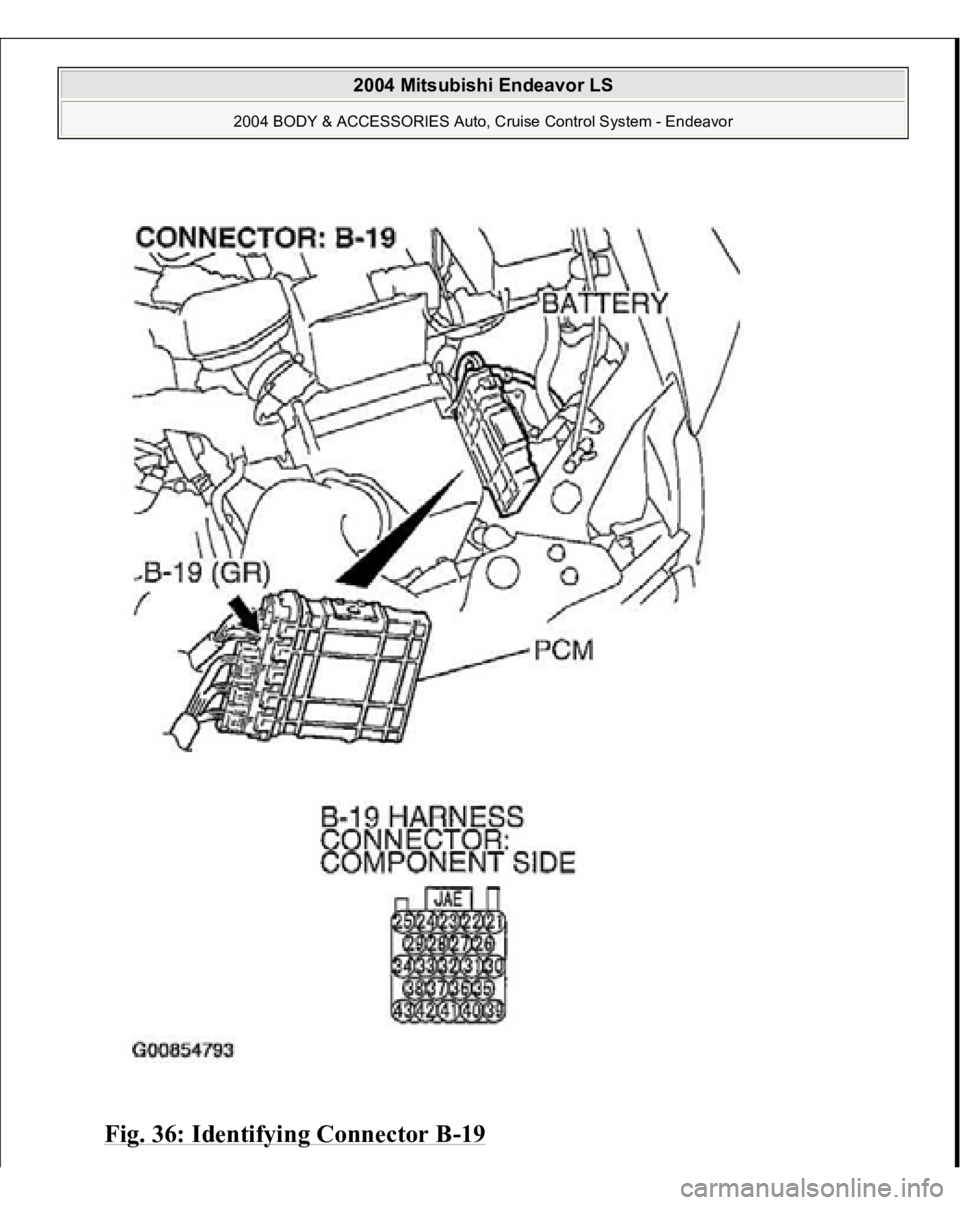

Fig. 36: Identifying Connector B
-19

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
