2004 BODY & ACCESSORIES
Auto, Cruise Control System - Endeavor
GENERAL DESCRIPTION By using the auto-cruise control, the driver can select and maintain a desired
cruising speed [between 40 km/h (25 mph) and 170 km/h (106 mph)] without
depressing the accelerator pedal.

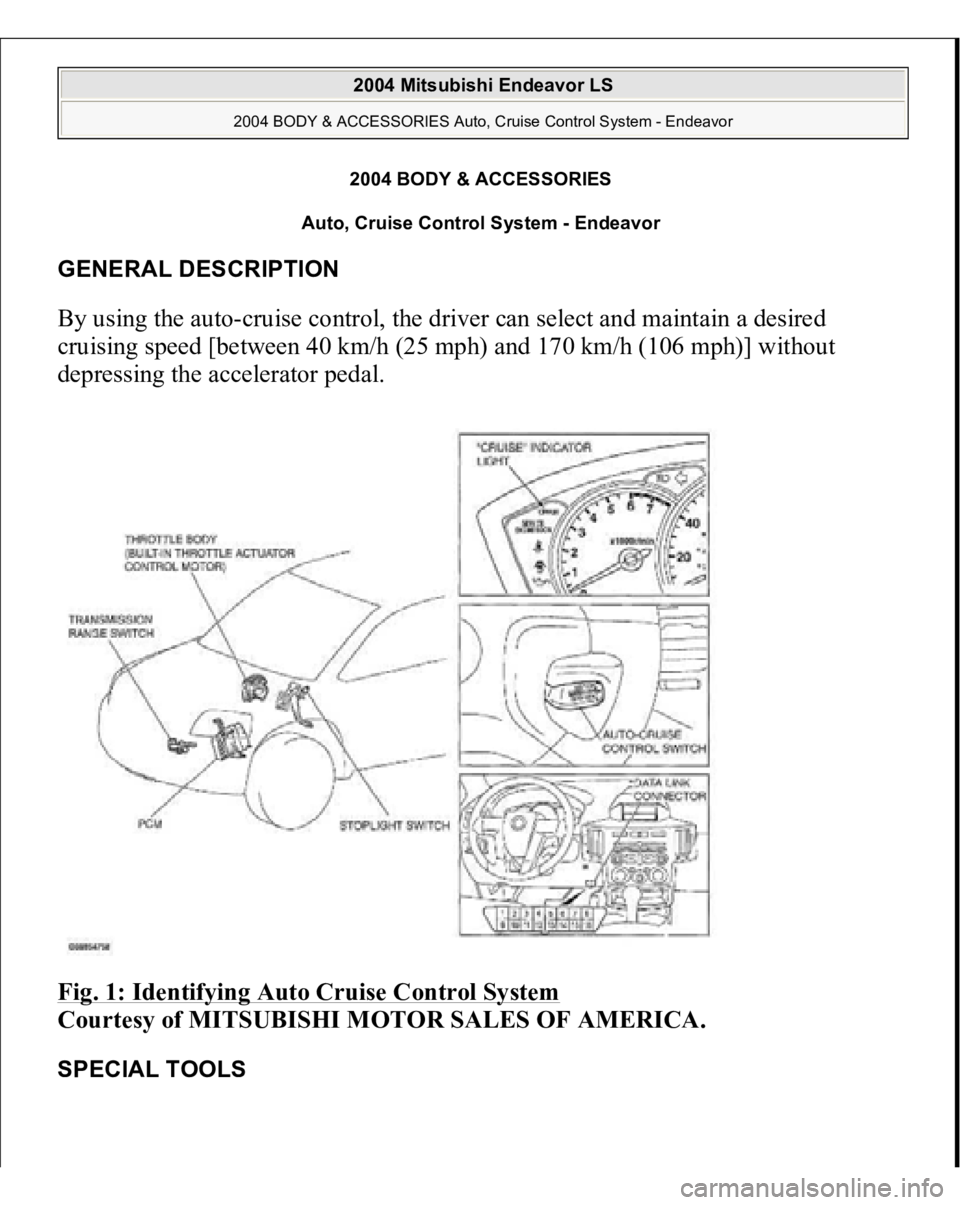

Fig. 1: Identifying Auto Cruise Control System

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOLS
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

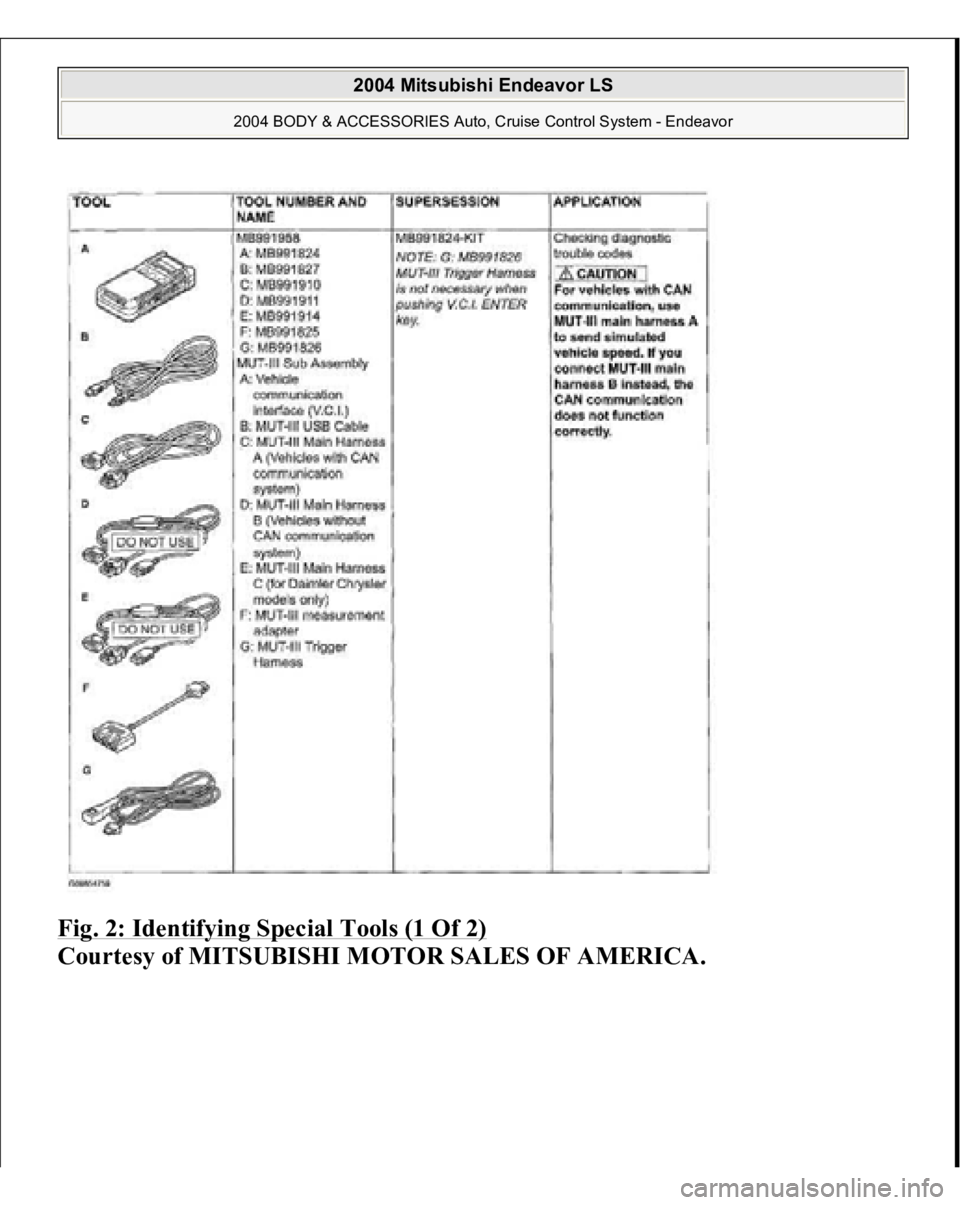

Fig. 2: Identifying Special Tools (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

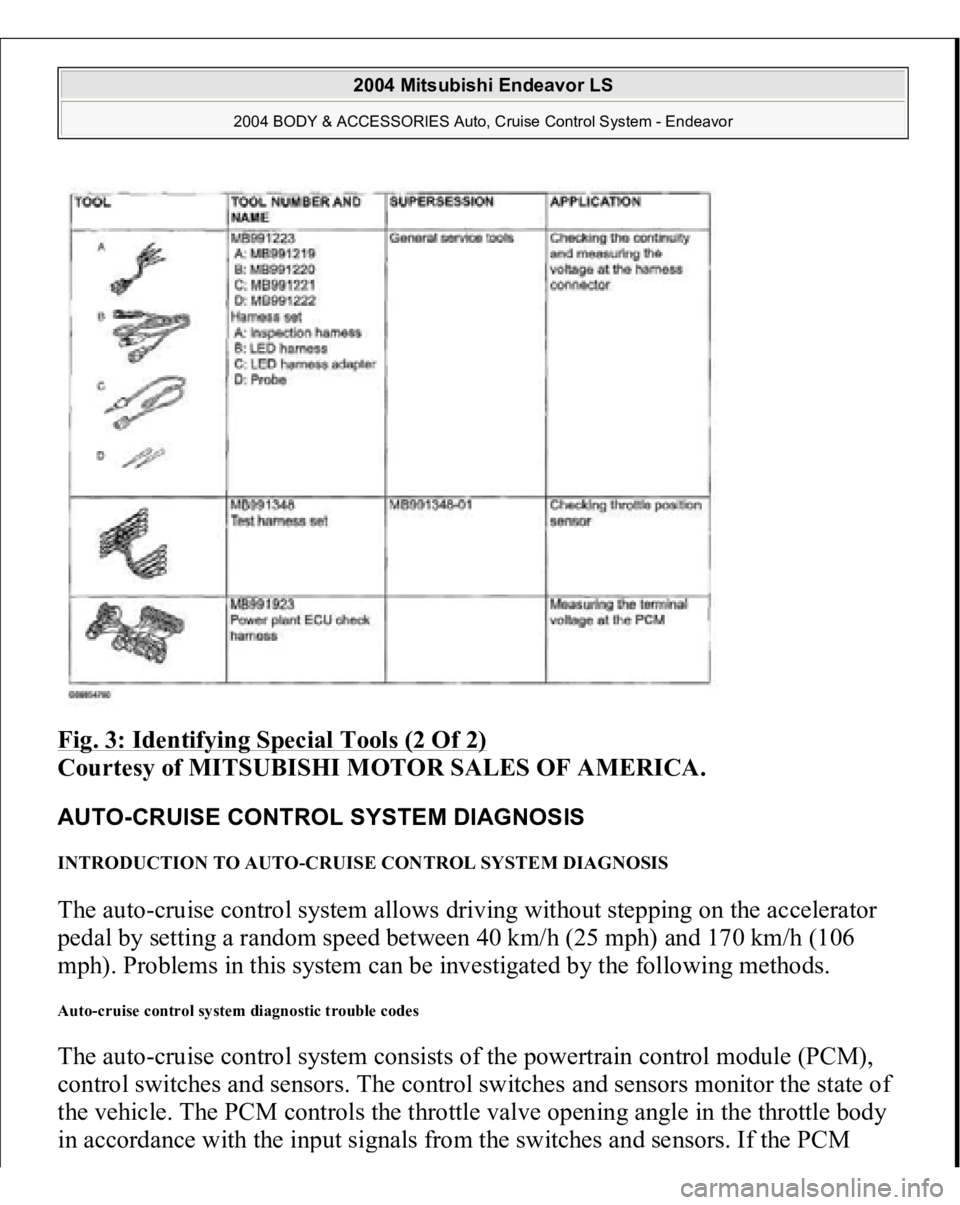

Fig. 3: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS INTRODUCTION TO AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS The auto-cruise control system allows driving without stepping on the accelerator
pedal by setting a random speed between 40 km/h (25 mph) and 170 km/h (106
mph). Problems in this system can be investigated by the following methods. Auto-cruise control system diagnostic trouble codes The auto-cruise control system consists of the powertrain control module (PCM),
control switches and sensors. The control switches and sensors monitor the state of
the vehicle. The PCM controls the throttle valve opening angle in the throttle body
in accordance with the in
put si
gnals from the switches and sensors. If the PCM

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

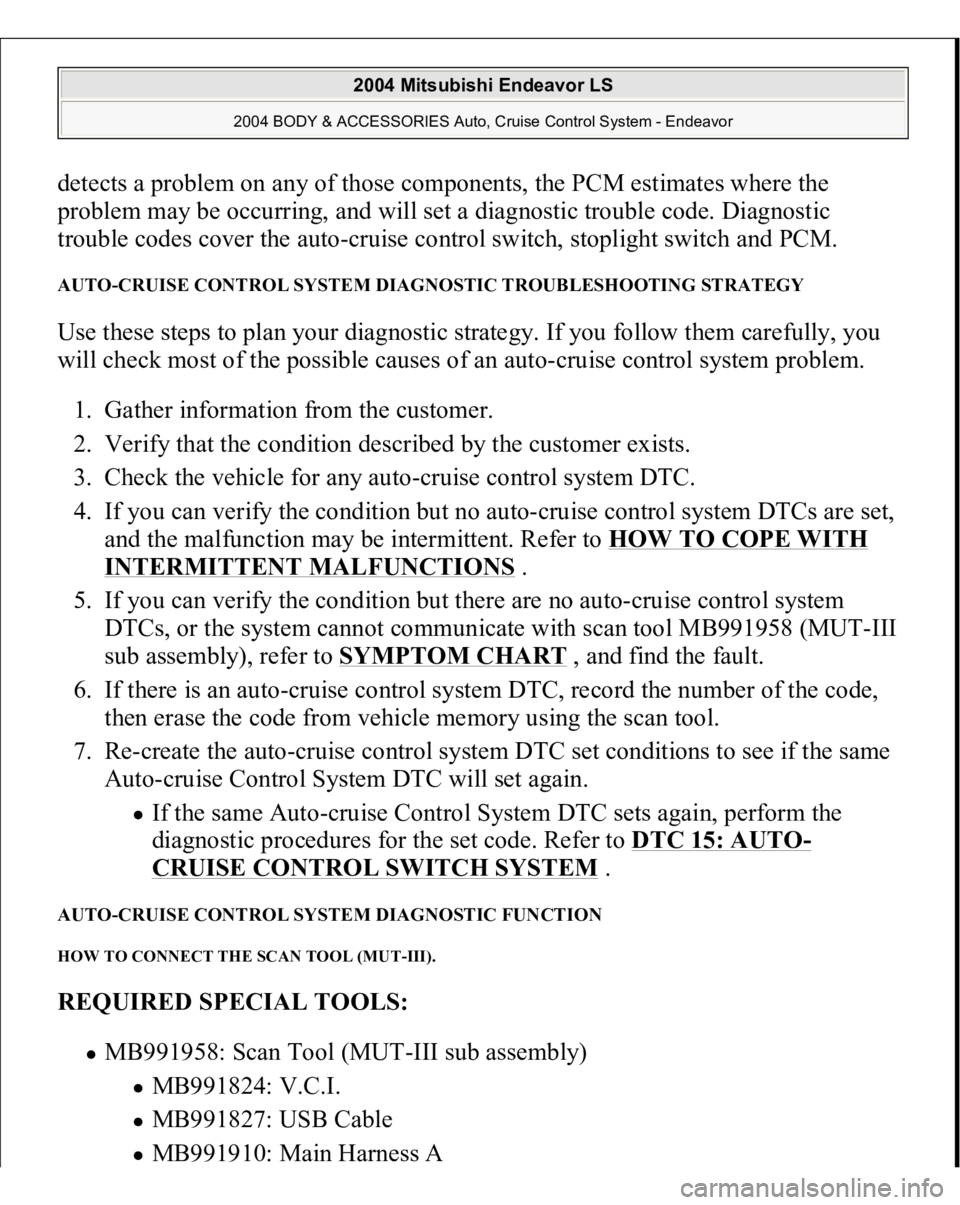

detects a problem on any of those components, the PCM estimates where the
problem may be occurring, and will set a diagnostic trouble code. Diagnostic
trouble codes cover the auto-cruise control switch, stoplight switch and PCM. AUTO-CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will check most of the possible causes of an auto-cruise control system problem.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Check the vehicle for any auto-cruise control system DTC.
4. If you can verify the condition but no auto-cruise control system DTCs are set,
and the malfunction may be intermittent. Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
.
5. If you can verify the condition but there are no auto-cruise control system
DTCs, or the system cannot communicate with scan tool MB991958 (MUT-III
sub assembly), refer to SYMPTOM CHART
, and find the fault.
6. If there is an auto-cruise control system DTC, record the number of the code,
then erase the code from vehicle memory using the scan tool.
7. Re-create the auto-cruise control system DTC set conditions to see if the same
Auto-cruise Control System DTC will set again.
If the same Auto-cruise Control System DTC sets again, perform the
diagnostic procedures for the set code. Refer to DTC 15: AUTO
-
CRUISE CONTROL SWITCH SYSTEM
.
AUTO-CRUISE CONTROL SYSTEM DIAGNOSTIC FUNCTION HOW TO CONNECT THE SCAN TOOL (MUT-III). REQUIRED SPECIAL TOOLS:
MB991958: Scan Tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

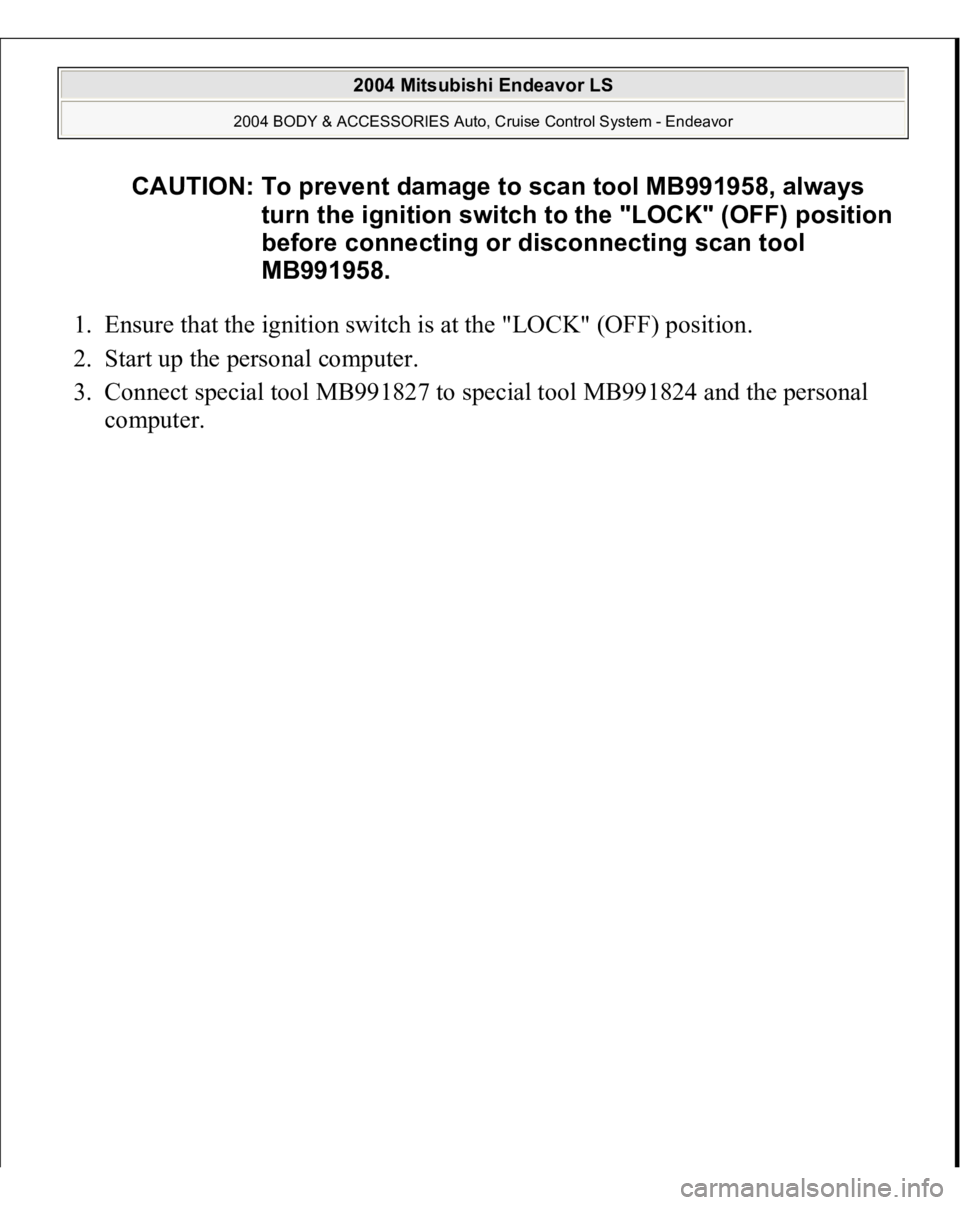

1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal
com
puter.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

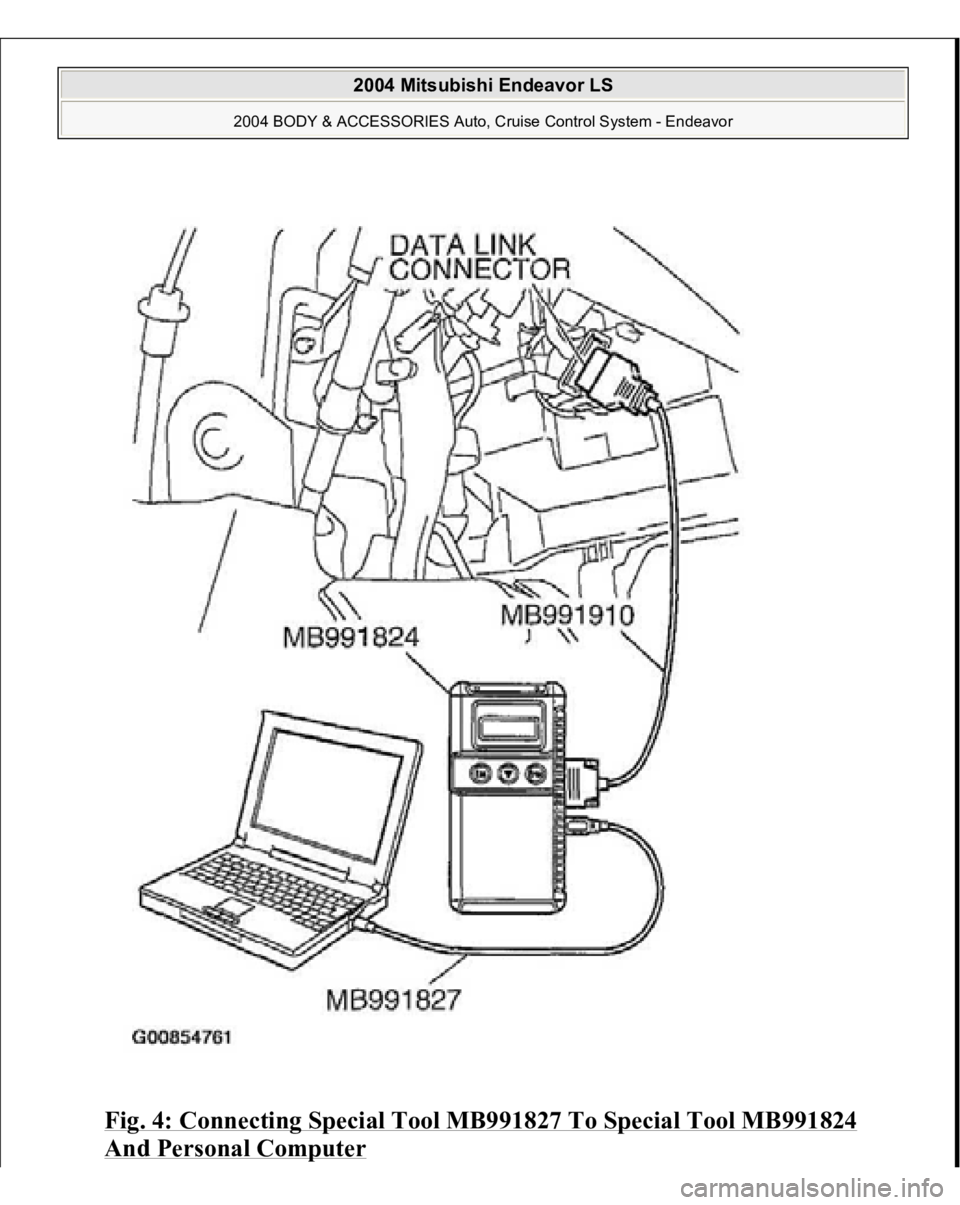

Fig. 4: Connecting Special Tool MB991827 To Special Tool MB991824 And Personal Computer

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

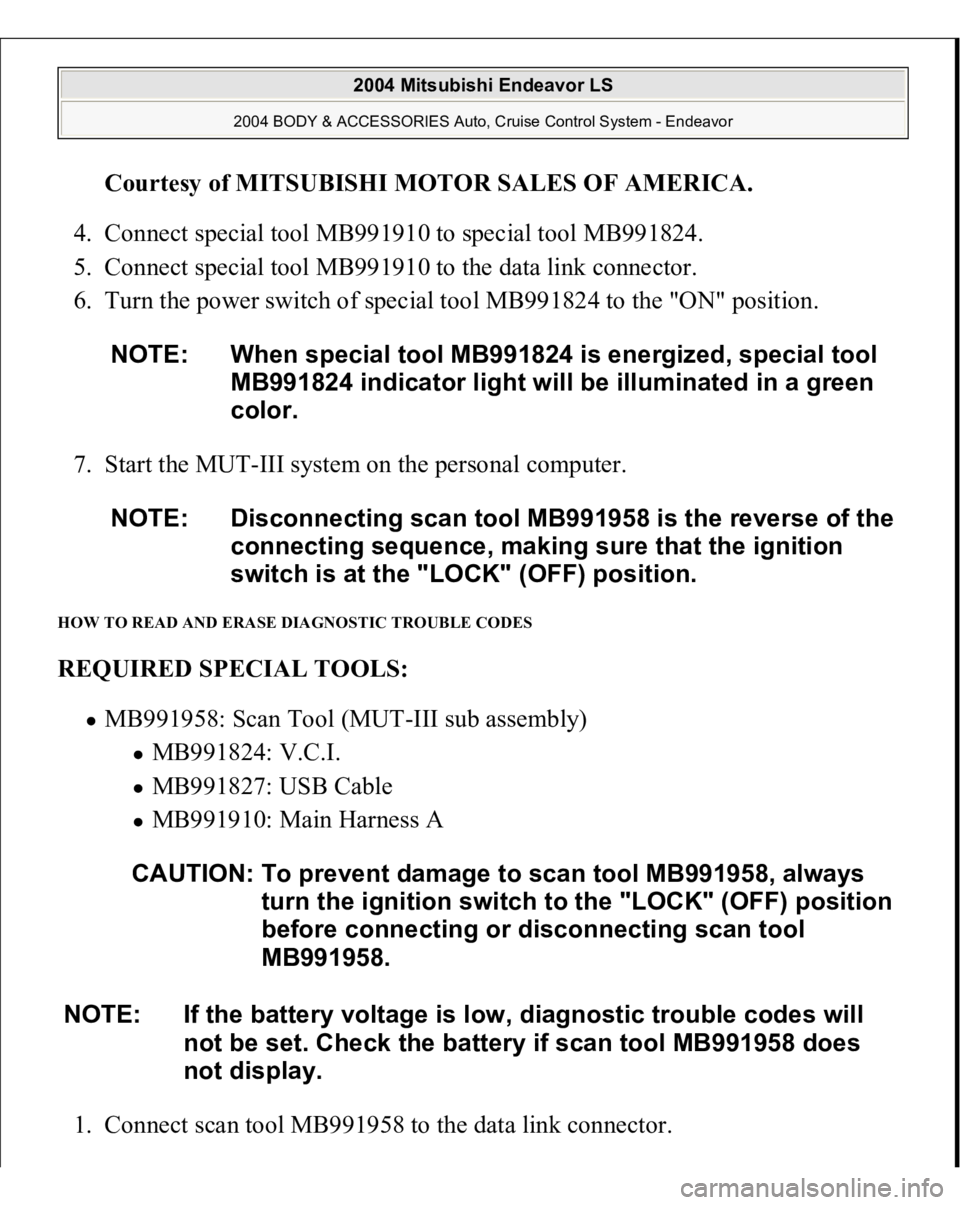

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
7. Start the MUT-III system on the personal computer.
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES REQUIRED SPECIAL TOOLS:
MB991958: Scan Tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A
1. Connect scan tool MB991958 to the data link connec
tor.
NOTE: When special tool MB991824 is energized, special tool
MB991824 indicator light will be illuminated in a green
color.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does
not display.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

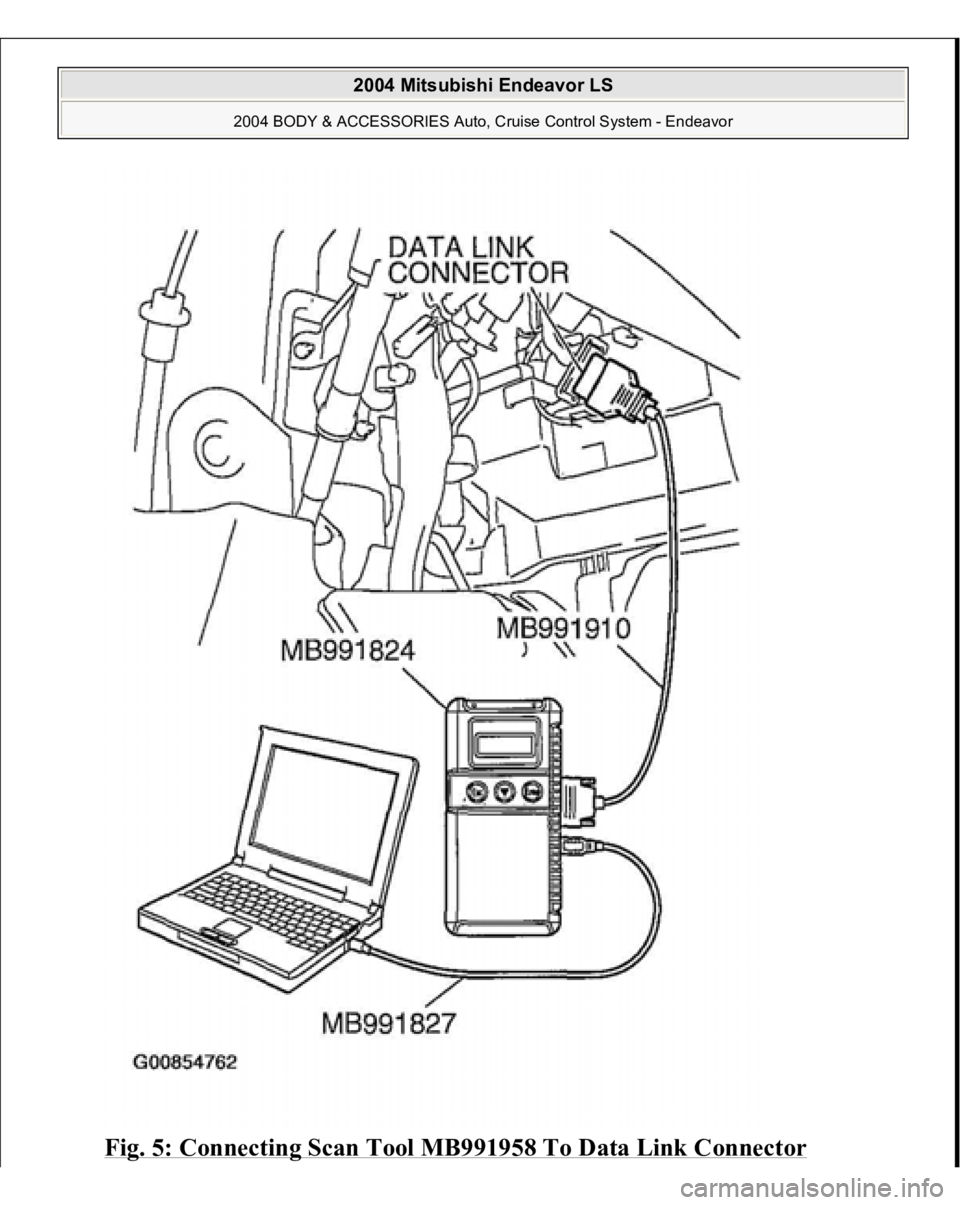

Fig. 5: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

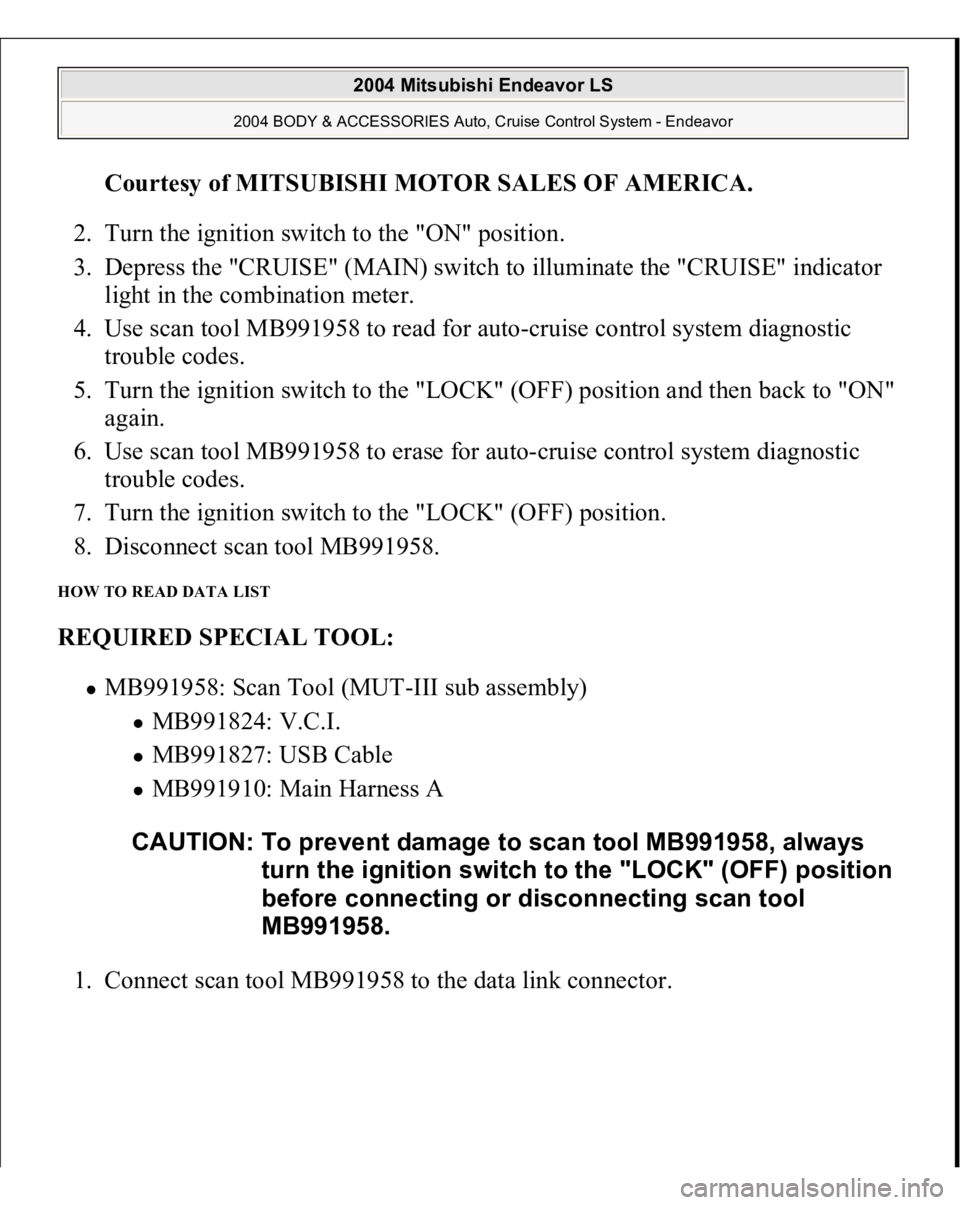

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Depress the "CRUISE" (MAIN) switch to illuminate the "CRUISE" indicator
light in the combination meter.
4. Use scan tool MB991958 to read for auto-cruise control system diagnostic
trouble codes.
5. Turn the ignition switch to the "LOCK" (OFF) position and then back to "ON"
again.
6. Use scan tool MB991958 to erase for auto-cruise control system diagnostic
trouble codes.
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Disconnect scan tool MB991958.
HOW TO READ DATA LIST REQUIRED SPECIAL TOOL:
MB991958: Scan Tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A
1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

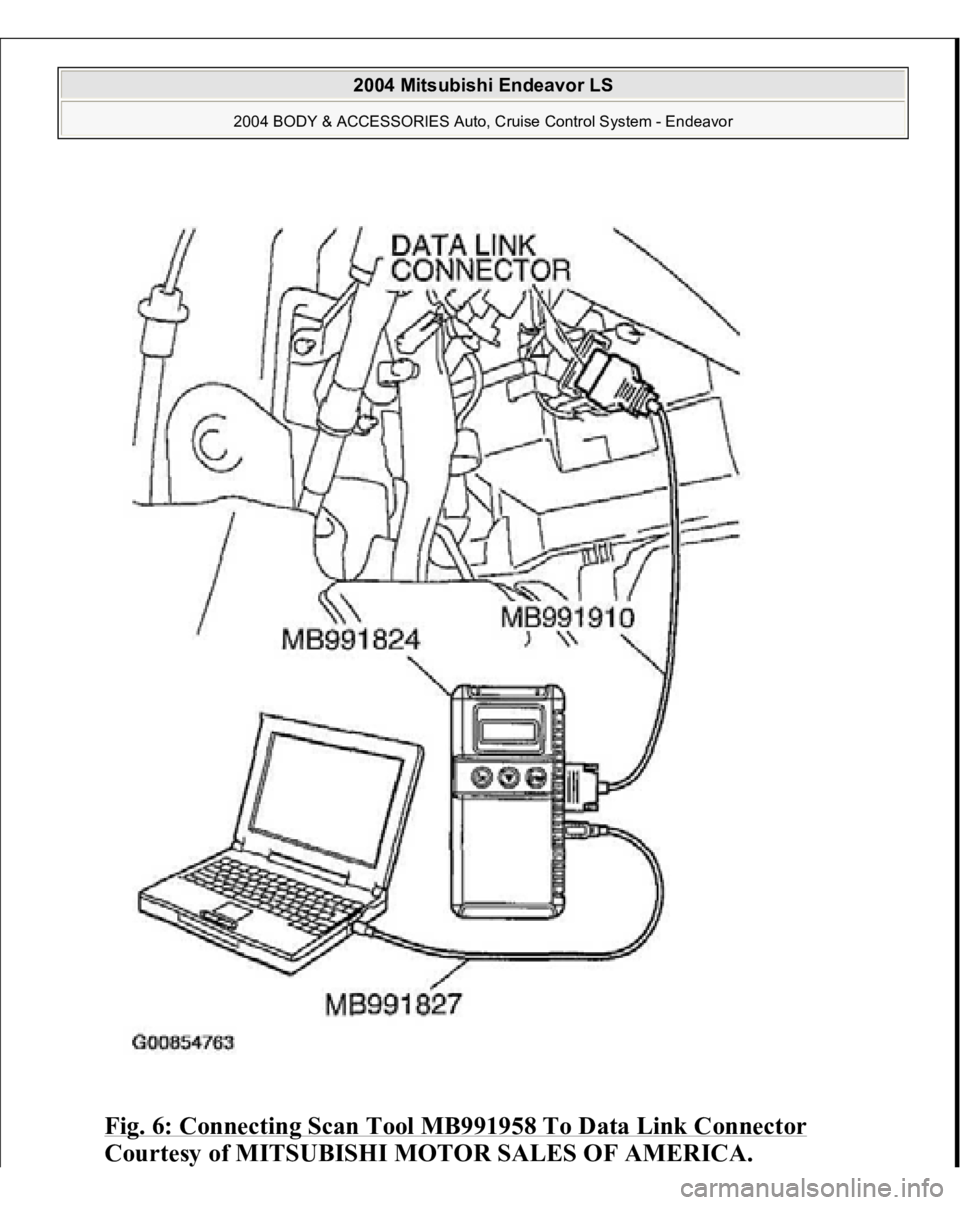

Fig. 6: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
