MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

Maintenance
8-45
8

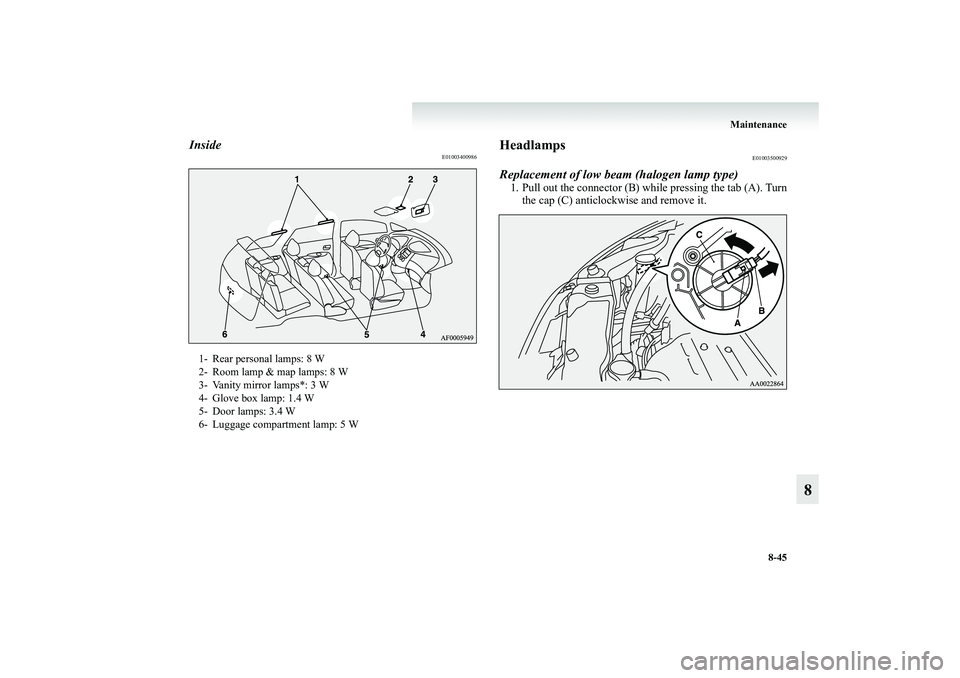

Inside
E01003400986
Headlamps
E01003500929
Replacement of low beam (halogen lamp type)1. Pull out the connector (B) while pressing the tab (A). Turn
the cap (C) anticlockwise and remove it.
1- Rear personal lamps: 8 W
2- Room lamp & map lamps: 8 W
3- Vanity mirror lamps*: 3 W
4- Glove box lamp: 1.4 W
5- Door lamps: 3.4 W
6- Luggage compartment lamp: 5 W
BK-XP08E1ENUK.en-uk.book Page 45 Monday, August 13, 2007 2:20 PM

8-46 Maintenance
8
2. Pull the socket (D) off the bulb. 3. Unhook the spring (E), which secures the bulb, and
remove the bulb.
BK-XP08E1ENUK.en-uk.book Page 46 Monday, August 13, 2007 2:20 PM

Maintenance
8-47
8

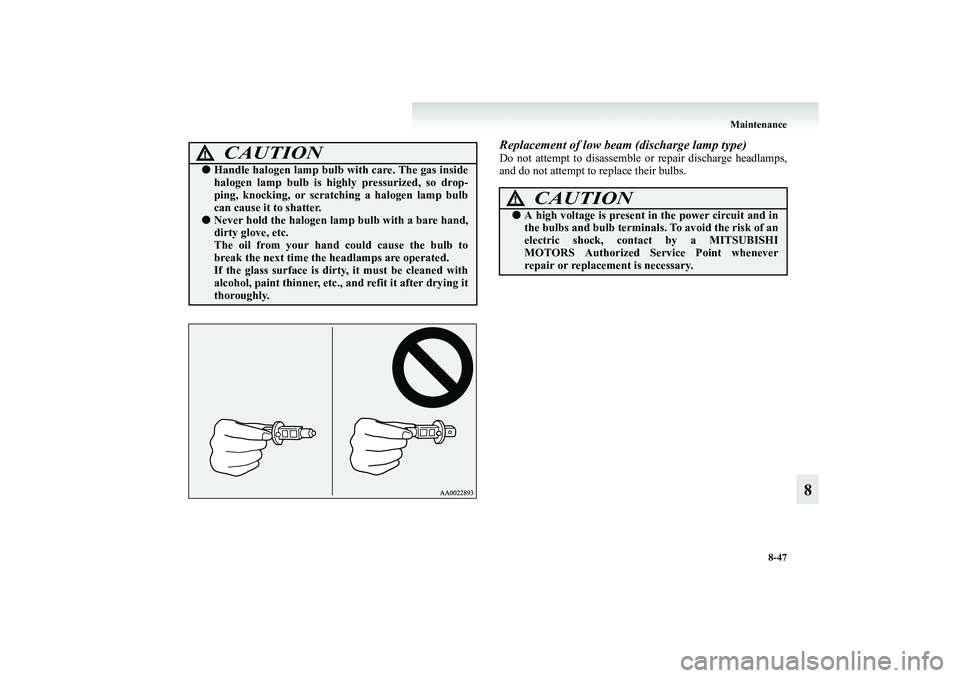

Replacement of low beam (discharge lamp type)Do not attempt to disassemble or repair discharge headlamps,
and do not attempt to replace their bulbs.
CAUTION
!●Handle halogen lamp bulb with care. The gas inside
halogen lamp bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen lamp bulb
can cause it to shatter.●Never hold the halogen lamp bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.
CAUTION
!●A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact by a MITSUBISHI
MOTORS Authorized Service Point whenever
repair or replacement is necessary.
BK-XP08E1ENUK.en-uk.book Page 47 Monday, August 13, 2007 2:20 PM

8-48 Maintenance
8

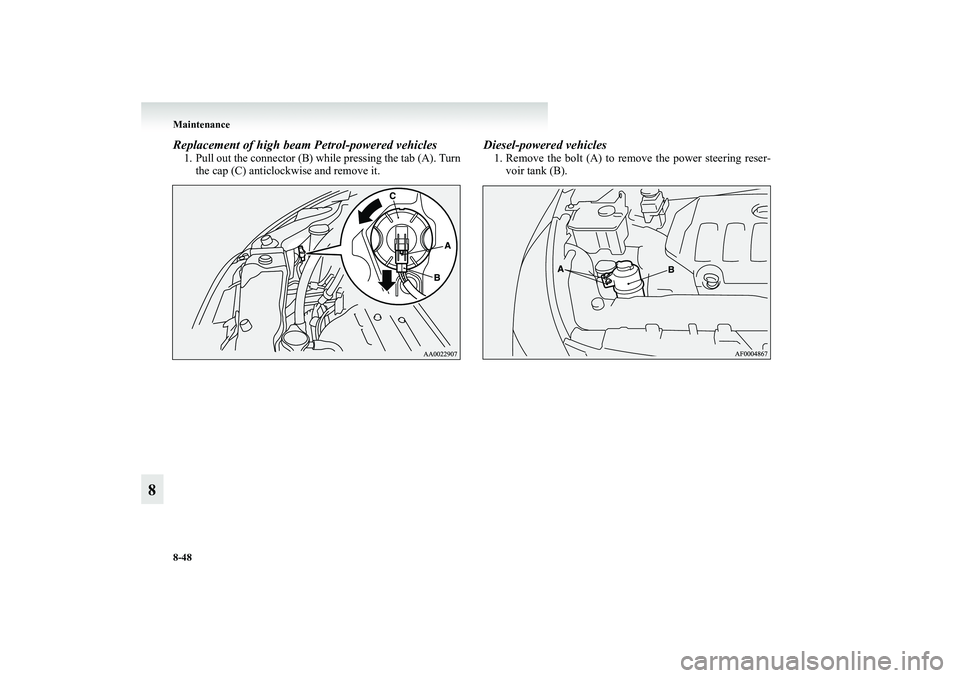

Replacement of high beam Petrol-powered vehicles1. Pull out the connector (B) while pressing the tab (A). Turn
the cap (C) anticlockwise and remove it.
Diesel-powered vehicles1. Remove the bolt (A) to remove the power steering reser-
voir tank (B).
BK-XP08E1ENUK.en-uk.book Page 48 Monday, August 13, 2007 2:20 PM

Maintenance
8-49
8

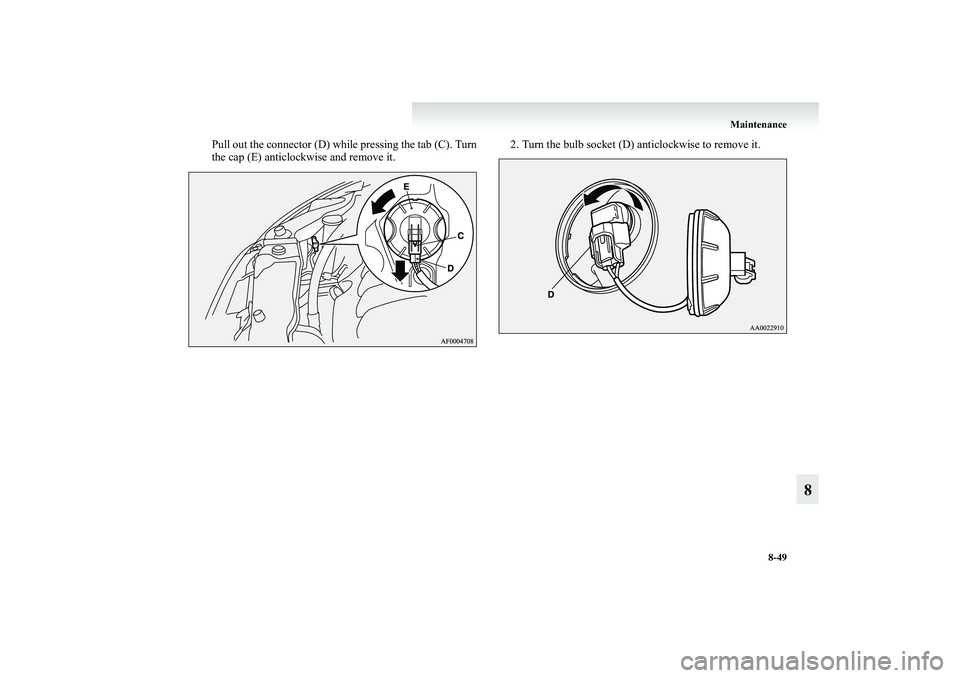

Pull out the connector (D) while pressing the tab (C). Turn
the cap (E) anticlockwise and remove it.2. Turn the bulb socket (D) anticlockwise to remove it.
BK-XP08E1ENUK.en-uk.book Page 49 Monday, August 13, 2007 2:20 PM

8-50 Maintenance
8
3. Depress the tab (E) on the harness connector and pull the
harness connector to remove the bulb.
CAUTION
!●Handle halogen lamp bulb with care. The gas inside
halogen lamp bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen lamp bulb
can cause it to shatter.●Never hold the halogen lamp bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.
BK-XP08E1ENUK.en-uk.book Page 50 Monday, August 13, 2007 2:20 PM

Maintenance
8-51
8

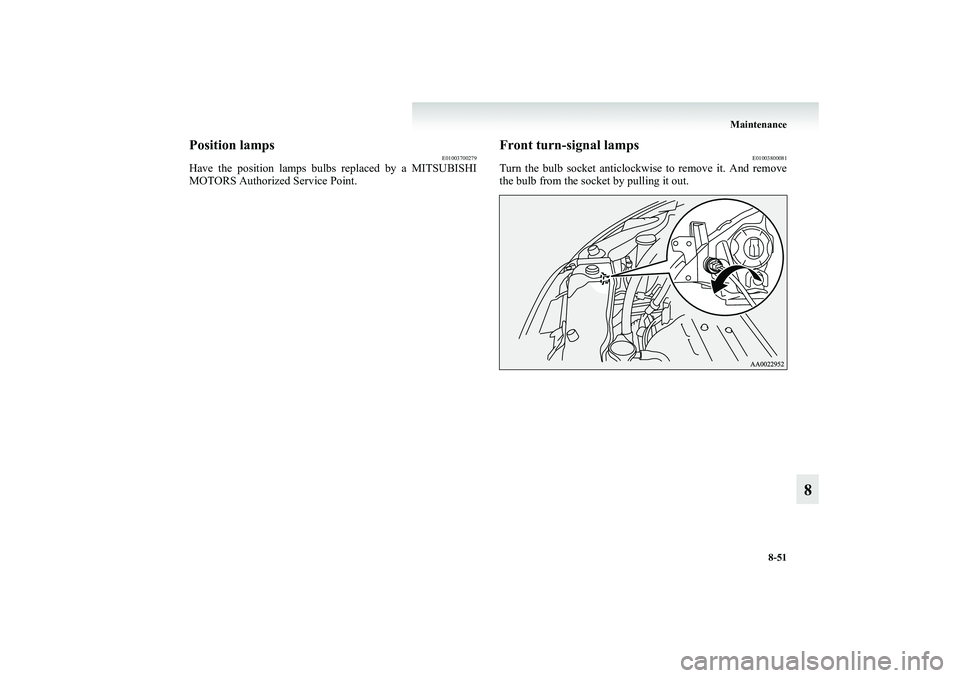

Position lamps
E01003700279
Have the position lamps bulbs replaced by a MITSUBISHI
MOTORS Authorized Service Point.
Front turn-signal lamps
E01003800081
Turn the bulb socket anticlockwise to remove it. And remove
the bulb from the socket by pulling it out.
BK-XP08E1ENUK.en-uk.book Page 51 Monday, August 13, 2007 2:20 PM

8-52 Maintenance
8
Front fog lamps
E01004000527
1. Remove the 4 clips (A), then pull off the cover (B).2. Depress the tab (C) on the harness connector and pull the
harness connector (D) to remove it.
BK-XP08E1ENUK.en-uk.book Page 52 Monday, August 13, 2007 2:20 PM

Maintenance
8-53
8

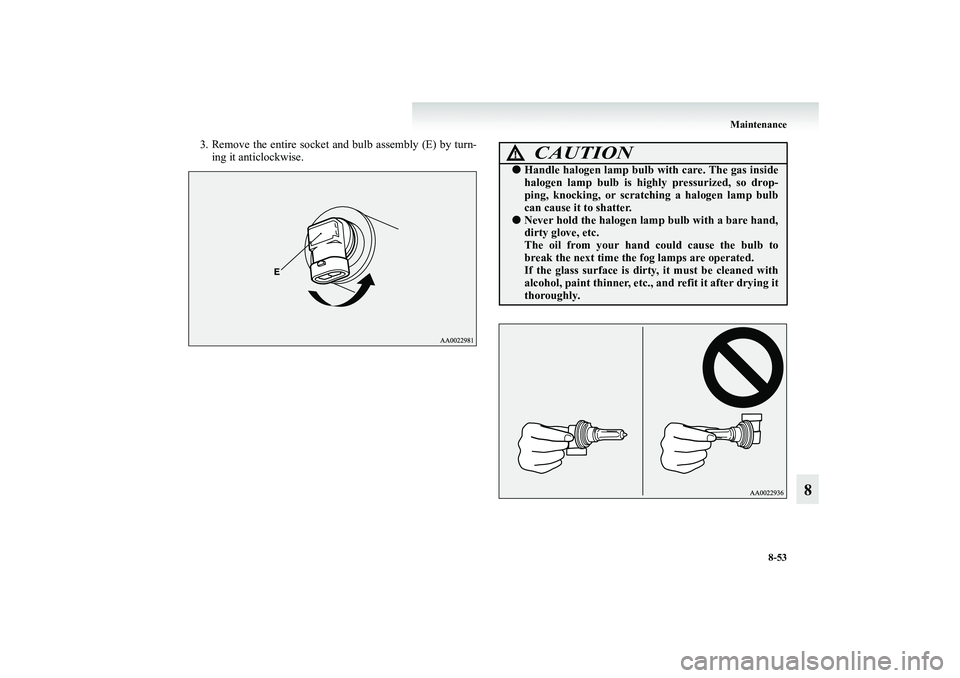

3. Remove the entire socket and bulb assembly (E) by turn-
ing it anticlockwise.
CAUTION
!●Handle halogen lamp bulb with care. The gas inside
halogen lamp bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen lamp bulb
can cause it to shatter.●Never hold the halogen lamp bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.
BK-XP08E1ENUK.en-uk.book Page 53 Monday, August 13, 2007 2:20 PM

8-54 Maintenance
8

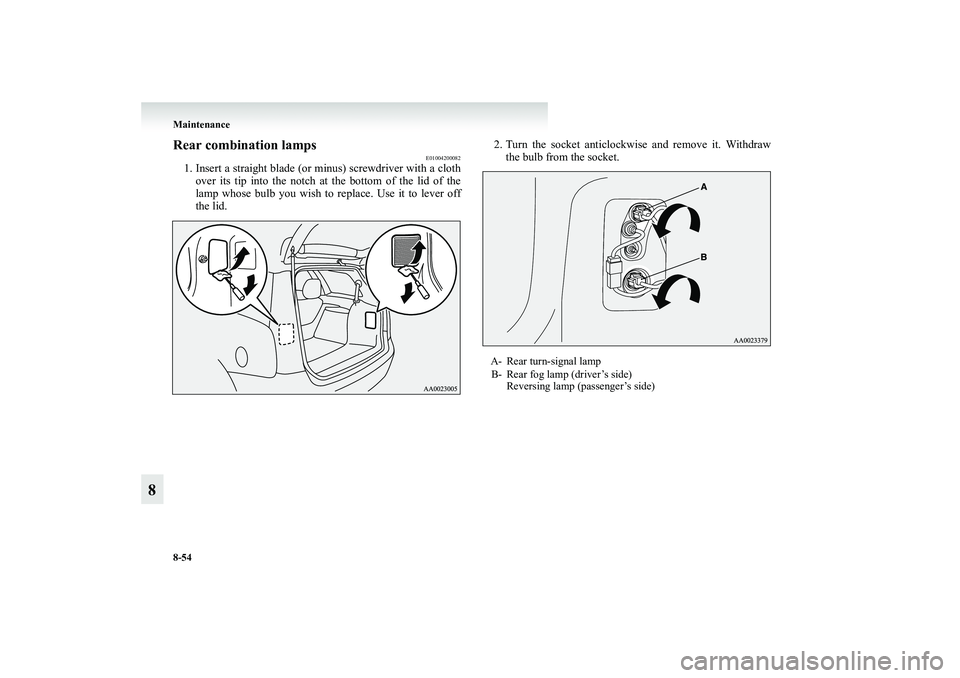

Rear combination lamps
E01004200082
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the notch at the bottom of the lid of the
lamp whose bulb you wish to replace. Use it to lever off
the lid.2. Turn the socket anticlockwise and remove it. Withdraw
the bulb from the socket.
A- Rear turn-signal lamp
B- Rear fog lamp (driver’s side)
Reversing lamp (passenger’s side)
BK-XP08E1ENUK.en-uk.book Page 54 Monday, August 13, 2007 2:20 PM
