MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

Maintenance
8-55
8

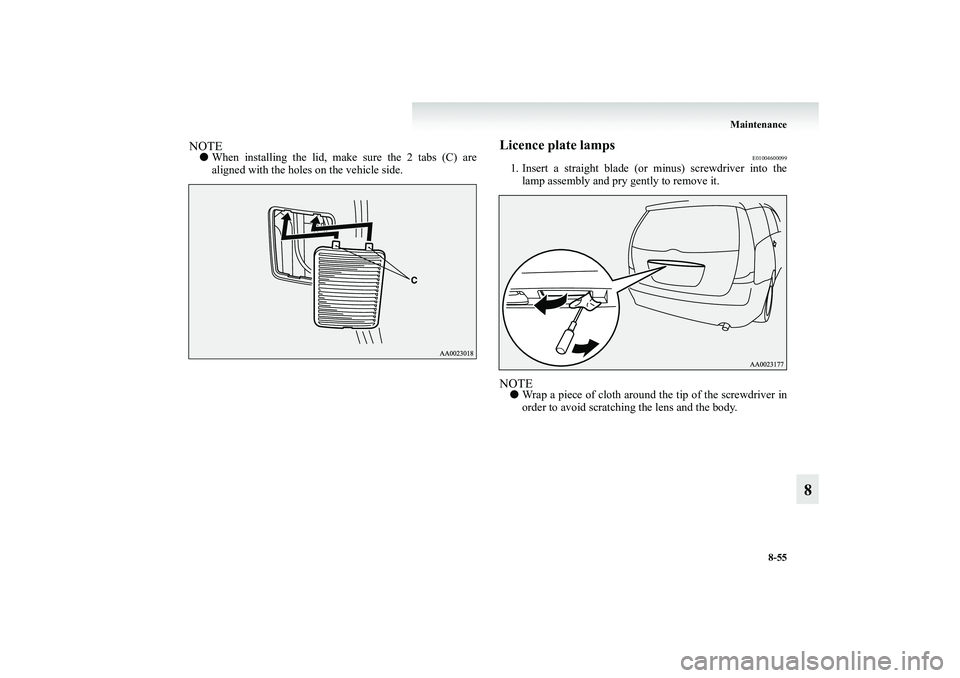

NOTE●When installing the lid, make sure the 2 tabs (C) are
aligned with the holes on the vehicle side.
Licence plate lamps
E01004600099
1. Insert a straight blade (or minus) screwdriver into the
lamp assembly and pry gently to remove it.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens and the body.
BK-XP08E1ENUK.en-uk.book Page 55 Monday, August 13, 2007 2:20 PM

8-56 Maintenance
8

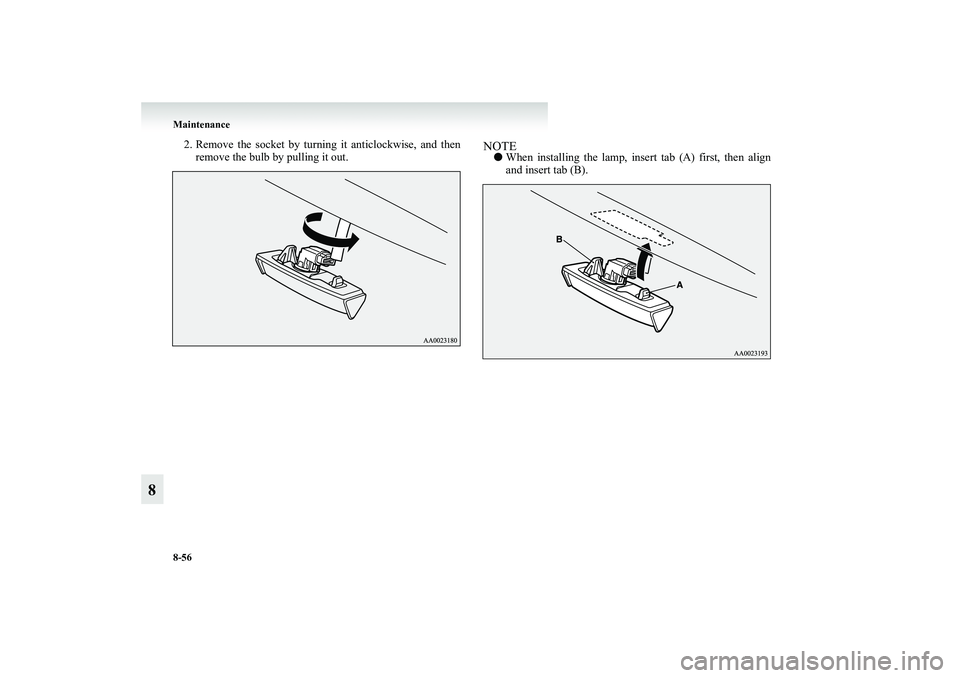

2. Remove the socket by turning it anticlockwise, and then
remove the bulb by pulling it out.
NOTE●When installing the lamp, insert tab (A) first, then align
and insert tab (B).
BK-XP08E1ENUK.en-uk.book Page 56 Monday, August 13, 2007 2:20 PM

Maintenance
8-57
8

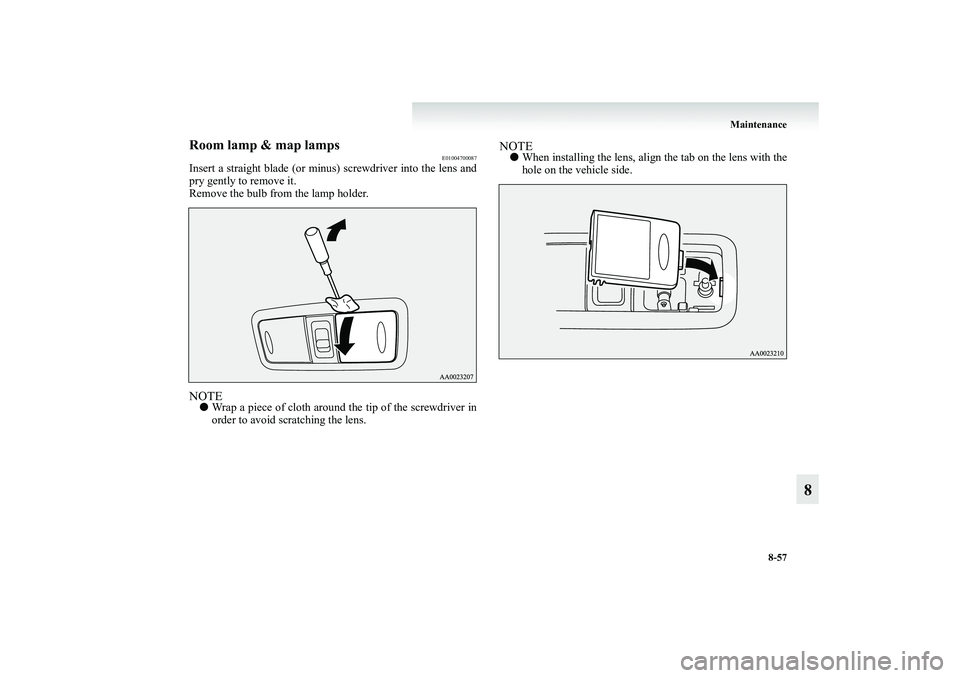

Room lamp & map lamps
E01004700087
Insert a straight blade (or minus) screwdriver into the lens and
pry gently to remove it.
Remove the bulb from the lamp holder.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens.
NOTE●When installing the lens, align the tab on the lens with the
hole on the vehicle side.
BK-XP08E1ENUK.en-uk.book Page 57 Monday, August 13, 2007 2:20 PM

8-58 Maintenance
8

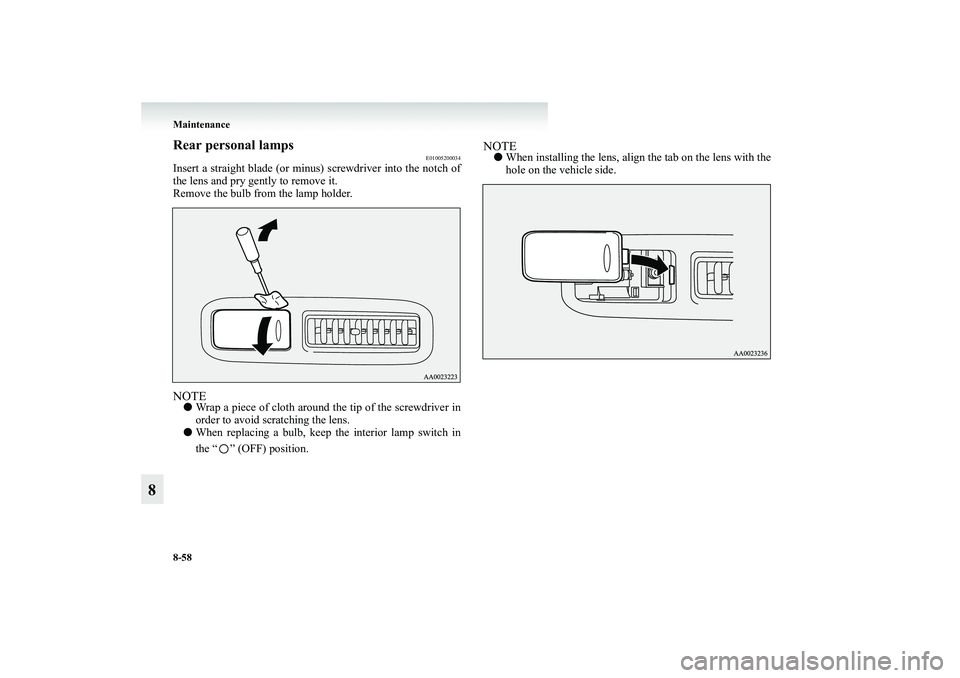

Rear personal lamps
E01005200034
Insert a straight blade (or minus) screwdriver into the notch of
the lens and pry gently to remove it.
Remove the bulb from the lamp holder.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens.
●When replacing a bulb, keep the interior lamp switch in
the “ ” (OFF) position.
NOTE●When installing the lens, align the tab on the lens with the
hole on the vehicle side.
BK-XP08E1ENUK.en-uk.book Page 58 Monday, August 13, 2007 2:20 PM

Maintenance
8-59
8

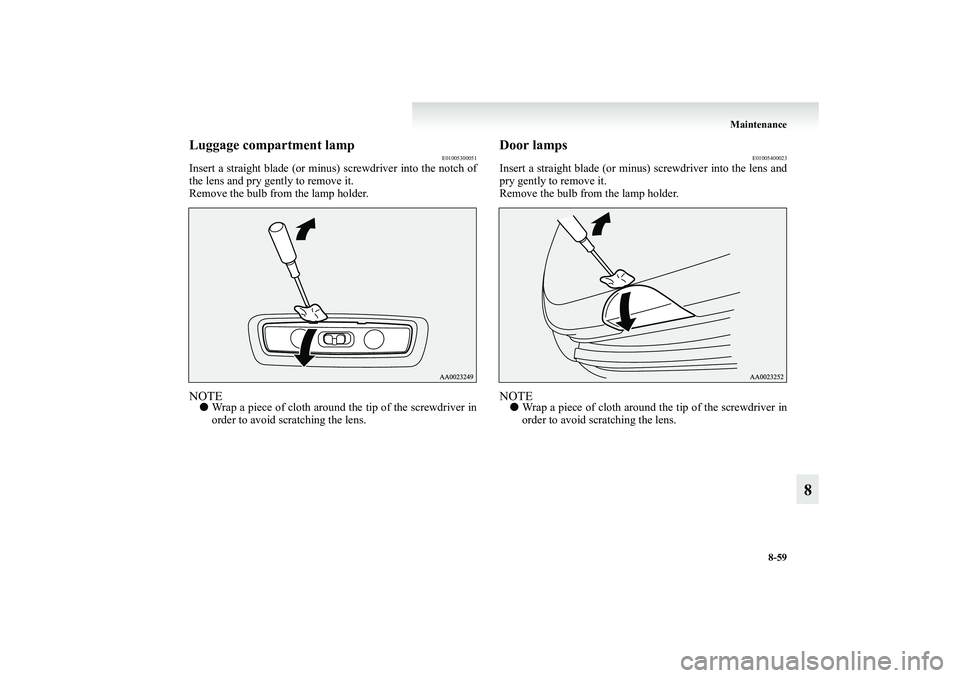

Luggage compartment lamp
E01005300051
Insert a straight blade (or minus) screwdriver into the notch of
the lens and pry gently to remove it.
Remove the bulb from the lamp holder.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens.
Door lamps
E01005400023
Insert a straight blade (or minus) screwdriver into the lens and
pry gently to remove it.
Remove the bulb from the lamp holder.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens.
BK-XP08E1ENUK.en-uk.book Page 59 Monday, August 13, 2007 2:20 PM

8-60 Maintenance
8

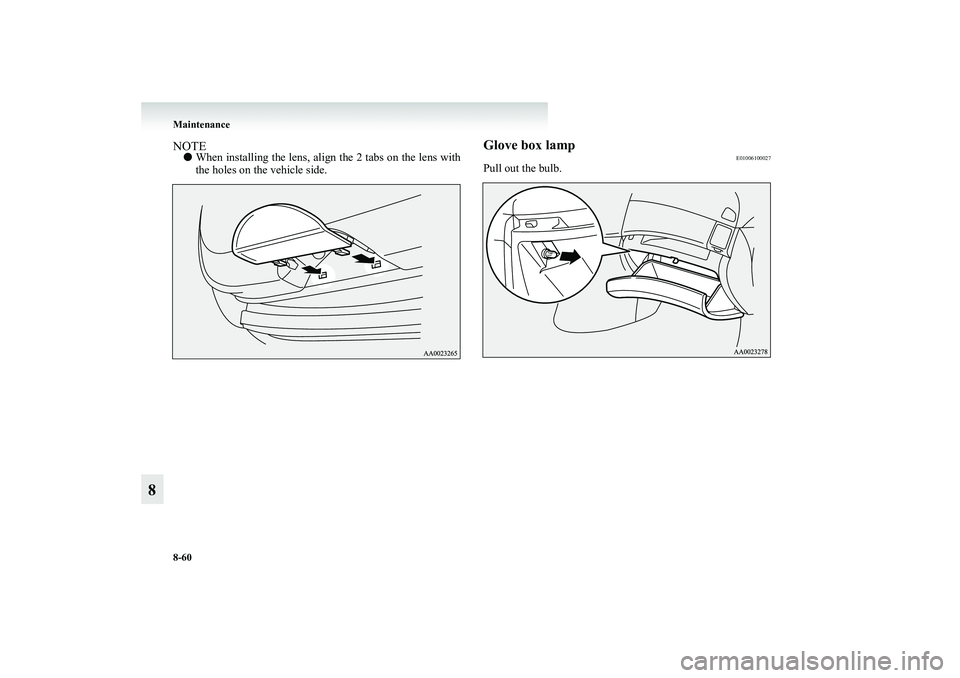

NOTE●When installing the lens, align the 2 tabs on the lens with
the holes on the vehicle side.
Glove box lamp
E01006100027
Pull out the bulb.
BK-XP08E1ENUK.en-uk.book Page 60 Monday, August 13, 2007 2:20 PM

Maintenance
8-61
8

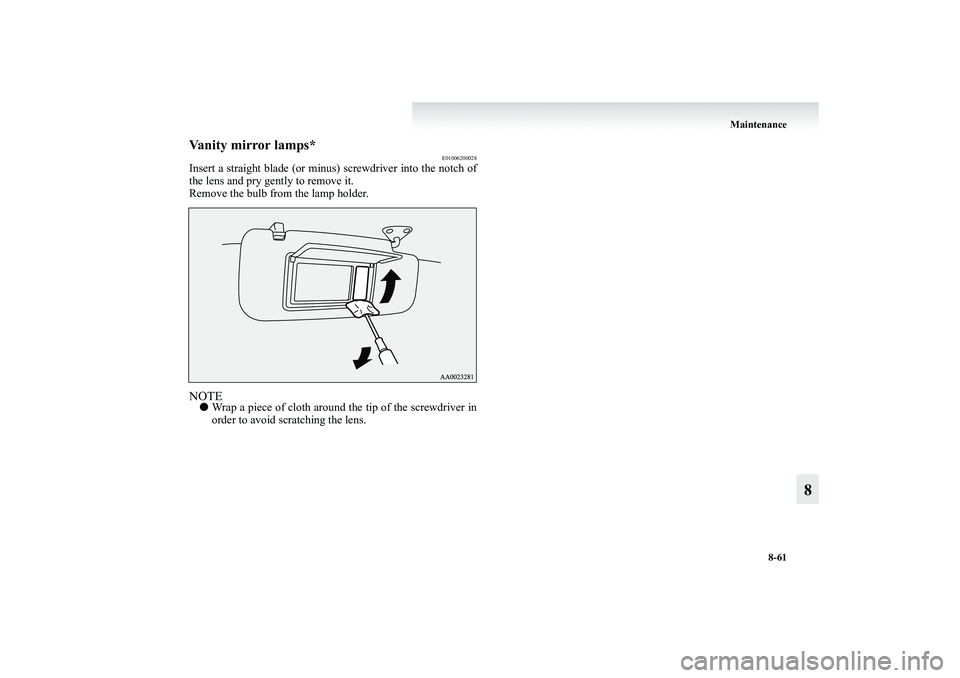

Vanity mirror lamps*
E01006200028
Insert a straight blade (or minus) screwdriver into the notch of
the lens and pry gently to remove it.
Remove the bulb from the lamp holder.NOTE●Wrap a piece of cloth around the tip of the screwdriver in
order to avoid scratching the lens.
BK-XP08E1ENUK.en-uk.book Page 61 Monday, August 13, 2007 2:20 PM

BK-XP08E1ENUK.en-uk.book Page 62 Monday, August 13, 2007 2:20 PM

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 5
Vehicle performance . . . . . . . . . . . . . . . . . . . . . . .9- 7
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 9
Transmission specifications . . . . . . . . . . . . . . . . . .9- 10
Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . .9- 11
Tyres and wheels . . . . . . . . . . . . . . . . . . . . . . . . . .9- 12
Other specifications . . . . . . . . . . . . . . . . . . . . . . . .9- 13
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . .9- 14
Notes regarding diesel fuel . . . . . . . . . . . . . . . . . .9- 15
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 16
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

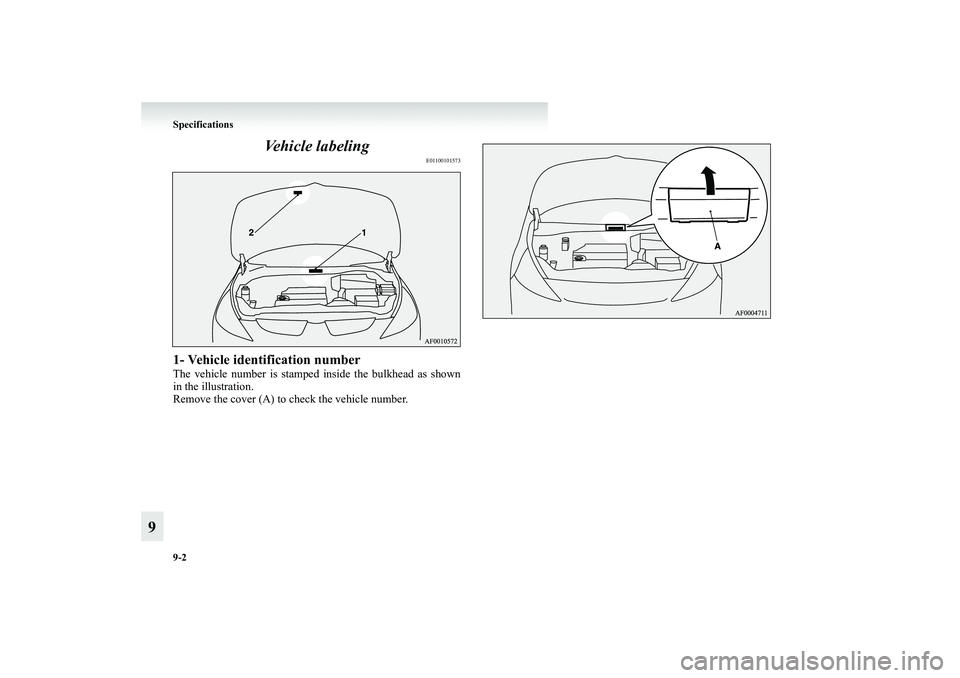

9-2 Specifications
9Vehicle labeling
E01100101573
1- Vehicle identification numberThe vehicle number is stamped inside the bulkhead as shown
in the illustration.
Remove the cover (A) to check the vehicle number.BK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM
