MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

Specifications
9-13

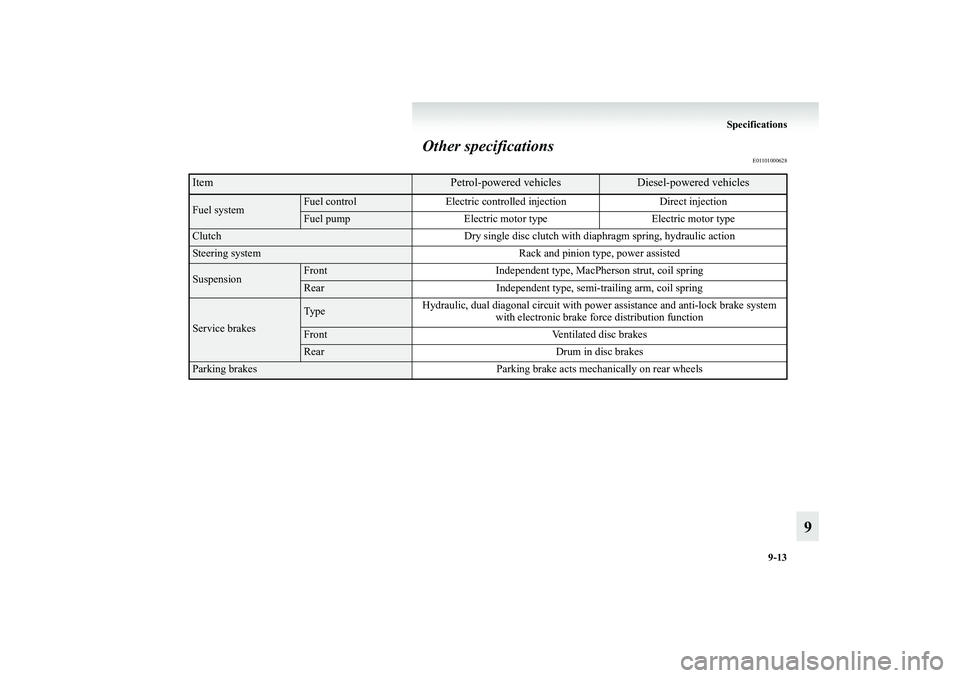

9 Other specifications
E01101000628
Item
Petrol-powered vehicles
Diesel-powered vehicles
Fuel system
Fuel control Electric controlled injection Direct injectionFuel pump Electric motor type Electric motor type
Clutch Dry single disc clutch with diaphragm spring, hydraulic actionSteering system Rack and pinion type, power assistedSuspension
Front Independent type, MacPherson strut, coil springRear Independent type, semi-trailing arm, coil spring
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system
with electronic brake force distribution functionFront Ventilated disc brakesRear Drum in disc brakes
Parking brakes Parking brake acts mechanically on rear wheels
BK-XP08E1ENUK.en-uk.book Page 13 Monday, August 13, 2007 2:20 PM

9-14 Specifications

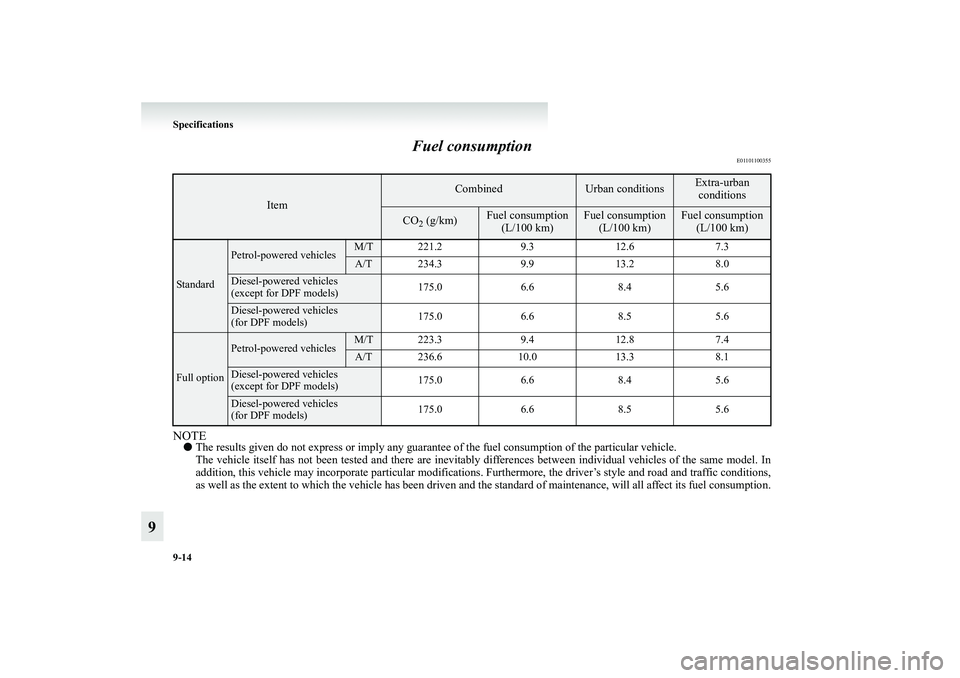

9Fuel consumption
E01101100355
NOTE●The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In
addition, this vehicle may incorporate particular modifications. Furthermore, the driver’s style and road and traffic conditions,
as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
Item
Combined
Urban conditions
Extra-urban
conditions
CO
2 (g/km)
Fuel consumption
(L/100 km)
Fuel consumption
(L/100 km)
Fuel consumption
(L/100 km)
Standard
Petrol-powered vehicles
M/T 221.2 9.3 12.6 7.3A/T 234.3 9.9 13.2 8.0
Diesel-powered vehicles
(except for DPF models)175.0 6.6 8.4 5.6Diesel-powered vehicles
(for DPF models)175.0 6.6 8.5 5.6
Full option
Petrol-powered vehicles
M/T 223.3 9.4 12.8 7.4A/T 236.6 10.0 13.3 8.1
Diesel-powered vehicles
(except for DPF models)175.0 6.6 8.4 5.6Diesel-powered vehicles
(for DPF models)175.0 6.6 8.5 5.6
BK-XP08E1ENUK.en-uk.book Page 14 Monday, August 13, 2007 2:20 PM

Specifications
9-15

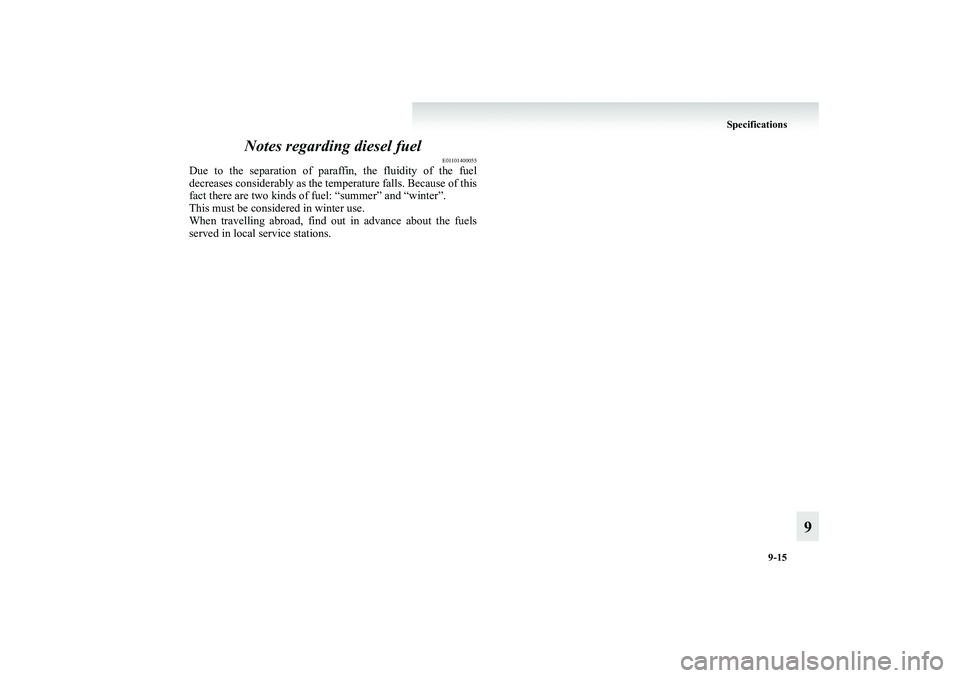

9 Notes regarding diesel fuel
E01101400055
Due to the separation of paraffin, the fluidity of the fuel
decreases considerably as the temperature falls. Because of this
fact there are two kinds of fuel: “summer” and “winter”.
This must be considered in winter use.
When travelling abroad, find out in advance about the fuels
served in local service stations.
BK-XP08E1ENUK.en-uk.book Page 15 Monday, August 13, 2007 2:20 PM

9-16 Specifications

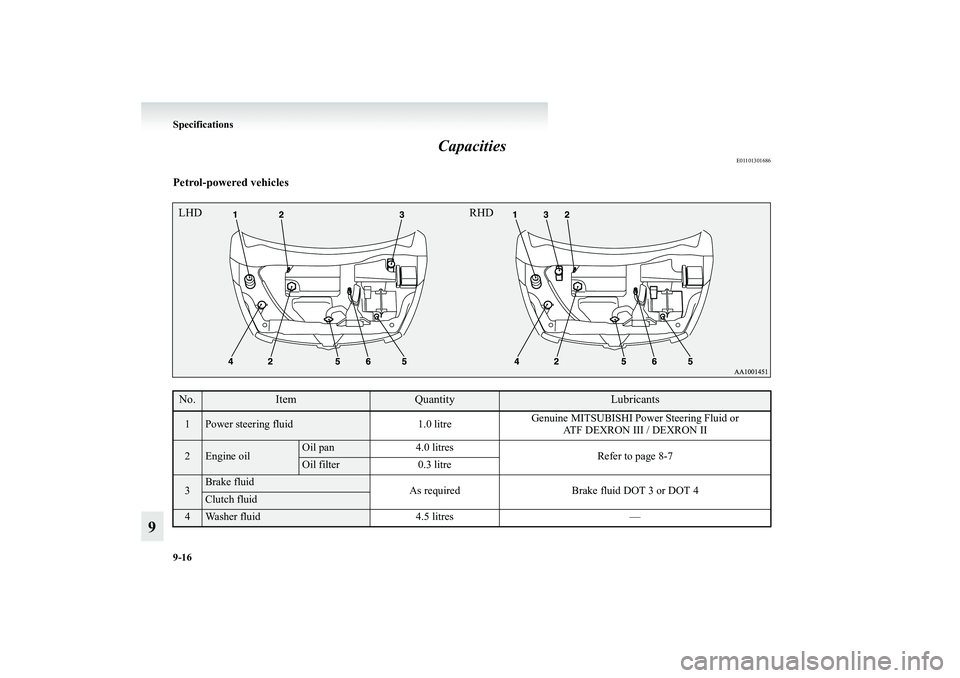

9Capacities
E01101301686
Petrol-powered vehicles


No.
Item
Quantity
Lubricants
1
Power steering fluid 1.0 litreGenuine MITSUBISHI Power Steering Fluid or
ATF DEXRON III / DEXRON II
2
Engine oil
Oil pan 4.0 litres
Refer to page 8-7Oil filter 0.3 litre
3
Brake fluid
As required Brake fluid DOT 3 or DOT 4Clutch fluid
4
Washer fluid 4.5 litres —
LHD RHDBK-XP08E1ENUK.en-uk.book Page 16 Monday, August 13, 2007 2:20 PM

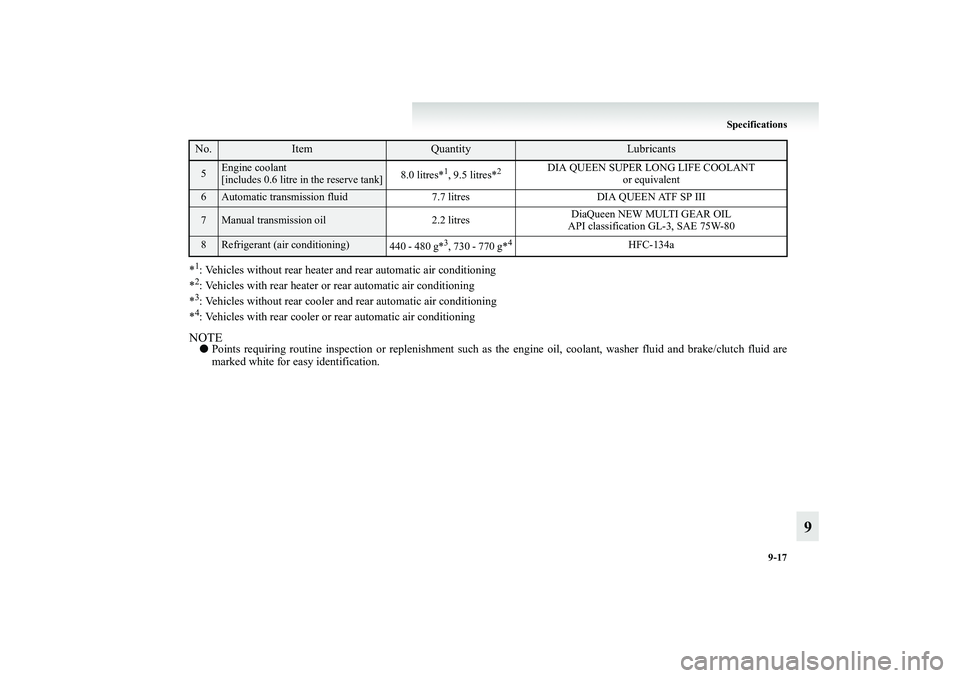

Specifications
9-17
9
*1: Vehicles without rear heater and rear automatic air conditioning
*2: Vehicles with rear heater or rear automatic air conditioning
*3: Vehicles without rear cooler and rear automatic air conditioning
*4: Vehicles with rear cooler or rear automatic air conditioningNOTE●Points requiring routine inspection or replenishment such as the engine oil, coolant, washer fluid and brake/clutch fluid are
marked white for easy identification.5
Engine coolant
[includes 0.6 litre in the reserve tank]8.0 litres*
1, 9.5 litres*
2
DIA QUEEN SUPER LONG LIFE COOLANT
or equivalent
6
Automatic transmission fluid 7.7 litres DIA QUEEN ATF SP III
7
Manual transmission oil 2.2 litresDiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80
8
Refrigerant (air conditioning)
440 - 480 g*
3, 730 - 770 g*
4
HFC-134a
No.
Item
Quantity
Lubricants
BK-XP08E1ENUK.en-uk.book Page 17 Monday, August 13, 2007 2:20 PM

9-18 Specifications
9

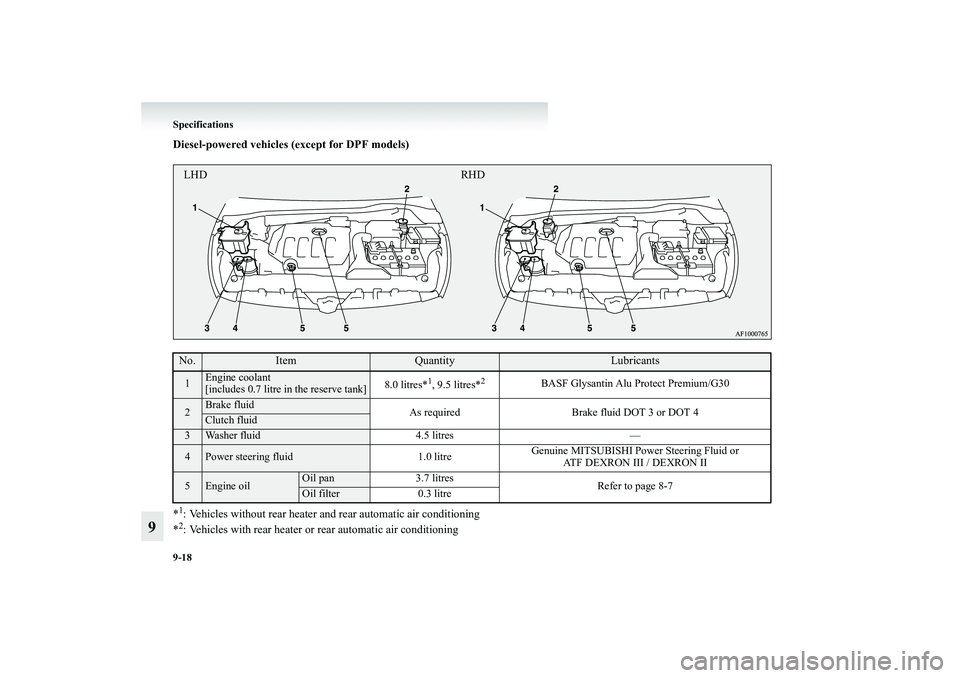

Diesel-powered vehicles (except for DPF models)


*1: Vehicles without rear heater and rear automatic air conditioning
*2: Vehicles with rear heater or rear automatic air conditioningNo.
Item
Quantity
Lubricants
1
Engine coolant
[includes 0.7 litre in the reserve tank]8.0 litres*
1, 9.5 litres*
2
BASF Glysantin Alu Protect Premium/G30
2
Brake fluid
As required Brake fluid DOT 3 or DOT 4Clutch fluid
3
Washer fluid 4.5 litres —
4
Power steering fluid 1.0 litreGenuine MITSUBISHI Power Steering Fluid or
ATF DEXRON III / DEXRON II
5
Engine oil
Oil pan 3.7 litres
Refer to page 8-7Oil filter 0.3 litre
LHD RHD
BK-XP08E1ENUK.en-uk.book Page 18 Monday, August 13, 2007 2:20 PM

Specifications
9-19
9
*3: Vehicles without rear cooler and rear automatic air conditioning
*4: Vehicles with rear cooler or rear automatic air conditioningNo.
Item
Quantity
Lubricants
6
Manual transmission oil 2.0 litresDiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80
7
Refrigerant (air conditioning)
440 - 480 g*
3, 730 - 770 g*
4
HFC-134a
BK-XP08E1ENUK.en-uk.book Page 19 Monday, August 13, 2007 2:20 PM

9-20 Specifications
9

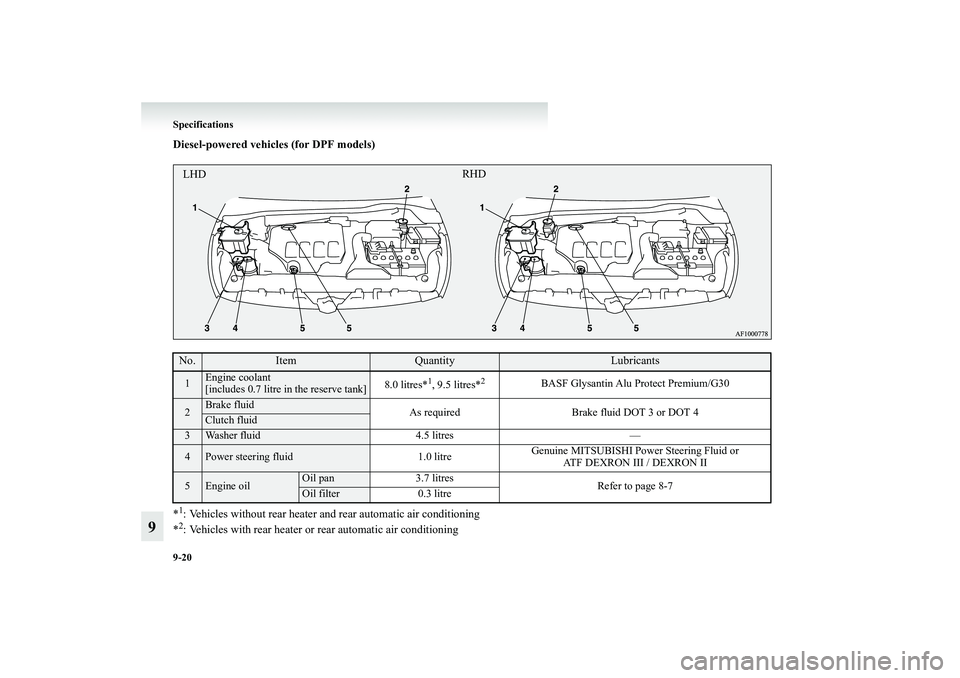

Diesel-powered vehicles (for DPF models)


*1: Vehicles without rear heater and rear automatic air conditioning
*2: Vehicles with rear heater or rear automatic air conditioningNo.
Item
Quantity
Lubricants
1
Engine coolant
[includes 0.7 litre in the reserve tank]8.0 litres*
1, 9.5 litres*
2
BASF Glysantin Alu Protect Premium/G30
2
Brake fluid
As required Brake fluid DOT 3 or DOT 4Clutch fluid
3
Washer fluid 4.5 litres —
4
Power steering fluid 1.0 litreGenuine MITSUBISHI Power Steering Fluid or
ATF DEXRON III / DEXRON II
5
Engine oil
Oil pan 3.7 litres
Refer to page 8-7Oil filter 0.3 litre
LHDRHD
BK-XP08E1ENUK.en-uk.book Page 20 Monday, August 13, 2007 2:20 PM

Specifications
9-21
9

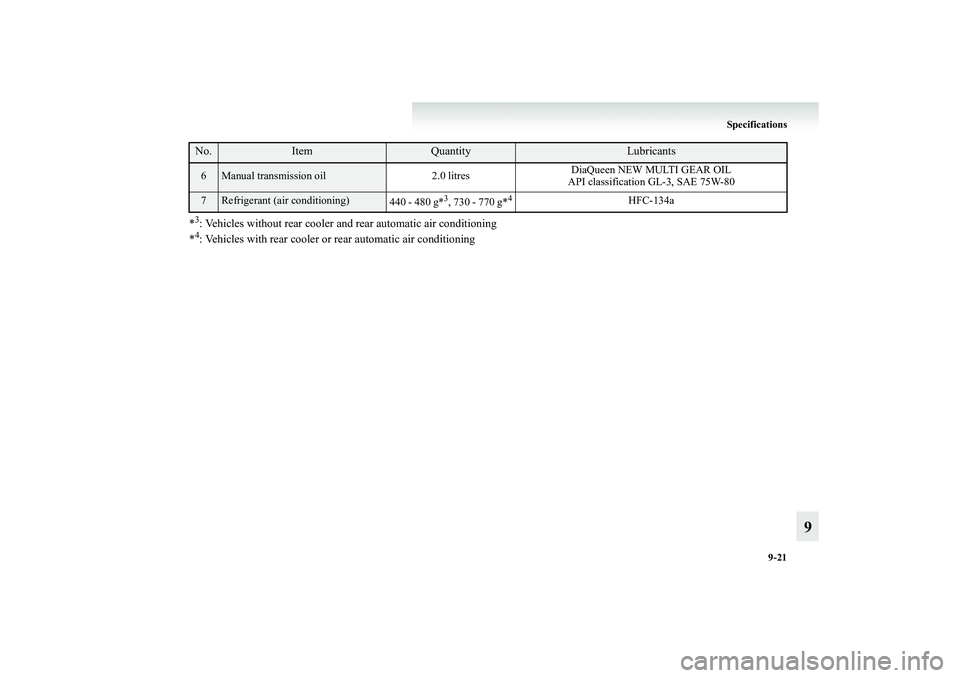

*3: Vehicles without rear cooler and rear automatic air conditioning
*4: Vehicles with rear cooler or rear automatic air conditioningNo.
Item
Quantity
Lubricants
6
Manual transmission oil 2.0 litresDiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80
7
Refrigerant (air conditioning)
440 - 480 g*
3, 730 - 770 g*
4
HFC-134a
BK-XP08E1ENUK.en-uk.book Page 21 Monday, August 13, 2007 2:20 PM
