FOR PLEASANT DRIVING
NOTE
If the battery cables are disconnected dur-
ing repairs or for any other reason, reset
the clock to the correct time after they are
reconnected.Glove boxEG14BAZ
Type 1
1 - To open, pull the lever.
Accessory boxesEG14APD
Various small articles can be kept in here.
1 - Seat back pocket*
2 - Centre console box*
3 - Glove box
4 - Rear centre armrest with storage box*
5 - Secret box*
6 - Tray under seat*
6-35
G15B104
123
G14A087
123
6 45
G14B038
1
Type 1 Type 2
06engL2_240082_4 22-01-2004 13:08 Page 6-35

FOR PLEASANT DRIVING
Type 2
1 - To lock
2 - To unlock
3 - To open, pull the lever.
NOTE
If the box is opened when the light switch
is in the “ ” or “ ” position, the glove
box lamp illuminates.Centre console box*EG14C-L
To open the box, raise the lid.
Rear centre armrest with storage
box*
EG39A-E
Tilt the armrest forward into place and the
space left behind it will be used to hold
small articles.
6-36
G14B049
12
3
Type 2
G14C015G39A003
06engL2_240082_4 22-01-2004 13:08 Page 6-36

FOR PLEASANT DRIVING

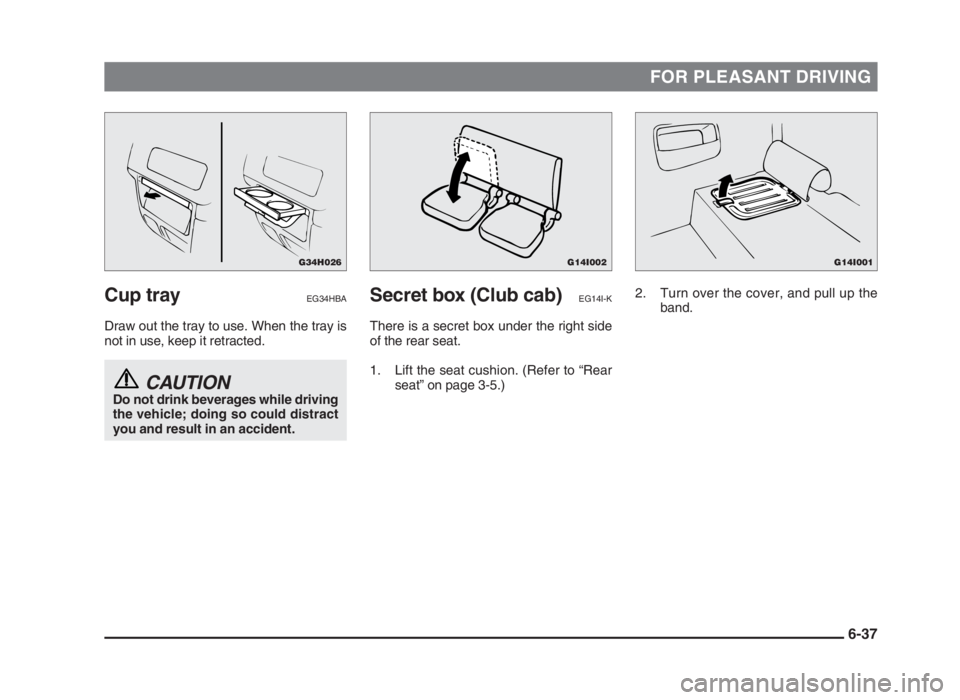

Cup trayEG34HBA
Draw out the tray to use. When the tray is
not in use, keep it retracted.
CAUTIONDo not drink beverages while driving
the vehicle; doing so could distract
you and result in an accident.
2. Turn over the cover, and pull up the
band.Secret box (Club cab)EG14I-K
There is a secret box under the right side
of the rear seat.
1. Lift the seat cushion. (Refer to “Rear
seat” on page 3-5.)
6-37
G34H026G14I002G14I001
06engL2_240082_4 22-01-2004 13:08 Page 6-37

FOR PLEASANT DRIVING

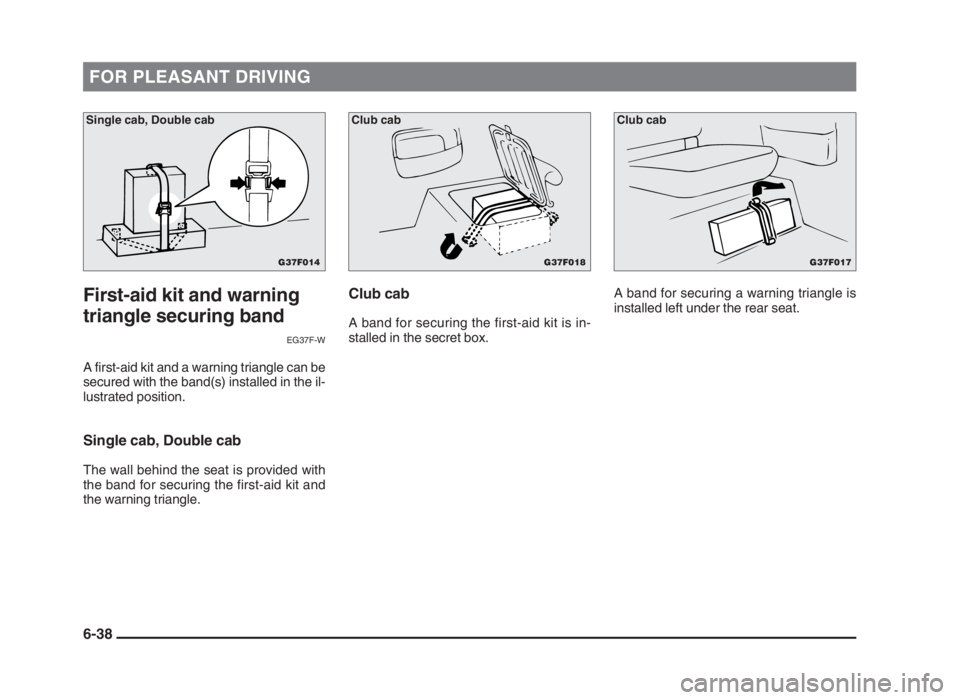

First-aid kit and warning
triangle securing band
EG37F-W
A first-aid kit and a warning triangle can be
secured with the band(s) installed in the il-
lustrated position.
Single cab, Double cab
The wall behind the seat is provided with
the band for securing the first-aid kit and
the warning triangle.
Club cab
A band for securing the first-aid kit is in-
stalled in the secret box.A band for securing a warning triangle is
installed left under the rear seat.
6-38
G37F014
Single cab, Double cab
G37F017
Club cab
G37F018
Club cab
06engL2_240082_4 22-01-2004 13:08 Page 6-38

FOR PLEASANT DRIVING

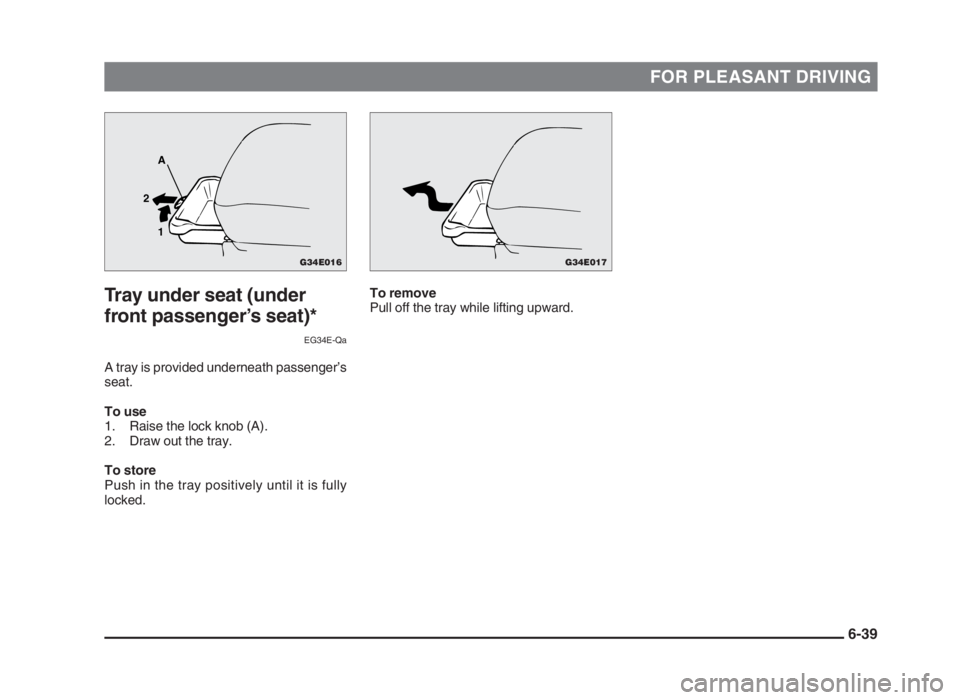

Tray under seat (under
front passenger’s seat)*
EG34E-Qa
A tray is provided underneath passenger’s
seat.
To use
1. Raise the lock knob (A).
2. Draw out the tray.
To store
Push in the tray positively until it is fully
locked.To remove
Pull off the tray while lifting upward.
6-39
G34E016
1 2A
G34E017
06engL2_240082_4 22-01-2004 13:08 Page 6-39

06engL2_240082_4 22-01-2004 13:08 Page 6-40

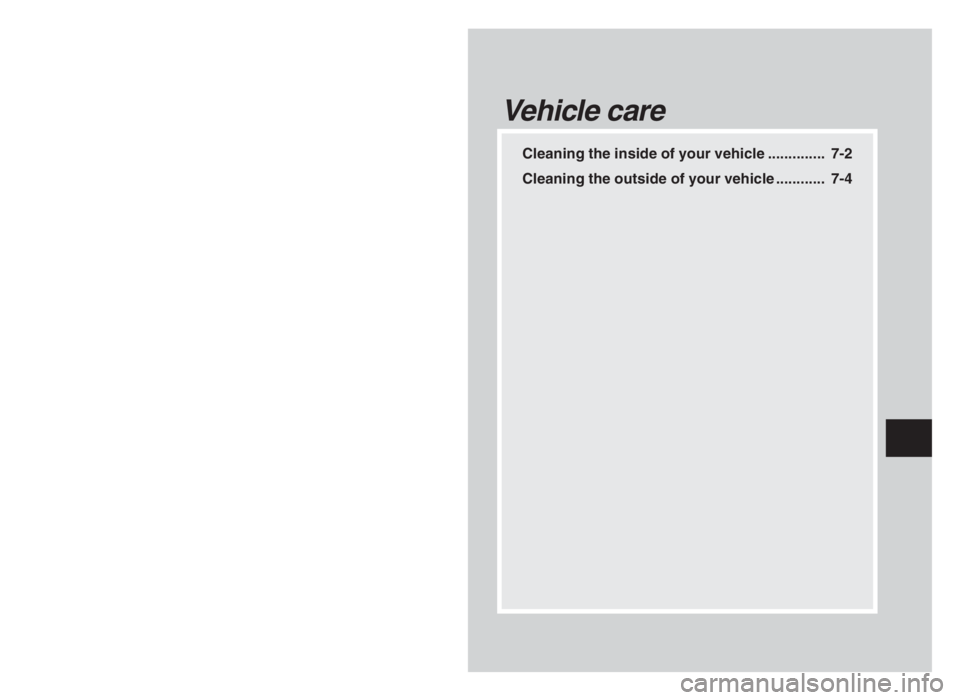

Cleaning the inside of your vehicle .............. 7-2
Cleaning the outside of your vehicle ............ 7-4
Vehicle care
7
07engL2_240082_4 22-01-2004 13:09 Page 7-1

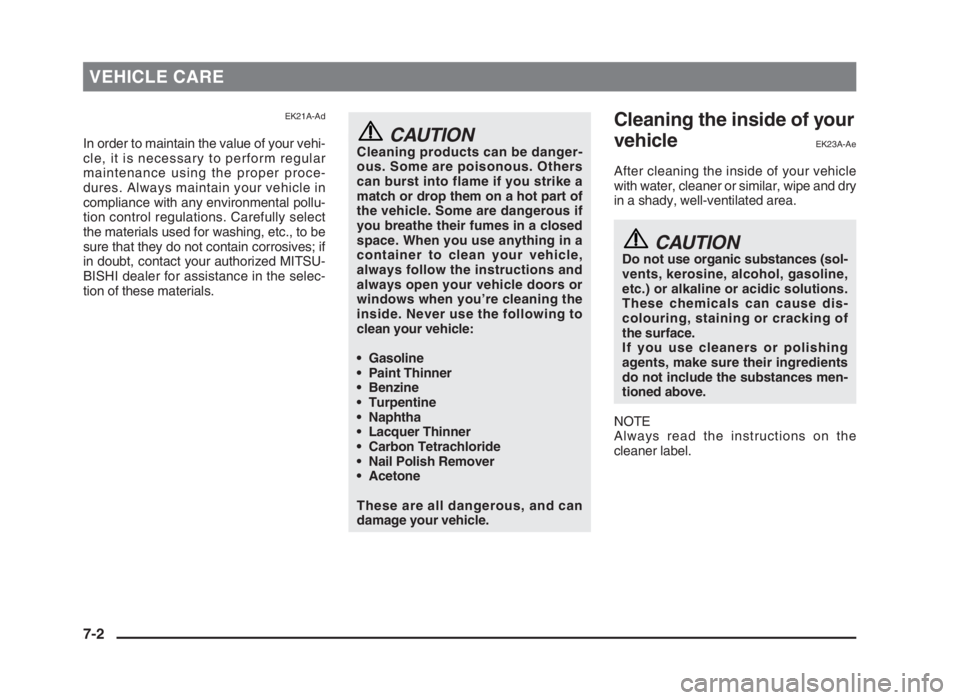

VEHICLE CARE
EK21A-Ad
In order to maintain the value of your vehi-
cle, it is necessary to perform regular
maintenance using the proper proce-
dures. Always maintain your vehicle in
compliance with any environmental pollu-
tion control regulations. Carefully select
the materials used for washing, etc., to be
sure that they do not contain corrosives; if
in doubt, contact your authorized MITSU-
BISHI dealer for assistance in the selec-
tion of these materials.CAUTIONCleaning products can be danger-
ous. Some are poisonous. Others
can burst into flame if you strike a
match or drop them on a hot part of
the vehicle. Some are dangerous if
you breathe their fumes in a closed
space. When you use anything in a
container to clean your vehicle,
always follow the instructions and
always open your vehicle doors or
windows when you’re cleaning the
inside. Never use the following to
clean your vehicle:
• Gasoline
• Paint Thinner
• Benzine
• Turpentine
• Naphtha
• Lacquer Thinner
• Carbon Tetrachloride
• Nail Polish Remover
• Acetone
These are all dangerous, and can
damage your vehicle.
Cleaning the inside of your
vehicle
EK23A-Ae
After cleaning the inside of your vehicle
with water, cleaner or similar, wipe and dry
in a shady, well-ventilated area.
CAUTIONDo not use organic substances (sol-
vents, kerosine, alcohol, gasoline,
etc.) or alkaline or acidic solutions.
These chemicals can cause dis-
colouring, staining or cracking of
the surface.
If you use cleaners or polishing
agents, make sure their ingredients
do not include the substances men-
tioned above.
NOTE
Always read the instructions on the
cleaner label.
7-2
07engL2_240082_4 22-01-2004 13:09 Page 7-2

VEHICLE CARE

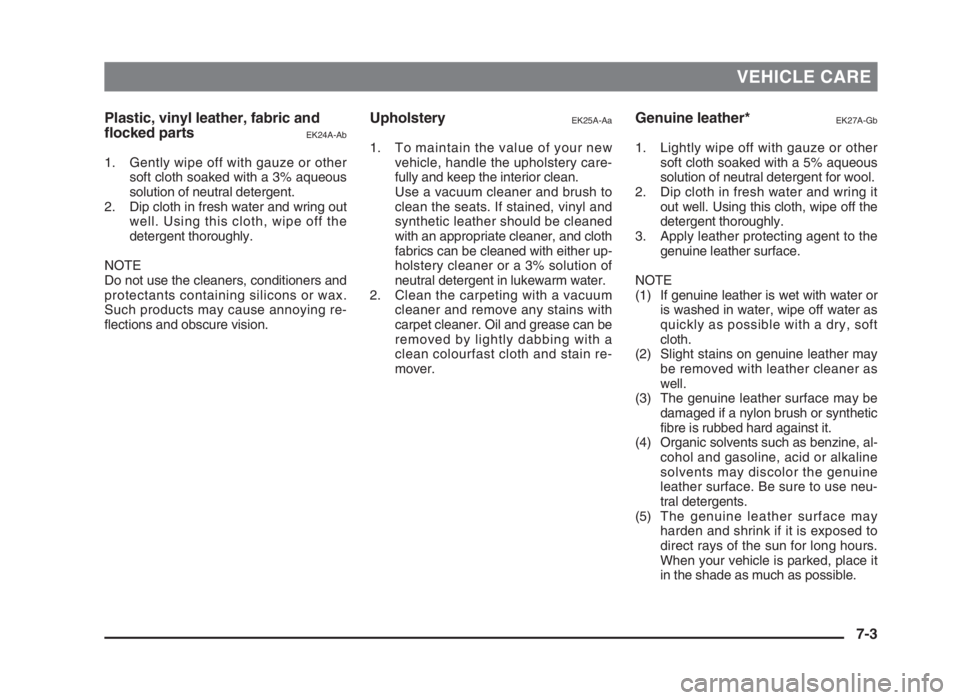

Plastic, vinyl leather, fabric and
flocked parts
EK24A-Ab
1. Gently wipe off with gauze or other
soft cloth soaked with a 3% aqueous
solution of neutral detergent.
2. Dip cloth in fresh water and wring out
well. Using this cloth, wipe off the
detergent thoroughly.
NOTE
Do not use the cleaners, conditioners and
protectants containing silicons or wax.
Such products may cause annoying re-
flections and obscure vision.
Genuine leather*EK27A-Gb
1. Lightly wipe off with gauze or other
soft cloth soaked with a 5% aqueous
solution of neutral detergent for wool.
2. Dip cloth in fresh water and wring it
out well. Using this cloth, wipe off the
detergent thoroughly.
3. Apply leather protecting agent to the
genuine leather surface.
NOTE
(1) If genuine leather is wet with water or
is washed in water, wipe off water as
quickly as possible with a dry, soft
cloth.
(2) Slight stains on genuine leather may
be removed with leather cleaner as
well.
(3) The genuine leather surface may be
damaged if a nylon brush or synthetic
fibre is rubbed hard against it.
(4) Organic solvents such as benzine, al-
cohol and gasoline, acid or alkaline
solvents may discolor the genuine
leather surface. Be sure to use neu-
tral detergents.
(5) The genuine leather surface may
harden and shrink if it is exposed to
direct rays of the sun for long hours.
When your vehicle is parked, place it
in the shade as much as possible.
UpholsteryEK25A-Aa
1. To maintain the value of your new
vehicle, handle the upholstery care-
fully and keep the interior clean.
Use a vacuum cleaner and brush to
clean the seats. If stained, vinyl and
synthetic leather should be cleaned
with an appropriate cleaner, and cloth
fabrics can be cleaned with either up-
holstery cleaner or a 3% solution of
neutral detergent in lukewarm water.
2. Clean the carpeting with a vacuum
cleaner and remove any stains with
carpet cleaner. Oil and grease can be
removed by lightly dabbing with a
clean colourfast cloth and stain re-
mover.
7-3
07engL2_240082_4 22-01-2004 13:09 Page 7-3

VEHICLE CARE
Cleaning the outside of
your vehicle
EK28A-Ah
If the following is left on your vehicle, it
may cause corrosion, discoloration and
stains, wash the vehicle as soon as pos-
sible.
• Seawater, anti-freeze for road use.
• Soot and dust, iron powder from fact-
ories, chemical substance (acids, alka-
lis, coal-tar, etc.).
• Droppings from birds, carcasses of
insects, tree sap, etc.
WashingEK22AAZa
Chemicals contained in the dirt and dust
picked up from the road surface can
damage the paint coat and body of your
vehicle if left in prolonged contact.
Frequent washing and waxing is the best
way to protect your vehicle from this
damage. This will also be effective in
protecting it from environmental elements
such as rain, snow, salt air, etc.
Do not wash the vehicle in direct sunlight.
Park the vehicle in the shade and spray it
with water to remove dust. Next, using an
ample amount of clean water and a car
washing brush or sponge, wash the
vehicle from top to bottom.
Use a mild car washing soap if necessary.
Rinse thoroughly and wipe dry with a soft
cloth. After washing the vehicle, carefully
clean the joints and flanges of the doors,
bonnet, etc., where dirt is likely to remain.CAUTION(1)When washing the under side of
your vehicle or wheel, wear a pair
of rubber gloves in order to pro-
tect your hands.
(2) Refrain from using a car wash as
its brushes may scratch the
paint surface, causing it to lose
its gloss.
Scratches will be especially vis-
ible on darker coloured vehicles.
(3) Never spray or splash water on
the electrical components in the
engine compartment, as this
may adversely affect engine
starting.
Exercise caution also when
washing the underbody; be
careful not to spray water into
the engine compartment.
7-4
