FOR EMERGENCIES
2. Operate the hand pump (B) slowly 6
or 7 times in order to force the water
out through the drain plug (A).
3. Tighten the drain plug (A) when water
no longer comes out.
4. Loosen the air plug and bleed the air.
(Refer to “Bleeding the fuel system.”)
5. Check to be sure that the warning
lamp illuminates when the ignition key
is turned to “ON”, and that it goes off
when the engine is started. If in doubt,
consult your nearest authorized
MITSUBISHI dealer.
Emergency startingEN28A-Te
If the engine cannot be started because
the battery is weak or dead, the battery
from another vehicle can be used with
jumper cables to start the engine.
WARNINGTo start the engine by use of jumper
cables from another vehicle, per-
form the correct procedures accord-
ing to the instruction manual. Incor-
rect procedures could result in a fire
or explosion or damage to the vehi-
cles.
1. Get the vehicles close enough so the
jumper cables can reach, but be sure
the vehicles aren’t touching each
other. If they are, it could cause a
ground connection you don’t want.
The vehicle will not start, and the bad
grounding could damage the electri-
cal systems.
CAUTIONCheck the other vehicle. It must have
a 12-volt battery.
If the other system isn’t 12-volt,
shorting can damage both vehicles.
CAUTION(1) Do not smoke or have any other
open flame near the vehicle
while bleeding the fuel system.
(2) Be sure to carefully clean away
any water drained out because
any fuel mixed with the water
could ignite and cause a fire.
8-27
N07B005
B
A
08engL2_240082_4 22-01-2004 13:10 Page 8-27

2. You could be injured if the vehicles
roll. Set the parking brake firmly on
each vehicle. Put an automatic trans-
mission in “P” (PARK) position or a
manual transmission in “N” (Neutral)
position. Turn off the ignition switch.
WARNINGTurn off the ignition on both vehicles
beforehand. Use care to make sure
that the cables or your clothes do
not get caught by the fan or drive
belt. Personal injury could result.
NOTE
Turn off all lamps, heater and other elec-
trical loads. This will avoid sparks and help
save both batteries.
3. Make sure that the battery electrolyte
is at the proper level. Refer to “Bat-
tery” on page 9-6.
WARNINGIf the electrolyte fluid is not visible,
or appears to be frozen, Do Not At-
tempt Jump Starting!
A battery might rupture or explode if
the temperature is below the freez-
ing point or if it is not filled to the
proper level.
4. Connect one end of one jumper cable
to the positive (+) terminal of the
discharged battery, and the other end
to the positive (+) terminal of the
booster battery.
5. Connect one end of the other jumper
cable to the negative (–) terminal of
the booster battery and the other end
to the engine block of the vehicle with
the discharged battery at the point far-
thest from the battery.
NOTE
Remove the cover before connecting the
booster cable to the positive terminal of
the battery.
FOR EMERGENCIES
Type 1 -Diesel-powered vehicles with
turbo charger
Type 2 - Diesel-powered vehicles
Type 3 - Petrol-powered vehicles
8-28
N28A041



Type 1
N28A031
Type 2
08engL2_240082_4 22-01-2004 13:10 Page 8-28

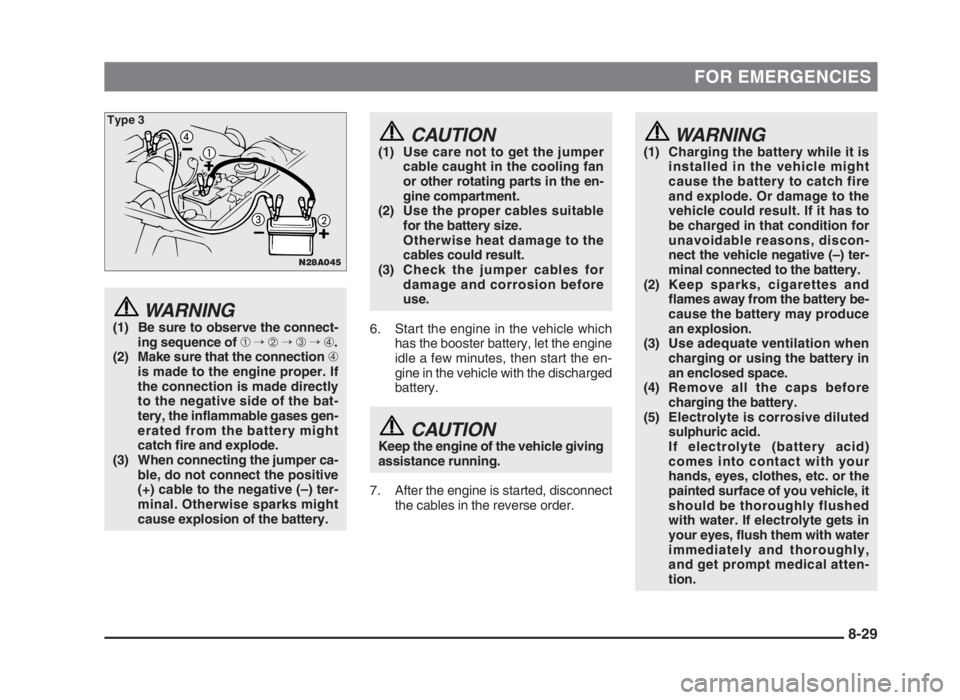

FOR EMERGENCIES
WARNING(1) Be sure to observe the connect-
ing sequence of ➀ → ➁ → ➂ → ➃.
(2) Make sure that the connection ➃
is made to the engine proper. If
the connection is made directly
to the negative side of the bat-
tery, the inflammable gases gen-
erated from the battery might
catch fire and explode.
(3) When connecting the jumper ca-
ble, do not connect the positive
(+) cable to the negative (–) ter-
minal. Otherwise sparks might
cause explosion of the battery.
WARNING(1) Charging the battery while it is
installed in the vehicle might
cause the battery to catch fire
and explode. Or damage to the
vehicle could result. If it has to
be charged in that condition for
unavoidable reasons, discon-
nect the vehicle negative (–) ter-
minal connected to the battery.
(2) Keep sparks, cigarettes and
flames away from the battery be-
cause the battery may produce
an explosion.
(3) Use adequate ventilation when
charging or using the battery in
an enclosed space.
(4) Remove all the caps before
charging the battery.
(5) Electrolyte is corrosive diluted
sulphuric acid.
If electrolyte (battery acid)
comes into contact with your
hands, eyes, clothes, etc. or the
painted surface of you vehicle, it
should be thoroughly flushed
with water. If electrolyte gets in
your eyes, flush them with water
immediately and thoroughly,
and get prompt medical atten-
tion.CAUTION(1) Use care not to get the jumper
cable caught in the cooling fan
or other rotating parts in the en-
gine compartment.
(2) Use the proper cables suitable
for the battery size.
Otherwise heat damage to the
cables could result.
(3) Check the jumper cables for
damage and corrosion before
use.
6. Start the engine in the vehicle which
has the booster battery, let the engine
idle a few minutes, then start the en-
gine in the vehicle with the discharged
battery.
CAUTIONKeep the engine of the vehicle giving
assistance running.
7. After the engine is started, disconnect
the cables in the reverse order.
8-29
N28A045




Type 3
08engL2_240082_4 22-01-2004 13:10 Page 8-29

FOR EMERGENCIES
CAUTION(1) Do not attempt to start the en-
gine by pulling or pushing the
vehicle.
It could damage your vehicle.
(2) Always wear protective eye gog-
gles when working near the
battery.
(3) Keep the battery out of the reach
of children.
NOTE
On vehicles with the anti-lock brake
system, if the vehicle is started in motion
without fully charging the battery, irregular
rotation of the engine might cause the
anti-lock brake warning lamp to illuminate.
Refer to “Anti-lock brake system (ABS)”
on page 5-33.
What to do if the engine
speed becomes unstable
after the battery is
replaced
EN38B-G
If the engine speed becomes unstable af-
ter the battery is replaced, reset the en-
gine using the following method:
1. Stop the vehicle in a safe place.
2. Place the gearshift lever (manual
transmission) in the “N” (Neutral) po-
sition or the selector lever (automatic
transmission) in the “P” (PARK) posi-
tion.
Stop the engine.
3. Restart the engine.
4. Turn off the heater/air conditioning.
5. Allow the engine to warm up until the
needle in the water temperature
gauge stabilizes near the centre of
the gauge.
6. Stop and restart the engine.
7. Allow the engine to idle for approxi-
mately 10 minutes.
8. When the engine speed stabilizes,
the resetting procedure is complete.
NOTE
If the engine speed remains unstable after
the resetting procedure has been per-
formed, have the vehicle inspected by an
authorized MITSUBISHI dealer.
FusesEN09A-Na
Fuse block
To prevent damage to the electric system
due to short-circuiting or overloading,
each individual circuit is provided with a
fuse.
There are fuse boxes in the passenger
compartment and in the engine compart-
ment.
The fuse box in the passenger compart-
ment is located in front of the driver’s seat
as shown in the illustration.
8-30
N09A059
08engL2_240082_4 22-01-2004 13:10 Page 8-30

FOR EMERGENCIES
In the engine compartment, the fuse box
is located as shown in the illustration.Passenger compartment
The spare fuses are mounted on the fuse
box cover. Always use a fuse of the same
capacity for replacement.
Fuse load capacityEN29BPDc
The fuse box cover lists the names of the
electrical systems and the fuse capacities.
8-31
NoElectrical systemCapacity
1Rear window demister20A
2Heater20A
3Turn-signal lamps10A
4Radio10A
5——
6Electric door locks15A
Symbol
—
N29B143
1
2
3
4567
8
9
101112
13
14
15 16
17
N29B144N09A033
08engL2_240082_4 22-01-2004 13:11 Page 8-31

FOR EMERGENCIES
NOTE
• Some fuses may not be installed on
your vehicle, depending on the vehicle
model or specifications.
• The table above shows the main equip-
ment corresponding to each fuse.
Engine compartment
NOTE
• Some fuses may not be installed on
your vehicle, depending on the vehicle
model or specifications.
• The table above shows the main equip-
ment corresponding to each fuse.
8-32
N29B131
12
34
56
7
8
910
1112
NoElectrical systemCapacity
1Room lamp10A
2High beam10A
3Tail lamps (Right)10A
4Tail lamps (Left)10A
5Hazard warming
flashers10A
6Air conditioning30A
7Fuse40A
8Ignition switch40A
9Power window30A
10Lamps30A
11Engine20A
12Alternator80A
Symbol
NoElectrical systemCapacity
7Heater relay10A
8Cigarette lighter15A
9Windscreen wiper15A
10Reserving lamps10A
11Meter10A
12Stop lamps10A
13Horn10A
14Power window relay10A
15Automatic transmission
(A/T only)10A
16Fuel line heater15A
17Rear heater10A
18Heated mirror10A
19Demister20A
Symbol
A/T
08engL2_240082_4 22-01-2004 13:11 Page 8-32

FOR EMERGENCIES
Changing a fuseEN29C-Ae
1. Before replacing a fuse, always turn
off the electrical item concerned and
place the ignition switch in the
“LOCK” position.
2. Remove the fuse housing cover.
3. Referring to the fuse load capacity
table, check the fuse pertaining to the
problem.
A - Fuse is OK
B - Blown fuse5. Insert a new fuse of the same capac-
ity securely into the clip.
CAUTION(1) If the newly inserted fuse blows
again after a short time, have the
electrical system checked by an
authorized MITSUBISHI dealer
to find the cause and rectify it.
(2) Never use a fuse with a capacity
larger than that specified or any
substitute, such as wire, foil,
etc.; doing so will cause the
circuit wiring to heat up and
could cause a fire.
4. There is a fuse puller in the fuse hous-
ing (inside the vehicle). First pull the
fuse puller out of the fuse housing and
then by using the fuse puller, pull the
fuse straigth out from the fuse hous-
ing. If it is not blown, something else
must be causing the problem; contact
an authorized MITSUBISHI dealer to
have the problem checked.
8-33
N29C001N29C009N29C013
A
B
08engL2_240082_4 22-01-2004 13:11 Page 8-33

FOR EMERGENCIES
Replacement of lamp
bulbs
EN10A-Ab
Before replacing a bulb, ensure the lamp
is off. Do not touch the glass part of the
new bulb with your bare fingers; the skin
oil left on the glass will evaporate when
the bulb gets hot and the vapor will con-
dense on the reflector and dim the sur-
face.
Bulb capacityEN10BPXb
A bulb should only be replaced with a new
bulb of the same rating and type. The
designation can be found on the base of
the bulb.
Outside
1 - Headlamps, High/low beam
.......................................60/55W (H4)
2 - Front turn-signal lamps
...................................21W (WY21W)
3 - Position lamps ..................5W (W5W)
4 - Side turn-signal lamps....5W (WY5W)5 - Rear turn-sig-
nal lamps .....................21W (PY21W)
6 - Reversing lamps ............21W (P21W)
7 - Stop and tail lamps ..21/5W (P21/5W)
8 - Rear fog lamp* (LHD vehicles)
.......................................21W (P21W)
9 - Number plate lamps .........5W (W5W)
10 - Rear fog lamp (RHD vehicles)
.......................................21W (P21W)
11 - High mounted stop lamp*..5W (W5W)
Inside
Room lamp...........................................8W
Personal lamp*...................................10W
8-34
N10B142
1
234
N10B230
8 765
911
10
08engL2_240082_4 22-01-2004 13:11 Page 8-34

FOR EMERGENCIES
HeadlampsEN10CAJb
Disconnect the connector and remove the
sealing cover.CAUTIONNever hold the halogen lamp bulb
with a bare hand, dirty glove, etc.
The oil from your hand could cause
the bulb to break the next time the
headlights are operated.
If the glass surface is dirty, it must
be cleaned with alcohol, paint thin-
ner, etc., and refit after drying it
thoroughly.
Unhook the spring which secures the
bulb, and then remove the headlamp bulb.
8-35
N10C086N10C051N10C050
08engL2_240082_4 22-01-2004 13:11 Page 8-35

FOR EMERGENCIES
Front turn-signal and position
lamps
EN10W-Ga
Remove the lens mounting screws, and
remove the lamp.
Disconnect the connector.Remove the socket and bulb assembly by
turning it anticlockwise.
To remove the front turn-signal lamp bulb
from the socket, turn the bulb anticlock-
wise while pressing it inward.
To remove the position lamp bulb, pull out
the bulb from the socket.
1 - Front turn-signal lamps
2 - Position lamps
Side turn-signal lampsEN10E-Gd
Insert a straight blade (or minus) screw-
driver at the edge of the lens, remove the
socket assembly and bulb together by
turning it anticlockwise, and then remove
the bulb by pulling out.
NOTE
Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching
the lens and the body.
8-36
N10W004
2
1
N10E003N10W003
08engL2_240082_4 22-01-2004 13:11 Page 8-36
