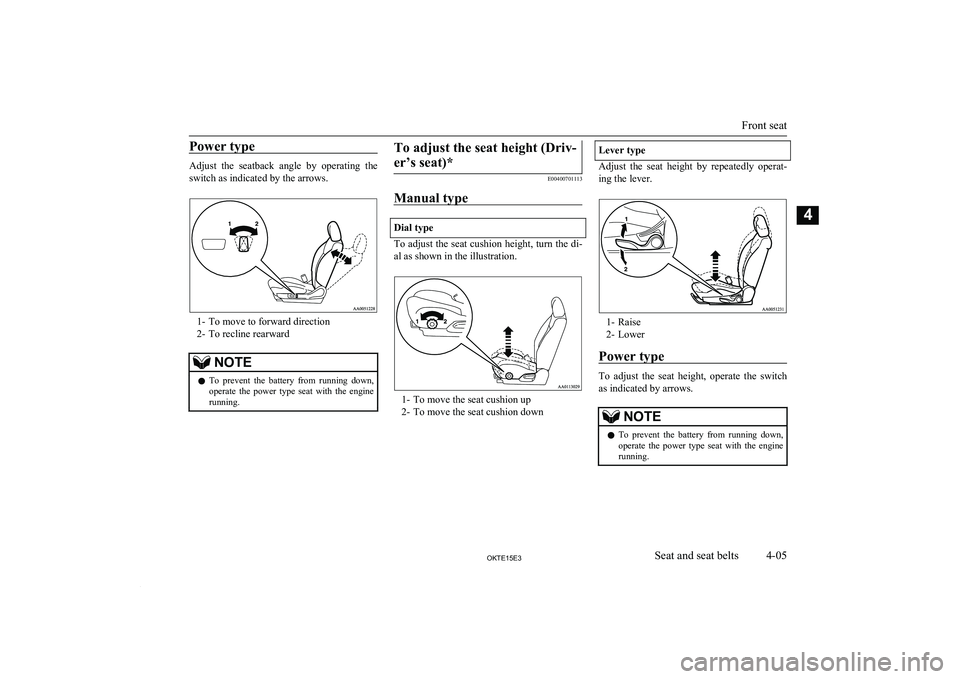

Power type
Adjust the seatback angle by operating theswitch as indicated by the arrows.
1- To move to forward direction
2- To recline rearward
NOTEl To prevent the battery from running down,
operate the power type seat with the engine
running.To adjust the seat height (Driv-
er’s seat)*
E00400701113
Manual type
Dial type
To adjust the seat cushion height, turn the di- al as shown in the illustration.
1- To move the seat cushion up
2- To move the seat cushion down
Lever type
Adjust the seat height by repeatedly operat-
ing the lever.
1- Raise
2- Lower
Power type
To adjust the seat height, operate the switch
as indicated by arrows.
NOTEl To prevent the battery from running down,
operate the power type seat with the engine
running.
Front seat
4-05OKTE15E3Seat and seat belts4

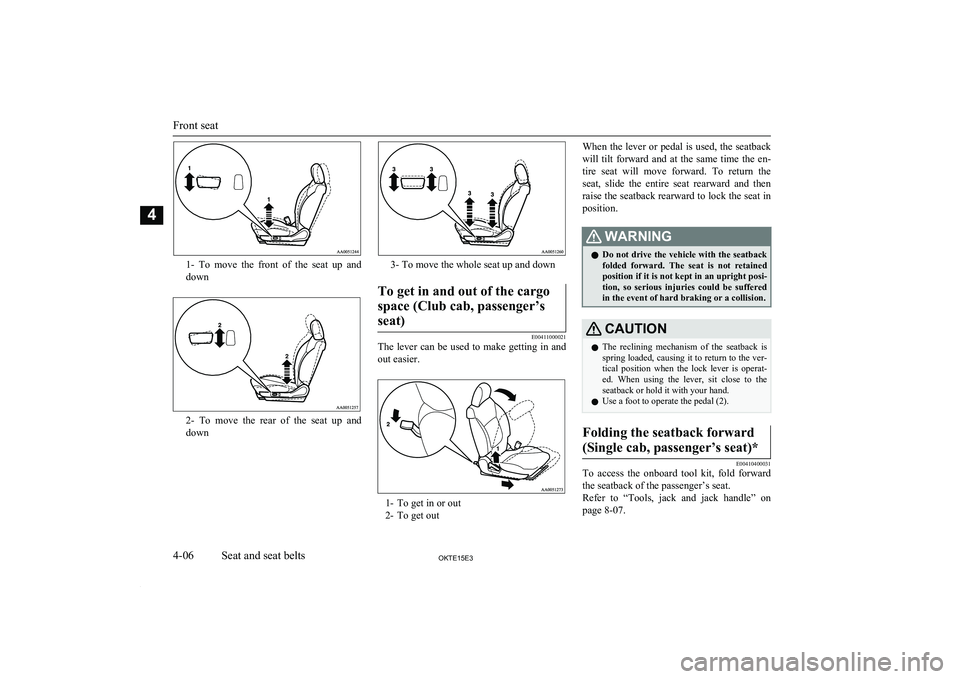

1- To move the front of the seat up and
down
2- To move the rear of the seat up and
down
3- To move the whole seat up and down
To get in and out of the cargo
space (Club cab, passenger’sseat)
E00411000021
The lever can be used to make getting in and out easier.
1- To get in or out
2- To get out
When the lever or pedal is used, the seatback
will tilt forward and at the same time the en-
tire seat will move forward. To return the
seat, slide the entire seat rearward and then raise the seatback rearward to lock the seat in
position.WARNINGl Do not drive the vehicle with the seatback
folded forward. The seat is not retained
position if it is not kept in an upright posi- tion, so serious injuries could be suffered
in the event of hard braking or a collision.CAUTIONl The reclining mechanism of the seatback is
spring loaded, causing it to return to the ver- tical position when the lock lever is operat- ed. When using the lever, sit close to the
seatback or hold it with your hand.
l Use a foot to operate the pedal (2).Folding the seatback forward
(Single cab, passenger’s seat)*
E00410400031
To access the onboard tool kit, fold forward the seatback of the passenger’s seat.Refer to “Tools, jack and jack handle” on
page 8-07.
Front seat
4-06OKTE15E3Seat and seat belts4

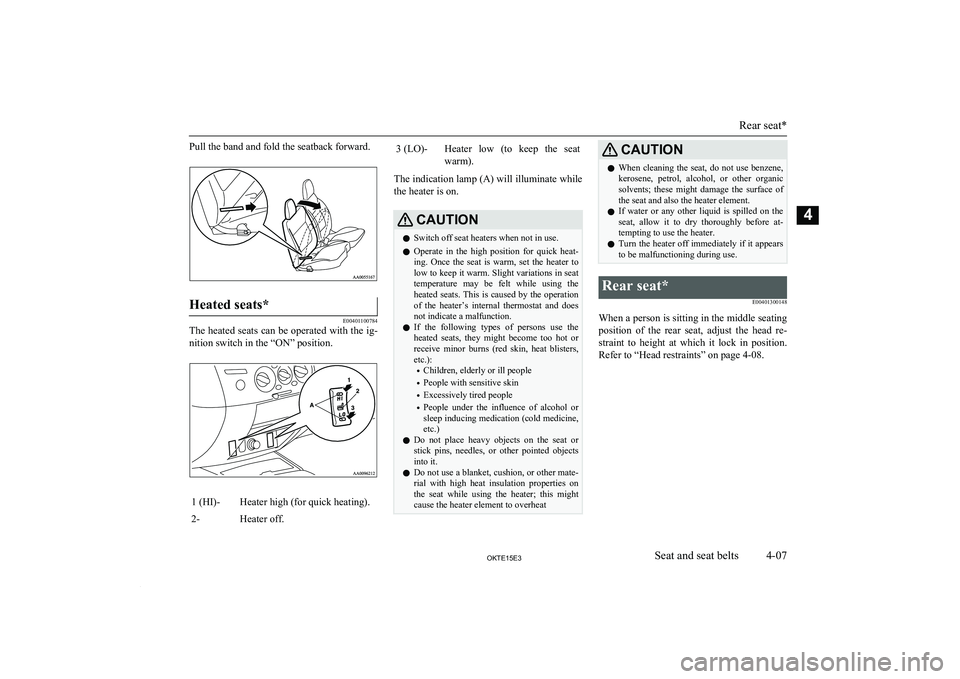

Pull the band and fold the seatback forward.Heated seats*
E00401100784
The heated seats can be operated with the ig-nition switch in the “ON” position.
1 (HI)-Heater high (for quick heating).2-Heater off.3 (LO)-Heater low (to keep the seat
warm).
The indication lamp (A) will illuminate while
the heater is on.
CAUTIONl Switch off seat heaters when not in use.
l Operate in the high position for quick heat-
ing. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat
temperature may be felt while using the heated seats. This is caused by the operationof the heater’s internal thermostat and does
not indicate a malfunction.
l If the following types of persons use the
heated seats, they might become too hot or receive minor burns (red skin, heat blisters,
etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or
sleep inducing medication (cold medicine,
etc.)
l Do not place heavy objects on the seat or
stick pins, needles, or other pointed objects into it.
l Do not use a blanket, cushion, or other mate-
rial with high heat insulation properties on the seat while using the heater; this might
cause the heater element to overheatCAUTIONl When cleaning the seat, do not use benzene,
kerosene, petrol, alcohol, or other organicsolvents; these might damage the surface of
the seat and also the heater element.
l If water or any other liquid is spilled on the
seat, allow it to dry thoroughly before at-tempting to use the heater.
l Turn the heater off immediately if it appears
to be malfunctioning during use.Rear seat*
E00401300148
When a person is sitting in the middle seatingposition of the rear seat, adjust the head re-straint to height at which it lock in position.
Refer to “Head restraints” on page 4-08.
Rear seat*
4-07OKTE15E3Seat and seat belts4

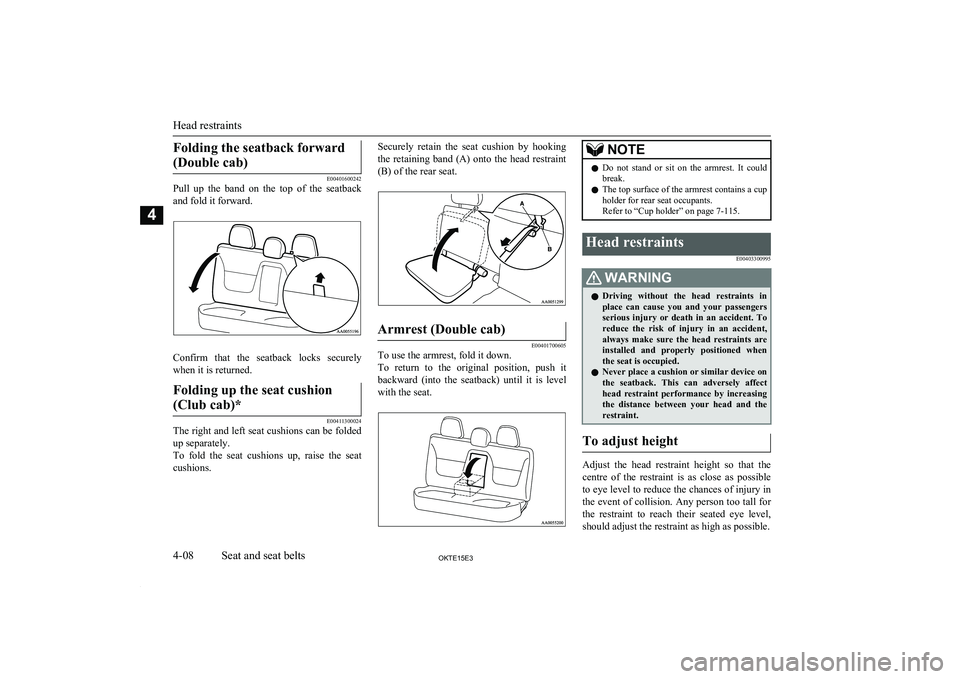

Folding the seatback forward(Double cab)
E00401600242
Pull up the band on the top of the seatback
and fold it forward.
Confirm that the seatback locks securelywhen it is returned.
Folding up the seat cushion
(Club cab)*
E00411300024
The right and left seat cushions can be folded up separately.
To fold the seat cushions up, raise the seat cushions.
Securely retain the seat cushion by hooking
the retaining band (A) onto the head restraint (B) of the rear seat.Armrest (Double cab)
E00401700605
To use the armrest, fold it down.
To return to the original position, push it
backward (into the seatback) until it is level with the seat.
NOTEl Do not stand or sit on the armrest. It could
break.
l The top surface of the armrest contains a cup
holder for rear seat occupants.
Refer to “Cup holder” on page 7-115.Head restraints
E00403300995WARNINGlDriving without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints are
installed and properly positioned when the seat is occupied.
l Never place a cushion or similar device on
the seatback. This can adversely affect head restraint performance by increasing
the distance between your head and the restraint.
To adjust height
Adjust the head restraint height so that the
centre of the restraint is as close as possible
to eye level to reduce the chances of injury in
the event of collision. Any person too tall for the restraint to reach their seated eye level,should adjust the restraint as high as possible.
Head restraints
4-08OKTE15E3Seat and seat belts4

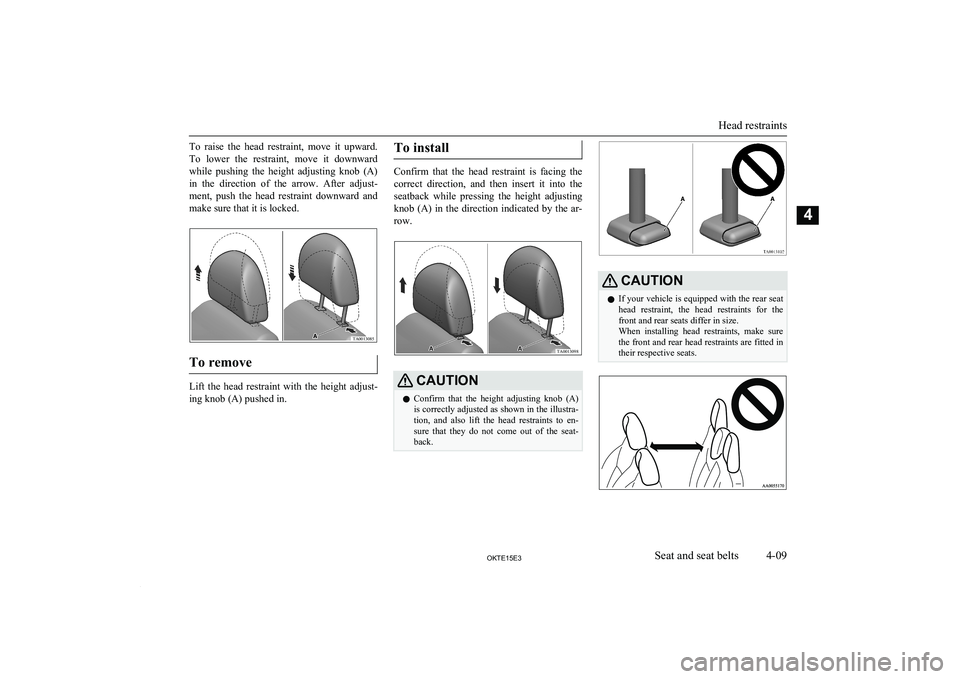

To raise the head restraint, move it upward.To lower the restraint, move it downward while pushing the height adjusting knob (A)
in the direction of the arrow. After adjust- ment, push the head restraint downward and
make sure that it is locked.
To remove
Lift the head restraint with the height adjust-
ing knob (A) pushed in.
To install
Confirm that the head restraint is facing the
correct direction, and then insert it into the seatback while pressing the height adjusting
knob (A) in the direction indicated by the ar-
row.
CAUTIONl Confirm that the height adjusting knob (A)
is correctly adjusted as shown in the illustra- tion, and also lift the head restraints to en- sure that they do not come out of the seat-back.CAUTIONl If your vehicle is equipped with the rear seat
head restraint, the head restraints for thefront and rear seats differ in size.
When installing head restraints, make sure
the front and rear head restraints are fitted in
their respective seats.
Head restraints
4-09OKTE15E3Seat and seat belts4TA0013085 TA0013098

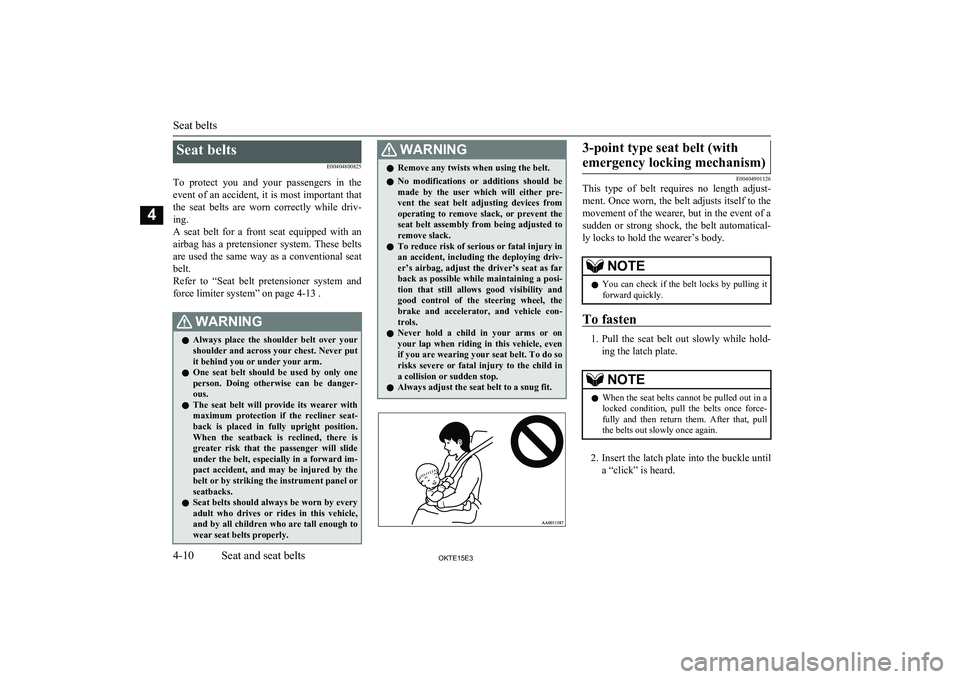

Seat beltsE00404800825
To protect you and your passengers in the event of an accident, it is most important thatthe seat belts are worn correctly while driv-ing.
A seat belt for a front seat equipped with an
airbag has a pretensioner system. These belts are used the same way as a conventional seatbelt.
Refer to “Seat belt pretensioner system and force limiter system” on page 4-13 .WARNINGl Always place the shoulder belt over your
shoulder and across your chest. Never put it behind you or under your arm.
l One seat belt should be used by only one
person. Doing otherwise can be danger-
ous.
l The seat belt will provide its wearer with
maximum protection if the recliner seat- back is placed in fully upright position.
When the seatback is reclined, there is
greater risk that the passenger will slide
under the belt, especially in a forward im- pact accident, and may be injured by the
belt or by striking the instrument panel or seatbacks.
l Seat belts should always be worn by every
adult who drives or rides in this vehicle, and by all children who are tall enough to
wear seat belts properly.WARNINGl Remove any twists when using the belt.
l No modifications or additions should be
made by the user which will either pre-
vent the seat belt adjusting devices from operating to remove slack, or prevent the
seat belt assembly from being adjusted to
remove slack.
l To reduce risk of serious or fatal injury in
an accident, including the deploying driv-
er’s airbag, adjust the driver’s seat as far back as possible while maintaining a posi- tion that still allows good visibility andgood control of the steering wheel, the
brake and accelerator, and vehicle con- trols.
l Never hold a child in your arms or on
your lap when riding in this vehicle, even if you are wearing your seat belt. To do so
risks severe or fatal injury to the child in a collision or sudden stop.
l Always adjust the seat belt to a snug fit.3-point type seat belt (with
emergency locking mechanism)
E00404901126
This type of belt requires no length adjust-
ment. Once worn, the belt adjusts itself to the
movement of the wearer, but in the event of a sudden or strong shock, the belt automatical-
ly locks to hold the wearer’s body.
NOTEl You can check if the belt locks by pulling it
forward quickly.
To fasten
1. Pull the seat belt out slowly while hold-
ing the latch plate.
NOTEl When the seat belts cannot be pulled out in a
locked condition, pull the belts once force-
fully and then return them. After that, pull
the belts out slowly once again.

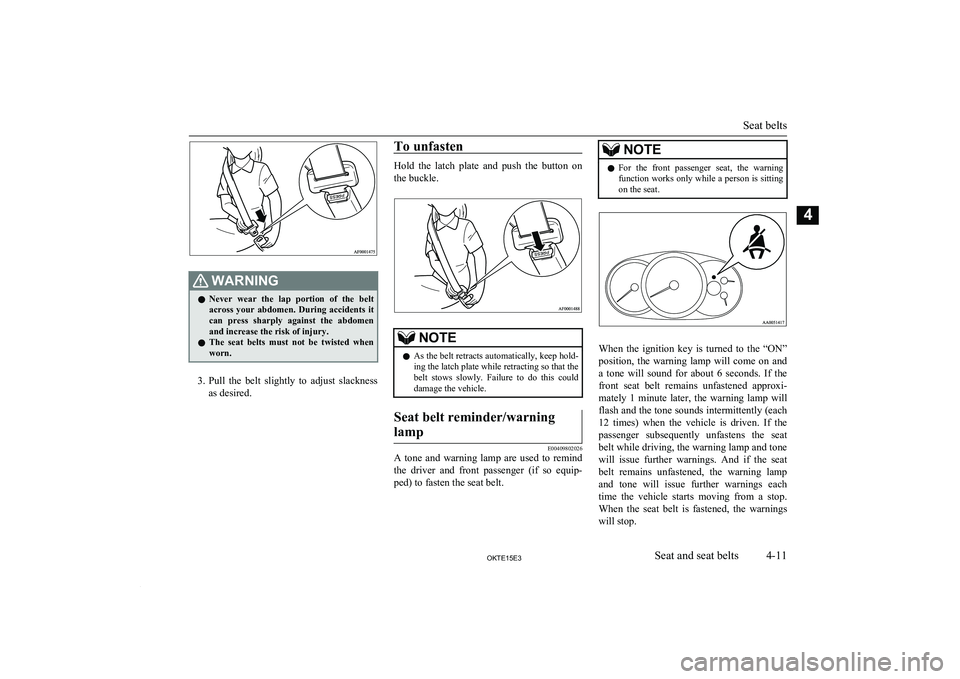

2. Insert the latch plate into the buckle until
a “click” is heard.
Seat belts
4-10OKTE15E3Seat and seat belts4

WARNINGlNever wear the lap portion of the belt
across your abdomen. During accidents it
can press sharply against the abdomen and increase the risk of injury.
l The seat belts must not be twisted when
worn.
3. Pull the belt slightly to adjust slackness
as desired.
To unfasten
Hold the latch plate and push the button on
the buckle.
NOTEl As the belt retracts automatically, keep hold-
ing the latch plate while retracting so that the
belt stows slowly. Failure to do this could damage the vehicle.Seat belt reminder/warning
lamp
E00409802026
A tone and warning lamp are used to remind the driver and front passenger (if so equip-ped) to fasten the seat belt.
NOTEl For the front passenger seat, the warning
function works only while a person is sitting on the seat.
When the ignition key is turned to the “ON”
position, the warning lamp will come on and
a tone will sound for about 6 seconds. If the
front seat belt remains unfastened approxi-
mately 1 minute later, the warning lamp will flash and the tone sounds intermittently (each 12 times) when the vehicle is driven. If the
passenger subsequently unfastens the seat
belt while driving, the warning lamp and tone will issue further warnings. And if the seat
belt remains unfastened, the warning lamp and tone will issue further warnings each
time the vehicle starts moving from a stop. When the seat belt is fastened, the warnings
will stop.
Seat belts
4-11OKTE15E3Seat and seat belts4

WARNINGlIn order to reduce the risk of serious or
fatal injury in an accident, always wearyour own seat belt. Do not allow anyone
to ride in your vehicle unless he or she is also seated and wearing a seat belt. Chil-
dren should additionally be restrained in a secure child restraint system.NOTEl When luggage is placed on the front passen-
ger seat, a sensor in the seat cushion may,
depending on the weight and position of the
luggage, cause the warning tone to sound and the warning lamp to come on (Double

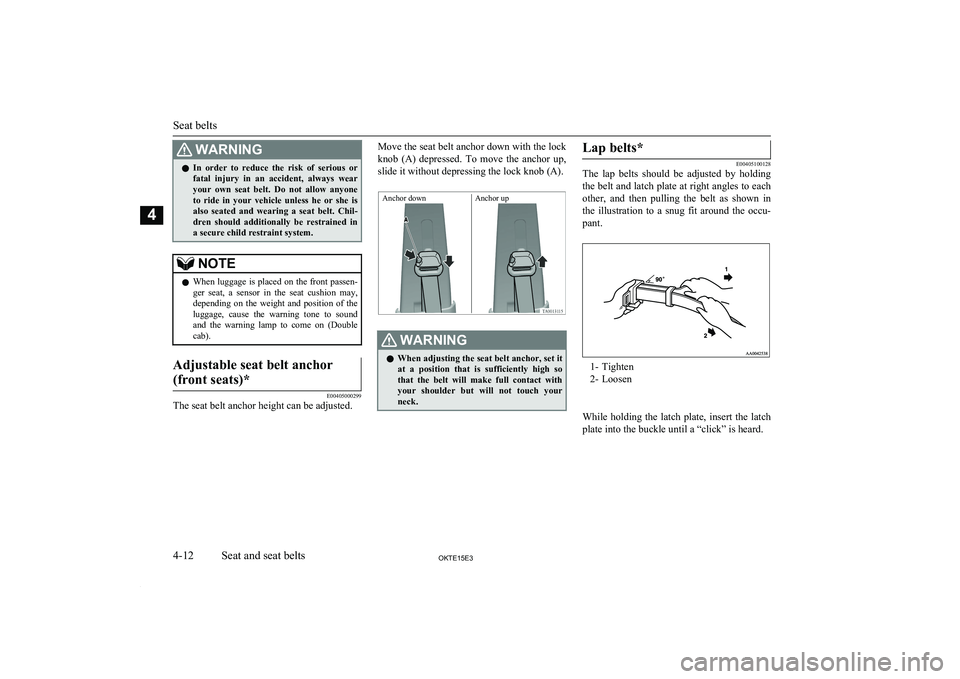

cab).Adjustable seat belt anchor
(front seats)*
E00405000299
The seat belt anchor height can be adjusted.
Move the seat belt anchor down with the lock knob (A) depressed. To move the anchor up,
slide it without depressing the lock knob (A).WARNINGl When adjusting the seat belt anchor, set it
at a position that is sufficiently high so
that the belt will make full contact with your shoulder but will not touch your
neck.Lap belts*
E00405100128
The lap belts should be adjusted by holding
the belt and latch plate at right angles to each
other, and then pulling the belt as shown in
the illustration to a snug fit around the occu- pant.
1- Tighten
2- Loosen

While holding the latch plate, insert the latch
plate into the buckle until a “click” is heard.
Seat belts
4-12OKTE15E3Seat and seat belts4 Anchor down Anchor up

Pregnant women restraintE00405600064WARNINGlSeat belts work for everyone, including
pregnant women. Pregnant women should
use the available seat belts. This will re- duce the likelihood of injury to both thewoman and the unborn child. The lap belt
should be worn across the thighs and as snug against the hips as possible, but not
across the waist. Consult your doctor if you have any additional questions or con-
cerns.Seat belt pretensioner
system and force limiter
system* E00405700283
The driver’s and front passenger’s seat equip-ped with an airbag has a pretensioner seat belt.
Pretensioner system
E00405801089
The pretensioner system will retract their re-
spective seat belts instantaneously, thus max-imizing the seat belt’s effectiveness, if there
is a frontal impact severe enough to injure the
driver and/or front passenger and the ignition
switch is in the “ON” or “START” position.

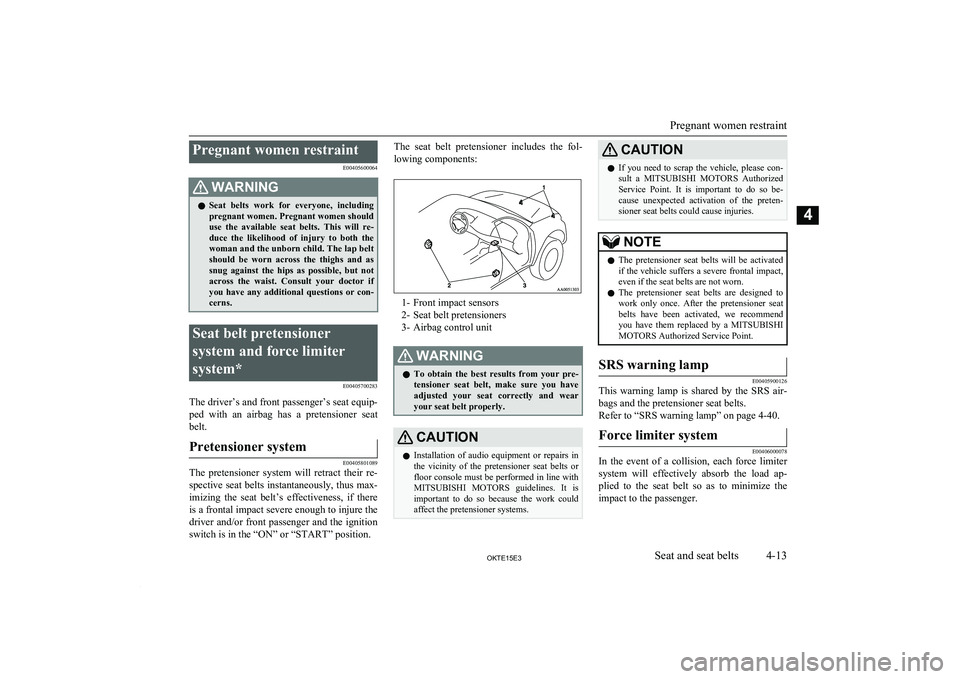

The seat belt pretensioner includes the fol-
lowing components:
1- Front impact sensors
2- Seat belt pretensioners
3- Airbag control unit
WARNINGl To obtain the best results from your pre-
tensioner seat belt, make sure you have
adjusted your seat correctly and wear your seat belt properly.CAUTIONl Installation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.CAUTIONl If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point. It is important to do so be- cause unexpected activation of the preten-
sioner seat belts could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe frontal impact, even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat
belts have been activated, we recommend you have them replaced by a MITSUBISHI
MOTORS Authorized Service Point.SRS warning lamp
E00405900126
This warning lamp is shared by the SRS air-
bags and the pretensioner seat belts.
Refer to “SRS warning lamp” on page 4-40.
Force limiter system
E00406000078
In the event of a collision, each force limiter system will effectively absorb the load ap- plied to the seat belt so as to minimize the
impact to the passenger.
Pregnant women restraint
4-13OKTE15E3Seat and seat belts4

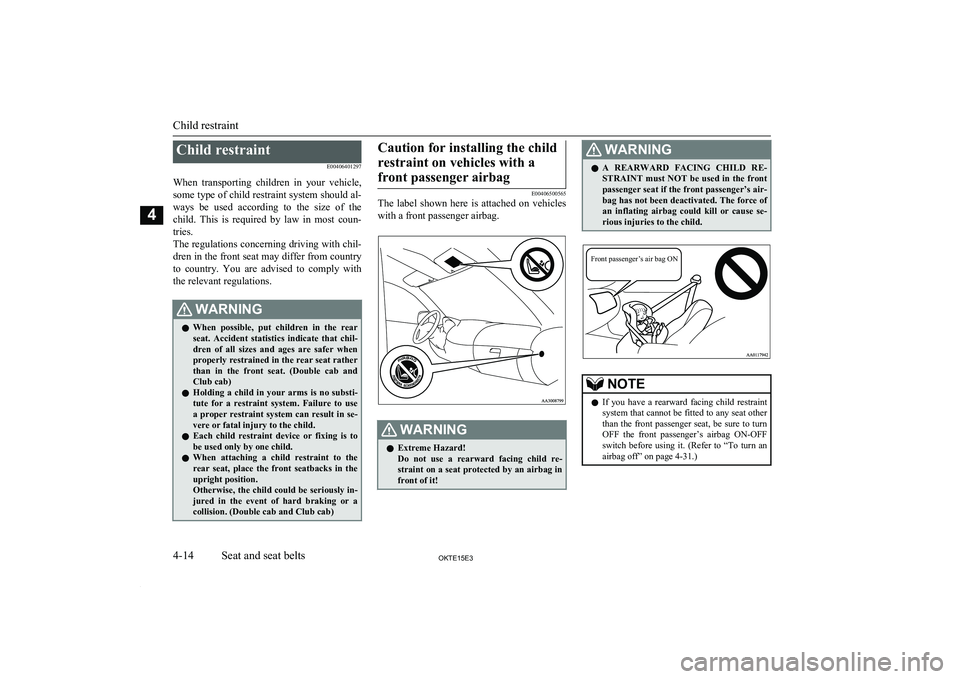

Child restraintE00406401297
When transporting children in your vehicle, some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat. (Double cab andClub cab)
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.
l When attaching a child restraint to the
rear seat, place the front seatbacks in the upright position.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision. (Double cab and Club cab)Caution for installing the child
restraint on vehicles with a front passenger airbag
E00406500565
The label shown here is attached on vehicles
with a front passenger airbag.
WARNINGl Extreme Hazard!
Do not use a rearward facing child re- straint on a seat protected by an airbag in
front of it!WARNINGl A REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child.NOTEl If you have a rearward facing child restraint
system that cannot be fitted to any seat other
than the front passenger seat, be sure to turn OFF the front passenger’s airbag ON-OFF
switch before using it. (Refer to “To turn an
airbag off” on page 4-31.)
Child restraint
4-14OKTE15E3Seat and seat belts4 Front passenger’s air bag ON
