WARNINGlA FORWARD FACING CHILD RE-
STRAINT should not be used in the frontpassenger seat whenever possible; if used
in the front passenger seat, adjust the seat to the most rearward position.Infants and small children
E00406602124

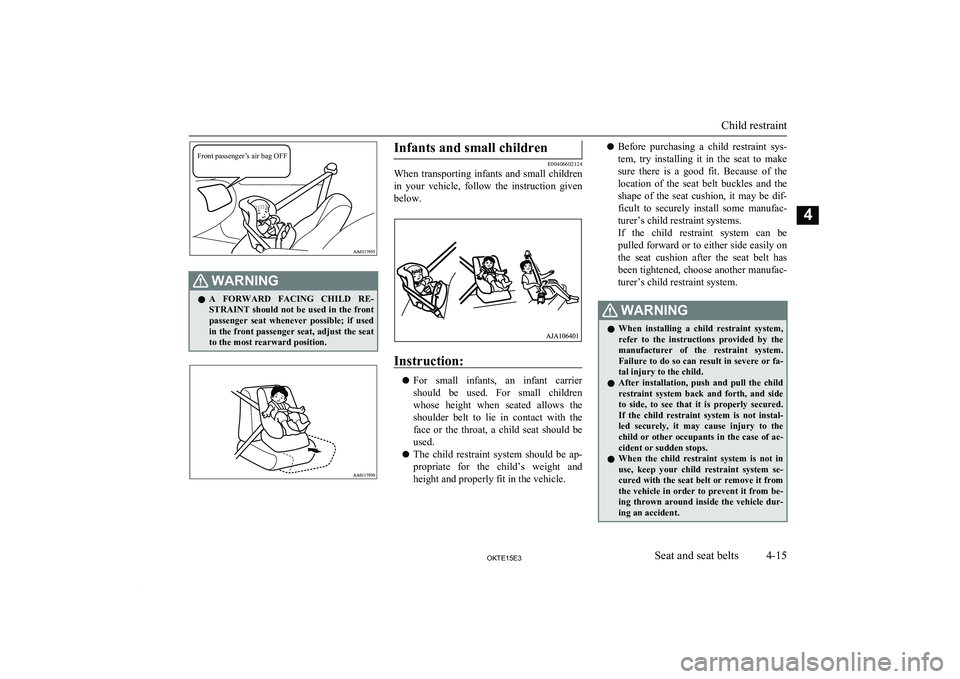

When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be
used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle.
l Before purchasing a child restraint sys-
tem, try installing it in the seat to make sure there is a good fit. Because of the
location of the seat belt buckles and the shape of the seat cushion, it may be dif-
ficult to securely install some manufac-
turer’s child restraint systems.
If the child restraint system can be
pulled forward or to either side easily on
the seat cushion after the seat belt has been tightened, choose another manufac-turer’s child restraint system.WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.
Failure to do so can result in severe or fa- tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side
to side, to see that it is properly secured. If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system se- cured with the seat belt or remove it fromthe vehicle in order to prevent it from be- ing thrown around inside the vehicle dur-
ing an accident.
Child restraint
4-15OKTE15E3Seat and seat belts4Front passenger’s air bag OFF

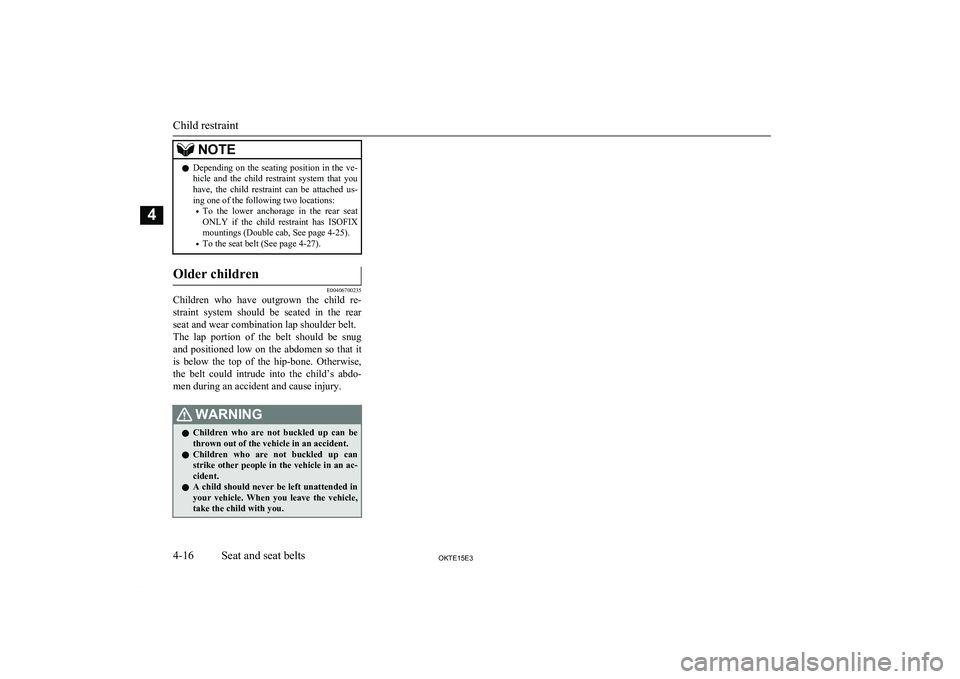

NOTElDepending on the seating position in the ve-
hicle and the child restraint system that you have, the child restraint can be attached us-
ing one of the following two locations:
• To the lower anchorage in the rear seat
ONLY if the child restraint has ISOFIX
mountings (Double cab, See page 4-25).
• To the seat belt (See page 4-27).Older children
E00406700235
Children who have outgrown the child re-
straint system should be seated in the rear
seat and wear combination lap shoulder belt.
The lap portion of the belt should be snug and positioned low on the abdomen so that it
is below the top of the hip-bone. Otherwise, the belt could intrude into the child’s abdo-
men during an accident and cause injury.
WARNINGl Children who are not buckled up can be
thrown out of the vehicle in an accident.
l Children who are not buckled up can
strike other people in the vehicle in an ac-cident.
l A child should never be left unattended in
your vehicle. When you leave the vehicle, take the child with you.
Child restraint
4-16OKTE15E3Seat and seat belts4

Suitability for various ISOFIX positions

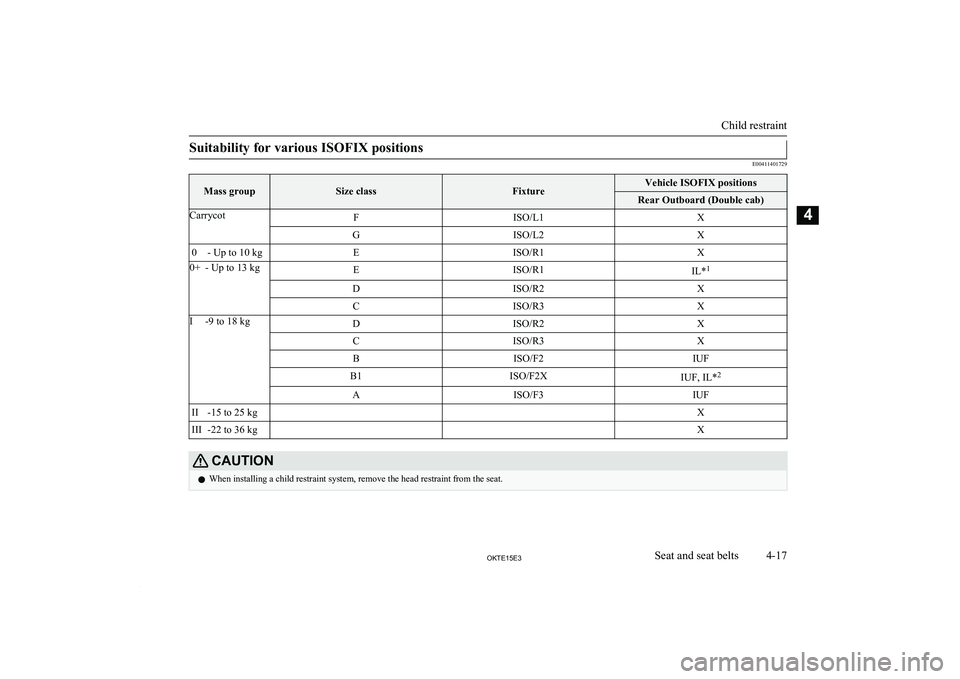

E00411401729Mass groupSize classFixtureVehicle ISOFIX positionsRear Outboard (Double cab)CarrycotFISO/L1XGISO/L2X0- Up to 10 kgEISO/R1X0+- Up to 13 kgEISO/R1IL*1DISO/R2XCISO/R3XI-9 to 18 kgDISO/R2XCISO/R3XBISO/F2IUFB1ISO/F2XIUF, IL* 2AISO/F3IUFII-15 to 25 kg XIII-22 to 36 kg XCAUTIONl
When installing a child restraint system, remove the head restraint from the seat.
Child restraint
4-17OKTE15E3Seat and seat belts4

Key of letters to be inserted in the table above:

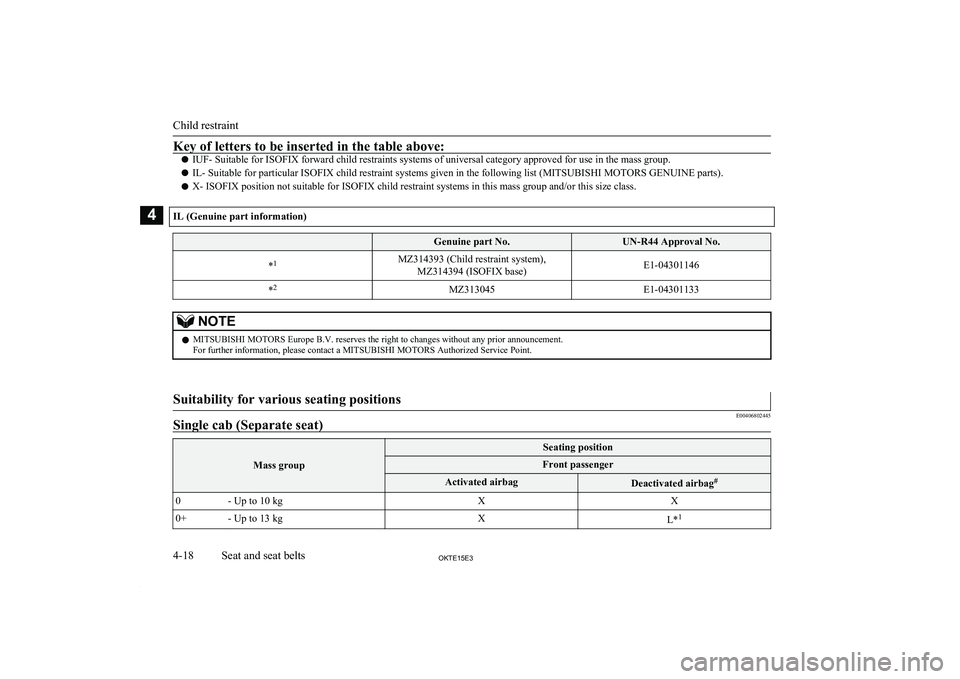

lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS GENUINE parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.IL (Genuine part information) Genuine part No.UN-R44 Approval No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146*2MZ313045E1-04301133NOTEl
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Suitability for various seating positions
E00406802445
Single cab (Separate seat)
Mass group
Seating positionFront passengerActivated airbagDeactivated airbag #0- Up to 10 kgXX0+- Up to 13 kgXL*1
Child restraint
4-18OKTE15E3Seat and seat belts4

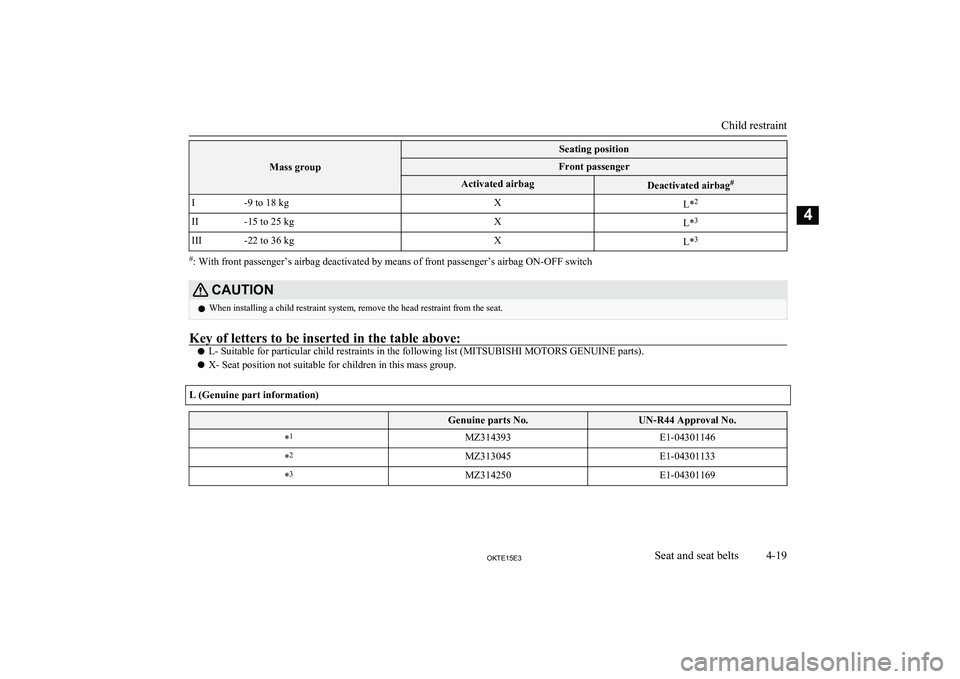

Mass group
Seating positionFront passengerActivated airbagDeactivated airbag#I-9 to 18 kgXL*2II-15 to 25 kgXL*3III-22 to 36 kgXL*3
#
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.Key of letters to be inserted in the table above:
l
L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169
Child restraint
4-19OKTE15E3Seat and seat belts4

NOTElThere is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.Single cab (Bench seat)
Mass group

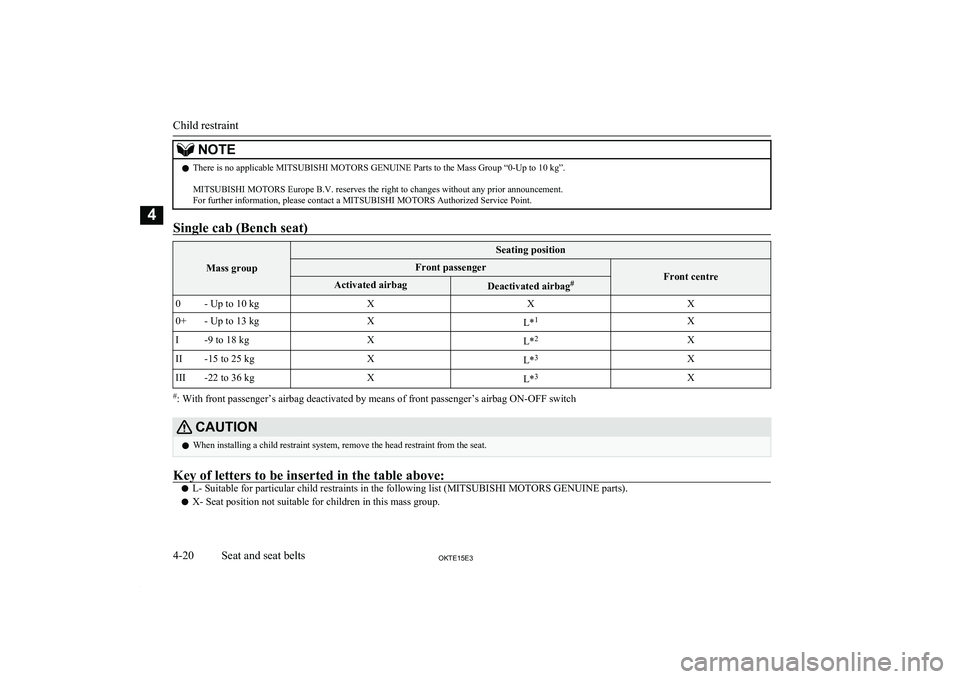

Seating positionFront passengerFront centreActivated airbagDeactivated airbag #0- Up to 10 kgXXX0+- Up to 13 kgXL*1XI-9 to 18 kgXL*2XII-15 to 25 kgXL*3XIII-22 to 36 kgXL*3X
#
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.Key of letters to be inserted in the table above:
l
L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
l X- Seat position not suitable for children in this mass group.
Child restraint
4-20OKTE15E3Seat and seat belts4

L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169NOTEl
There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.Club cab
Mass group
Seating positionFront passengerRear outboardActivated airbagDeactivated airbag #0- Up to 10 kgXXX0+- Up to 13 kgXL*1L*1I-9 to 18 kgXL*2L*2II-15 to 25 kgXL*3XIII-22 to 36 kgXL*3X
#
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
Child restraint
4-21OKTE15E3Seat and seat belts4

CAUTIONlWhen installing a child restraint system, remove the head restraint from the seat if the head restraint is adjustable.Key of letters to be inserted in the table above:
l
L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
l X- Seat position not suitable for children in this mass group.

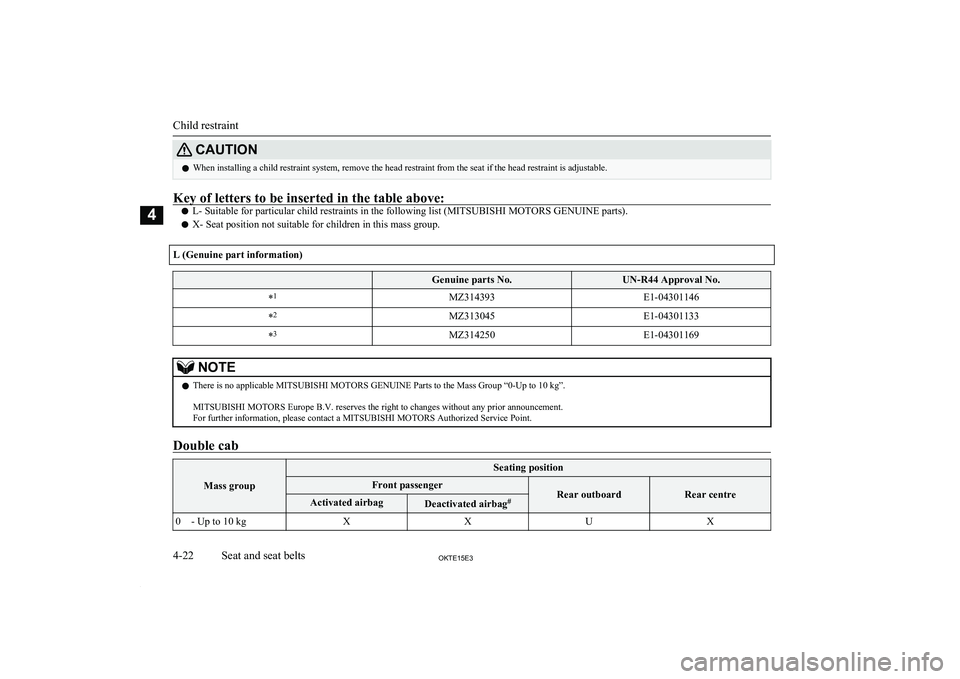

L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169NOTEl
There is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.Double cab
Mass group
Seating positionFront passengerRear outboardRear centreActivated airbagDeactivated airbag #0- Up to 10 kgXXUX
Child restraint
4-22OKTE15E3Seat and seat belts4

Mass group

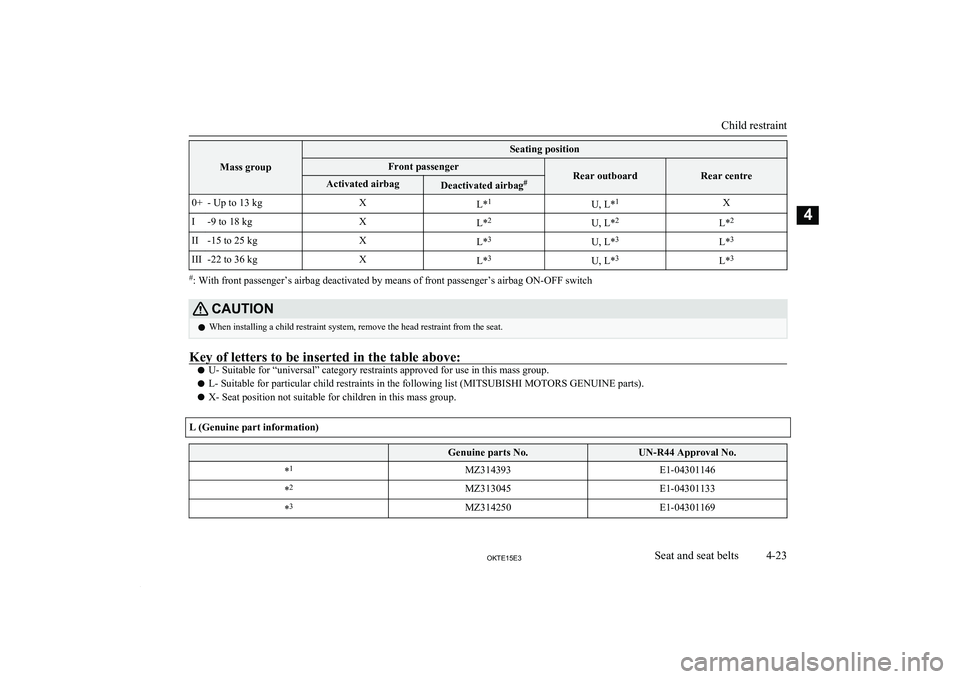

Seating positionFront passengerRear outboardRear centreActivated airbagDeactivated airbag#0+- Up to 13 kgXL*1U, L* 1XI-9 to 18 kgXL*2U, L* 2L*2II-15 to 25 kgXL*3U, L* 3L*3III-22 to 36 kgXL*3U, L* 3L*3
#
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.Key of letters to be inserted in the table above:
l
U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS GENUINE parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169
Child restraint
4-23OKTE15E3Seat and seat belts4

NOTElThere is no applicable MITSUBISHI MOTORS GENUINE Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Child restraint anchorage
points (Double cab)*
E00406900354
Anchorage locations

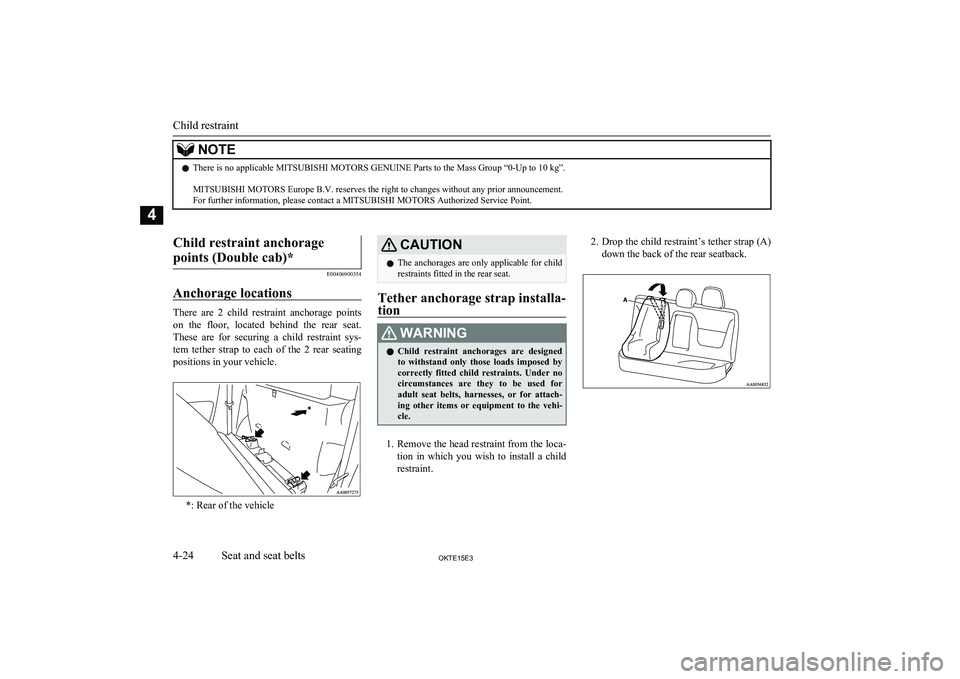

There are 2 child restraint anchorage points on the floor, located behind the rear seat.These are for securing a child restraint sys-
tem tether strap to each of the 2 rear seating positions in your vehicle.
*: Rear of the vehicle
CAUTIONl The anchorages are only applicable for child
restraints fitted in the rear seat.
Tether anchorage strap installa-
tion
WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi- cle.
1. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
2. Drop the child restraint’s tether strap (A)
down the back of the rear seatback.
Child restraint
4-24OKTE15E3Seat and seat belts4
