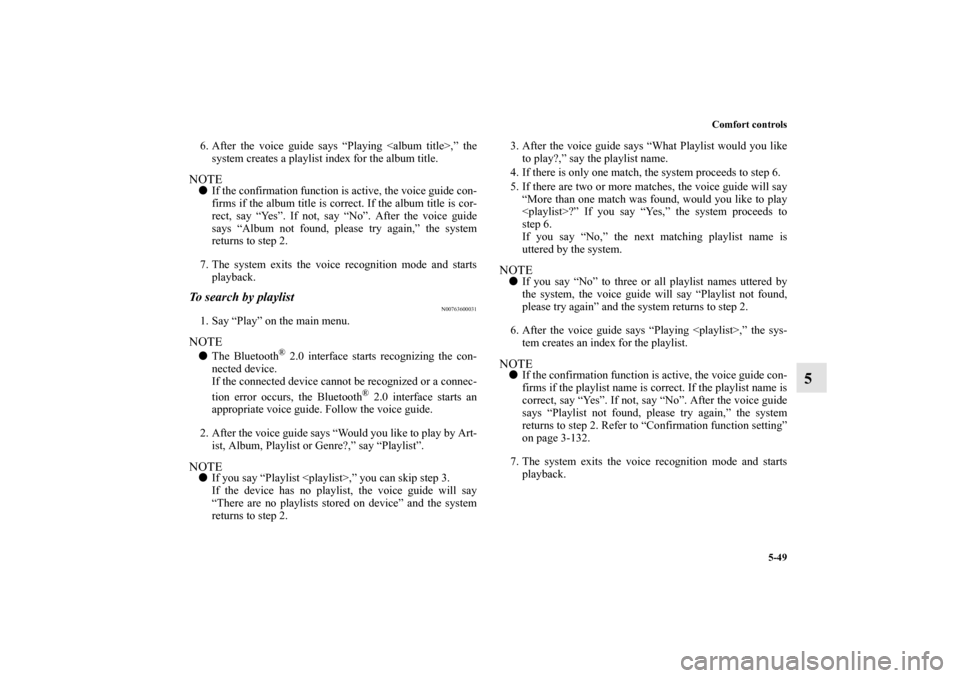

MITSUBISHI MIRAGE 2014 6.G Owners Manual

Comfort controls
5-49
5
6. After the voice guide says “Playing ,” the
system creates a playlist index for the album title.NOTE
If the confirmation function is active, the voice guide con-
firms if the album title is correct. If the album title is cor-
rect, say “Yes”. If not, say “No”. After the voice guide
says “Album not found, please try again,” the system
returns to step 2.
7. The system exits the voice recognition mode and starts
playback.To search by playlist
N00763600031
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Playlist”.
NOTE
If you say “Playlist ,” you can skip step 3.
If the device has no playlist, the voice guide will say
“There are no playlists stored on device” and the system
returns to step 2.3. After the voice guide says “What Playlist would you like
to play?,” say the playlist name.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching playlist name is
uttered by the system.
NOTE
If you say “No” to three or all playlist names uttered by
the system, the voice guide will say “Playlist not found,
please try again” and the system returns to step 2.
6. After the voice guide says “Playing ,” the sys-
tem creates an index for the playlist.NOTE
If the confirmation function is active, the voice guide con-
firms if the playlist name is correct. If the playlist name is
correct, say “Yes”. If not, say “No”. After the voice guide
says “Playlist not found, please try again,” the system
returns to step 2. Refer to “Confirmation function setting”
on page 3-132.
7. The system exits the voice recognition mode and starts
playback.
BK0162600US.book 49 ページ ２０１３年３月２２日　金曜日　午後２時４１分

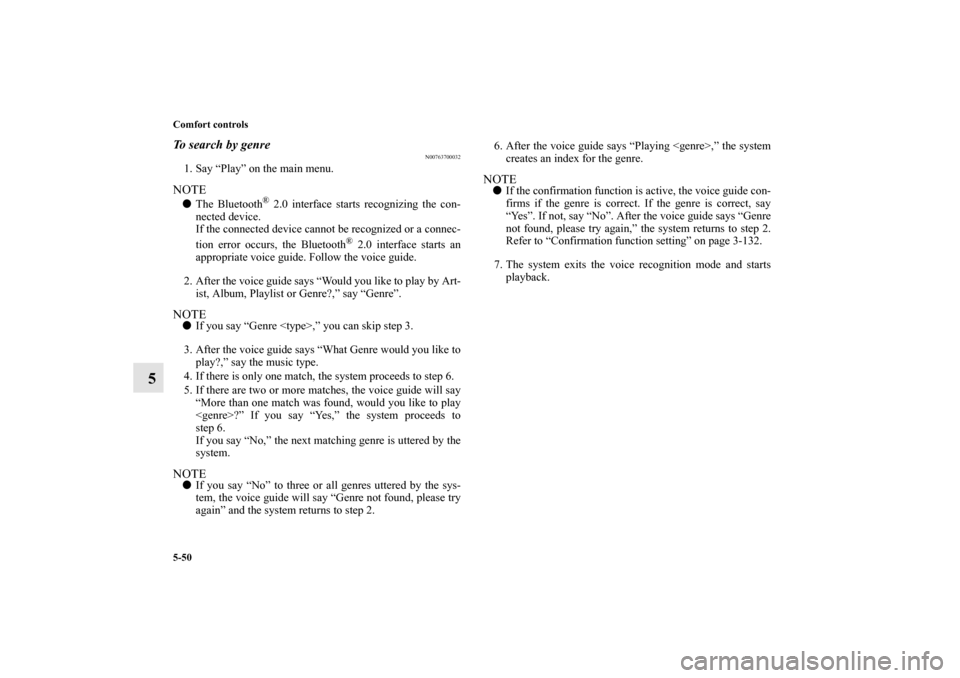

5-50 Comfort controls
5
To search by genre
N00763700032
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Genre”.
NOTE
If you say “Genre ,” you can skip step 3.
3. After the voice guide says “What Genre would you like to
play?,” say the music type.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching genre is uttered by the
system.NOTE
If you say “No” to three or all genres uttered by the sys-
tem, the voice guide will say “Genre not found, please try
again” and the system returns to step 2.6. After the voice guide says “Playing ,” the system
creates an index for the genre.
NOTE
If the confirmation function is active, the voice guide con-
firms if the genre is correct. If the genre is correct, say
“Yes”. If not, say “No”. After the voice guide says “Genre
not found, please try again,” the system returns to step 2.
Refer to “Confirmation function setting” on page 3-132.
7. The system exits the voice recognition mode and starts
playback.
BK0162600US.book 50 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-51
5
USB control panel and display
N00763900063
To play from a USB memory device
N00764000087
1. Press the PWR switch to turn on the audio system. The
system turns on in the last mode used.
2. Connect your USB memory device to the USB input ter-
minal.
Refer to “How to connect a USB memory device” on page
3-154.
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed: CD mode → USB mode →Blue-
tooth
® mode (if so equipped) → AUX mode → CD mode.
The USB indicator are illuminated and then the USB
mode will be activated.
4. Once the device is selected, playback starts and indica-
tor appears on the display.
NOTE
Depending on the condition of your USB device, it may
take a longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTE
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-30 and “To adjust the tone” on page 5-31.
1- CD (Mode changeover) button
2- RADIO button
3-
DISP (Title display)/ (Return) button
4-
(USB device active) indicator
5- USB indicator
6- Display
7- TRACK indicator
8- RPT (Repeat mode)/F-RPT (Folder repeat mode) indicator
9- RDM (Random mode)/F-RDM (Folder random mode) indi-
cator
10- SEL (Select) indicator
11- PAGE (Title scroll) button
12-
(Fast-reverse/Track down) button
13-
(Fast-forward/Track up) button
14- PWR (On-Off)/SEL (Select) switch
15- RPT (Repeat) button
16- RDM (Random) button
BK0162600US.book 51 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-52 Comfort controls
5
Supported compressed music files
N00764100105
This audio can play MP3, WMA and AAC files recorded in a
USB memory device. This audio supports up to 65,535 files in
700 folders on 8 levels.Folder selection order/file playback order (example)
The folder and file hierarchy in the USB memory device is
shown below.
NOTE
If a file protected by copyrights is played, the file will be
skipped.Folder selection
In the orderFile selection
In the order
Root folder (Root directory)
Level 1 Level 2 Level 3 Level 4
BK0162600US.book 52 ページ ２０１３年３月２２日　金曜日　午後２時４１分

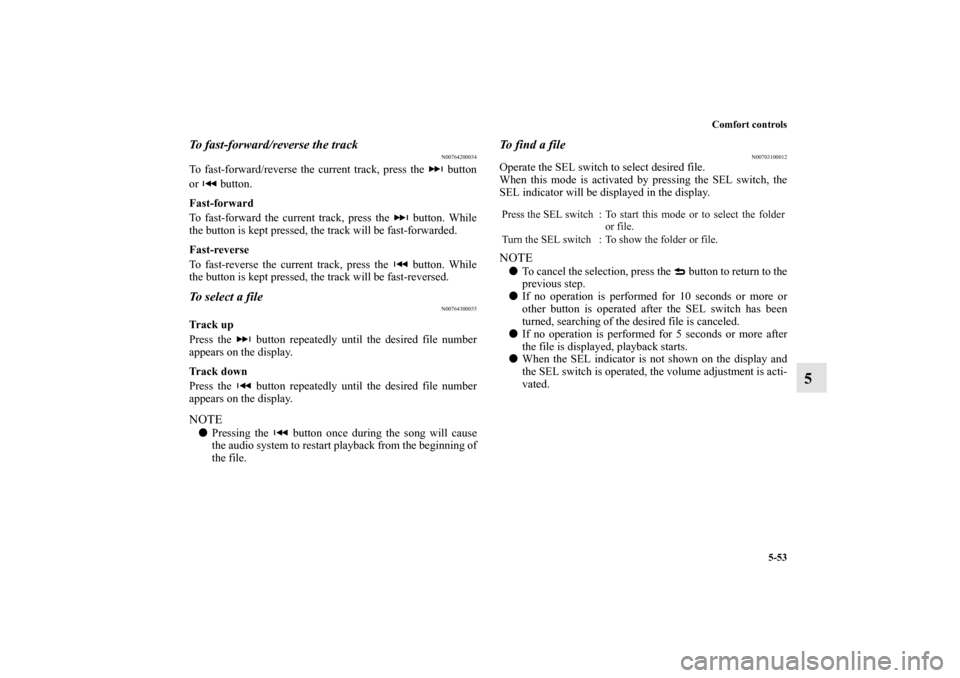

Comfort controls
5-53
5
To fast-forward/reverse the track
N00764200034
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is kept pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While
the button is kept pressed, the track will be fast-reversed.To s e l e c t a f i l e
N00764300035
Tr a c k u p
Press the button repeatedly until the desired file number
appears on the display.
Tr a c k d o w n
Press the button repeatedly until the desired file number
appears on the display.NOTE
Pressing the button once during the song will cause
the audio system to restart playback from the beginning of
the file.
To find a file
N00703100012
Operate the SEL switch to select desired file.
When this mode is activated by pressing the SEL switch, the
SEL indicator will be displayed in the display.NOTE
To cancel the selection, press the button to return to the
previous step.

If no operation is performed for 10 seconds or more or
other button is operated after the SEL switch has been
turned, searching of the desired file is canceled.

If no operation is performed for 5 seconds or more after
the file is displayed, playback starts.

When the SEL indicator is not shown on the display and
the SEL switch is operated, the volume adjustment is acti-
vated.Press the SEL switch : To start this mode or to select the folder
or file.
Turn the SEL switch : To show the folder or file.
BK0162600US.book 53 ページ ２０１３年３月２２日　金曜日　午後２時４１分

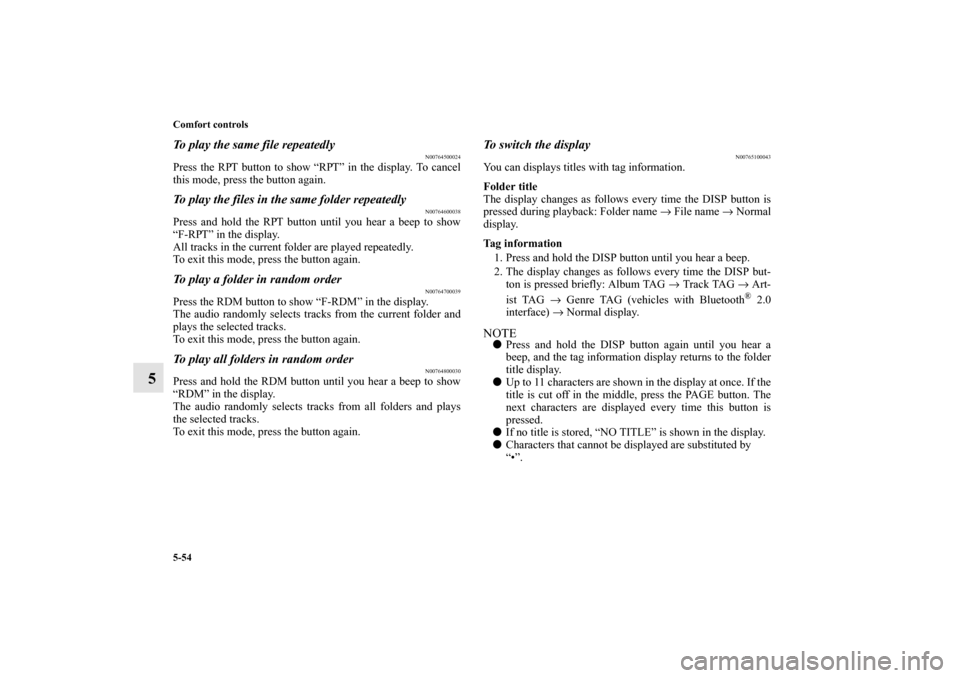

5-54 Comfort controls
5
To play the same file repeatedly
N00764500024
Press the RPT button to show “RPT” in the display. To cancel
this mode, press the button again.To play the files in the same folder repeatedly
N00764600038
Press and hold the RPT button until you hear a beep to show
“F-RPT” in the display.
All tracks in the current folder are played repeatedly.
To exit this mode, press the button again.To play a folder in random order
N00764700039
Press the RDM button to show “F-RDM” in the display.
The audio randomly selects tracks from the current folder and
plays the selected tracks.
To exit this mode, press the button again.To play all folders in random order
N00764800030
Press and hold the RDM button until you hear a beep to show
“RDM” in the display.
The audio randomly selects tracks from all folders and plays
the selected tracks.
To exit this mode, press the button again.
To switch the display
N00765100043
You can displays titles with tag information.
Folder title
The display changes as follows every time the DISP button is
pressed during playback: Folder name → File name → Normal
display.
Tag information
1. Press and hold the DISP button until you hear a beep.
2. The display changes as follows every time the DISP but-
ton is pressed briefly: Album TAG → Track TAG → Art-
ist TAG → Genre TAG (vehicles with Bluetooth
® 2.0
interface) → Normal display.
NOTE
Press and hold the DISP button again until you hear a
beep, and the tag information display returns to the folder
title display.

Up to 11 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted by
“•”.
BK0162600US.book 54 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-55
5
To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200073
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-128.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-47.
Preparation for voice operationTo use the voice operation, press the SPEECH button (A) first.
BK0162600US.book 55 ページ ２０１３年３月２２日　金曜日　午後２時４１分

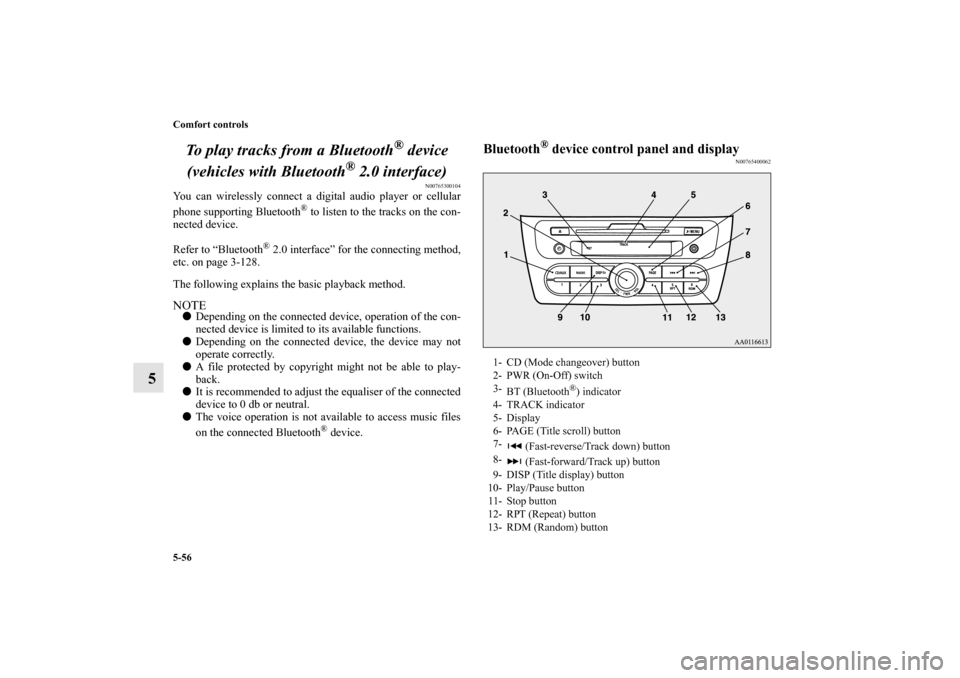

5-56 Comfort controls
5To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface)
N00765300104
You can wirelessly connect a digital audio player or cellular
phone supporting Bluetooth
® to listen to the tracks on the con-
nected device.
Refer to “Bluetooth
® 2.0 interface” for the connecting method,
etc. on page 3-128.
The following explains the basic playback method.
NOTE
Depending on the connected device, operation of the con-
nected device is limited to its available functions.

Depending on the connected device, the device may not
operate correctly.

A file protected by copyright might not be able to play-
back.

It is recommended to adjust the equaliser of the connected
device to 0 db or neutral.

The voice operation is not available to access music files
on the connected Bluetooth
® device.
Bluetooth
® device control panel and display
N00765400062
1- CD (Mode changeover) button
2- PWR (On-Off) switch
3-
BT (Bluetooth
®) indicator
4- TRACK indicator
5- Display
6- PAGE (Title scroll) button
7-
(Fast-reverse/Track down) button
8-
(Fast-forward/Track up) button
9- DISP (Title display) button
10- Play/Pause button
11- Stop button
12- RPT (Repeat) button
13- RDM (Random) button
BK0162600US.book 56 ページ ２０１３年３月２２日　金曜日　午後２時４１分

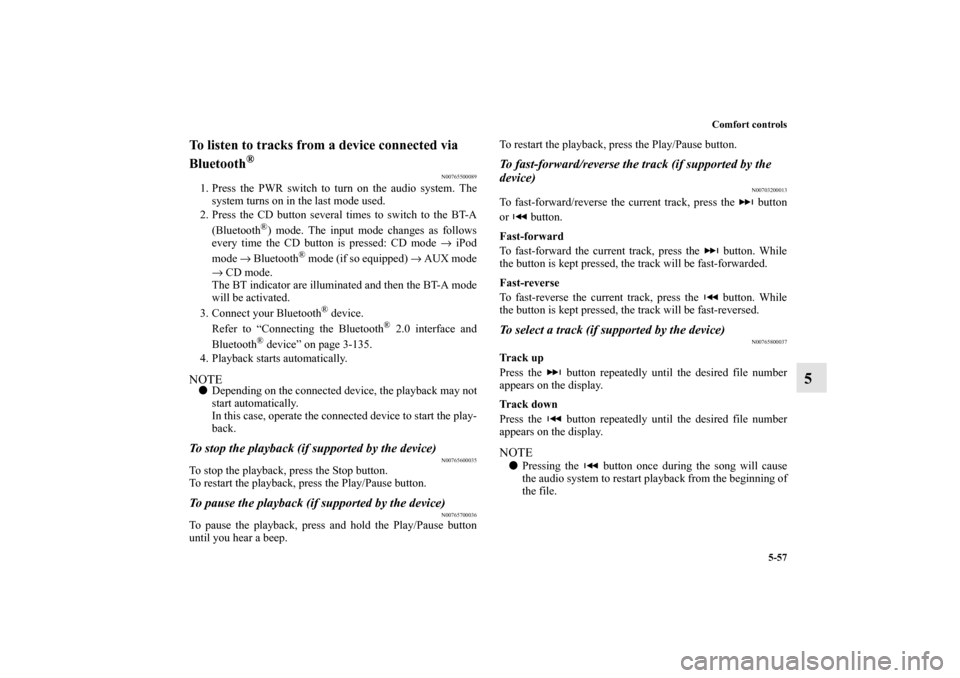

Comfort controls
5-57
5
To listen to tracks from a device connected via
Bluetooth
®
N00765500089
1. Press the PWR switch to turn on the audio system. The
system turns on in the last mode used.
2. Press the CD button several times to switch to the BT-A
(Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed: CD mode → iPod
mode → Bluetooth
® mode (if so equipped) → AUX mode
→ CD mode.
The BT indicator are illuminated and then the BT-A mode
will be activated.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-135.
4. Playback starts automatically.
NOTE
Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600035
To stop the playback, press the Stop button.
To restart the playback, press the Play/Pause button.To pause the playback (if supported by the device)
N00765700036
To pause the playback, press and hold the Play/Pause button
until you hear a beep.To restart the playback, press the Play/Pause button.
To fast-forward/reverse the track (if supported by the
device)
N00703200013
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is kept pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While
the button is kept pressed, the track will be fast-reversed.To select a track (if supported by the device)
N00765800037
Track up
Press the button repeatedly until the desired file number
appears on the display.
Track down
Press the button repeatedly until the desired file number
appears on the display.NOTE
Pressing the button once during the song will cause
the audio system to restart playback from the beginning of
the file.
BK0162600US.book 57 ページ ２０１３年３月２２日　金曜日　午後２時４１分

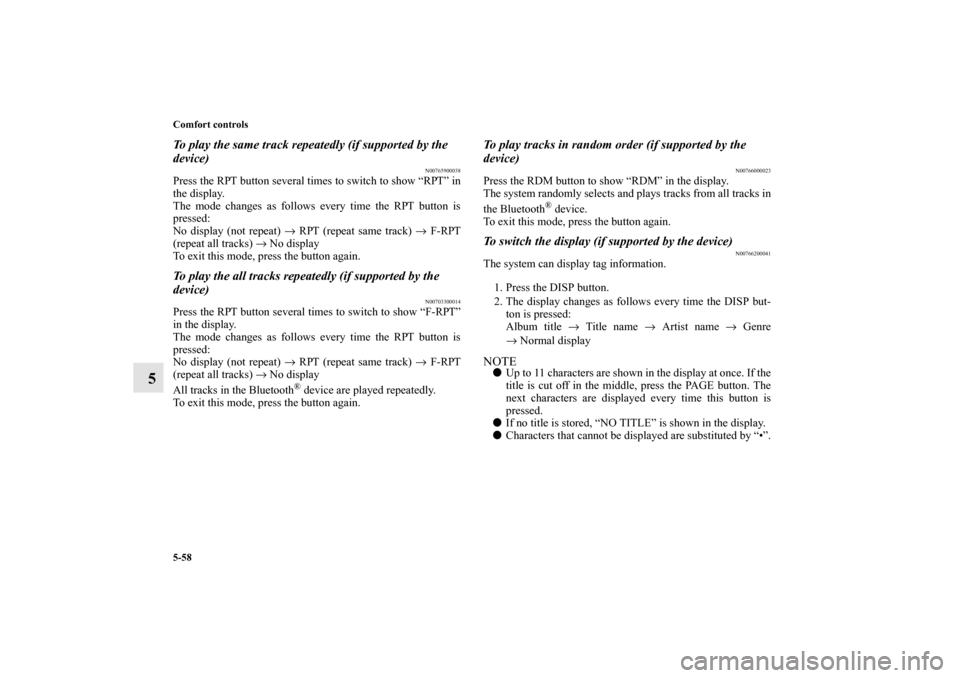

5-58 Comfort controls
5
To play the same track repeatedly (if supported by the
device)
N00765900038
Press the RPT button several times to switch to show “RPT” in
the display.
The mode changes as follows every time the RPT button is
pressed:
No display (not repeat) → RPT (repeat same track) → F-RPT
(repeat all tracks) → No display
To exit this mode, press the button again.To play the all tracks repeatedly (if supported by the
device)
N00703300014
Press the RPT button several times to switch to show “F-RPT”
in the display.
The mode changes as follows every time the RPT button is
pressed:
No display (not repeat) → RPT (repeat same track) → F-RPT
(repeat all tracks) → No display
All tracks in the Bluetooth
® device are played repeatedly.
To exit this mode, press the button again.
To play tracks in random order (if supported by the
device)
N00766000023
Press the RDM button to show “RDM” in the display.
The system randomly selects and plays tracks from all tracks in
the Bluetooth
® device.
To exit this mode, press the button again.
To switch the display (if supported by the device)
N00766200041
The system can display tag information.
1. Press the DISP button.
2. The display changes as follows every time the DISP but-
ton is pressed:
Album title → Title name → Artist name → Genre
→Normal displayNOTE
Up to 11 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted by “•”.
BK0162600US.book 58 ページ ２０１３年３月２２日　金曜日　午後２時４１分
