MITSUBISHI MIRAGE 2014 6.G Owners Manual

6

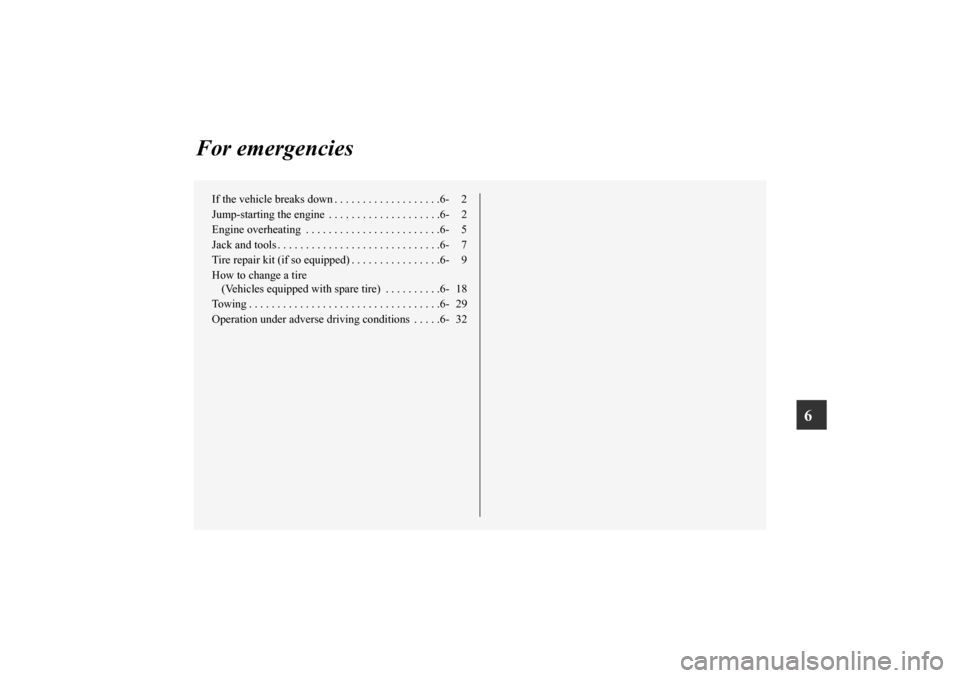

For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 5
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
Tire repair kit (if so equipped) . . . . . . . . . . . . . . . .6- 9
How to change a tire
(Vehicles equipped with spare tire) . . . . . . . . . .6- 18
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 29
Operation under adverse driving conditions . . . . .6- 32
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-2 For emergencies
6If the vehicle breaks down
N00836300233
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly with
the hazard lights flashing until you come to a safe stopping
place. Keep the flashers flashing.If the engine stops/failsIf the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.

Since there is no power steering assist, the steering wheel
will be hard to turn.When the engine fails at the intersectionGet help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe area.
Jump-starting the engine
N00836400768
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables.NOTE
Do not use jumper cables if they have damage or corro-
sion.
1. Take off any metal jewelry such as watch bands or brace-
lets that might create an accidental electrical contact.
2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
WA R N I N G
!
To reduce the risk of igniting flammable gas that
may be emitted from the battery, carefully read this
section before jump-starting the vehicle.
Do not try to start your vehicle by pushing or tow-
ing. This can cause an accident resulting in serious
injury or death and can damage the vehicle.
CAUTION
!
Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-3
6

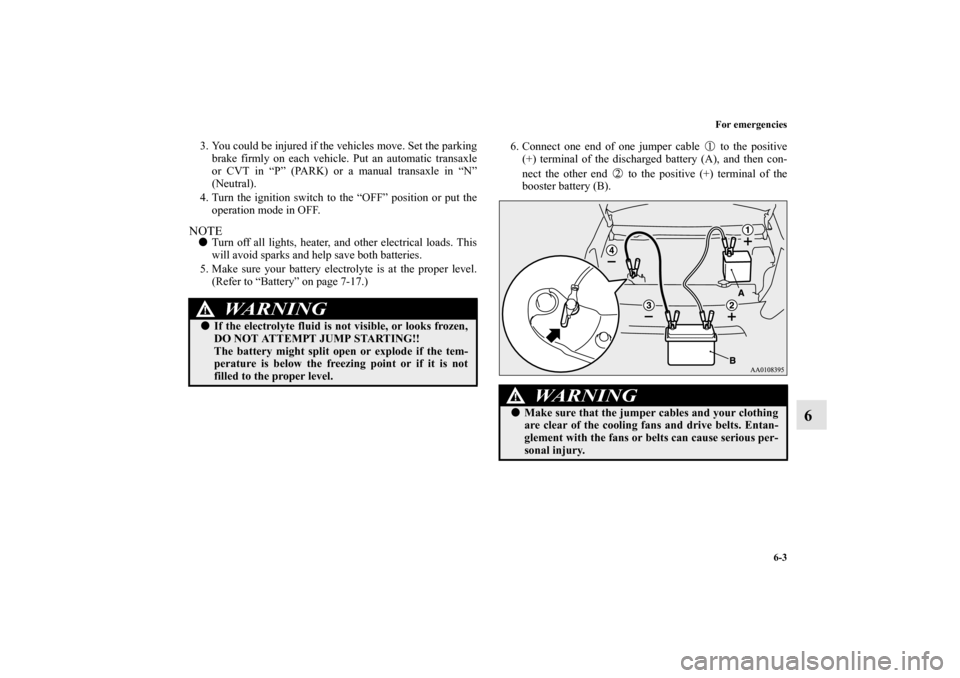

3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle
or CVT in “P” (PARK) or a manual transaxle in “N”
(Neutral).
4. Turn the ignition switch to the “OFF” position or put the
operation mode in OFF.NOTE
Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries.
5. Make sure your battery electrolyte is at the proper level.
(Refer to “Battery” on page 7-17.)6. Connect one end of one jumper cable to the positive
(+) terminal of the discharged battery (A), and then con-
nect the other end to the positive (+) terminal of the
booster battery (B).
WA R N I N G
!
If the electrolyte fluid is not visible, or looks frozen,
DO NOT ATTEMPT JUMP STARTING!!
The battery might split open or explode if the tem-
perature is below the freezing point or if it is not
filled to the proper level.
WA R N I N G
!
Make sure that the jumper cables and your clothing
are clear of the cooling fans and drive belts. Entan-
glement with the fans or belts can cause serious per-
sonal injury.
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-4 For emergencies
6

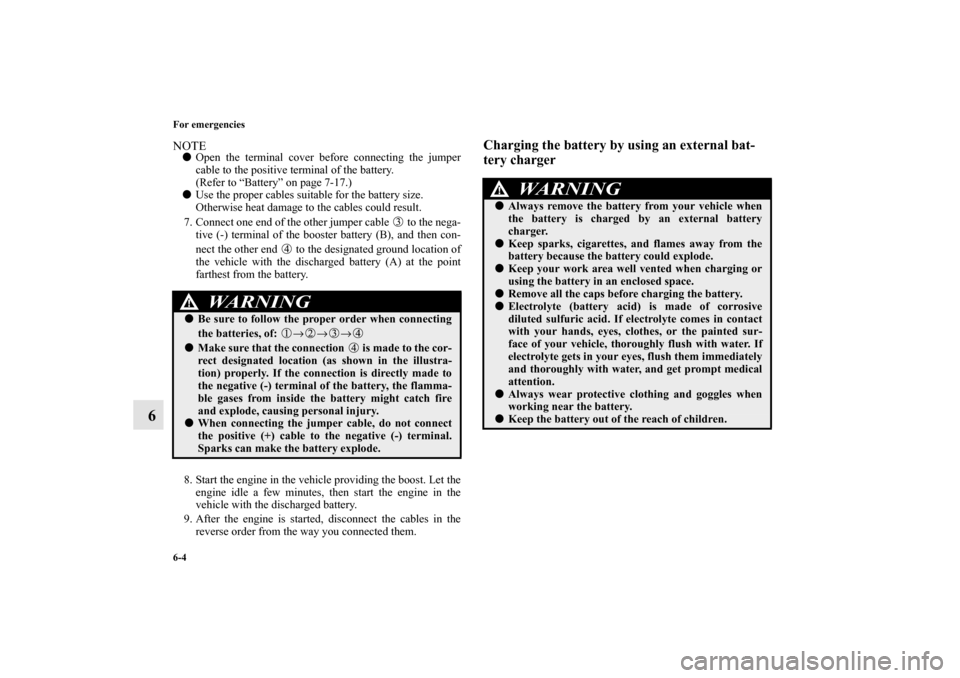

NOTE
Open the terminal cover before connecting the jumper
cable to the positive terminal of the battery.
(Refer to “Battery” on page 7-17.)

Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.
7. Connect one end of the other jumper cable to the nega-
tive (-) terminal of the booster battery (B), and then con-
nect the other end to the designated ground location of
the vehicle with the discharged battery (A) at the point
farthest from the battery.
8. Start the engine in the vehicle providing the boost. Let the
engine idle a few minutes, then start the engine in the
vehicle with the discharged battery.
9. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
Charging the battery by using an external bat-
tery charger
WA R N I N G
!
Be sure to follow the proper order when connecting
the batteries, of: →→→
Make sure that the connection is made to the cor-
rect designated location (as shown in the illustra-
tion) properly. If the connection is directly made to
the negative (-) terminal of the battery, the flamma-
ble gases from inside the battery might catch fire
and explode, causing personal injury.
When connecting the jumper cable, do not connect
the positive (+) cable to the negative (-) terminal.
Sparks can make the battery explode.
WA R N I N G
!
Always remove the battery from your vehicle when
the battery is charged by an external battery
charger.
Keep sparks, cigarettes, and flames away from the
battery because the battery could explode.
Keep your work area well vented when charging or
using the battery in an enclosed space.
Remove all the caps before charging the battery.
Electrolyte (battery acid) is made of corrosive
diluted sulfuric acid. If electrolyte comes in contact
with your hands, eyes, clothes, or the painted sur-
face of your vehicle, thoroughly flush with water. If
electrolyte gets in your eyes, flush them immediately
and thoroughly with water, and get prompt medical
attention.
Always wear protective clothing and goggles when
working near the battery.
Keep the battery out of the reach of children.
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-5
6
As your vehicle has anti-lock brakesIf you drive your vehicle with a low battery charge after the
engine has been started by using jumper cables, the engine may
misfire. This can cause the anti-lock braking system warning
light to blink on and off. This is only due to the low battery
voltage. It is not a problem with the brake system. If this hap-
pens, fully charge the battery and ensure the charging system is
operating properly.
Engine overheating
N00836500365
If the high coolant temperature warning light illuminates dur-
ing the engine is running, the engine may be overheating. If
this happens:
1. Stop the vehicle in a safe place. Turn on the hazard warn-
ing flashers.
2. With the engine still running, carefully raise the engine
hood to vent the engine compartment.
3. Check that the cooling fan is running. If the fan is not
turning, stop the engine immediately and contact an
authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
4. If you see steam or spray coming from under the hood,
turn off the engine.
WA R N I N G
!
To avoid personal injury, keep hands, hair, jewelry
and clothes away from the cooling fan. The cooling
fan can start at any time.
BK0162600US.book 5 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-6 For emergencies
6
5. If you do not see steam or spray coming from under the
hood, leave the engine on until the high coolant tempera-
ture warning light goes off. After the high coolant temper-
ature warning light has gone off, you can start driving
again. If the high coolant temperature warning light stays
on, turn off the engine.
6. When you do not see any more steam or spray, open the
hood. Look for obvious leaks, such as a split radiator
hose. Be careful as components will be hot. Any leak
source must be repaired.
7. If there is no obvious leak source, check the coolant level
in the engine coolant reserve tank. If there is none, or if it
is too low, slowly add coolant.8. If the engine coolant reserve tank needs coolant, you will
probably also need to add coolant to the radiator. Do not
loosen or remove the radiator cap until the engine has
cooled down.
9. Start the engine, and slowly add coolant, up to the bottom
of the filler neck. Use plain water if you have to (and
replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it fully. Check the
coolant temperature warning light. You can start driving
again when the high coolant temperature warning light
does not come on.
11. Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
WA R N I N G
!
Before raising the engine hood, check to see if there
is steam or spray coming from under the hood.
Steam or spray coming from an overheated engine
could seriously scald you.
Do not open the hood until there is no steam or
spray.
WA R N I N G
!
Removing the radiator cap could scald you with
escaping hot water or steam. When checking the
radiator level, cover the cap with a cloth before try-
ing to remove it. Turn it slowly counterclockwise,
without pressing down, to the first notch. The pres-
sure in the system will then be let out. When the
pressure is COMPLETELY LET OUT, press down
and keep turning the cap counterclockwise until it
comes off.
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-7

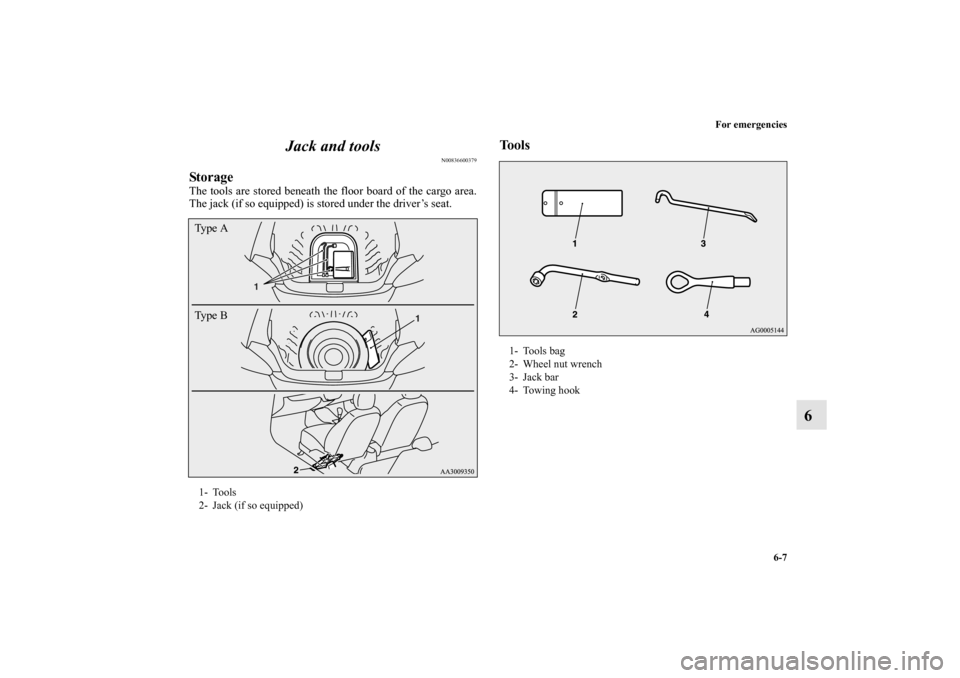

6 Jack and tools
N00836600379
StorageThe tools are stored beneath the floor board of the cargo area.
The jack (if so equipped) is stored under the driver’s seat.
Tools
1- Tools
2- Jack (if so equipped)Ty p e A
Ty p e B
1- Tools bag
2- Wheel nut wrench
3- Jack bar
4- Towing hook
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-8 For emergencies
6

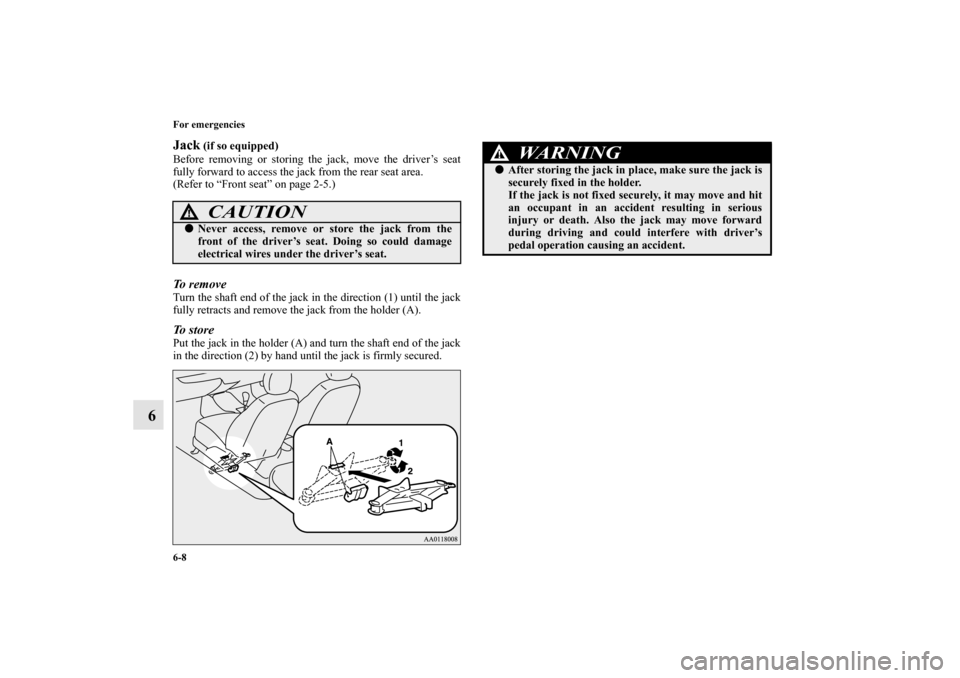

Jack
(if so equipped)
Before removing or storing the jack, move the driver’s seat
fully forward to access the jack from the rear seat area.
(Refer to “Front seat” on page 2-5.)
To r e m o v eTurn the shaft end of the jack in the direction (1) until the jack
fully retracts and remove the jack from the holder (A).To s t o r ePut the jack in the holder (A) and turn the shaft end of the jack
in the direction (2) by hand until the jack is firmly secured.
CAUTION
!
Never access, remove or store the jack from the
front of the driver’s seat. Doing so could damage
electrical wires under the driver’s seat.
WA R N I N G
!
After storing the jack in place, make sure the jack is
securely fixed in the holder.
If the jack is not fixed securely, it may move and hit
an occupant in an accident resulting in serious
injury or death. Also the jack may move forward
during driving and could interfere with driver’s
pedal operation causing an accident.
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

For emergencies
6-9
6 Tire repair kit
(if so equipped)
N00800400015

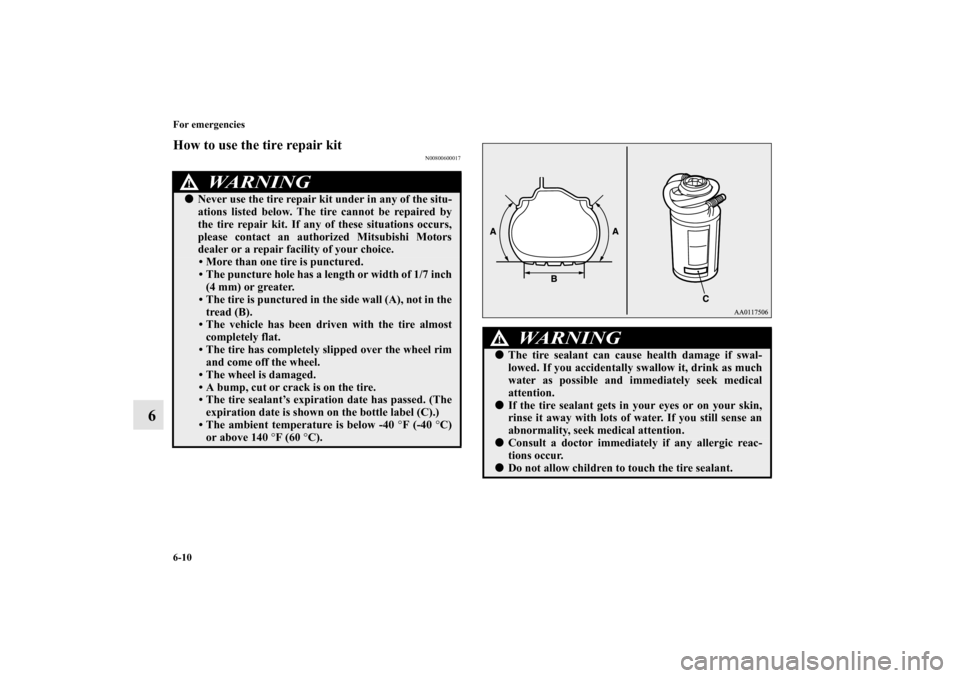

The tire repair kit can be used to temporarily repair a minor
puncture in tread area caused by a nail, screw or similar object.
Therefore, a spare tire is not provided.
Tire repair kit storage
N00800500016
The tire repair kit is stored beneath the floor board of the cargo
area.
WA R N I N G
!
The tire repair kit may not permanently seal a punc-
tured tire. Have the tire repaired as soon as possible.
Using the tire repair kit may damage the wheel
and/or the tire inflation pressure sensor for the tire.
The vehicle must promptly be inspected and
repaired by an authorized Mitsubishi Motors dealer
after using the tire repair kit.
Use only the Mitsubishi Motors genuine tire repair
kit. Sealant in other repair kits may not sufficiently
seal the tire puncture.
1- Tire repair kit which consists of 2 to 5.
2- Tire compressor
3- Tire sealant bottle
4- Speed restriction sticker
5- Bag
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

6-10 For emergencies
6
How to use the tire repair kit
N00800600017
WA R N I N G
!
Never use the tire repair kit under in any of the situ-
ations listed below. The tire cannot be repaired by
the tire repair kit. If any of these situations occurs,
please contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
• More than one tire is punctured.
• The puncture hole has a length or width of 1/7 inch
(4 mm) or greater.
• The tire is punctured in the side wall (A), not in the
tread (B).
• The vehicle has been driven with the tire almost
completely flat.
• The tire has completely slipped over the wheel rim
and come off the wheel.
• The wheel is damaged.
• A bump, cut or crack is on the tire.
• The tire sealant’s expiration date has passed. (The
expiration date is shown on the bottle label (C).)
• The ambient temperature is below -40 °F (-40 °C)
or above 140 °F (60 °C).
WA R N I N G
!
The tire sealant can cause health damage if swal-
lowed. If you accidentally swallow it, drink as much
water as possible and immediately seek medical
attention.
If the tire sealant gets in your eyes or on your skin,
rinse it away with lots of water. If you still sense an
abnormality, seek medical attention.
Consult a doctor immediately if any allergic reac-
tions occur.
Do not allow children to touch the tire sealant.
BK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分
