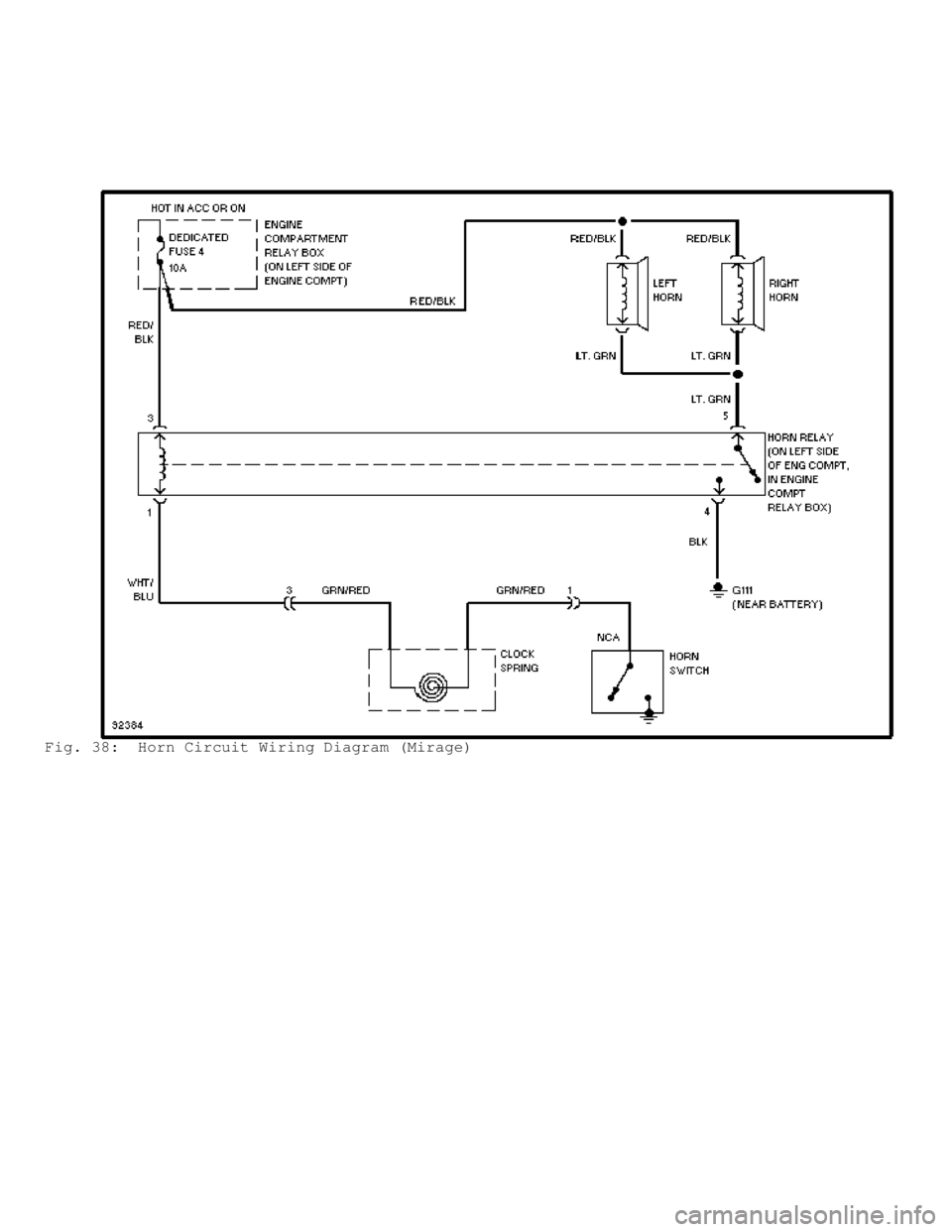

Fig. 37: Horn Circuit Wiring Diagram (Galant)

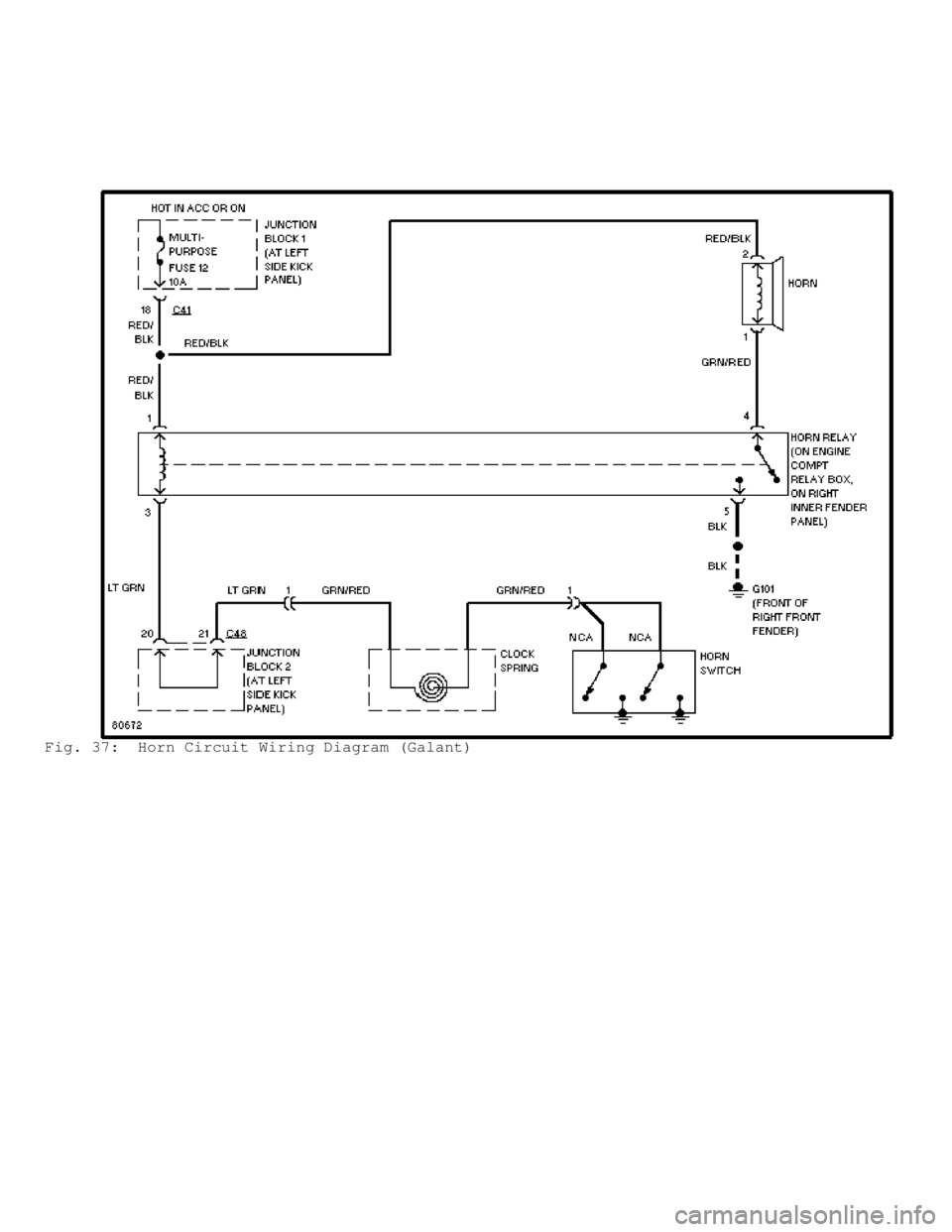

Fig. 38: Horn Circuit Wiring Diagram (Mirage)

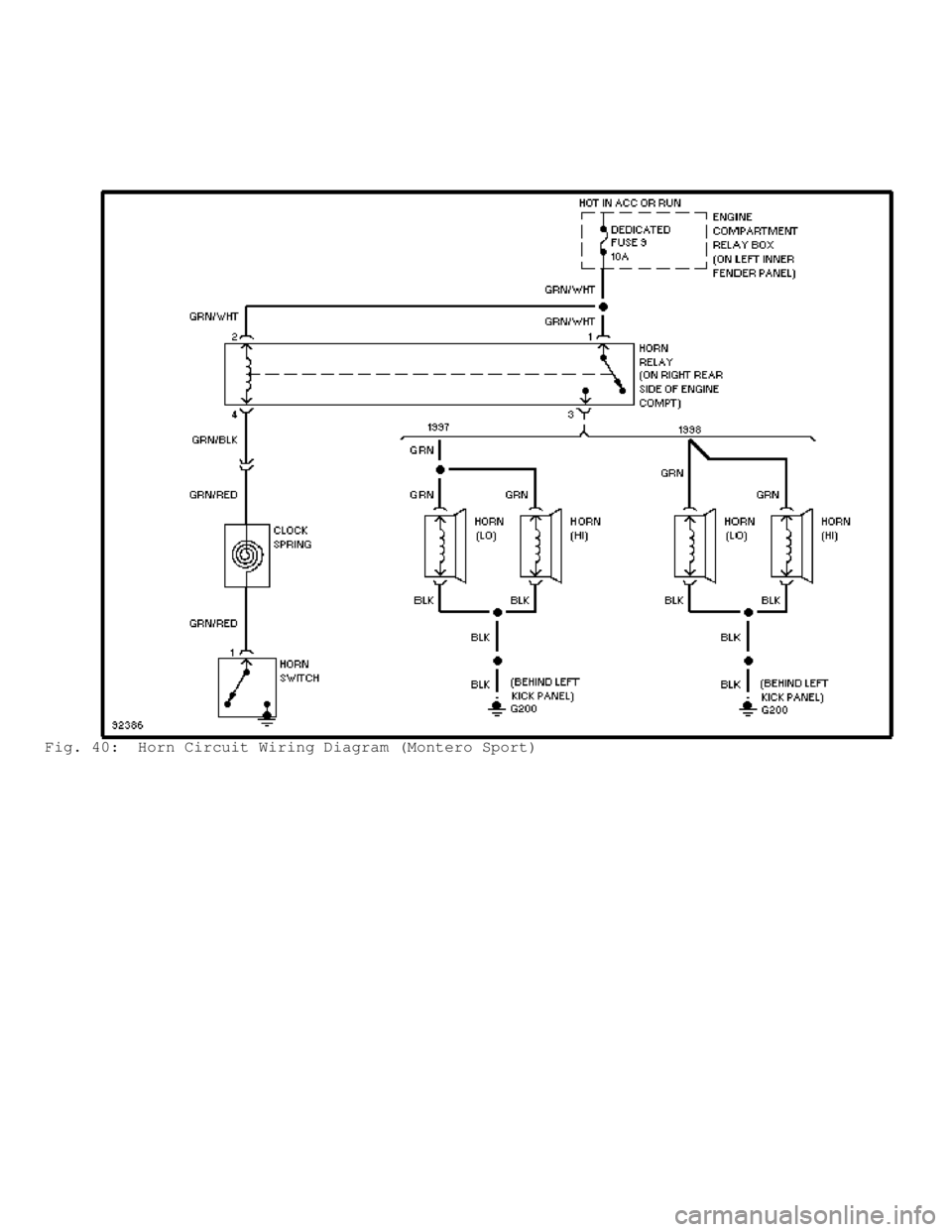

Fig. 39: Horn Circuit Wiring Diagram (Montero)

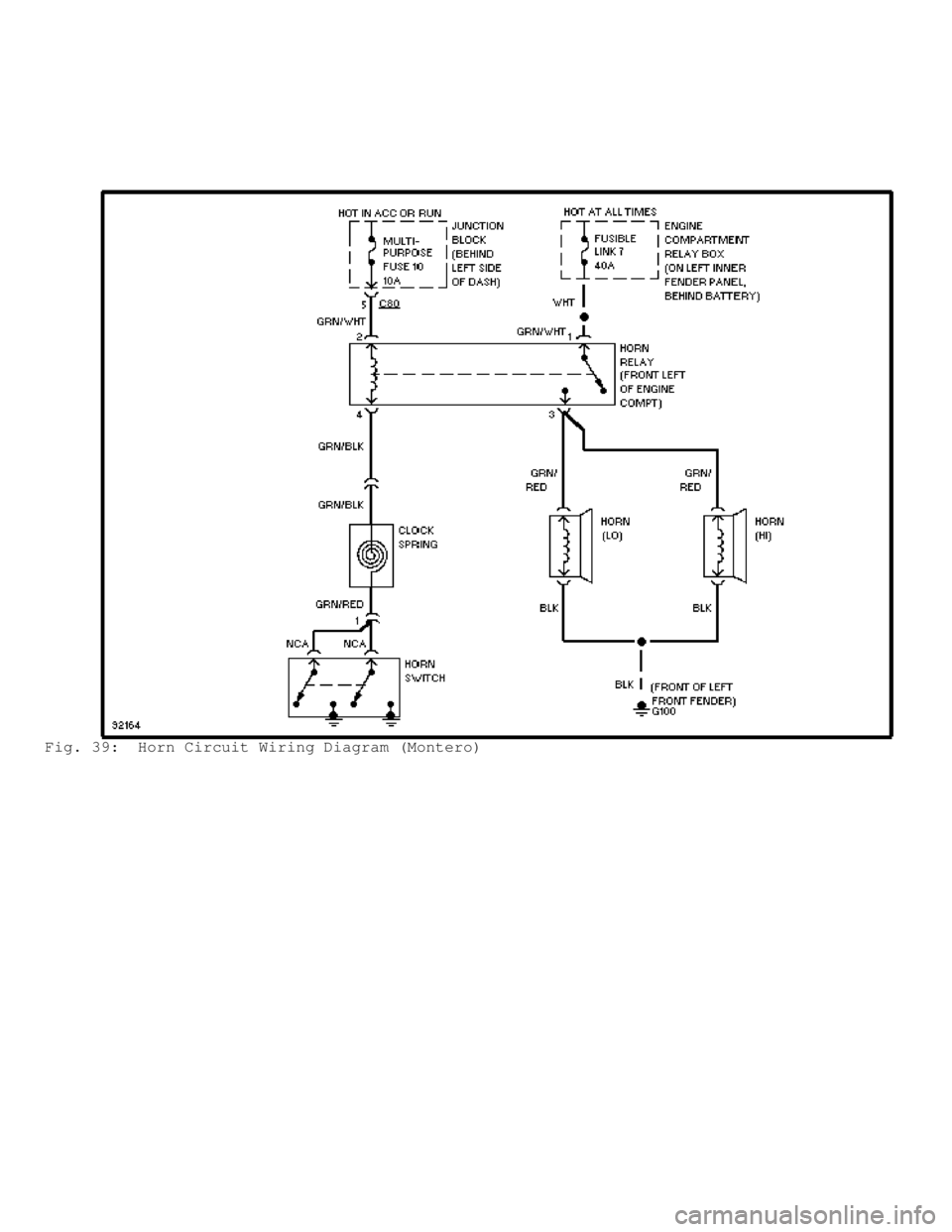

Fig. 40: Horn Circuit Wiring Diagram (Montero Sport)

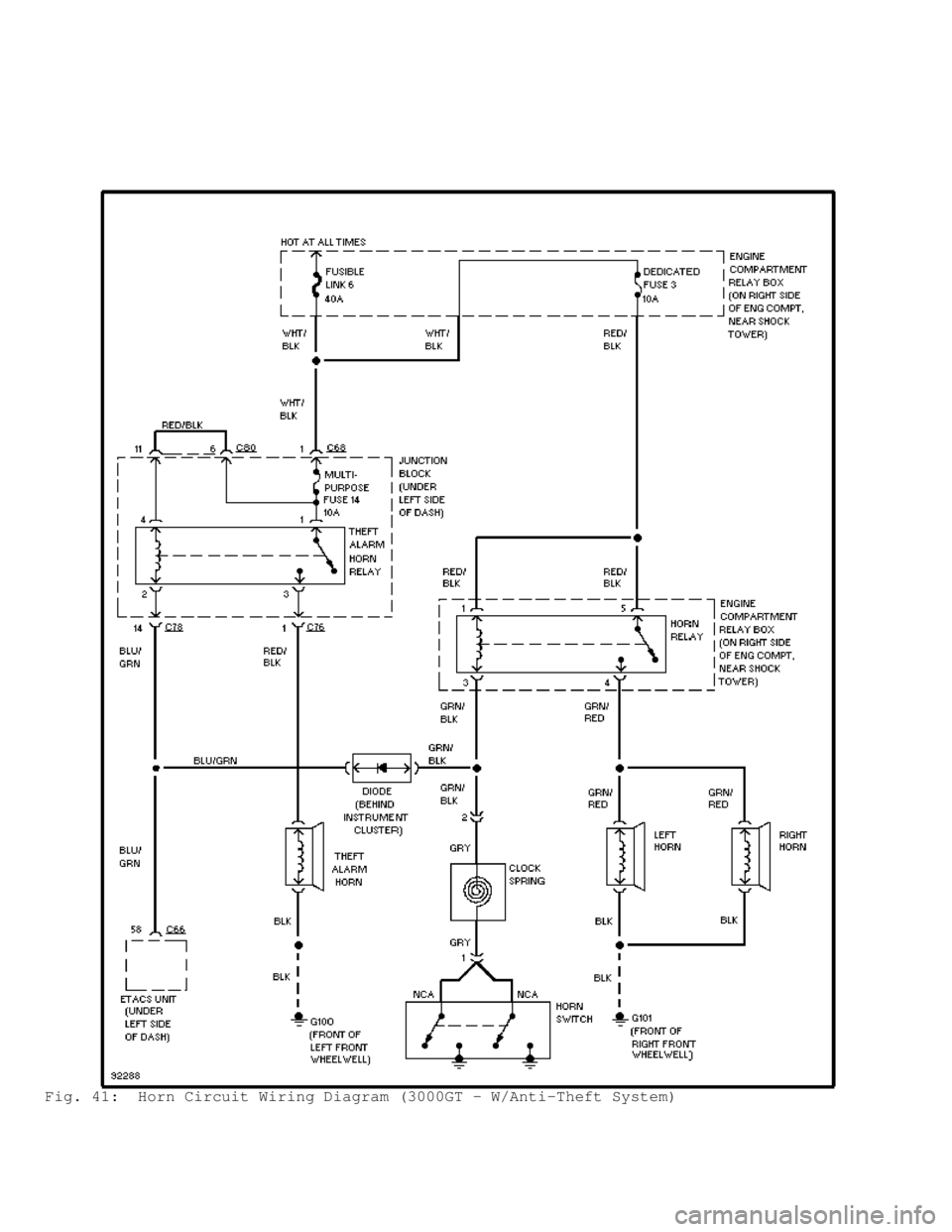

Fig. 41: Horn Circuit Wiring Diagram (3000GT - W/Anti-Theft System)

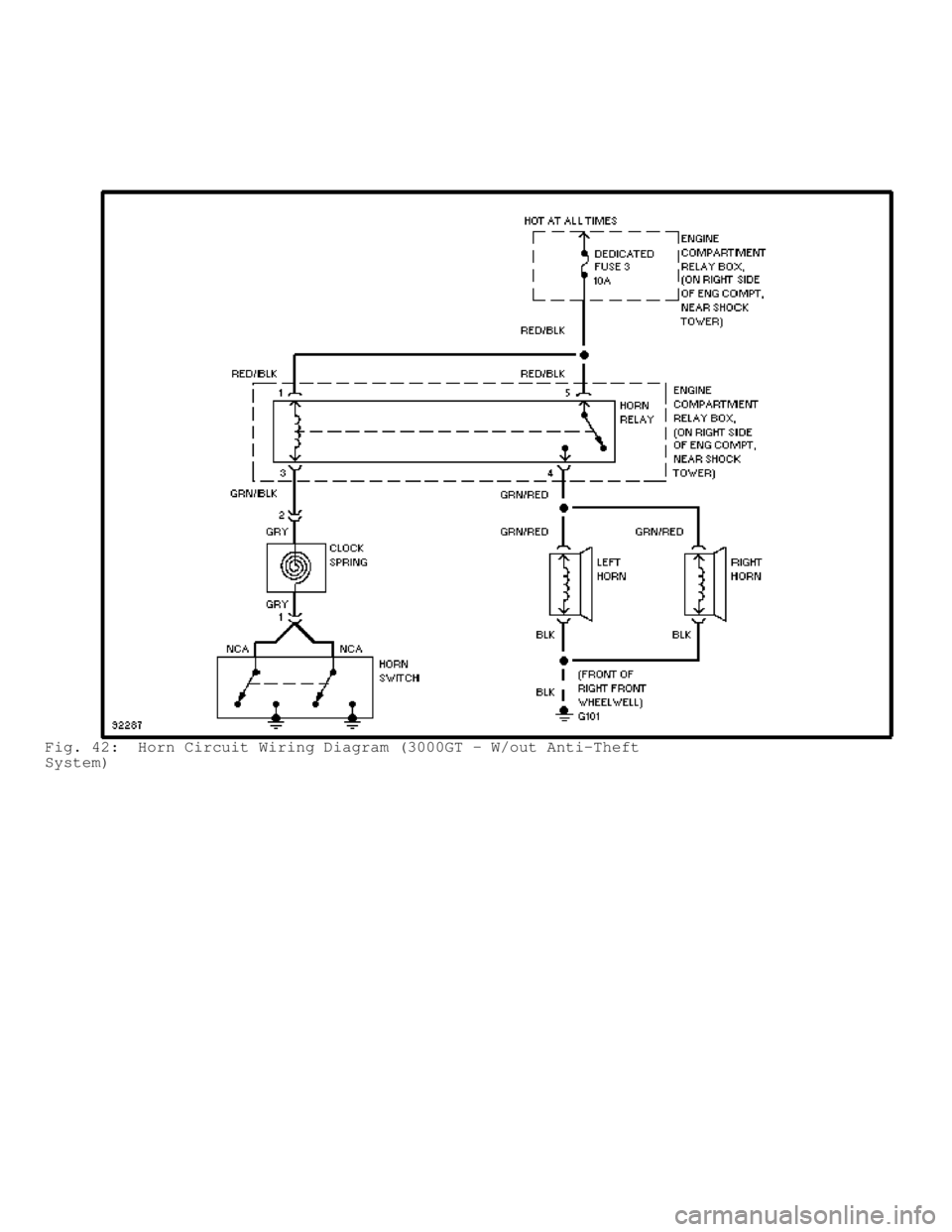

Fig. 42: Horn Circuit Wiring Diagram (3000GT - W/out Anti-Theft
System)

SUN ROOF R & I
Removal & Installation (Eclipse & Galant)
1) Remove side trim covers by lightly pulling panels straight
down. Unbolt and remove roof glass panel with adjust plates. See
Fig. 1 . Operate sun roof drive cable assembly to fully open position.
Remove deflector. Remove guide rail cover. Operate sun roof drive
cable assembly to fully closed position and remove rear drip channel.
2) Remove overhead switch assembly. Remove rear seat. Push
down on rear seat cushion and pull seat release lever. Unbolt and
remove seat back. Remove front and rear door scuff plate.
3) Remove center pillar lower and upper trim. Remove roof
rail and sun roof trim strips. Remove front and rear pillar trim.
Remove assist handle. Remove headliner. Disconnect motor harness
connector. Remove motor mounting bolts and remove motor.
4) Attach protective tape around roof opening. Pull sliding
roof assembly forward through roof opening. Disconnect drain hoses. If
drain hoses need replacement, attach cord to exterior end of drain
hose. Pull drain hose from interior end. Remove housing assembly and
set brackets.
5) To install components, reverse removal procedure. Sun roof
drive cables must be properly indexed to drive motor drive gear.
Remove drive motor cam gear cover. Using manual closure wrench
(included in tool pouch), rotate motor to correct position. See
Fig. 12 . Install motor. Install remaining components. To adjust roof
glass panel, see SUN ROOF GLASS FIT under ADJUSTMENTS.
Removal & Installation (Montero)
1) Remove trim covers. Unbolt roof glass panel from sliding
assembly and remove. Remove sun roof switch assembly and drive motor.
Remove front and rear door scuff plate.
2) Remove center pillar lower and upper trim. Remove roof
rail and sun roof trim strips. Remove front and rear pillar trim.
Remove assist handle. Remove headliner. Remove rear set bracket.
Remove sun roof assembly. Disconnect drain hoses.
3) If drain hoses need replacement, attach cord to exterior
end of drain hose. Pull drain hose from interior end. To install
components, reverse removal procedure. See DRIVE MOTOR R & I for
installation procedures.
Removal & Installation (Montero Sport & 3000GT)
Remove sun roof switch and dome light assembly. Remove
bracket behind dome light. Remove headliner. Remove drain hose
retaining clips and remove drain hose. Remove sun roof assembly. To
install, reverse removal procedure.
WIRING DIAGRAMS

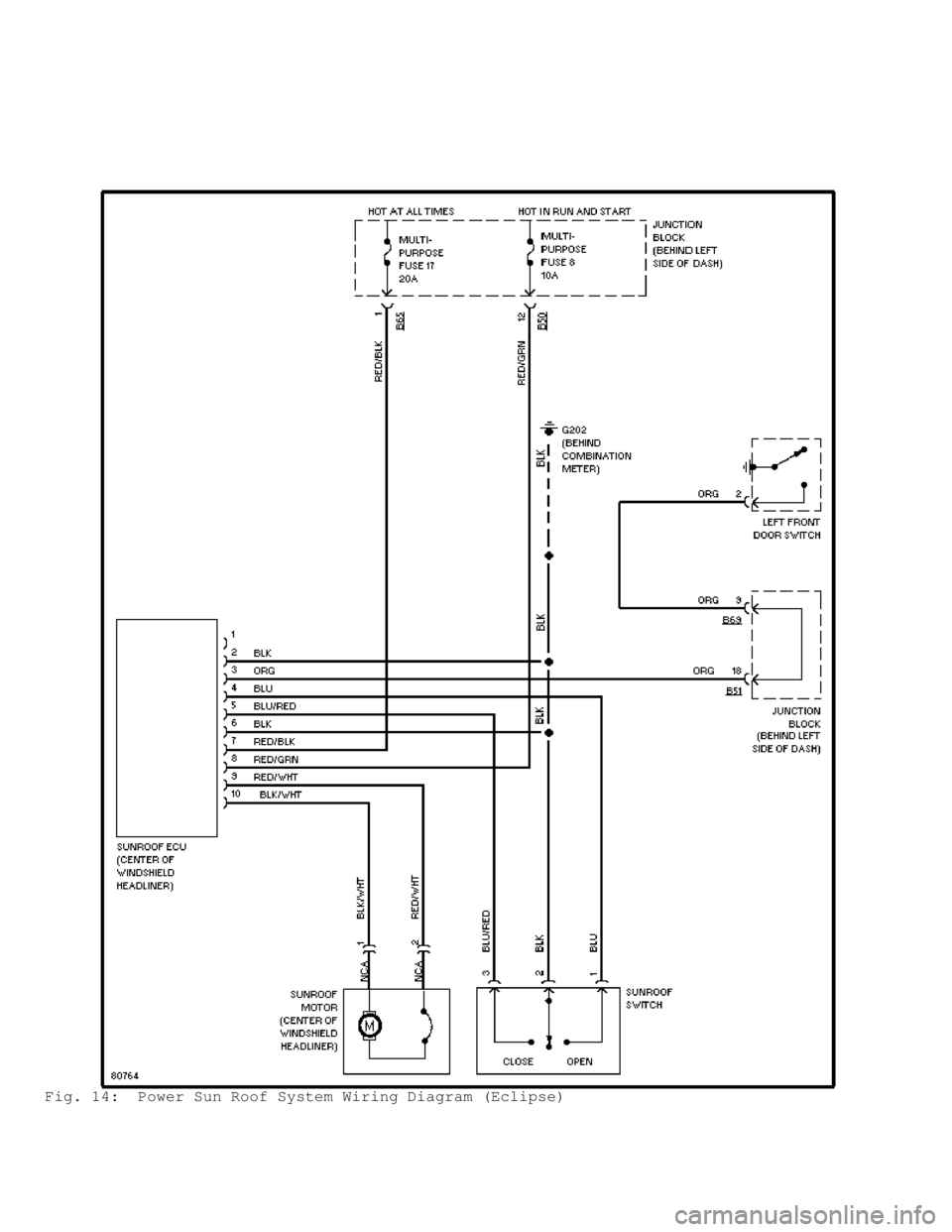

Fig. 14: Power Sun Roof System Wiring Diagram (Eclipse)

Fig. 15: Power Sun Roof System Wiring Diagram (Galant)

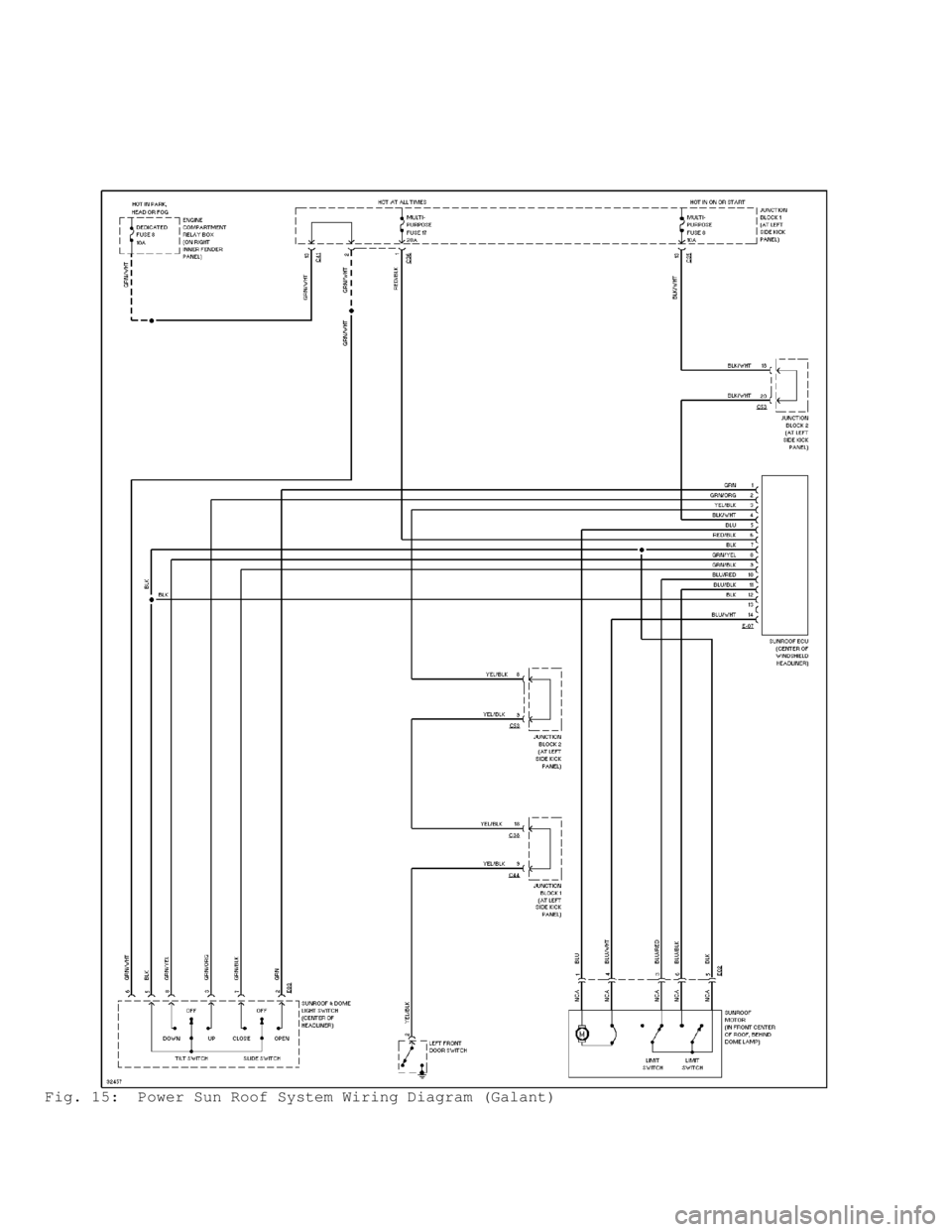

Fig. 16: Power Sun Roof System Wiring Diagram (Montero)
