MITSUBISHI MONTERO 1998 Service Manual terminal to relay terminal No. 3. Continuity should exist between
relay terminals No. 4 and 5. Replace relay as necessary.
Eclipse (M/T With Theft Alarm)
1) Remove starter relay. See

terminal to relay terminal No. 3. Continuity should exist between
relay terminals No. 4 and 5. Replace relay as necessary.
Eclipse (M/T With Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 5. Replace relay as necessary.
Eclipse (M/T Without Theft Alarm)
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 2. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 4. Replace relay as necessary.
Mirage
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 4. Replace relay as necessary.
Montero Sport With A/T
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 3 and another jumper wire from negative battery
terminal to relay terminal No. 1. Continuity should exist between
relay terminals No. 2 and 5. Replace relay as necessary.
Montero Sport With M/T
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 3. See WIRING DIAGRAMS.
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 3. Continuity should exist between
relay terminals No. 2 and 4. Replace relay as necessary.
3000GT
1) Remove starter relay. See STARTER RELAY LOCATIONS table.
With no power supplied to any relay, continuity should exist between
relay terminals No. 1 and 2 and between relay terminals No. 3 and 4.
See Fig. 1 .
2) Connect a jumper wire from positive battery terminal to
relay terminal No. 1 and another jumper wire from negative battery
terminal to relay terminal No. 2. Continuity should exist between
relay terminals No. 3 and 5. See Fig. 1. Replace relay as necessary.
STARTER RELAY LOCATIONS TABLE
\
\
\
\
\
\
\

Application Location
Diamante ............. At Left Front Fender, Inside Fuse/Relay Block

Page 1089 of 1501

$MITSUBISHI MONTERO 1998 Service Manual STARTER SPECIFICATIONS TABLE��\ ��\ ��\ ��\ ��\ ��\ �� Application$

STARTER SPECIFICATIONS TABLE\
\
\
\
\
\

Application In. (mm)
Commutator Maximum Runout ..................... .004 (.10)
Commutator Minimum Diameter
Diamante ................................... 1.23 (31.2)
Eclipse
Direct Drive Type ................................ (1)
Gear Reduction Type ...................... 1.12 (28.4)
Galant ..................................... 1.12 (28.4)
Mirage
Direct Drive Type ........................ 1.22 (31.4)
Gear Reduction Type ...................... 1.12 (28.4)
Montero & Montero Sport .................... 1.13 (28.8)
3000GT ..................................... 1.12 (28.4)
Commutator Undercut Depth ..................... .020 (.51)
Pinion Gap .......................... .020-.079 (.51-2.01)
( 1) - Information is not available from manufacturer at time
of publication.
\
\
\
\
\
\

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS TABLE\
\
\
\
\
\

Application Ft. Lbs. (N.m)
Starter-To-Block Bolts
Diamante ....................................... 23 (31)
Eclipse
2.0L Non-Turbo ............................... 40 (54)
2.0L Turbo & 2.4L ............................ 22 (30)
Galant ......................................... 22 (30)
Mirage ......................................... 36 (49)
Montero & Montero Sport .................. 19-24 (26-33)
3000GT ......................................... 23 (31)
\
\
\
\
\
\

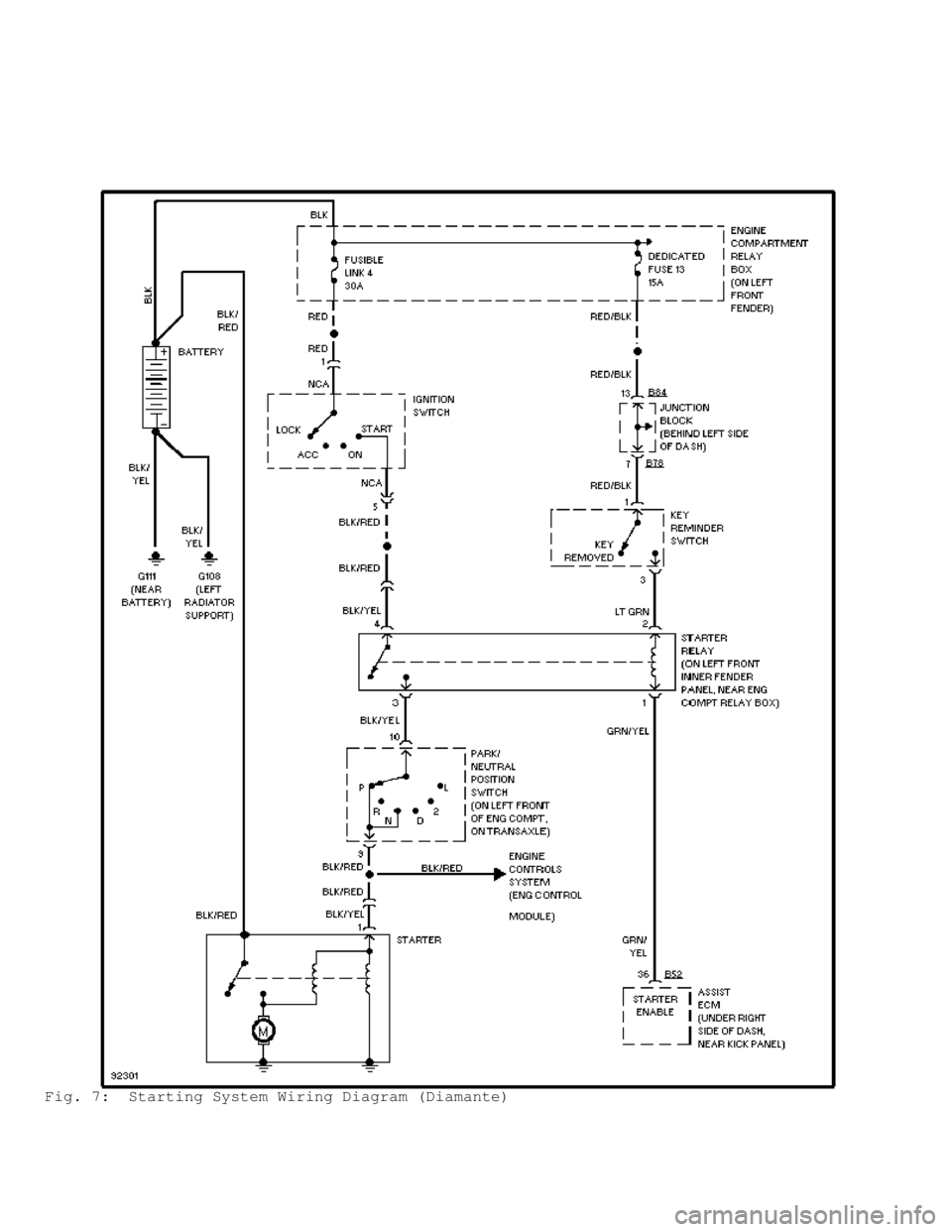

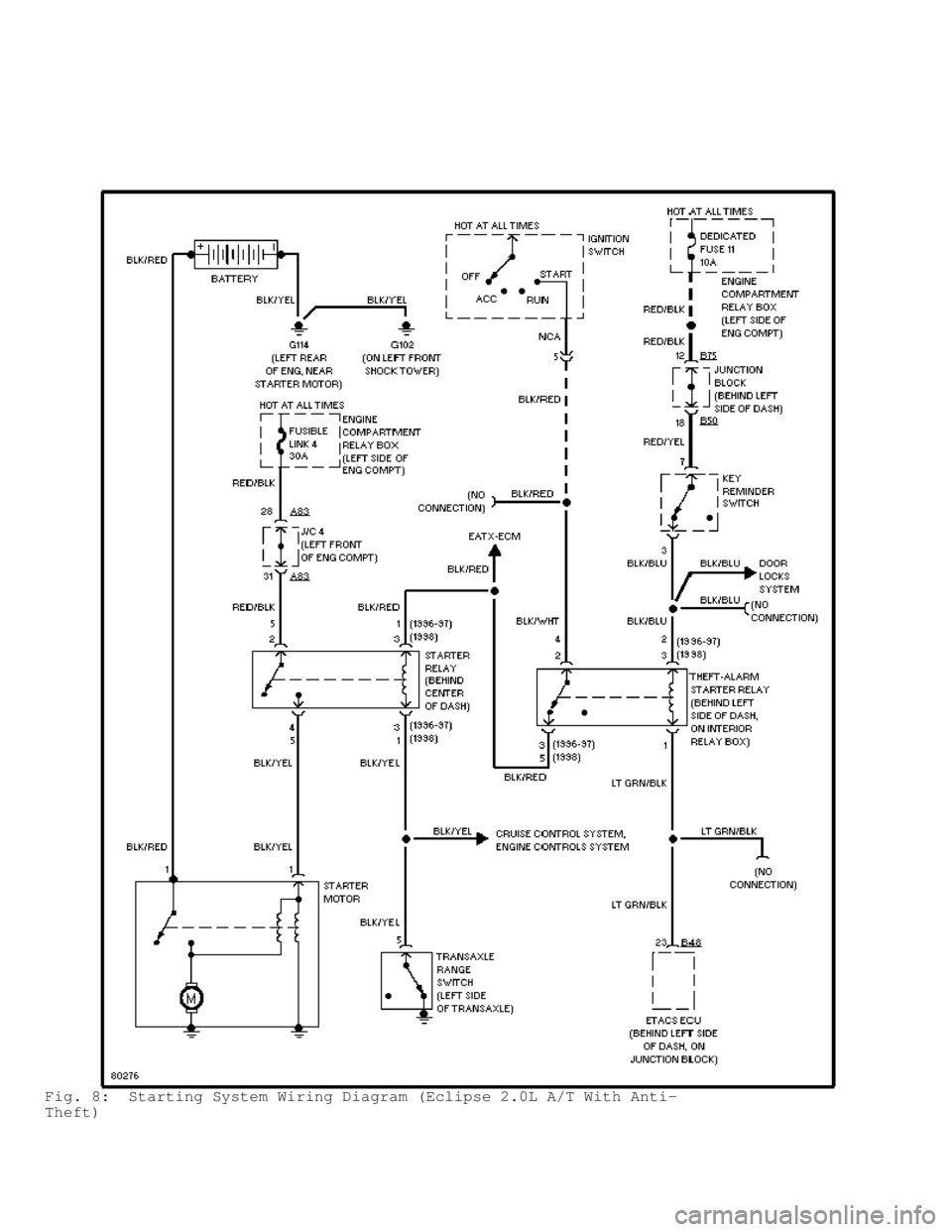

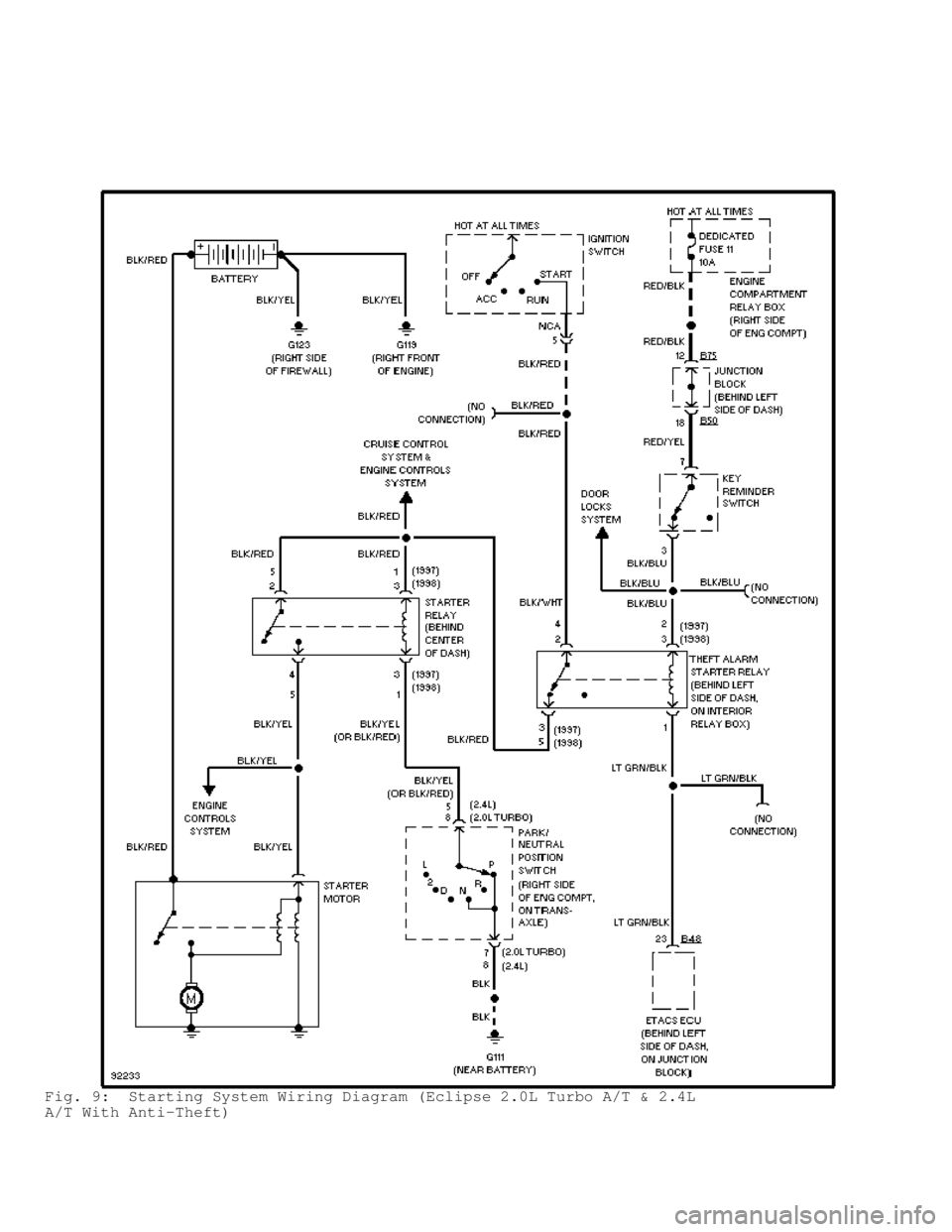

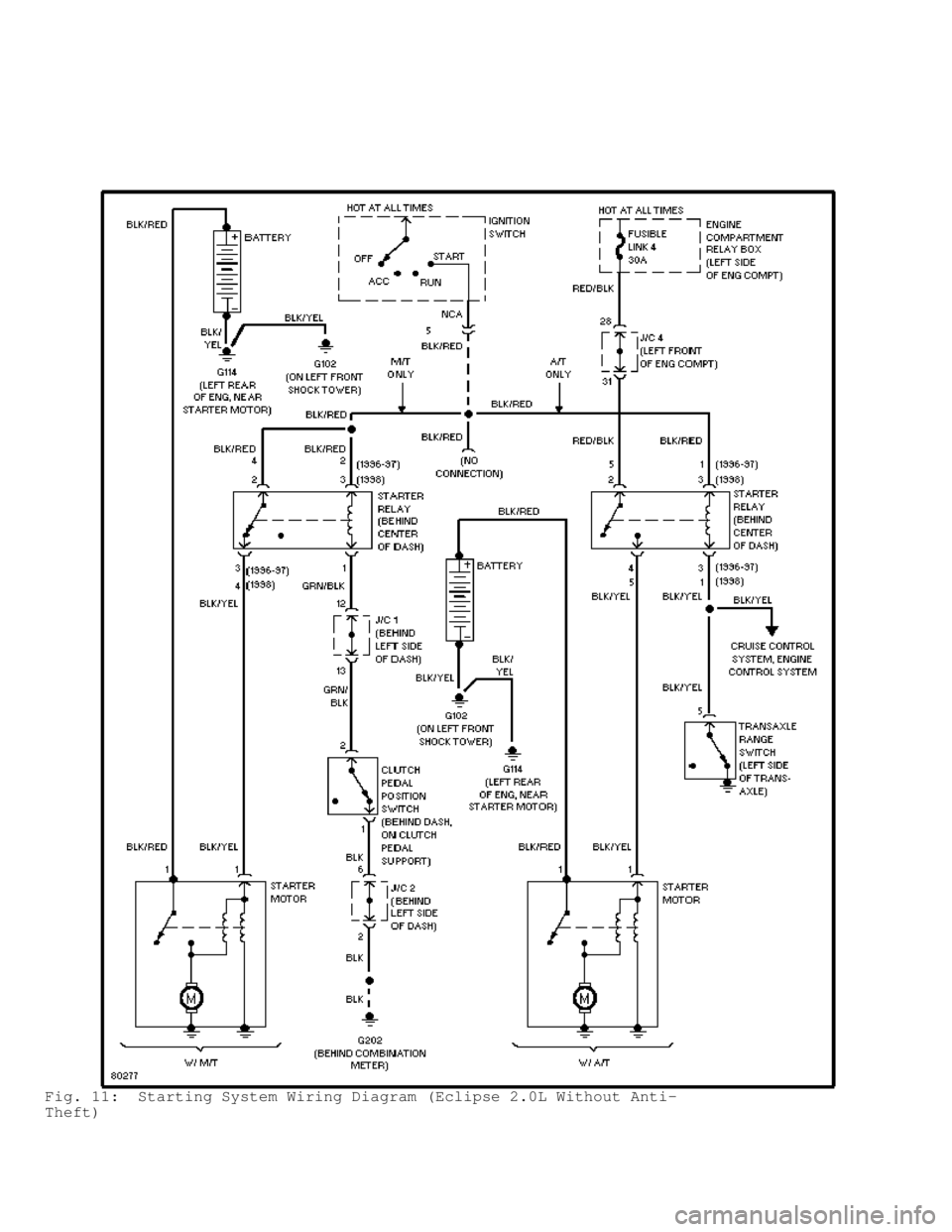

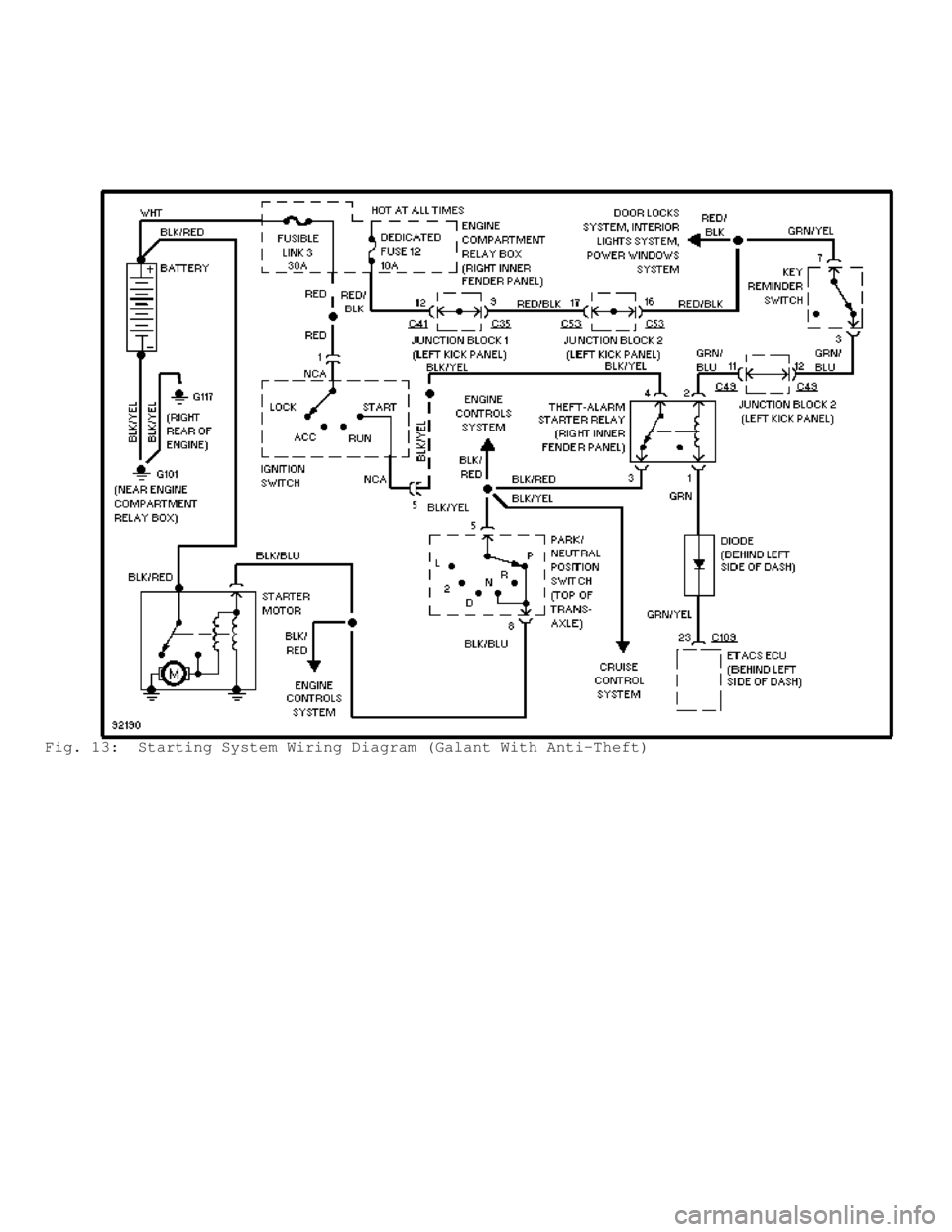

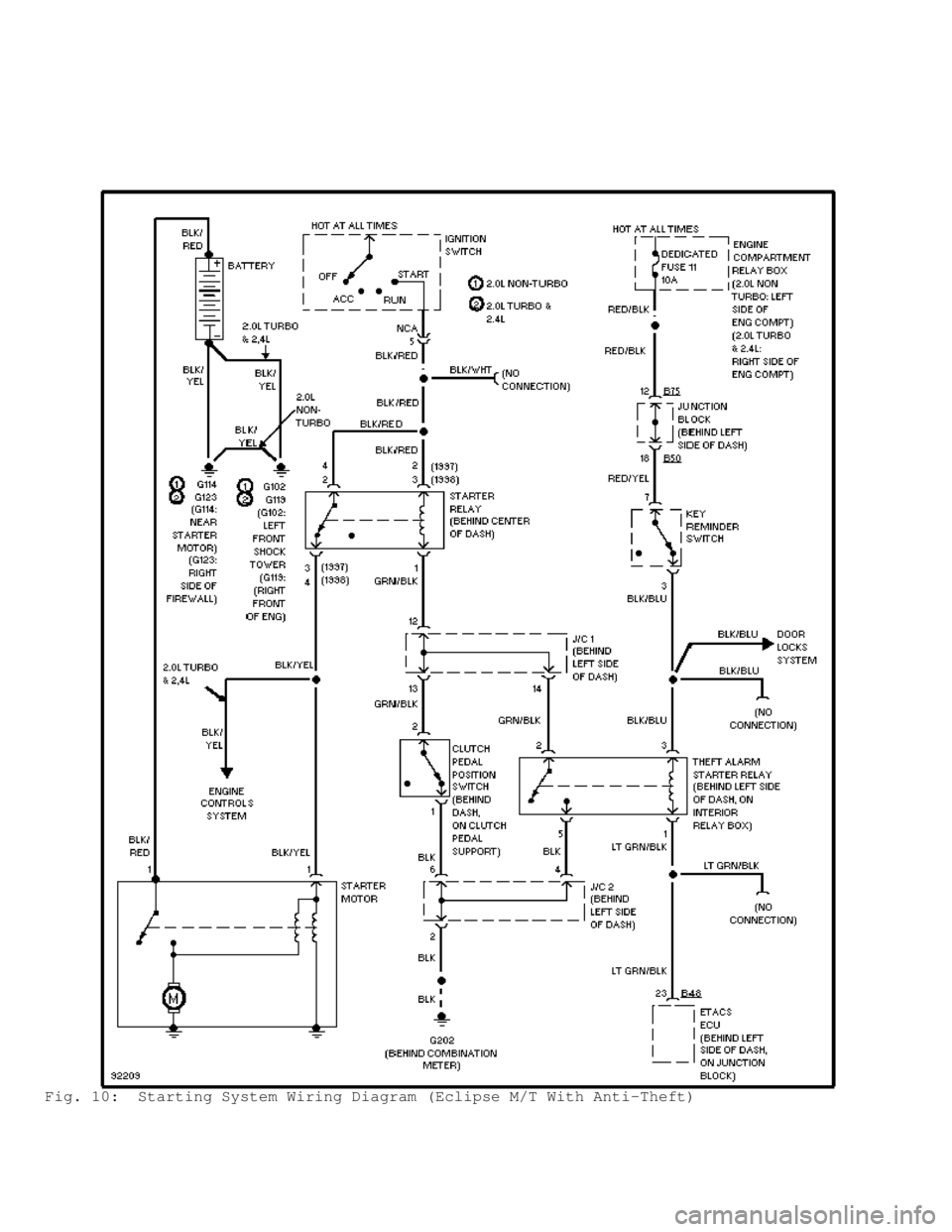

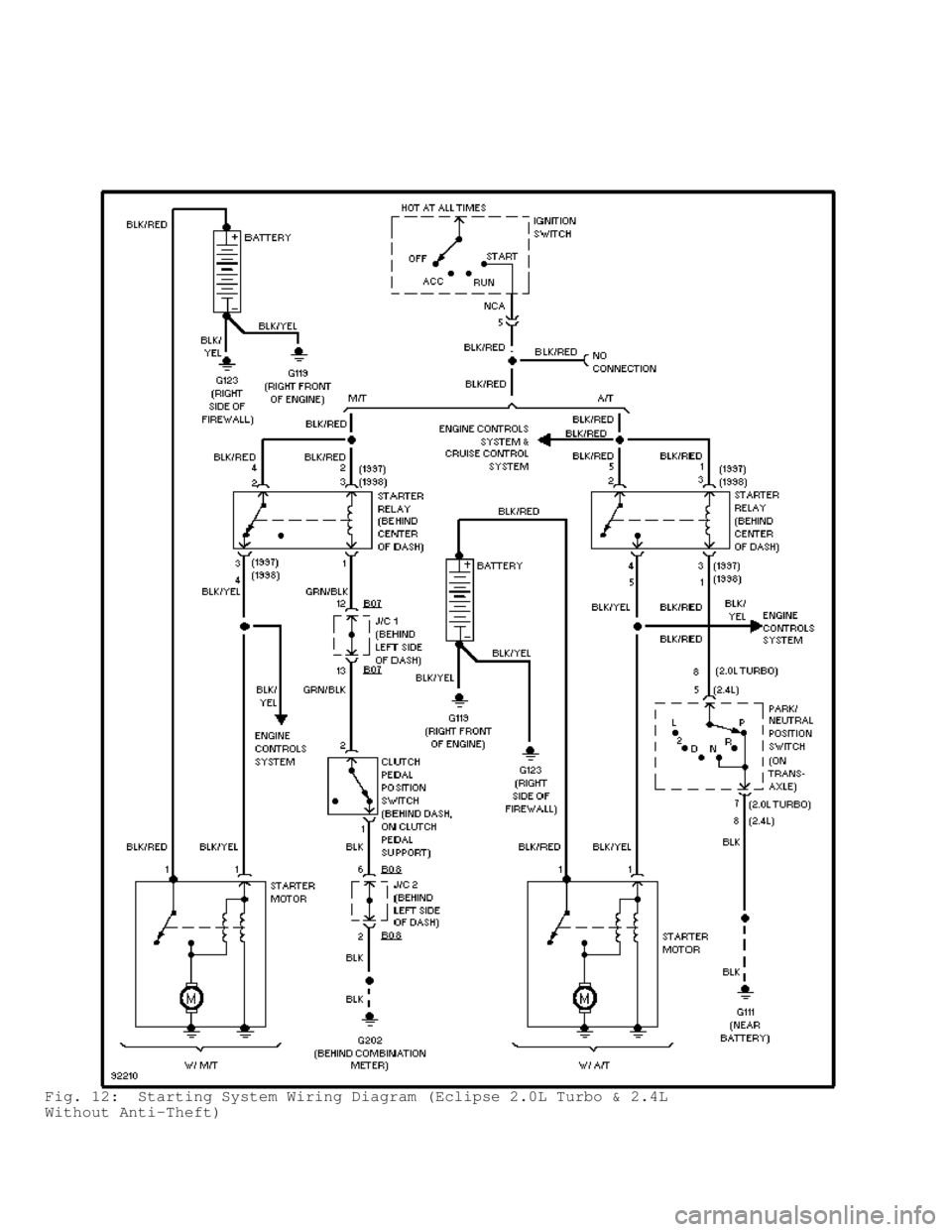

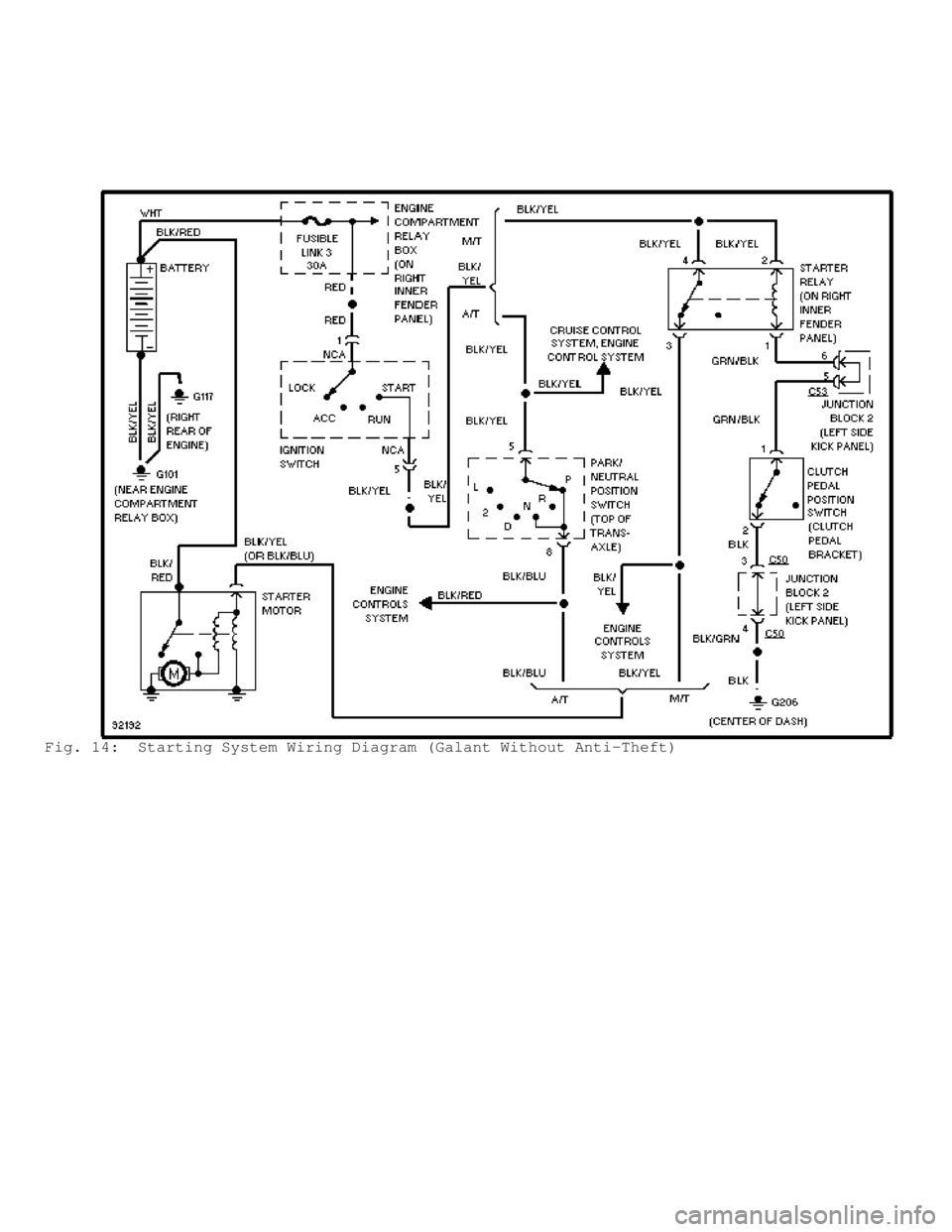

WIRING DIAGRAMS
